Blauberg KOMFORT SB350 Residential Balanced Ventilation

From
$7,002*
*Price indication

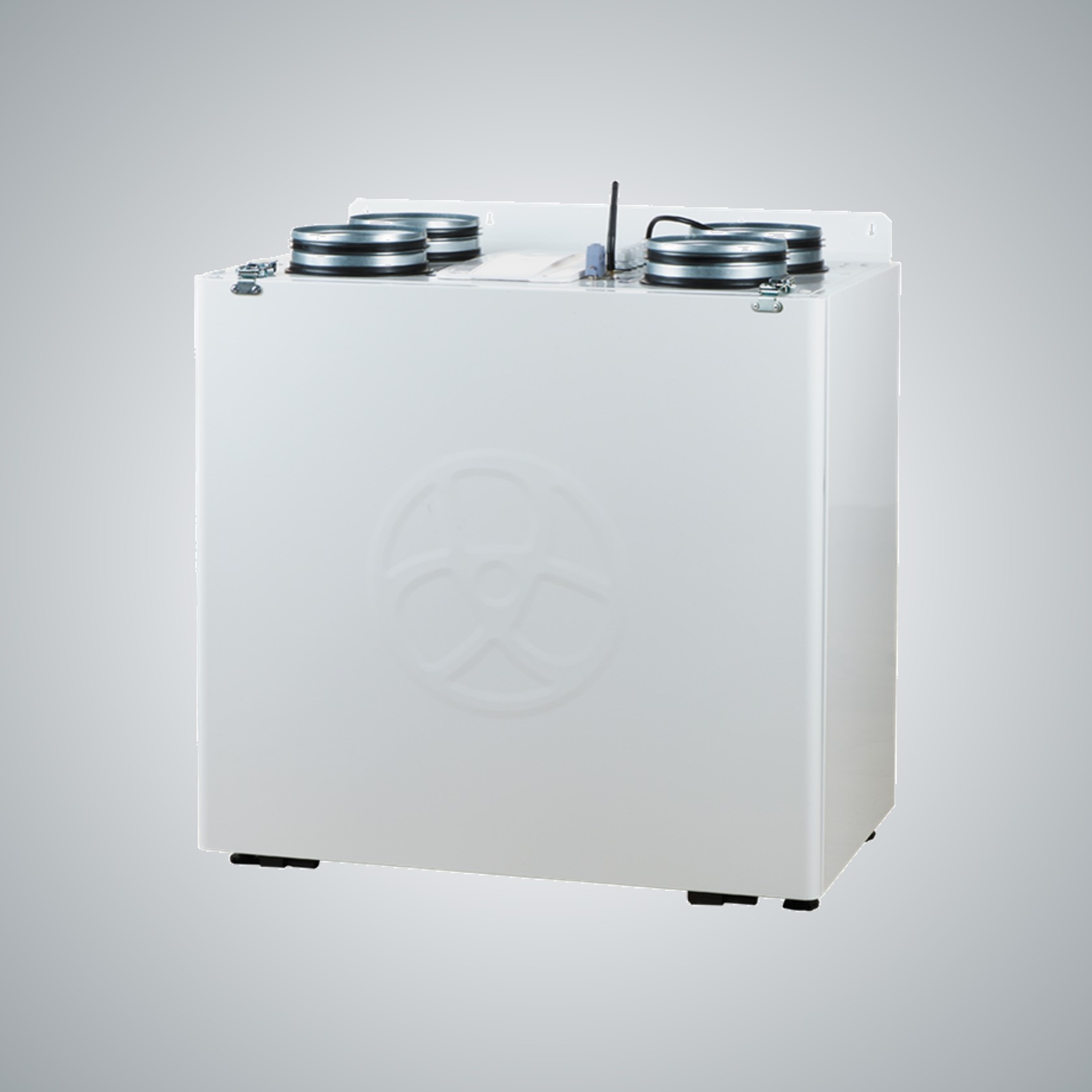

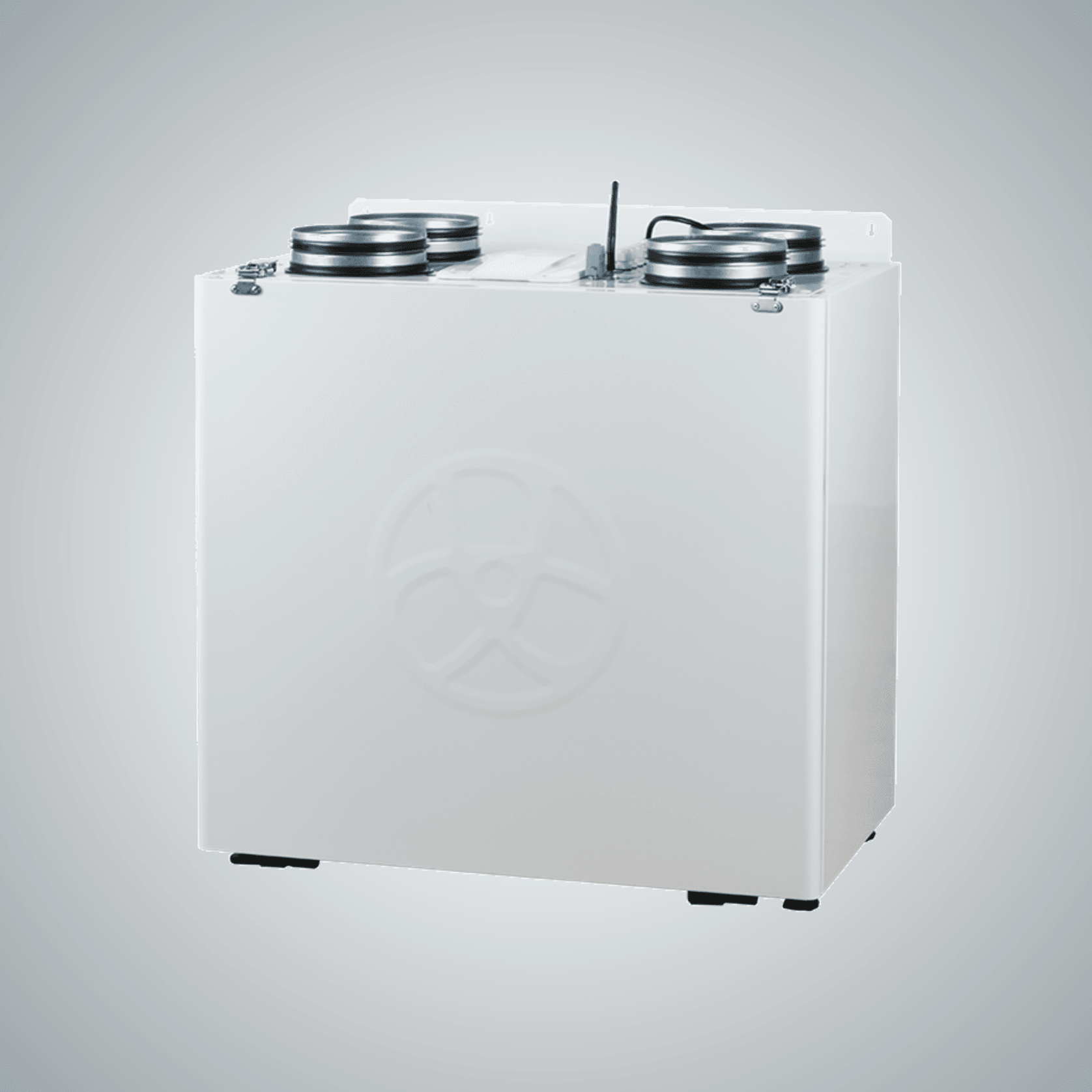

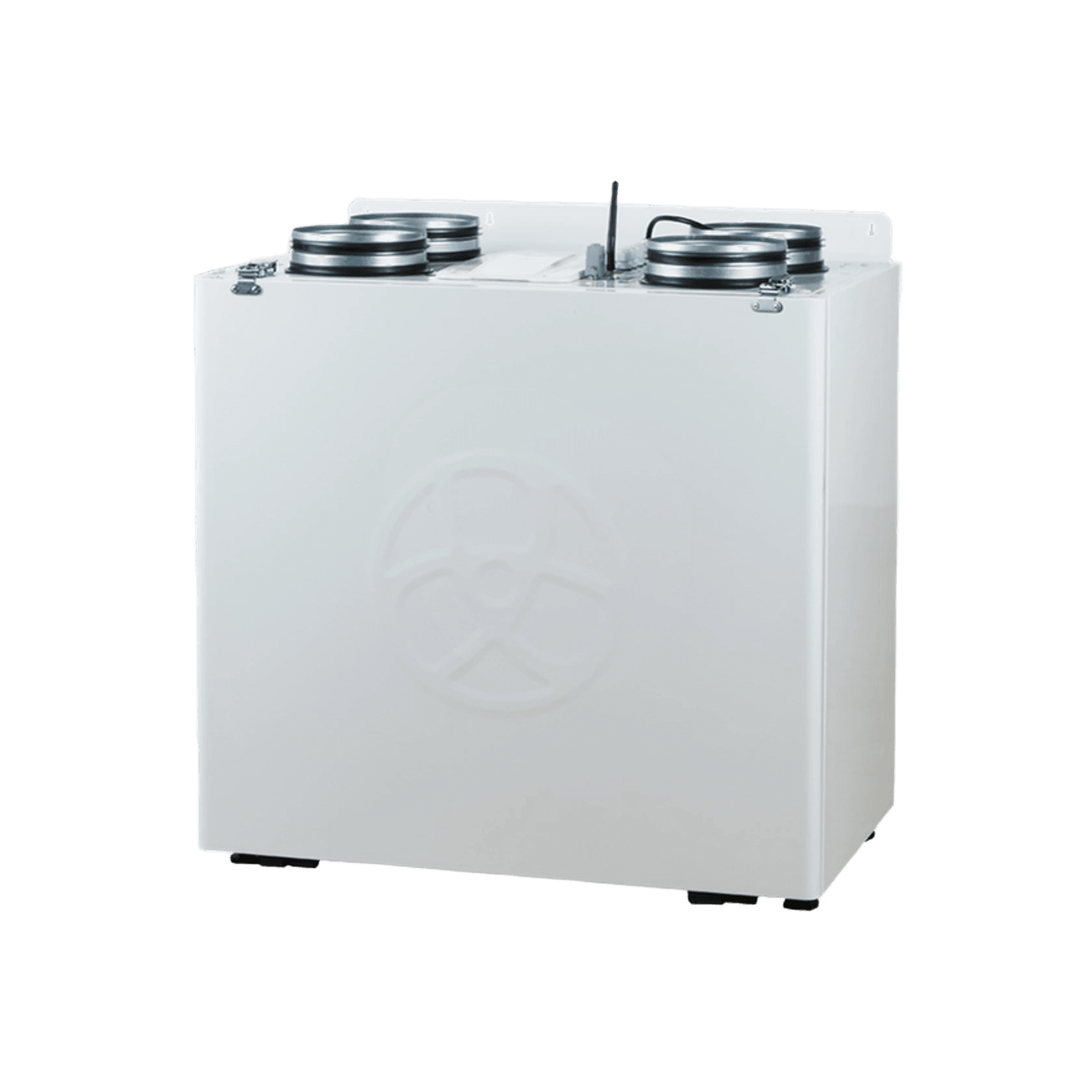

Blauberg Komfort SB350 EC – Passive House Ventilation Unit

The Komfort SB350 EC is a modern air handling unit and sets a high standards with its features and performance in its class. The Passive House certification verifies its high efficiency and the list of features its state-of-the-art technology. The German brand Blauberg is underlining the solid design, ideal for wall mounting with easy top connection.

Highlights

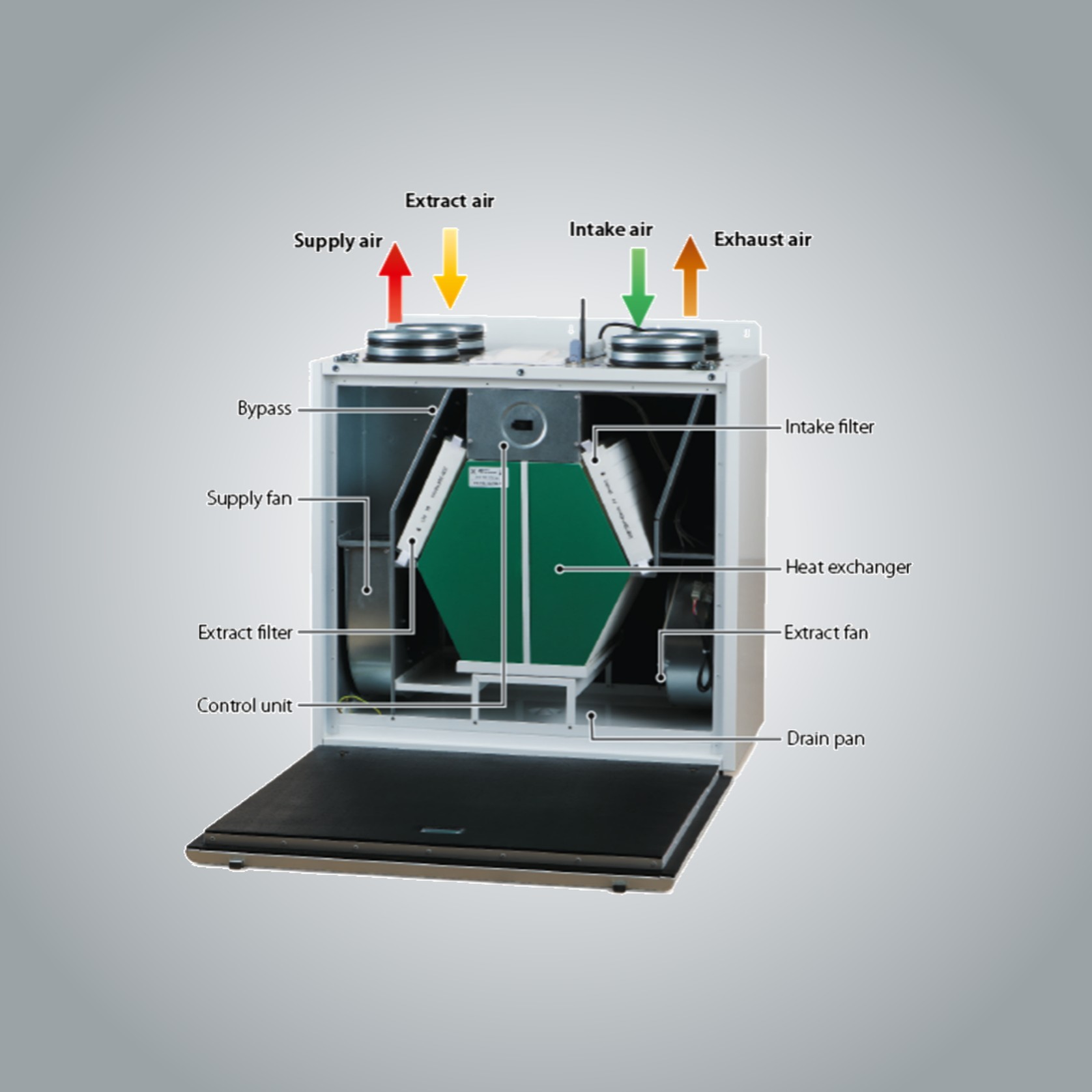

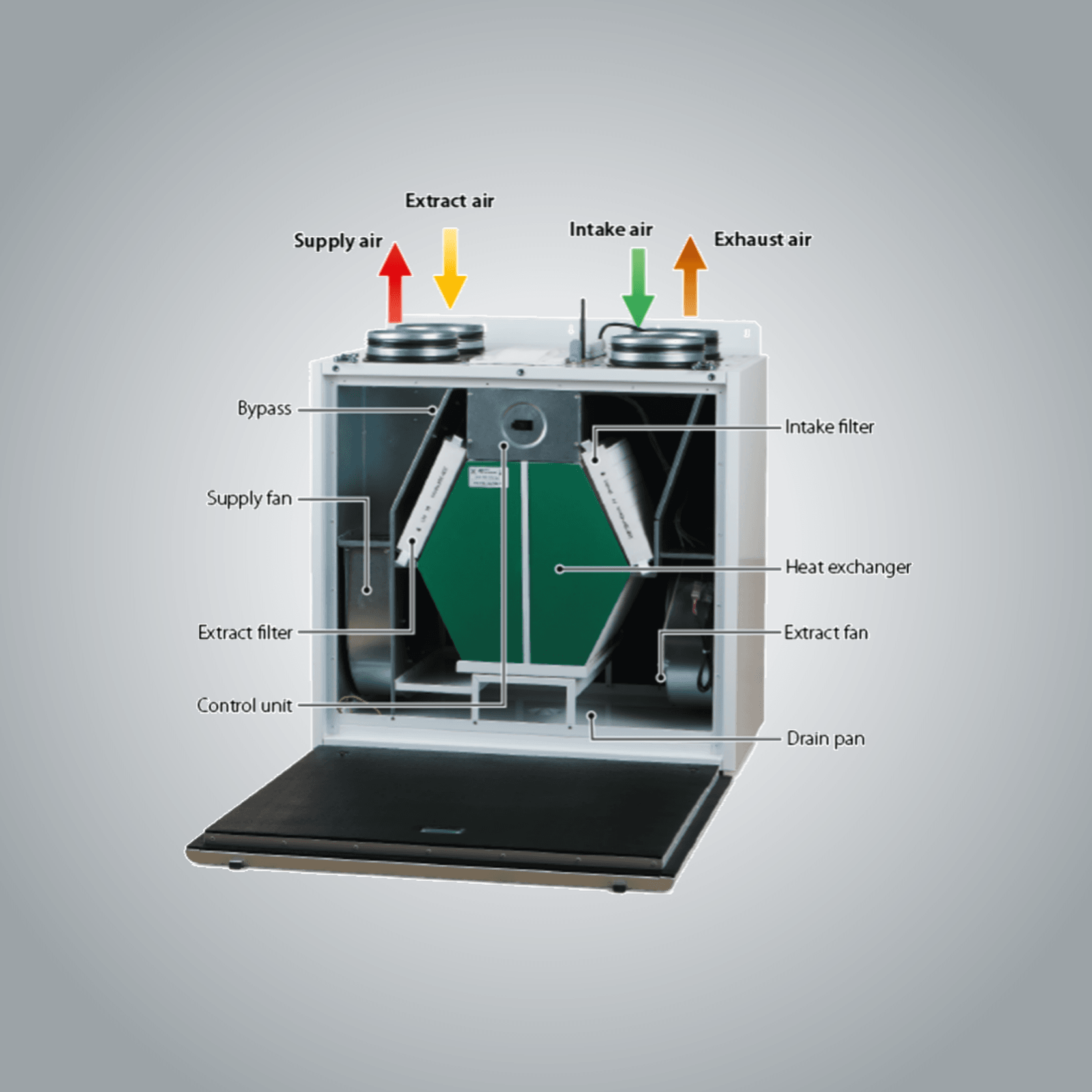

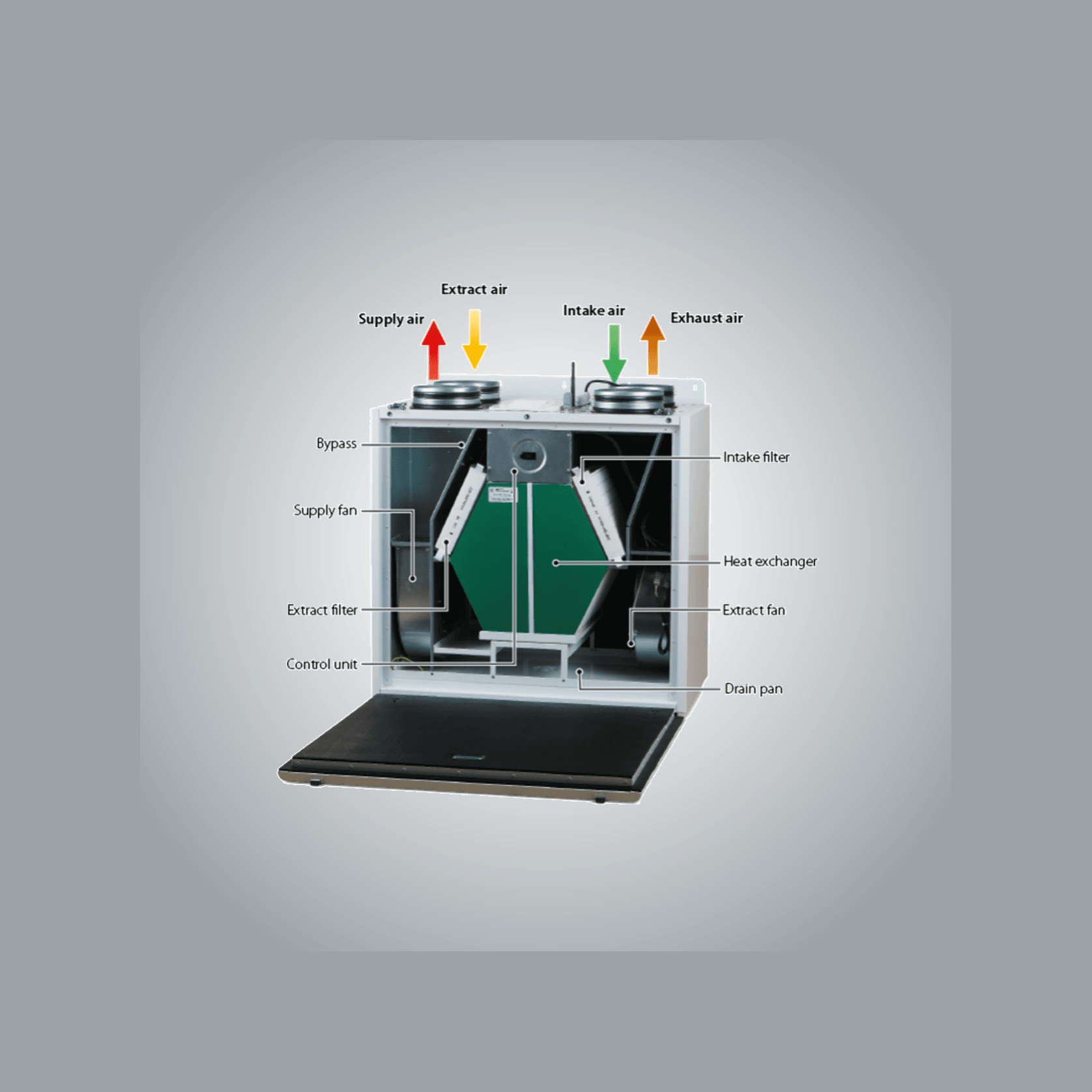

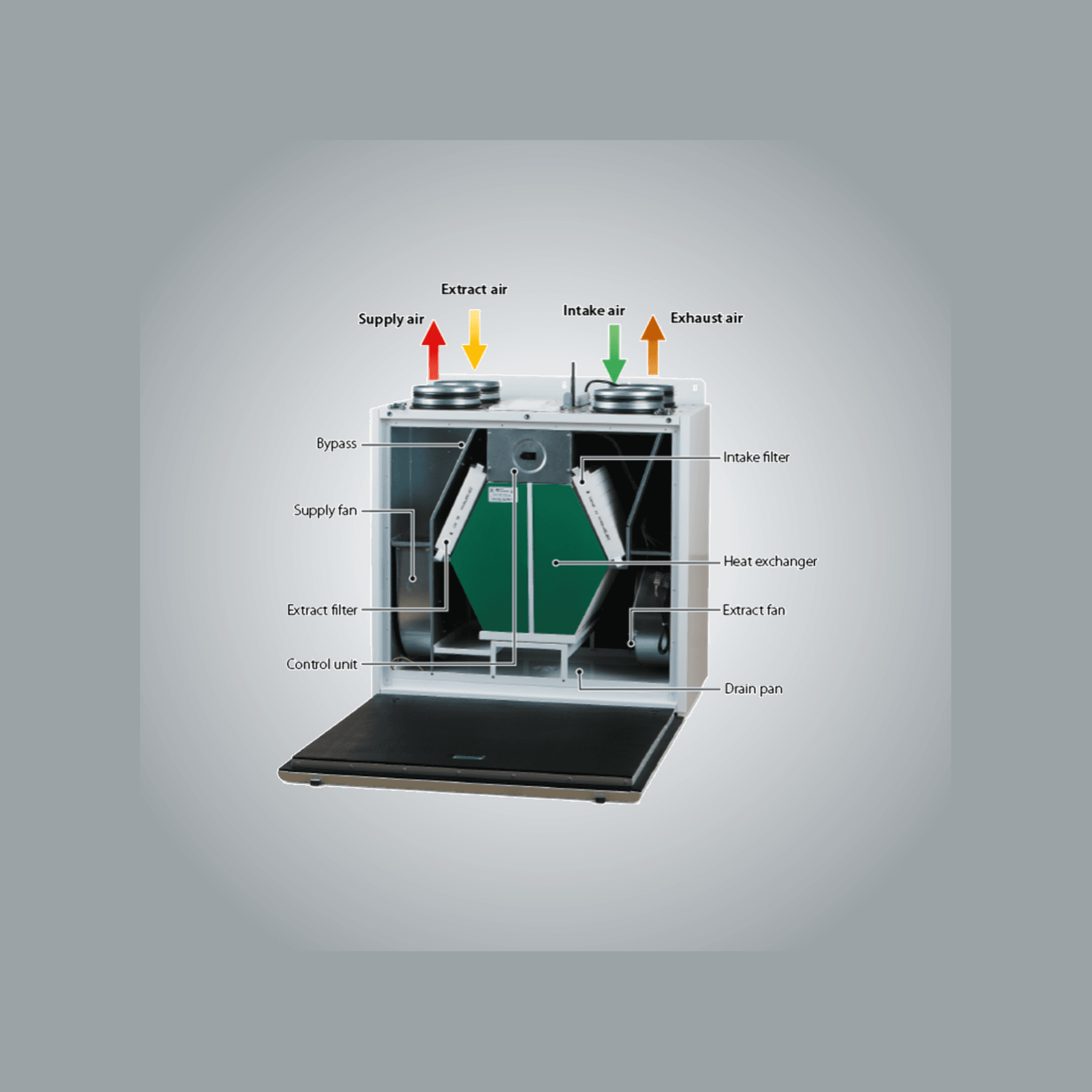

  • High-efficiency counterflow heat exchanger
  • Stepless EC-fans (Brushless DC motor)
  • Summer By-pass (Free Cooling)
  • Ventilation on demand (RH standard, CO2+VOC optional)
  • Built-in Wi-Fi Controller for iOS and Android App (free download)

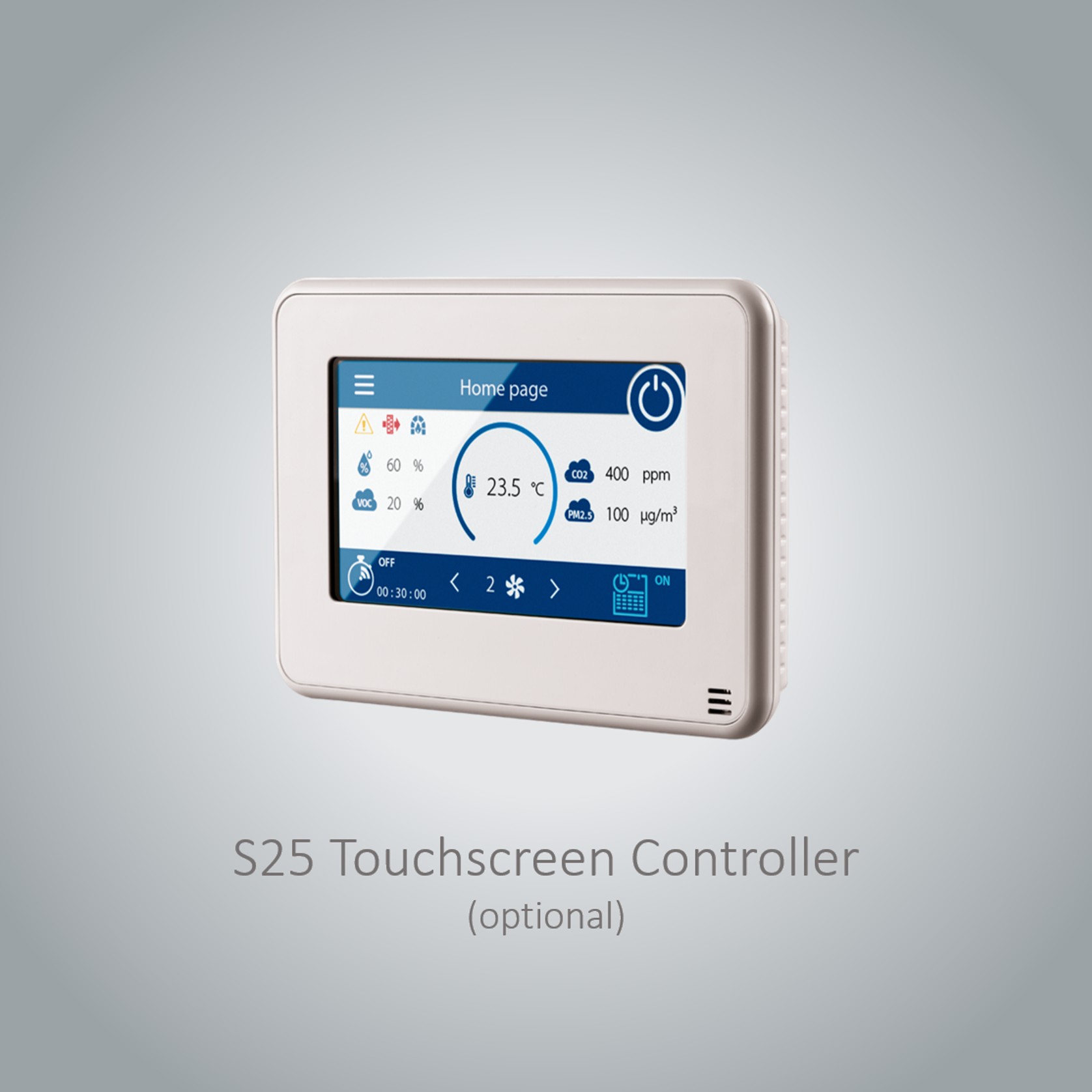

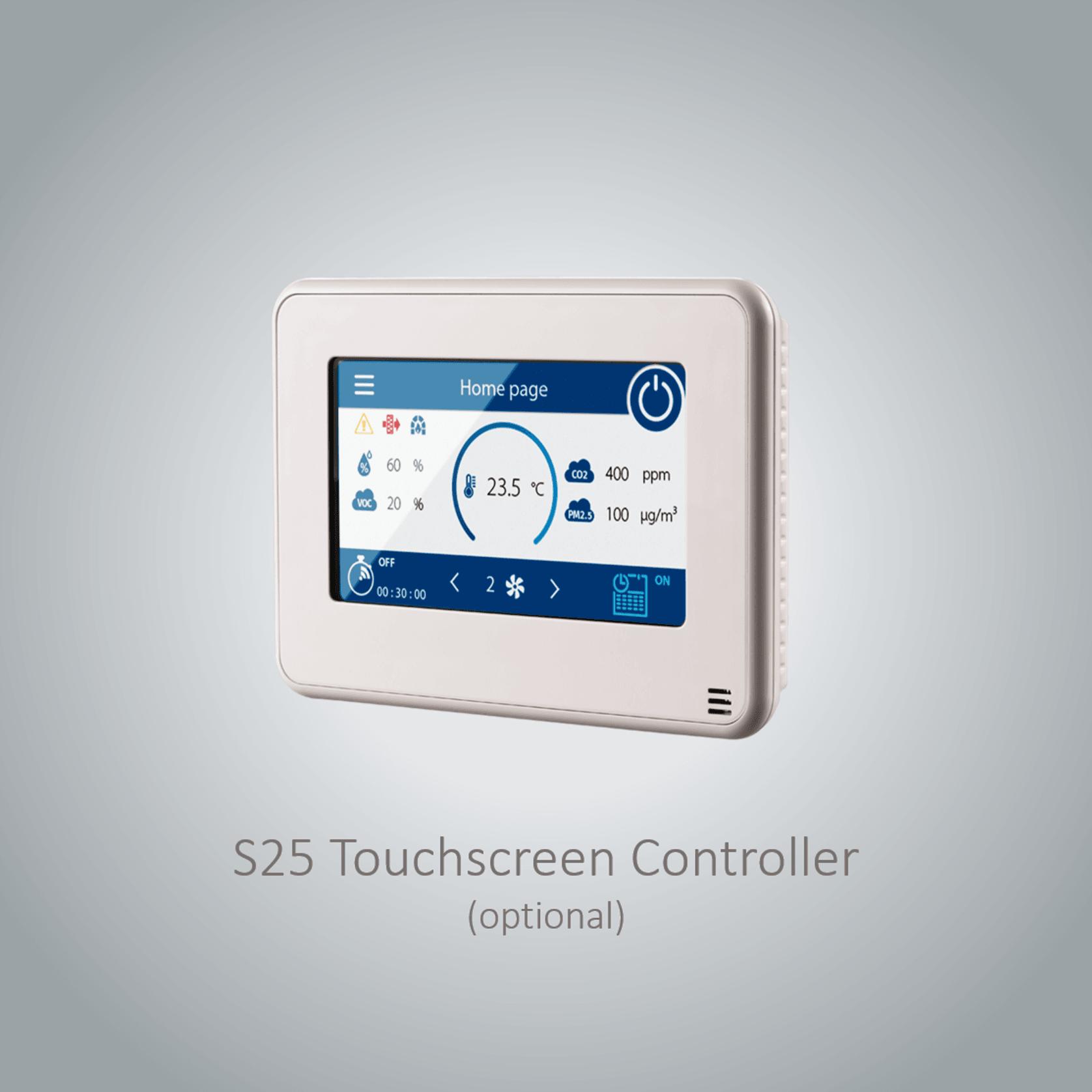

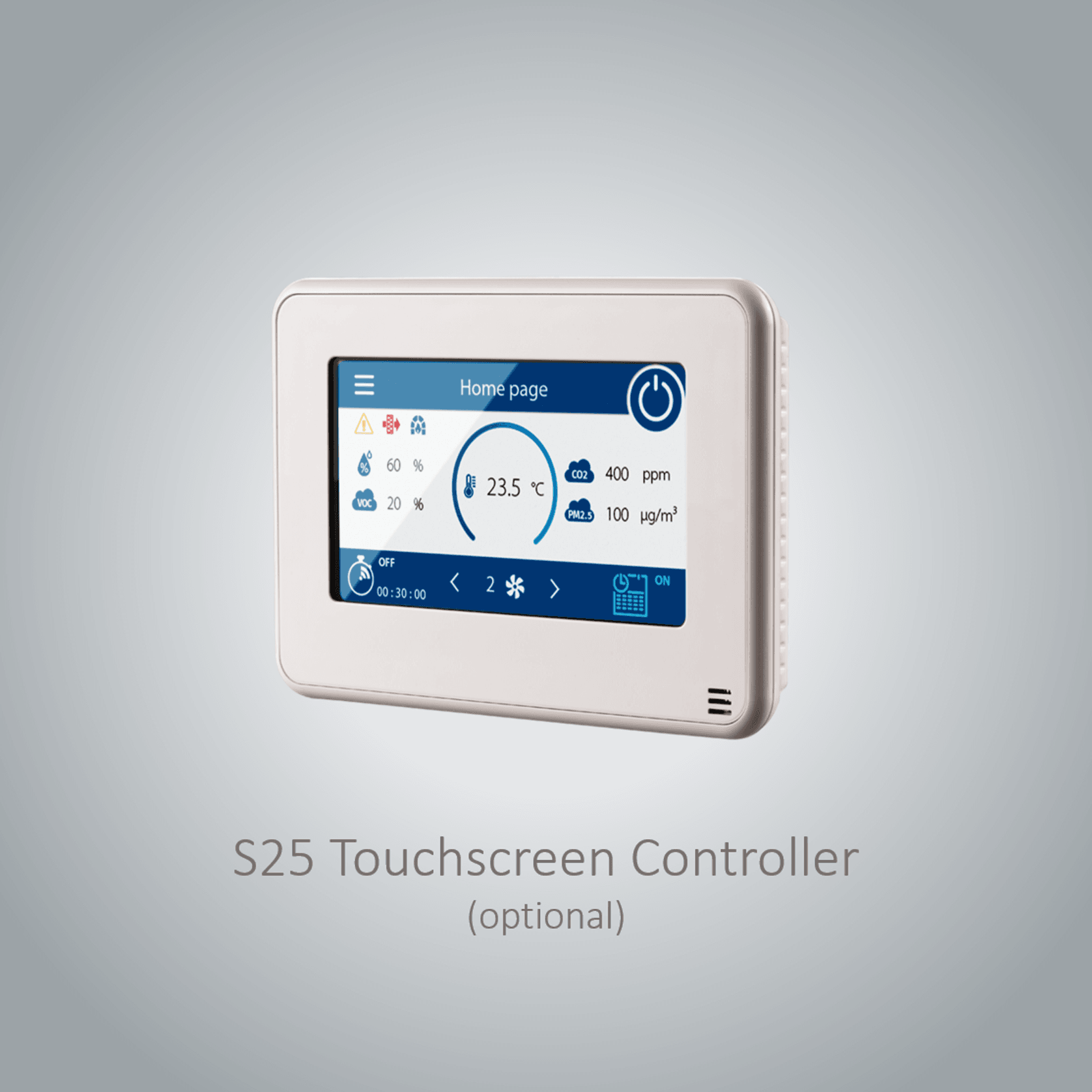

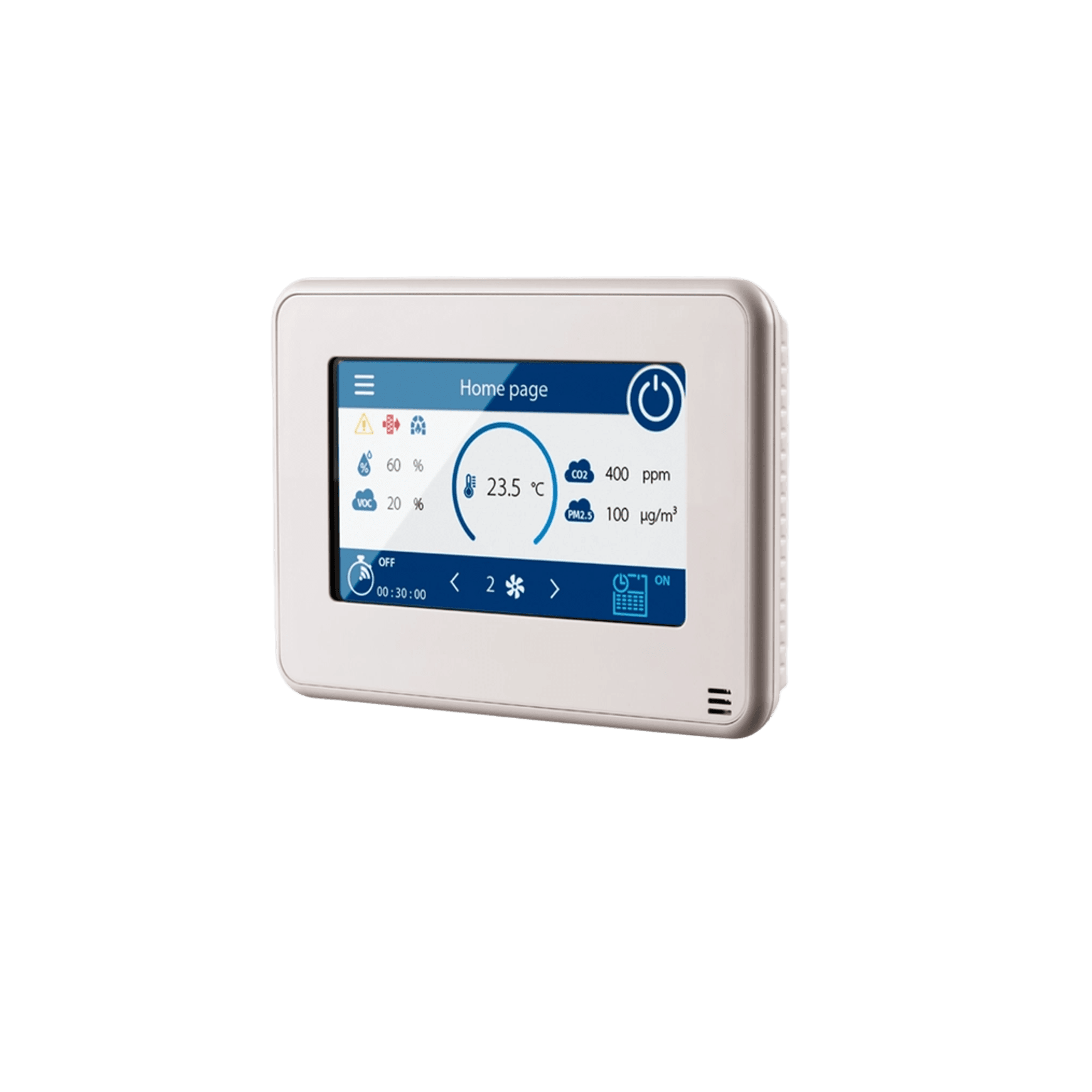

  • Optional HD touch-screen Controller S25
  • High-grade F7 filter for supply air (G4 for exhaust air)
  • Passive House Certification
  • Meets G4 and Healthy Home Standard
  • 2-year warranty
Details
  • Category
    Heat Recovery Ventilation, Dehumidifiers, Mechanical Ventilation Systems
  • Range
    Ventilation Systems
  • Brand
    Blauberg - Germany
  • Warranty
    2 years
Specifications
  • Komfort EC SB350
  • Airflow up to 450m³/h (125l/s)
  • Pressure up to 750Pa
  • Heat Recovery Efficiency up to 98 %
  • For floor areas up to 250m²
  • Integrated humidity sensor
  • Integrated WIFI module (S21 Controller)
  • Compatible with BlauFast Duct System
Scope of use

Typical Application

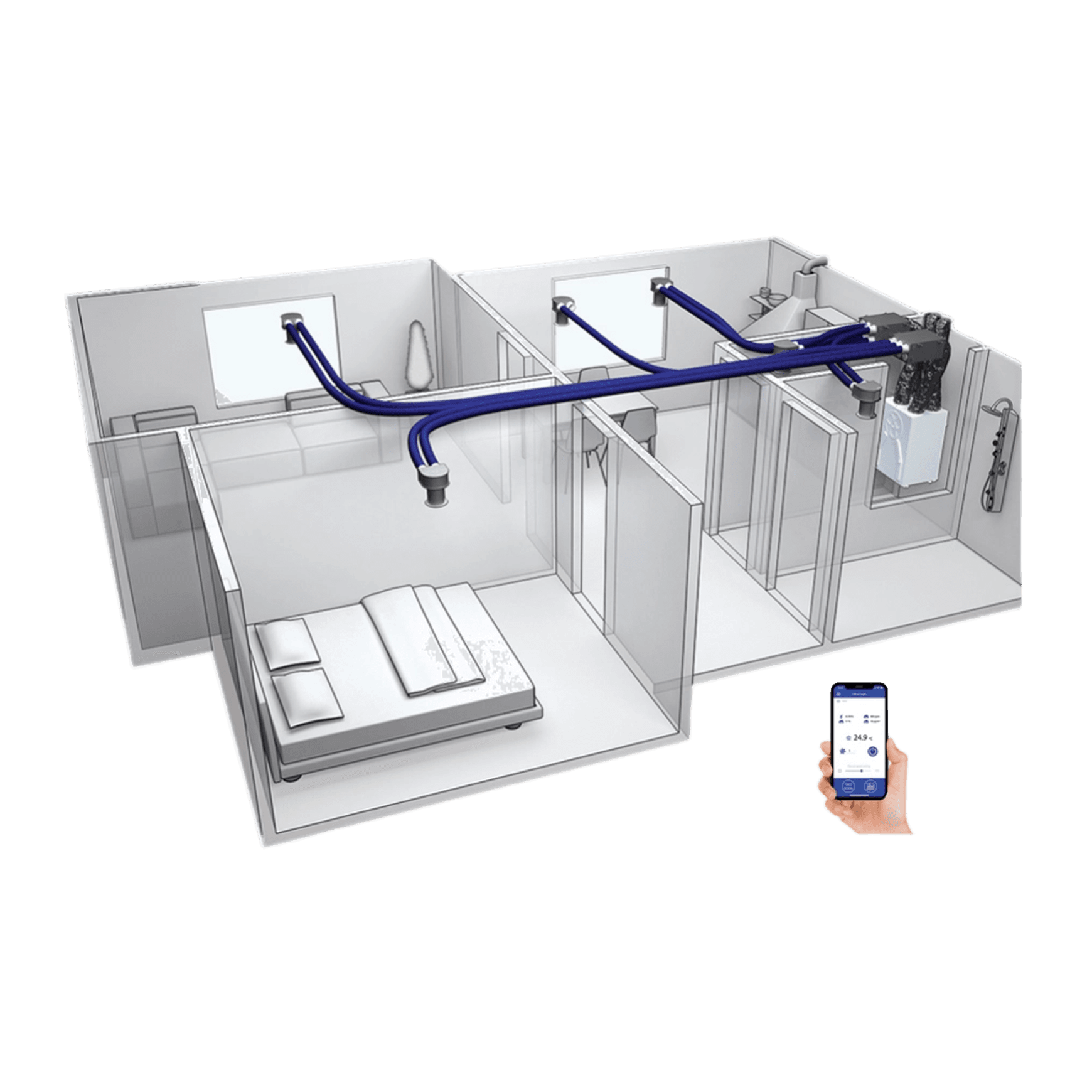

  • From townhouses to larger family houses
  • Includes dedicated bathroom, kitchen and laundry extraction
Passive House

Certified by Passive-House Institute

Performance
  • Airflow:​​310 m³/h (max.)
  • Pressure:​​300 Pa (max.)
  • Example: ​Duty point: 310m³/h @ 300Pa / House: 180m² with 2.6m ceiling
    ⇨ approx. 0.66 air changes per hour
Versions

Blauberg EC SB350 S21
incl. Humidity Sensor and Syphon Kit

In The Box

In the Box

  • MHRV Unit
  • WIFI-Controller
  • Humidity Sensor FS2
  • Syphon Kit SFK 20x32
  • Wall-mounting brackets
  • User manual

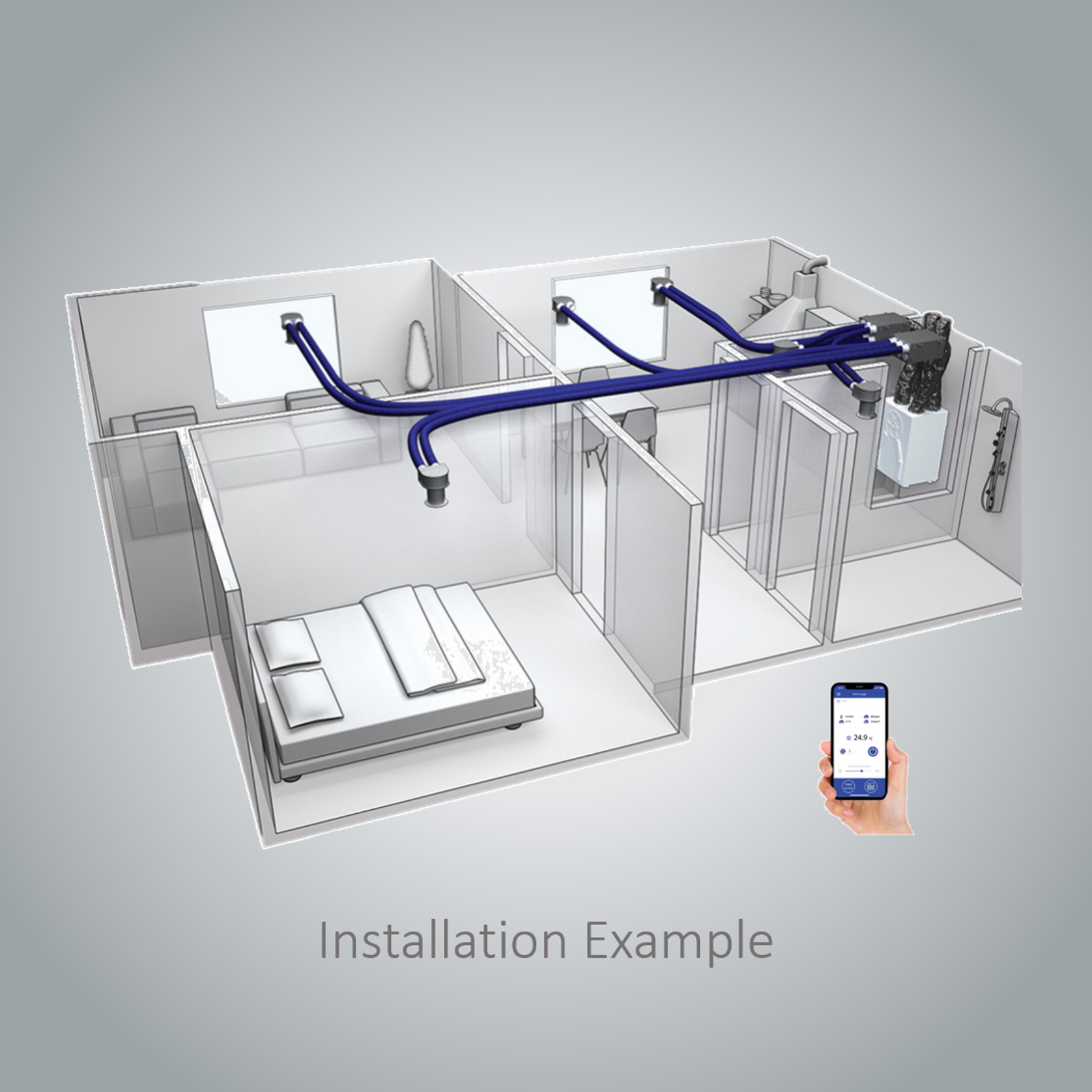

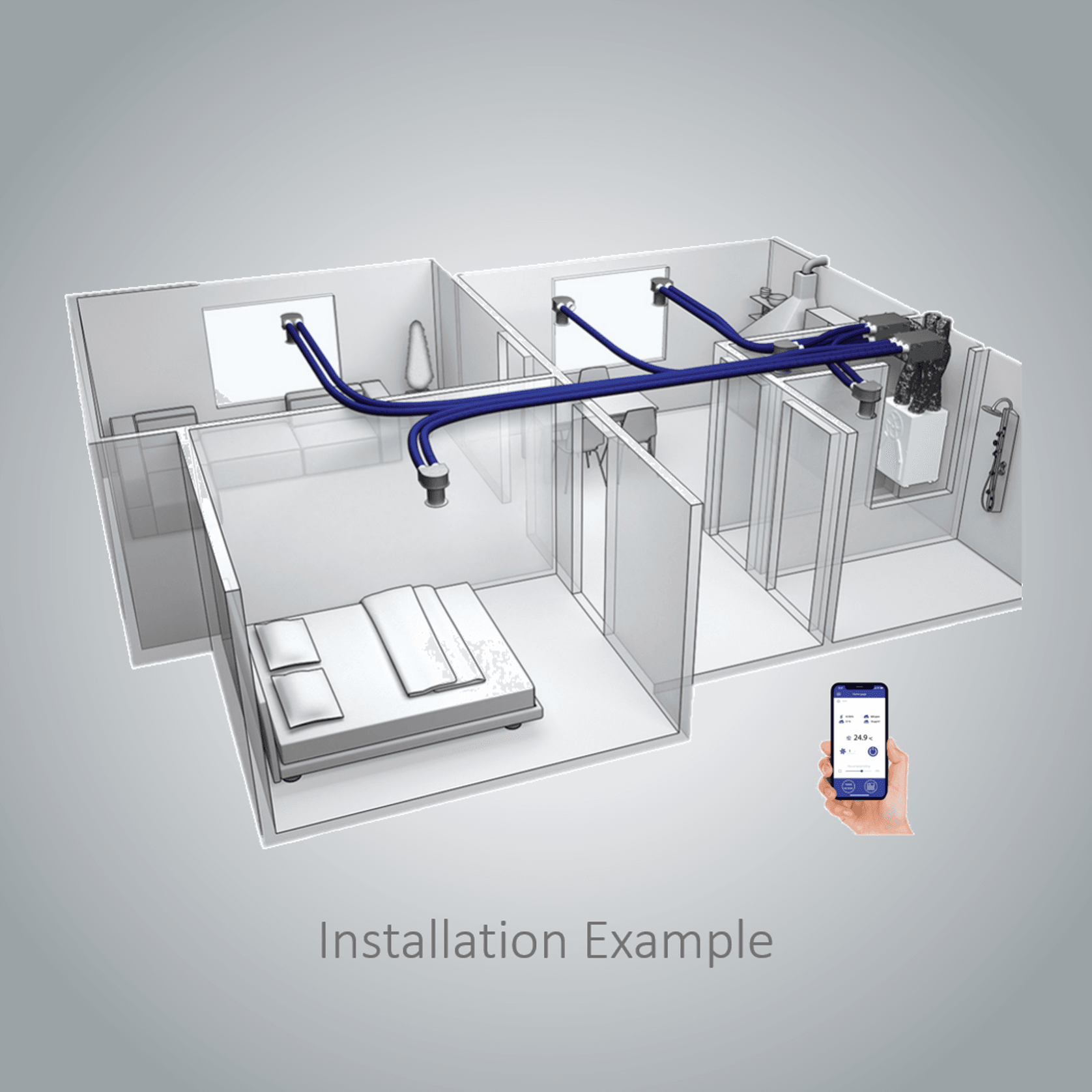

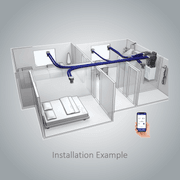

Typically required for domestic installation

  • Tools and consumables (e.g. duct tape and screws)
  • Indoor Duct System (Recommended: BlauFast 75 or 90)
  • Ducting to outside (Recommended: EPP 160mm)
  • Outdoor grill/ Trade seal*
  • *Check with local council for acceptability
