VENTUS 150 Ventilation System

SolutionAir
Visit Website
VENTUS 150 Ventilation System gallery detail image
VENTUS 150 Ventilation System gallery detail image
VENTUS 150 Ventilation System gallery detail image
VENTUS 150 Ventilation System gallery detail image
VENTUS 150 Ventilation System gallery detail image
From
$1,115*
*Price indication

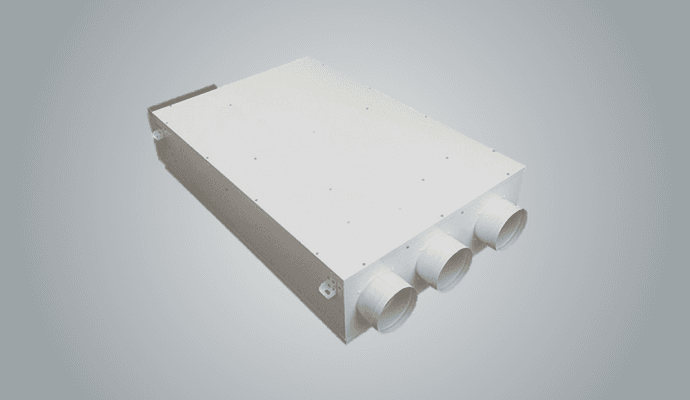

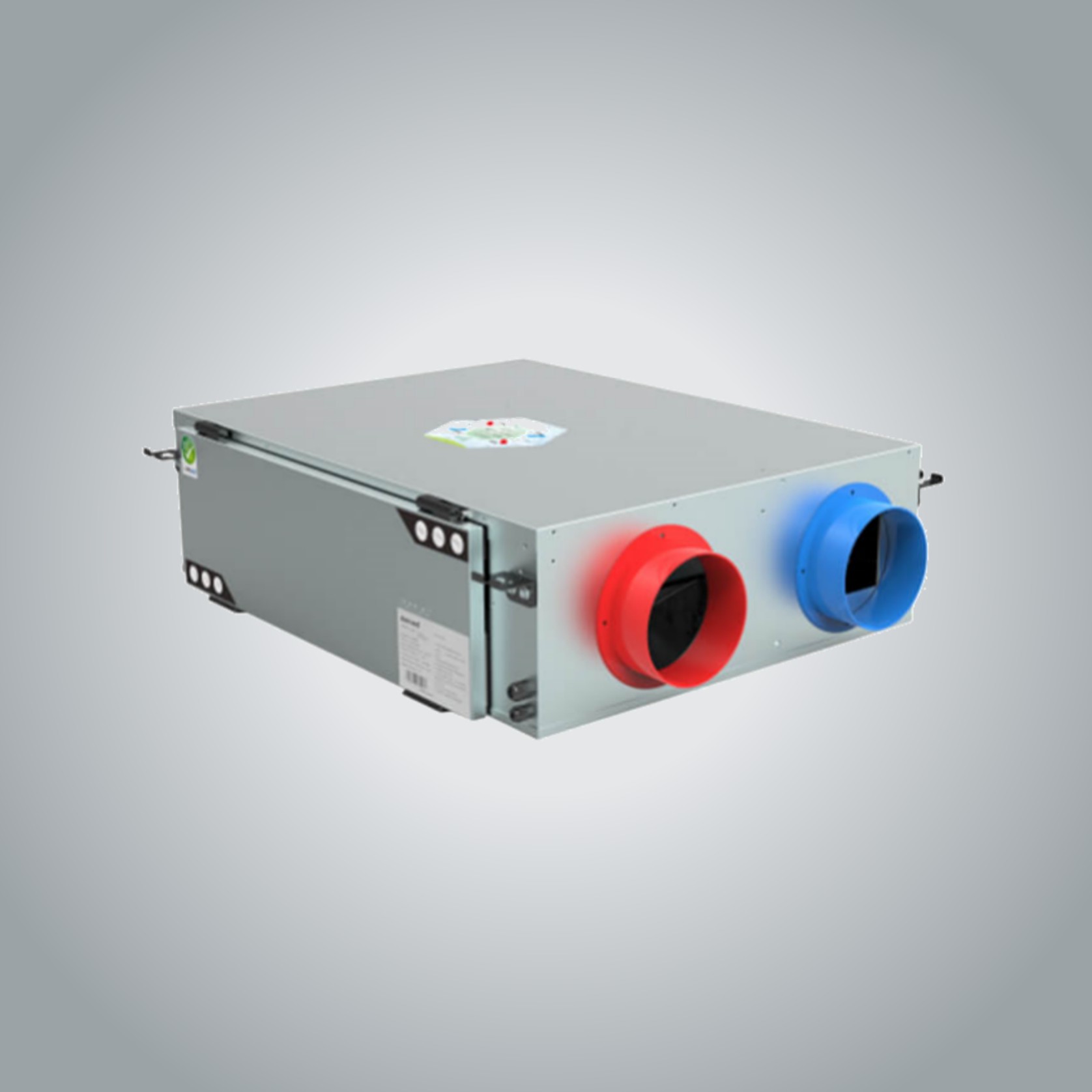

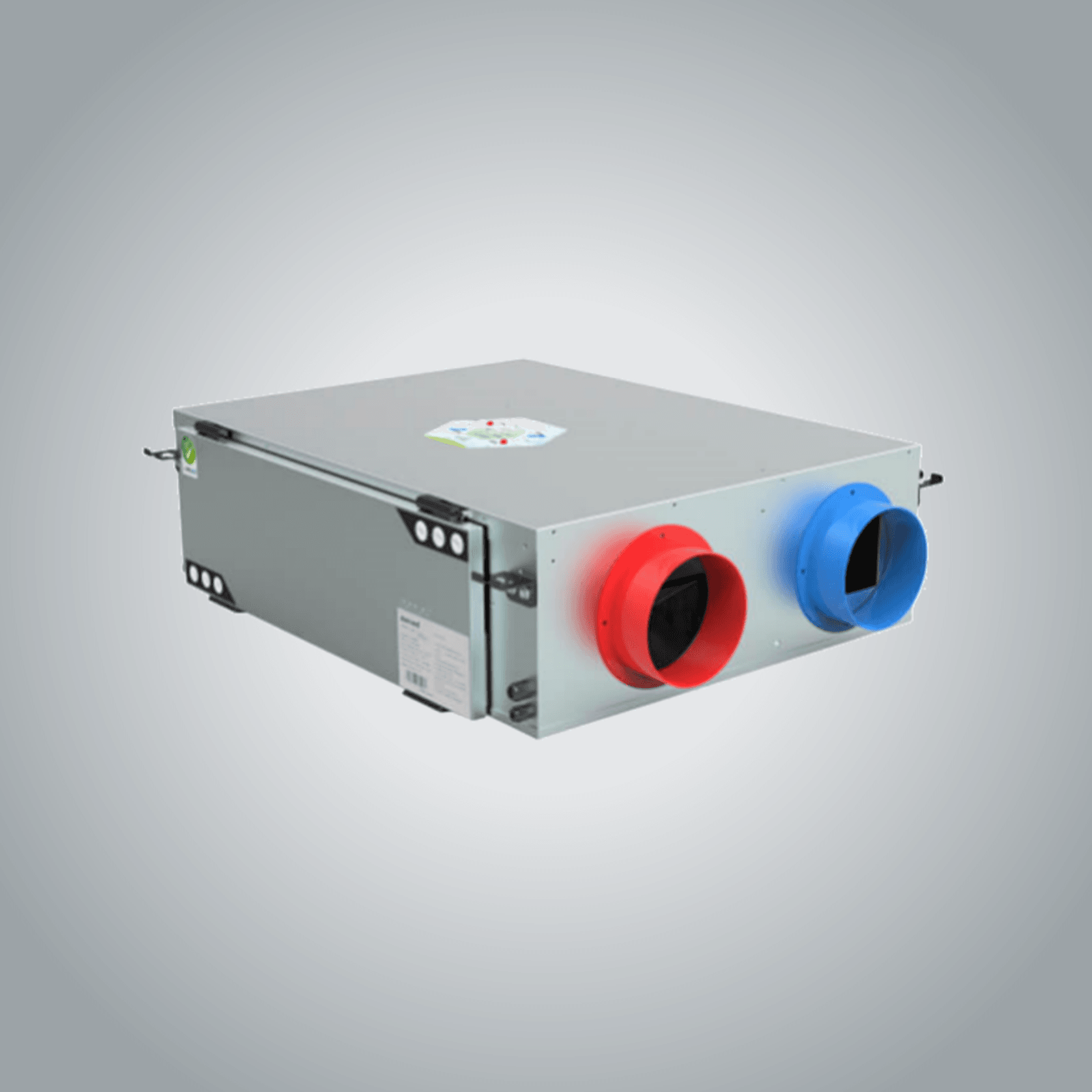

Solutionair Ventus 150 – Horizontal Ventilation Unit

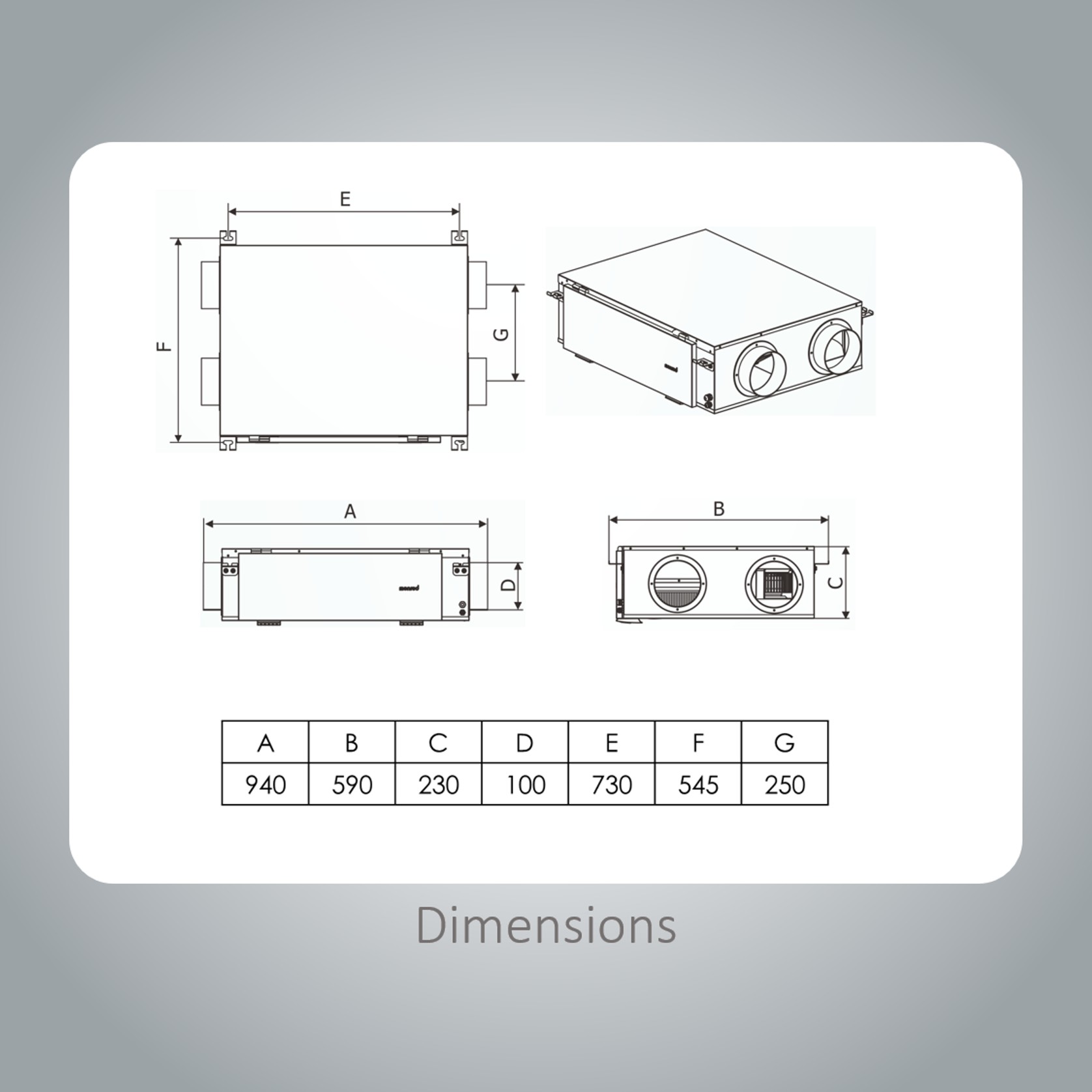

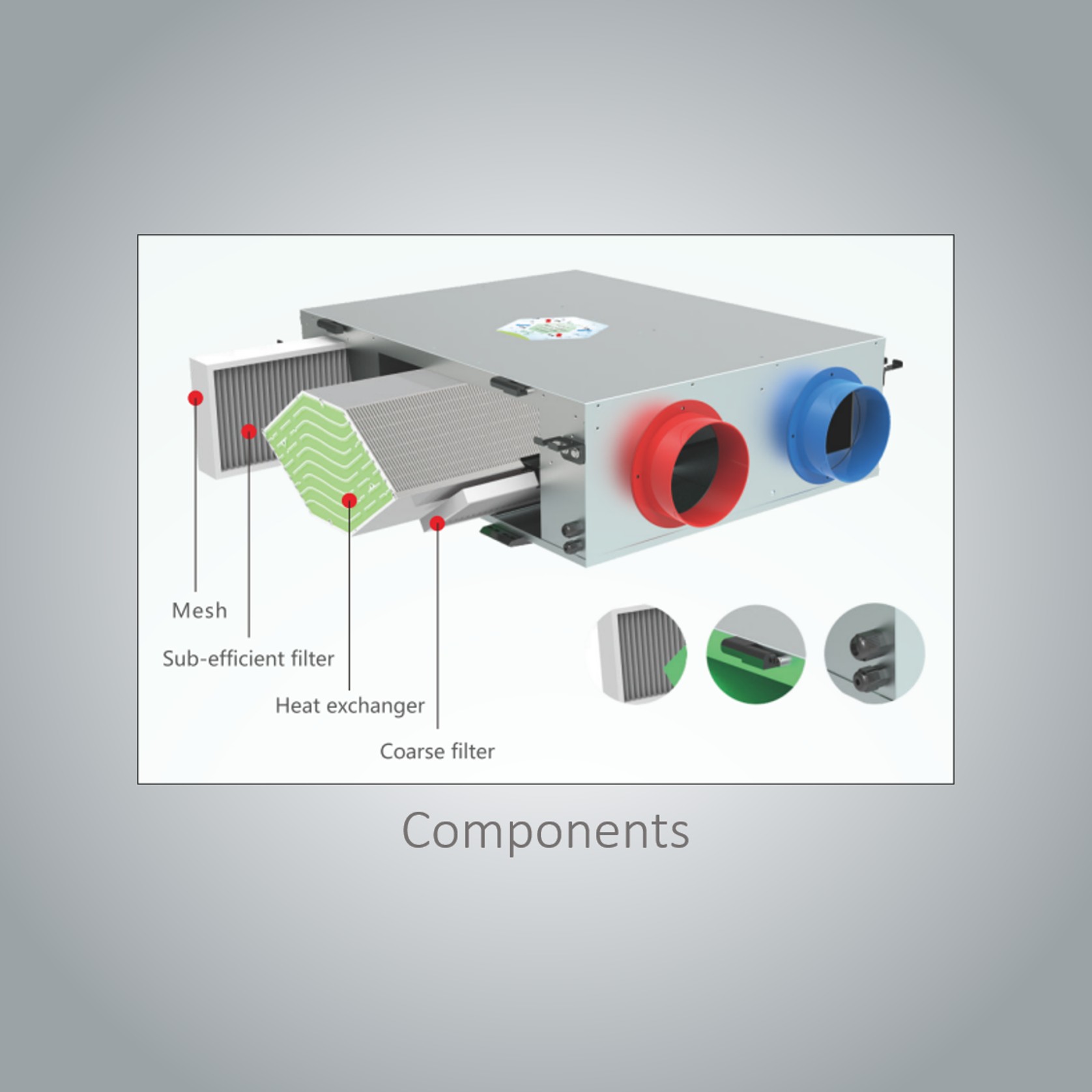

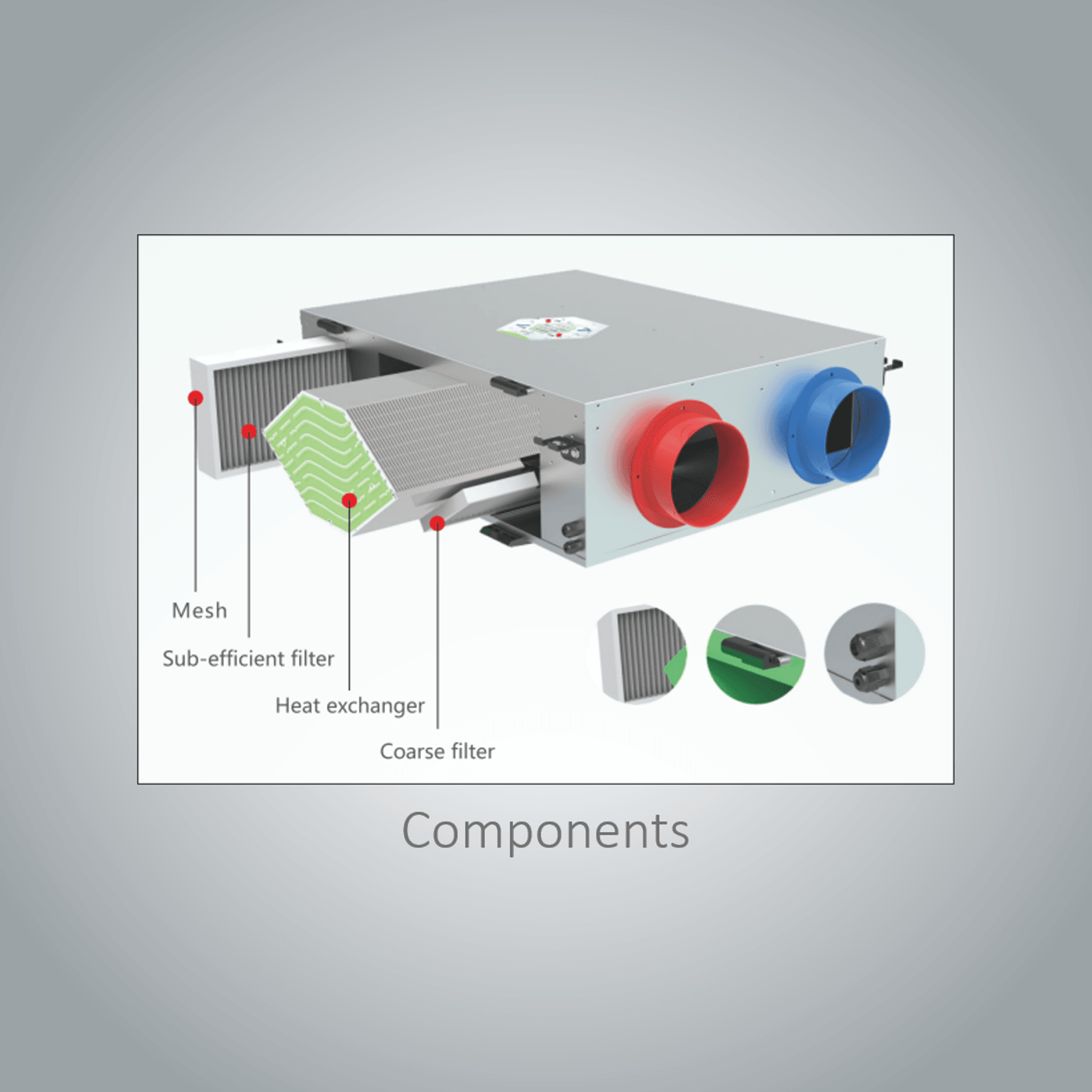

Ventus 150 is a MVHR unit, designed by Solutionair for the New Zealand market which incorporates advanced technologies like crossflow heat-exchanger and EC fans. Its compact horizontal design makes the unit ideal for small roof cavities.

Highlights

  • Compact design
  • Horizontal mounted, side connection
  • Fresh Air for up to 4 rooms
  • Dedicated Bathroom and Kitchen Extraction
  • Summer-Bypass (Free Cooling Mode)
  • 3-step Fan Motors from ebm-papst
  • 2-year warranty
Details
  • Category
    Mechanical Ventilation Systems, Heat Recovery Ventilation
  • Range
    Ventilation Systems
  • Warranty
    2 years
Scope of use

Typical Application

  • Apartments, Tiny Houses, Cabins
  • Auxiliary ventilation unit
  • When only restricted space for unit is available

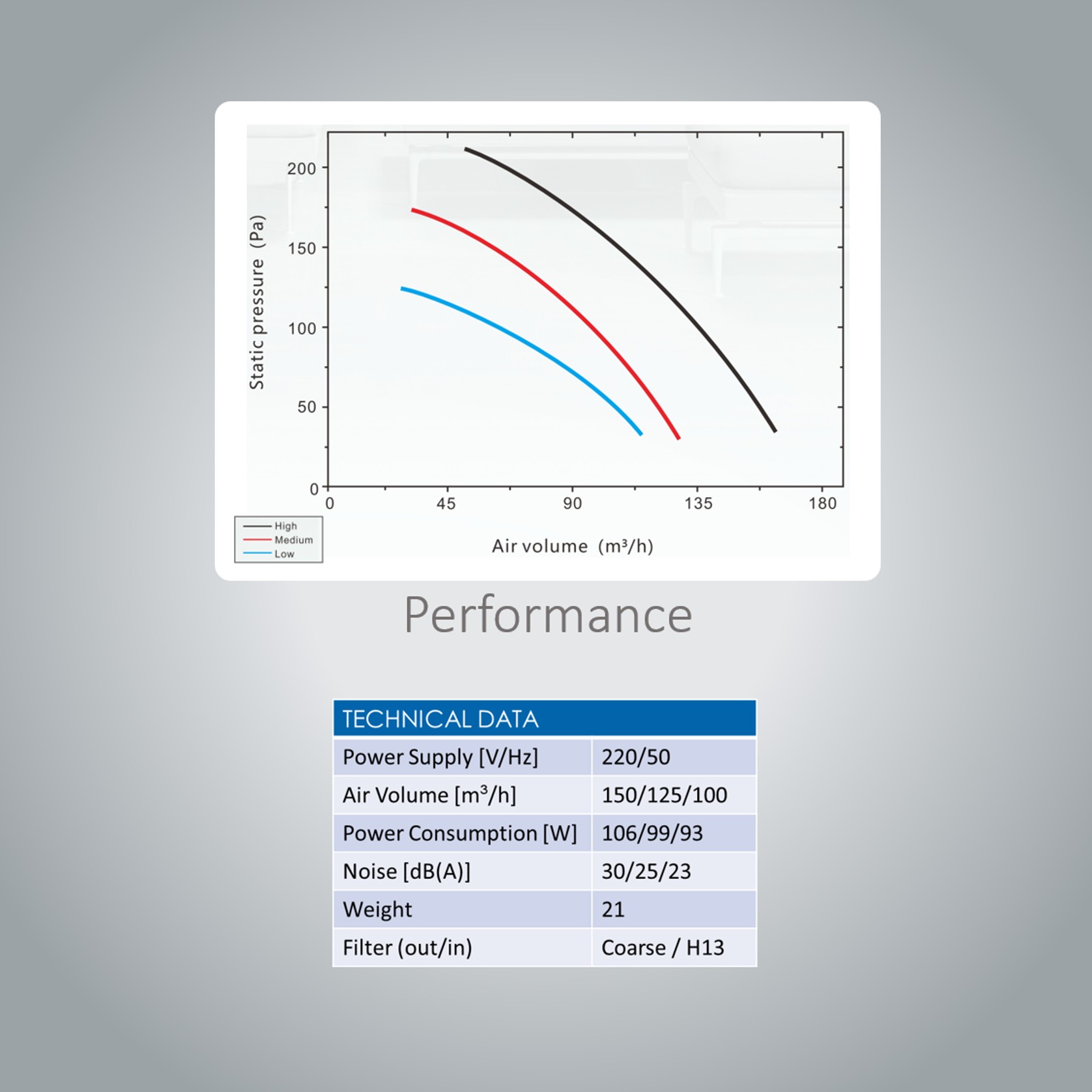

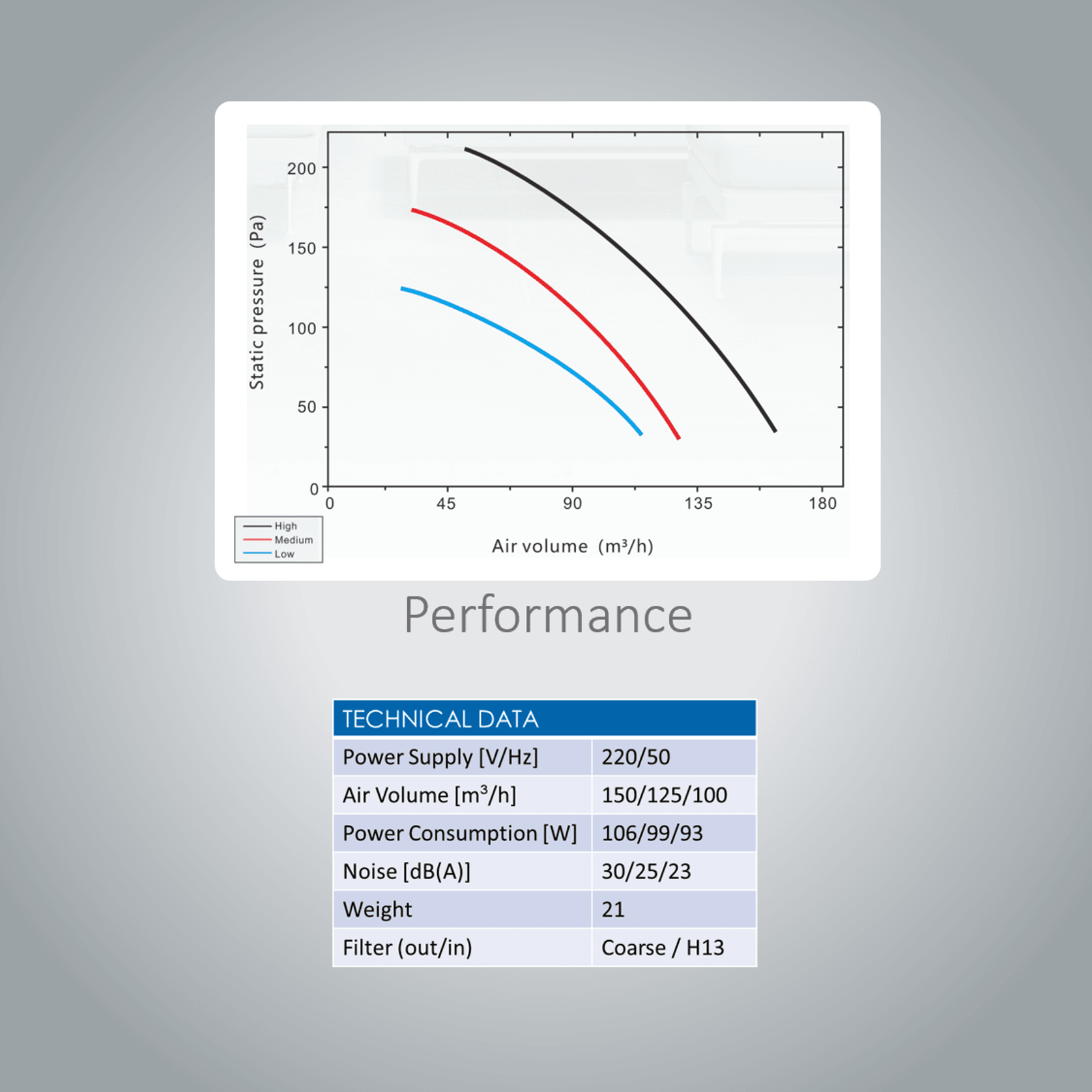

Performance
  • Airflow:​​160 m³/h (max.)
  • Pressure:​​200 Pa (max.)
  • Example: ​Duty point: 120m³/h @ 125Pa / House: 70m² with 2.6m ceiling
    ⇨ approx. 0.66 air changes per hour
Versions
  • Solutionair Ventus 150
In The Box
  • Fan unit

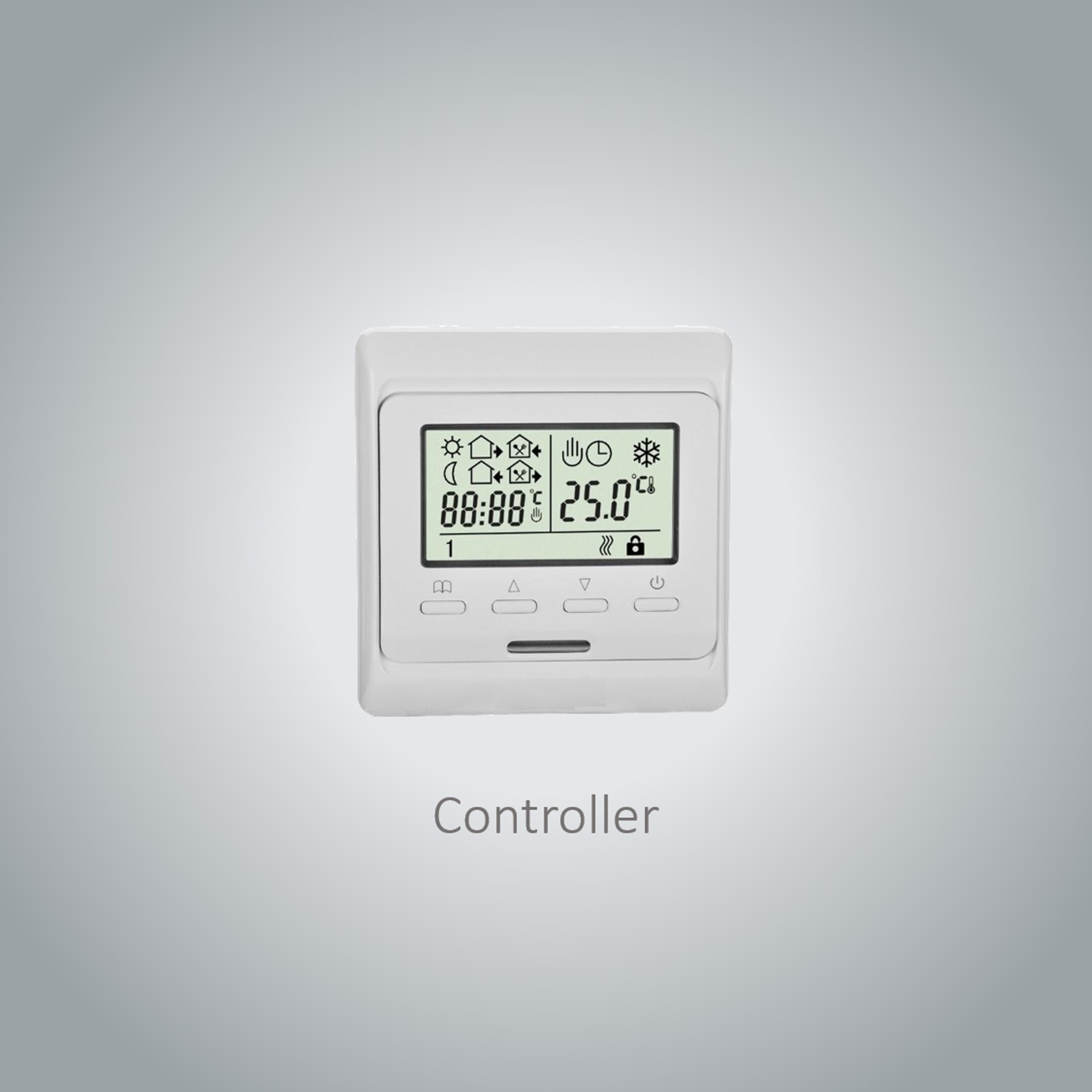

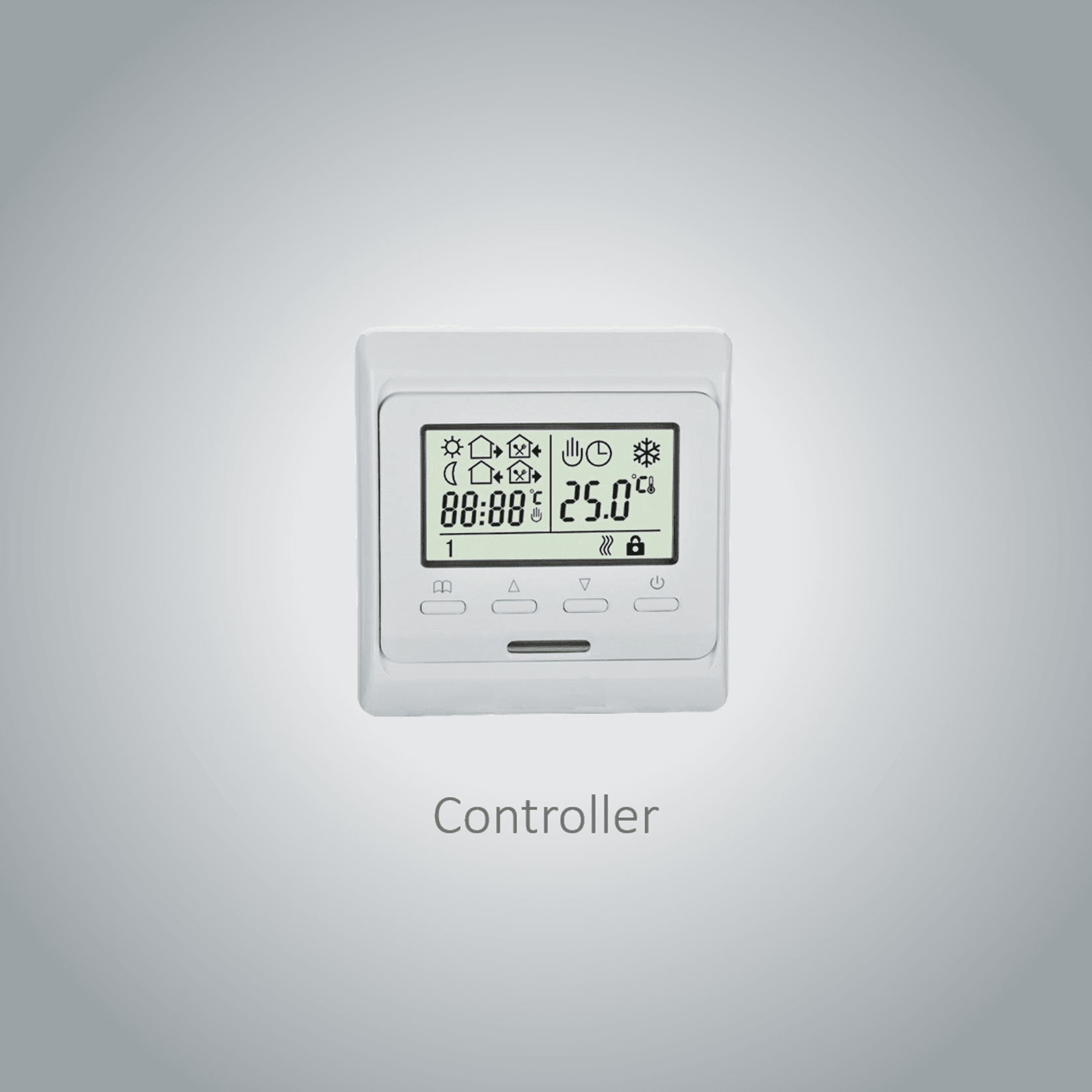

  • Controller
  • User manual

Typically required for installation

  • Tools and consumables (e.g. duct tape and screws)
  • Mounting to hang unit earthquake safe (e.g. steel rods)*
  • Indoor Duct System (insulated Flexduct, 100mm ID)
  • Ducting to outside (insulated Flexduct, 100mm ID)
  • Outdoor grill/ Trade seal*
  • *Check with local council for acceptability
