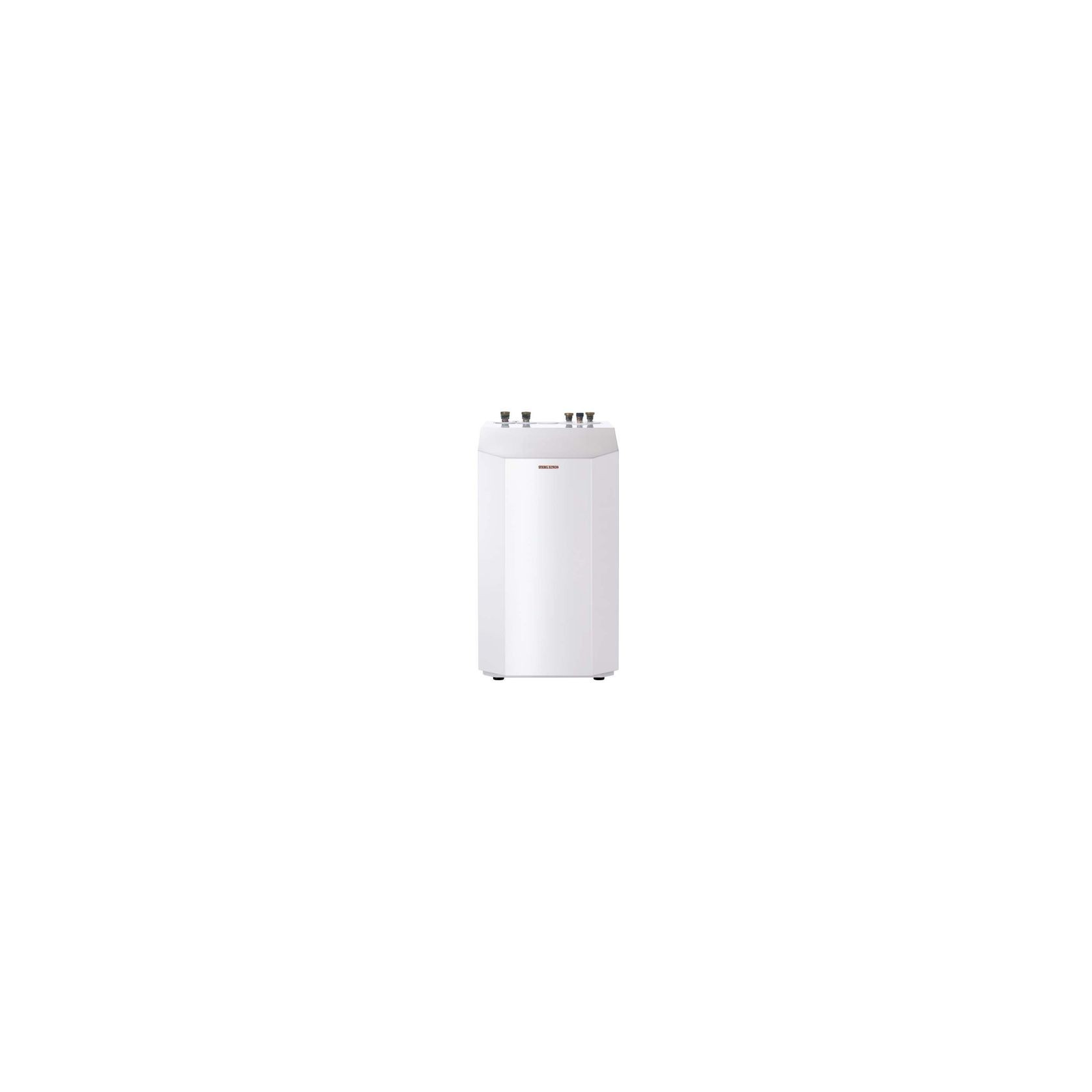

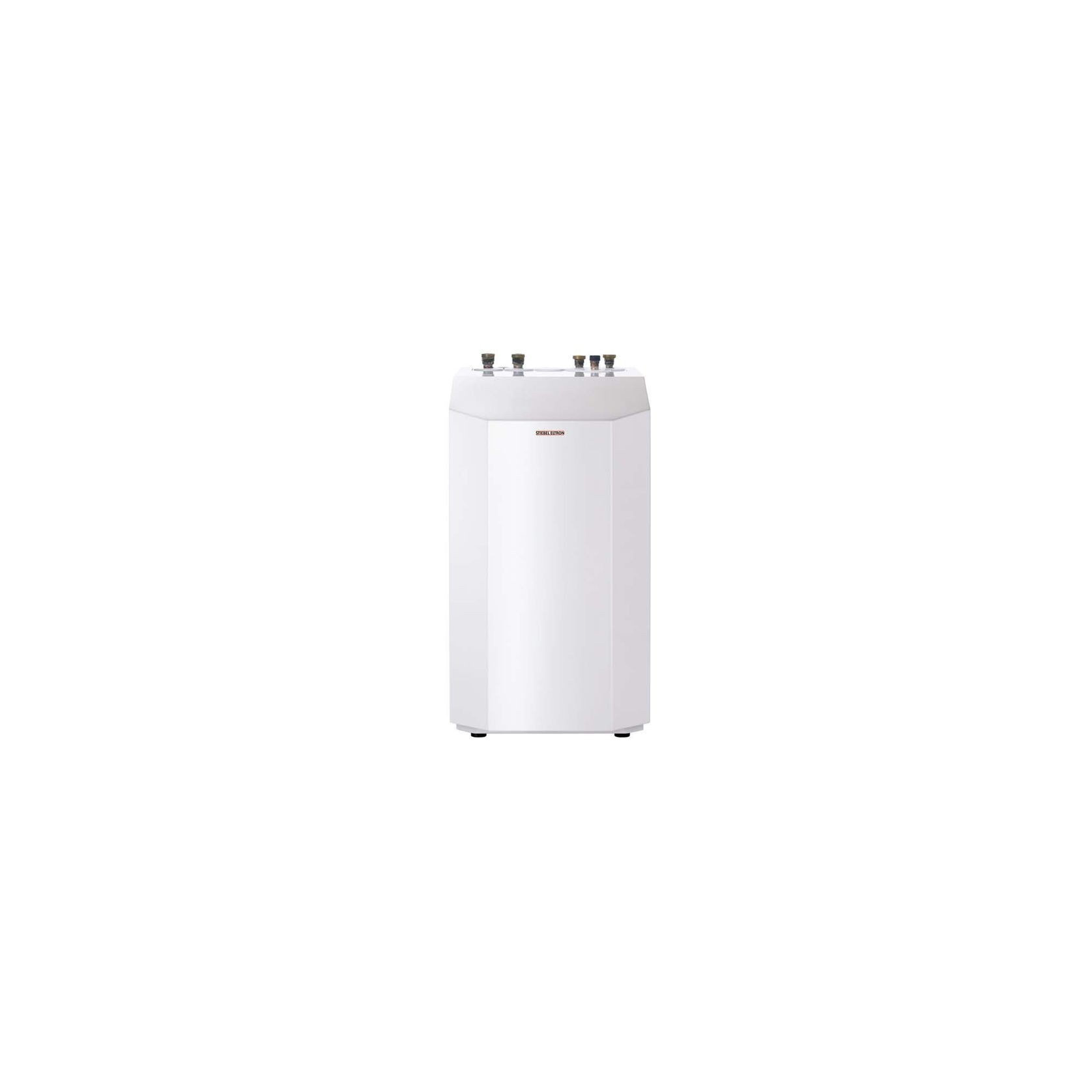

WPF 10M /13M/16M Geothermal Hydronic Heating Heat Pump

By STIEBEL ELTRON
Visit Website

The modular WPF M range of STIEBEL geothermal hydronic heat pumps are systems capable of delivering renewable energy to buildings on a much larger scale. With the ability to cascade up to six heat pumps, the system can deliver a combined output of up to 100 kW, making it perfect for heating larger buildings or apartments. The WPF M range of geothermal hydronic heat pumps can be used with up to two controllers, making system control very easy. The modules can be matched, stage-by-stage, to your individual requirements, to deliver an energy supply solution for DHW and central heating.

Details
  • Category
    Heat Pumps
  • Range
    Heat Pumps
  • Brand
    Stiebel Eltron
Specifications

Model - WPF 10M

  • Output at B0/W35 (EN 14511) - 10.02 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.49
  • Flow rate, heat source side - 2.2 m³/h
  • Sound power level (EN 12102) - 51 dB(A)
  • Sound pressure level at a distance of 1 m - 40 dB(A)
  • Rated compressor voltage - 400 V
  • Height - 960 mm
  • Width - 510 mm
  • Depth - 680 mm
  • Weight - 112 kg

Model - WPF 13M

  • Output at B0/W35 (EN 14511) - 12.98 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.57
  • Flow rate, heat source side - 3.1 m³/h
  • Sound power level (EN 12102) - 51 dB(A)
  • Sound pressure level at a distance of 1 m - 40 dB(A)
  • Rated compressor voltage - 400 V
  • Height - 960 mm
  • Width - 510 mm
  • Depth - 680 mm
  • Weight - 120 kg

Model - WPF 16M

  • Output at B0/W35 (EN 14511) - 16.99 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.35
  • Flow rate, heat source side - 3.8 m³/h
  • Sound power level (EN 12102) - 51 dB(A)
  • Sound pressure level at a distance of 1 m - 45 dB(A)
  • Rated compressor voltage - 400 V
  • Height - 960 mm
  • Width - 510 mm
  • Depth - 680 mm
  • Weight - 125 kg

Features

  • 10.02 - 16.99 kW heating output at B0/W35
  • Cascade up to 6 geothermal heat pumps for higher output
  • Easy system control
  • Extremely quiet operation
