Domestic Hot Water Cylinders
Auckland
- 280.0K profile views
- 61 saves

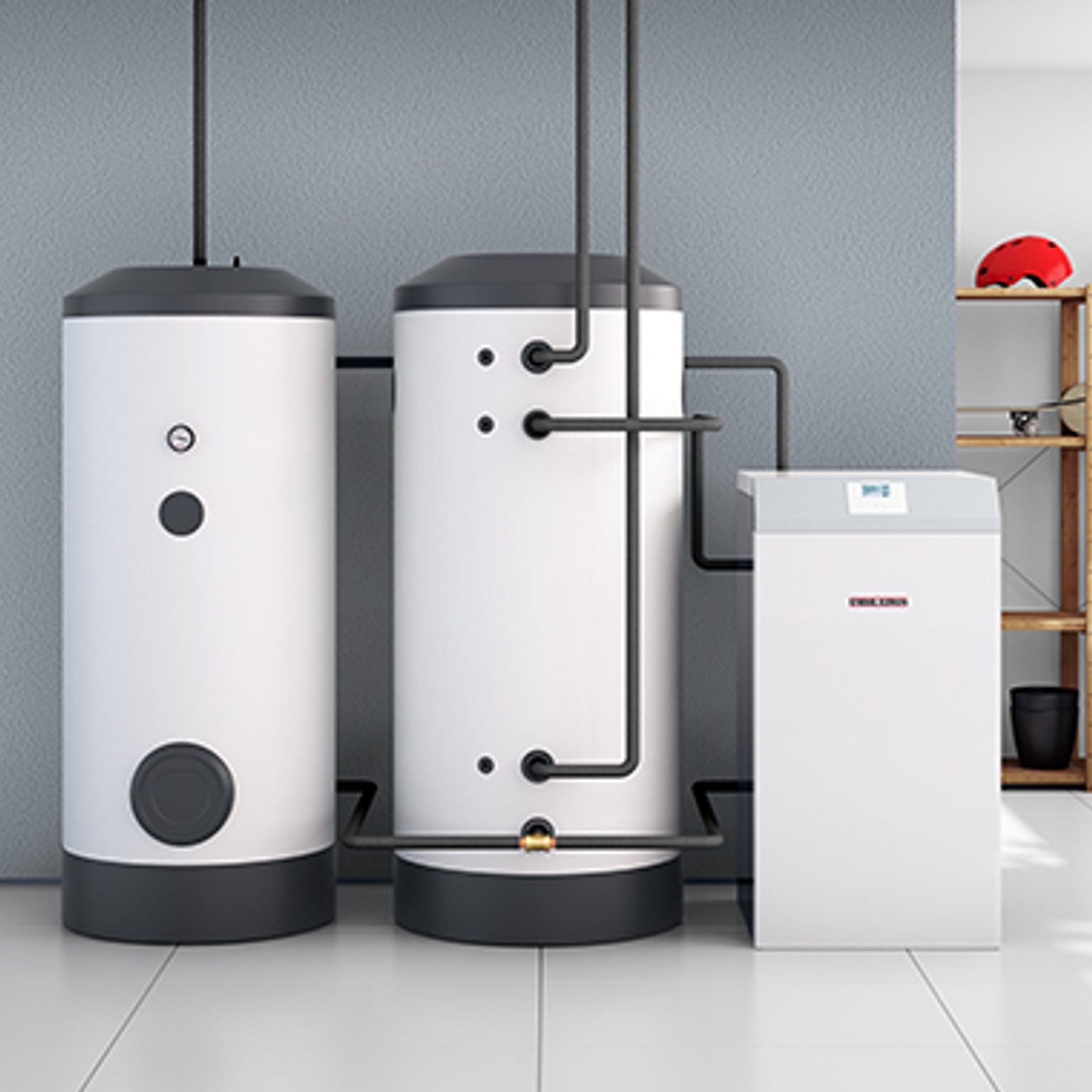

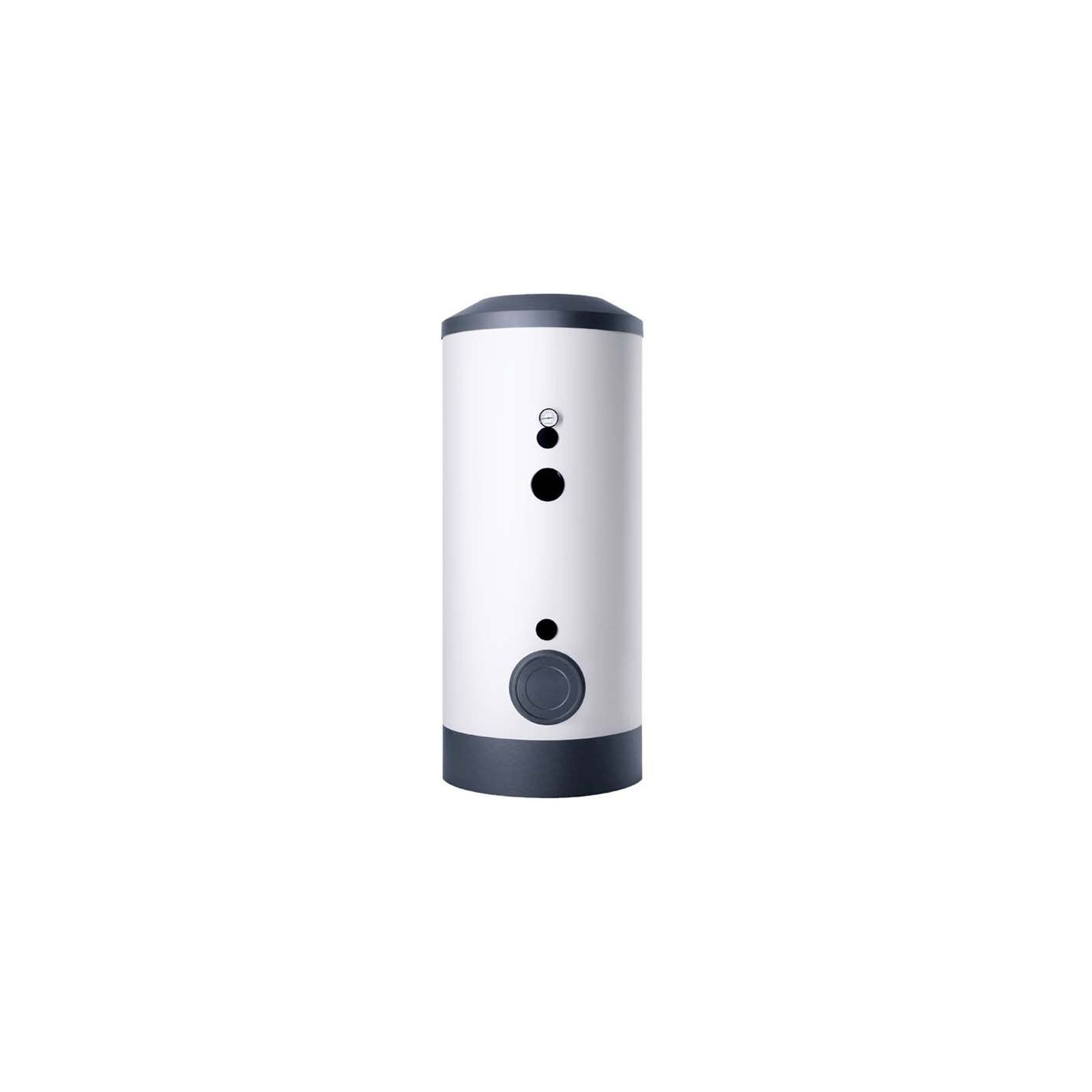

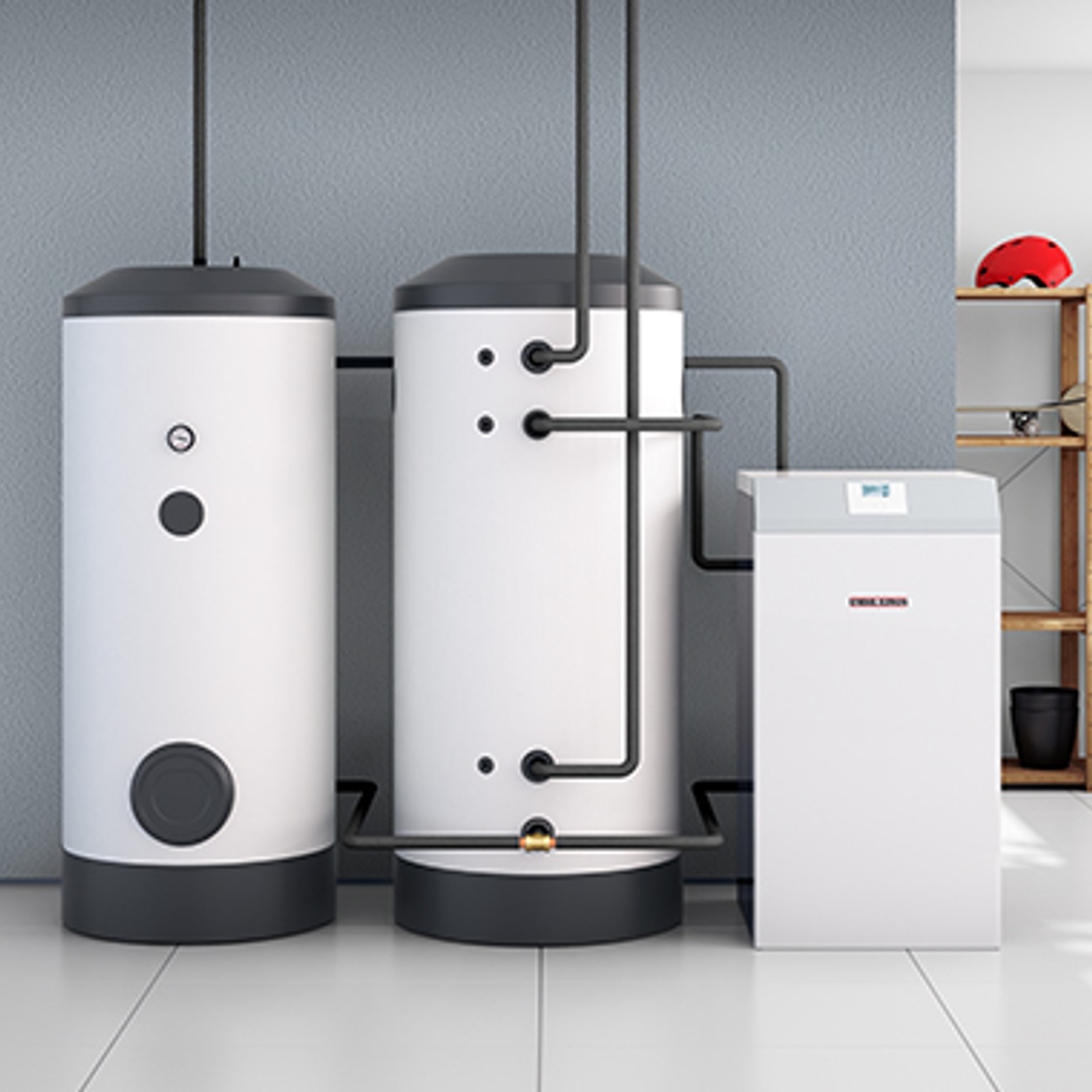

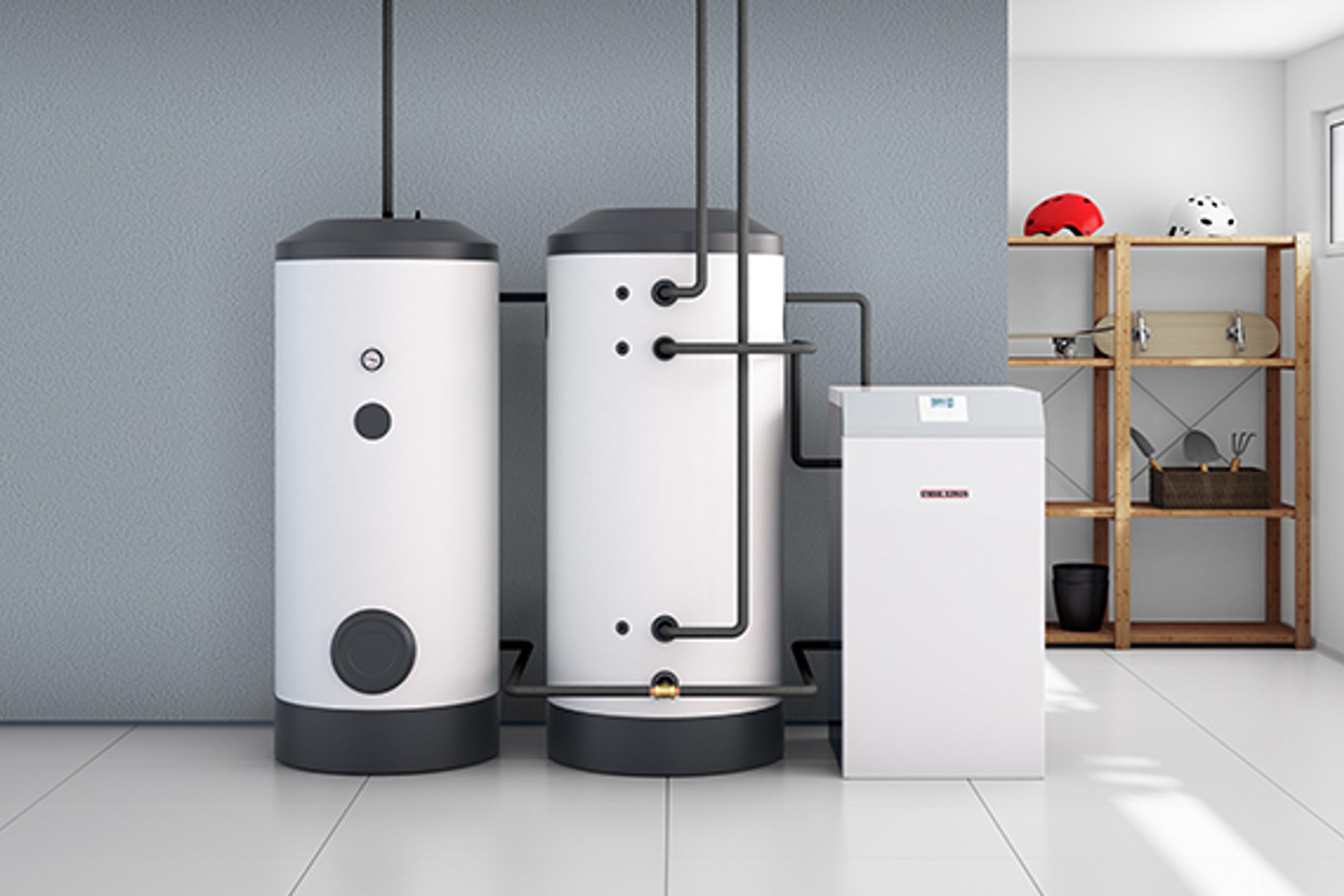

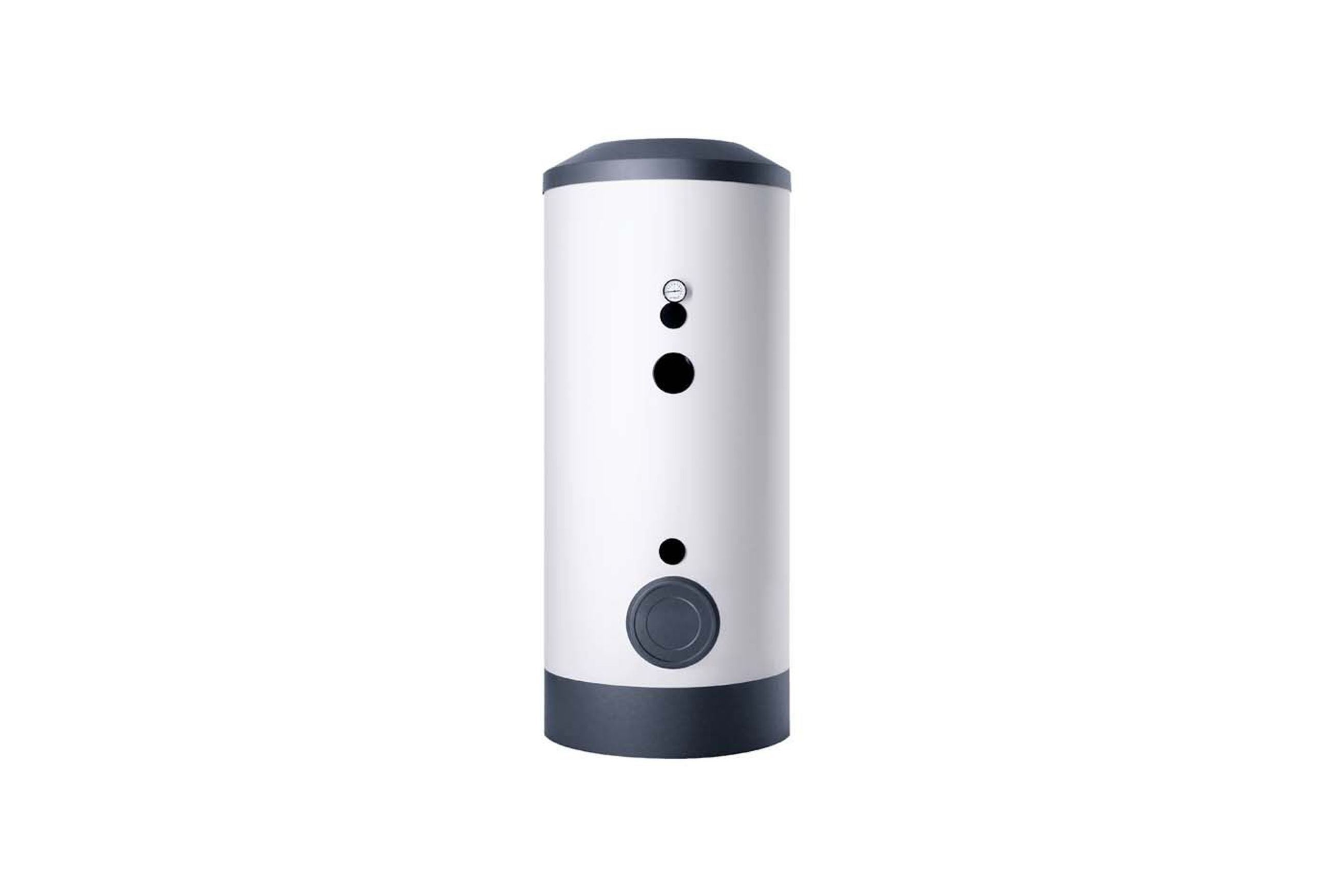

The SBB range of freestanding cylinders a the ideal solution for domestic hot water heating in conjunction with a heat pump for a home or workplace. The cylinders are designed with smooth indirect coils which are excellent at transferring heat efficiently and an enamel coating over the inner casing to resist scale deposits. With the SOL versions, it is also possible to integrate a solar thermal system.
Product Details
- Product
- Domestic Hot Water Cylinders
- Category
- Hot Water Cylinders
- Sold by
- STIEBEL ELTRON
- Range
- Heat Pumps
- Brand
- Stiebel Eltron
STIEBEL ELTRON is specified by
Gel ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Respond ArchitectsArchitects
Chaney & Norman ArchitectsArchitects
VIA architectureArchitects
Johnston ArchitectsArchitects
Rafe Maclean ArchitectsArchitects
SA StudioArchitects
First Light Studio LtdArchitects
Patterson AssociatesArchitects
Kamermans Architects LtdArchitects
Arête ArchitectsArchitects
Ockham ResidentialProperty Developers
Bob Burnett ArchitectureArchitectural Designers
Passive House Institute New ZealandAssociations
eHausDesign & Build
Landmark Homes Auckland - North Shore & RodneyBuilders
M A BuildingBuilders
Ethos HomesBuilders
Pro ClimaManufacturers and Suppliers
Trinity ConstructionConstruction
Tawa ArchitectureArchitectural Designers
Fairfield ConstructionBuilders
GS Cayless ConstructionBuilders
M C Fearnley DesignArchitectural Designers
The SBB range of freestanding cylinders a the ideal solution for domestic hot water heating in conjunction with a heat pump for a home or workplace.
The cylinders are designed with smooth indirect coils which are excellent at transferring heat efficiently and an enamel coating over the inner casing to resist scale deposits. With the SOL versions, it is also possible to integrate a solar thermal system.
- Specs
Model number - SBB 302 WP GB
- Rated capacity - 290 L
- Height - 1710 mm
- Diameter - 700 mm
- Standby energy consumption/24 h at 65 °C - 2.1 kWh
- Indirect coil surface area top + lower - 4.8 m2
- Flanged aperture - 210 mm
- PTR valve - 700 kPa
- Weight - 184 kg
- Solar Thermal Compatible - No
Model number - SBB 401 WP SOL GB
- Rated capacity - 395 L
- Height - 1880 mm
- Diameter - 750 mm
- Standby energy consumption/24 h at 65 °C - 2.4 kWh
- Indirect coil surface area top + lower - 4.0 m2 + 1.4 m2
- Flanged aperture - 210 mm
- PTR valve - 700 kPa
- Weight - 219 kg
- Solar Thermal Compatible - Yes – max. 8 m2
Model number - SBB 501 WP SOL GB
- Rated capacity - 395 L
- Height - 1880 mm
- Diameter - 750 mm
- Standby energy consumption/24 h at 65 °C - 2.4 kWh
- Indirect coil surface area top + lower - 4.0 m2 + 1.4 m2
- Flanged aperture - 210 mm
- PTR valve - 700 kPa
- Weight - 219 kg
- Solar Thermal Compatible - Yes – max. 8 m2
