Xtroliner - Thermal PIR
The advanced PIR formula of Xtroliner PIR achieves high R-Value performance in a thin, slimline, rigid board profile and is approved for use in specific commercial building applications such as concrete soffits and concrete wall systems.
Xtratherm is a high performance building insulation that achieves significant thermal performance in a slimline, rigid board profile.

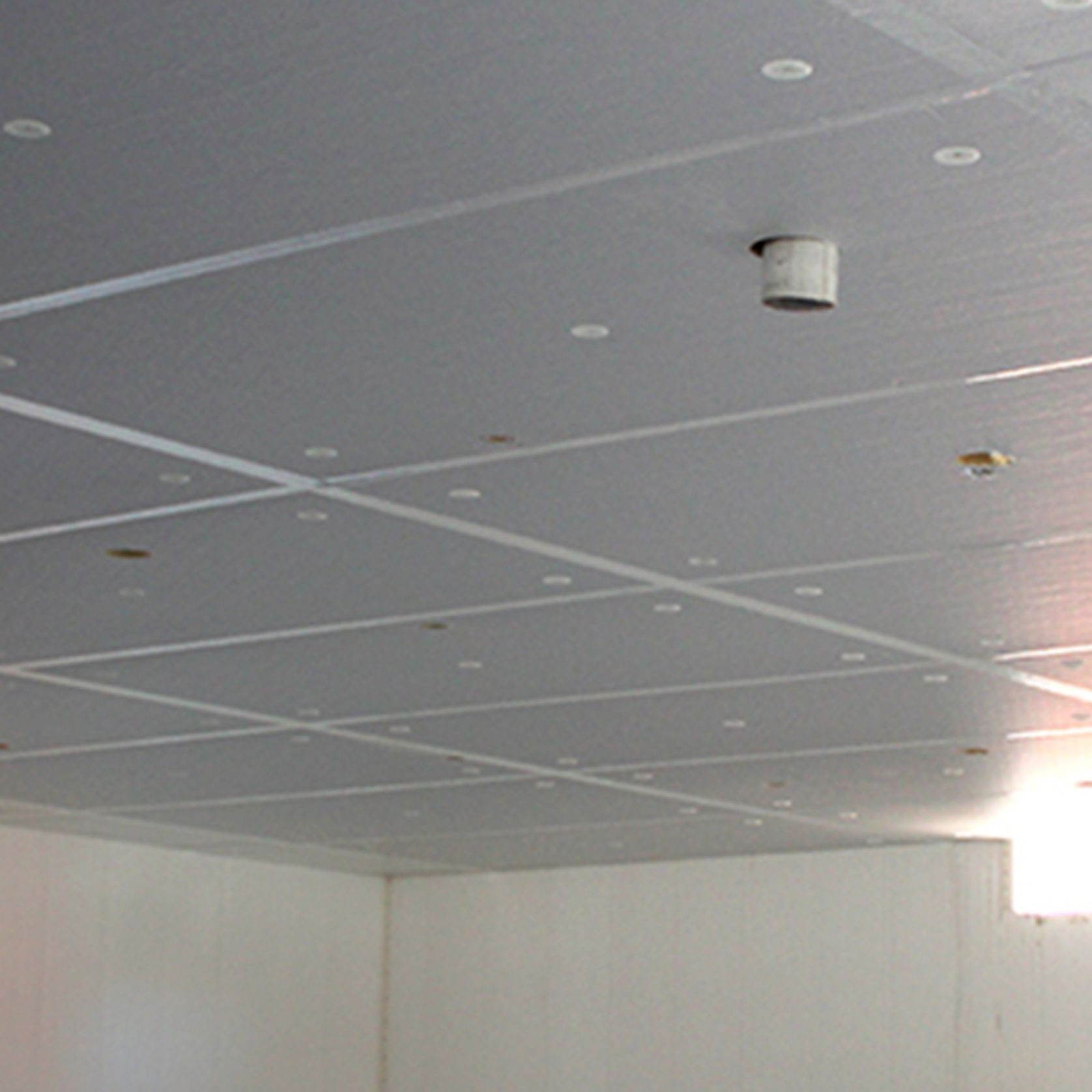

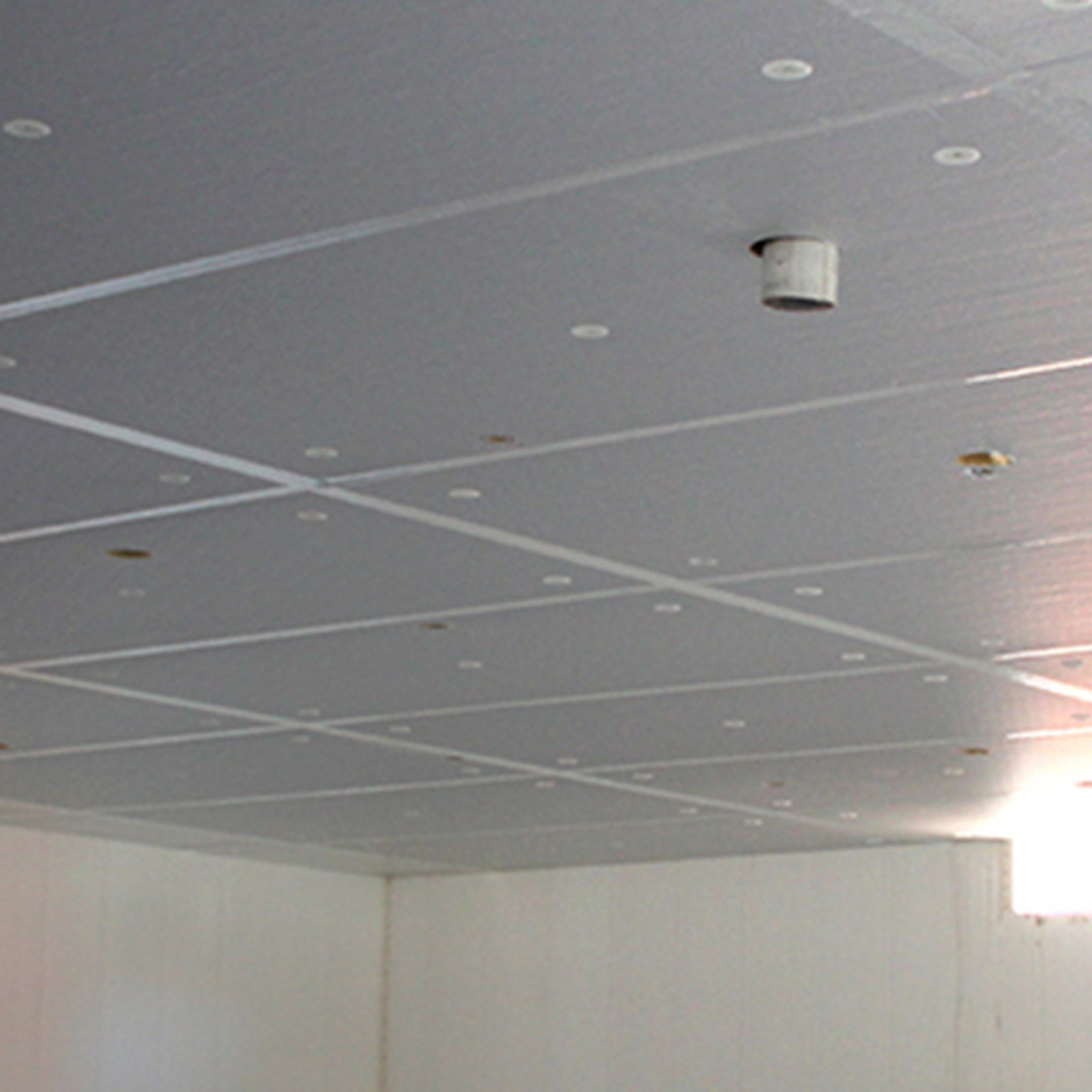

The product is made from an advanced thermoset polyisocyanurate (PIR) foam which is sandwiched between two layers of embossed aluminium foil facings. Its high thermal performance, slimline profile and high compressive strength, allows it to be efficiently designed into a building as a continuous thermal barrier across concrete soffits and concrete walls.
Two Options:
- Xtratherm XtroLiner Std
- Xtratherm XtroLiner Duo
Xtratherm XtroLiner Std
Xtratherm XtroLiner Std is a high performance building insulation that achieves significant thermal performance in a slimline, rigid board profile. Xtratherm XtroLiner Std's special inner core is an advanced thermoset polyisocyanurate (PIR) foam which is sandwiched between two layers of embossed aluminium foil facings.
Xtratherm XtroLiner Duo
Xtratherm XtroLiner Duo is a high performance building insulation that achieves significant thermal performance in a slimline, rigid board profile. Xtratherm XtronLiner Duo’s special inner core is an advanced thermoset polyisocyanurate (PIR) foam which is sandwiched between two layers of embossed aluminium foil facings. With standard embossed aluminium on one side and an embossed aluminium with pre-finish white paint coating on the other.
- CategoryWall Insulation
- RangeCommercial Insulation
Xtratherm XtroLiner Std
- Product Code 127318 - Thickness (25mm), R-Value (1.19), Sheets Per Pack (12), Pack Size m sq (32.69)
- Product Code 130314 - Thickness (40mm), R-Value (1.90), Sheets Per Pack (7), Pack Size m sq (19.07)
- Product Code 127332 - Thickness (50mm), R-Value (2.38), Sheets Per Pack (6), Pack Size m sq (16.34)
- Product Code 130315 - Thickness (70mm), R-Value (3.33), Sheets Per Pack (4), Pack Size m sq (10.90)
- Product Code 130316 - Thickness (75mm), R-Value (3.57), Sheets Per Pack (4), Pack Size m sq (10.90)
Standard size board is 2270mm x 1200mm, sheet size 2.72m2. Minimum order quantities and extended lead times may apply – please contact your local Bradford representative for further details.
Xtratherm XtroLiner Duo
- Product Code 131886 - Thickness (25mm), R-Value (1.19), Sheets Per Pack (12), Pack Size m sq (32.69)
- Product Code 131887* - Thickness (30mm), R-Value (1.43), Sheets Per Pack (10), Pack Size m sq (27.24)
- Product Code 131888 - Thickness (40mm), R-Value (1.90), Sheets Per Pack (7), Pack Size m sq (19.07)
- Product Code 131901 - Thickness (70mm), R-Value (3.33), Sheets Per Pack (4), Pack Size m sq (10.90)
- Product Code 131902 - Thickness (75mm), R-Value (3.57), Sheets Per Pack (4), Pack Size m sq (10.90)
Environmental Information
The Xtratherm XtroLiner range is HCHC free, CFC free and has zero ozone depletion potential (ODP). The Xtratherm range of products have been assessed under the BRE Environmental Profiles Methodology to achieve Green Guide rating of A+ or A giving independent certification of the products low environmental impact, and achieving the highest score available under Credit 1 of BREEAM. BREEAM also awards credits for the responsible sourcing of materials under ISO 14001 from the insulation manufacturer and their immediate suppliers. Xtratherm has achieved ISO14001 and asks for this certification from its major suppliers.
