ZEGO FireFORM | Fire Rated Walls
Our ZEGO Fire Rated Walls (FireFORM) are available in 60mm and 100mm thicknesses.
- CategoryStructural Wall Panelling
- BrandZEGO
- DesignerZEGO

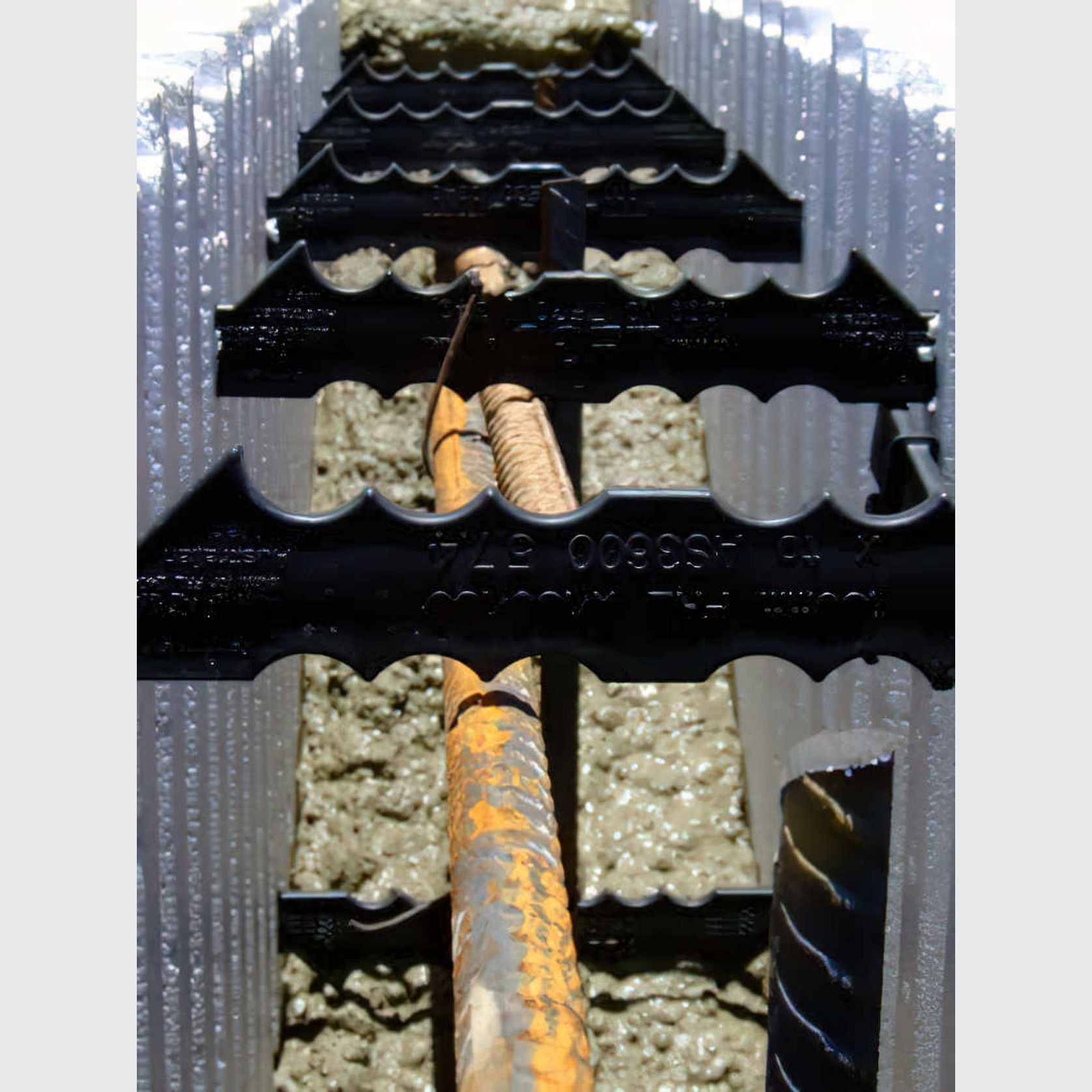

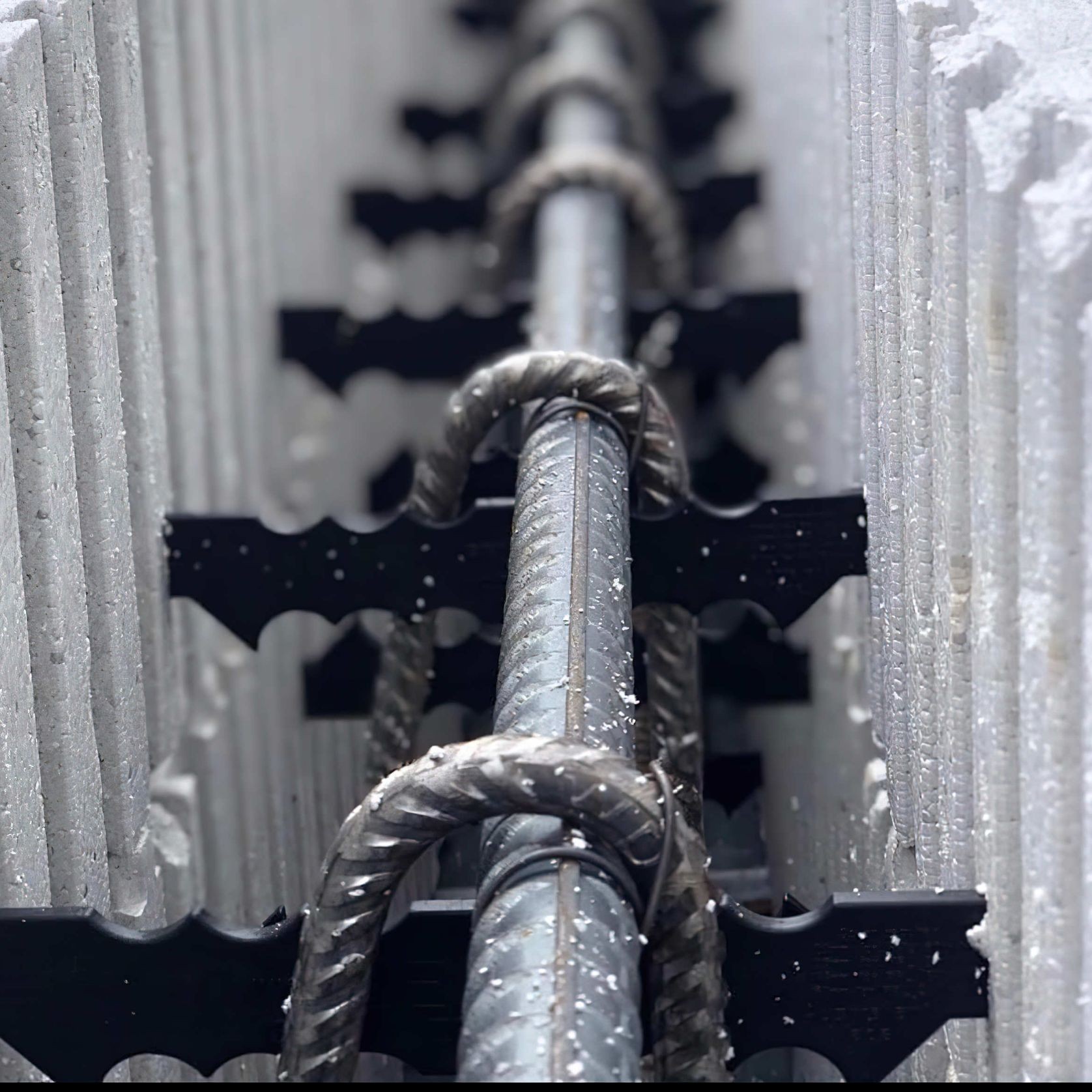

- Designed for precise reinforcement placement and concrete cover as per AS 3600 part 5.7.4
- Full certification as per AS3600 and AS3959-2009 for structural and fire rating
- Fully encapsulated/Protected monolithic reinforced concrete
- Manufactured to fully engineered and quality assured tolerances
- ZEGO wall thicknesses = concrete core size plus panel thickness each side
- External Finishes include but not limited to are Acrylic textured or smooth coloured render allow 8mm+2mm for Acrylic base and top coat renders, Stone – Stack stone, tiles, Alucabond, Batten and weatherboard, MiniOrb, ColorBond
- Internal Finishes include but not limited to are plasterboard allow 10mm or 13mm plus 5mm cornice cement as adhesive, 8mm+1mm for Acrylic base and setcoat coat renders or stone or tile thickness
- ZEGO Fire Rated Wall (FireFORM) has a Design Registered Render Lock Dovetail Groove that mechanically locks the render to the ZEGO Flame Retardant INSUL8 “F” Grade EPS with self-extinguishing properties
- Suitable for residential applications requiring a full fire rating i.e. All Bush Fire Attack Levels from BAL-LOW to BAL-FZ area construction and on or within 900mm of a boundary
- Suitable for commercial applications (party walls, boundary walls, multi-story developments)
- ZEGO a metric building system 300mm i.e. 7 course = 2100 door heads, 8 course 2400 window heads and floor to floor levels 2700-3000-3300-3600 etc
- Can cut to suit different heights easily

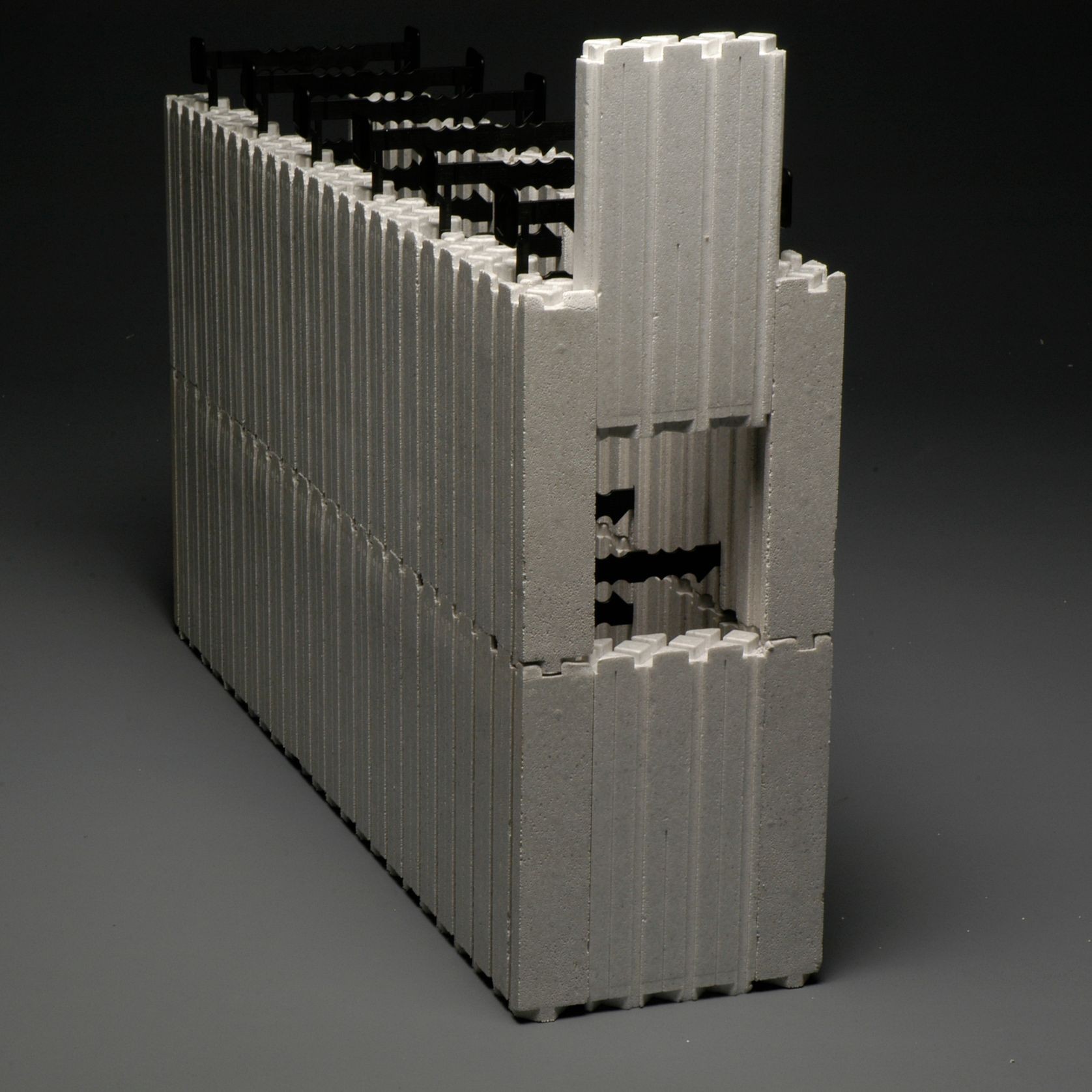

- Two foam panels connected with 6 plastic interconnects

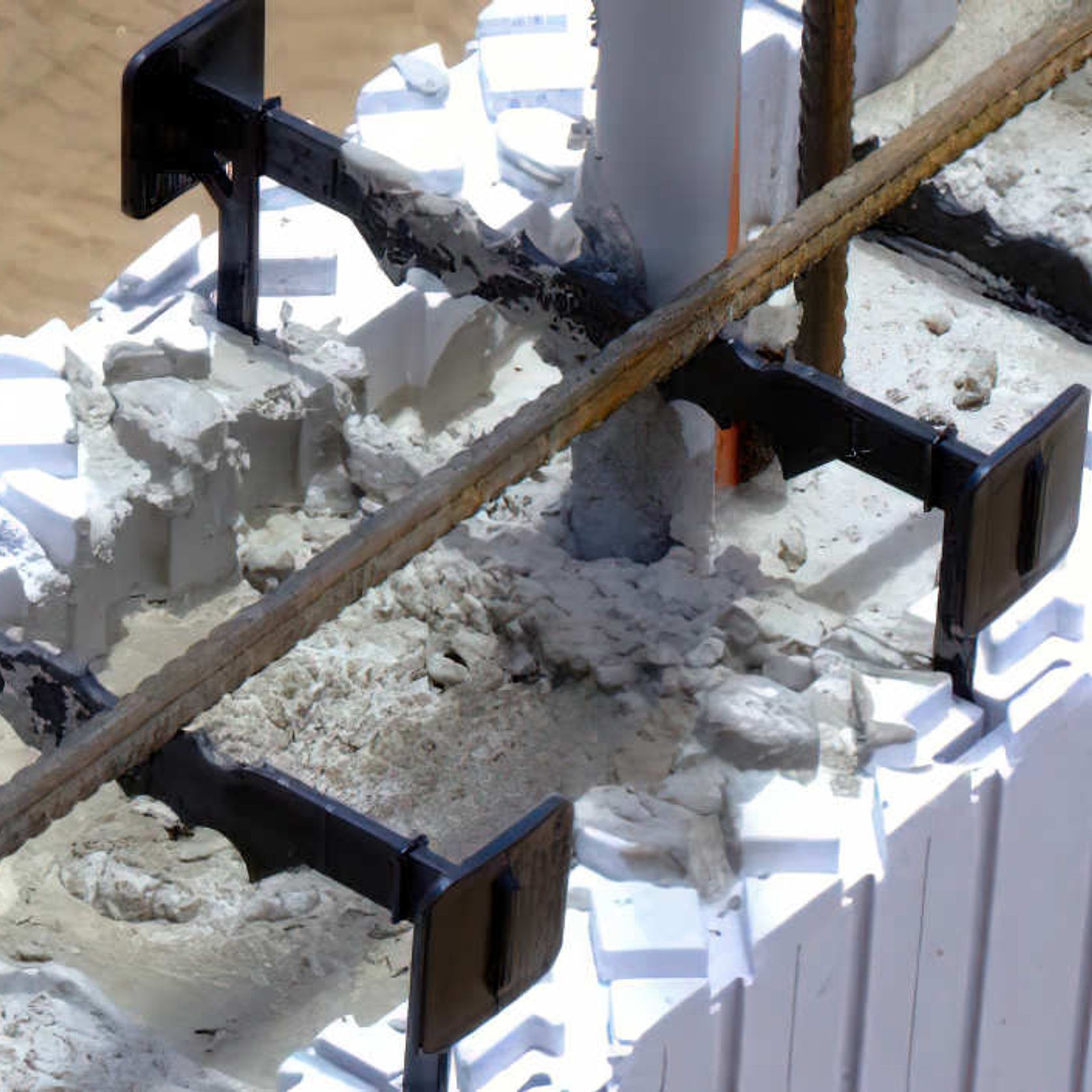

- The 6 interconnects per form lock the panels horizontally and vertically

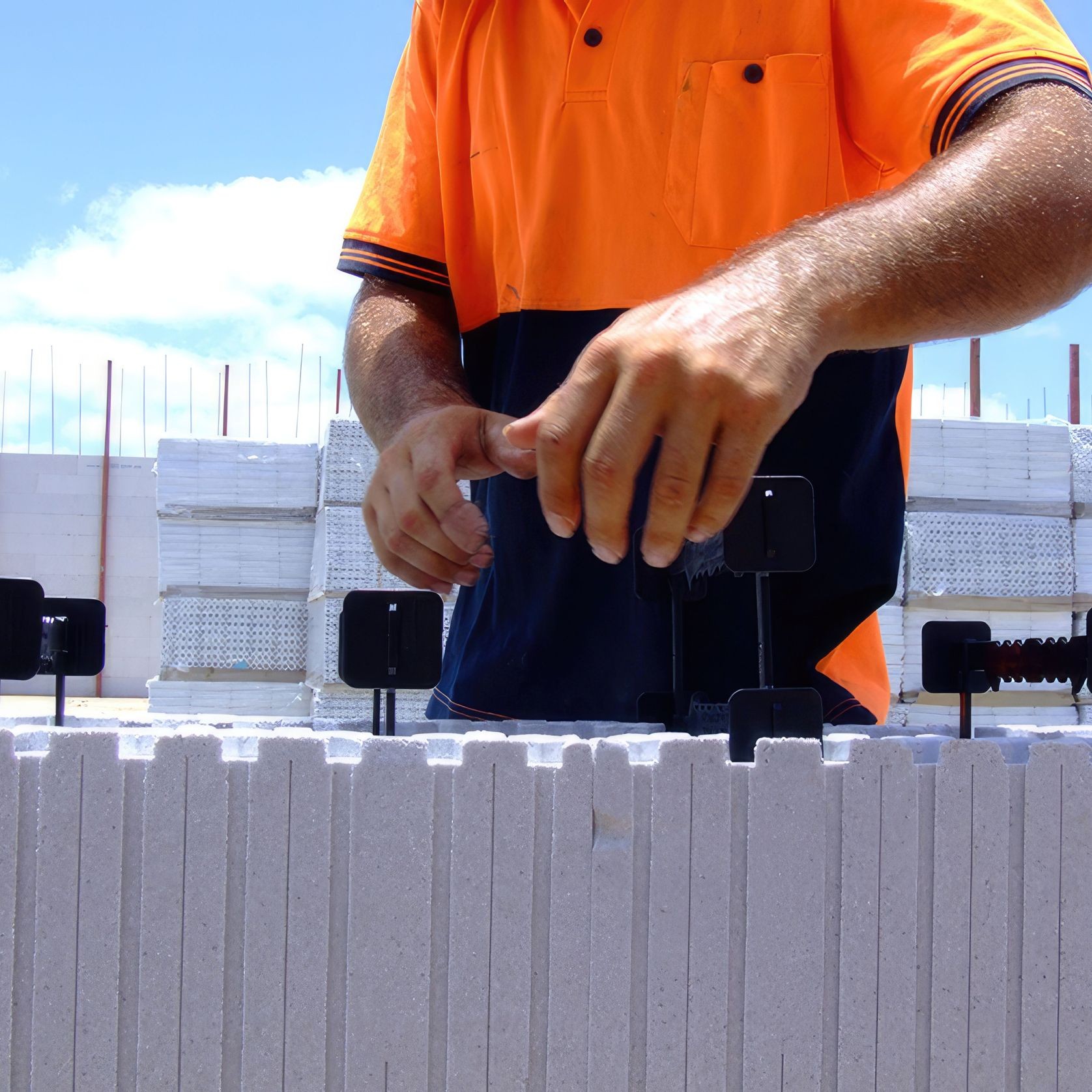

- Forms are assembled on the setout marks eliminating double handling associated with manufacture then lay systems
- Positive male and female interlocks to eliminate sideways slippage during concrete pour
- Construct corners and tee intersections with the same forms due to the engineered interlock
- This engineered interlock eliminates the need for expensive corner forms
- A patented locking mechanism allows the blocks to lock together in increment of approximately 50mm
- A patented Dovetail groove for render, stone and plasterboard support
Projects featuring
ZEGO FireFORM | Fire Rated Walls
About the
Seller
ZEGO is an Australian family owned company and industry leader in the manufacture and supply of insulated concrete formwork and alternative wall building systems since 2001.
An ideal alternative to conventional building systems, we offer a sustainable, energy efficient and faster way to build the walls of a residential or commercial building.
We’ve been offering wall building solutions to Australians for over 20 years and constantly strive to be innovative by introducing new product solutions to the market to keep on trend and at the same time offer our clients the latest in building technologies.
Now offering ZlabFORM, an insulated and fully integrated suspended flooring system, ZEGO provides the whole super structure of your building quickly and efficiently.
Owner Builders will benefit from our unsurpassed engineering design and quality and a level of personal service given on your important investment.
Residential Builders enjoy the versatility of our interlocking product range offering structural, cladding and strippable plastic solutions that can be used in combination on any residential house design including pool and landscape design.
Commercial Builders love the reduced construction program times for multi-story and large commercial developments with fewer trades on site and faster erection times.
Everyone saves with the reduced waste and mess on site including the environment.
