ZEGO ZlabFORM | Slab Formwork

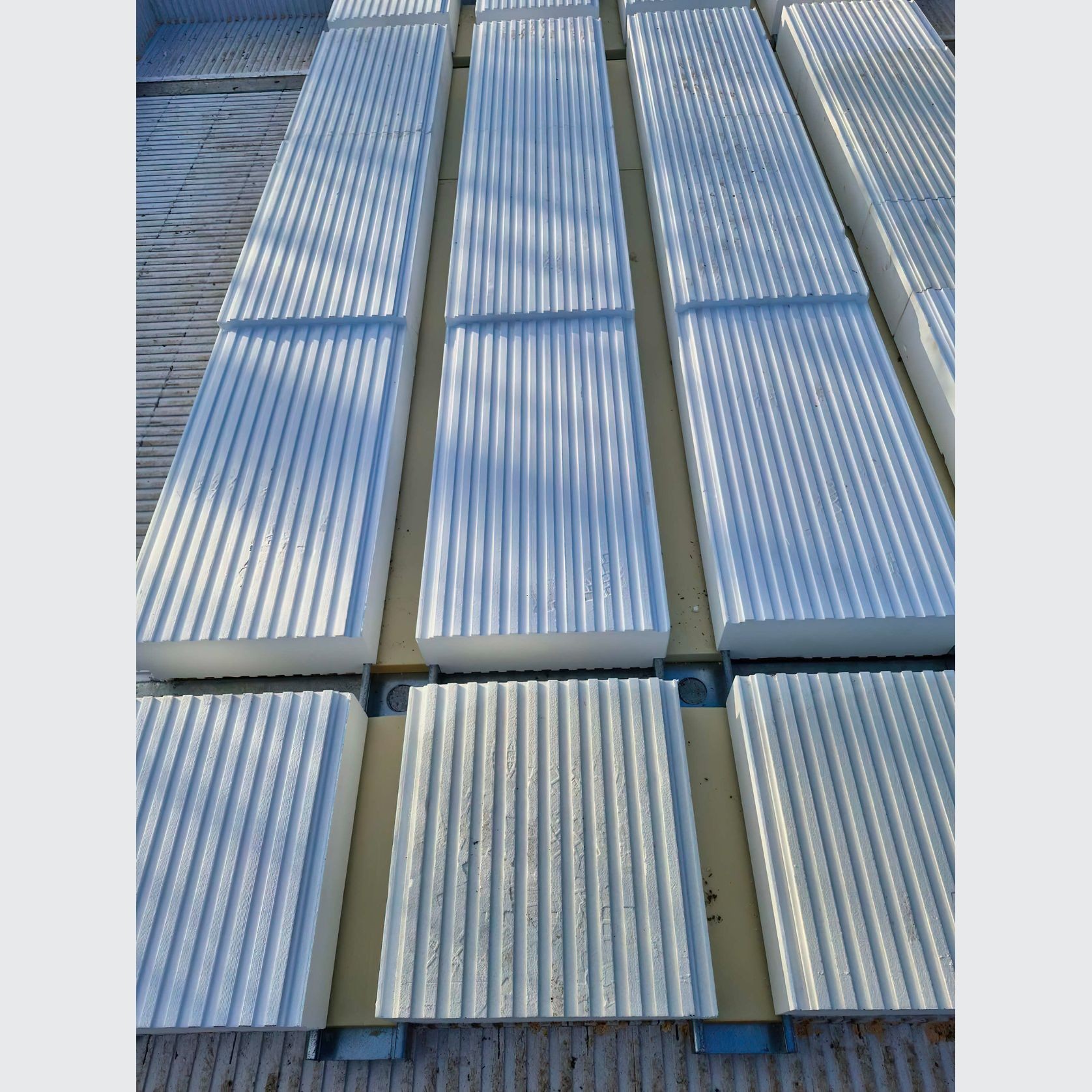

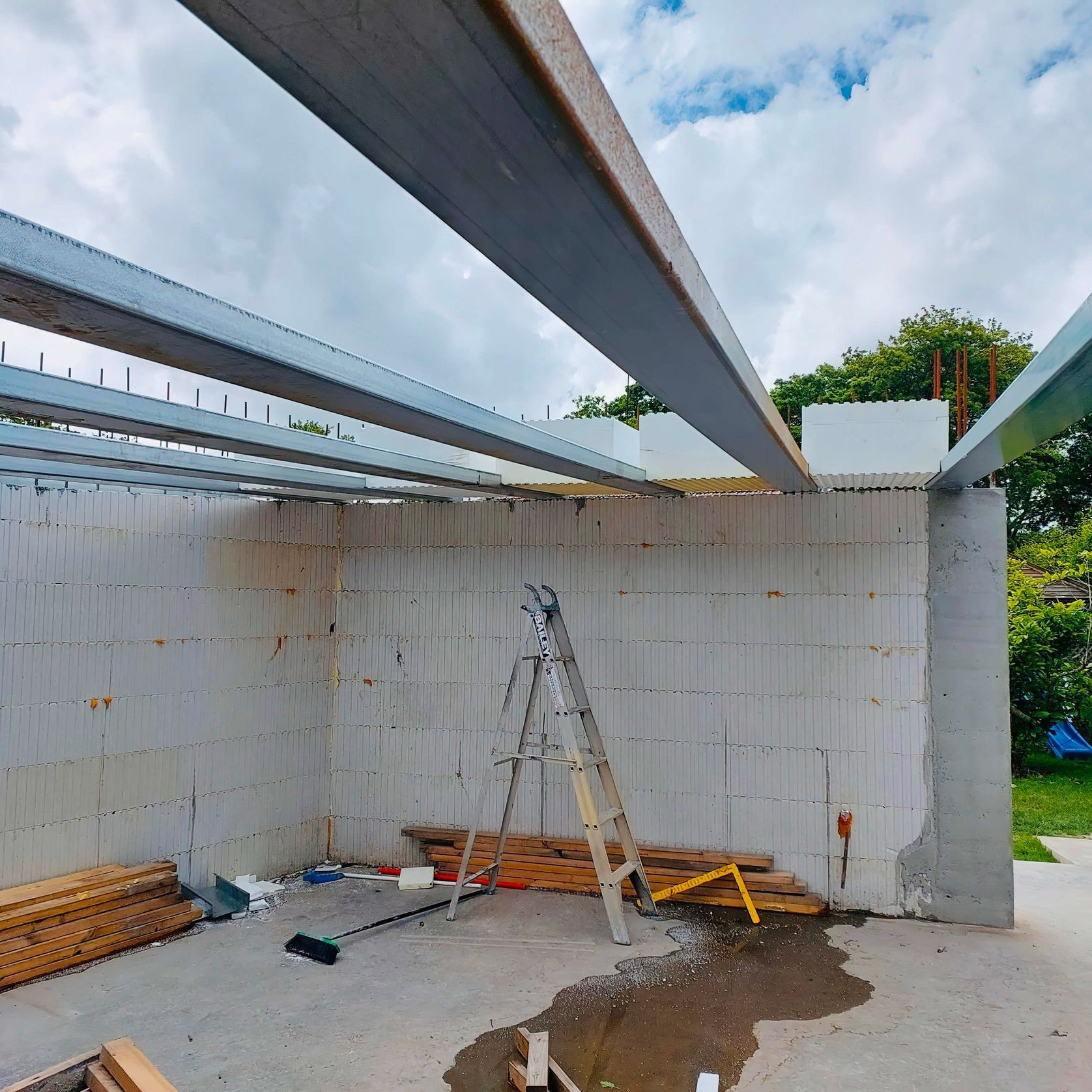

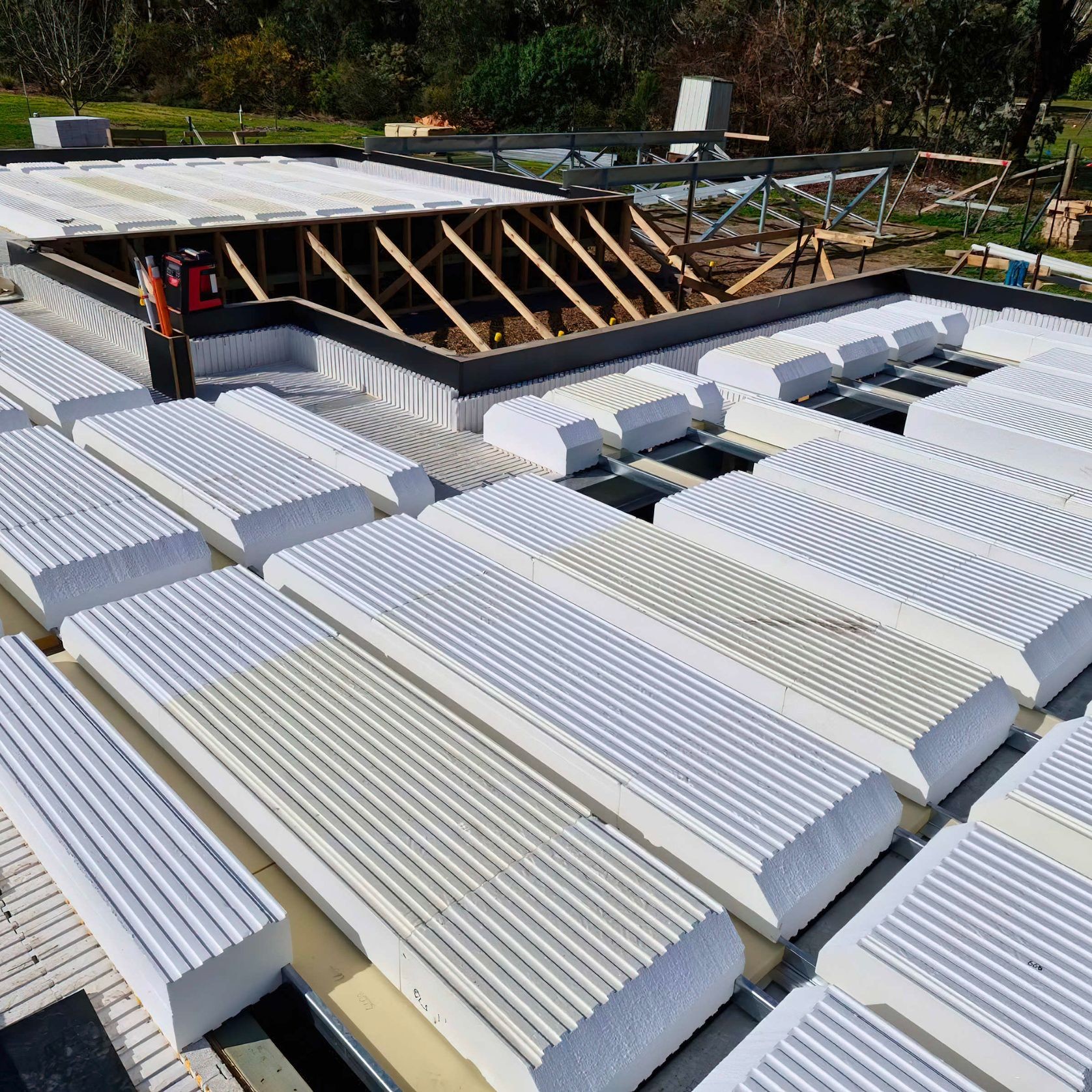

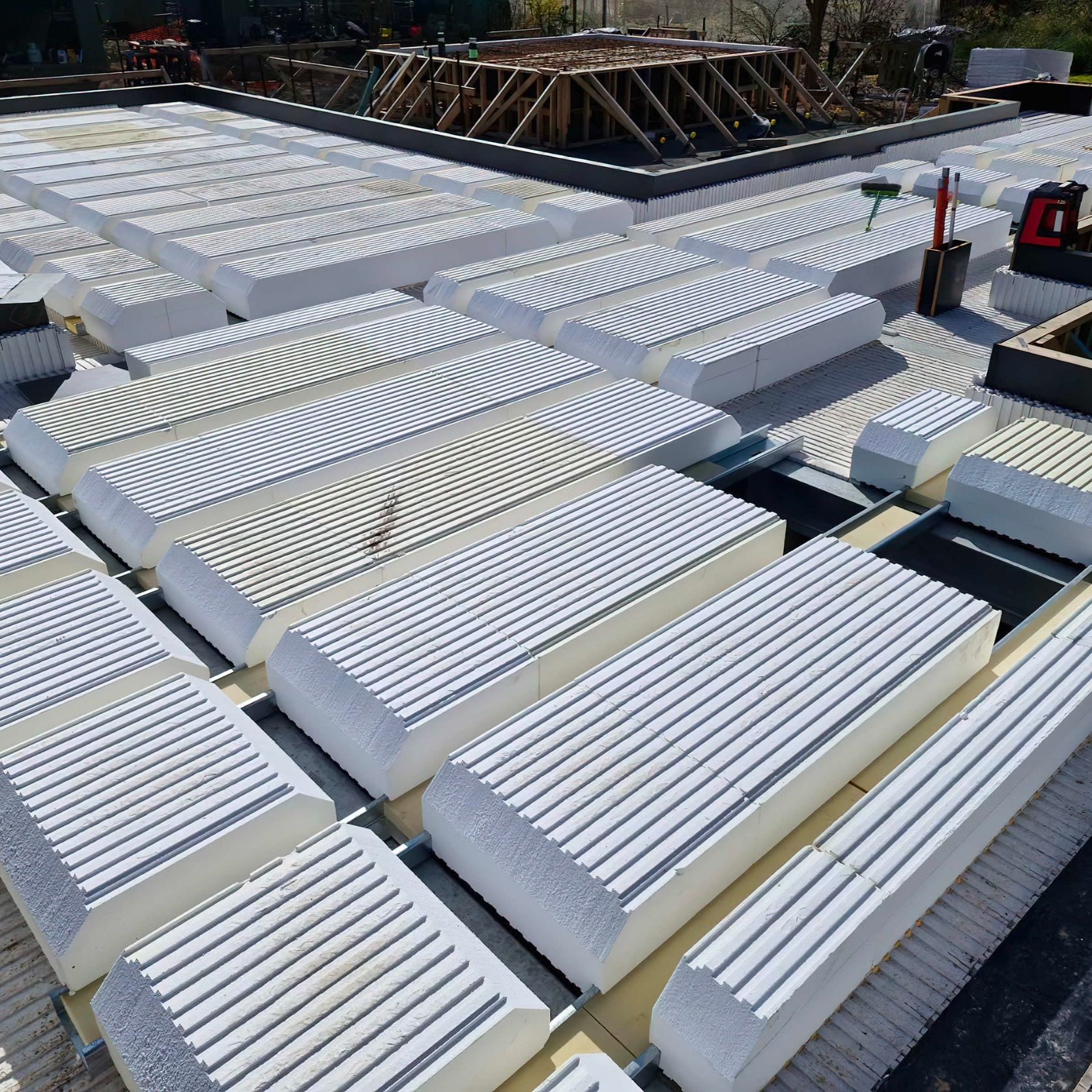

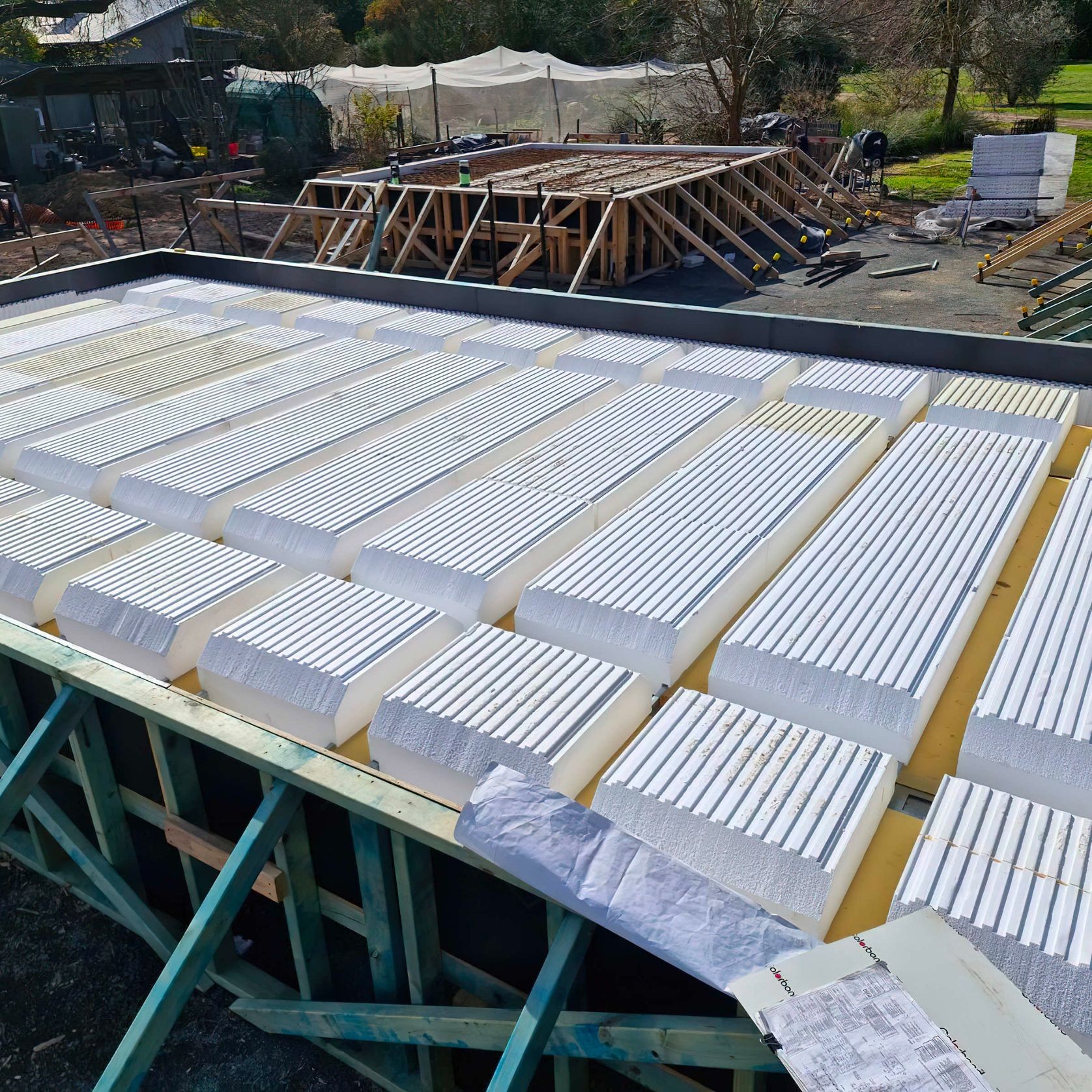

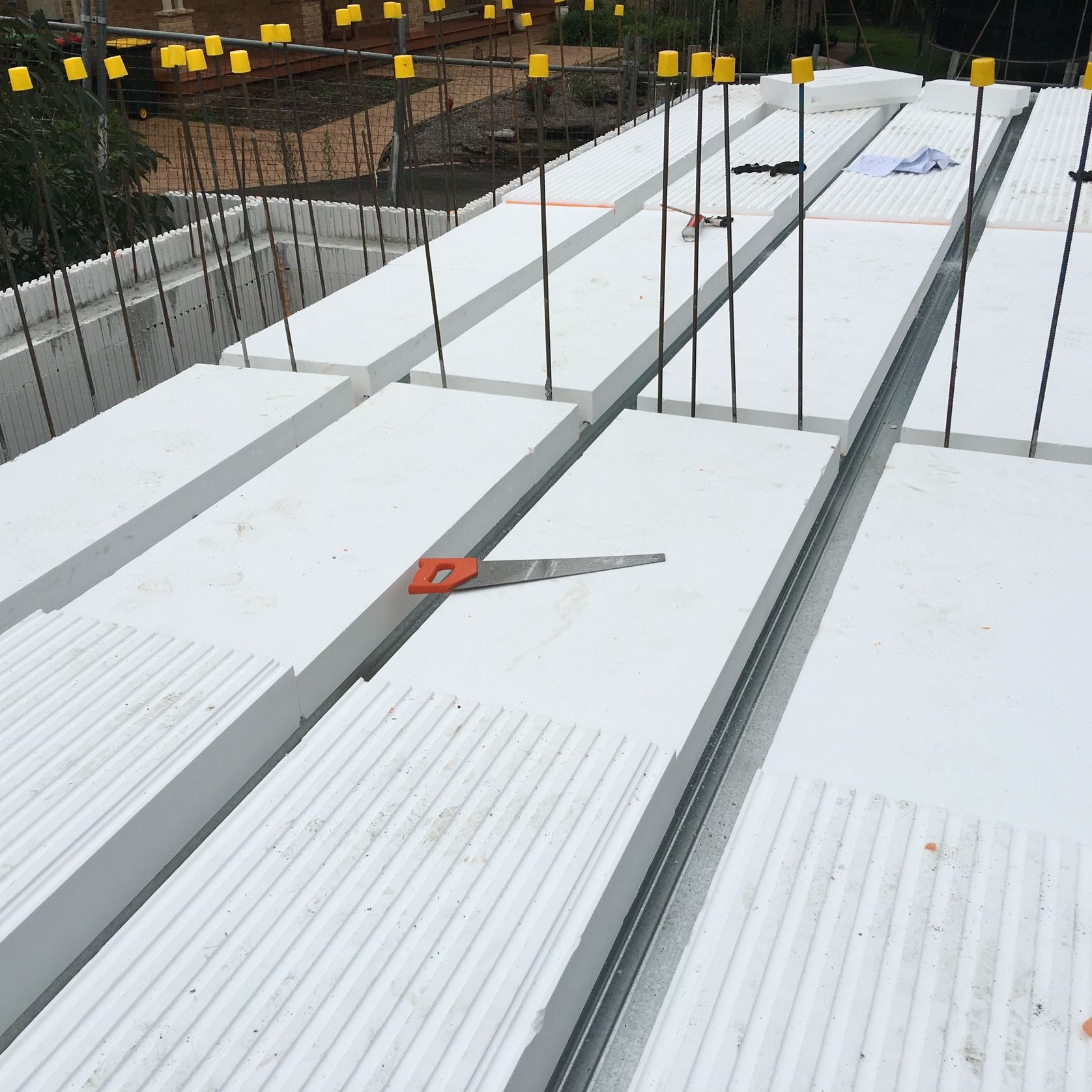

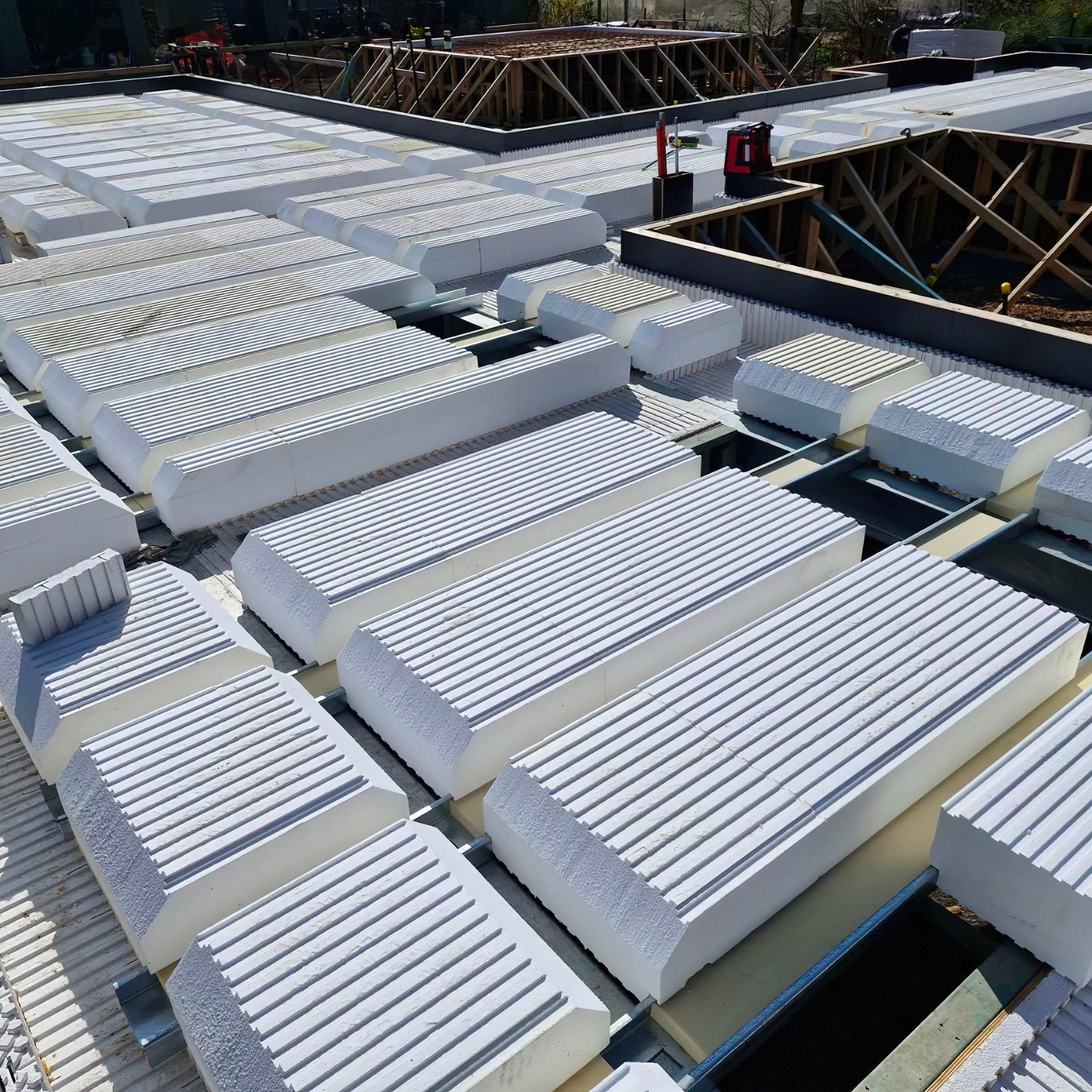

Our ZEGO Slab Formwork (ZlabFORM) is our newly introduced integrated and insulated, reinforced concrete suspended slab flooring system.
- CategoryFloor Slabs, Concrete Flooring
- BrandZEGO
- DesignerZEGO
- Provides additional spans due to integrated connection of the reinforced concrete wall
- Can be incorporated onto any load-bearing wall
- Cantilever for balconies and mezzanine floors
- Incorporate transfer beams at 90 degrees to main beams or parallel to them
- Post tension beams for large open spans and large load
- Beams can be temporarily left in voids for OH&S and removed when finishes are started
- Recess your Services into the foam between beams
- Ceilings direct fix to beams with top hat furring channels or suspended acoustic ceilings or flat plasterboard ceilings
- Maximum Spans per depth vary with Imposed action ( kPa )
- Typical imposed action of 2.0kPa for domestic – 3.0kPa for offices and 5.0kPa for assembly areas without fixed seating
- Permanent action of 0.5kPa for domestic – 1.5kPa for office and assembly areas
- Slab thicknesses to suit 90FRL or 120FRL as per AS3600
- Important Note: When placing concrete, place on foam first to weigh down foam then place in beams and screed concrete to the specified height. “Do not” overload one location during placement of concrete i.e. Place concrete up to FL level as specified.
- Minimal additional formwork
- Fire Rated
- Acoustic Attenuation
- Insulated
- Lightweight
- No blocking required at wall junction
- No Cranage required
Projects featuring
ZEGO ZlabFORM | Slab Formwork
About the
Seller
ZEGO is an Australian family owned company and industry leader in the manufacture and supply of insulated concrete formwork and alternative wall building systems since 2001.
An ideal alternative to conventional building systems, we offer a sustainable, energy efficient and faster way to build the walls of a residential or commercial building.
We’ve been offering wall building solutions to Australians for over 20 years and constantly strive to be innovative by introducing new product solutions to the market to keep on trend and at the same time offer our clients the latest in building technologies.
Now offering ZlabFORM, an insulated and fully integrated suspended flooring system, ZEGO provides the whole super structure of your building quickly and efficiently.
Owner Builders will benefit from our unsurpassed engineering design and quality and a level of personal service given on your important investment.
Residential Builders enjoy the versatility of our interlocking product range offering structural, cladding and strippable plastic solutions that can be used in combination on any residential house design including pool and landscape design.
Commercial Builders love the reduced construction program times for multi-story and large commercial developments with fewer trades on site and faster erection times.
Everyone saves with the reduced waste and mess on site including the environment.
