ZEGO HomeFORM | Domestic Insulated Concrete Forms

ZEGO

Our ZEGO Domestic Insulated Concrete Forms (ICF) HomeFORMS are available in 4 sizes, 100, 150, 200 & 250 Series Forms.

Details
  • Category
    Concrete Formwork
  • Brand
    ZEGO
  • Designer
    ZEGO
Specifications

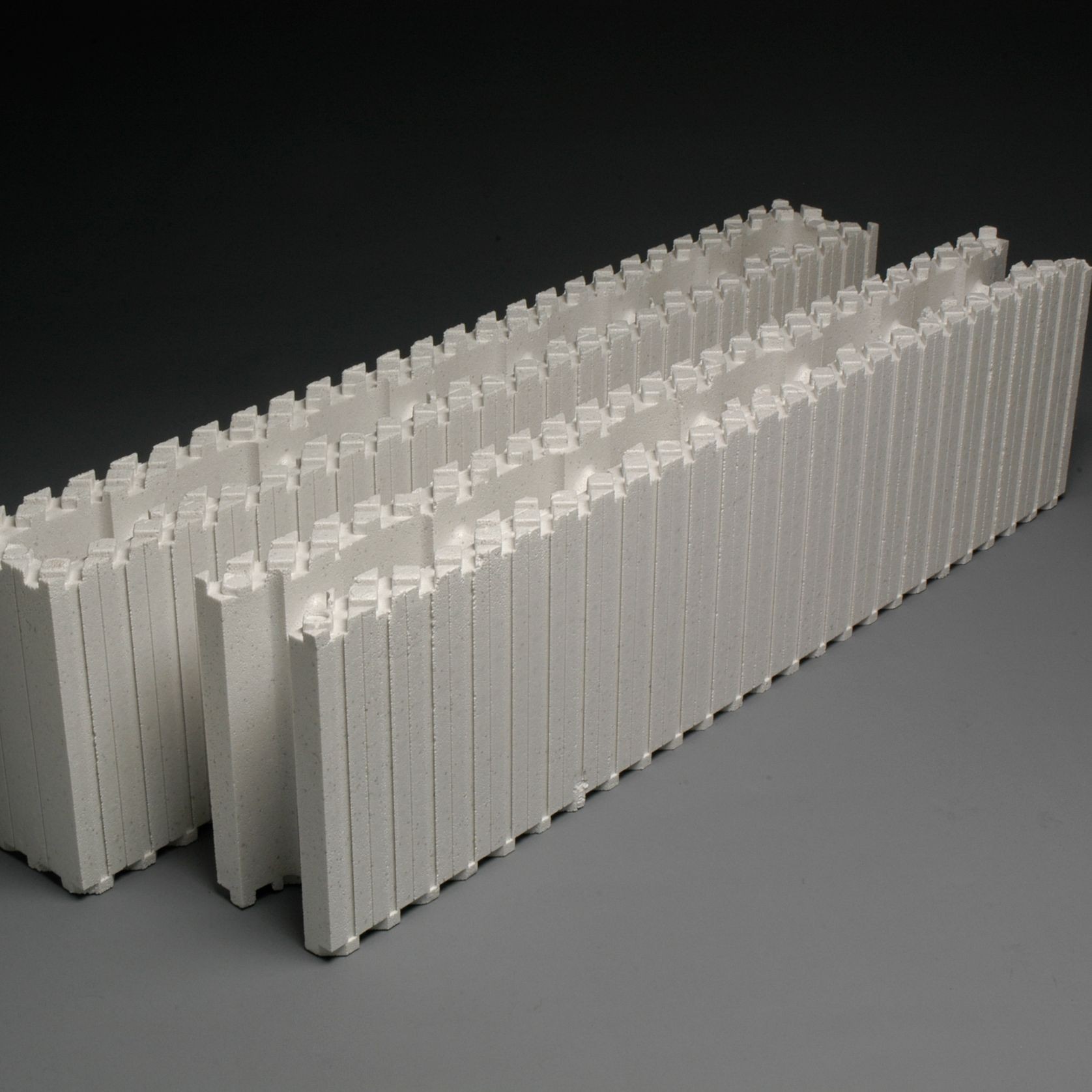

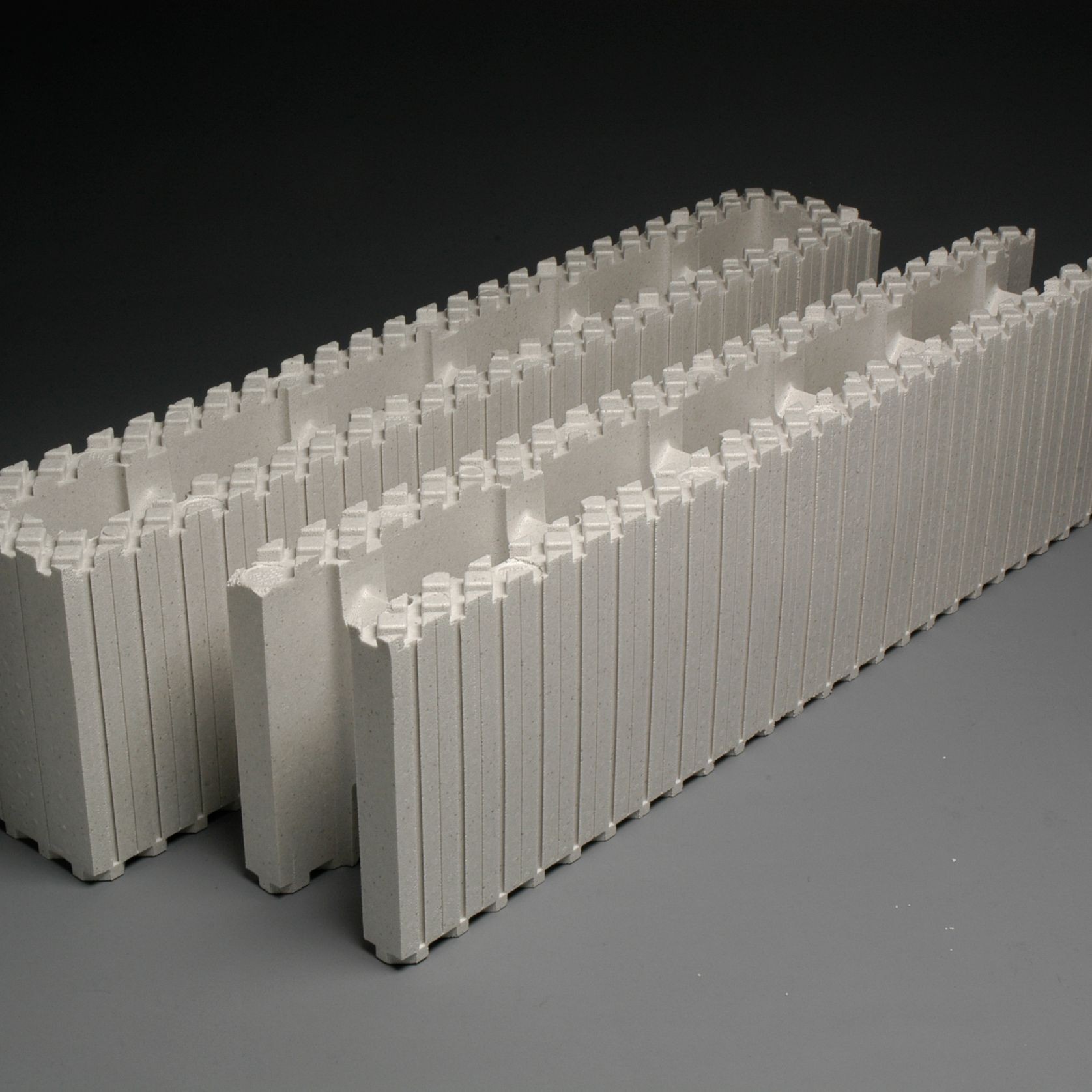

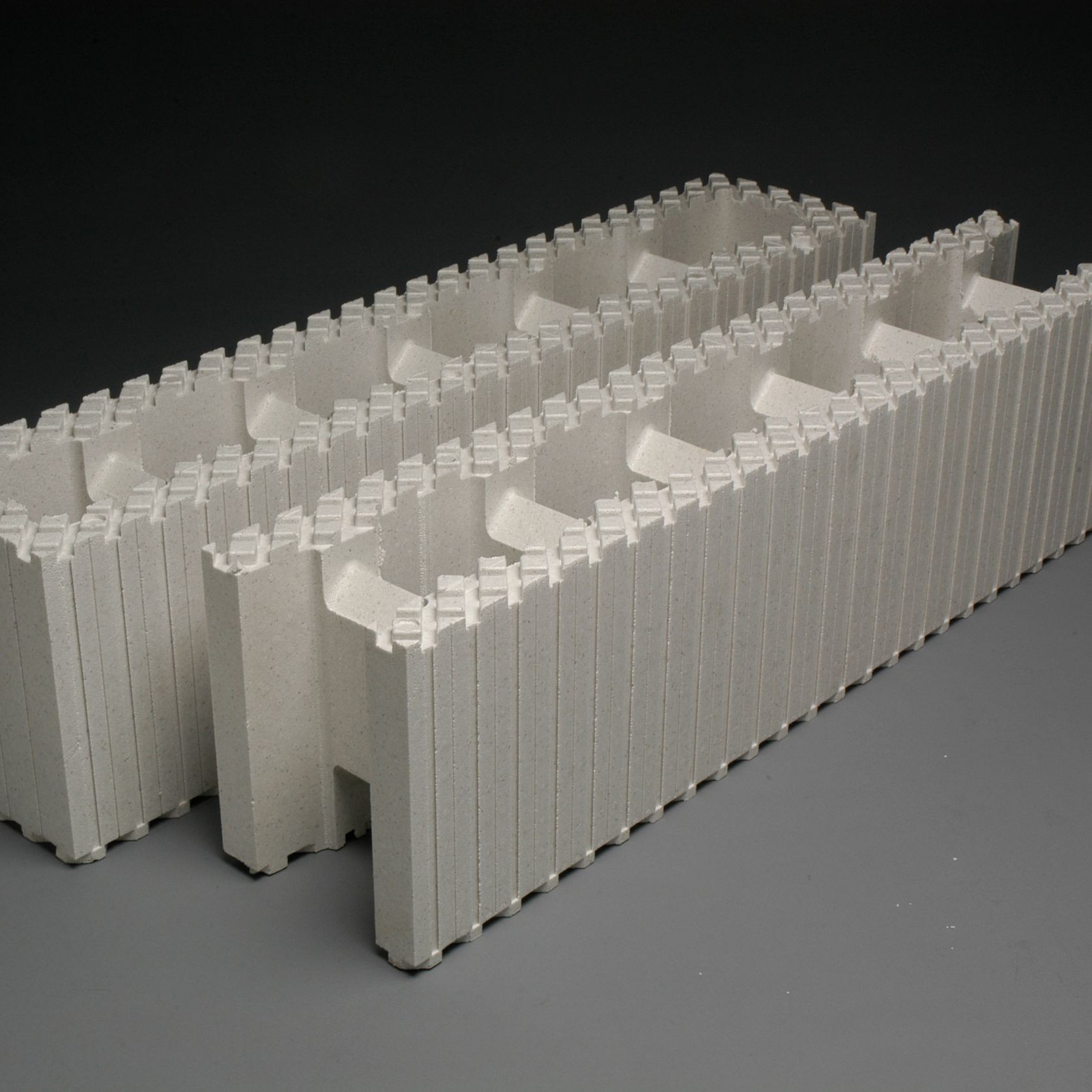

  • A sacrificial hollow foam block in the 150, 200, 250 Series that is core filled with concrete block fill mix (32mpa, 10mm agg, 180mm block fill slump) 7mm agg when using 150 Series.
  • Walls are fully load bearing to support a suspended concrete floor such as the insulated ZEGO Slab Formwork (ZlabFORM)
  • Manufactured to fully engineered and quality assured tolerances
  • Fully complies with AS1366, AS3600, AS3610, AS3700 Australian Standards
  • External Finishes include but not limited to are Acrylic textured or smooth coloured render all 8mm+2mm for Acrylic base and top coat renders, Stone – Stack stone, tiles, Alucabond, Batten and weatherboard, MiniOrb, ColorBond
  • Internal Finishes include but not limited to are plasterboard allow 10mm or 13mm plus 5mm cornice cement, 8mm+1mm for Acrylic base and setcoat coat renders or stone or tile thickness
  • * Up to BAL-29 ZEGO walls to be rendered in Acrylic render e.g. Dulux Acra Tex 8mm polymer base coat with 160gram 4×4 or 5×5 fire retardant alkaline resistant render mesh in centre + Finish coloured smooth or textured top coat of 2mm minimum or 6mm Fibre Cement sheeting or Colourbond/Miniorb or Stone facing or Bushfire Resistant timber finishes
  • ZEGO Insulated Concrete Forms (HomeFORM) has a Design Registered Render Lock Dovetail Groove that mechanically locks the render to the ZEGO Flame Retardant INSUL8 “F” Grade EPS with self-extinguishing properties
Scope of use
  • Suitable for residential applications up to Bushfire Attack Level BAL-29* i.e. Walls with window and door openings.
Features
  • Fire Rating in BAL-40 and BAL-FZ ( Flame Zone ) areas and walls on or within 900mm of a boundary use ZEGO Fire Rated Walls (FireFORM) which also interlocks with the Insulated Concrete Forms (Domestic HomeFORM)
  • The 100mm Series is an alternative for internal and non-load bearing walls
  • A patented Dovetail groove for acrylic render and plasterboard support
Installation

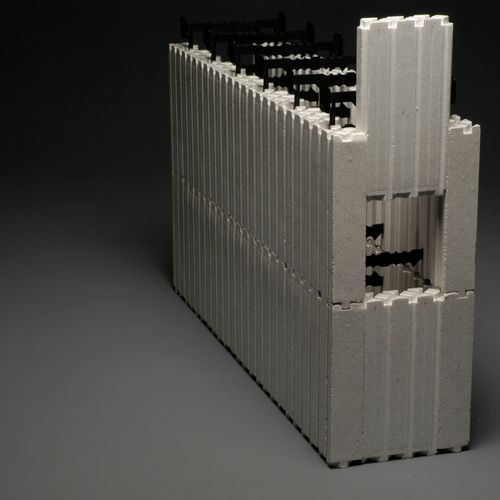

  • Positive male and female interlock to eliminate sideways slippage during concrete pouring
  • A patented locking mechanism allows the blocks to lock together in increment of approximately 50mm
