ZEGO Z-Board | External Insulating Façade System

By ZEGO

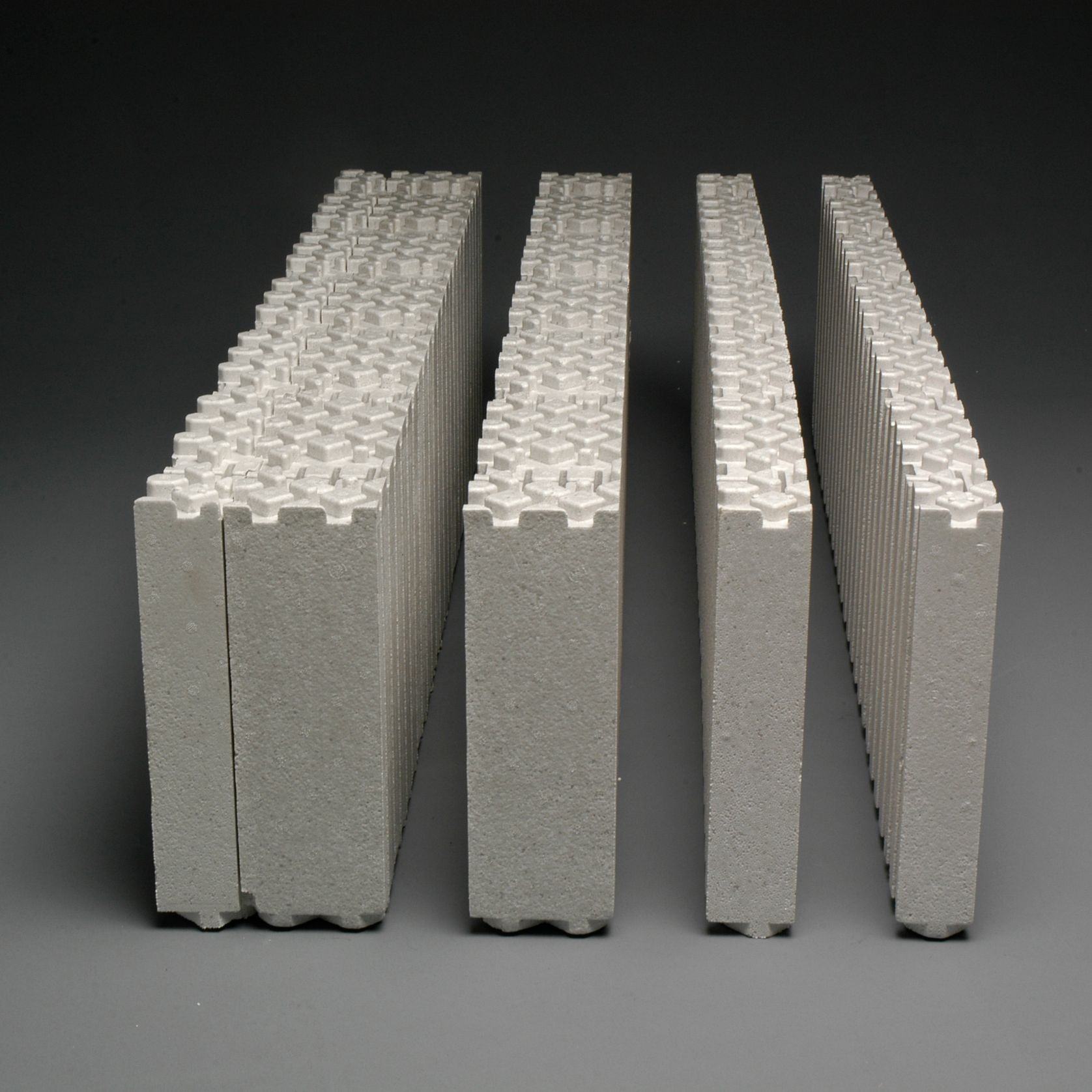

Our ZEGO Polystyrene Wall Cladding (Z-Board) is an External Insulating Facade System (EIFS) which comes in your choice of 60mm or 100mm foam panels.

Details
  • Category
    Concrete Cladding
  • Brand
    ZEGO
  • Designer
    ZEGO
Specifications
  • Fire Rating in BAL-40 and BAL-FZ ( Flame Zone ) areas and walls on or within 900mm of a boundary use Fire Rated Walls (FireFORM) which also interlocks with the Z-Board and Insulated Concrete Forms (HomeFORM)
  • Self-supporting and interlocking
  • Also available in other thicknesses by request.
  • Apply Breathable Sarking or TYVEK Home wrap to frame
  • Large convection current grooves eliminates condensation
  • Thermally insulated and is a reflective barrier to sound absorption
  • External Finishes include but not limited to are Acrylic textured or smooth coloured render 8mm+2mm for Acrylic base and top coat renders, Stone – Stack stone, tiles, Alucabond, Batten and weatherboard, MiniOrb, ColorBond
  • * Up to BAL-29 ZEGO Z-Board walls to be rendered in Acrylic render e.g. Dulux Acra Tex 8mm polymer base coat with 160gram 4×4 or 5×5 fire retardant alkaline resistant render mesh in centre + Finish coloured smooth or textured top coat of 2mm minimum or 6mm Fibre Cement sheeting or Colourbond/Miniorb or Stone facing or Bushfire Resistant timber finishes
  • ZEGO Polystyrene Wall Cladding (EIFS) has a Design Registered Render Lock Dovetail Groove that mechanically locks the render to the ZEGO Flame Retardant INSUL8 “F” Grade EPS with self-extinguishing properties
Scope of use
  • Suitable for new homes up to Bushfire Attack Level BAL-19* first floor additions, alterations or renovation facades
Installation
  • Suitable for new homes up to Bushfire Attack Level BAL-19* first floor additions, alterations or renovation facades
  • Easy to handle in windy conditions during installation
  • Fixed through to your structural timber or steel frame with only 9 fixings per square metre
  • No adhesives or battening required unless specified by the project designer ( built in convection grooves )
Installation
  • Fixed to timber or steel stud frame vertically at 300mm or horizontally at maximum 600mm centres
  • Fixed through to your structural timber or steel frame with only 9 fixings per square metre
  • No adhesives or battening required unless specified by the project designer ( built in convection grooves )
  • Easy to handle in windy conditions during installation
