Basalt Grey

Commercial grade with 15 Watts of charging powerNo cut installation for surfaces 20-25 mm thickFast charge for Samsung (10W) Apple (7.5W)

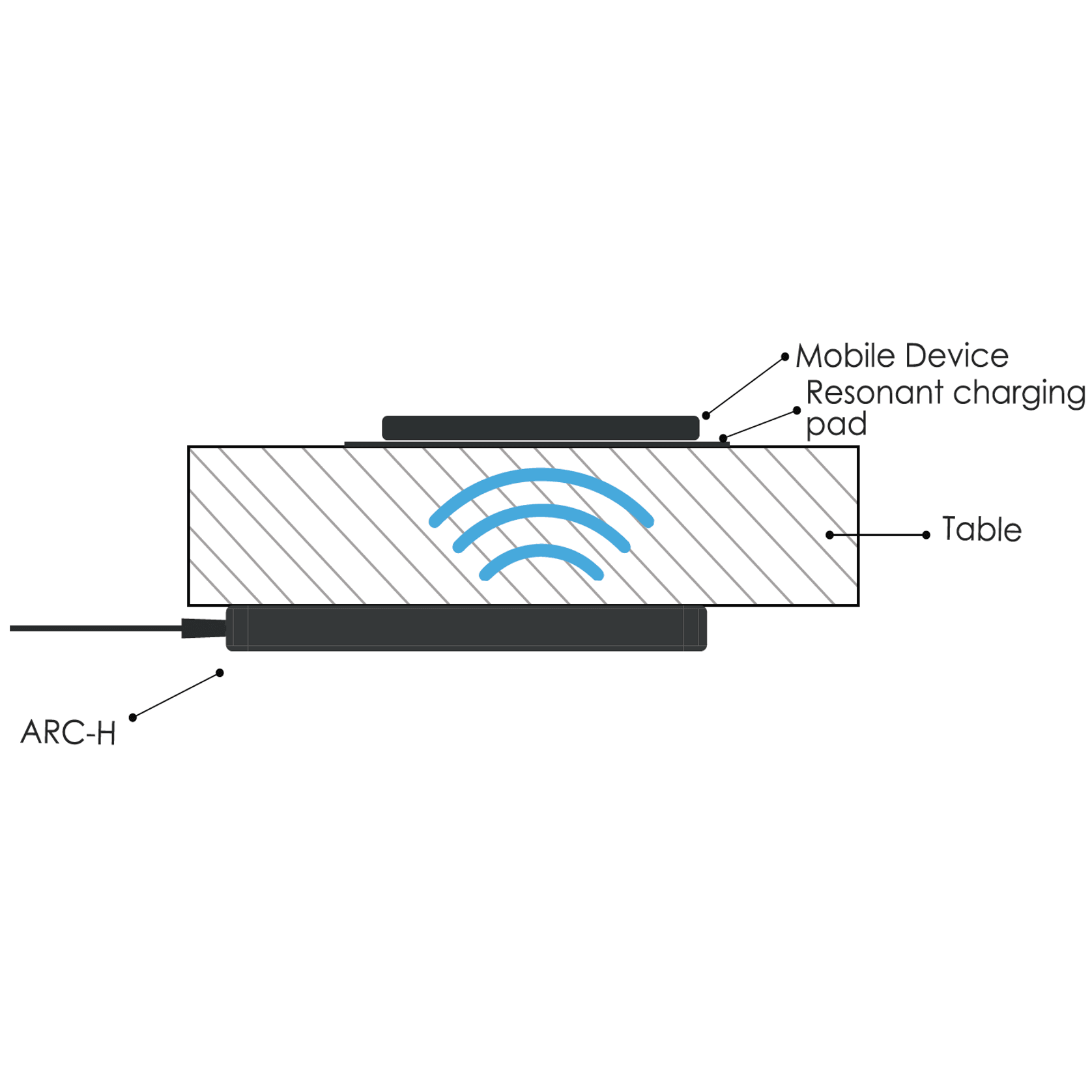

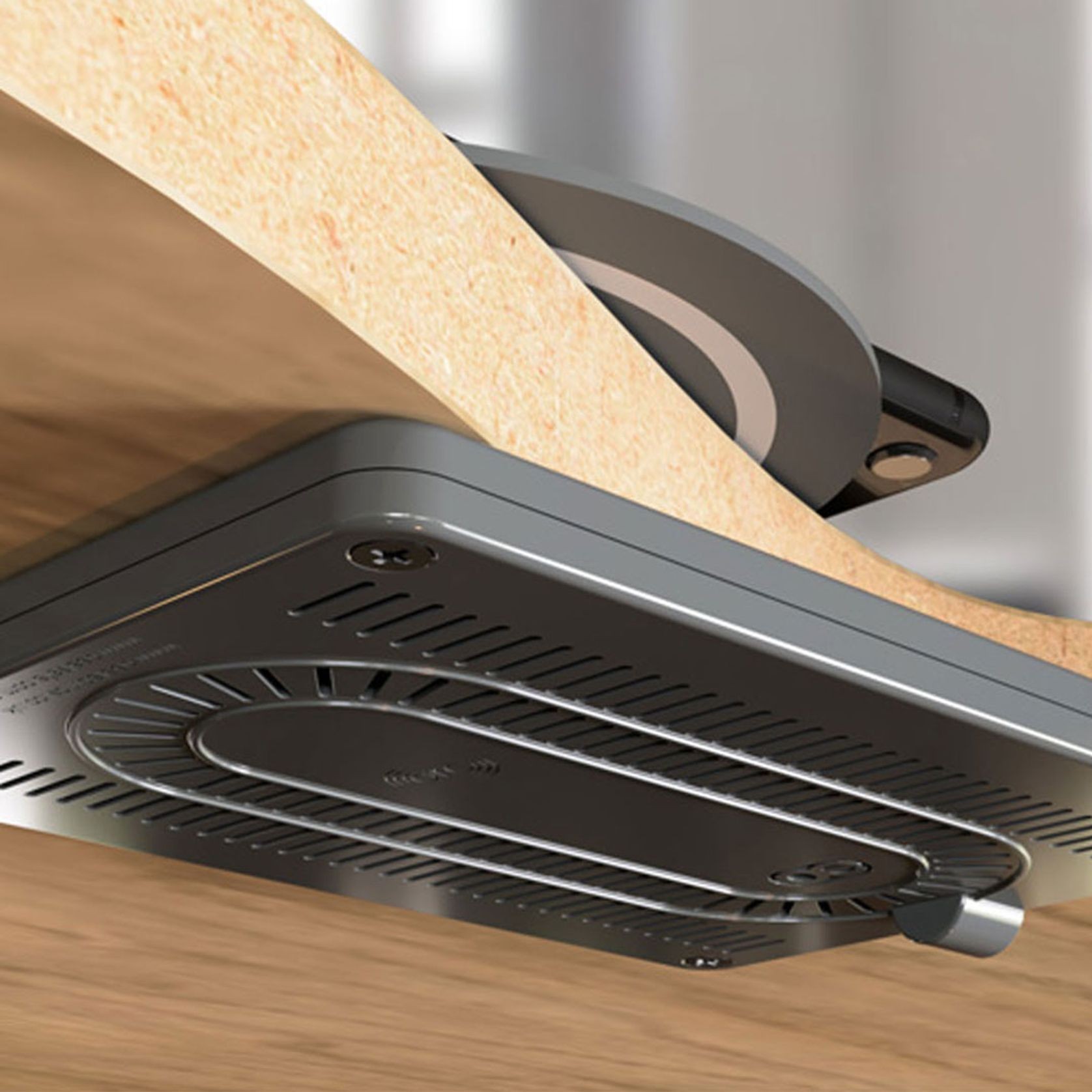

The ARC H LD subsurface wireless charger offers the ultimate in charging convenience. Designed for commercial spaces and with a charging range of (20-25 mm)*, ARC H LD can be installed without the need to cut into work surfaces.

OE’s patented design uses a resonant coil to focus the energy field and provide maximum efficiency and the fastest possible charging speeds. ARC H LD is available with a basalt grey or white resonator pad. *Surfaces thicker than 25mm require OE’s electronic alignment tool, contact us for more information.

Details
  • Category
    Office Accessories
  • Warranty
    2 years
Specifications

ARC H LD Specifications (20-50mm)

  • Output Power: Up to 15W
  • Input Power: 19V/0.94A
  • Standby Power: 0.2W

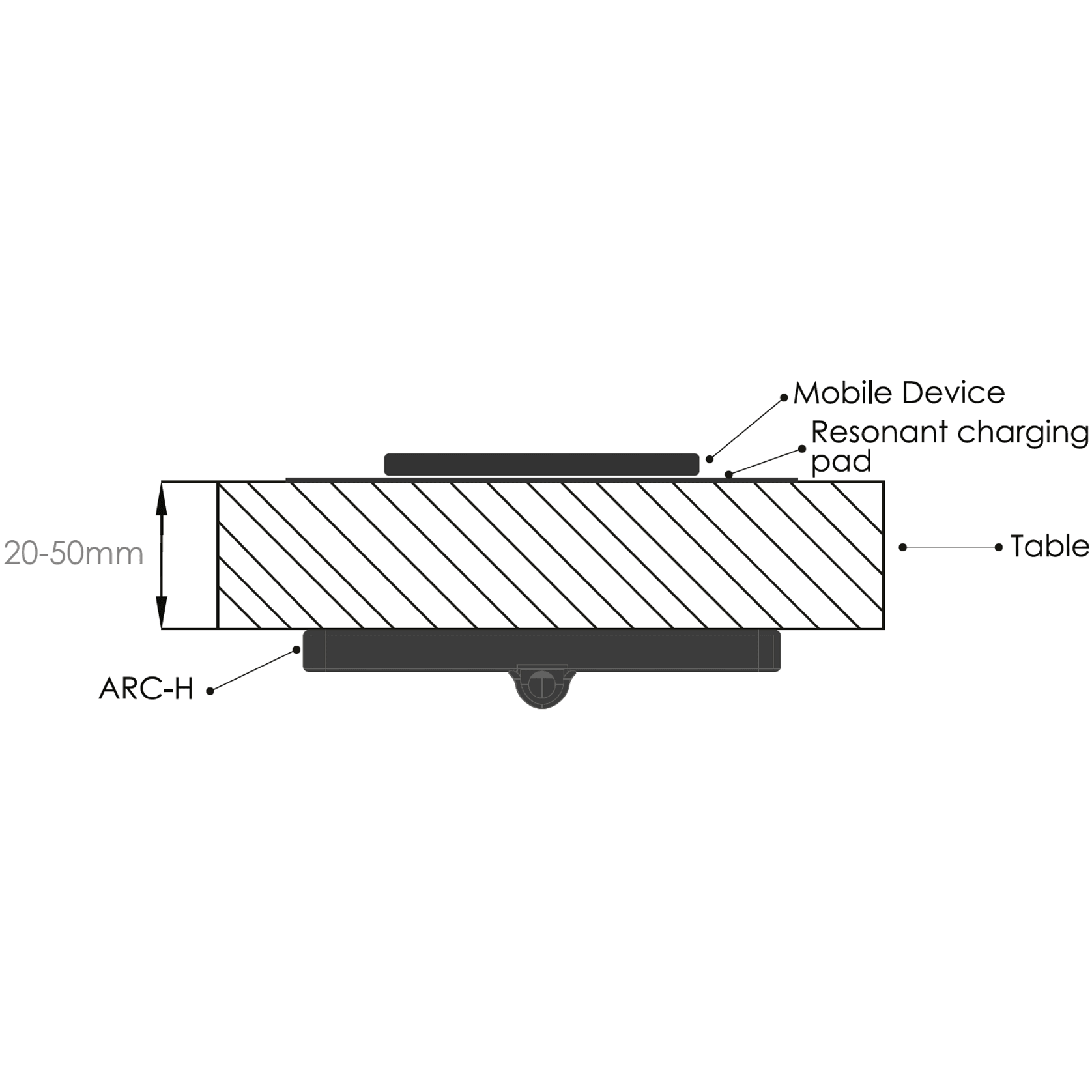

  • Charging Z-Distance:
    20-30mm surface thickness to comply with FCC Part 15 or 20-50mm

Desk Thickness

  • No under-desk routing for surfaces 20-30mm. Thicker surfaces require under-desk routing to comply with FCC requirements.

Certification

  • Qi Compatible
  • FCC Part 15 (when installed under surfaces 20-30mm (0.78”-1.18”) thick)
  • IEC 60950-1 (Safety)
  • EN62311 (Health)
  • EN 301 489-1
  • EN 301 489-3 (EMC)
  • EN 303 417 (Radio)

Available Colours

  • ARC-H LD – RAL 7012 Basalt Grey with RAL 7012 Basalt Grey Resonator Pad
  • ARC-H LD – Black with White Resonator Pad

In the Box

  • 1x ARC-H LD
  • 1x Power adaptor with (1.5m) lead and NEMA, UK, Euro 2 pin, and Australian/Chinese plugs
  • 1x Resonator pad
  • 1x Alignment magnet
  • 1x Alignment template
  • 3x Cable clips
  • 1x Installation manual

Compatible Phones

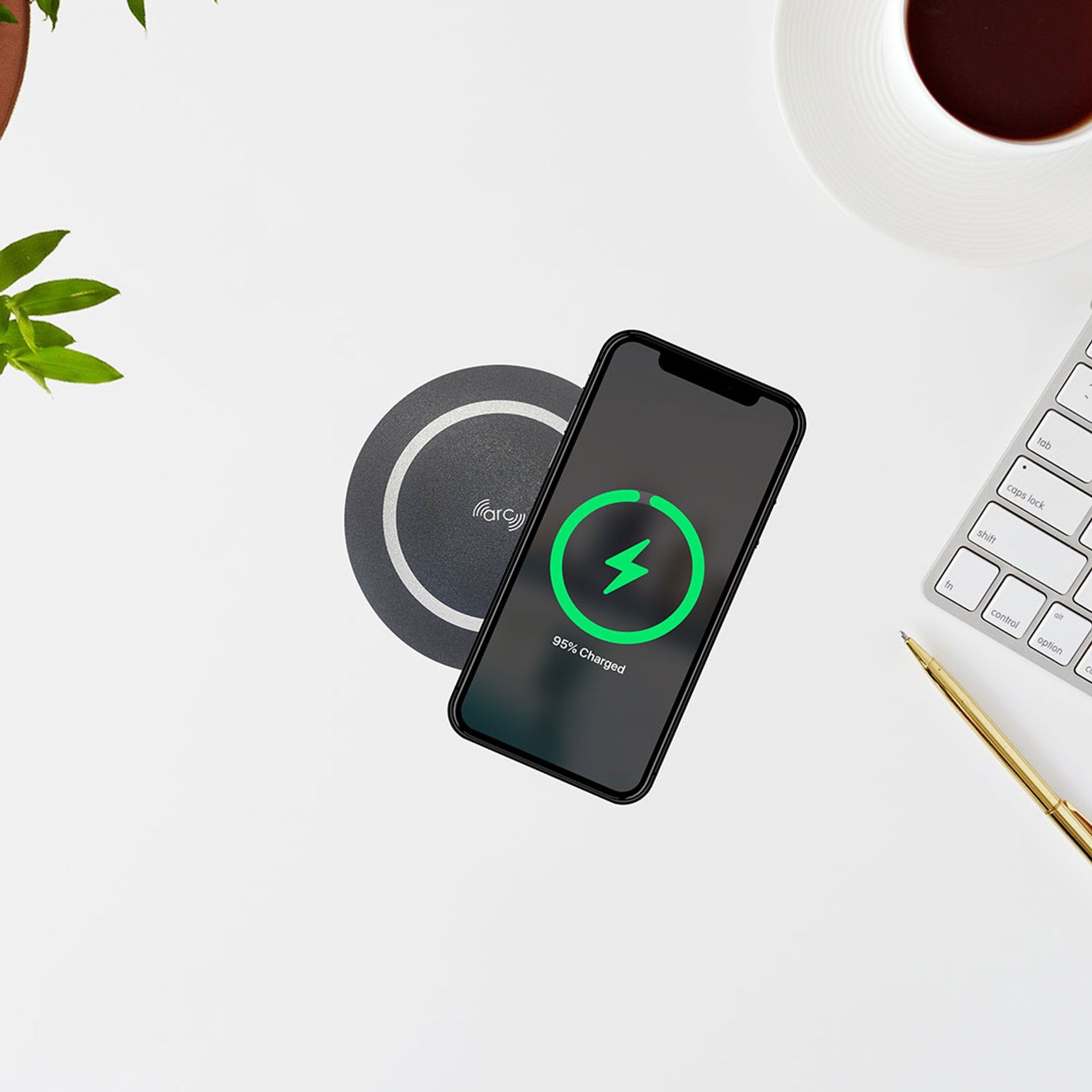

  • ARC H LD is compatible with all wireless-enabled mobile phones, including Samsung, iPhone (including 12 and 13 series), and Google Pixel.
Features

• Fast charge up to 15W • Quick boost or full charge • Fast charge Samsung & Apple • Commercial grade, premium design • Easy installation • Qi certified

Fast charge Samsung (10W) Apple (7.5W)

  • With 15W of charging power ARC-H LD is one of the fastest subsurface wireless chargers on the market, convenient for a full charge or a quick boost when you need it most. Commercial space wireless smartphone charging is an eco friendly option eliminating the need for charging cables and reducing e-waste.

Quick and Easy No Cut Installation

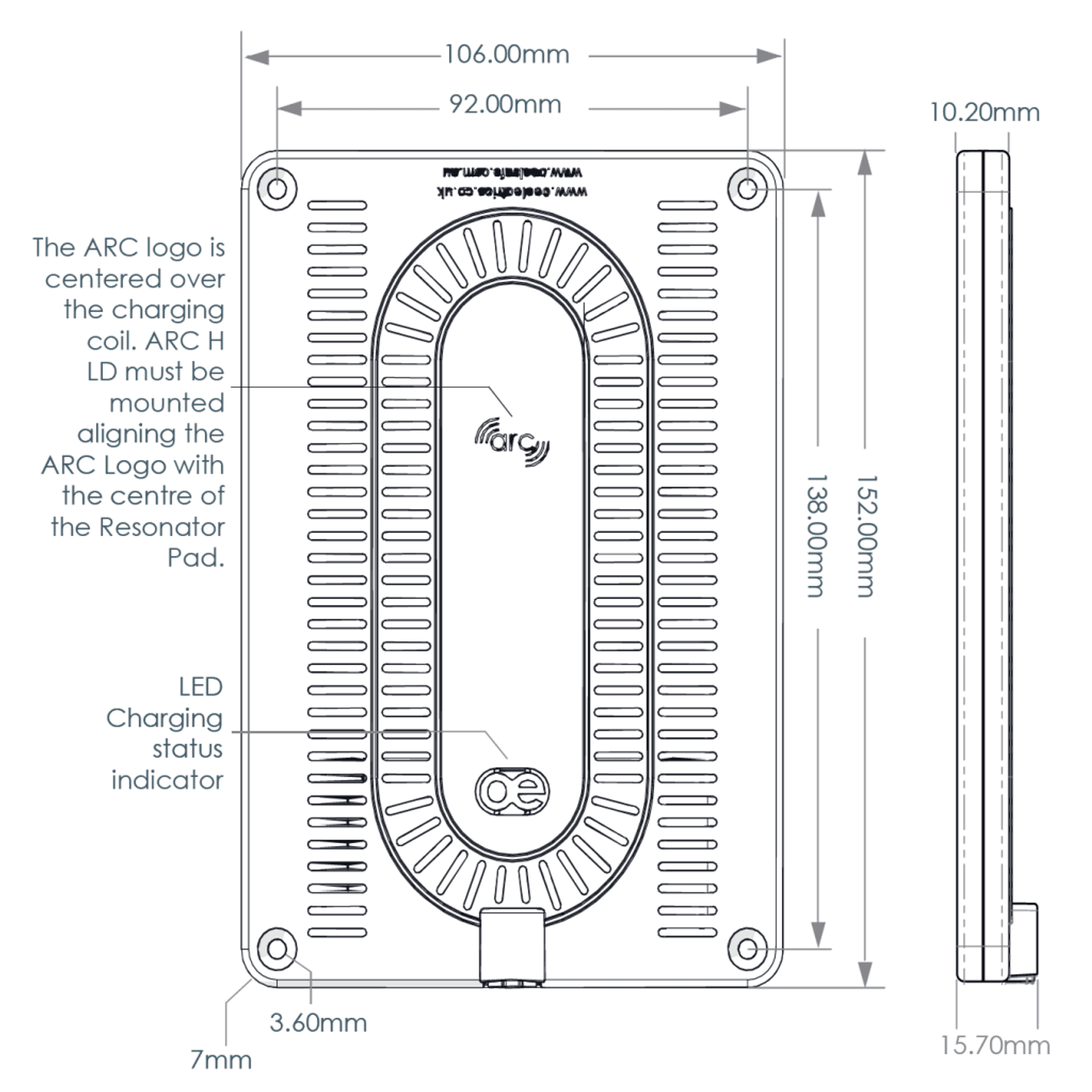

  • ARC-H LD is designed for the easiest of installations.  For surface thicknesses ranging from 20 mm to 25 mm there is a magnetic alignment card included in the box.  For surface thicknesses ranging from 26 mm to 50 mm a special alignment tool is necessary for accurate installation.

ARC H LD is available in

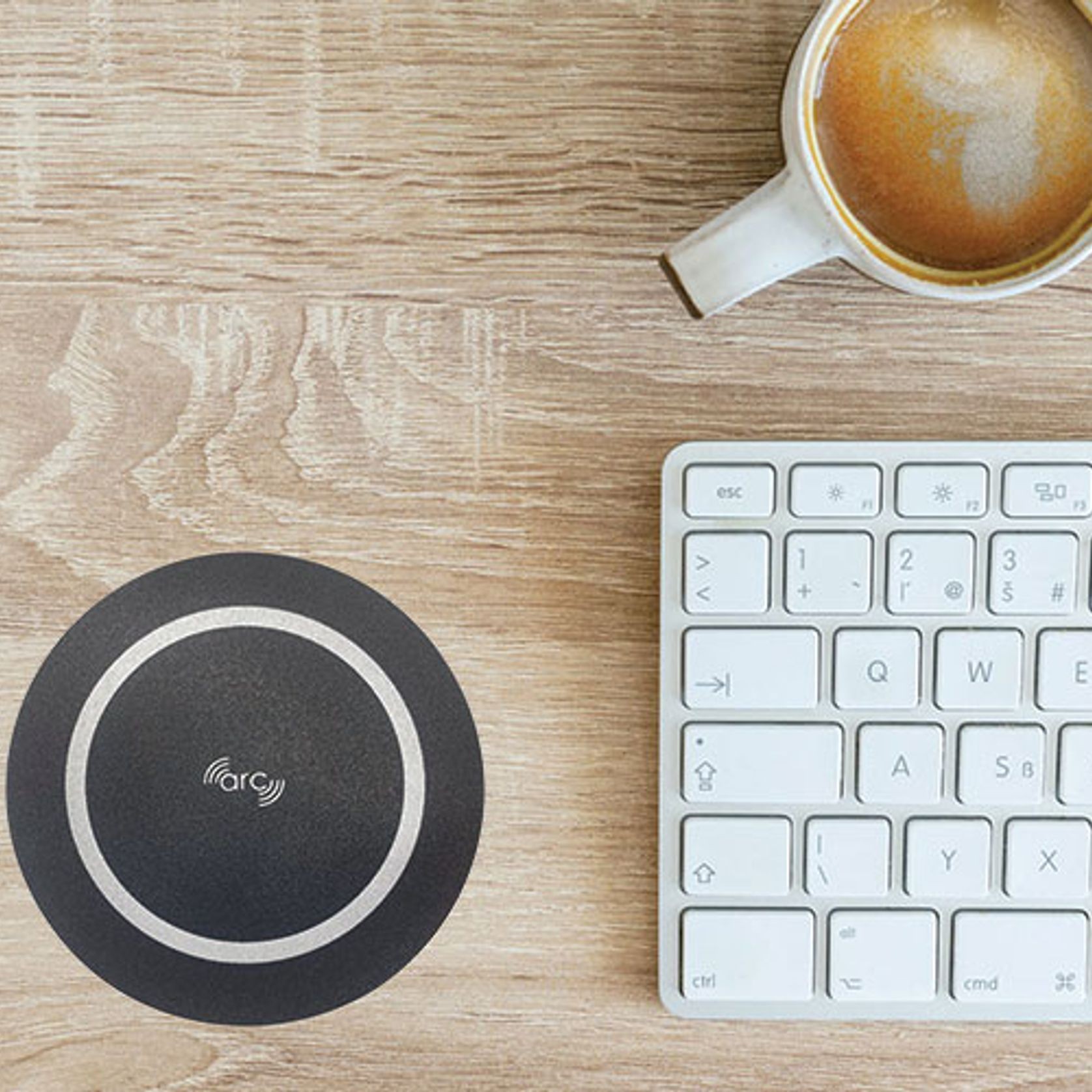

  • Basalt Grey with a Basalt Grey resonator pad or in Black with a White resonator pad.
SKU: arc-80-1
