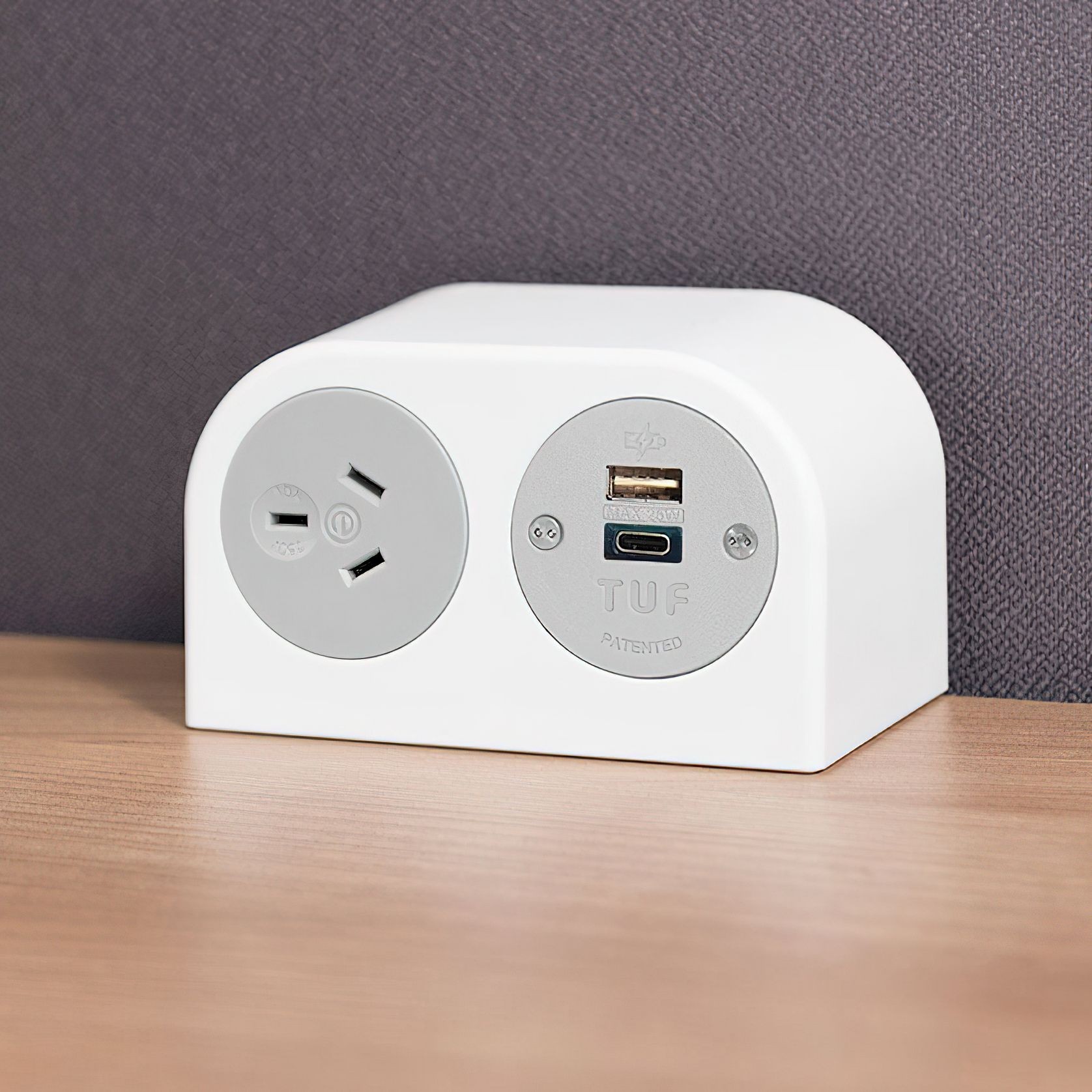

PHASE is an exciting new concept for power provision in commercial spaces. Mount above or below surface for easy access to power, data and USB charging.

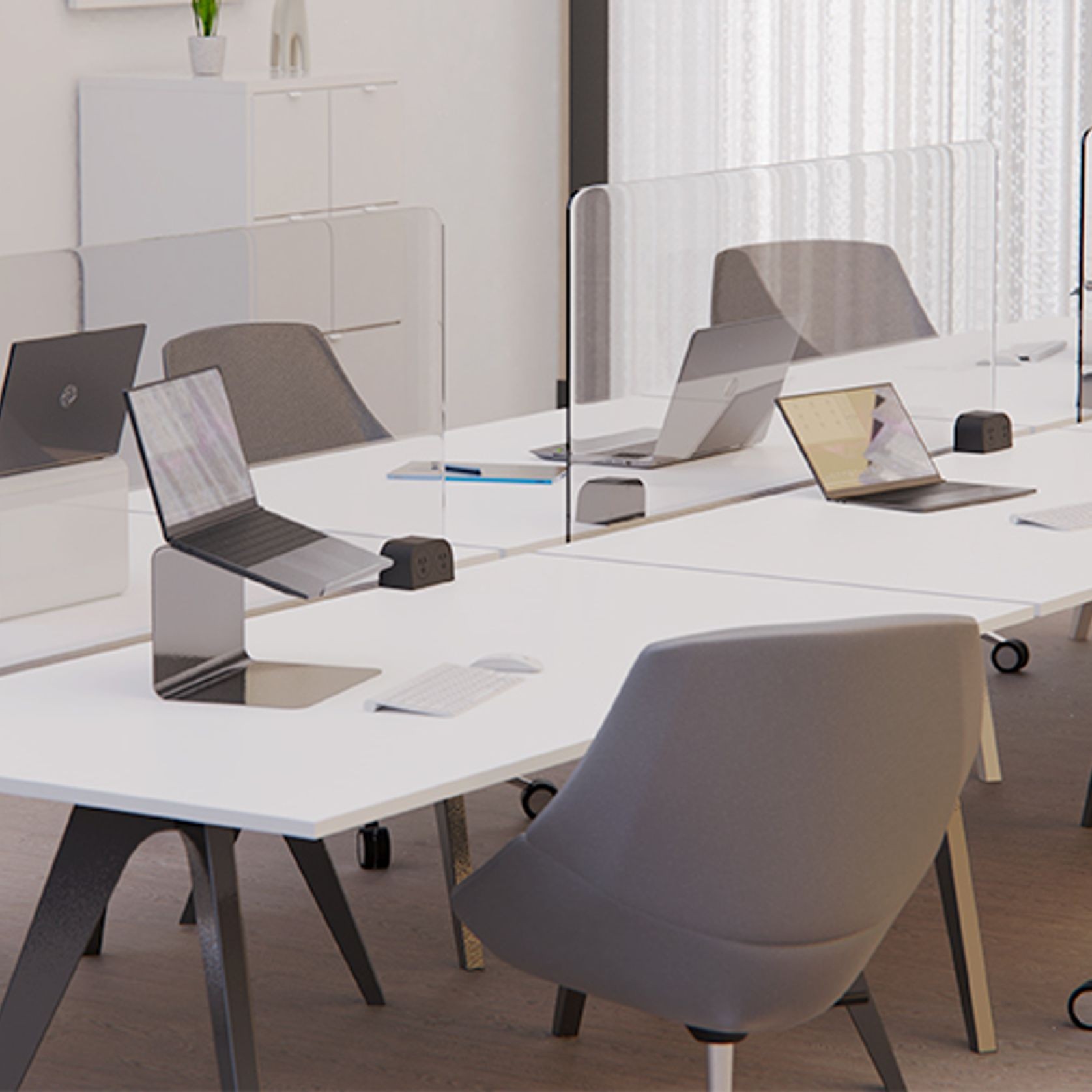

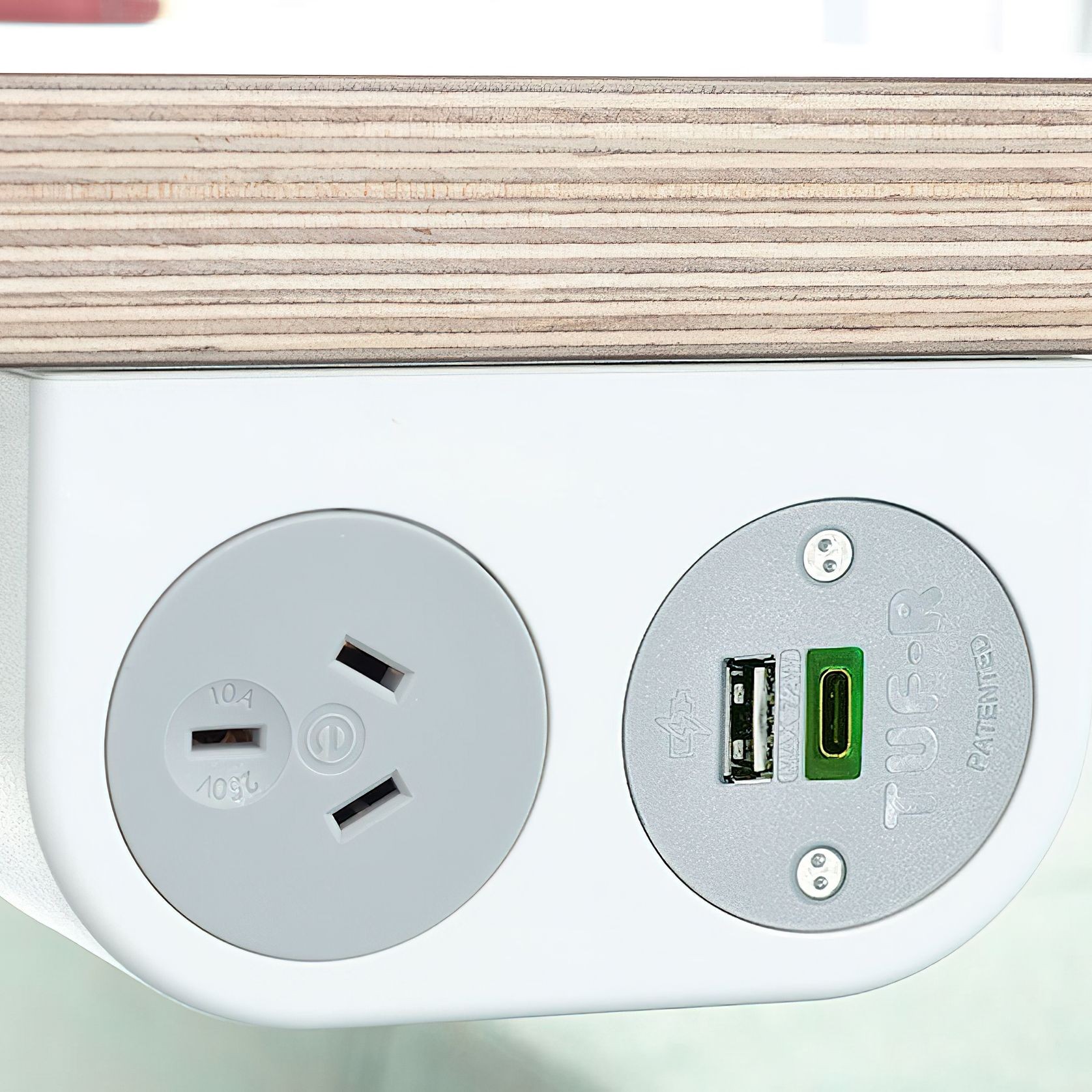

Compact, robust and unconstrained by convention, you will find PHASE with its innovative concealed mounting bracket and through back or through base cable entry options, simple to securely install on or under desks, tables, and soft furnishings.

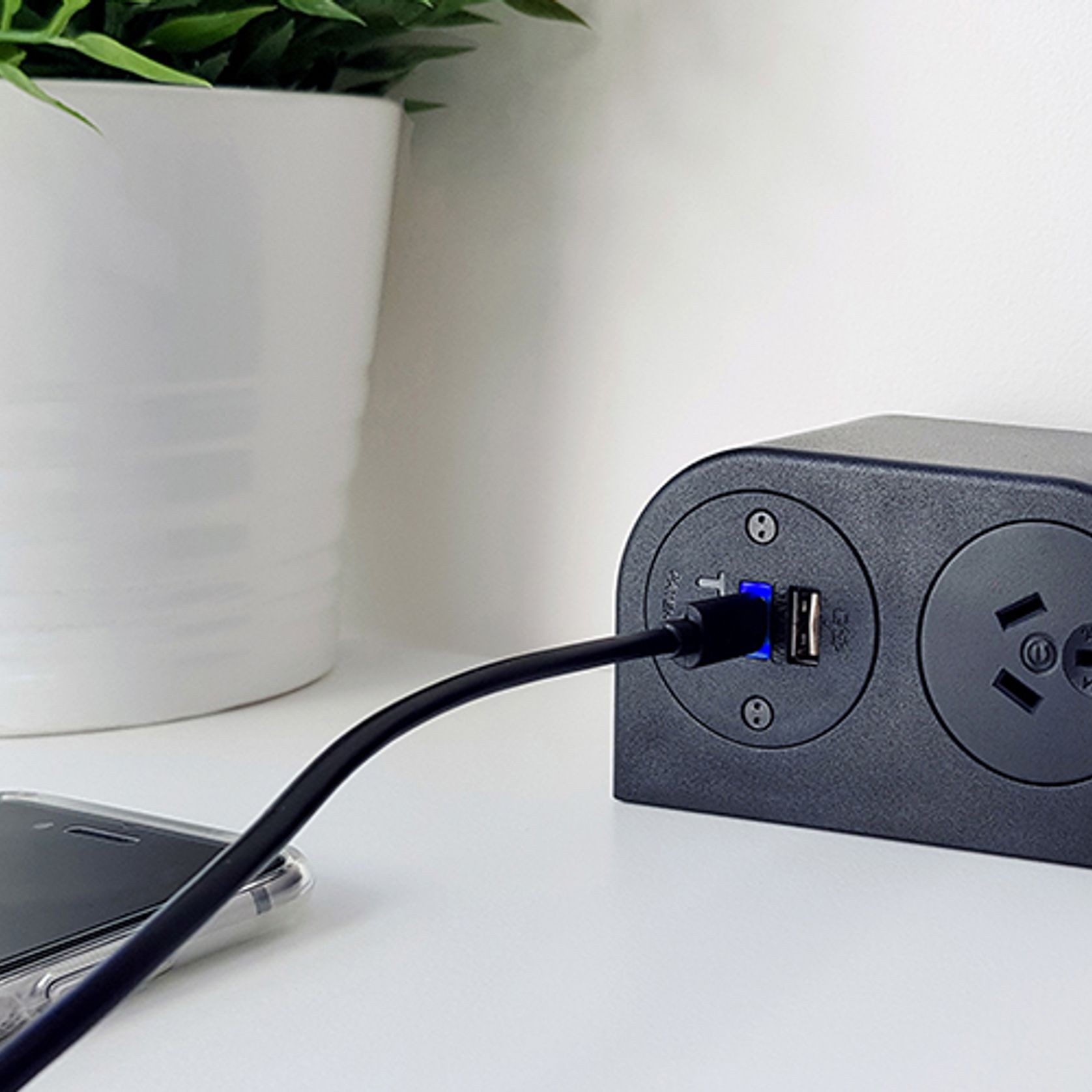

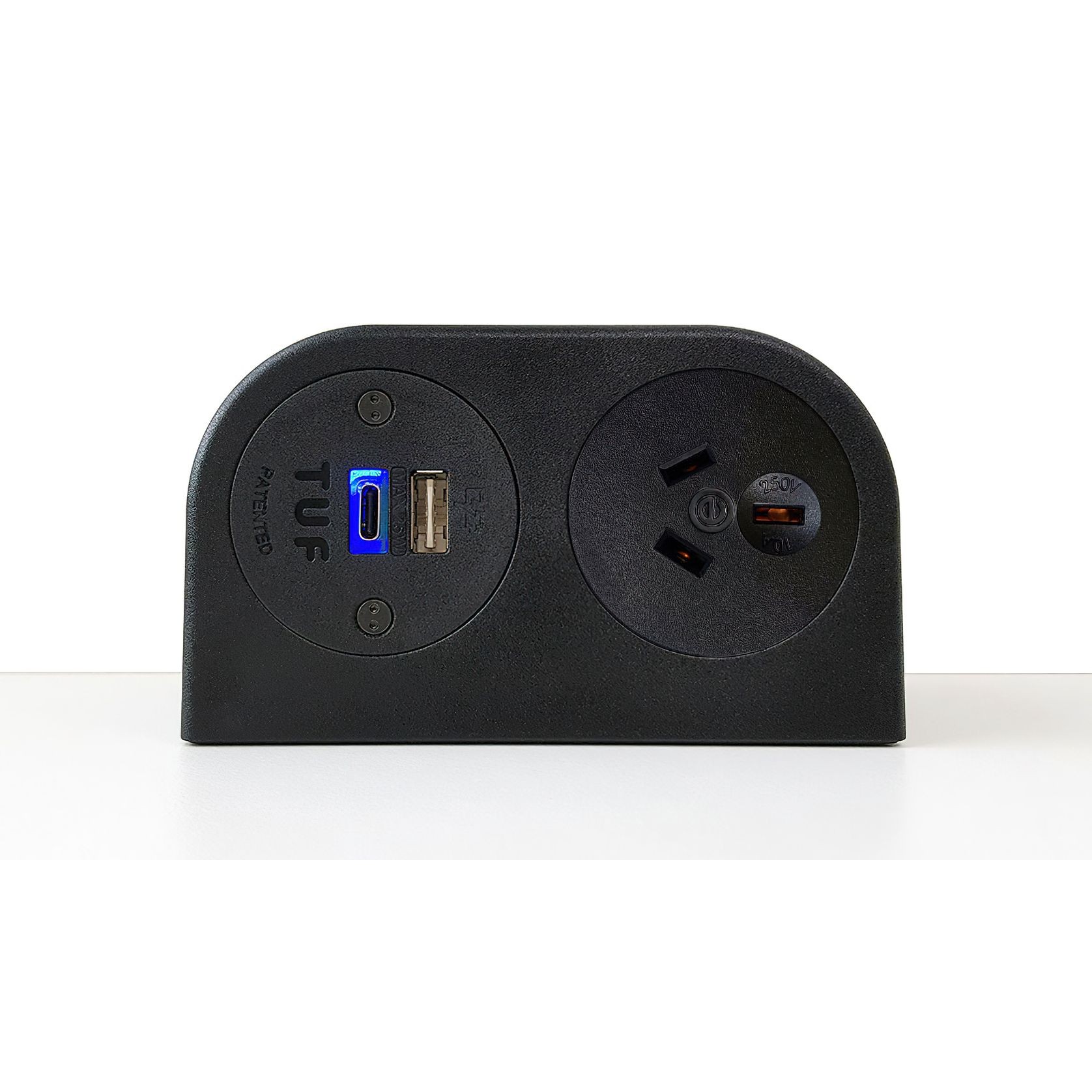

PHASE is available in either white or black with your choice of grey or black socket fascias. The two socket apertures can be configured with Australian or international power sockets, Data/AV connectivity, and our class leading  TUF-R USB fast mobile and tablet charger or TUF-R HP (high powered) USB C fast mobile, tablet and laptop charger.

Details
  • Category
    Office Accessories
  • Warranty
    2 years
Specifications

Configuration

  • PHASE can be configured with a combination of power, data/AV, and USB charging, including:TUF-R USB mobile and tablet charger
    TUF-R HP USB mobile, tablet, and laptop charger

Construction

  • High-strength and flame-retardant polycarbonate main body and back moldings
  • Nylon slide-on/clip-on universal mounting bracket

Colour Options

  • Body: Black or white
  • Power Socket Fascias: Black or grey
  • TUF Fascias: Black or grey
  • Data/AV Fascia: Black or grey
  • Power Cable: Black or white

Power Connection Options

  • 2000mm Australia/New Zealand 10A 3 pin plug
  • 800mm lead to J Coupler
  • 1400mm lead to J Coupler

Quality and Testing

  • Visual: Configuration and appearance
  • Power Sockets: Continuity, polarity, insulation, and earth
  • USB Charger: Output voltage and resistance
  • Testing: All sockets continuity tested with batch performance testing
    “We test every pin on every connection in every socket.”
Scope of use

This item is designed and intended for commercial use.

Features
  • Upgradeable / Replaceable TUF-R option: TUF-R is quick and simple to replace without the need to turn off the power or call an electrician. The unique and patented benefit of being replaceable makes TUF-R perfect for areas of high traffic, such as public spaces, education, and hospitality, where if damaged through misuse, TUF-R can quickly be replaced. Replacing or upgrading the TUF-R module and not the whole product saves time, resources, and reduces waste.
  • Reversible Type-A USB Port – Accepts connector both ways: OE Elsafe has introduced the world’s first reversible Type-A port, enabling a first-time connection every time. Connectors can be inserted both ways, cutting down on wear and damage from unsuccessful attempts and extending the life of the module and the product it is fitted into.
  • TUF-R is safe and designed for public spaces, no data transfer is possible.
  • Data transfer is not possible as TUF-R has no external data connections or the ability to store enough code to put malware on a device.
Contact OE Elsafe to discuss your project.
