White
polycarbonate

Piccolo TUF-HP provides high powered USB A+C laptop and mobile charging in an easy to install compact yet powerful module.

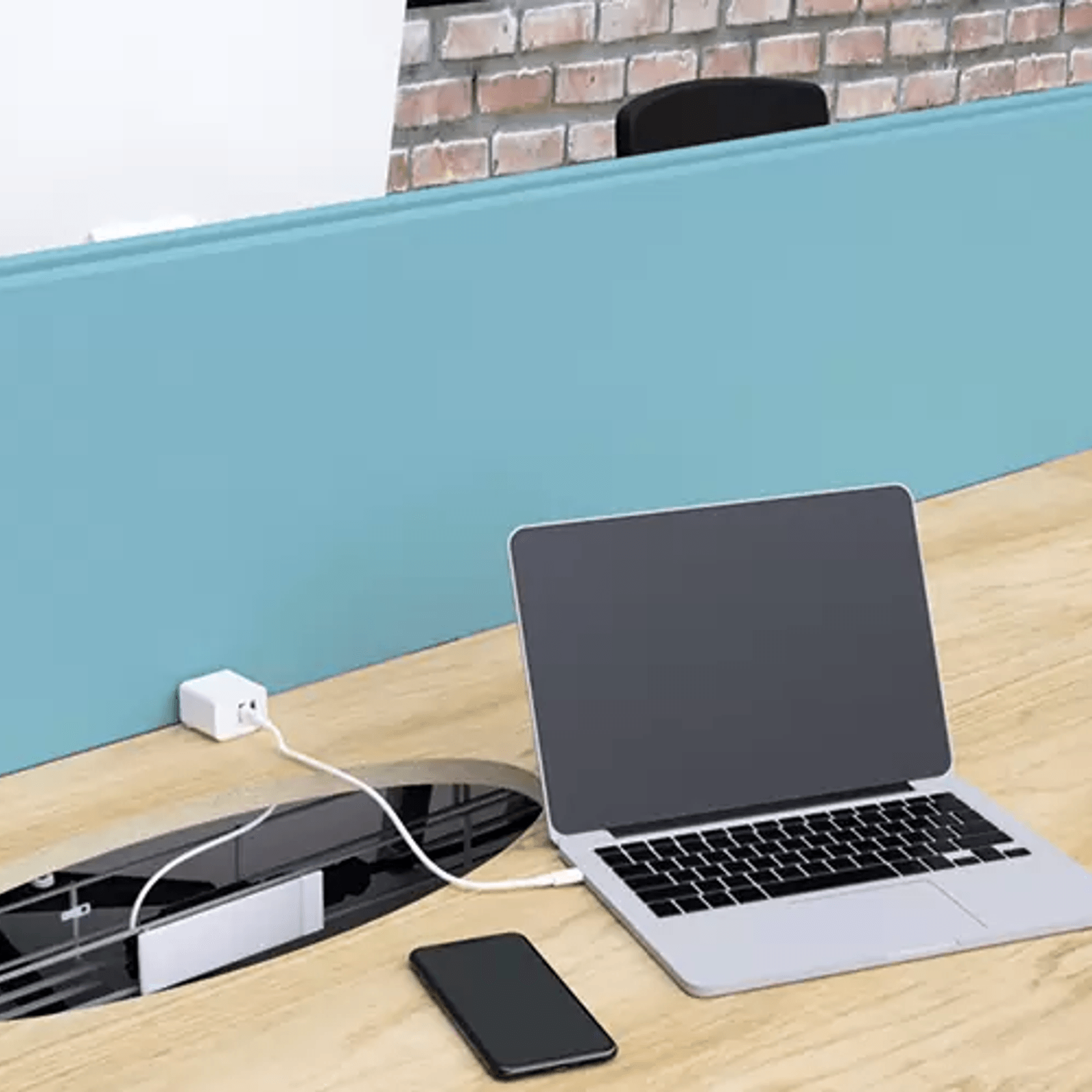

This innovative solution splits the power system, providing a compact USB laptop and mobile charging solution to the workspace with the power supply is discreetly hidden under the desk, inside cabinetry or fitted into the OE Prodigy cable basket. PICCOLO is powered by our QF30 PSU, splitting the USB outlets from the AC/DC power supply, providing class-leading USB charging.

Unique to OE Elsafe is the reversible Type-A port which will ensure a quick single attempt connection every time.


Details
  • Category
    Office Accessories
  • Warranty
    2 years
Specifications

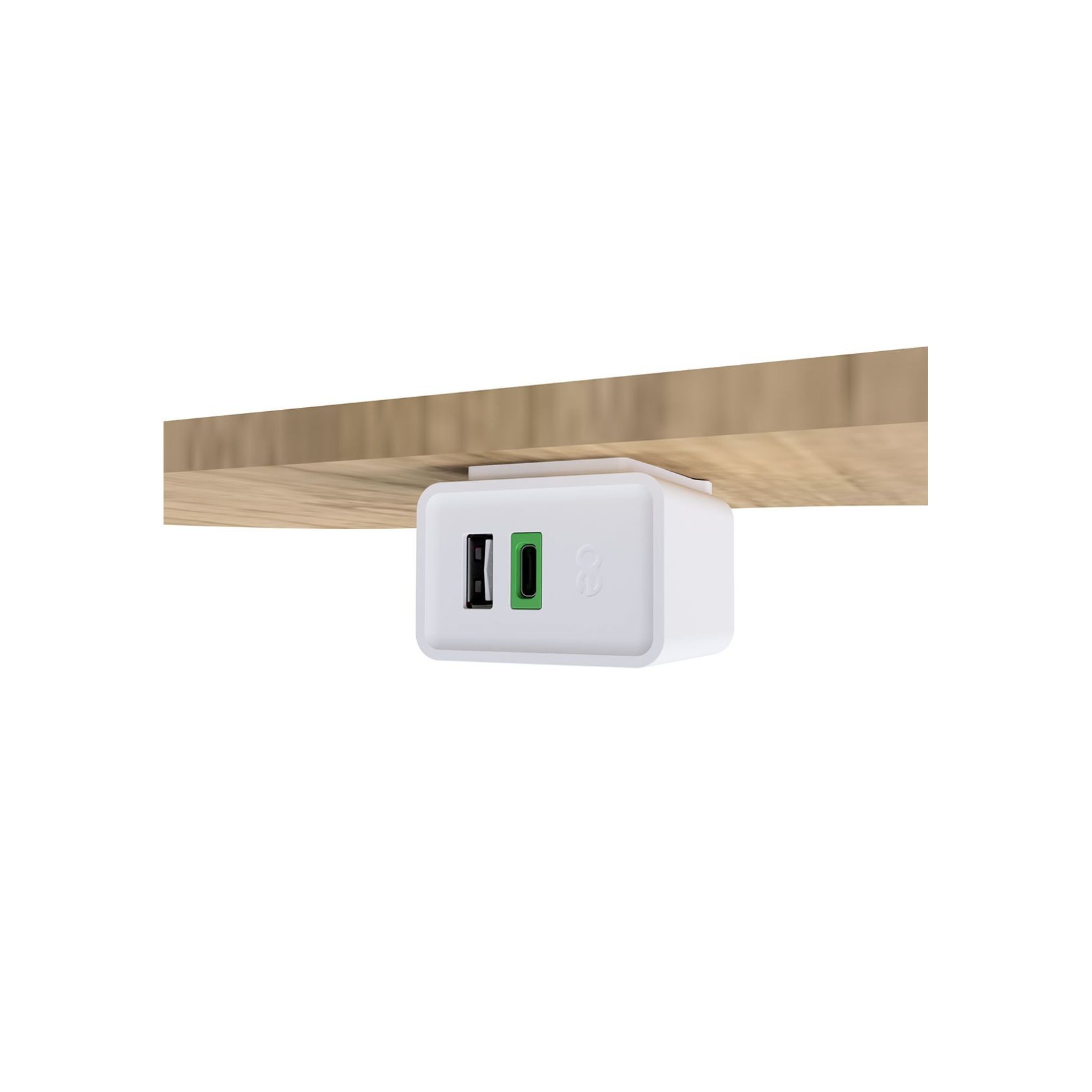

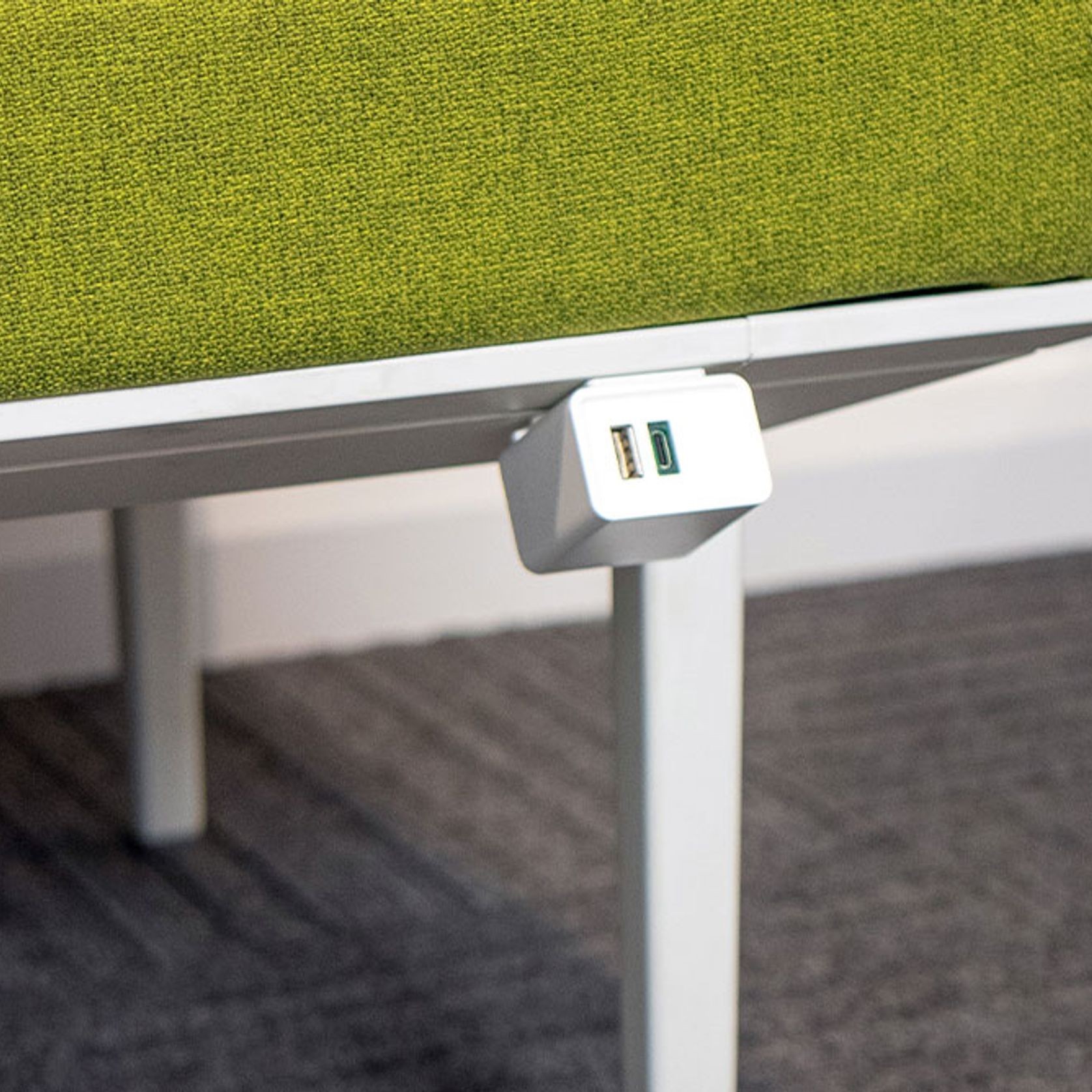

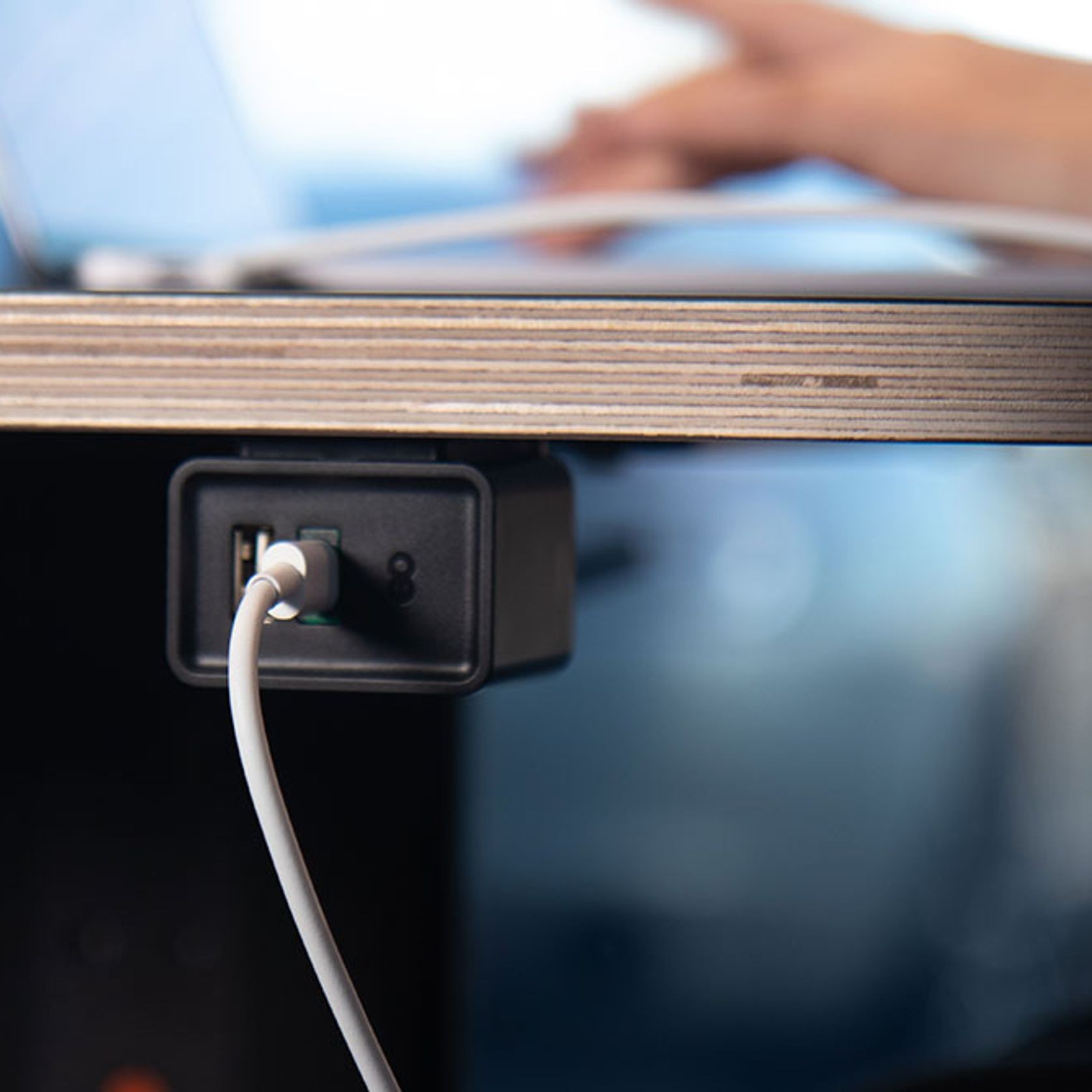

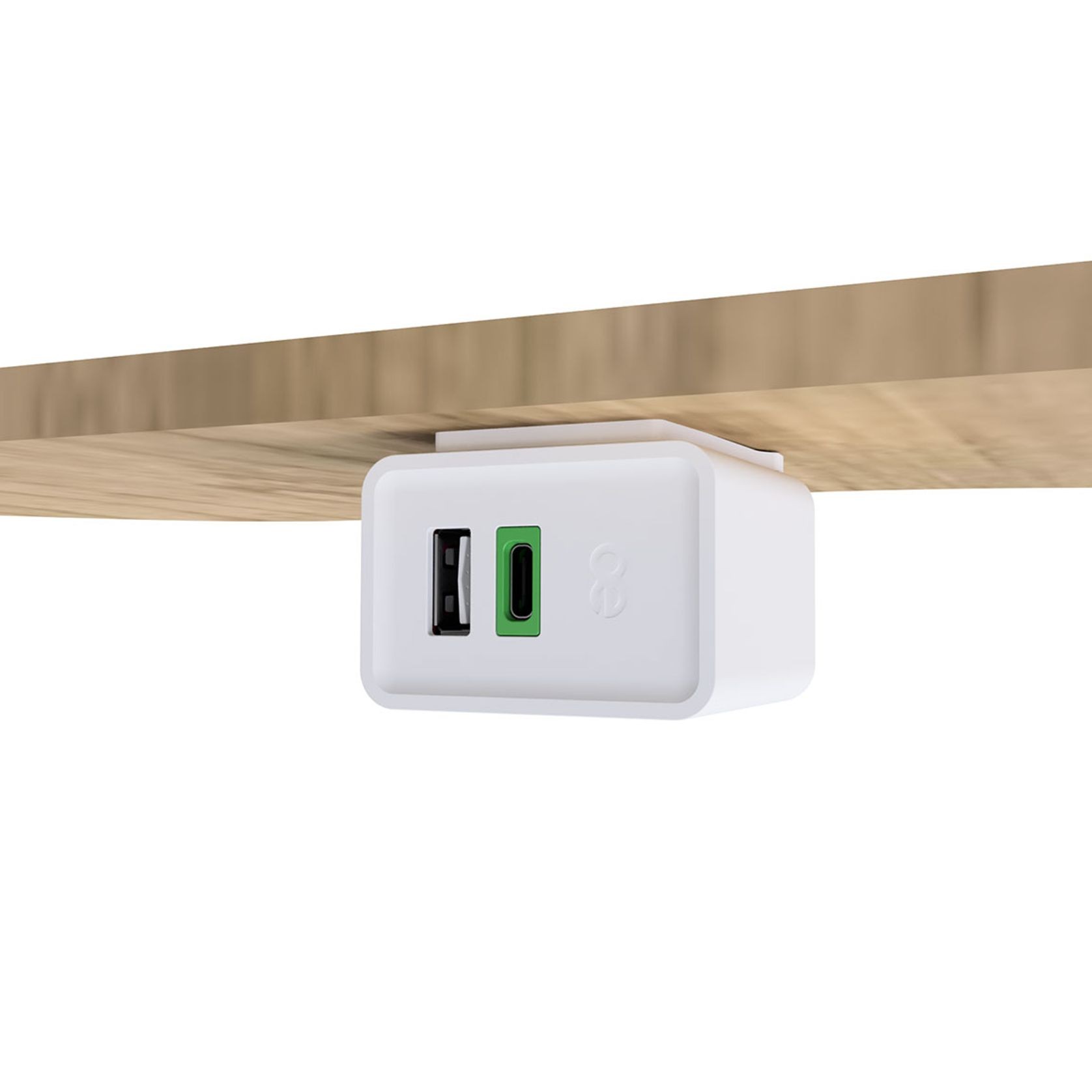

  • Installation: PICCOLO can be mounted on or under a desk top using screws or Velcro/adhesive pads. Can also be mounted to monitor arm pillars using Velcro cable ties.
  • Quality & Testing: All PICCOLO units are manufactured using quality-controlled components and practices and are 100% tested before dispatch: Visual: Configuration and appearance USB Charger: Output voltage and resistance “We test every pin on every connection in every socket.”
  • Certification: IEC 62368-1 : 2018 for Safety EN 61204 : 2018 for EMC
  • USB Charging Outlets: 1 x Type C (Reversible) 1 x Type A (Reversible)
  • Power In Connector: 65mm Male GST08 DC connector
  • Rated Total Output Power: 72W Max

Output Voltages & Currents:

  • Type C: Max 60W 20V/3A, 15V/3A, 9V/3A, 5V/3A (PD3.0) QC 2/3.0: 5V/3A, 9V/2A, 12V/1.5A
  • Type A: Max 12W 5V/2.4A IDR BC1.2 Apple 12W Mode Samsung Fast Charge.
  • Input Voltage: 24 – 30V DC
  • USB Connector Min. Insertions: Type A: 10,000 Type C: 10,000
  • Over Current Protection: Yes, digital control at 3.3A. Auto reset with LED flash
  • Short Circuit Protection: Yes, digital control at 3.3A. Auto reset
  • Over Temperature Protection: Auto power reduction to PD45W Mode: 20V/2.25A, 15V/3A, 9V/3A, 5V/3A
  • Rated Operating Temperature: 0° to 25°C
  • IEC 62368-1 : 2018

Certifications – EMC: EN 61204 : 2018

User Replaceable Module: No

Scope of use

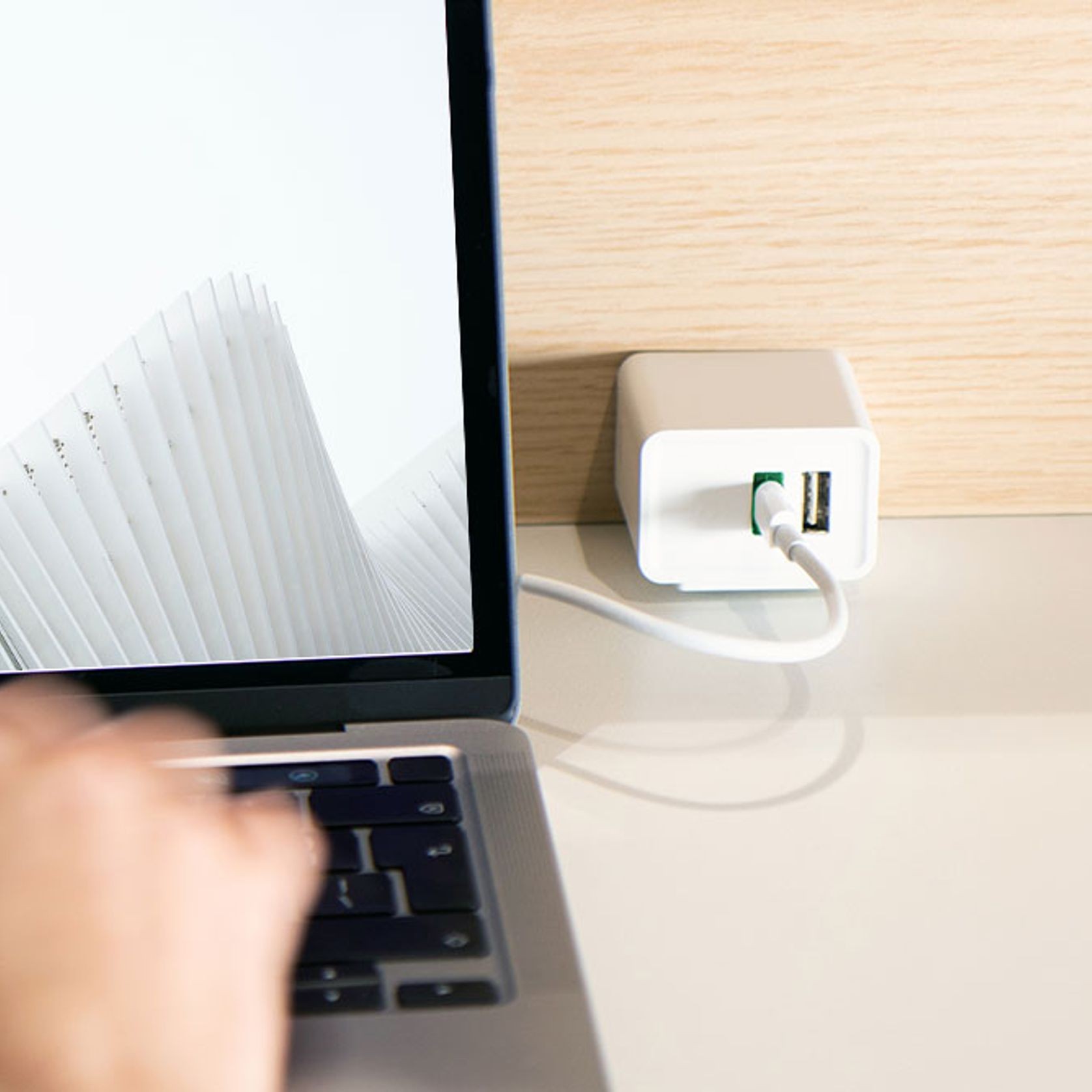

PICCOLO can be mounted on or under the desk, using screws, clamp bracket, velcro or adhesive pads enabling you to provide high power USB charging outlets wherever they are needed.

This item is designed and intended for commercial use.

Features
  • Construction: High-strength fire-retardant polycarbonate.
  • Colours: Currently available in white only
  • Power Cord Options: 65mm Male GST08 DC connector
Contact OE Elsafe to discuss your project.
