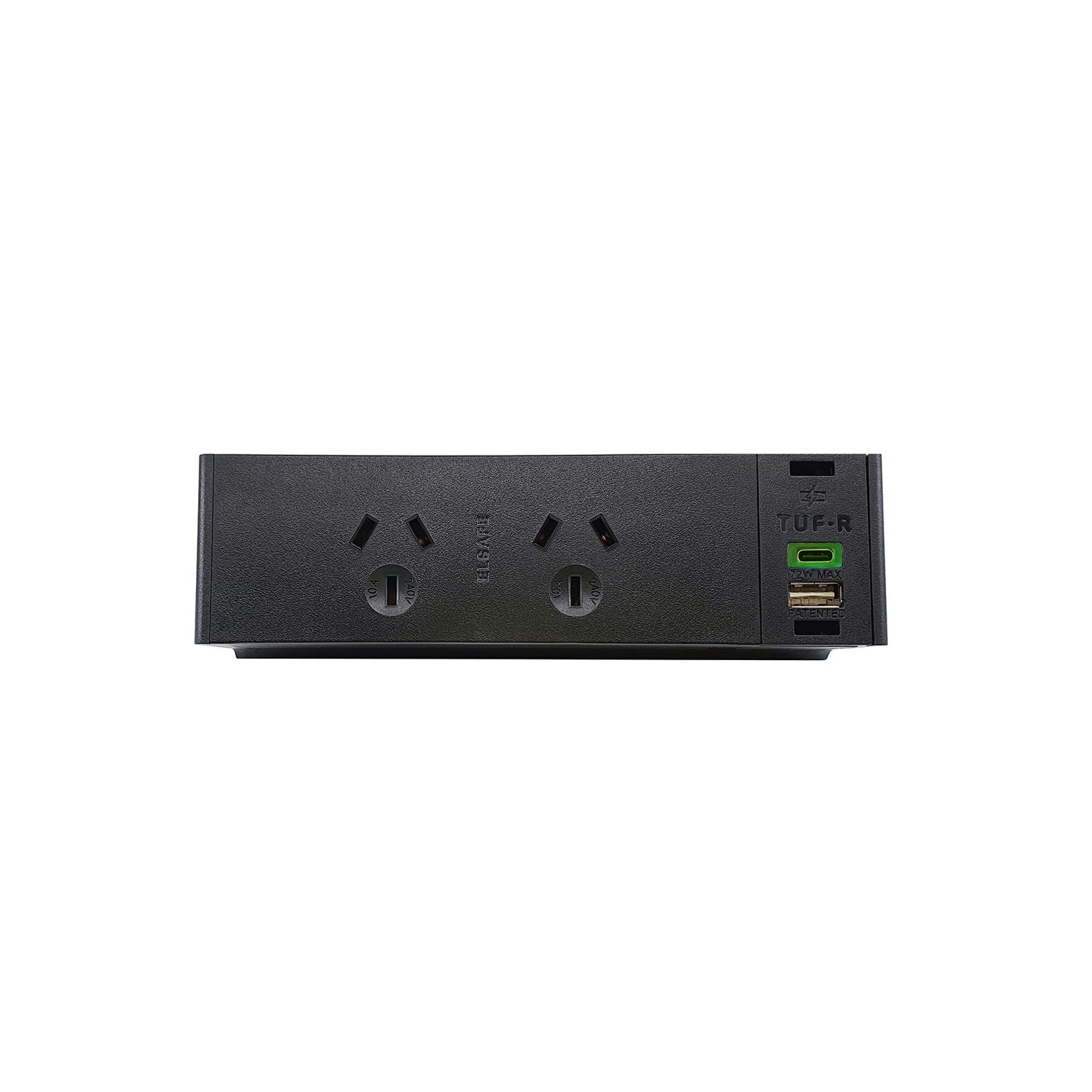

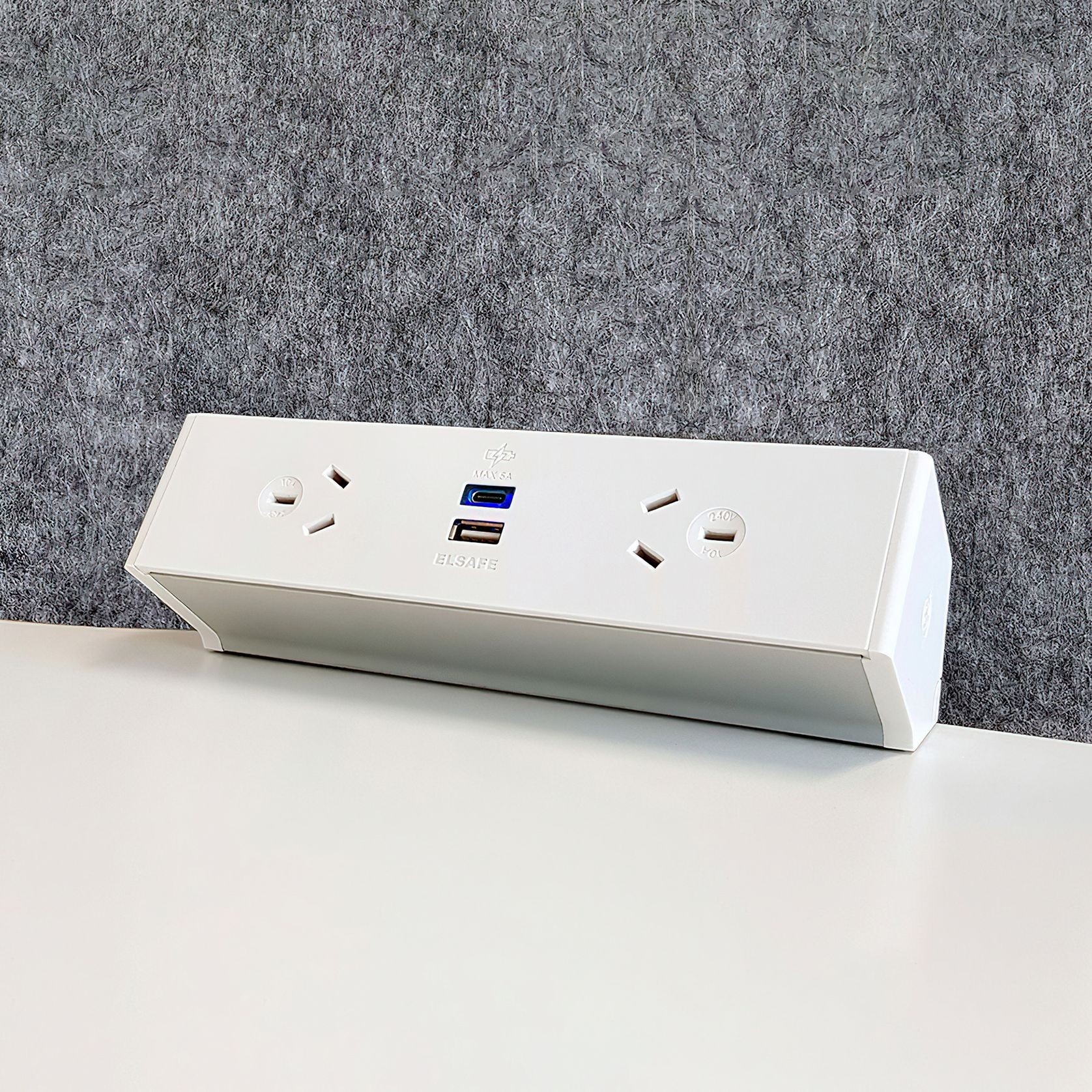

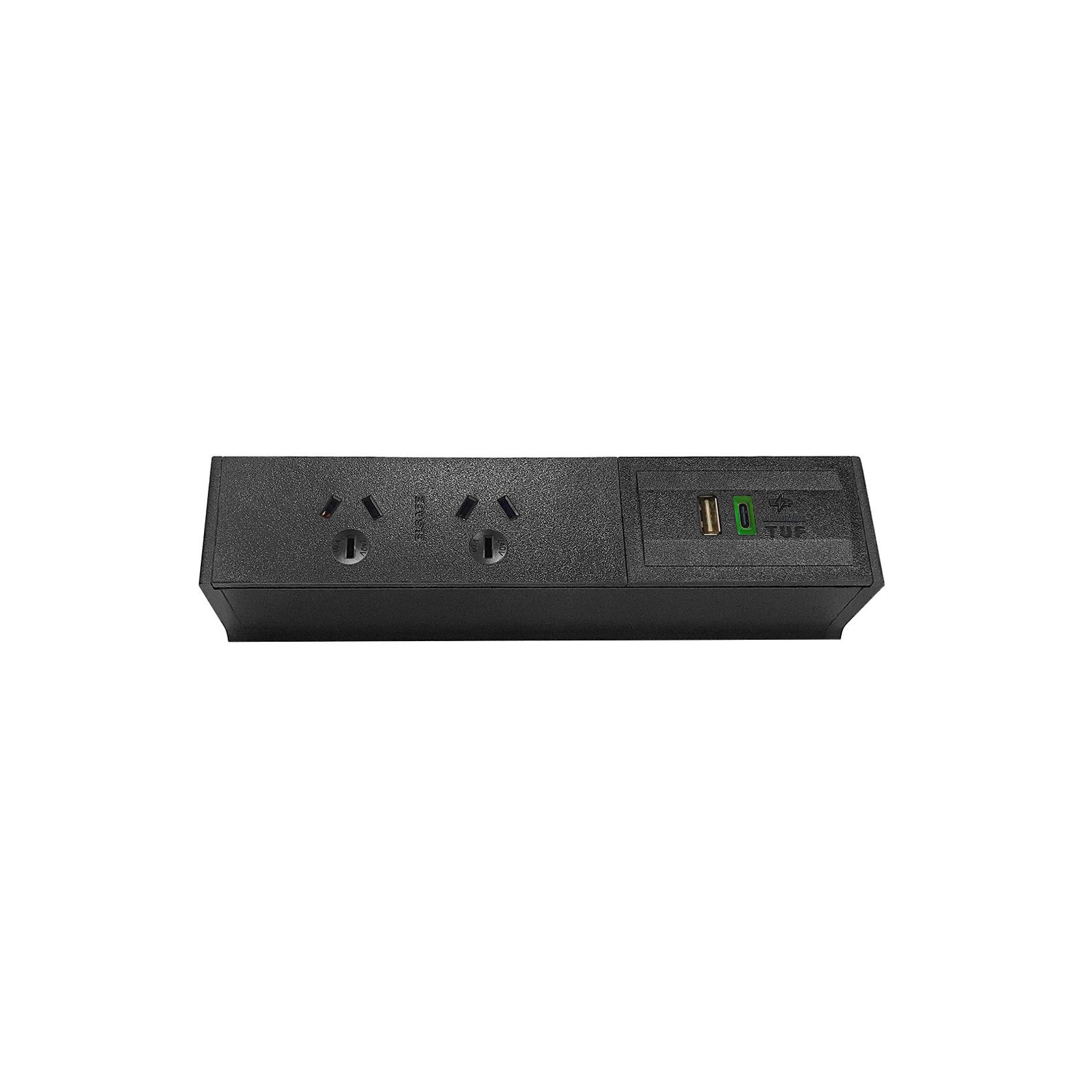

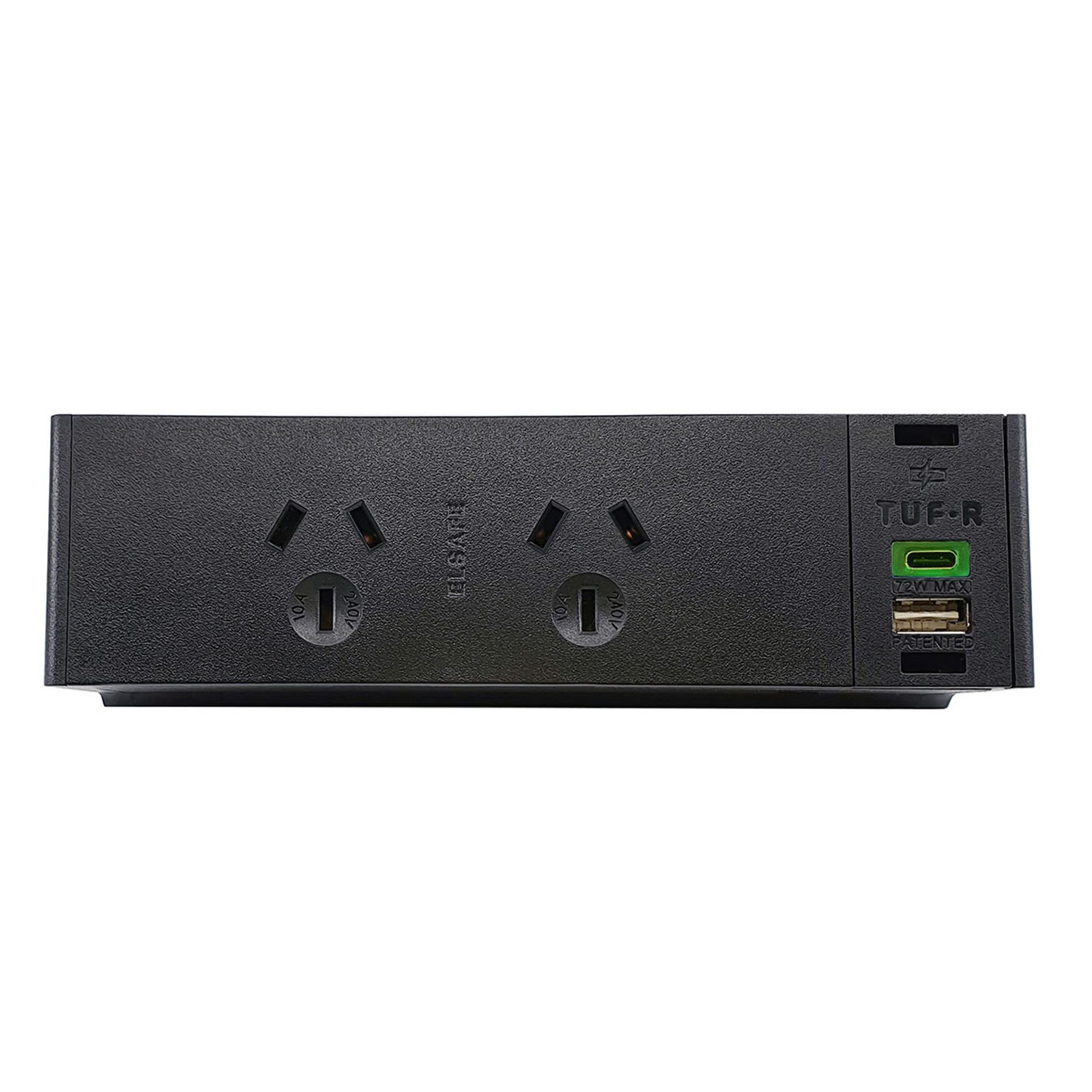

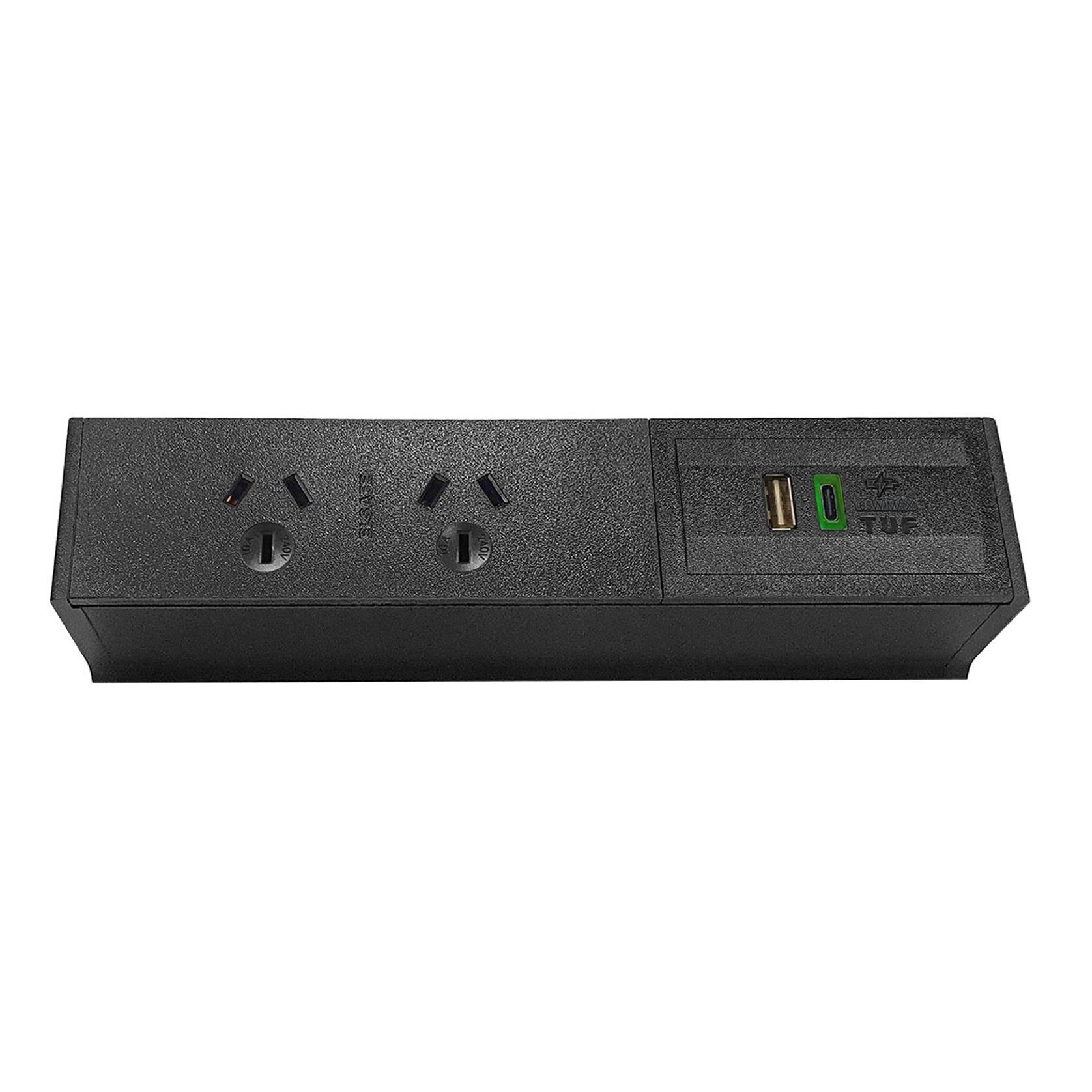

QikSILVA Desktop Power Rail

Compatibility

• Compatible with OE Elsafe QikFIT power, data, and AV modules.
• Designed to occupy a small amount of desk space, QikSILVA works with the OE Elsafe QikFIT range to provide complete power, data, and AV connectivity at the workstation.
• All OE QikFIT GPOs are auto-switched for a clean look and efficient operation.

Quick Release Bracket for Easy Relocation

• QIKSILVA can be fitted using a standard or quick release bracket.
• The quick release bracket can be fitted from above the desk, making it ideal for hot-desking and training tables where quick relocation is required.

Customisable Options

• QikSILVA power rail can be configured with components from the OE Elsafe modular QikFIT Series range, including:TUF-R HP laptop charging modules Various types/makes of data and AV connections USB fast charging options

Reversible Type A USB Port

• Unique to OE Elsafe, the reversible Type A port ensures a quick, single-attempt connection every time.
• USB charging cord connectors can be inserted both ways, reducing wear or damage from incorrect attempts and maximizing the working life of the power module.
• Note: Reversible Type A port is subject to availability on some modules.

Configuration

• The QikSILVA power rail can be configured with components from the OE Elsafe modular QikFIT Series range, including: Award-winning TUF-R HP laptop charging modules
  Various types/makes of data and AV connections


Construction

• Comprises aluminium extruded sections with plastic molded end caps and fascias

Size Options

• QIKSILVA 25
• QIKSILVA 35
• QIKSILVA 45
• QIKSILVA 70
• Custom lengths available on request

Colour Options

• Body: Silver anodized and black
• End Caps: White, black, and grey
• Power, TUF, and Data/AV Fascias: White, black, grey, and red (power only)

Power Connection Options

• 800mm lead to J Coupler
• 1400mm lead to J Coupler

Installation

• Can be fitted onto table tops 15mm to 45mm thick

Quality and Testing

• Visual: Configuration and appearance
• Power Sockets: Continuity, polarity, insulation, and earth
• USB Charger: Output voltage and resistance
• Testing: All sockets continuity tested with batch performance testing
  “We test every pin on every connection in every socket.”
