AxxessPLUS DUO In Desk Box

Configuration

The AxxessPLUS DUO in desk table box may be configured with components from the the OE Elsafe modular QikFIT range including our class leading OE Elsafe TUF HP USB C laptop charger and most types / makes of Data and AV.

Construction

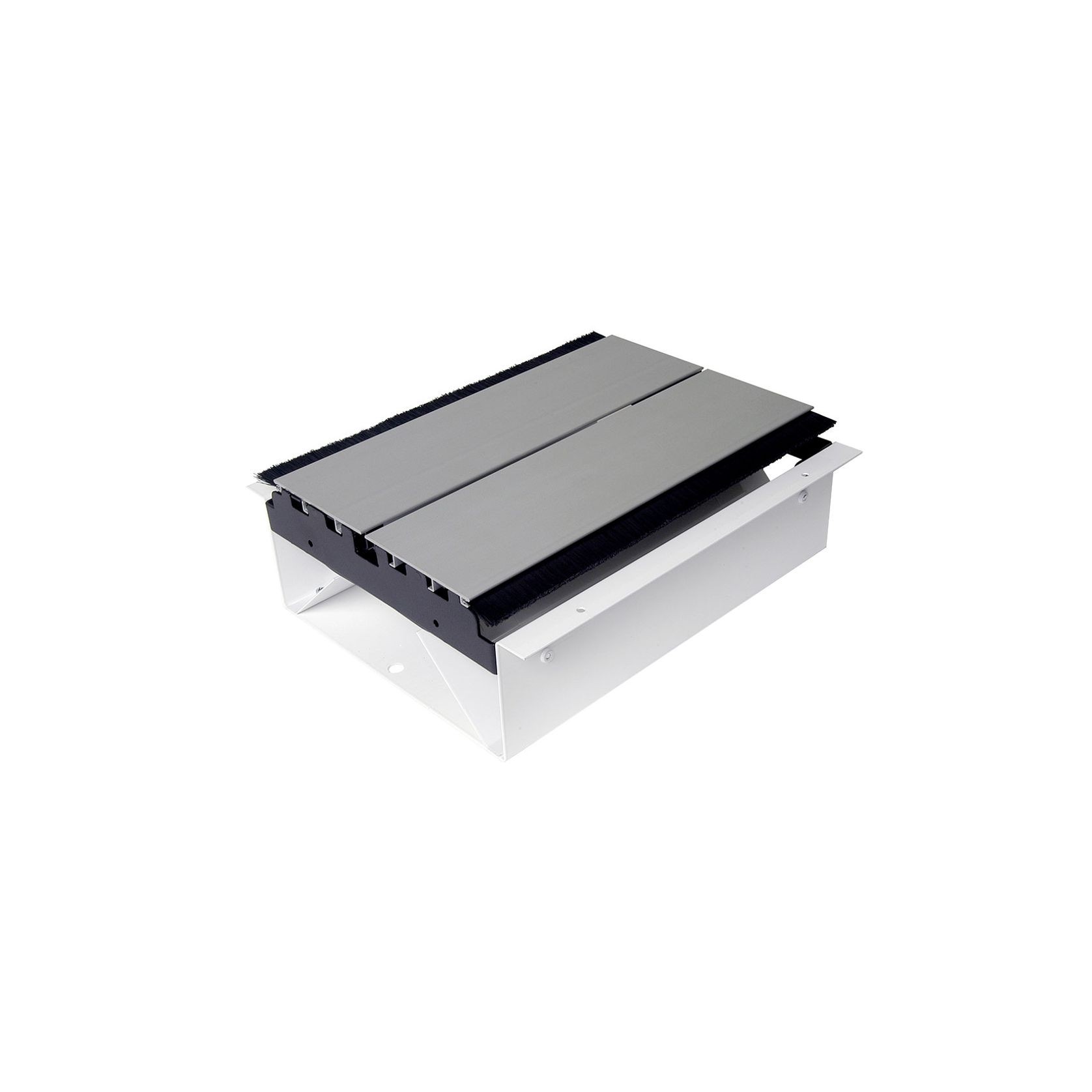

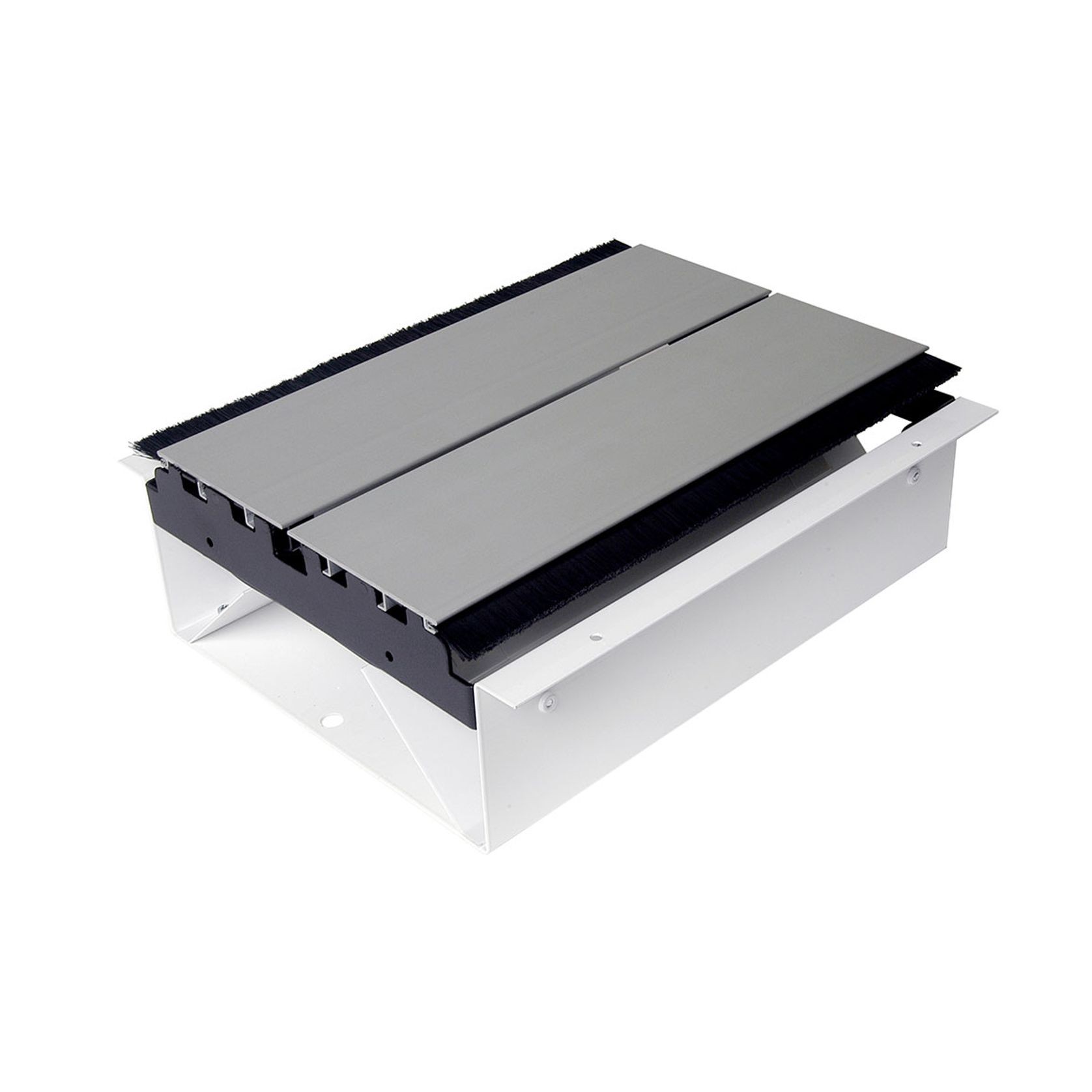

AxxessPLUS DUO comprises natural anodised aluminium extruded sections for the lid and side frames fitted with high strength polycarbonate and steel hinges. The undercarriage is fabricated from powder coated 1.2mm mild steel.

Size Options

• AxxessPLUS DUO – Lid Length: 440mm
• AxxessPLUS DUO Mini – Lid Length: 300mm
• Custom – Lids can be manufactured to accommodate longer requirements

Colour Options

• Lid – Silver anodised veneerable extrusion with black brush or silver anodised non-veneerable extrusion with black brush
• Chassis – White powder coated or black powder coated
• Power, TUF and data/AV fascia’s – White, Black, Grey and Red (power only)

Power Connection Options

• Male GST input
• 800mm lead to J Coupler
• 1400mm lead to J Coupler

Installation

AxxessPLUS DUO can be fitted into table tops 20-33mm thick.

Quality and Testing

• Visual: Configuration and appearance.
• Power sockets: Continuity, polarity, insulation and earth
• USB charger: Output voltage and resistance
• All sockets continuity tested with batch performance testing

“We test every pin on every connection in every socket”

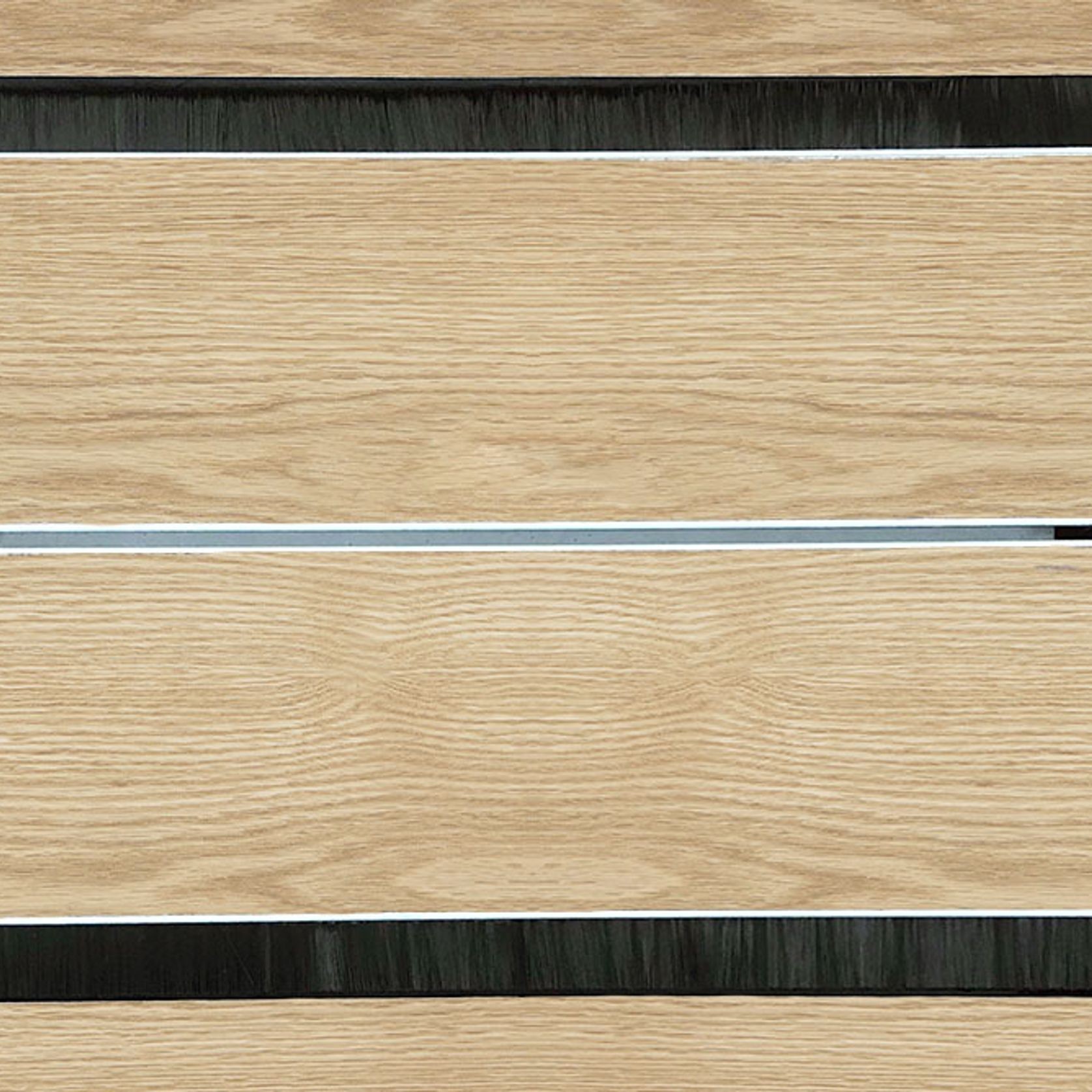

Optional veneer finish

When veneered, AxxessPLUS DUO maintains the superb finish of the most luxurious desks, whilst providing easy access to a range of custom-configured OE Elsafe power, USB fast charging, data and AV services.

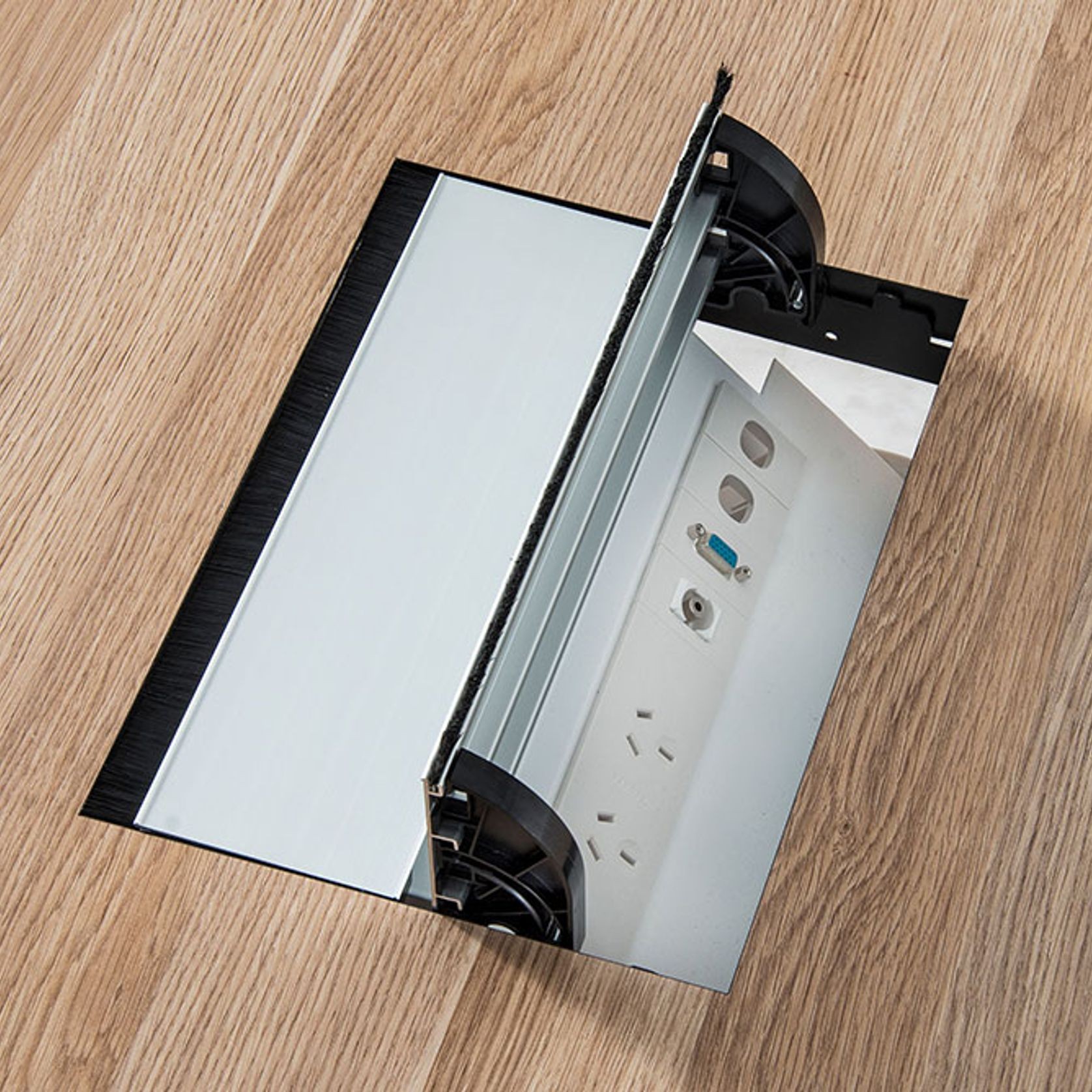

Access power, data & AV from both sides

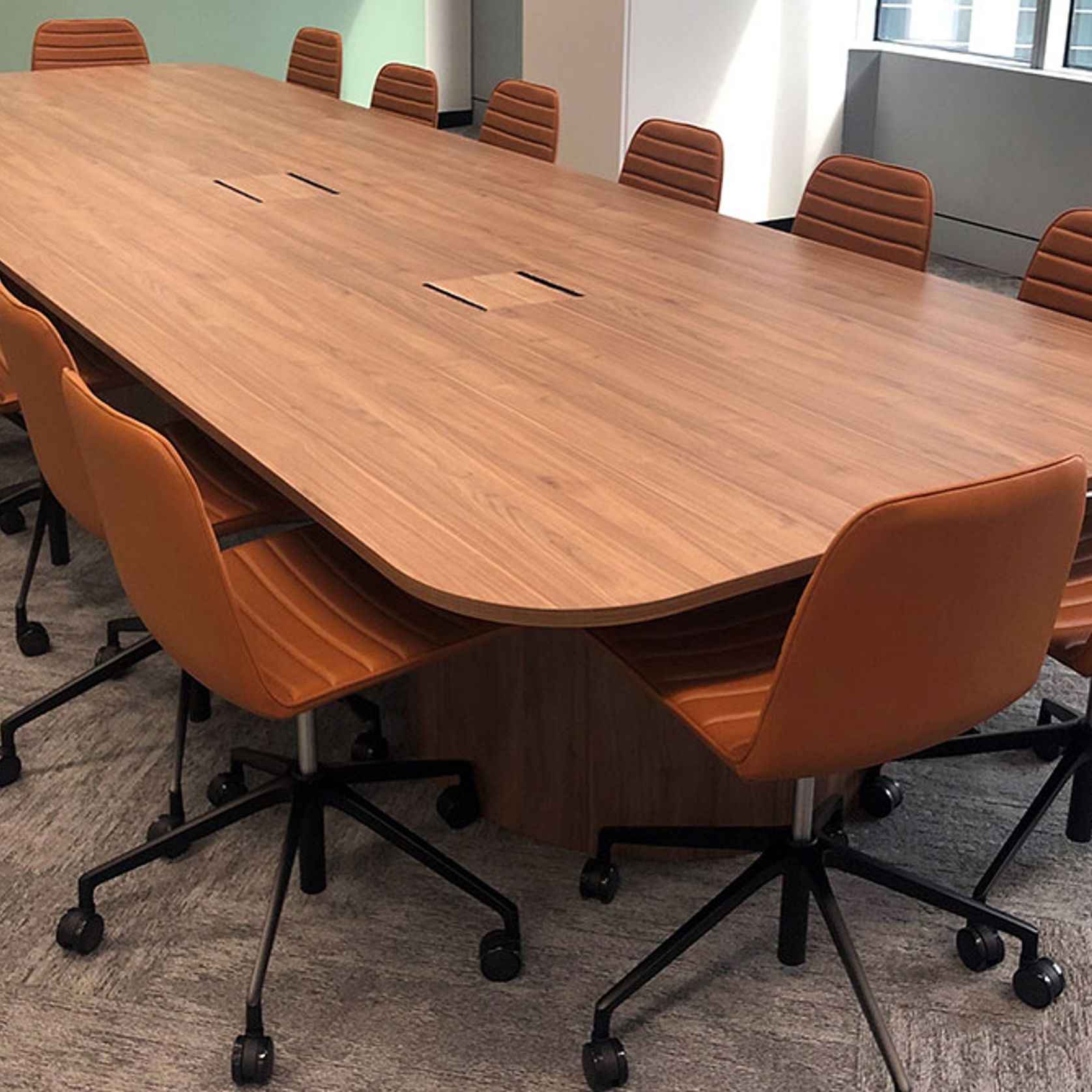

The AxxessPLUS DUO provides access to services from both sides of a conference desk or boardroom table.

The AxxessPLUS Duo is available in two sizes, -either naturally anodised aluminium or recessed anodised aluminium which is also suitable for veneering.

Customisable with power, data / AV and USB fast charging options

AxxessPLUS DUO can be ordered with Australian QikFIT or international power sockets, Data/AV connectivity, and our class-leading TUF USB Charging (power delivery) USB fast charger or OE Elsafe TUF HP (high powered) USB C fast laptop charger.

Reversible Type A USB Port – Accepts connector both ways *

Unique to OE Elsafe is the reversible Type-A port which will ensure a quick single attempt connection every time. USB charging cord connectors can now be inserted both ways, cutting down on wear or damage from incorrect attempts, maximising the working life of the power module. *subject to availability on some modules
