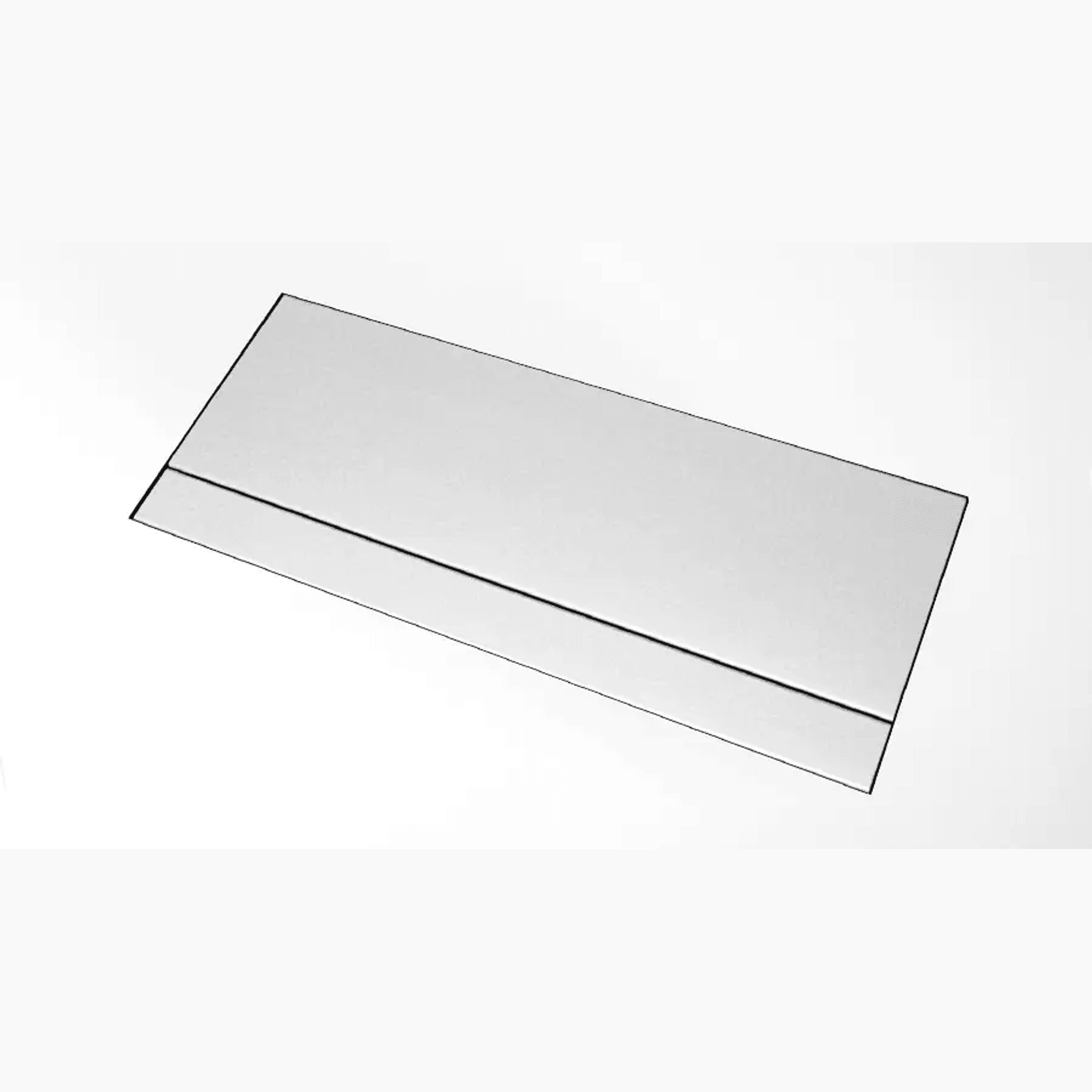

Frameless & perfectly flush in-desk moduleTUF HP USB C laptop charging option available

With it’s frameless, ‘perfectly-flush’, design AxxessPLUS represents the top-of-the range in through desk units and will perfectly complement high end boardroom tables.

Details
  • Category
    Office Accessories
  • Warranty
    2 years
Specifications

Configuration

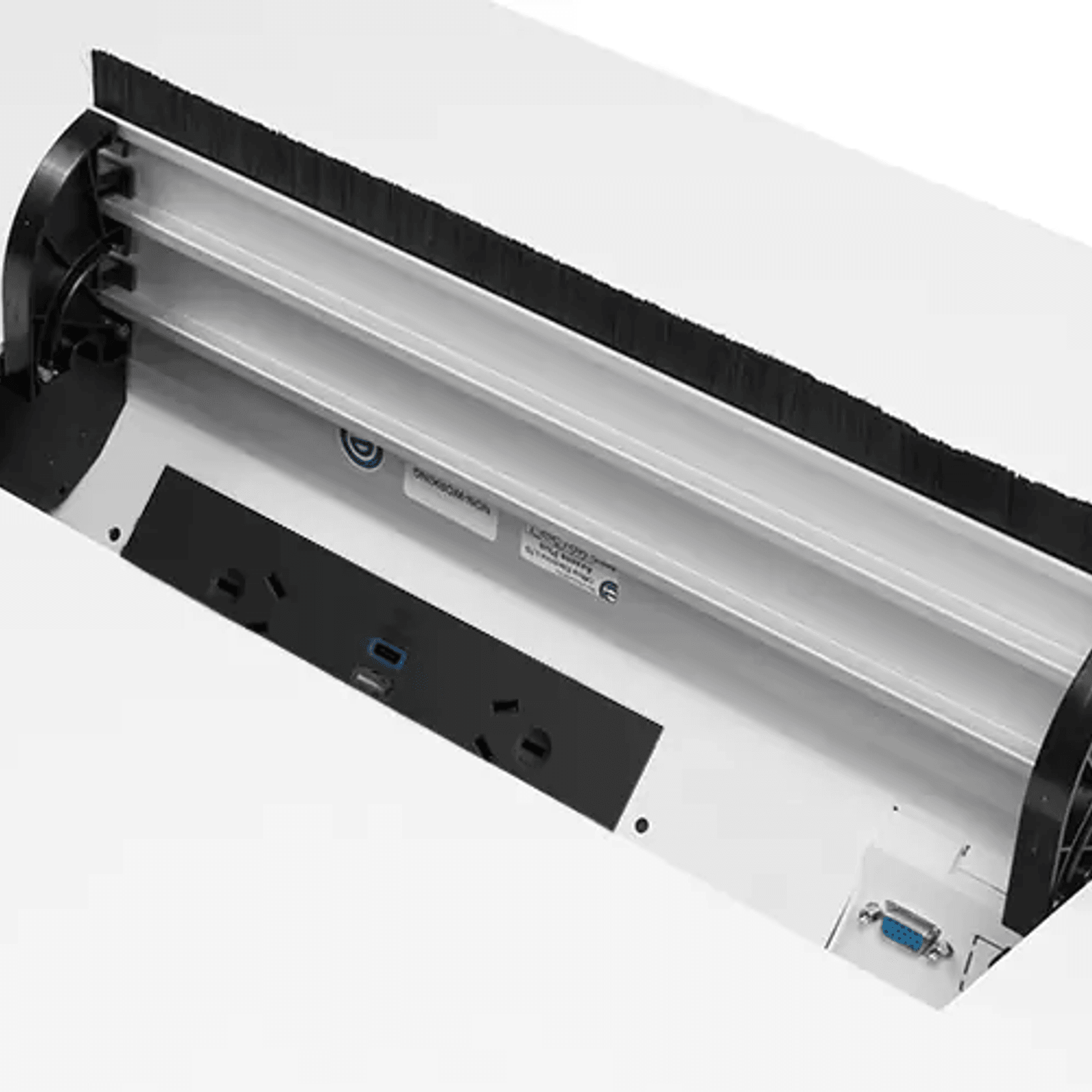

The AxxessPLUS in desk table box may be configured with components from the OE Elsafe modular QikFIT range including our class-leading OE Elsafe TUF HP USB C laptop charger and most types / makes of Data and AV.

Construction

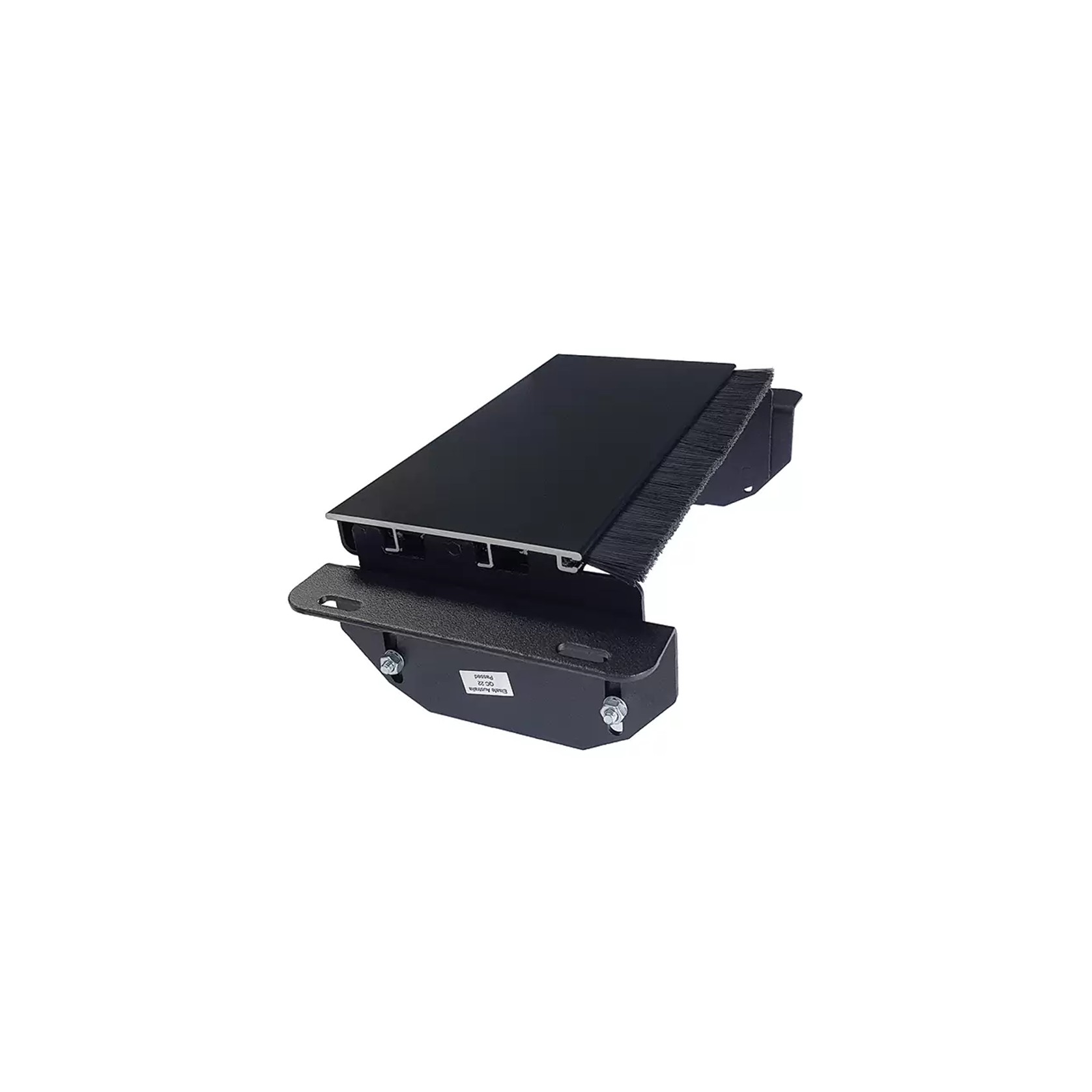

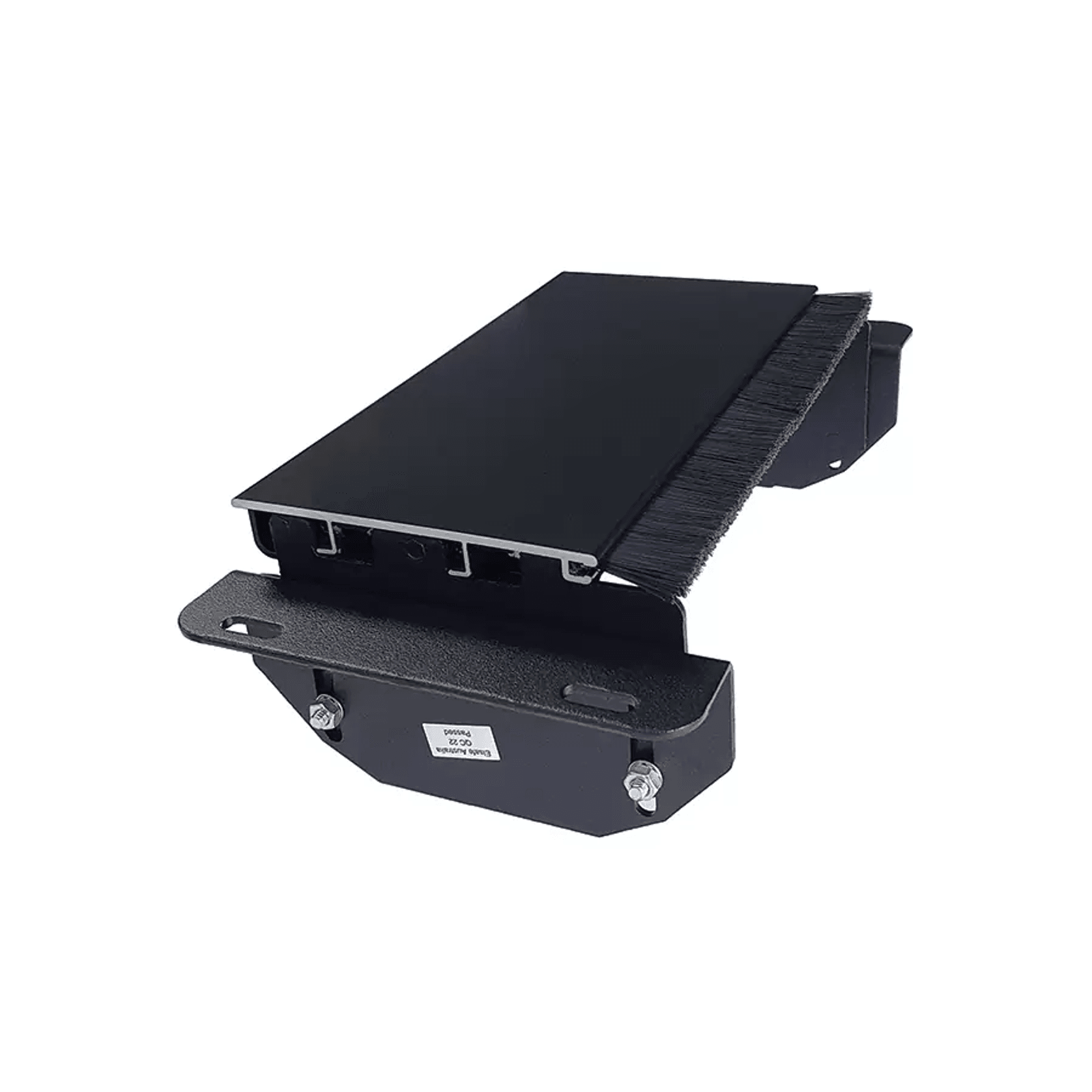

AxxessPLUS comprises natural anodised aluminium extruded sections for the lid and side frames fitted with high strength polycarbonate and steel hinges. The undercarriage is fabricated from powder-coated 1.2mm mild steel.

Size Options

  • AxxessPLUS QF25 – Lid Length: 180mm
  • AxxessPLUS QF45 – Lid Length: 260mm
  • Custom – Lids can be manufactured to accommodate longer requirements

Colour Options

  • Lid – Silver anodised veneerable and non-veneerable extrusion
  • Lid Type – Black brush strip or silver anodised cable flap
  • Chassis – White powder coated and Black powder coated
  • Power, TUF and data/AV fascia’s – White, Black, Grey and Red (power only)

Power Connection Options

  • Male GST input
  • 800mm lead to J Coupler
  • 1400mm lead to J Coupler

Installation

AxxessPLUS can be fitted into table tops 15-35mm thick.

Quality and Testing

  • Visual: Configuration and appearance.
  • Power sockets: Continuity, polarity, insulation and earth
  • USB charger: Output voltage and resistance
  • All sockets continuity tested with batch performance testing

“We test every pin on every connection in every socket”

Features:

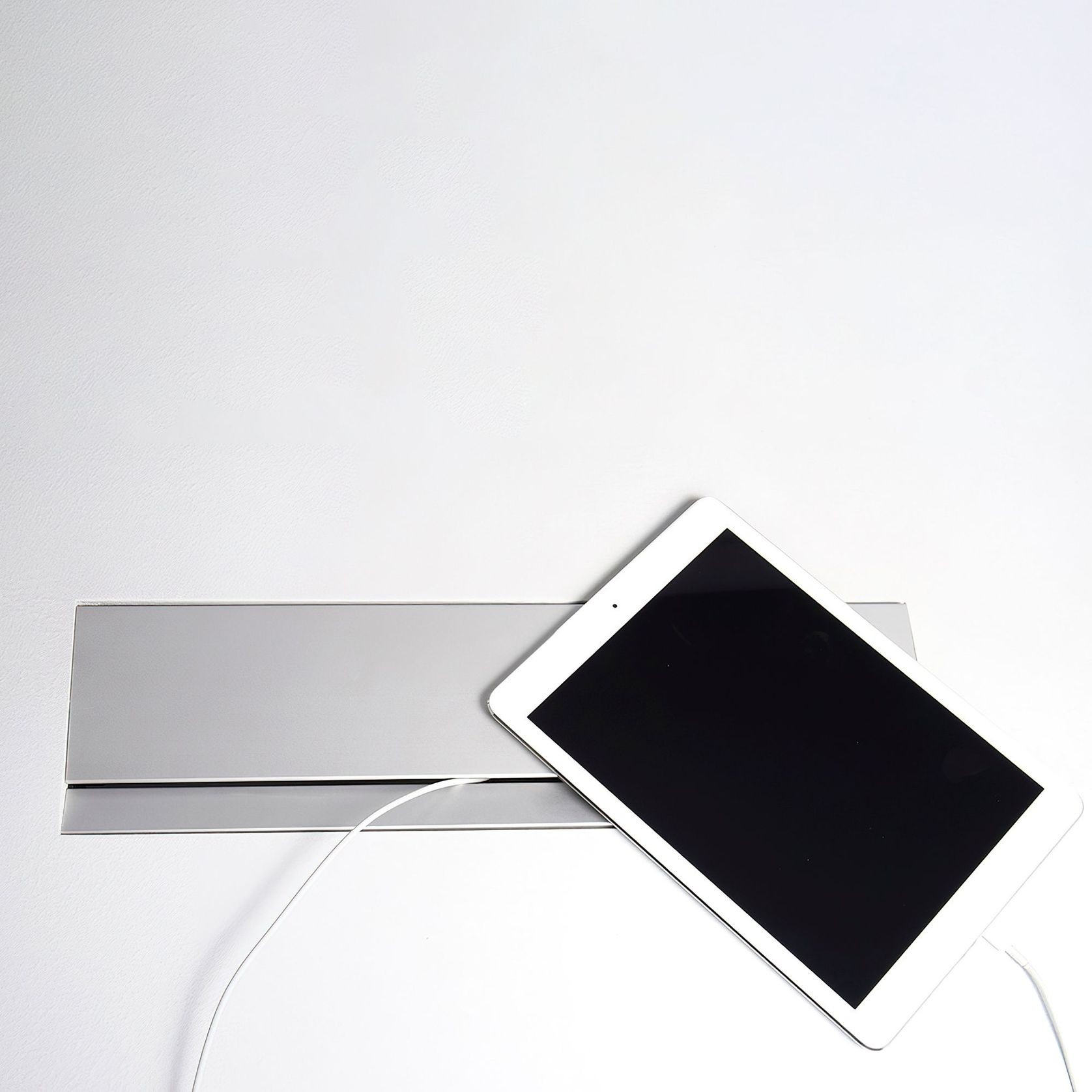

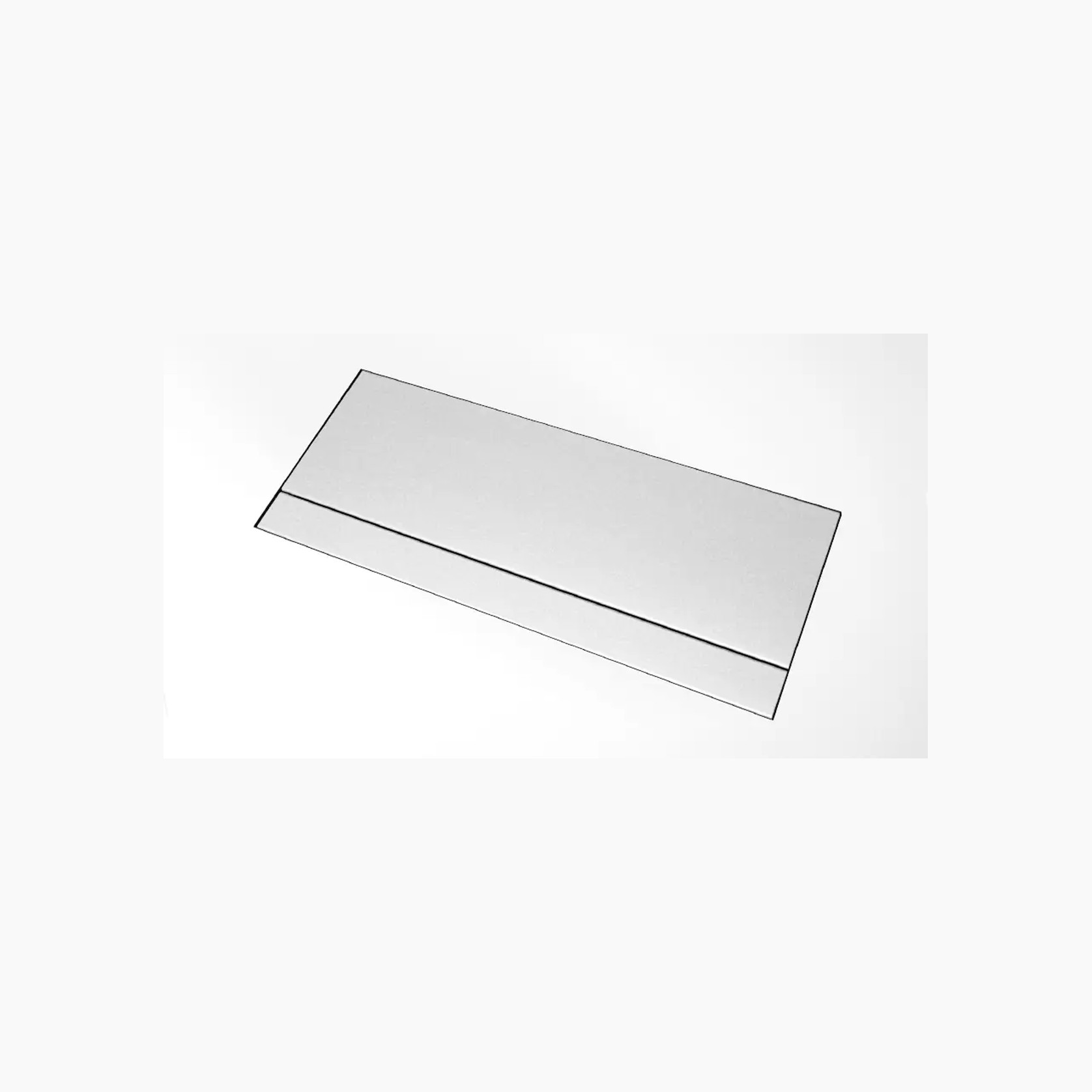

Double Lid

  • Cable guides at either end, guide the cables towards the lid so that the damage to the cables is avoided by the scissor action of the lid closing.
  • The spring release lid allows cables to exit while the main lid is lowered.
  • Flush mounting brackets to allow a perfect surface match.

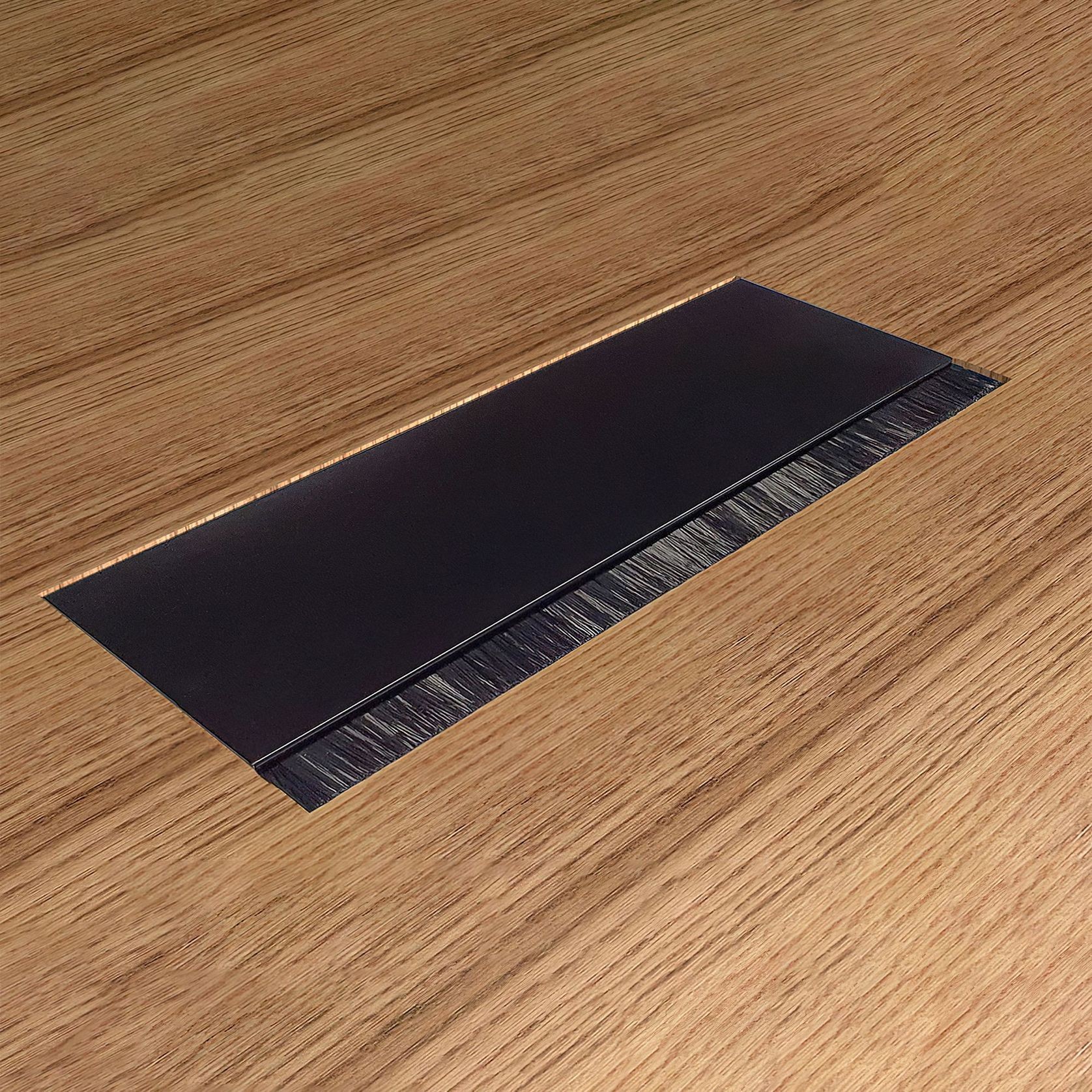

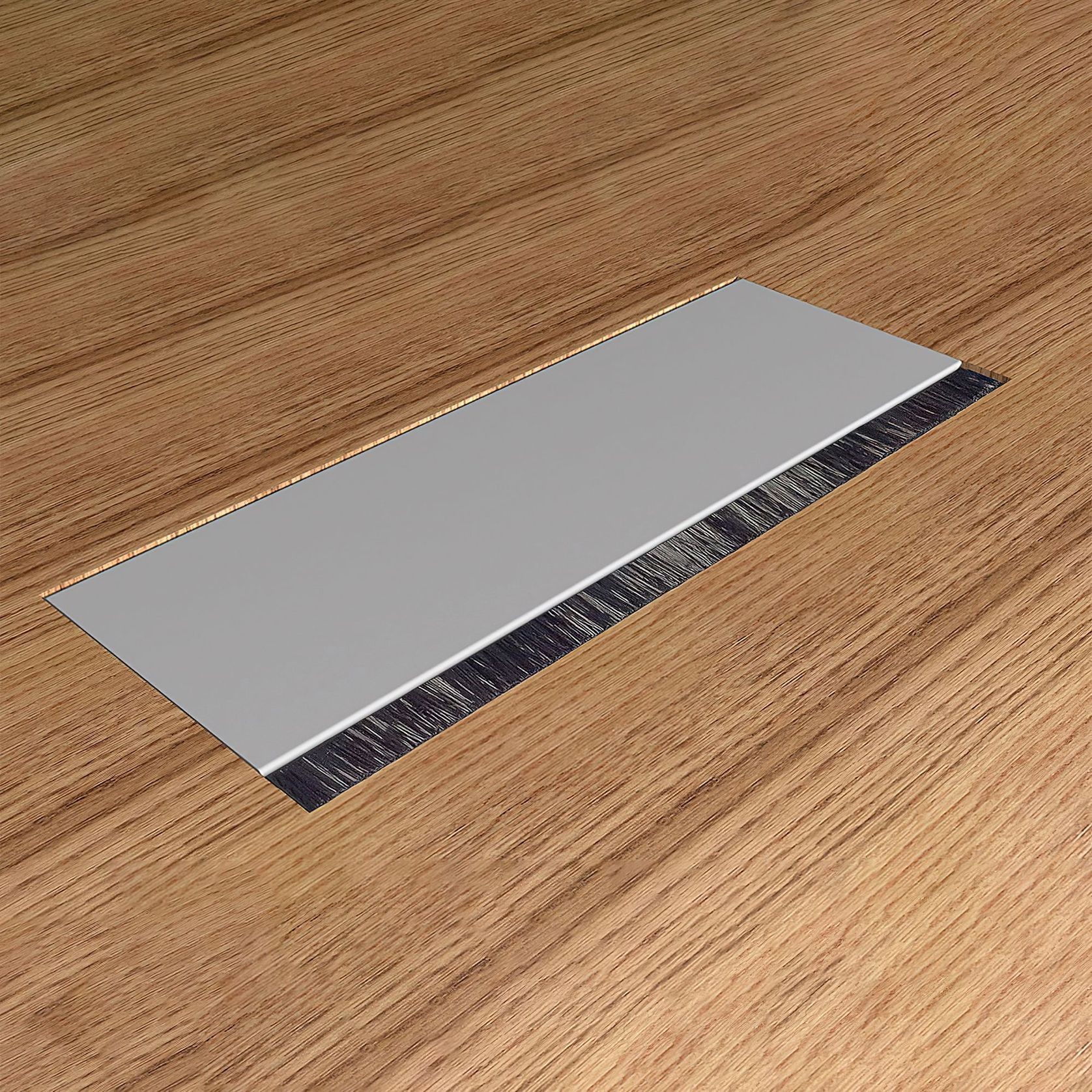

Single Lid

  • Cable guides at either end, guide the cables towards the lid so that the damage to the cables is avoided by the scissor action of the lid closing.
  • Brush strip to allow easy and safe exit for the cables.
  • Flush mounting brackets to allow a perfect surface match.
Features

Flush Aluminium Finish or Veneer Inlay:

  • AxxessPLUS is available with a choice of twin aluminium extruded hinged lids or a single main lid plus a brush strip for neatly managing cable entry.
  • The unique innovative cable guides attached to the lids prevent trapped cables.

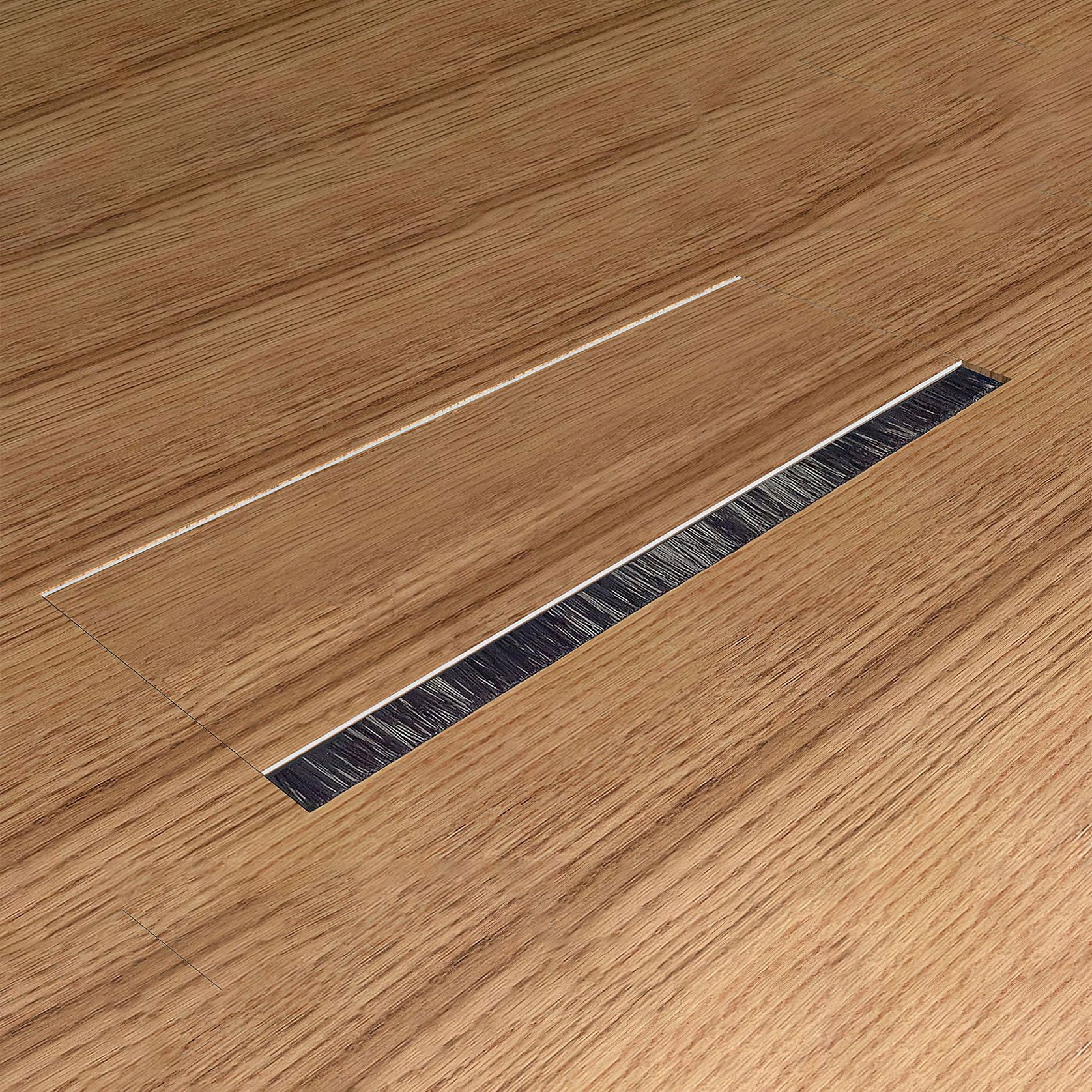

  • As an alternative to the standard natural anodised “flush” lids, AxxessPLUS can also be ordered with “recessed” lids ready to accept your choice of veneer or decorative inlay.

Customisable with Power, Data/AV and USB Fast Charging Options:

  • AxxessPLUS may be configured with components from the OE Elsafe modular QikFIT Series range including our award-winning TUF-R HP laptop charging modules and most types/makes of Data and AV.

Reversible Type A USB Port – Accepts Connector Both Ways:

  • Unique to OE Elsafe is the reversible Type A port which will ensure a quick single attempt connection every time.
  • USB charging cord connectors can now be inserted both ways, cutting down on wear or damage from incorrect attempts, maximizing the working life of the power module.
  • Subject to availability on some modules

AxxessPLUS Configuration Options:

  • Can be ordered with a powder-coated steel undercarriage or as a lid unit only for use as a ‘through desk’ port to access an under-desk cable tray.
  • Due to the flush design, AxxessPLUS is optimally installed into factory CNC routed apertures in wood surfaces 15-35 mm thick.
Contact OE Elsafe to discuss your project.
