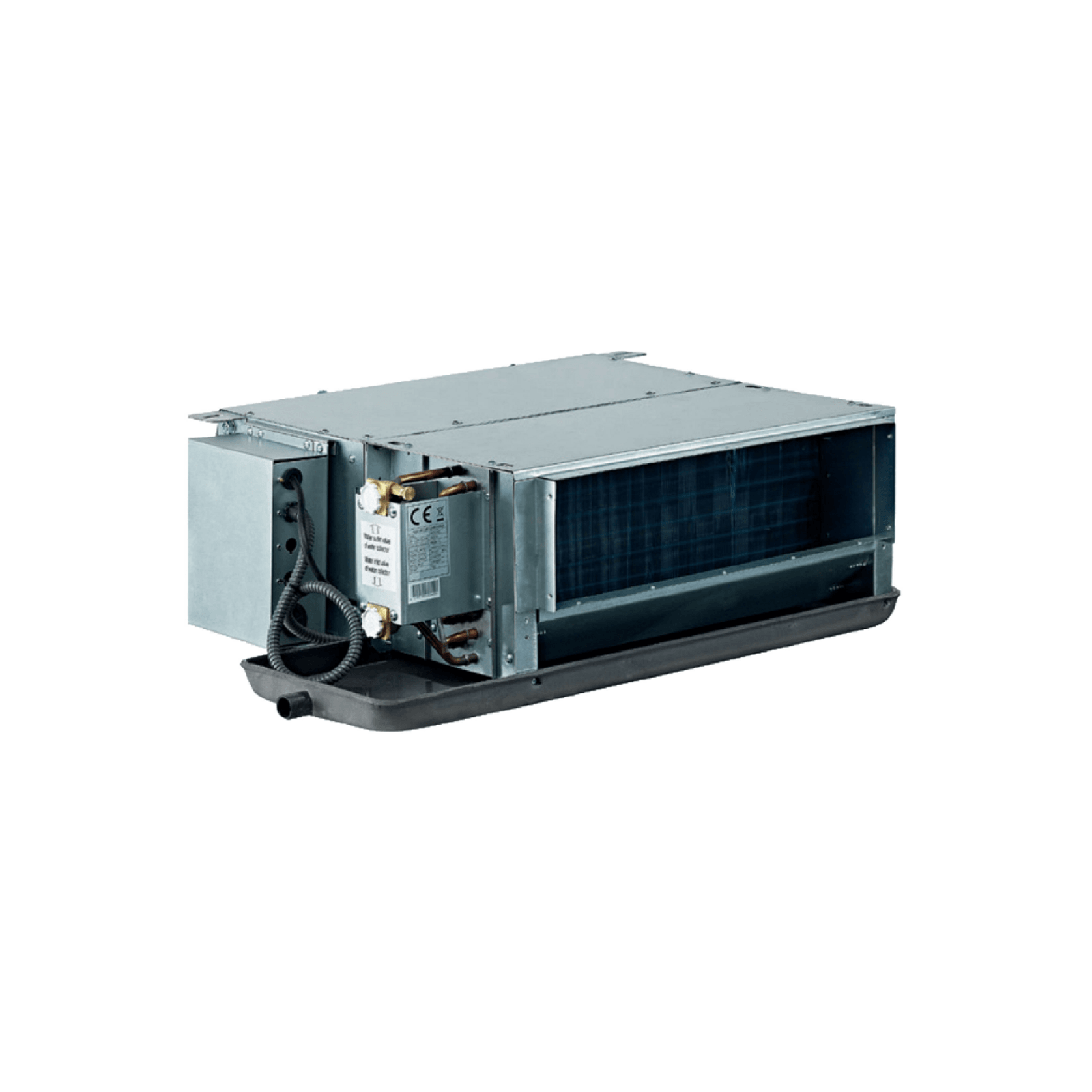

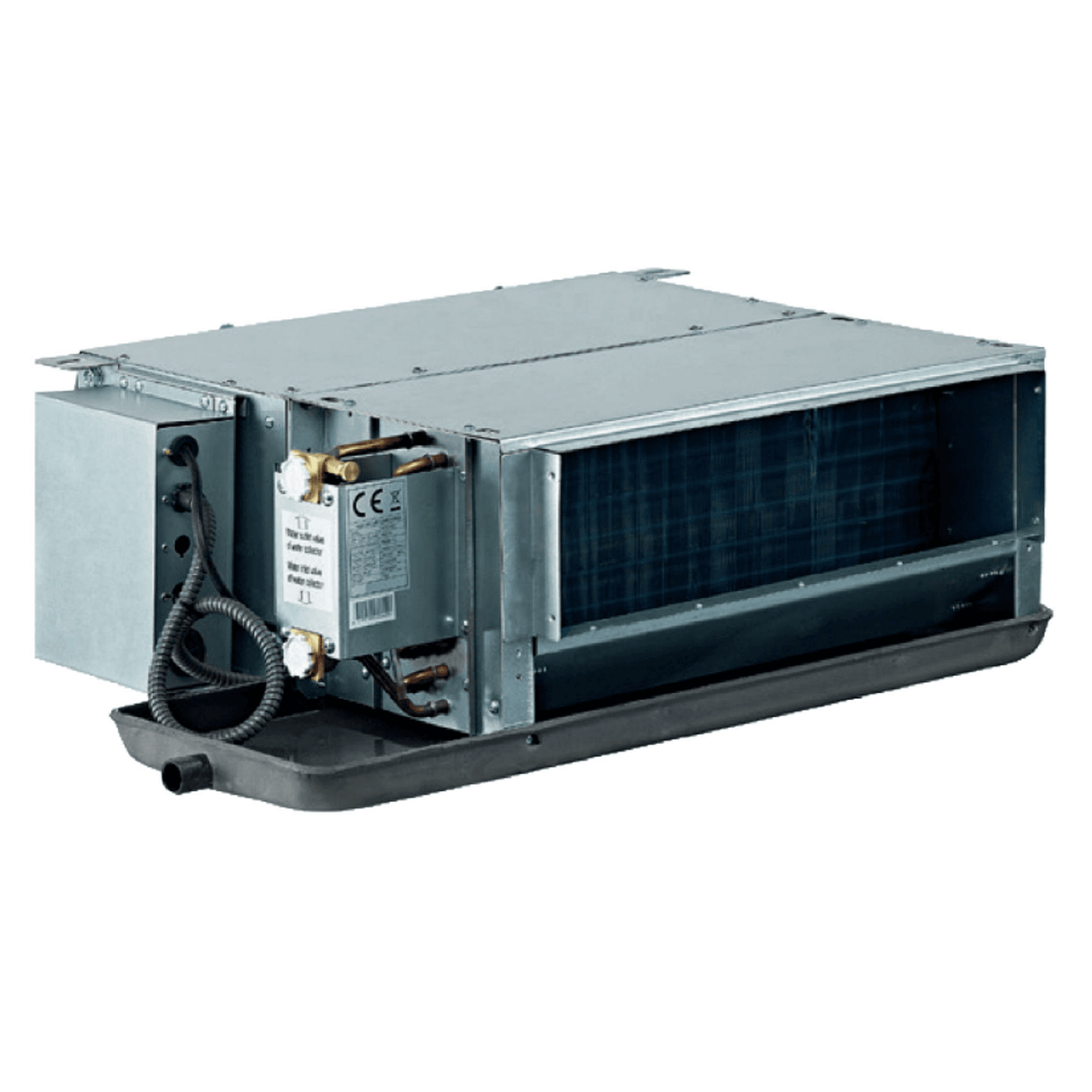

Baxi - Fan Coil Ducted Solution (IQD50)
Auckland, New Zealand
- 591.6K profile views
- 189 saves
Baxi enlarges the product offer, introducing a complete range of hydronic fan units for heating and cooling systems, ideal for any residential and commercial application. The fan coil units can be combined with the newest low temperature heating generators, such as condensing boilers and heat pumps.
Product Details
- Product
- Baxi - Fan Coil Ducted Solution (IQD50)
- Category
- Ducted Heat Pump Systems
- Sold by
- Warm NZ Heating Solutions
- Pricing
- $1,551.23
- Range
- Hydronic Heating
- Designer
- Baxi
- Brand
- Baxi
- Type of use
- Commercial and Residential
- Care and cleaning
- Professional cleaning recommended
- Installation
- Professional installation recommended
- Assembly
- Professional assembly recommended
Warm NZ Heating Solutions is specified by
Christian Anderson ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
Stephen Jones ArchitectsArchitects
Brendon Gordon ArchitectsArchitects
Charissa Snijders ArchitectArchitects
Stephan Meijer ArchitectureArchitects
Chaplin Crooks ArchitectsArchitects
Hulena ArchitectsArchitects
Hamish Shaw ArchitectsArchitects
I Am DeveloperArchitects
F. L. BoneManufacturers and Suppliers
Christopher Hay ConstructionBuilders
Beck BuildingBuilders
Net ZeroManufacturers and Suppliers
Nicola Manning DesignInterior Designers
Wilson ConstructionConstruction
Emandee HomesBuilders
QUATTRO UNOKitchen & Bathroom Designers
Home ProjectsBuilders
Precision ConstructionBuilders
M C Fearnley DesignArchitectural Designers
WaterwareManufacturers and Suppliers
FortéManufacturers and Suppliers
Alabaster WorkshopManufacturers and Suppliers
No Shock ElectricalElectricians
Our ProjectsBuilders
Stehr Brothers ConstructionBuilders
PlumbcraftPlumbers & Gas Fitters
Harrison LaneBuilders
Dash BuildBuilders
Baxi enlarges the product offer, introducing a complete range of hydronic fan units for heating and cooling systems, ideal for any residential and commercial application.
The fan coil units can be combined with the newest low temperature heating generators, such as condensing boilers and heat pumps.
- Specs
Model
- IQD30 - 841 x 241 x 522 (WxHxD) mm
- IQD50 - 941 x 241 x 522 (WxHxD) mm
- IQD60 - 1161 x 241 x 522 (WxHxD) mm
- IQD80 - 1461 x 241 x 522 (WxHxD) mm
- IQD110 - 1856 x 241 x 522 (WxHxD) mm
- Features
• Designed for built-in installation
• Compact dimensions: height of only 241 mm
• High efficiency and low noise
• 3-stage exchange coil
• 2 pipe system
• Bottom or back air intake option
• Head pressure adjustment based on the pressure losses of the ventilation ducts
• Outdoor air intake option
• Hydraulic connections on the left side (front view)
• INCLUDED condensate drain pan for valve connection site
• 4 levels of static pressure (0Pa - 12Pa - 30Pa -50Pa)
Downloads
Downloads (3)3 Direct downloads • 10 Available on request
