CT Connected SD3 Modbus

By Direct Control
Visit Website
Direct Control

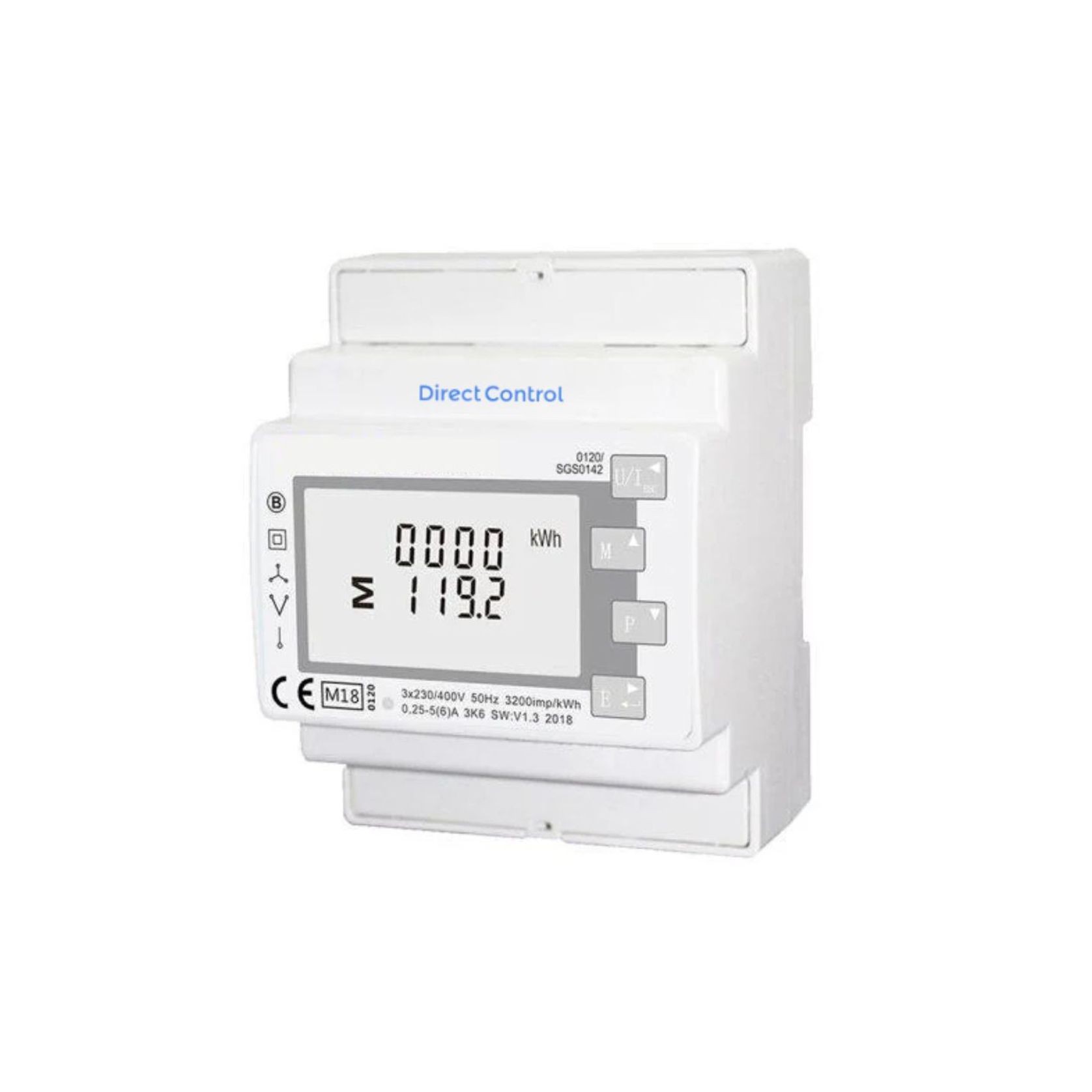

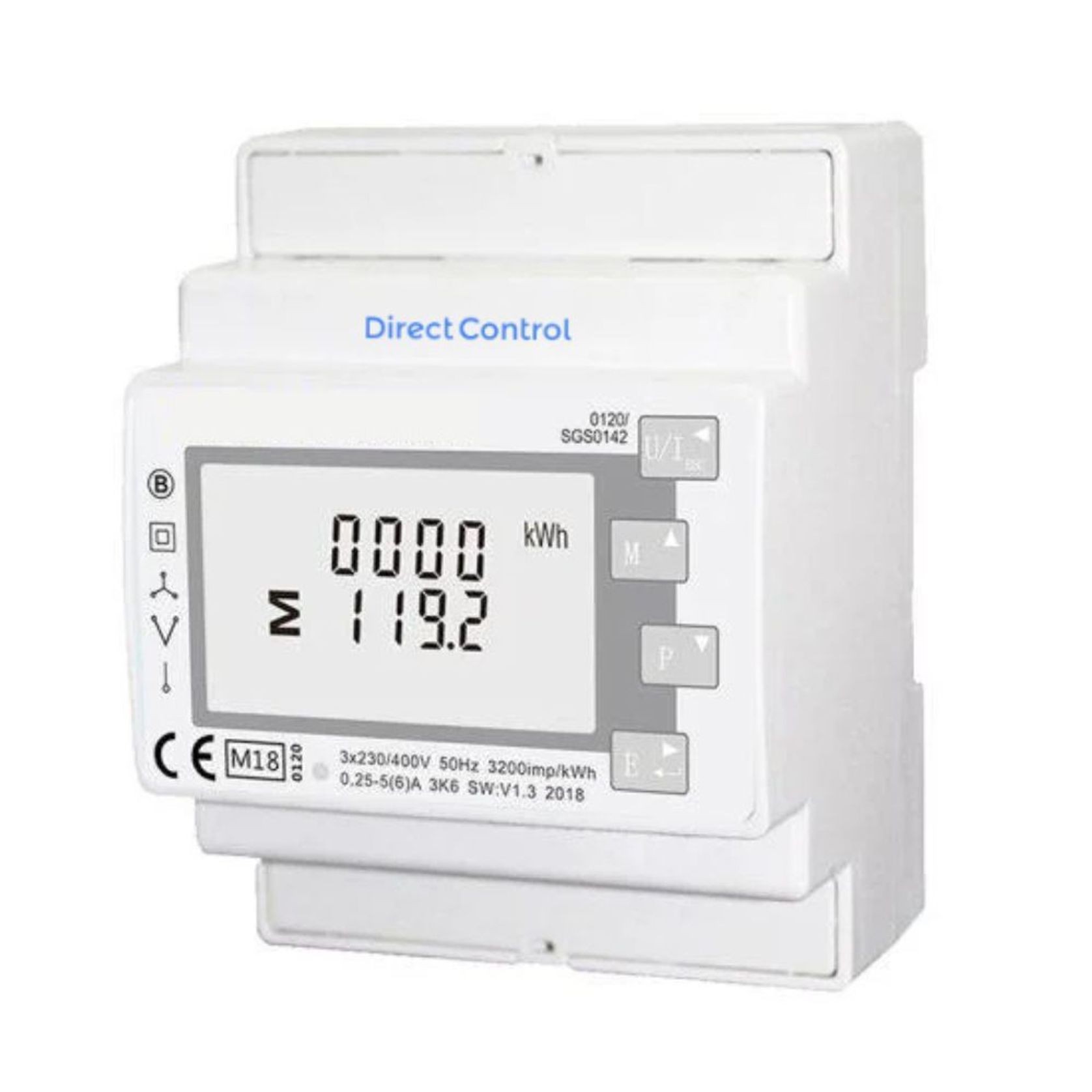

The SD3 Modbus CT is a versatile and high-accuracy energy metre designed for precise measurement and monitoring of various electrical parametres. This three-phase RS485 Modbus CT-operated energy metre is engineered to deliver exceptional performance in a range of applications, from residential to industrial settings.

Details
  • Category
    Home Automation
General
  • Country of origin
    China
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation required
Features
  • Comprehensive Measurement Capabilities: The SD3 Modbus CT measures Kwh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, and A, providing a complete overview of your energy consumption and electrical parameters.
  • Bi-Directional Measurement: With IMP (import) and EXP (export) capabilities, this energy metre supports comprehensive energy flow tracking.
  • Dual Pulse Outputs: Equipped with two pulse outputs for enhanced data logging and control.
  • RS485 Modbus Communication: Ensures reliable and accurate data transmission over long distances.
  • Din Rail Mounting: Easily mountable on a standard 35mm DIN rail for quick and secure installation.
  • CT Connection: It supports 1/5A CT connections, making it adaptable to various current transformer setups.
  • Class 1 Accuracy: Exceeds Class 1 accuracy standards, ensuring precise and reliable readings.
  • Built-in Interface: Offers pulse and RS465 outputs through an integrated interface, streamlining installation and connectivity.
Applications
  • Electric Vehicle Charging Metering: Precisely track and manage energy consumption for EV charging stations.
  • Solar Photovoltaic (PV) Systems: Monitor energy production and efficiency in solar power installations.
  • Energy Storage Systems: Ensure accurate measurement and monitoring for battery storage systems.
  • Smart Buildings: Optimise energy usage and enhance the efficiency of smart building operations.
  • Residential, Industrial, and Commercial Use: Suitable for a wide range of environments, from homes to large-scale industrial facilities.
SKU: 5180-Direct Control
