Dorma EN1-5 Door Closer Push Side Kit TS93G15GNRFAB

Name: Dorma EN1-5 Door Closer Push Side Kit TS93G15GNRFAB
Brand: Dormakaba

Wetherill Park, Australia

993.1K profile views
51 saves

Dorma Door Closer
TS93G EN1-5 SIL

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

Mounted on push side of door
Adjustable closing force size EN1-5
Suitable for standard doors up to 1250mm wide
For External doors up to 1250mm
Suits fire and smoke check doors
Slide channel arm assembly
Closing force variable by means of adjustment screw
Closing speed adjustable by valve
Latching speed adjustable at valve
Backcheck (BC/OD) adjustable at valve
Delayed action (DC/SV) adjustable at valve

Tags

hardware door hardware door handles handles door closer

Product Details

Product: Dorma EN1-5 Door Closer Push Side Kit TS93G15GNRFAB
Category: Door Closers
Sold by: Keeler Hardware
Size: 275mm
Range: Dormakaba
Brand: Dormakaba
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Product Variants

Colours
Material

Keeler Hardware is specified by

(34) Professionals

Dorma EN1-5 Door Closer Push Side Kit TS93G15GNRFAB

Visit site

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Features: Mounted on push side of door Adjustable closing force size EN1-5 Suitable for standard doors up to 1250mm wide For External doors up to 1250mm Suits fire and smoke check doors Slide channel arm assembly Closing force variable by means of adjustment screw Closing speed adjustable by valve Latching speed adjustable at valve Backcheck (BC/OD) adjustable at valve Delayed action (DC/SV) adjustable at valve

Dorma Door CloserTS93G EN1-5 SIL Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Features:

Mounted on push side of door
Adjustable closing force size EN1-5
Suitable for standard doors up to 1250mm wide
For External doors up to 1250mm
Suits fire and smoke check doors
Slide channel arm assembly
Closing force variable by means of adjustment screw
Closing speed adjustable by valve
Latching speed adjustable at valve
Backcheck (BC/OD) adjustable at valve
Delayed action (DC/SV) adjustable at valve

Specs

Specifications:

Length: 275mm
Depth: 53mm
Height: 60mm
Weight: 3.5kg
Finish: Silver

Rapidly Decreasing Opening Force:

Unlike rack and pinion slide-channel door closers, the DORMA TS93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.

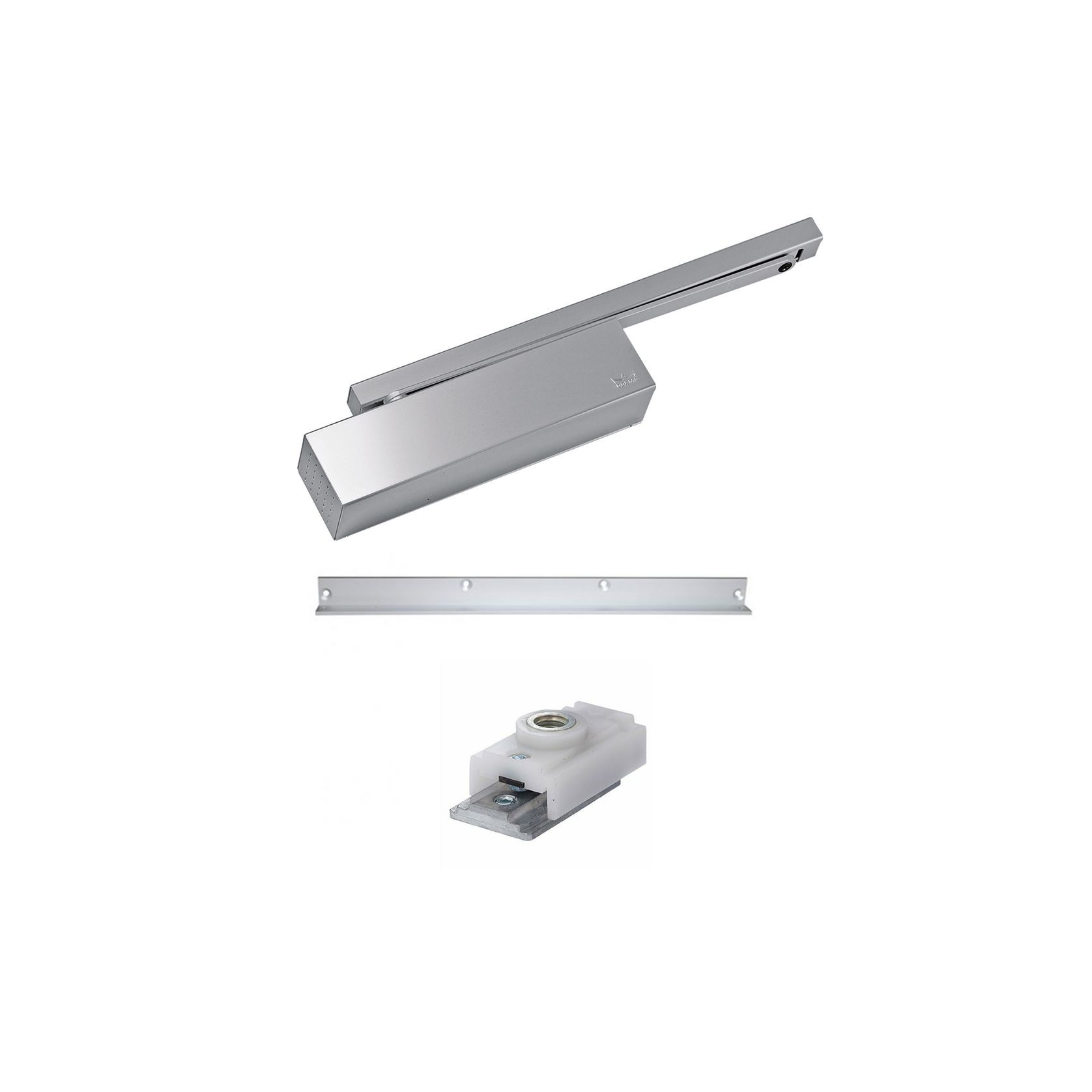

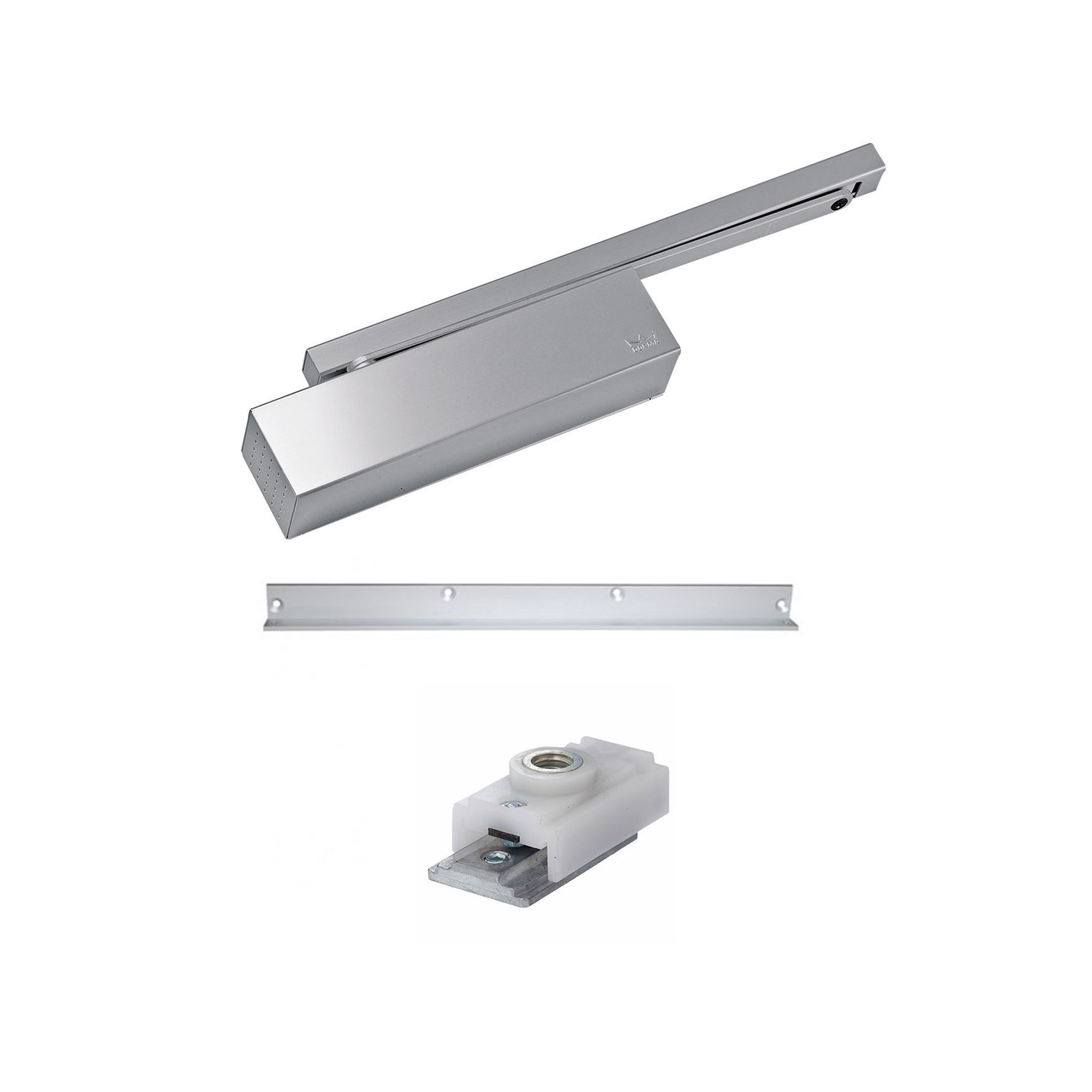

What's in the box

Includes:

1 x Dorma Door Closer TS93G EN1-5 Push Side Silver (43100501)
1 x Dorma 93GN Slide Arm and Channel Silver (64010001)
1 x Dorma Hold Open Device (18570000)
1 x Dorma TS92AB Angle Bracket Suits G92/G93 N/RF Silver (64430001)
