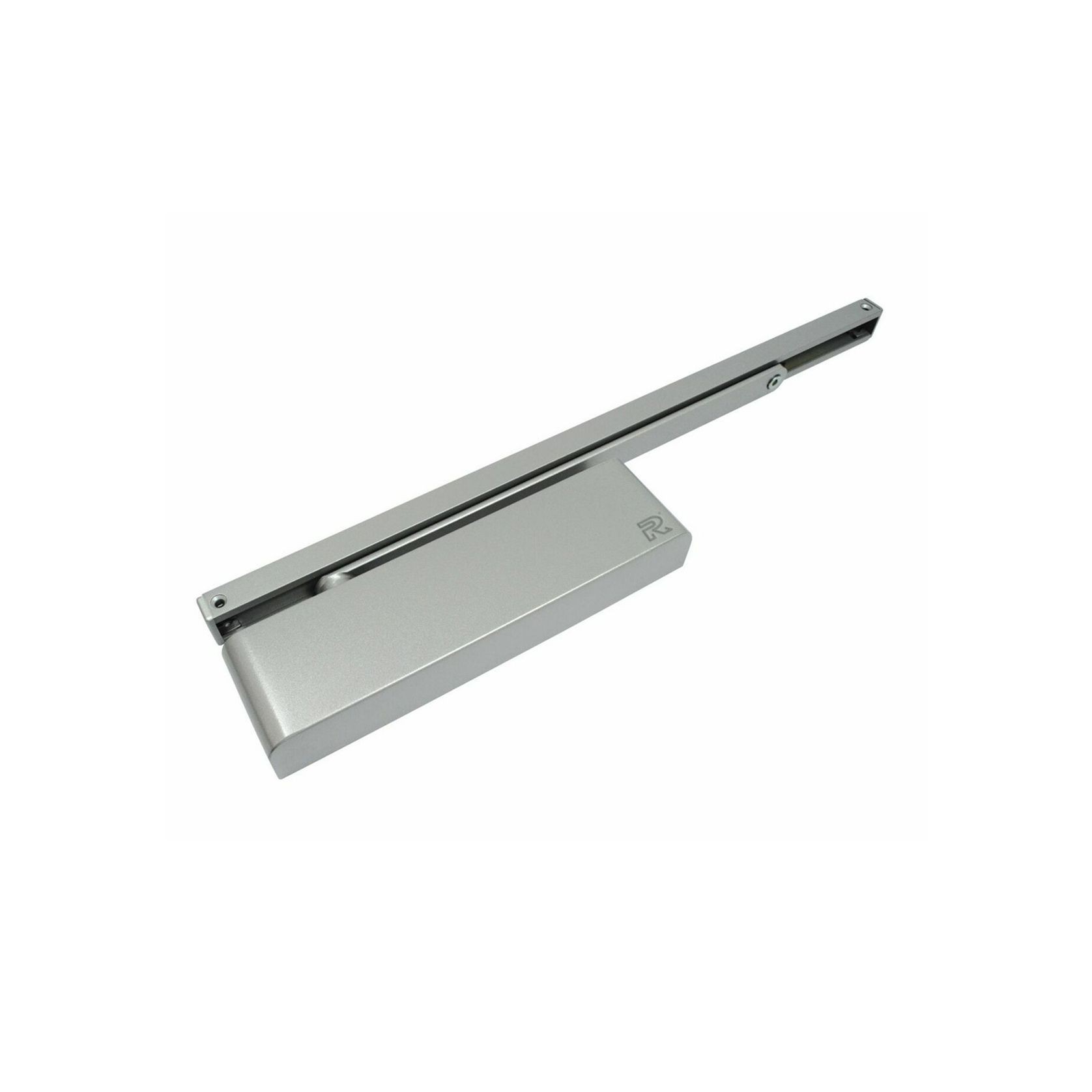

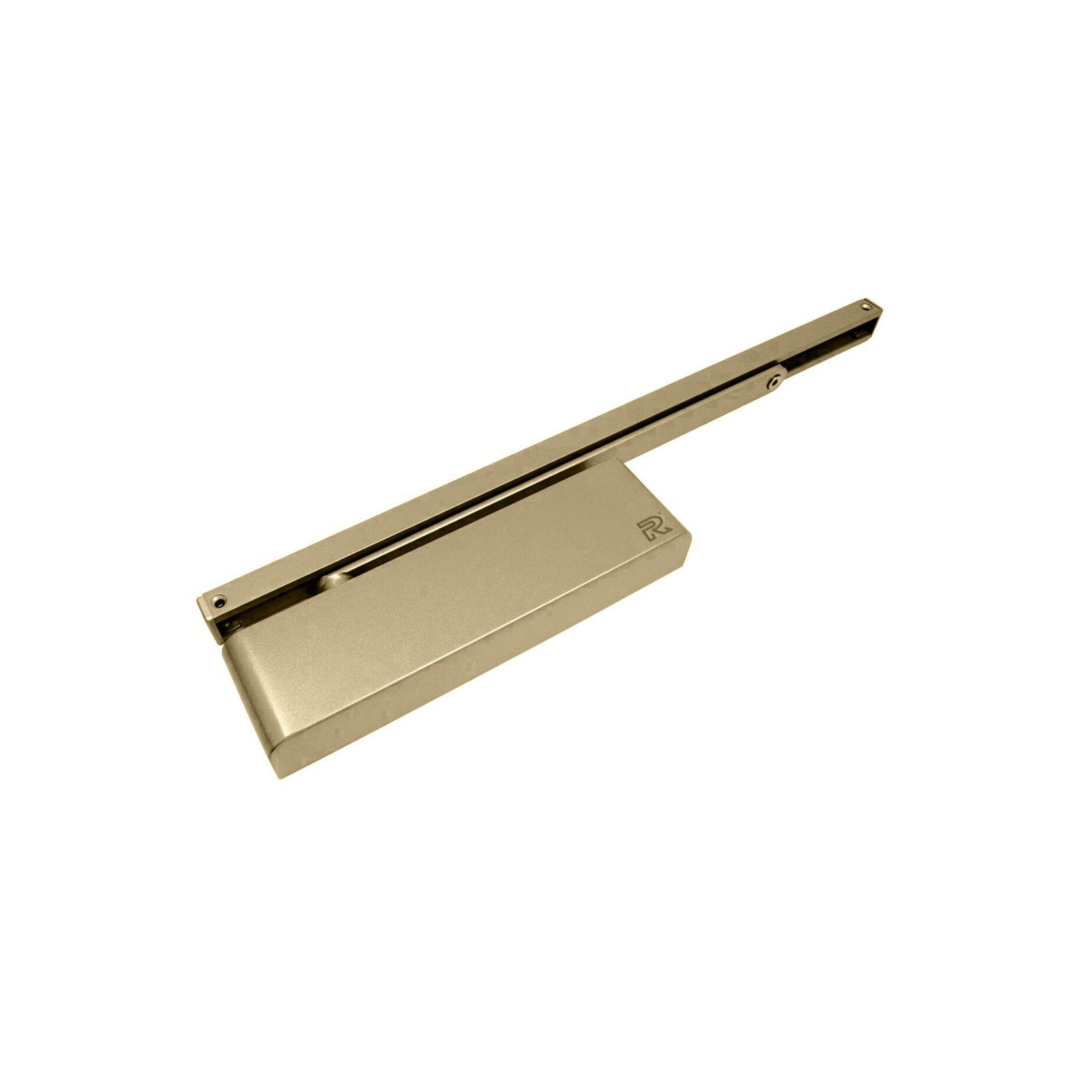

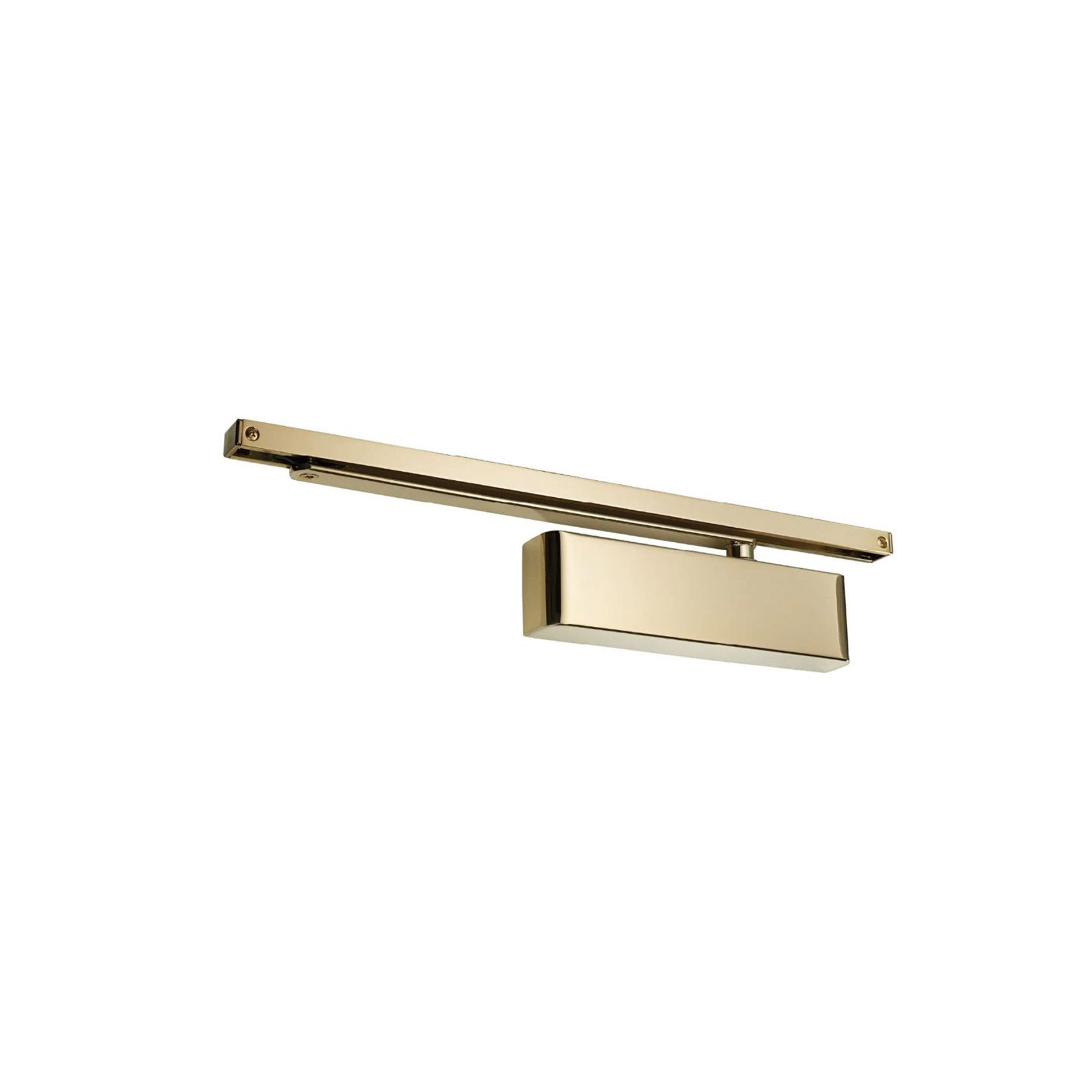

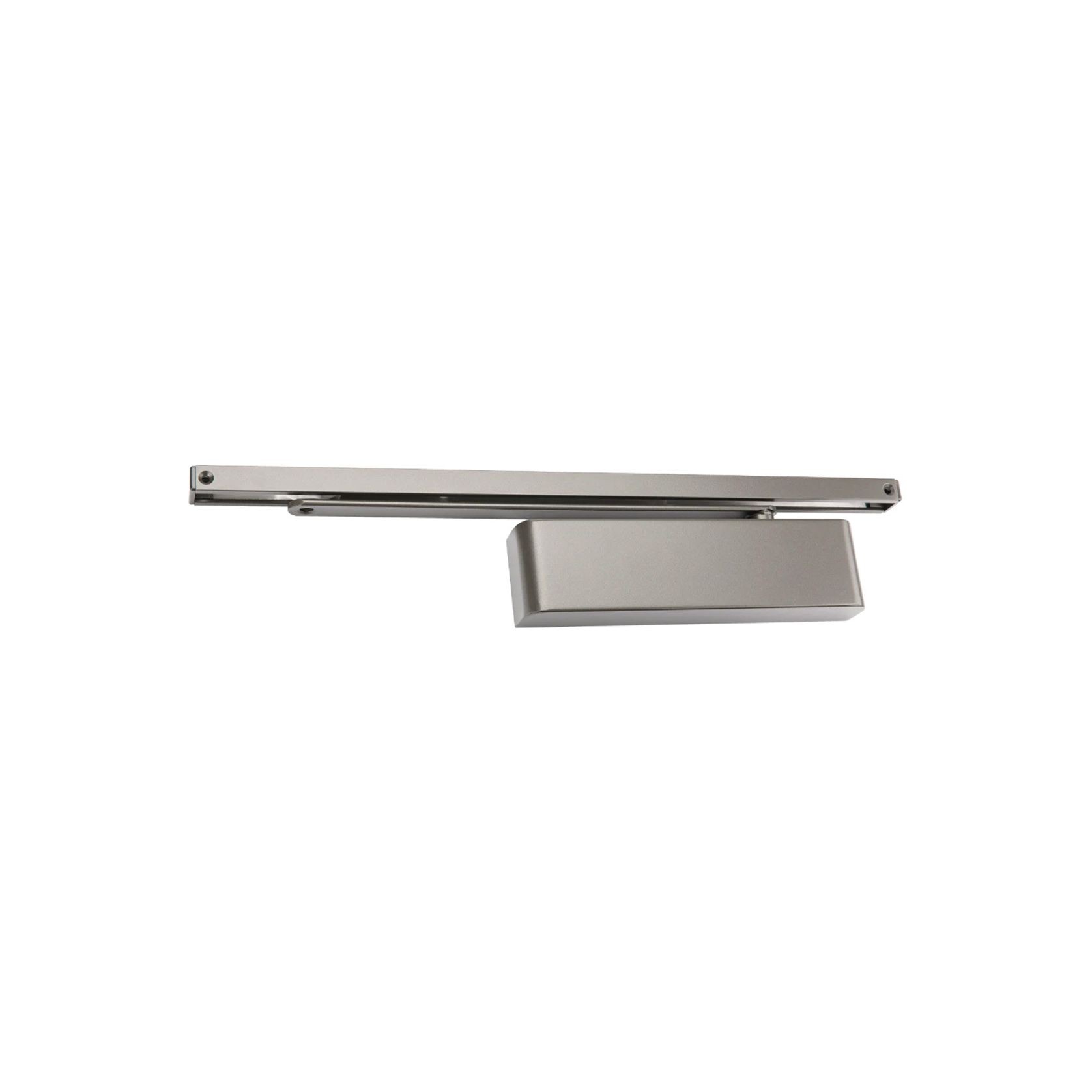

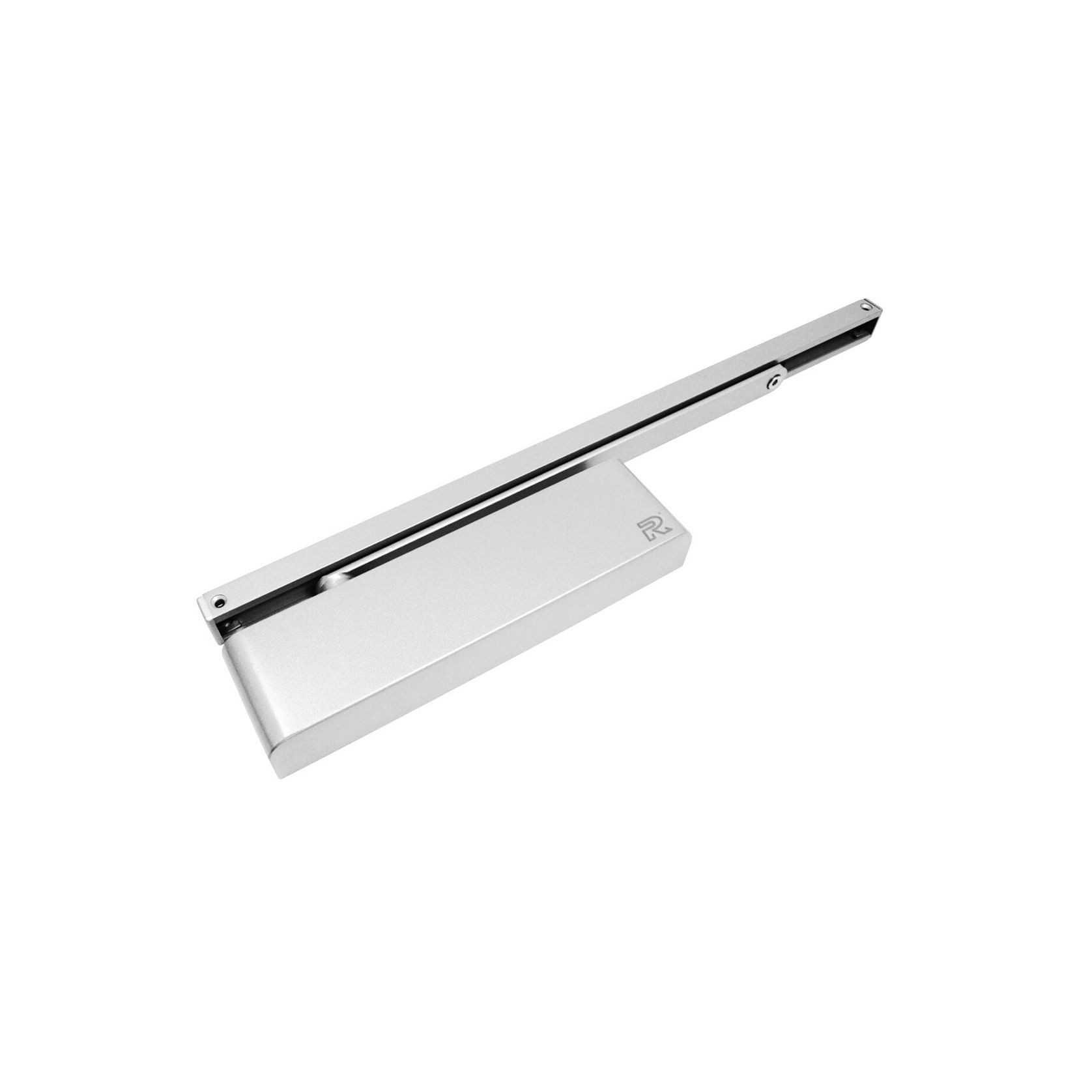

Zanda TS9205 Door Closer Combined Unit Slide Armset
Wetherill Park, Australia
- 993.3K profile views
- 51 saves

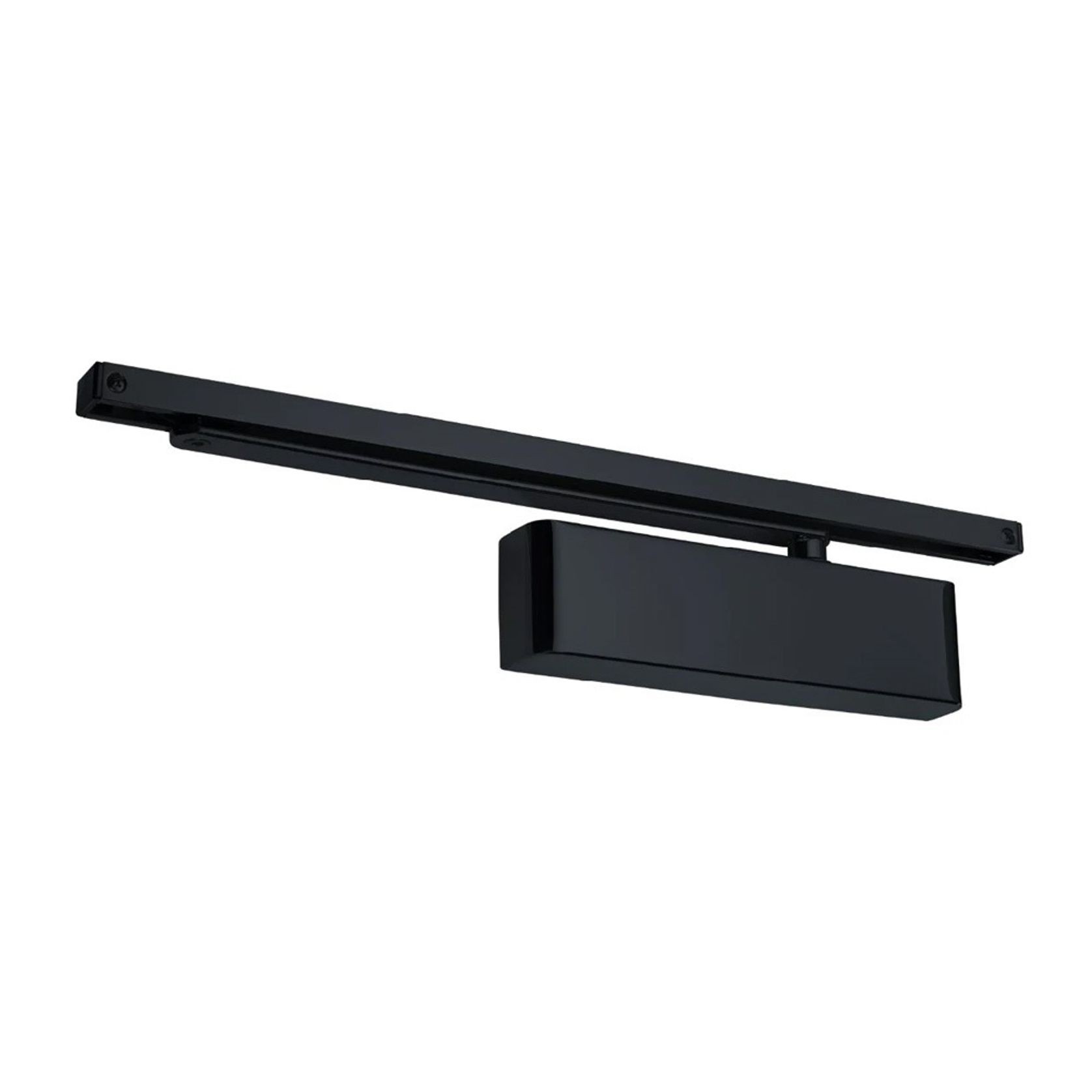

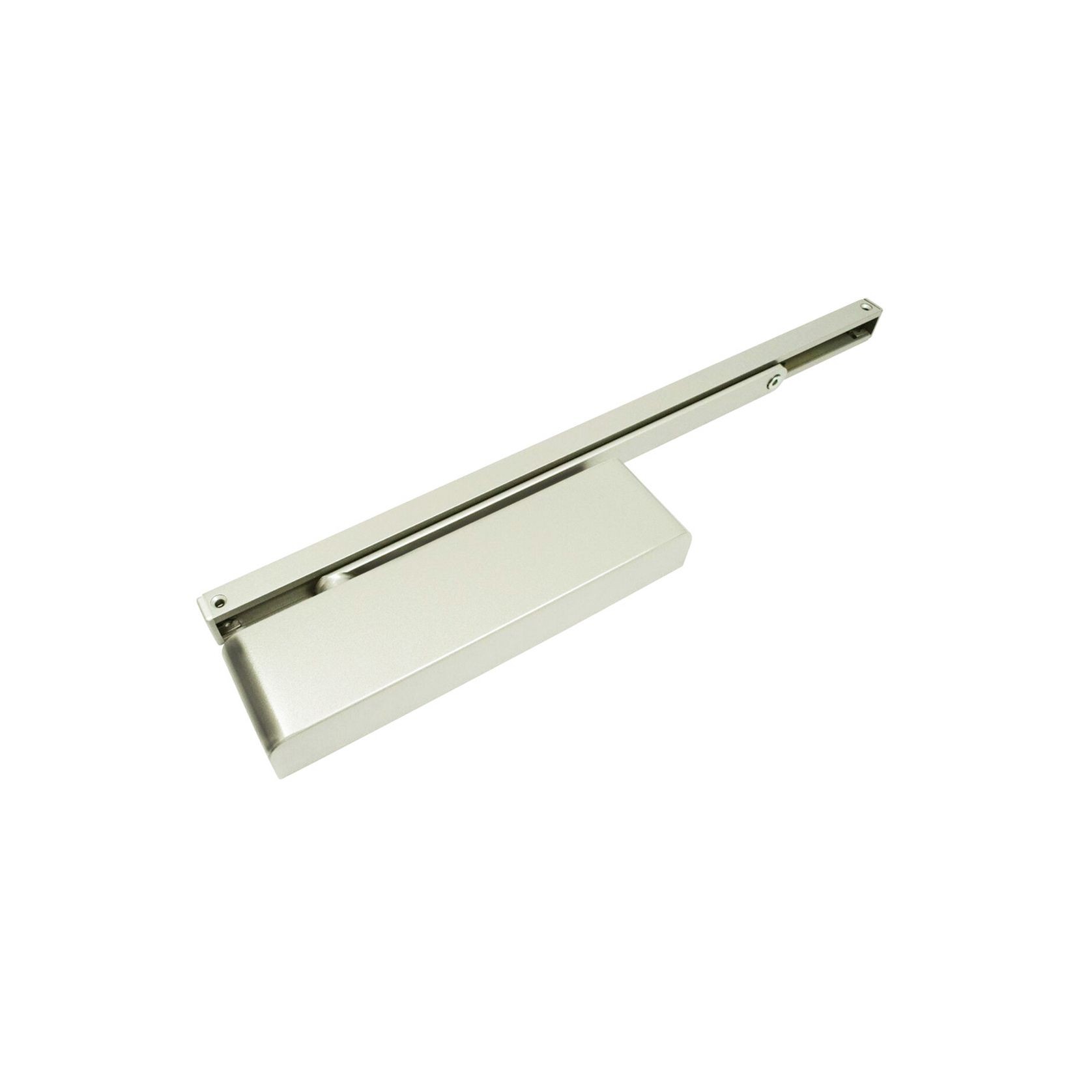

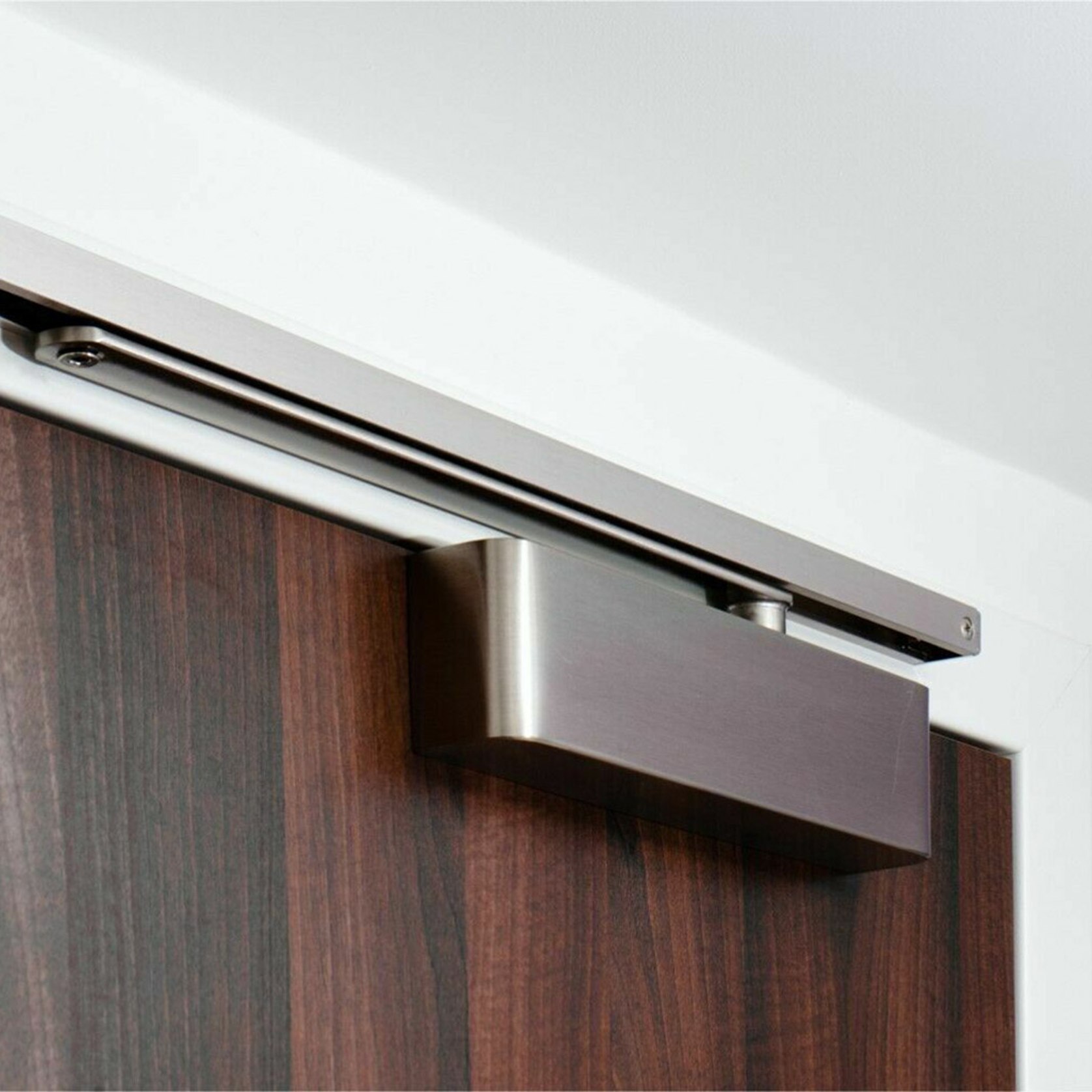

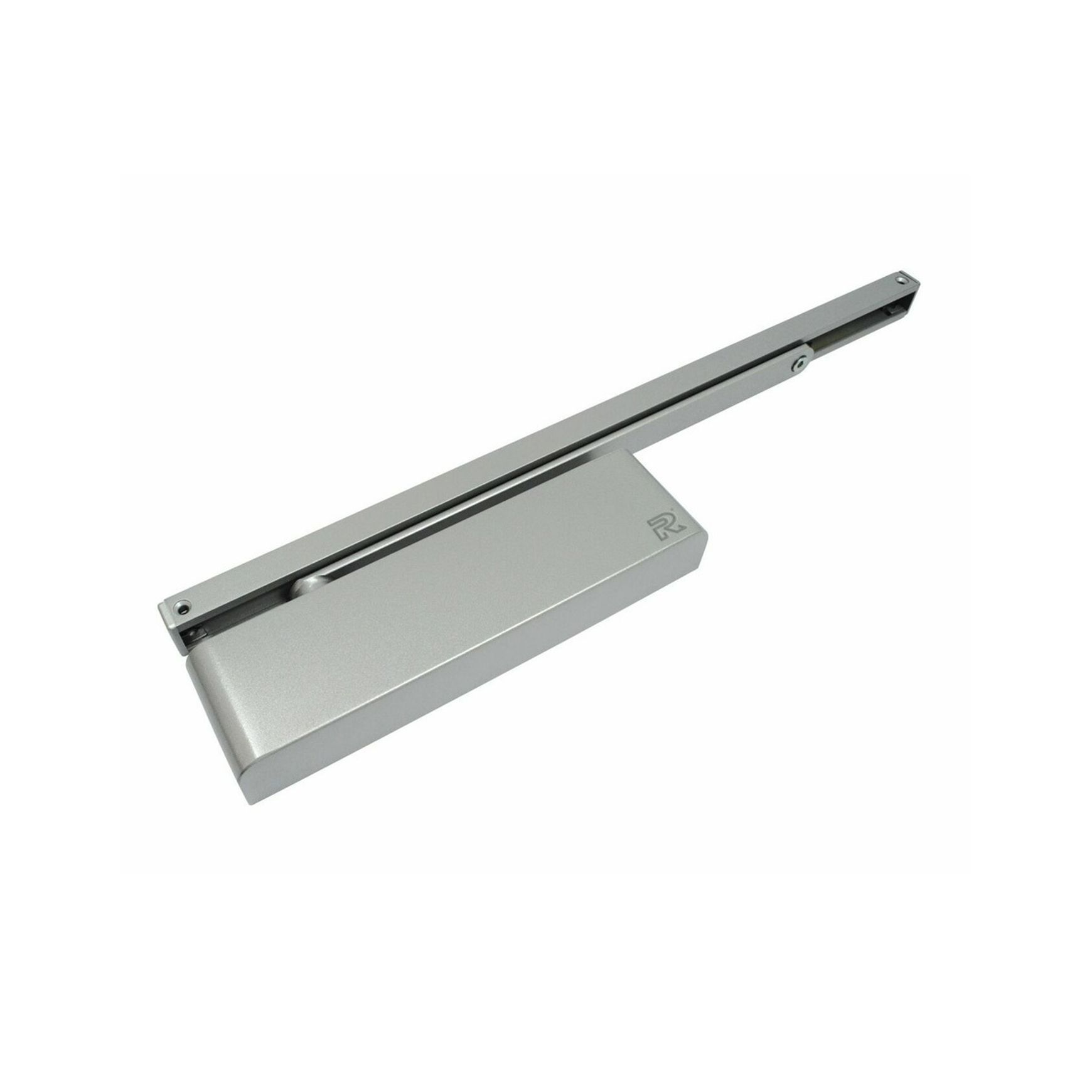

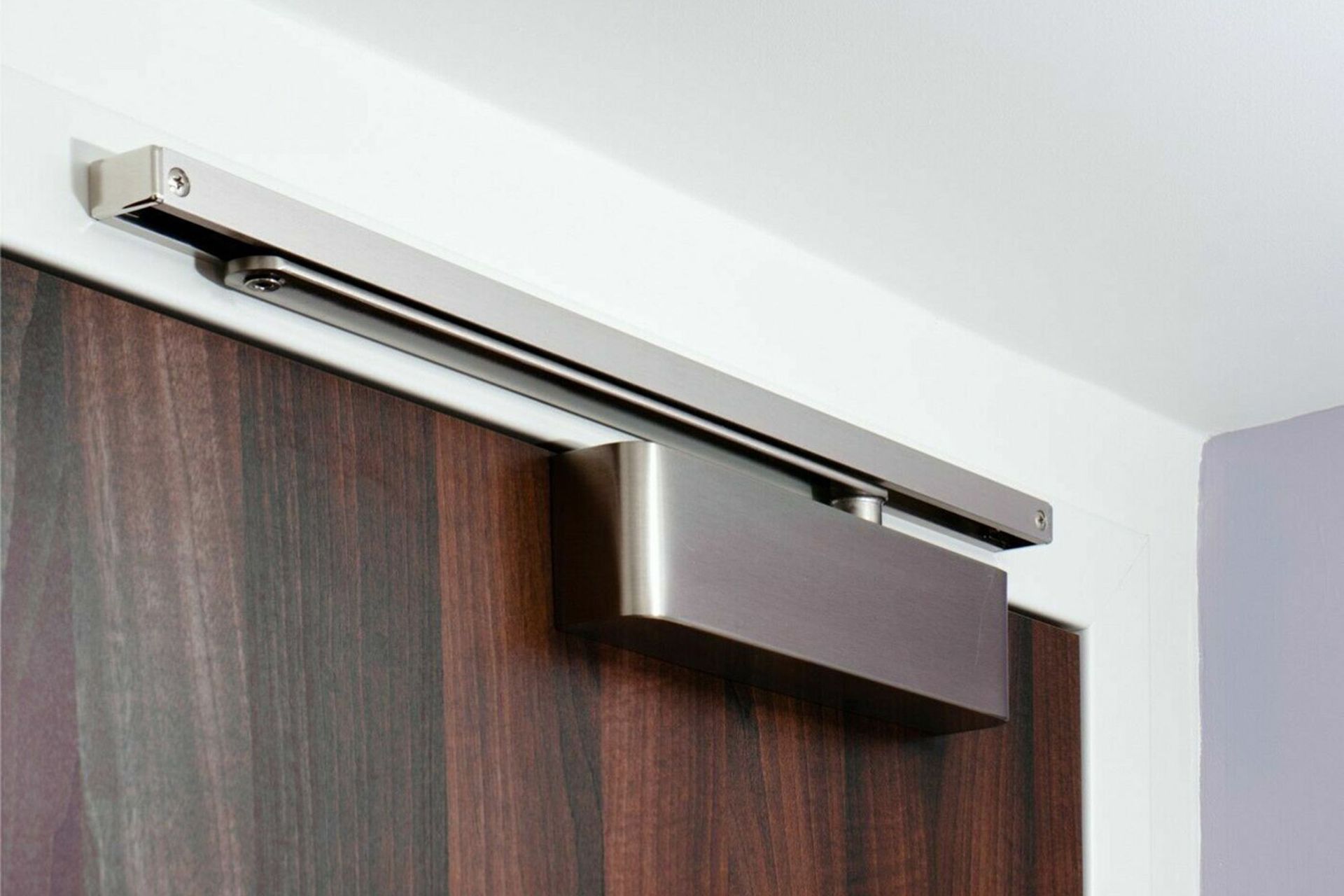

Zanda Door Closer Combined Unit
TS.9205
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x TS9205 mechanism
- 1 x Slide Armset
- 1 x Semi-Radiused Cover
Features:
- Variable power adjustable EN2-5
- Suits doors up to 110kg and 1250mm wide
- Universal application can be fitted in Standard, Parallel arm or Transom fitting position
- Comes standard with delayed action and back check.
- Unique semi-radius cover for an architectural look make your project stand out
- Fire tested to Australian standards
- Ideal for disability compliant projects due to its ease of opening and efficiency
- Closing and latching speeds can be adjusted from the front of the mechanism
- Suitable for timber, metal and aluminium doors
Product Details
- Product
- Zanda TS9205 Door Closer Combined Unit Slide Armset
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Brand
- Zanda Architectural Hardware
Product Variants
- Strength
- Max Door Width
- Max Door Weight
- Colours
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
JOST ArchitectsArchitects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
TDDP ArchitectsArchitects
Scale ArchitectureArchitects
Ironbark ArchitectureArchitects
Ha ArchitectureArchitects
De Moyer ArchitectureArchitects
Bones StudioArchitects
Habitat Studio ArchitectsArchitects
Alexander &CO.Architects
R ARCHITECTUREArchitects
J Mammone ArchitectureArchitects
mcmahon and nerlichArchitects
David Baillie ArchitectArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
Dieppe DesignArchitects
Invilla ArchitectureArchitects
Anderson ArchitectureArchitects
X + OInterior Designers
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
Brianda ProjectsBuilders
APC BuildBuilders
Kate NixonInterior Designers
Susie Miles DesignInterior Designers
Dasch AssociatesInterior Designers
Ilm InteriorsJoiners
STUDIO GAXAInterior Designers
Jumble & StackInterior Designers
Schemes & SpacesInterior Designers
CastellaManufacturers and Suppliers
Matic by DesignInterior Designers
New SpacesBuilders
TrueBuild HomesDesign & Build
Rise Architectural BuildersBuilders
IverManufacturers and Suppliers
Zanda Door Closer Combined UnitTS.9205 Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened.
Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x TS9205 mechanism
- 1 x Slide Armset
- 1 x Semi-Radiused Cover
Features:
- Variable power adjustable EN2-5
- Suits doors up to 110kg and 1250mm wide
- Universal application can be fitted in Standard, Parallel arm or Transom fitting position
- Comes standard with delayed action and back check.
- Unique semi-radius cover for an architectural look make your project stand out
- Fire tested to Australian standards
- Ideal for disability compliant projects due to its ease of opening and efficiency
- Closing and latching speeds can be adjusted from the front of the mechanism
- Suitable for timber, metal and aluminium doors
- Specs

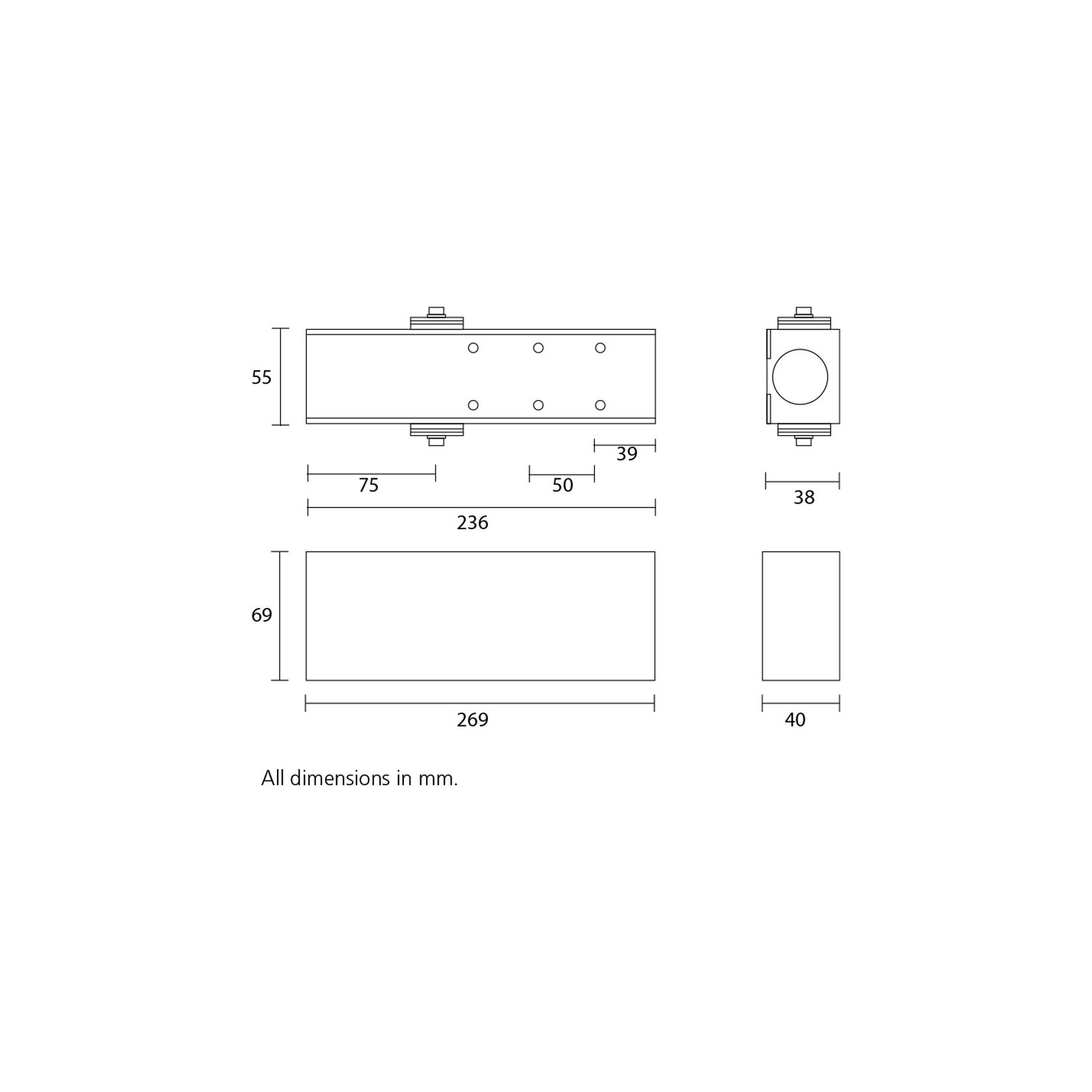

Specifications:
- Strength: EN2-5 up to 850mm to 1250mm and 45kg to 110kg
- Mechanism: Rack and Pinion
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Adjustable Delayed Action: Optional
- Adjustable Back Check: Yes
- Max Door Width: 1250mm
- Max Door Weight: 110kg
- Opening Angle: 180 degrees
- Left Hand and Right Hand Doors Universal Application: Yes
- Fire Rated (BS EN 1634-1: 2000): Yes
- Tested to BS EN1154: 1997: Yes

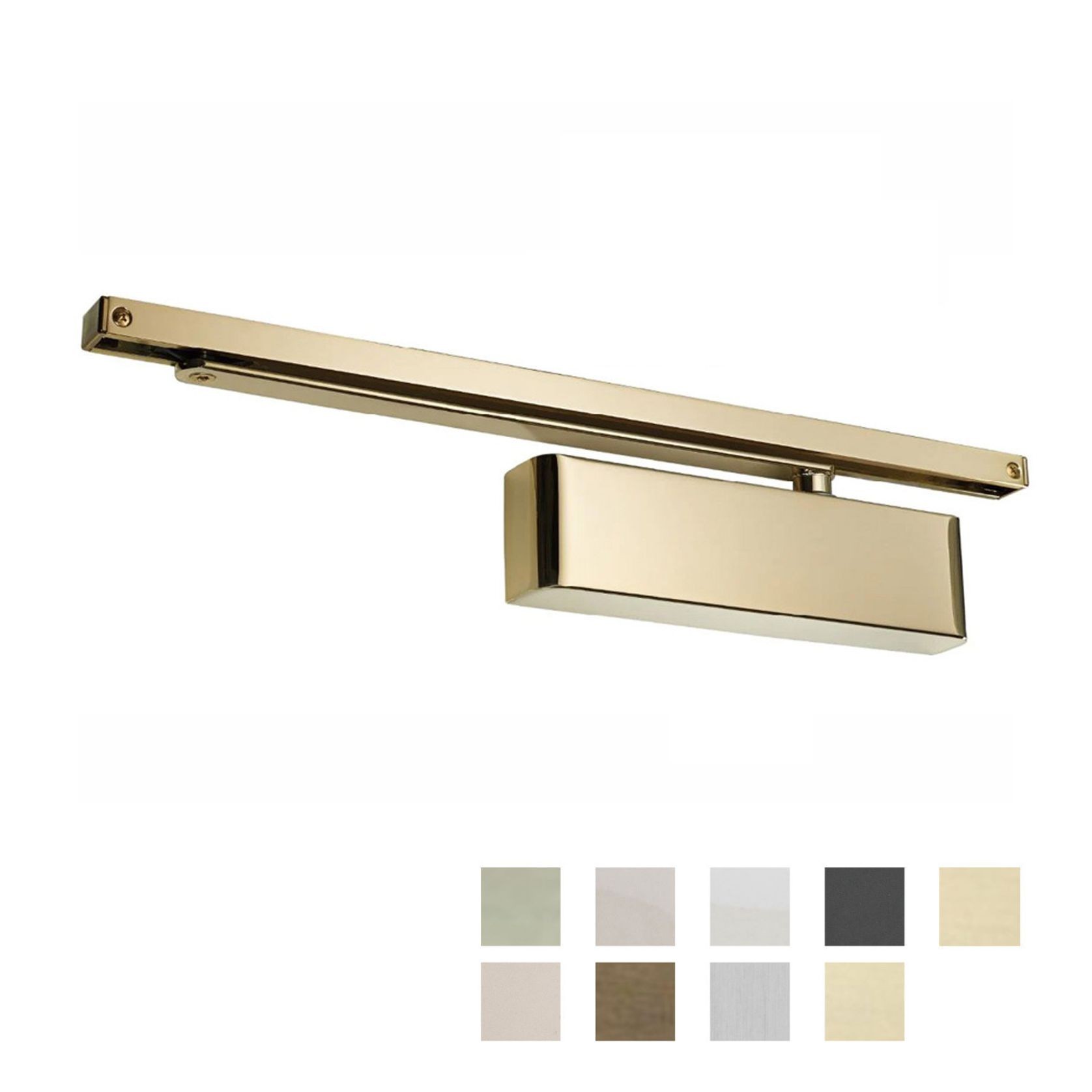

- Available Finishes:
- Antique Brass
- Electro Brass
- Graphite Nickel

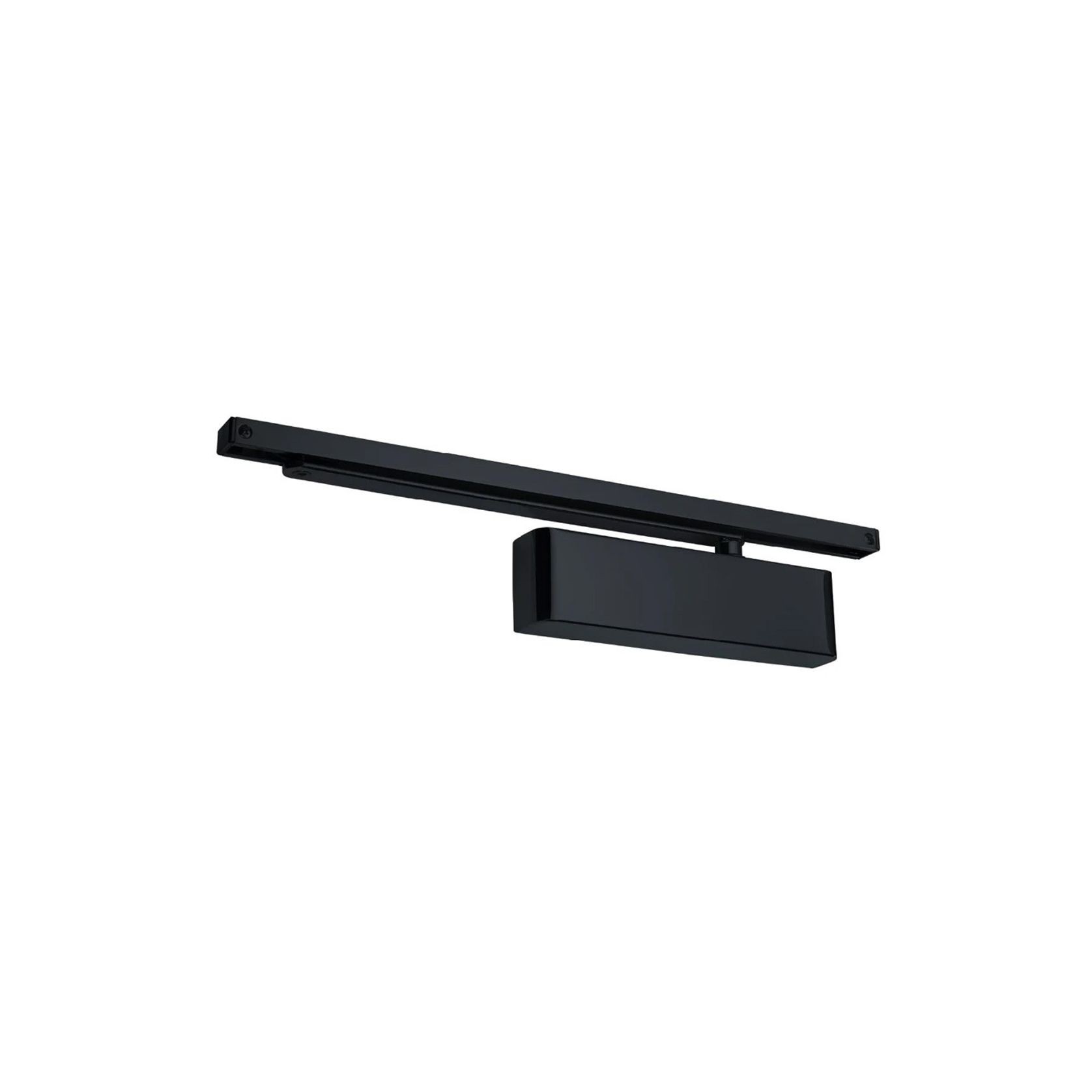

- Matt Black
- Polished Nickel Plate
- Satin Brass
- Satin Nickel Plate
- Silver
- Stainless Steel
- Weather Bronze
- Scope of use
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Downloads
Downloads (2)2 Direct downloads • 7 Available on request
Frequently asked questions about
Zanda TS9205 Door Closer Combined Unit Slide Armset
The Zanda TS9205 Door Closer Combined Unit Slide Armset is supplied by Keeler Hardware. It is also on their website, and you can browse every product Keeler Hardware lists on ArchiPro.
Keeler Hardware does not publish a price for the Zanda TS9205 Door Closer Combined Unit Slide Armset on ArchiPro. for pricing, or visit their website.

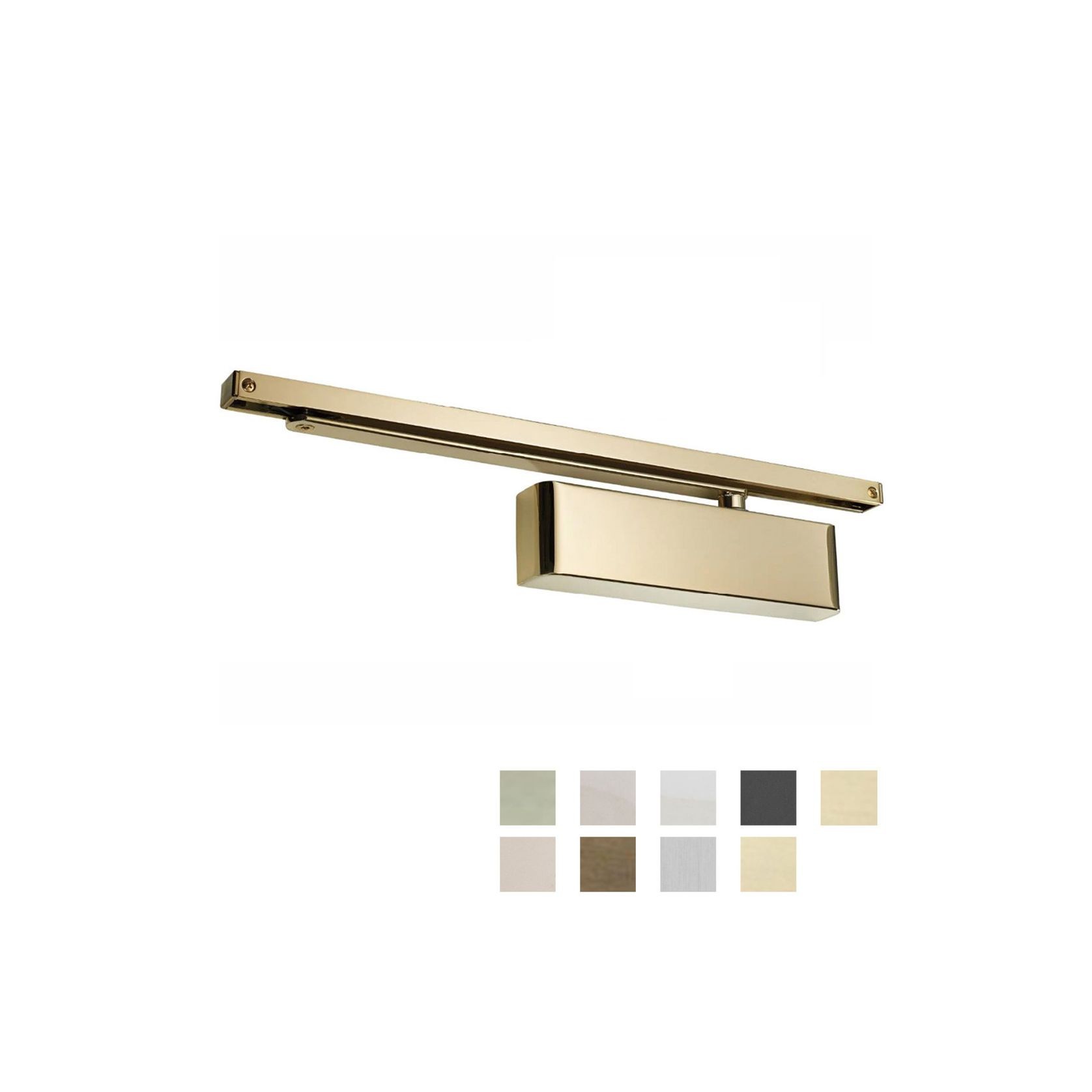

It comes in 10 colour options (Satin Nickel Plate, Stainless Steel, Weather Bronze, Antique Brass, Matt Black, Electro Brass, Graphite Nickel, Polished Nickel Plate, Satin Brass, Silver). Pick one in the row under the description to see it.
