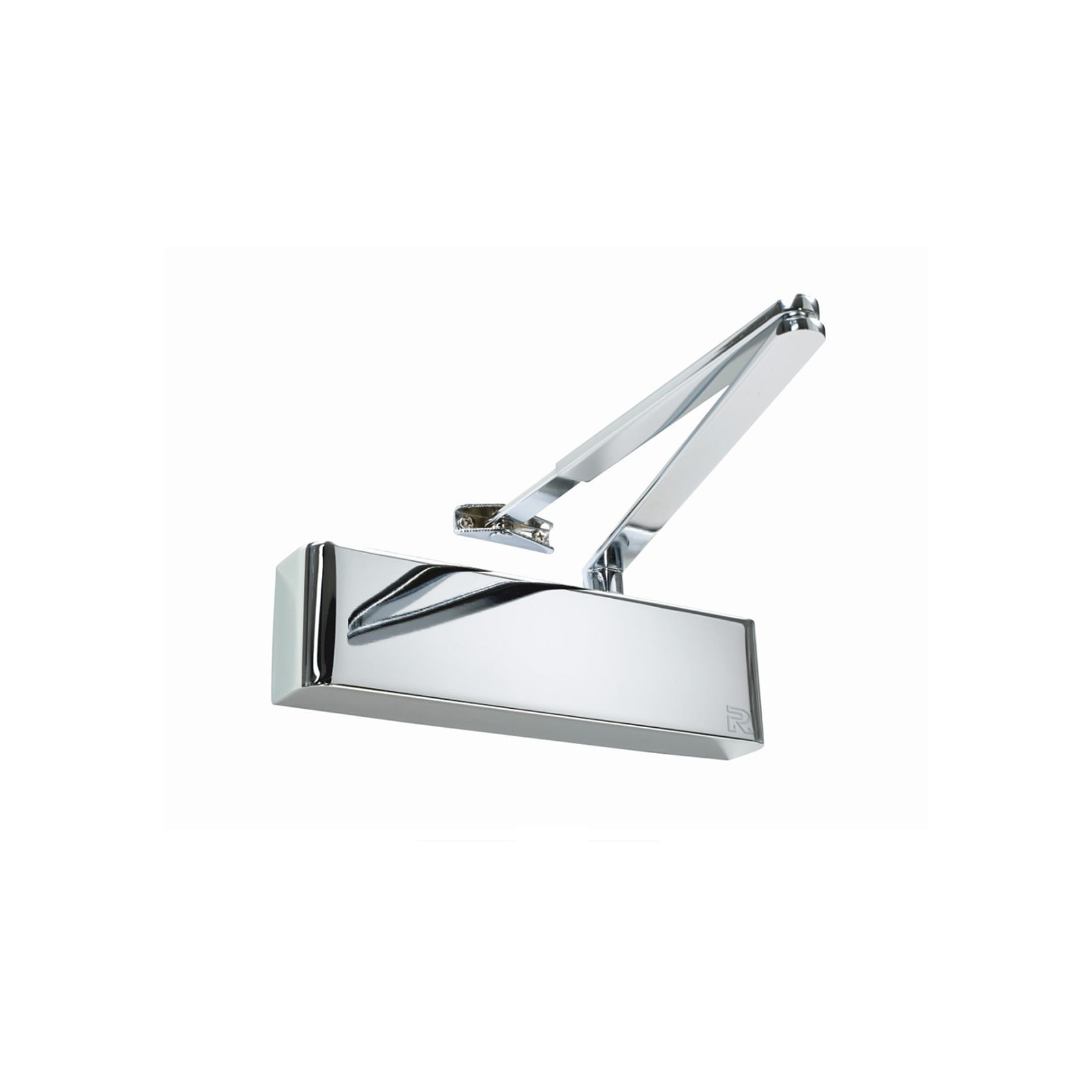

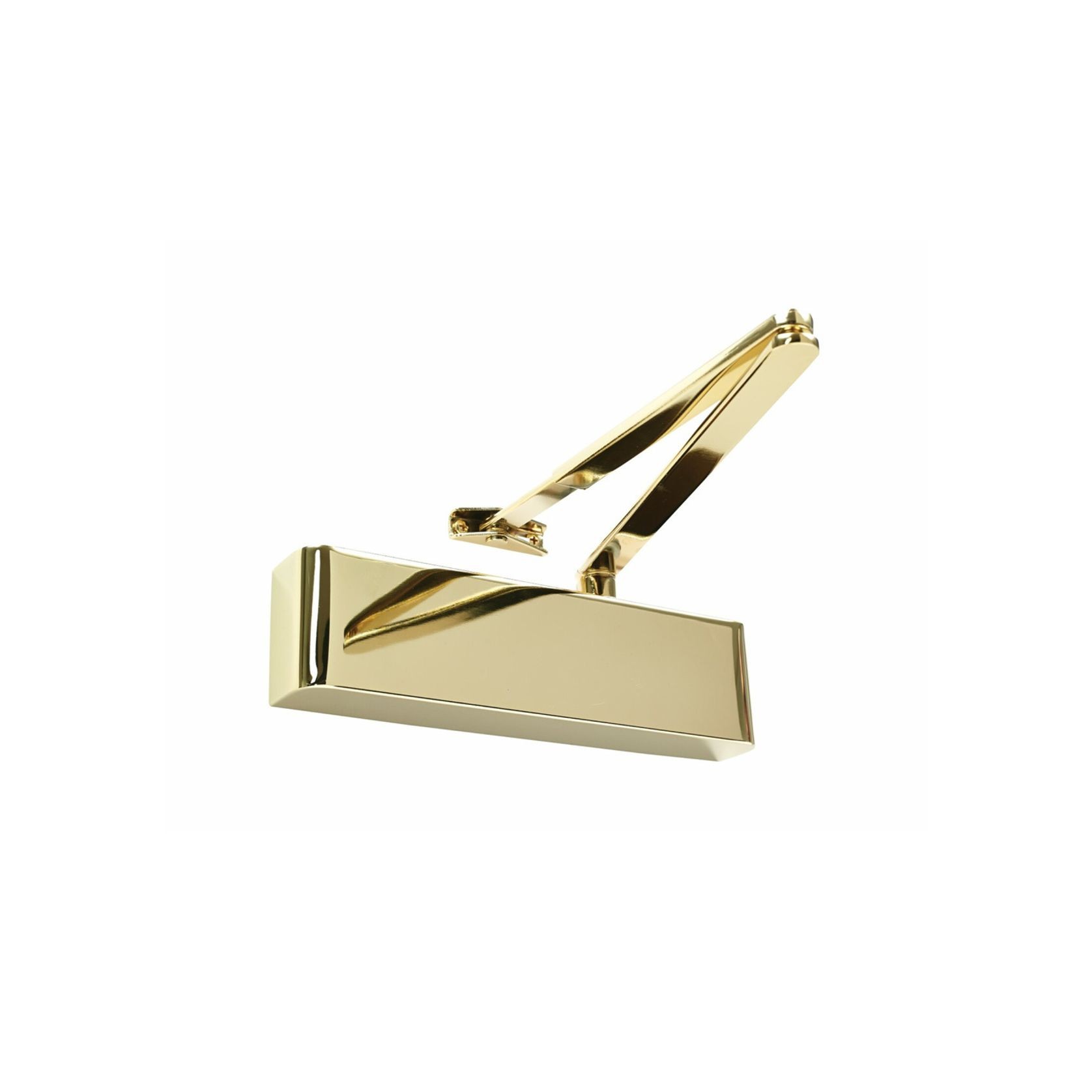

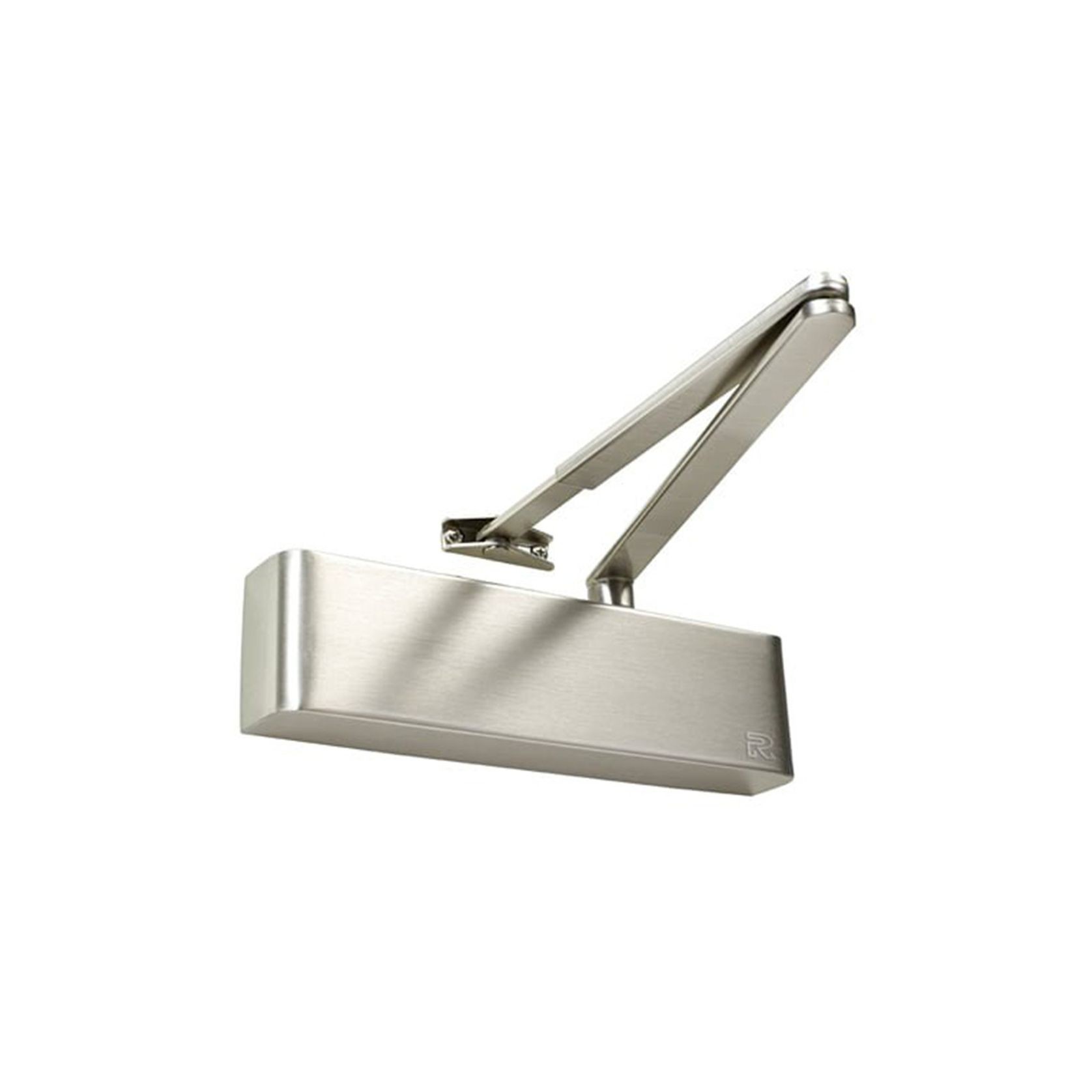

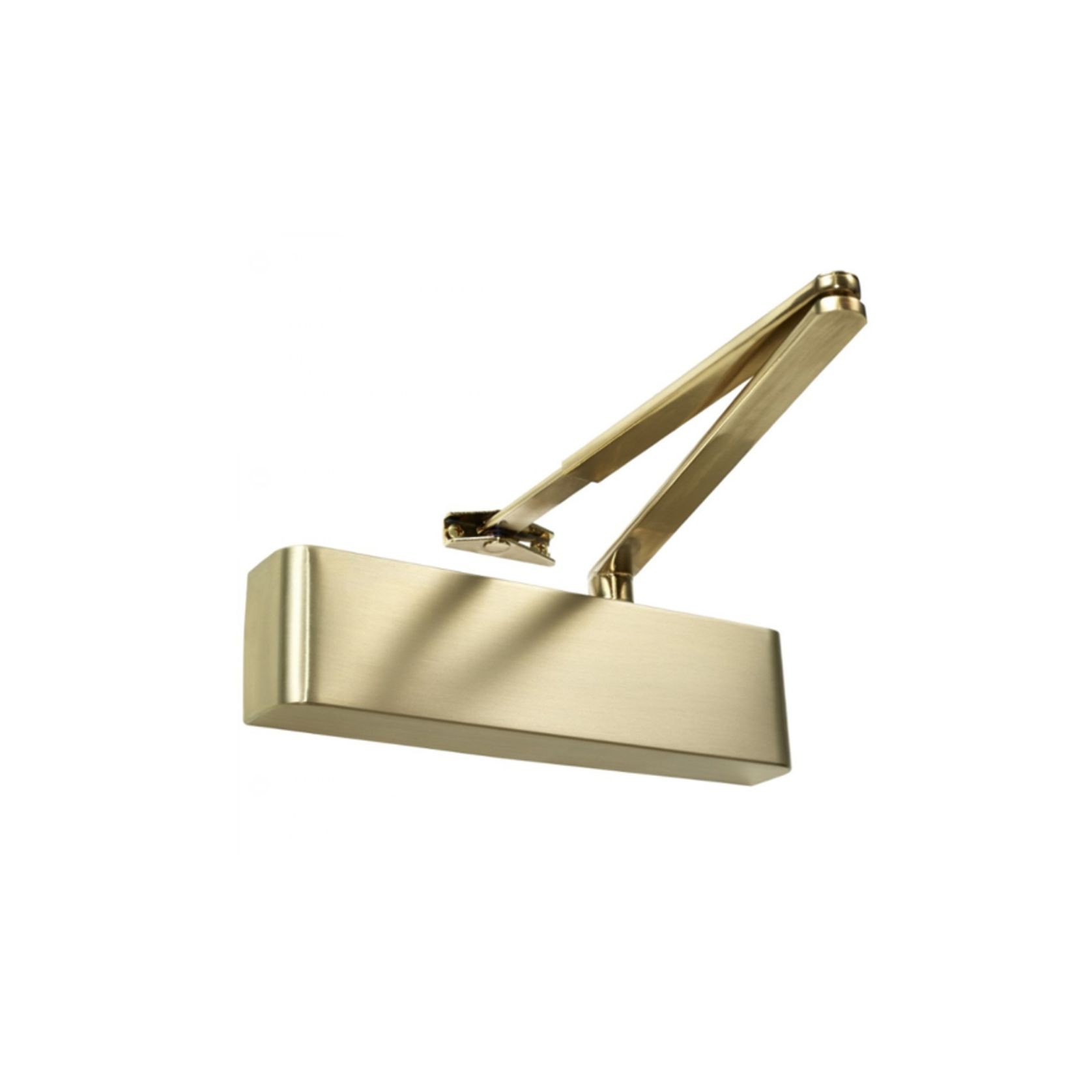

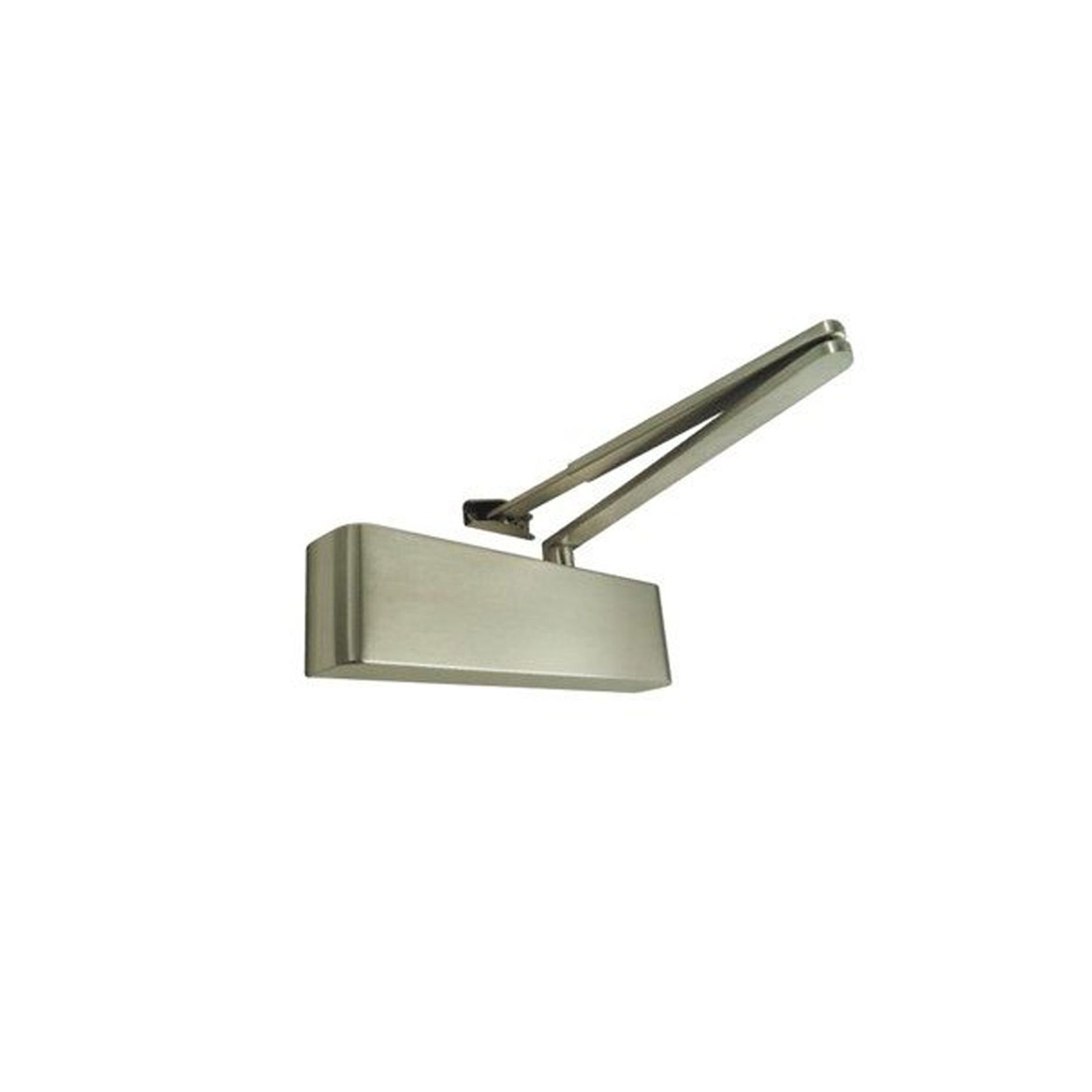

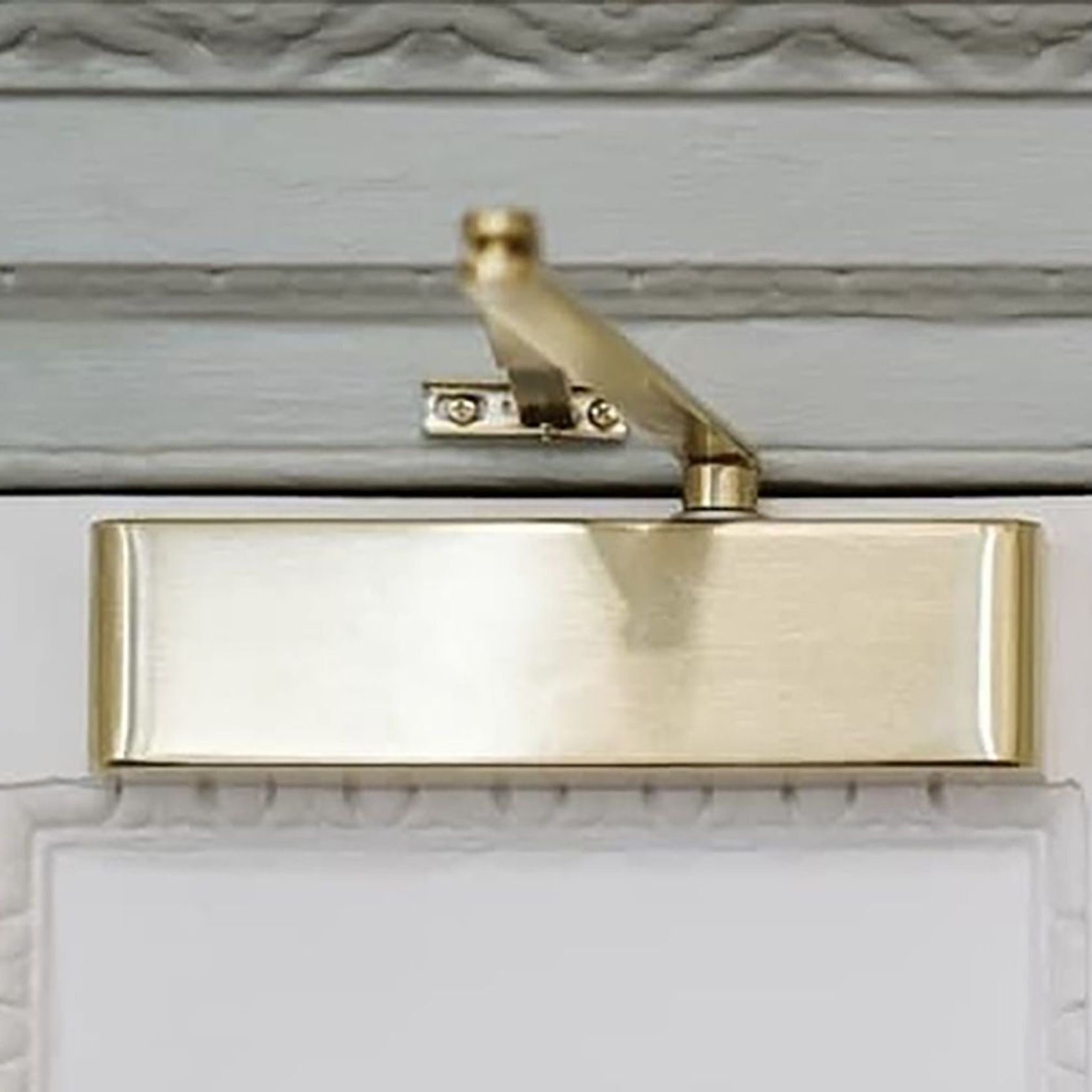

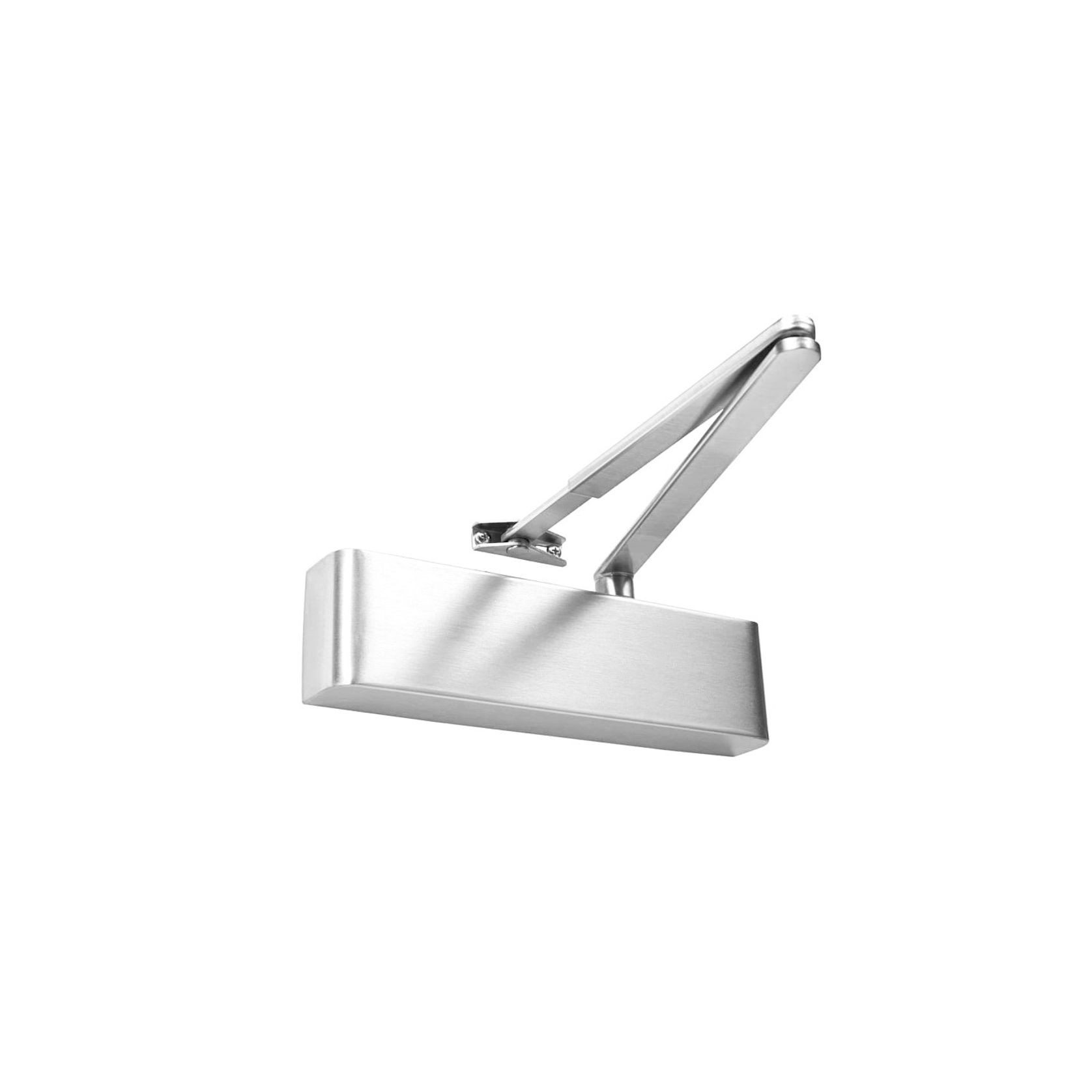

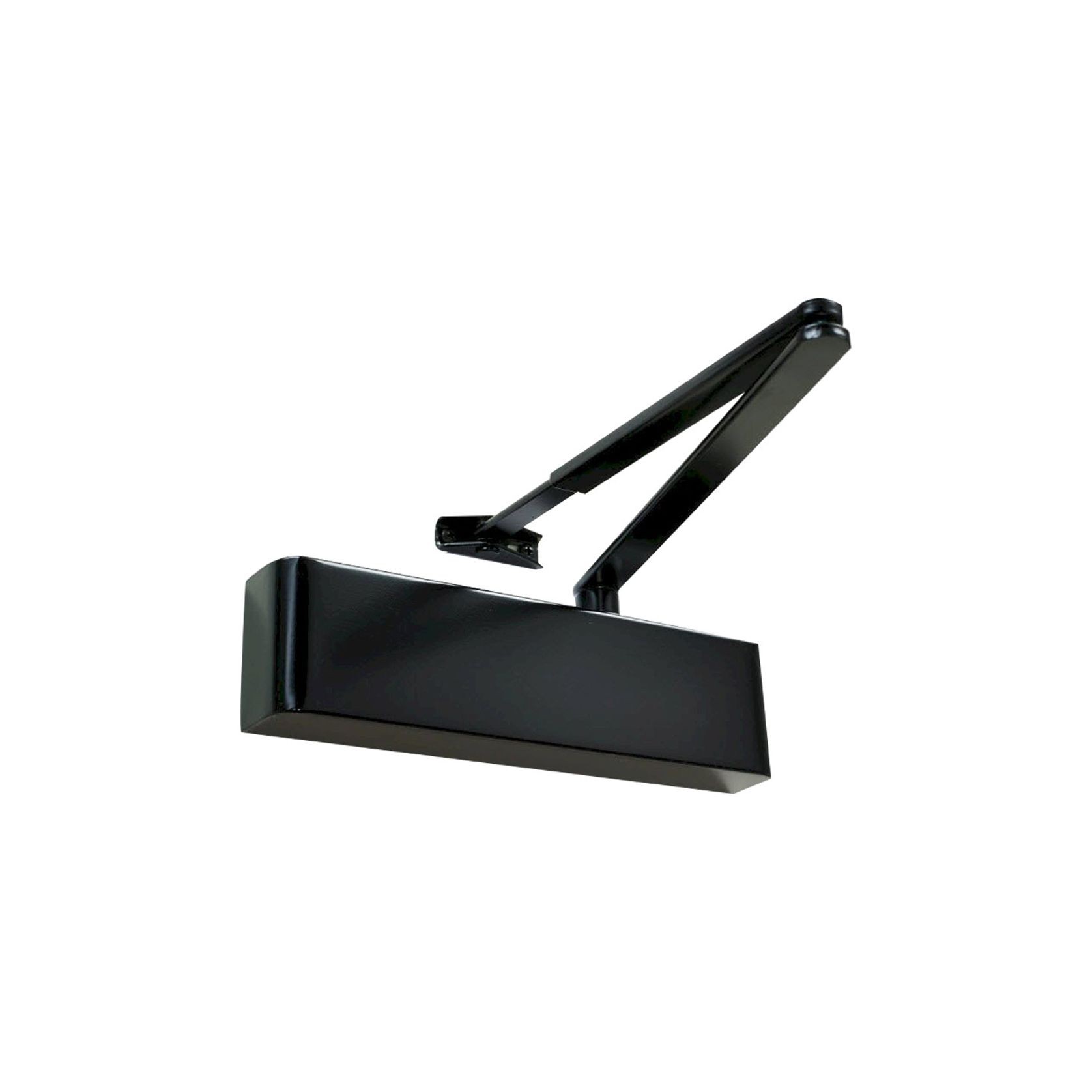

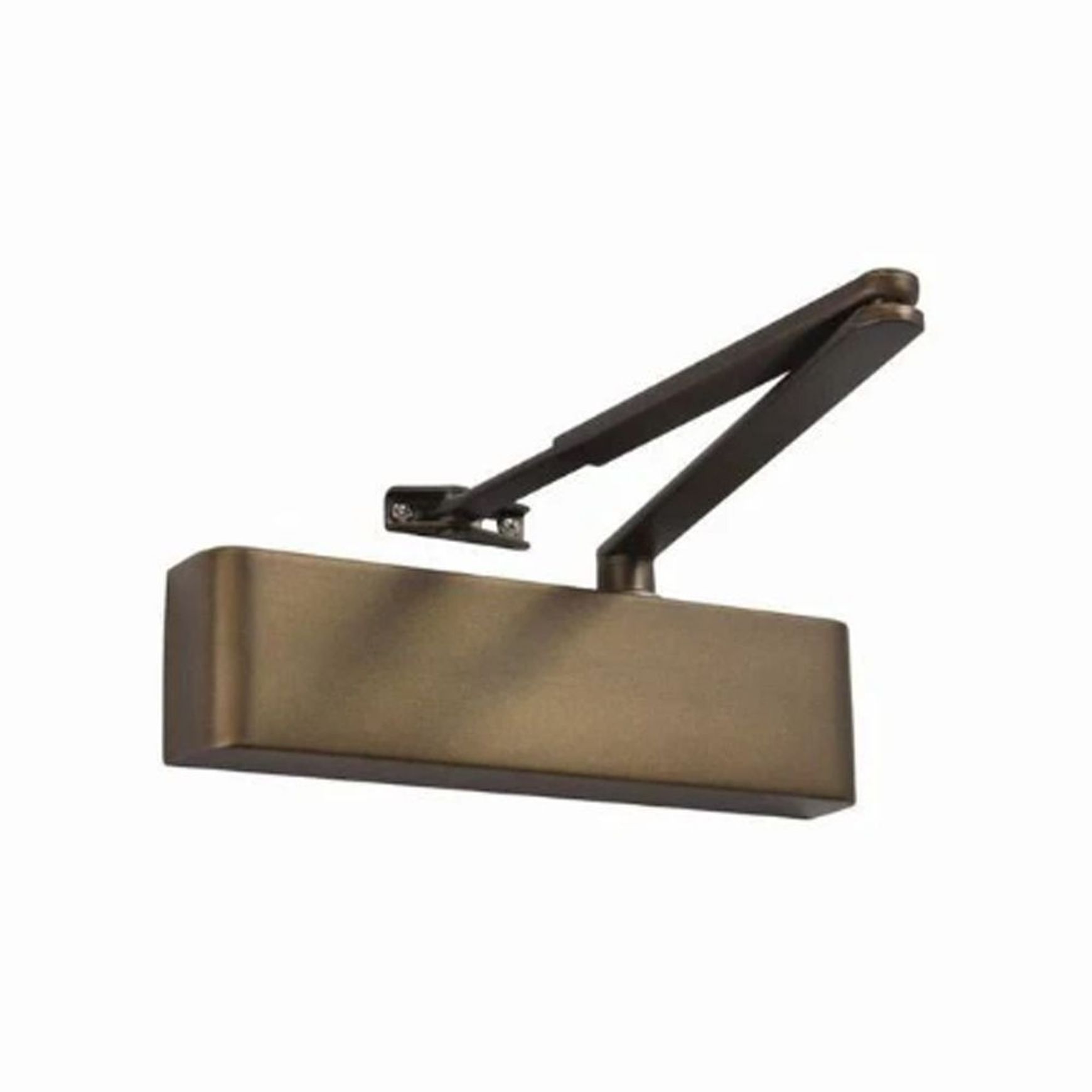

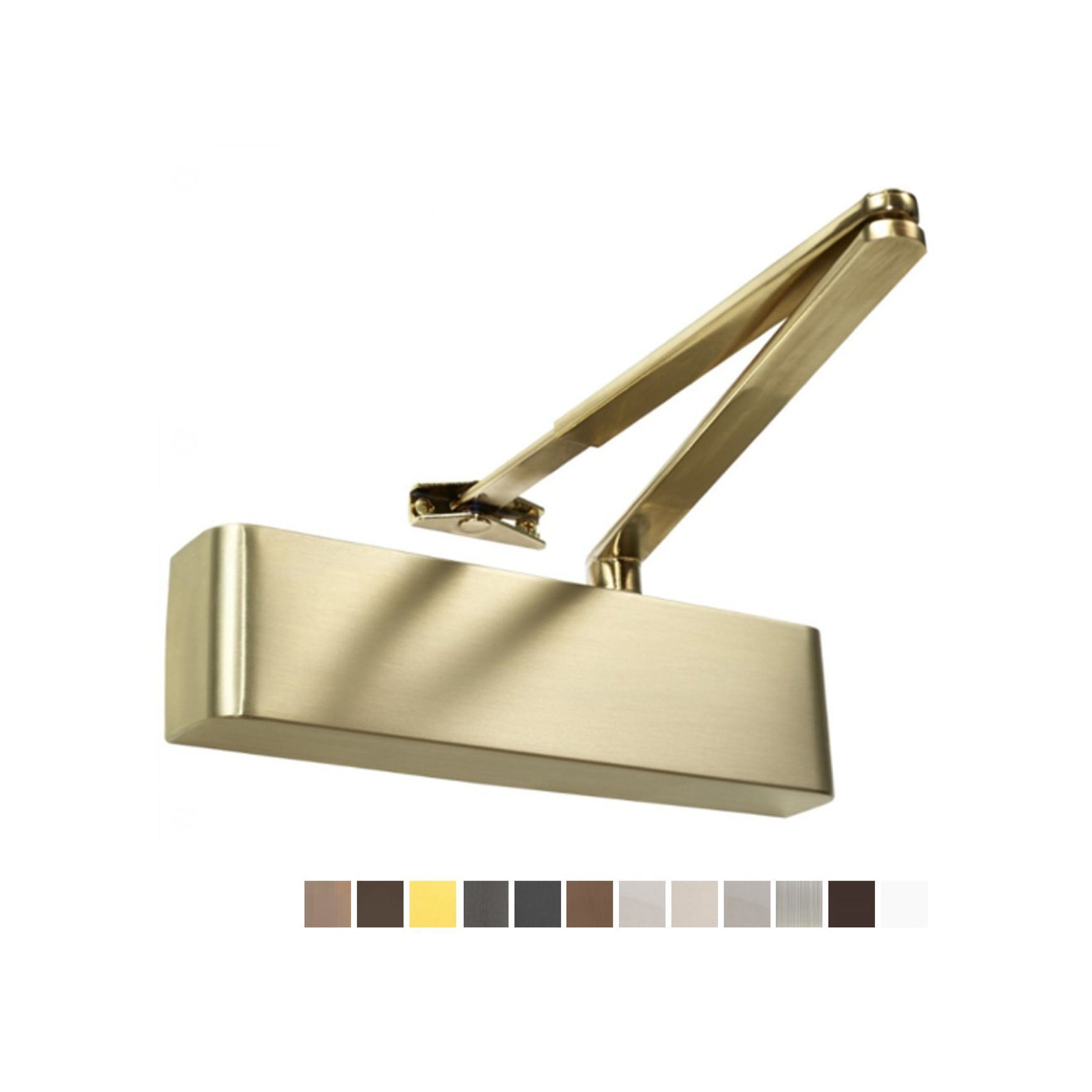

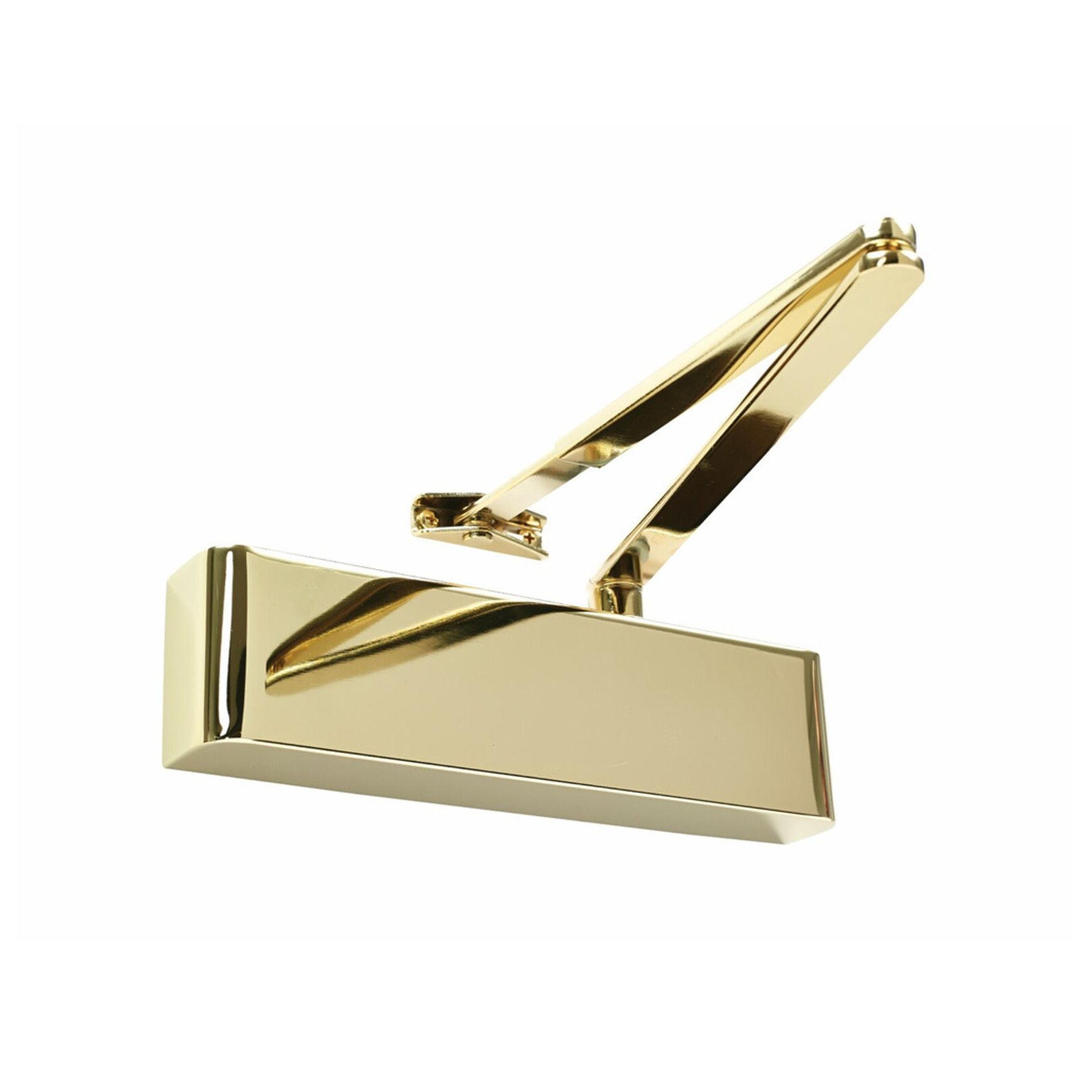

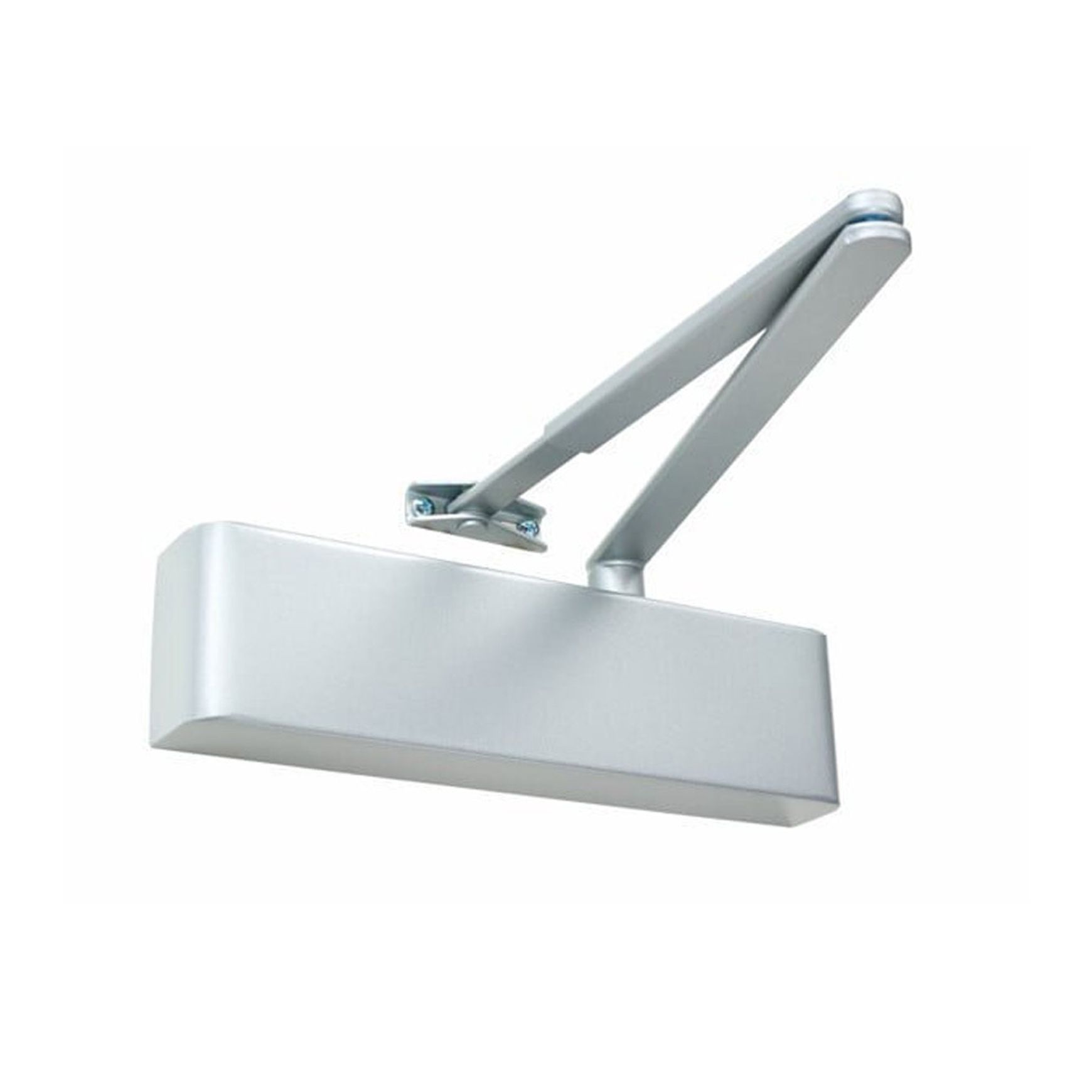

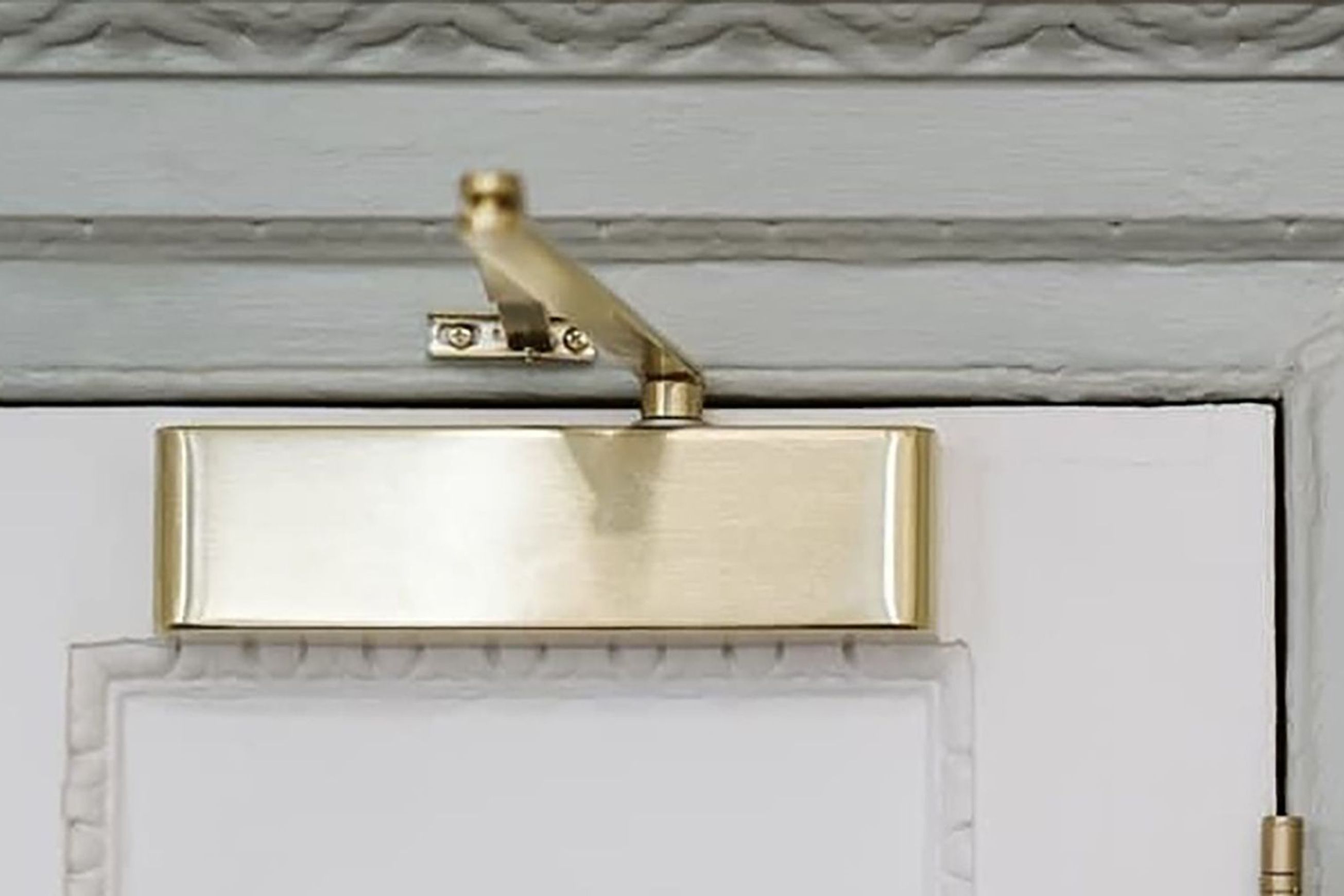

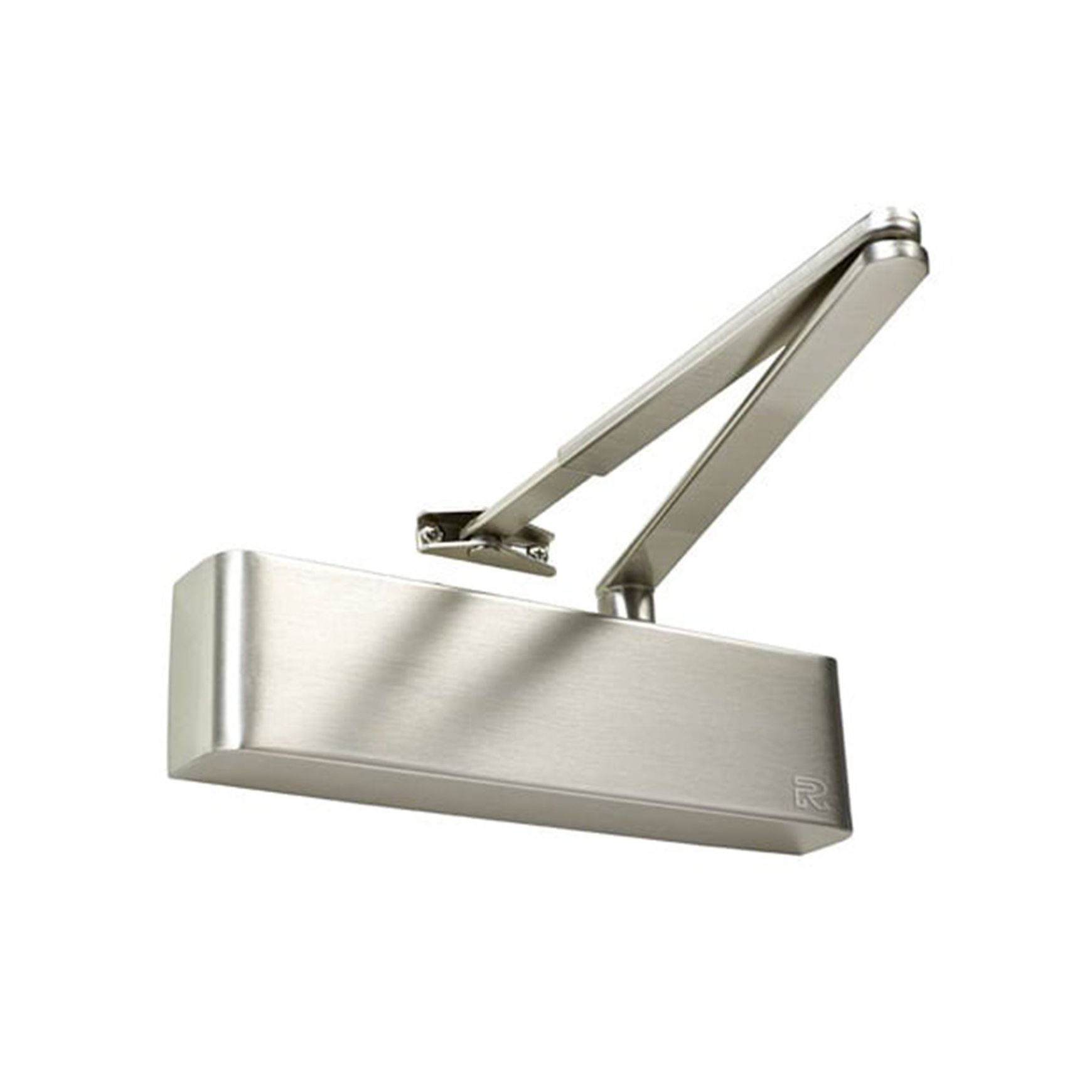

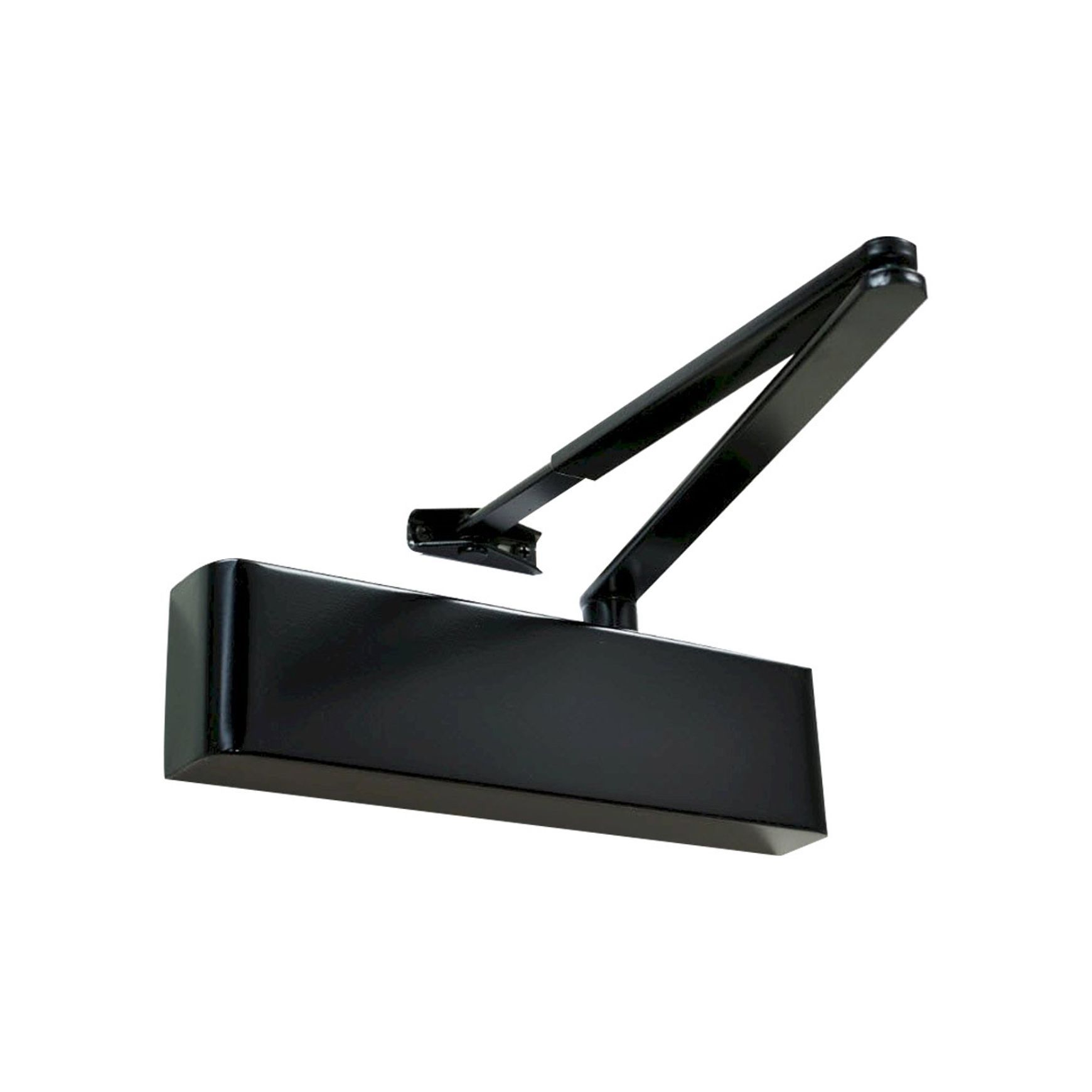

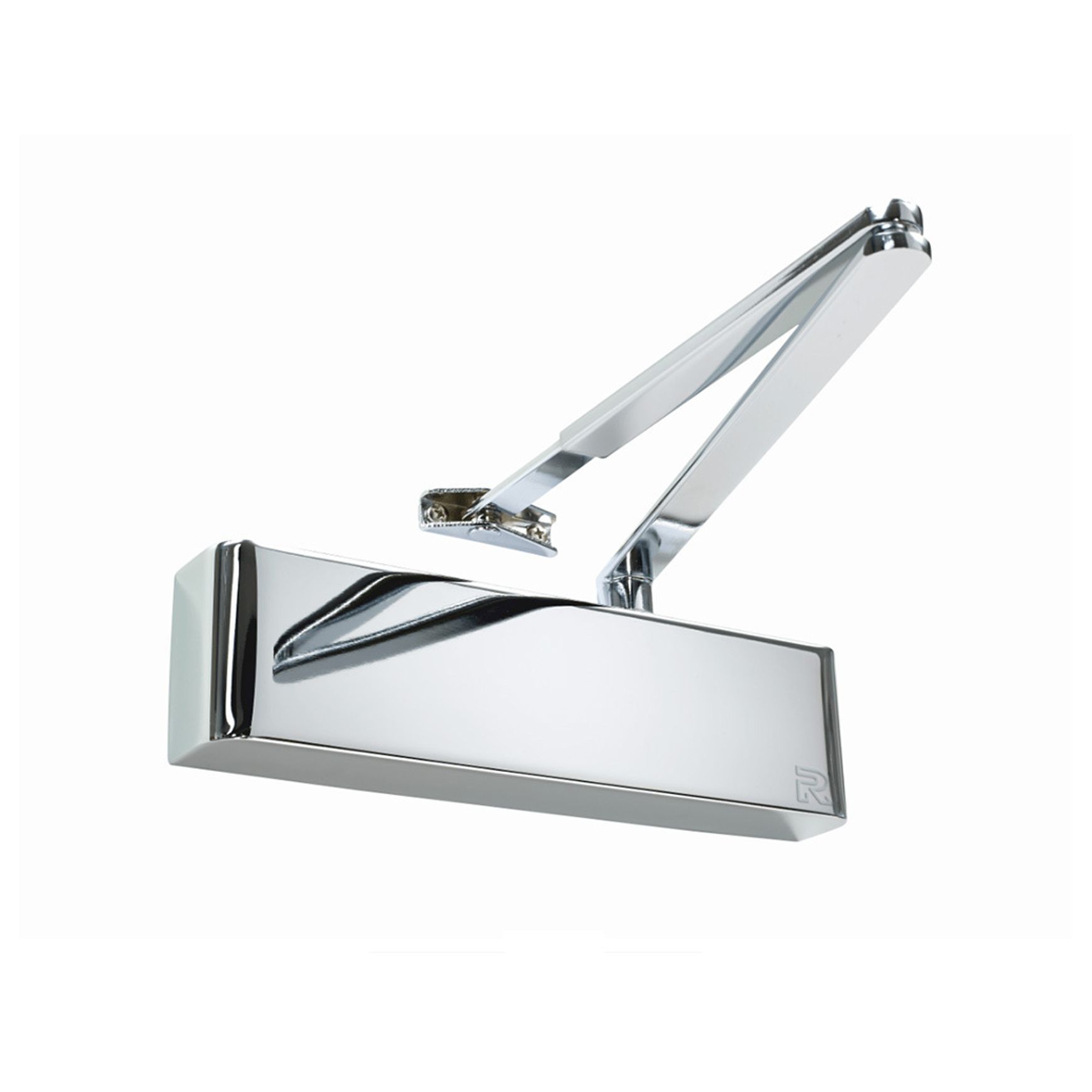

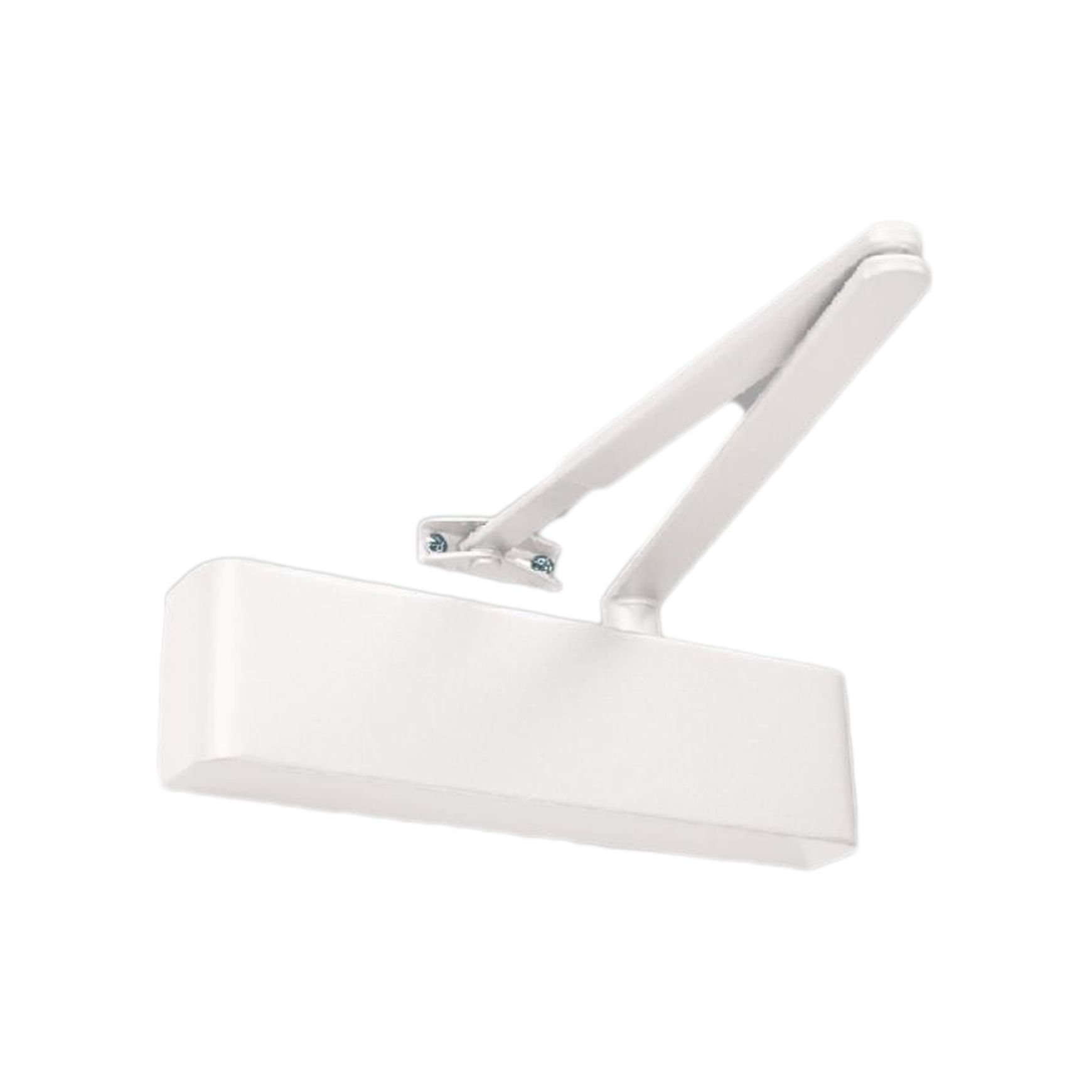

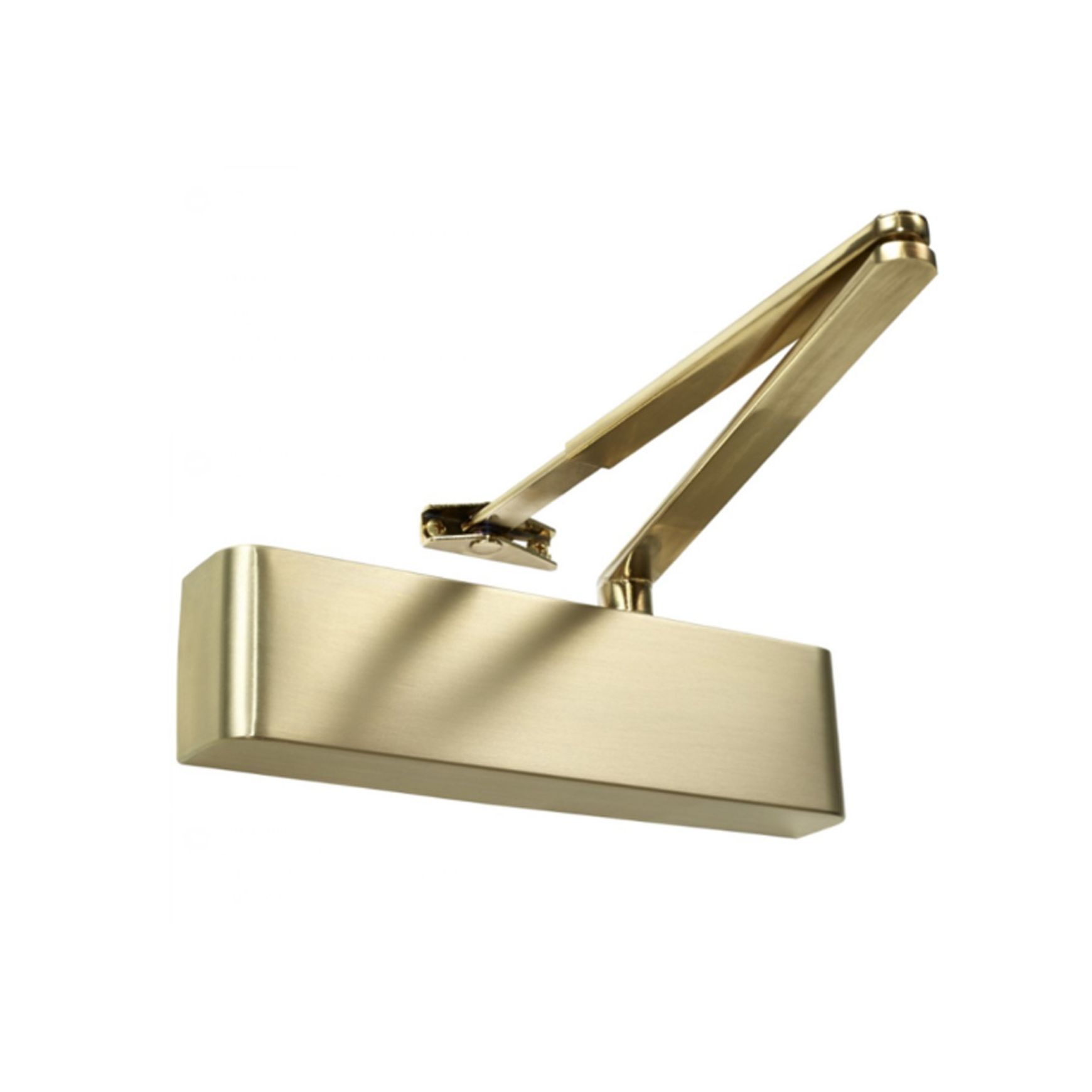

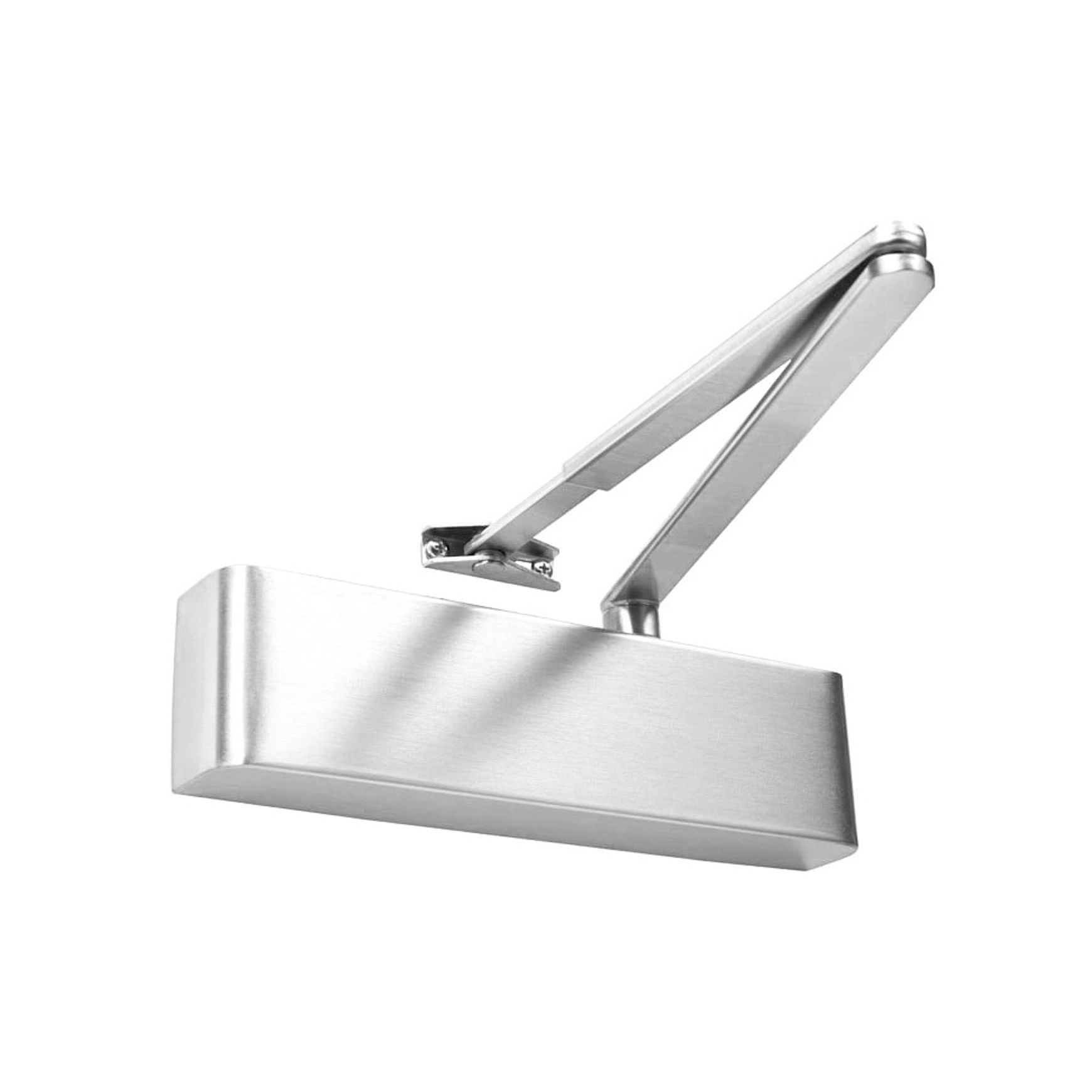

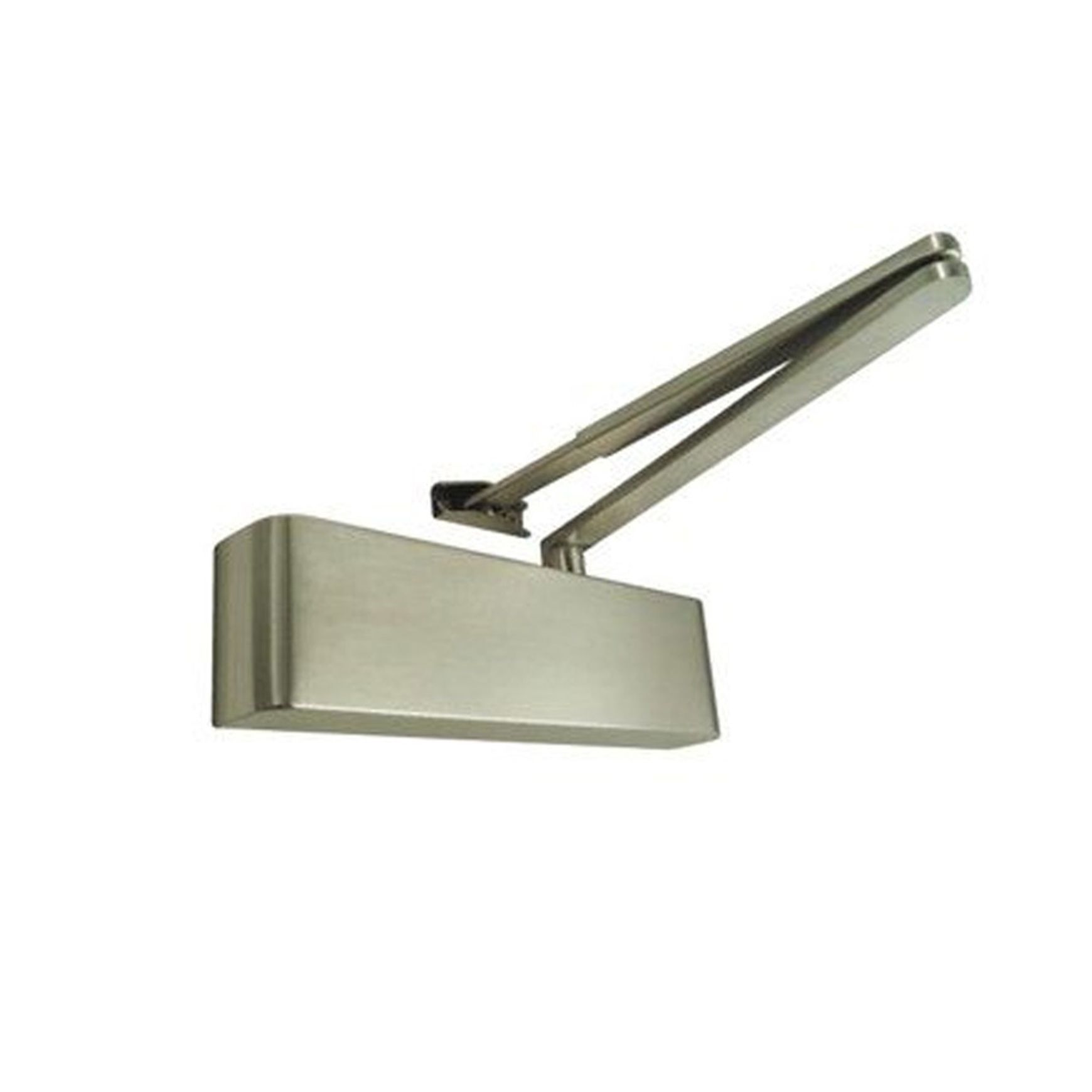

Zanda TS9205 Door Closer Combined Unit Flat Bar Armset

Name: Zanda TS9205 Door Closer Combined Unit Flat Bar Armset
Brand: Zanda Architectural Hardware

Wetherill Park, Australia

993.3K profile views
51 saves

Zanda Door Closer Combined Unit - Flat Bar Arm set
TS.92050.SRFB

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

1 x TS9205 mechanism
1 x Flat Bar Arm set
1 x Semi-Radiused Cover

Tags

door hardware door closer standard arm door closer hydraulic door closer door safety

Product Details

Product: Zanda TS9205 Door Closer Combined Unit Flat Bar Armset
Category: Door Closers
Sold by: Keeler Hardware
Range: Zanda Architectural Hardware
Brand: Zanda Architectural Hardware
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Fragile - handle with care
Care and cleaning: Professional cleaning recommended

Product Variants

Colours

Keeler Hardware is specified by

(34) Professionals

Zanda TS9205 Door Closer Combined Unit Flat Bar Armset

Visit site

Zanda Door Closer Combined Unit - Flat Bar Arm setTS.92050.SRFB Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened.

Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

1 x TS9205 mechanism
1 x Flat Bar Arm set
1 x Semi-Radiused Cover

Installation: Professional installation recommended, Tools required
Assembly: Professional assembly recommended, Tools required
Specs: Strength: EN2-5

Mechanism: Rack and Pinion

Adjustable Closing Speed: Yes

Adjustable Latch Action: Yes

Adjustable Delayed Action: Optional

Adjustable Back Check: Yes

Door Width: 850mm to 1250mm

Door Weight: 45kg to 110kg

Opening Angle: 180 degrees

Left Hand and Right Hand Doors Universal Application: Yes

Fire Rated (BS EN 1634-1: 2000): Yes

Tested to BS EN1154: 1997: Yes

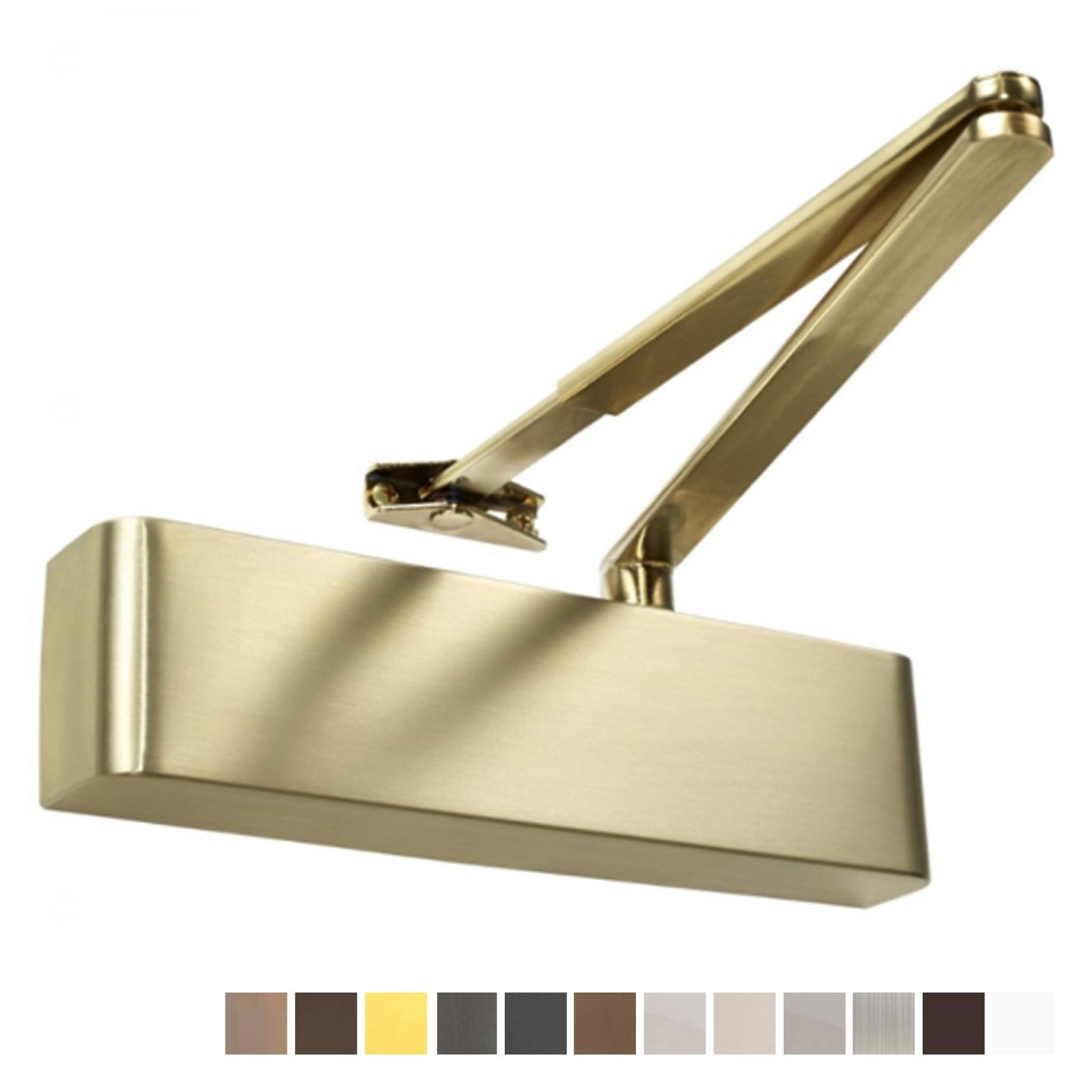

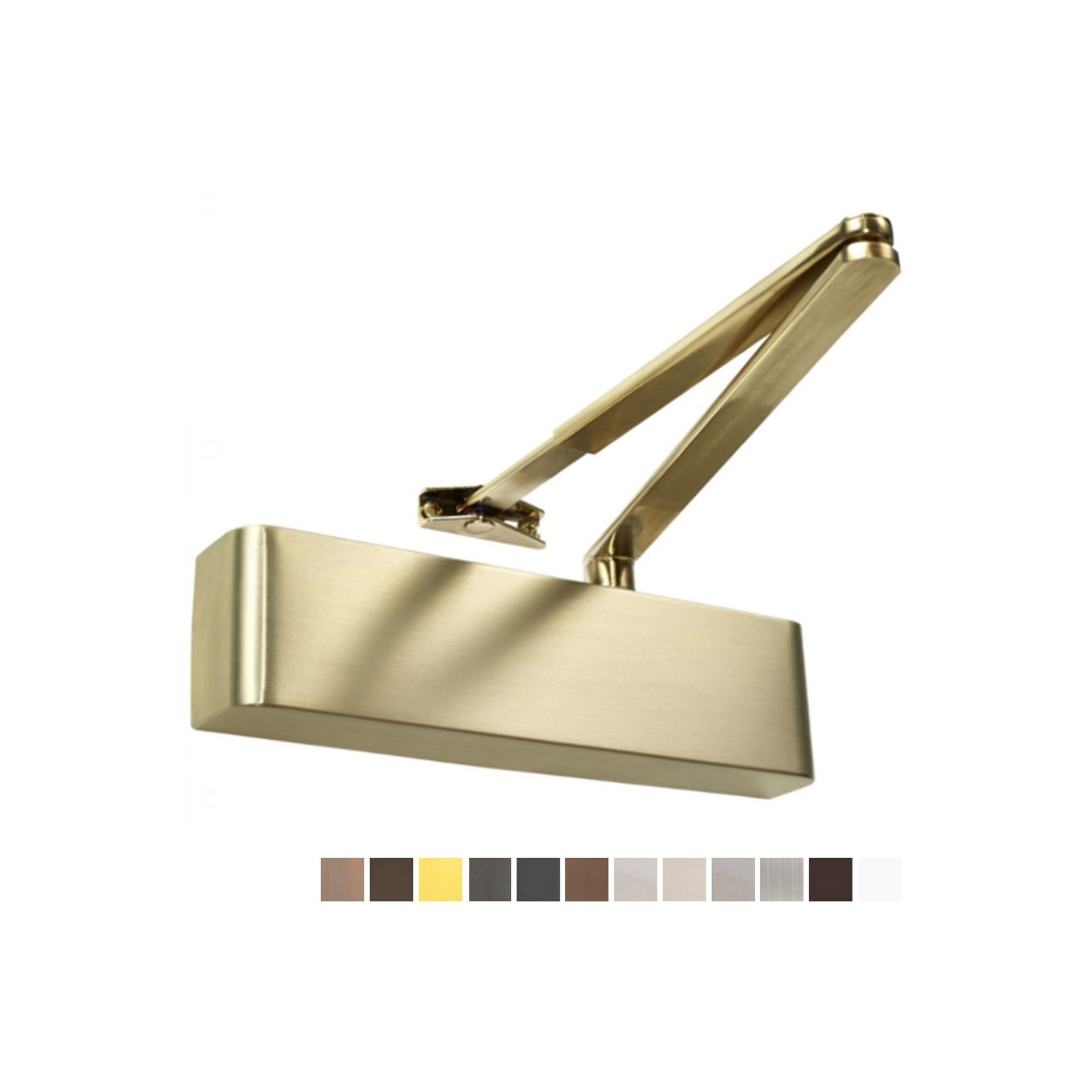

Available Finish:

Antique Brass

Electro Brass

Graphite Nickel

Matt Black

Polished Nickel Plate

Satin Brass

Satin Nickel Plate

Silver

Stainless Steel

Weather Bronze

White
Features: Variable power adjustable EN2-5

Suits doors up to 110kg and 1250mm wide

Universal application can be fitted in Standard, Parallel arm or Transom fitting position

Comes standard with delayed action and back check.

Unique semi-radius cover for an architectural look make your project stand out

Fire tested to Australian standards

Ideal for disability compliant projects due to its ease of opening and efficiency

Closing and latching speeds can be adjusted from the front of the mechanism

Suitable for timber, metal and aluminium doors
Scope of use: Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Downloads

Downloads (3)3 Direct downloads • 7 Available on request

Get more Specific.

Keeler Hardware

keelerhardware.com.au

Visit the Keeler Hardware website for the full range, specification detail and where to buy this product.

Visit Website

Installers for
this Product

Keeler HardwareManufacturers and Suppliers

Frequently asked questions about
Zanda TS9205 Door Closer Combined Unit Flat Bar Armset

The Zanda TS9205 Door Closer Combined Unit Flat Bar Armset is supplied by Keeler Hardware. It is also on their website, and you can browse every product Keeler Hardware lists on ArchiPro.

Keeler Hardware does not publish a price for the Zanda TS9205 Door Closer Combined Unit Flat Bar Armset on ArchiPro. for pricing, or visit their website.

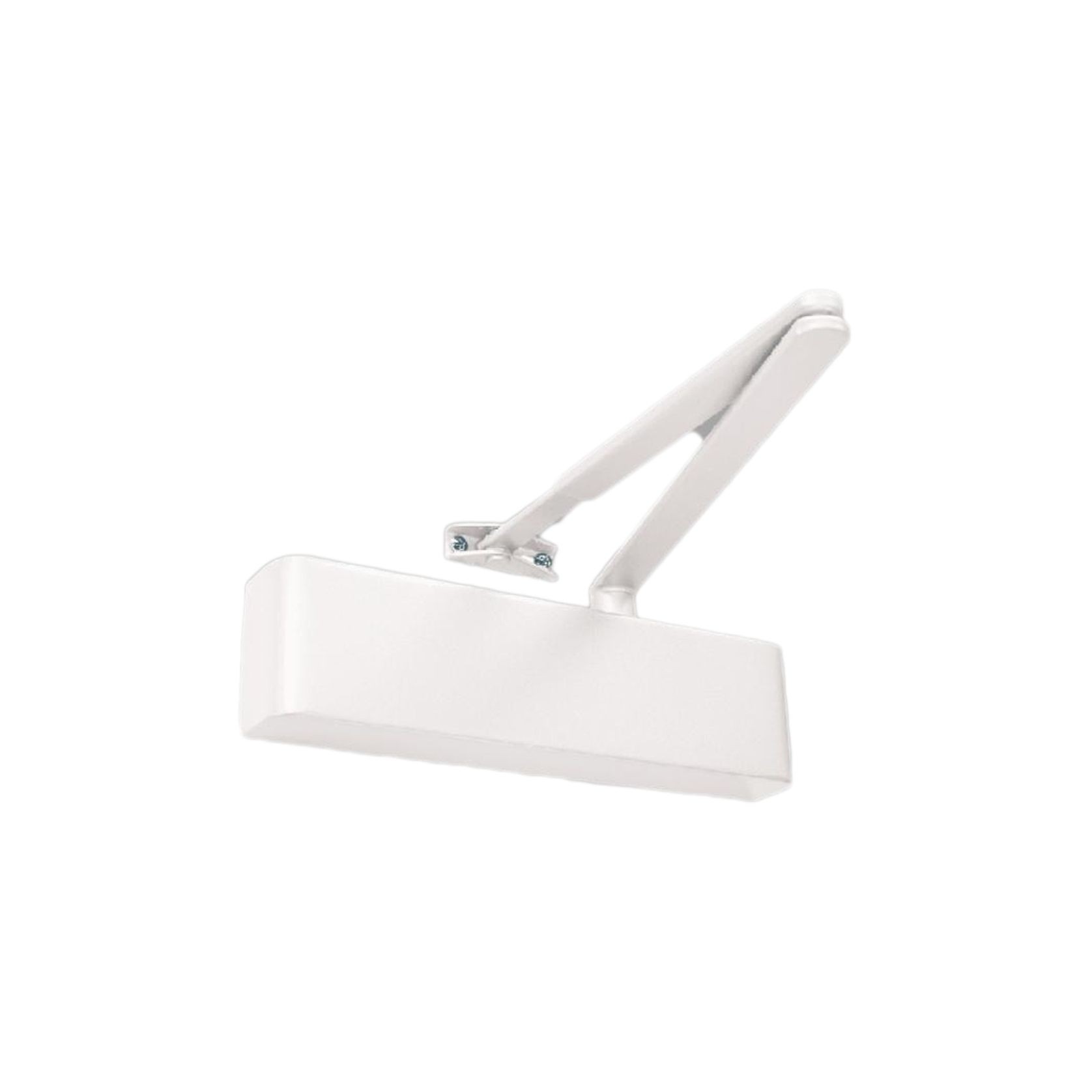

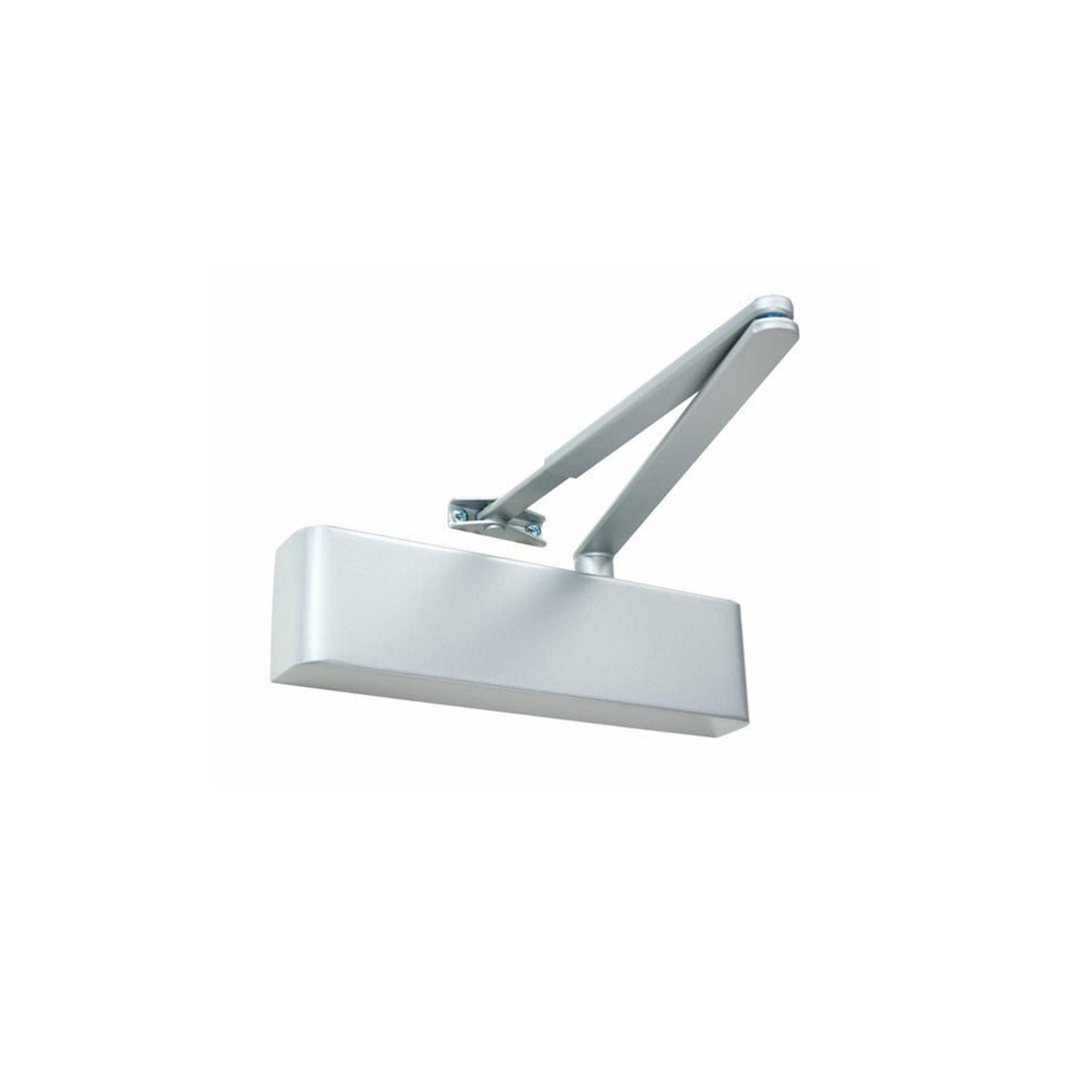

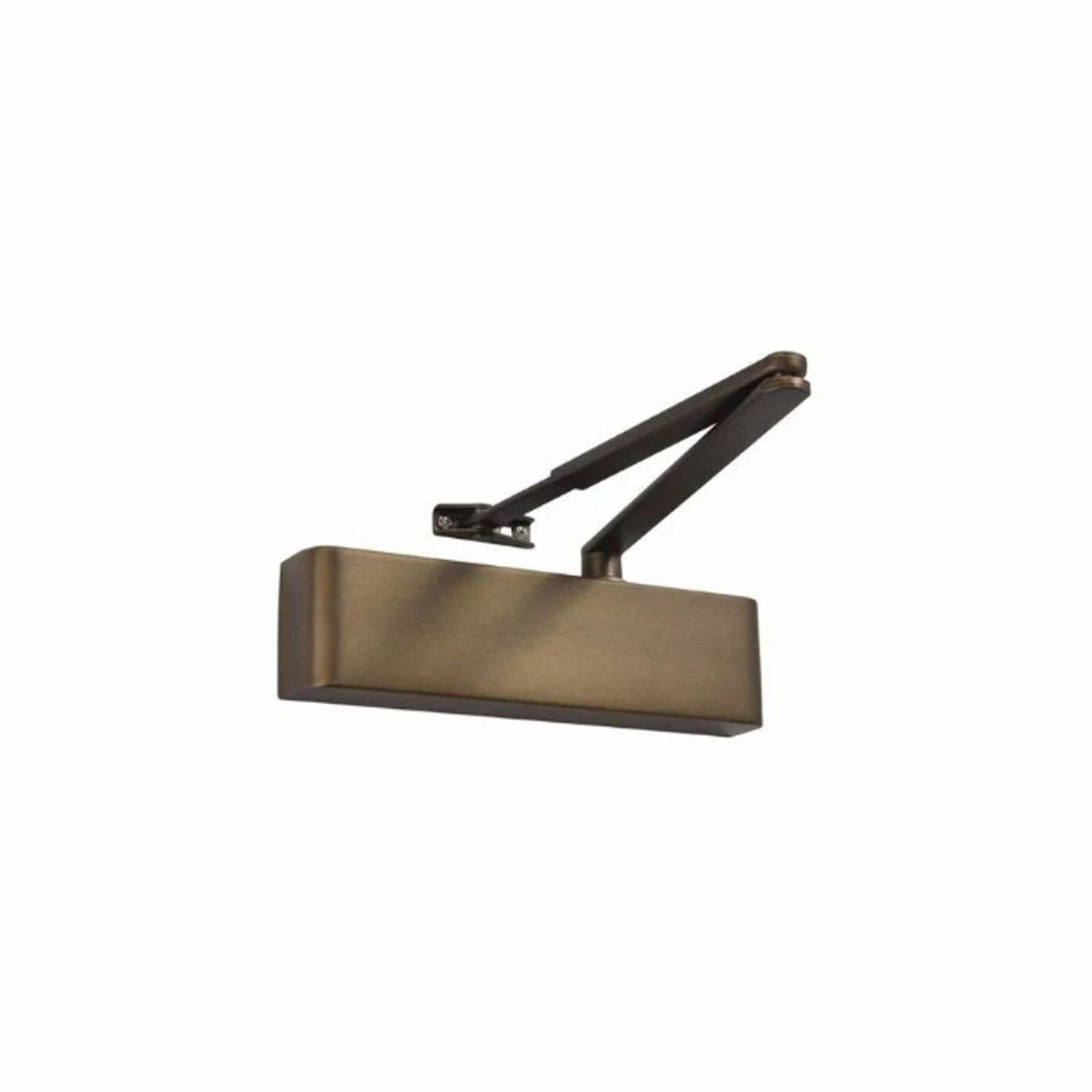

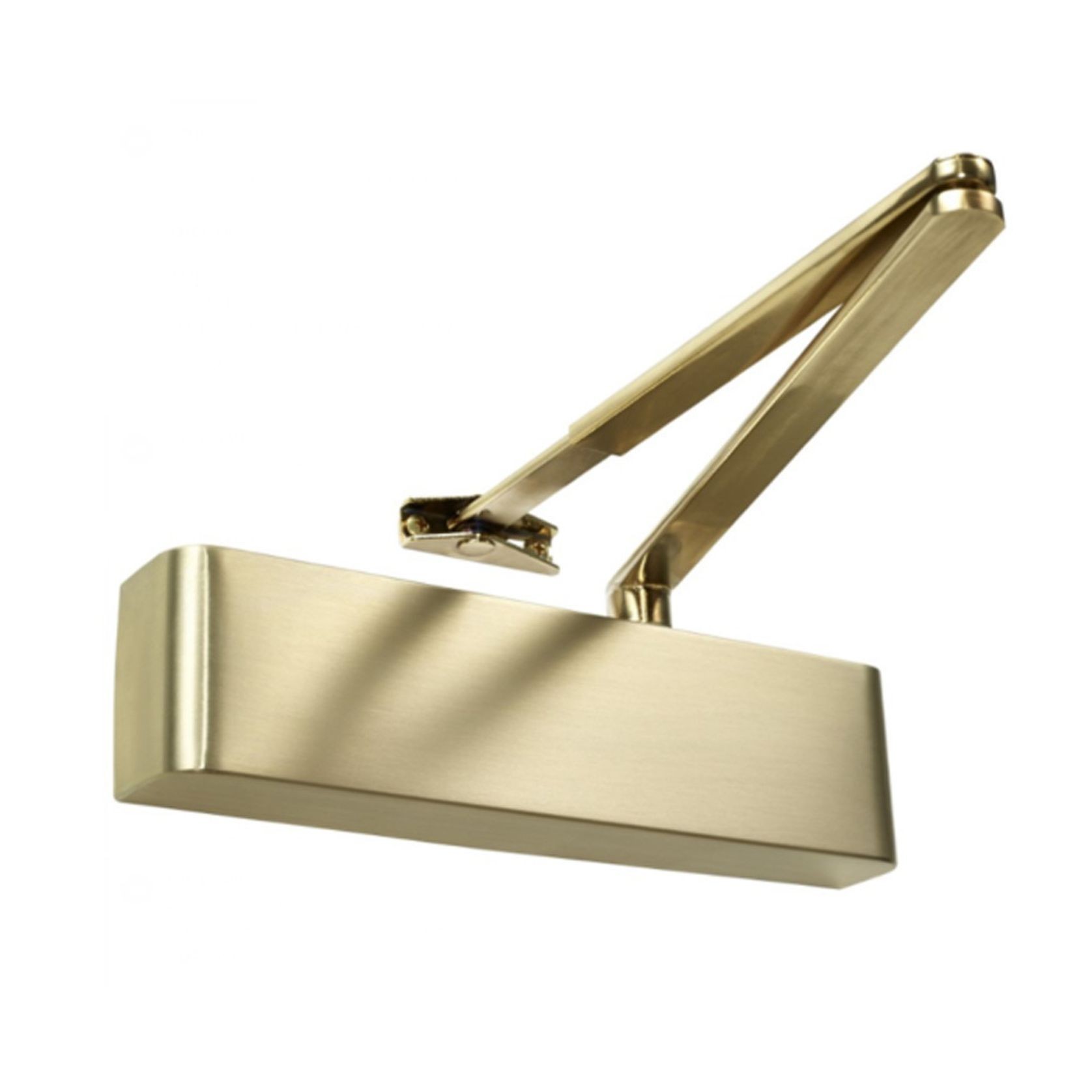

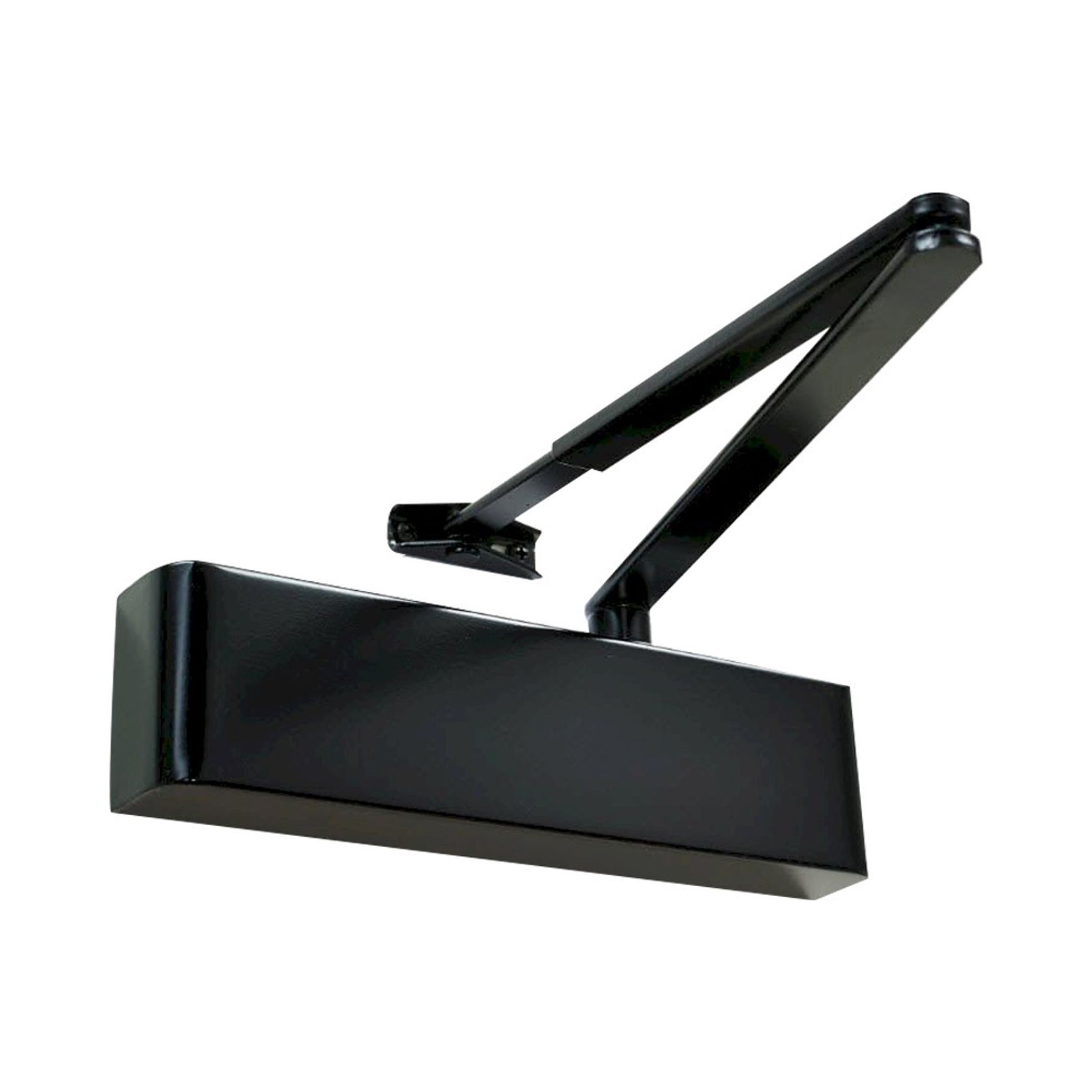

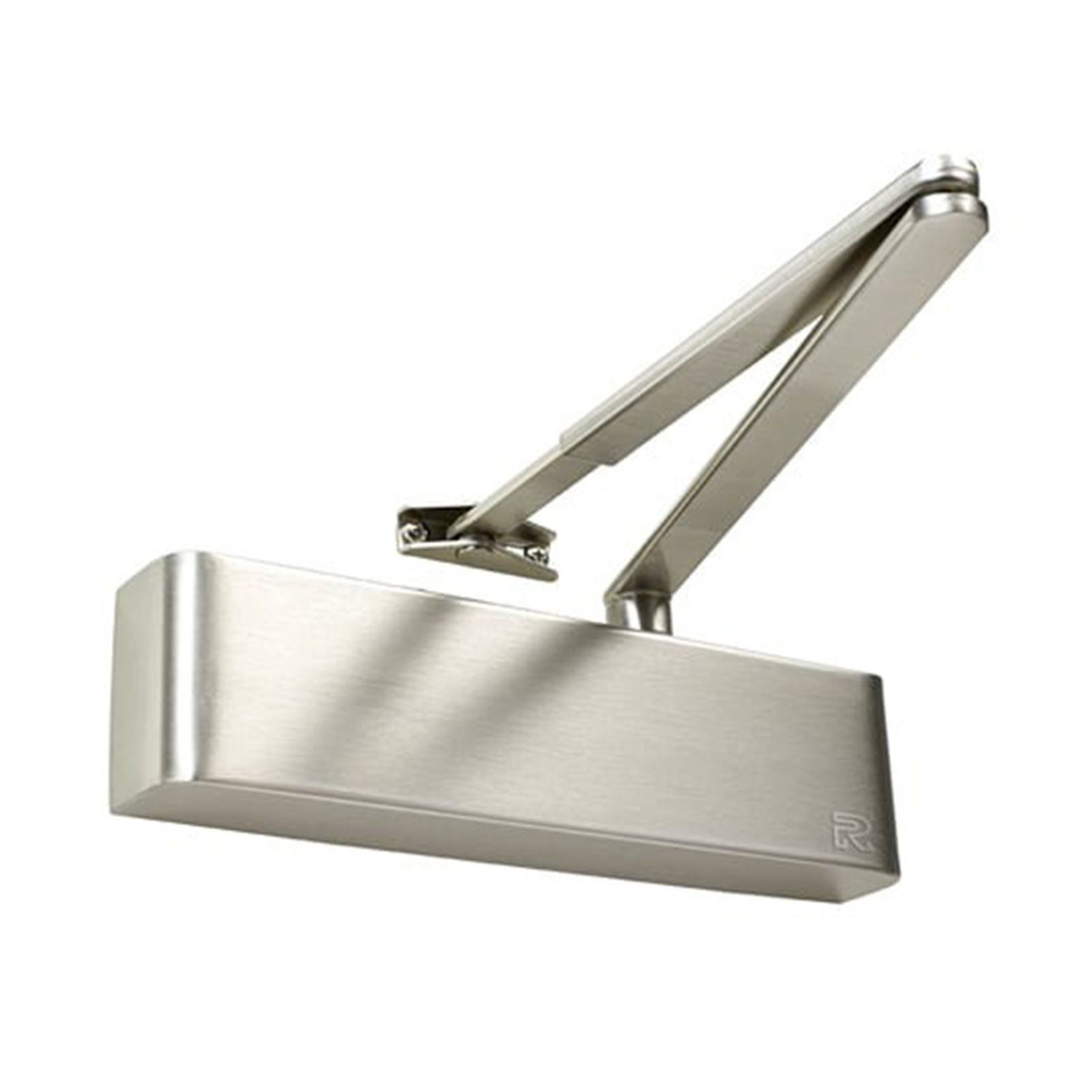

It comes in 10 colour options (Antique Brass, Electro Brass, Graphite Nickel, Matt Black, Polished Nickel, Satin Brass, Satin Nickel, Silver, Stainless Steel, White). Pick one in the row under the description to see it.
