Dorma TS93G EN1-5 Door Closer Push Side Kit TS93G15GNAB
Wetherill Park, Australia
- 998.7K profile views
- 53 saves

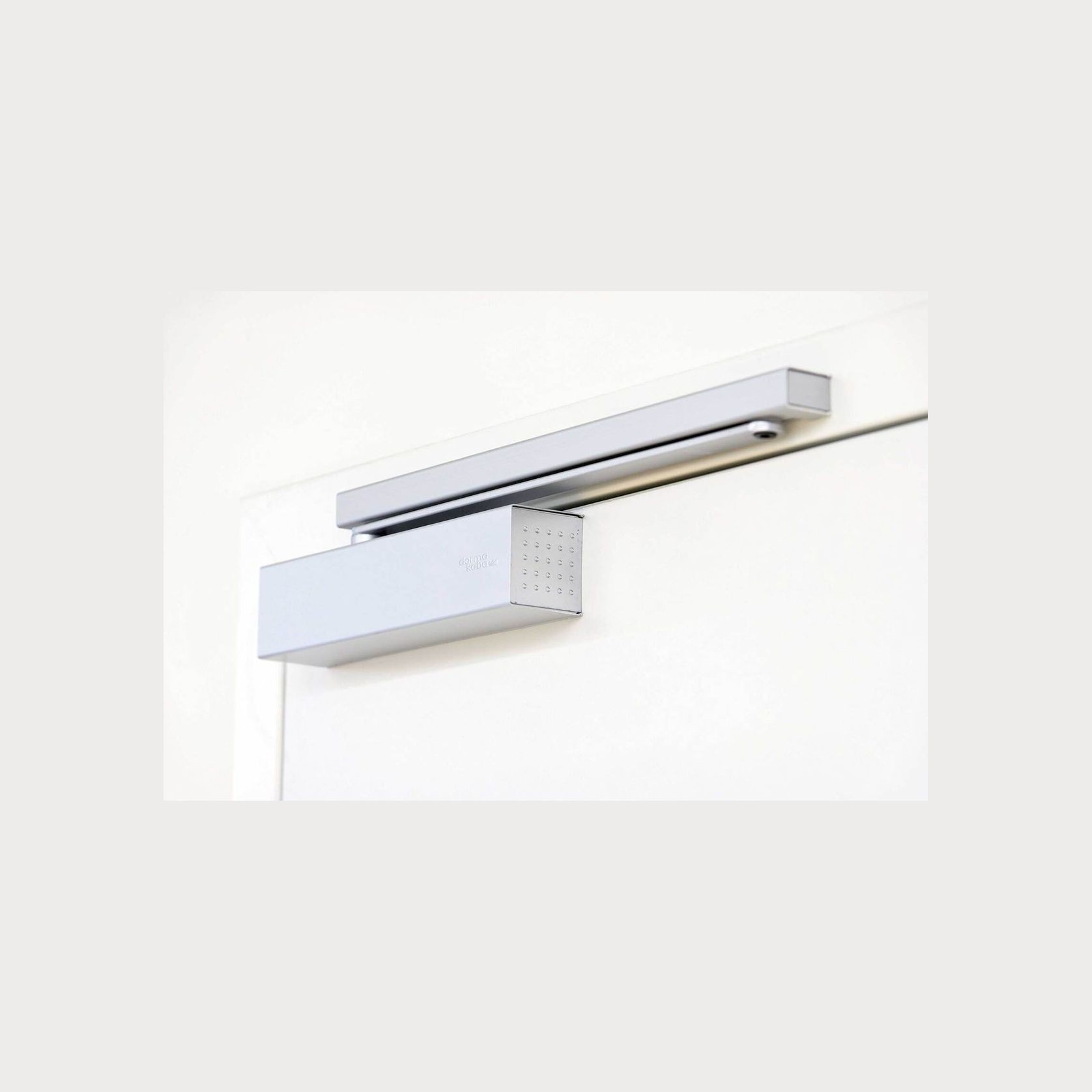

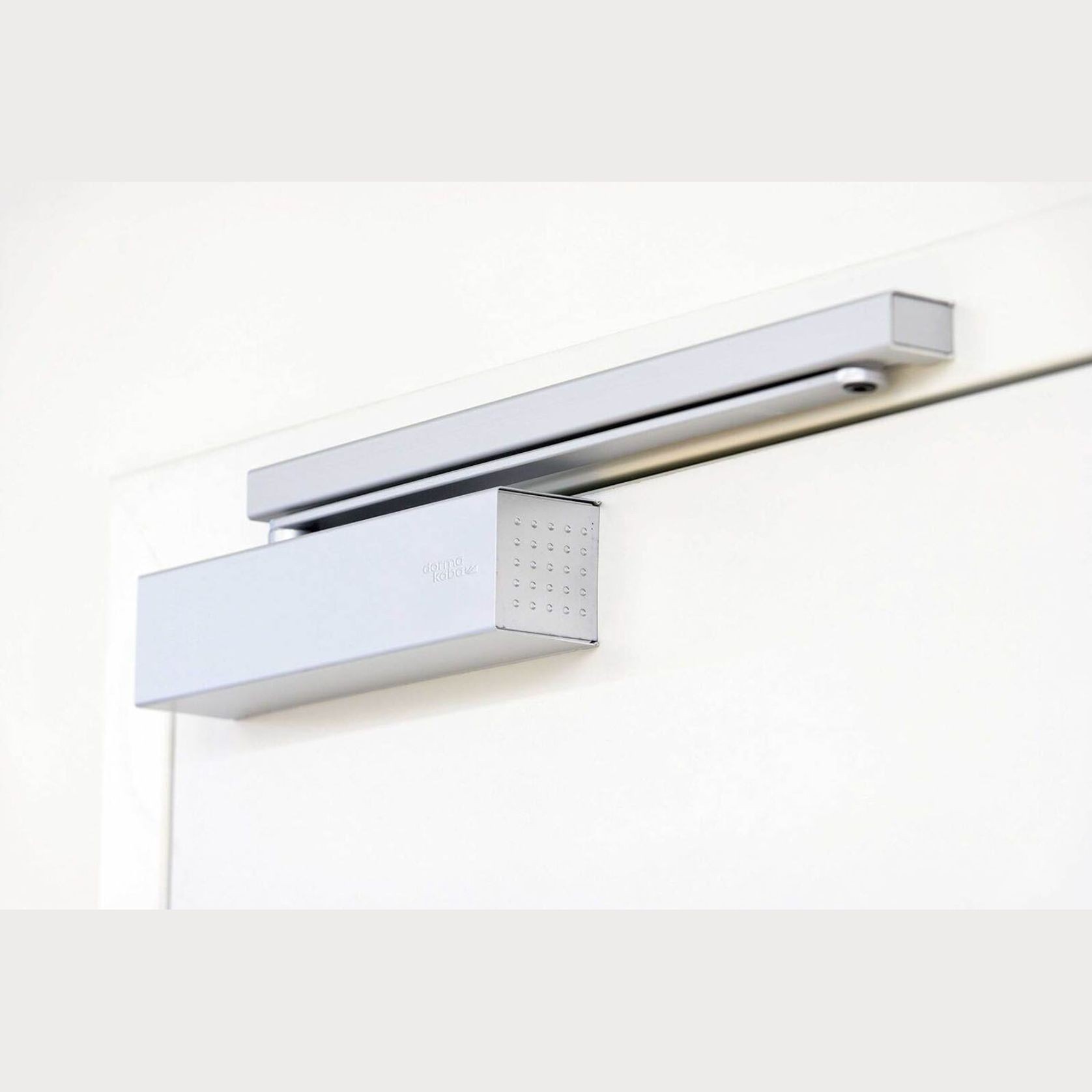

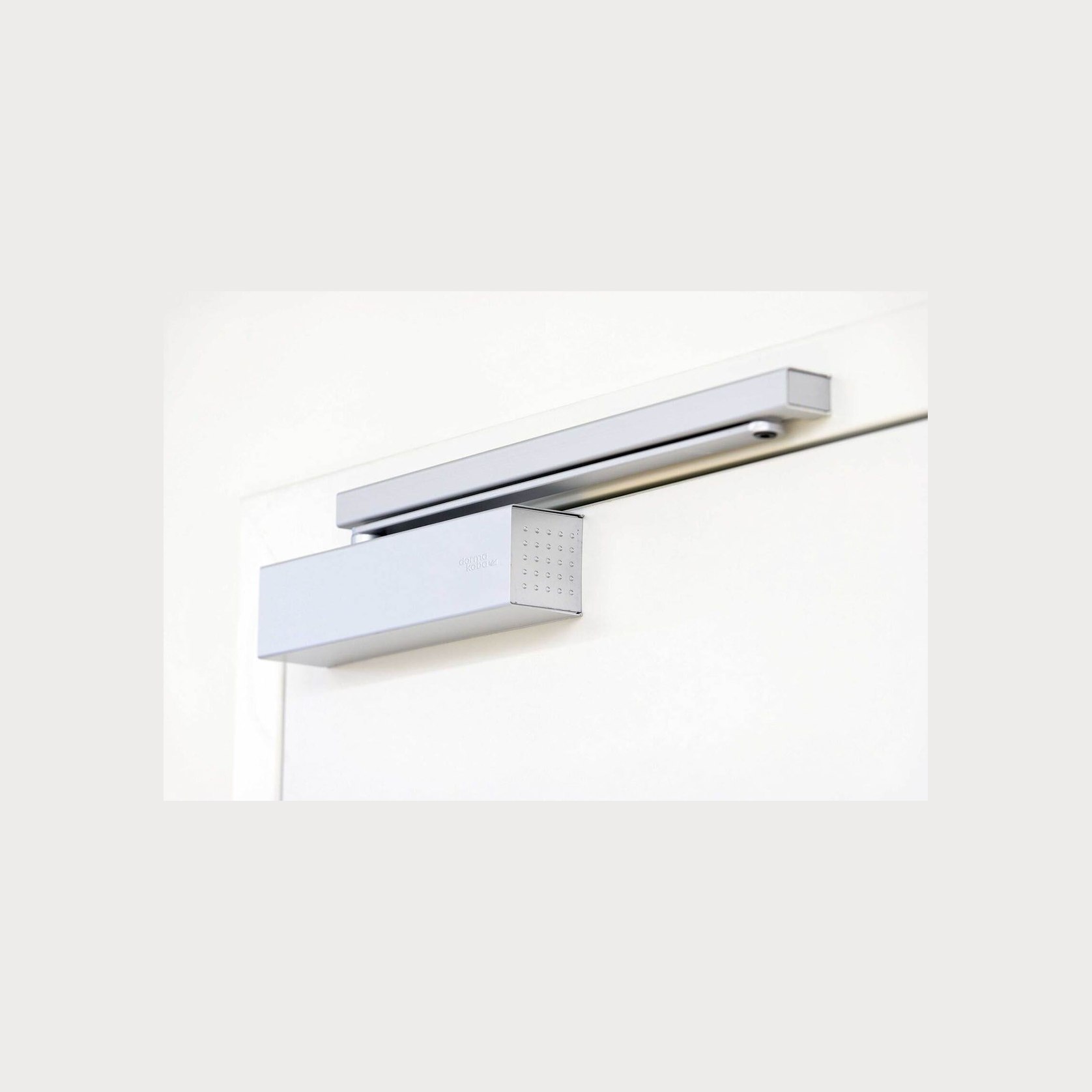

Dorma EN1-5 Door Closer Push Side w/ Slide Arm and Bracket
TS93G15GNAB
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
- Closing force adjustable with a screw and closing speed adjustable with a valve
- The latching speed, backcheck and delayed action is also adjustable at the valve
- Has a slide channel arm assembly
- Special model for push-side door leaf fixing/pull-side transom fixing
- Suitable for fire and smoke check doors where the cushioned limit stay is also used
- Suitable for single and double doors installation up to 1250 mm (W)
Product Details
- Product
- Dorma TS93G EN1-5 Door Closer Push Side Kit TS93G15GNAB
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Product Variants
- Colours
- Material
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma EN1-5 Door Closer Push Side w/ Slide Arm and BracketTS93G15GNAB Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
- Closing force adjustable with a screw and closing speed adjustable with a valve
- The latching speed, backcheck and delayed action is also adjustable at the valve
- Has a slide channel arm assembly
- Special model for push-side door leaf fixing/pull-side transom fixing
- Suitable for fire and smoke check doors where the cushioned limit stay is also used
- Suitable for single and double doors installation up to 1250 mm (W)
- Specs
Specifications:
- Length: 275mm
- Width: 53mm
- Height: 60mm
- Weight: 3.5kg
- Adjustable Closing Speed: Yes
- Adjustable Latching Speed: Yes
- Has Backcheck: Yes
- Has Delay Action: Yes
- Has Hold Open: No
- Has Slide Arm: Yes
- Spring Strength: EN1-5
- Suits Push Side Of Door: Yes
- Fire Rated: Yes
- Finish: Silver
Note: For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.
- What's in the box

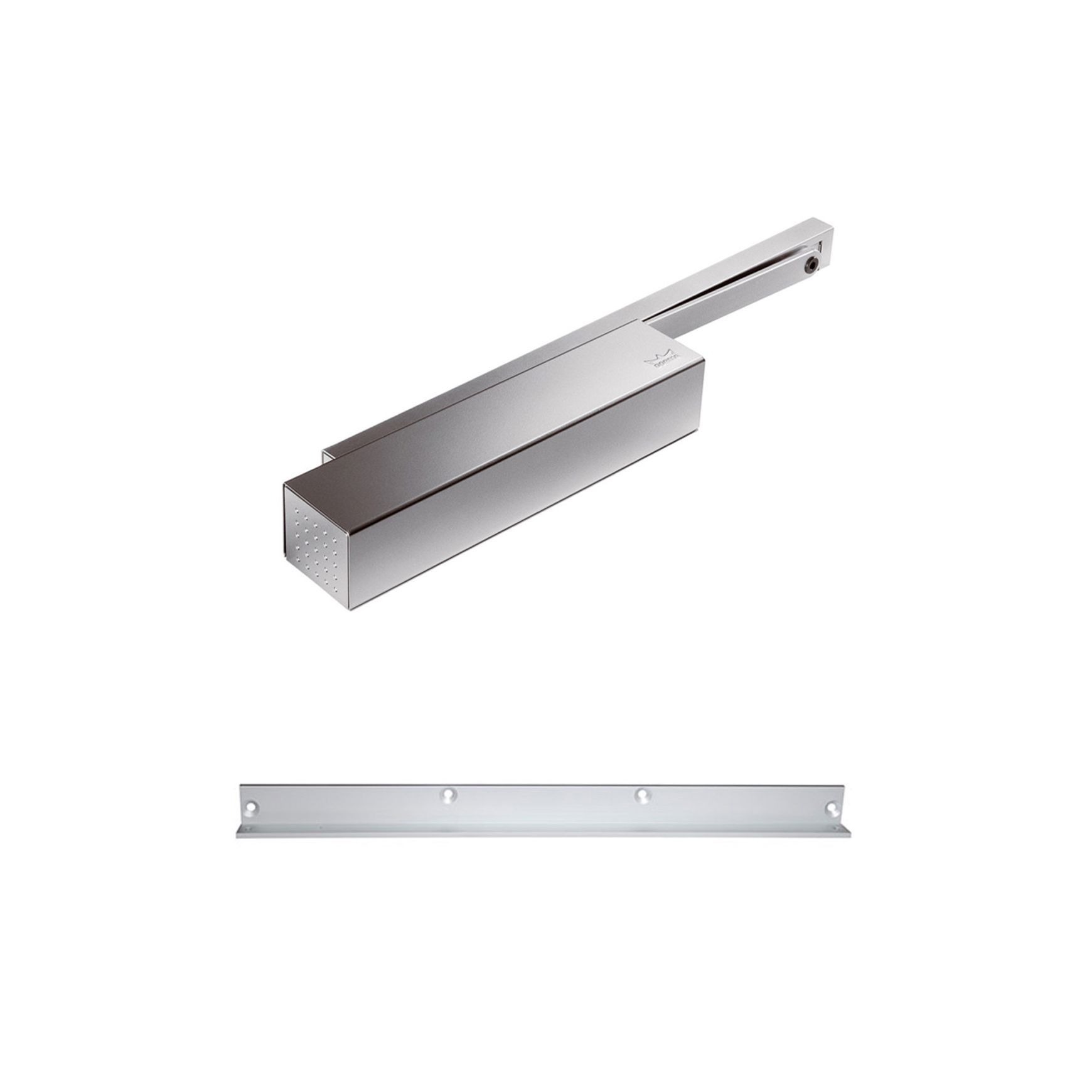

Includes:
- 1 x Dorma TS93G EN1-5 Door Closer Push Side w/ Slide Arm & Channel Silver (43100501)
- 1 x Dorma TS92AB Angle Bracket G-N Channel Suit G92/G93 N/RF Closer Silver (64430001)
