Elevate | Series 424 | Double Glazed 102mm Framing

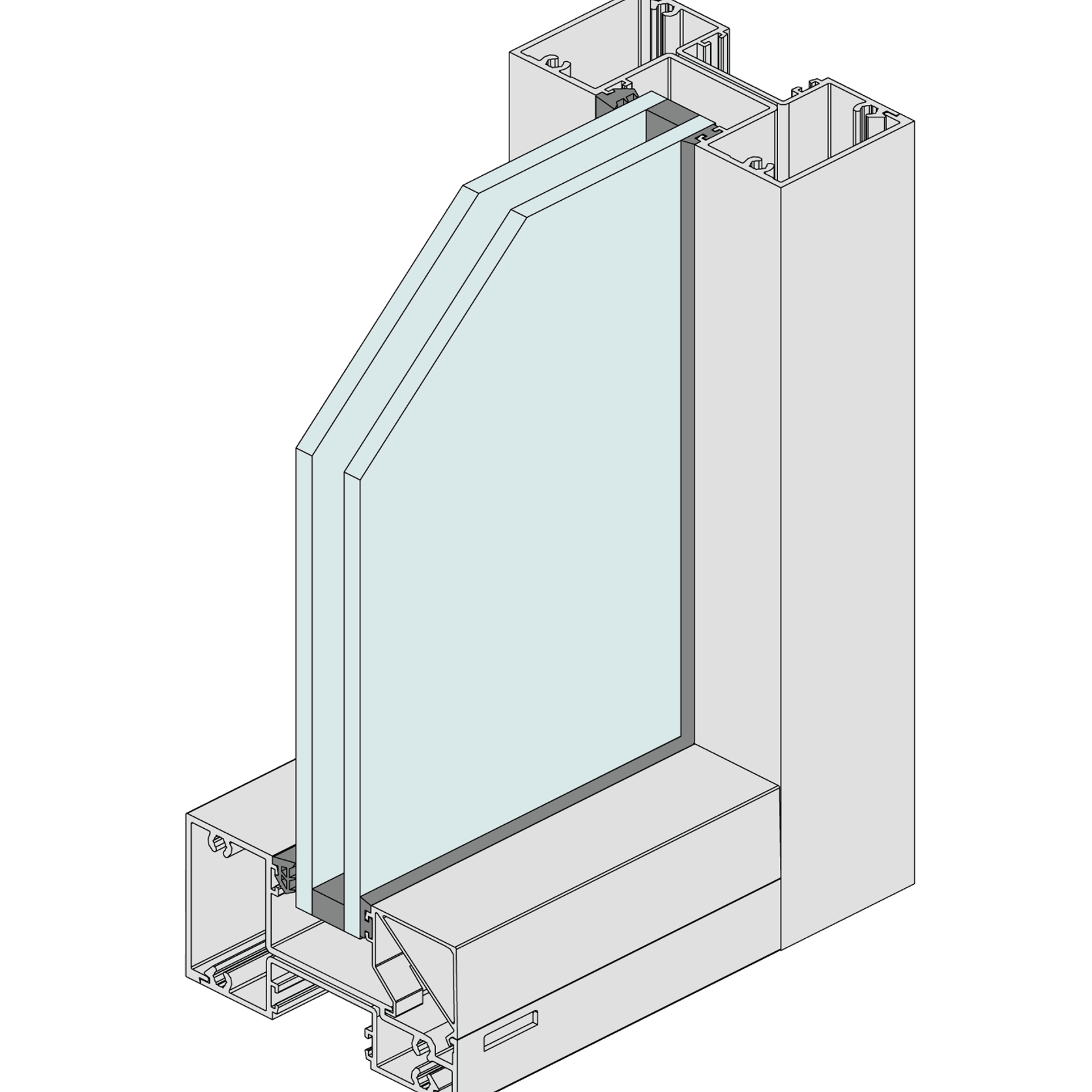

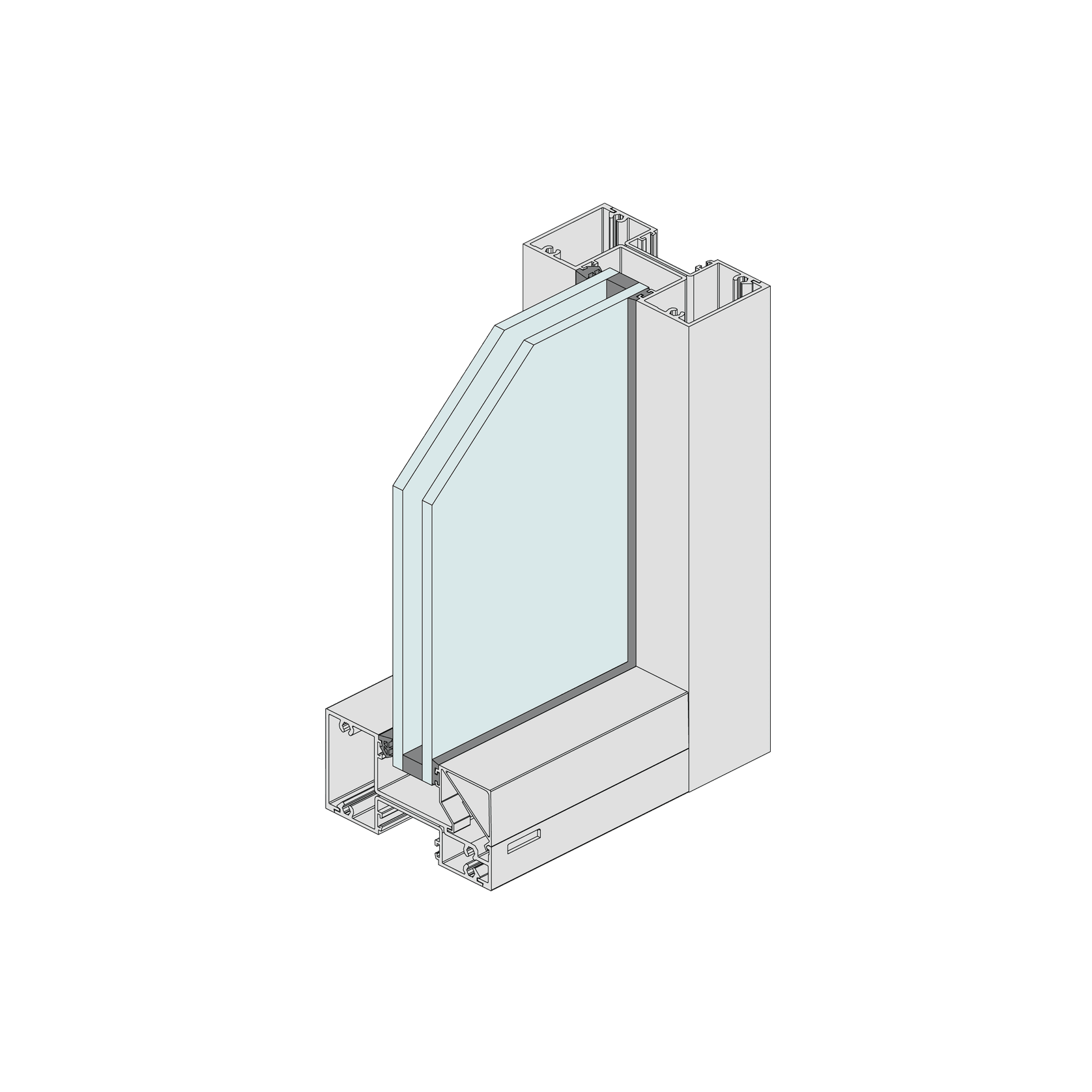

Series 424 CentreGLAZE™ shopfront framing measures 102mm x 50mm and has been designed specifically to accept 24mm Insulating Glass Units (IGUs).
- CategoryWall Framing
- RangeElevate | Commercial Framing
- The 28mm deep glazing pocket is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing tolerance).
- This deep glazing pocket provides a 12mm bite as required by the IGU manufacturers and ensures compliance with glass warranties.
- Reinforced tall glazing bead at sill tolerate high wind loads.
- True captive glazing wedge allows reglazing from inside - ideal in elevated applications.
- The captive wedge also offers increased security.
- Glazing wedges are recessed into the framing for a clean aesthetic.
- Wide range of sub-sills to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
- Sub-head and two piece sub-jambs.
- Numerous door thresholds including weather resisting thresholds for external and internal swing doors.
- Designed for use with Series 50, 51 and 52 commercial doors.
- Compatible with Commercial and Architectural Series systems.
- Accepts awning and Casement sashes.
- Maximum Panel Height* Various
- Maximum Panel Width* Various
- Maximum Glass Thickness≤ 28mm
- SHGC Range 0.17 - 0.63
- Uw Range 2.6 - 3.6

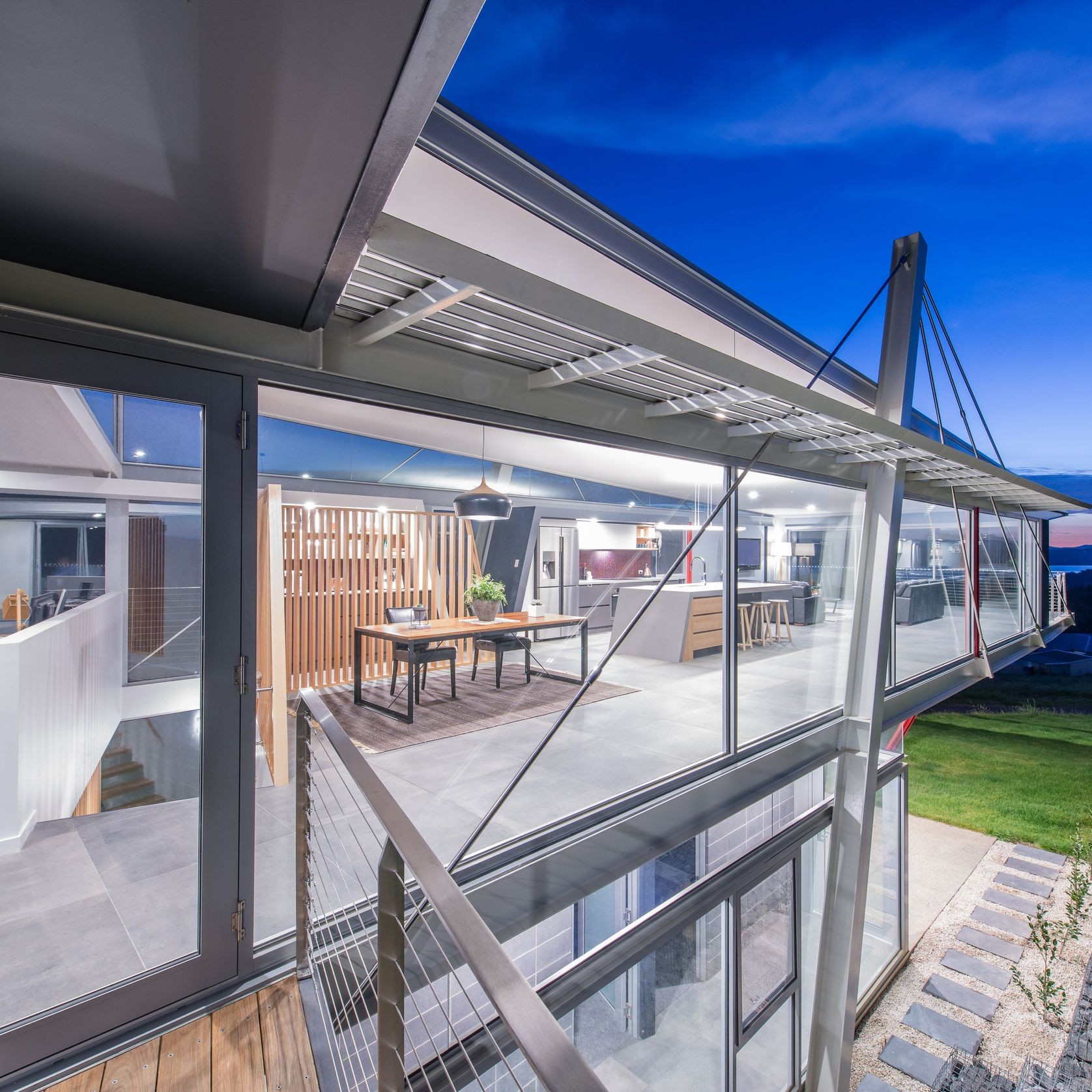

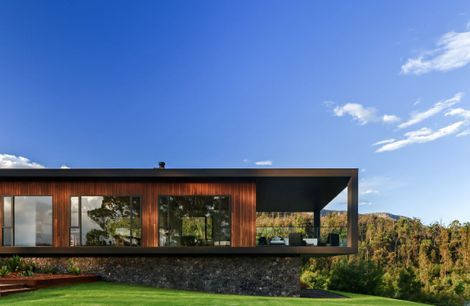

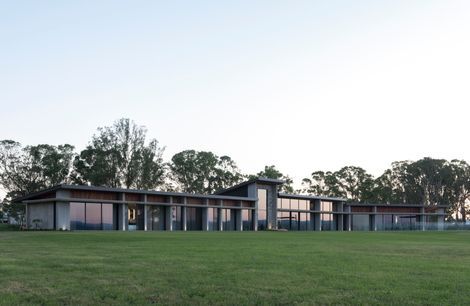

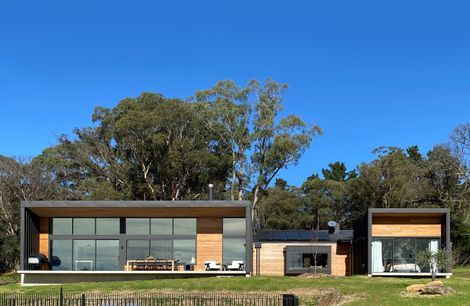

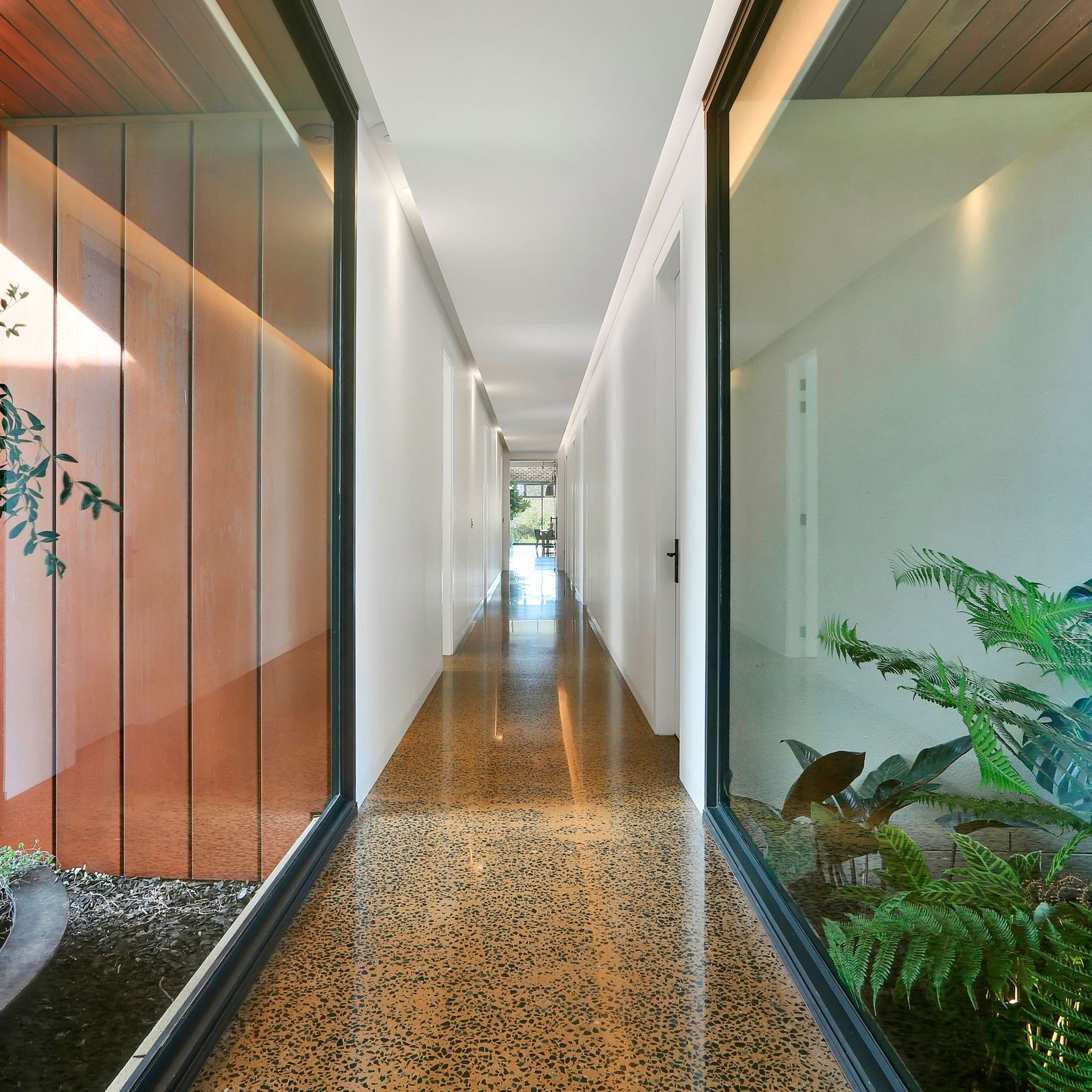

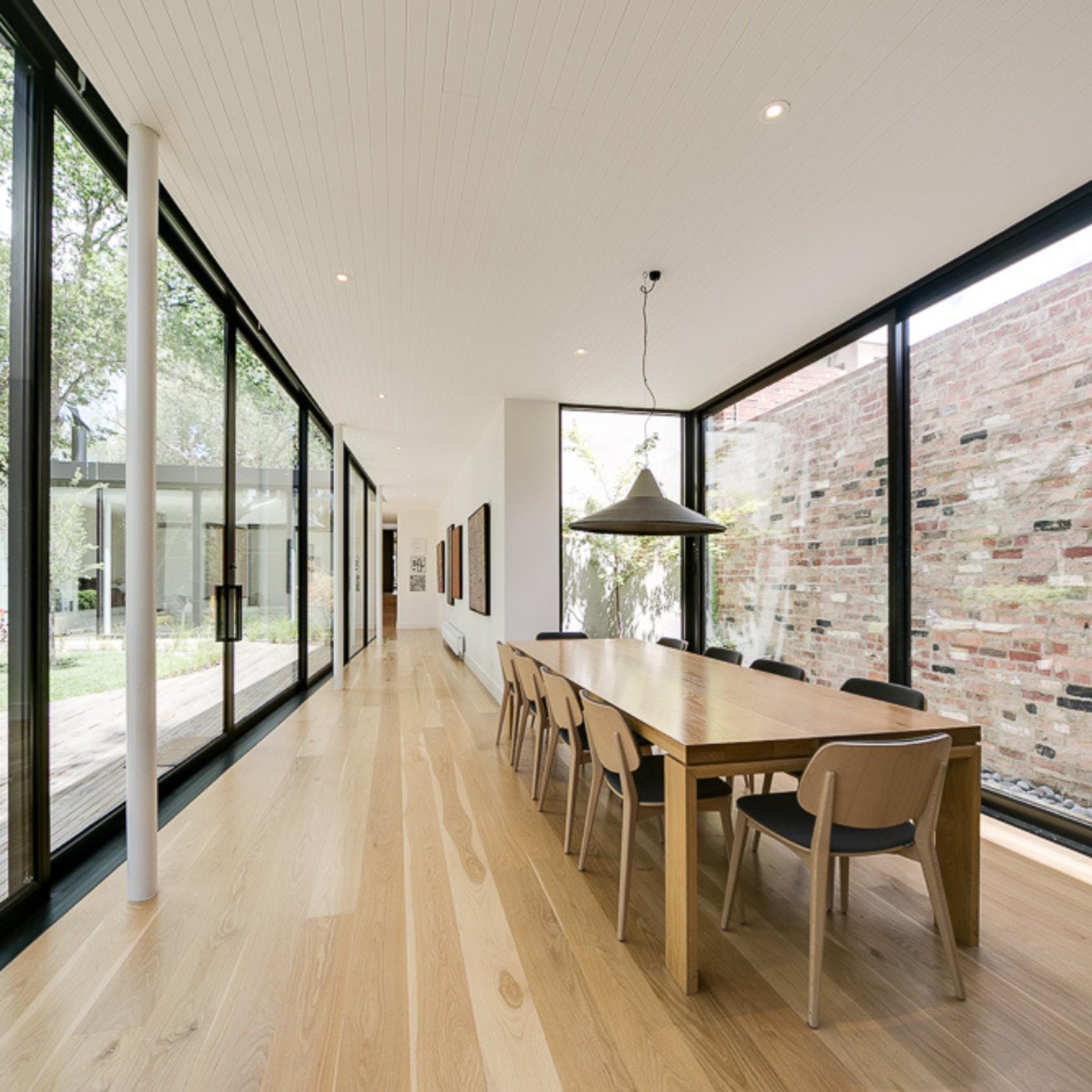

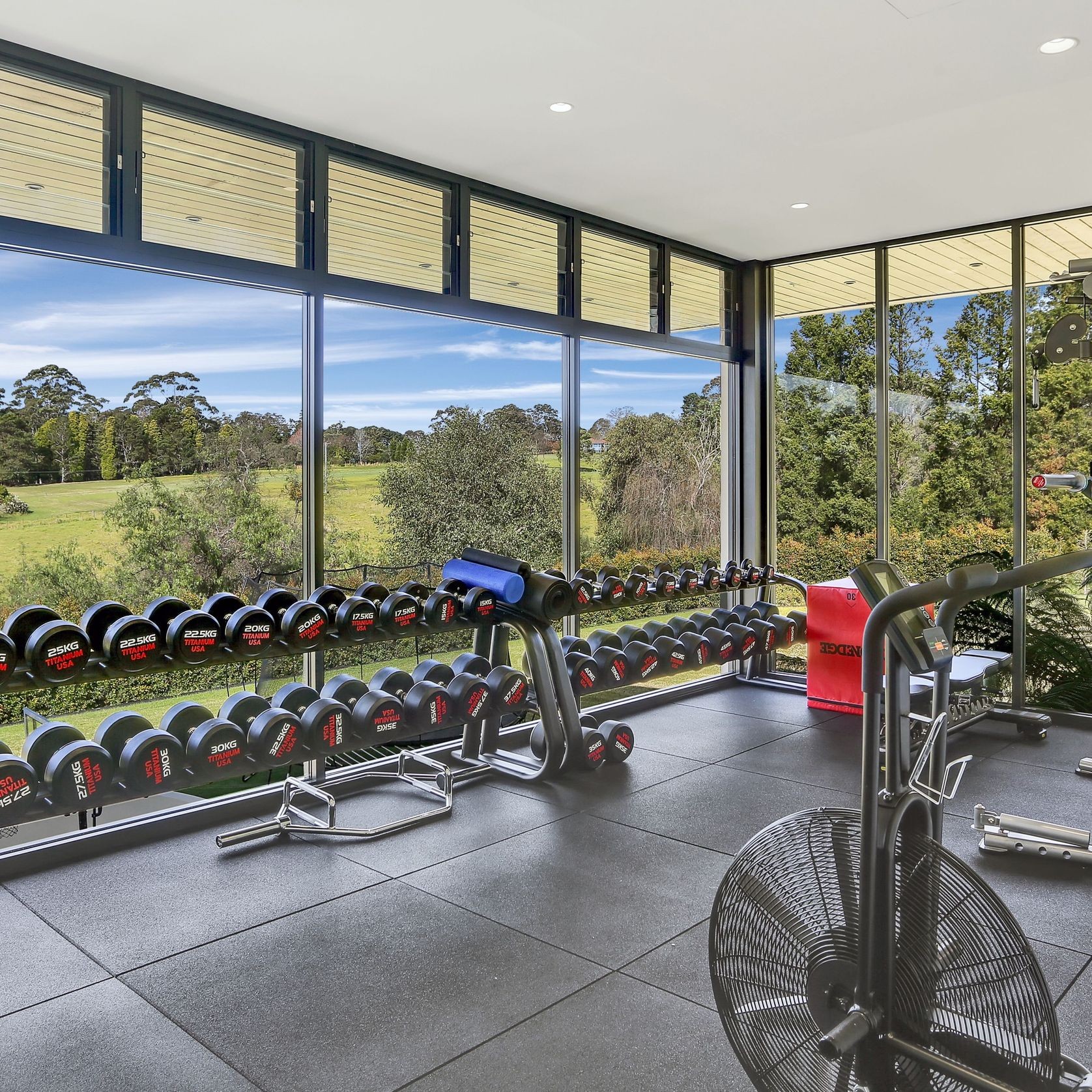

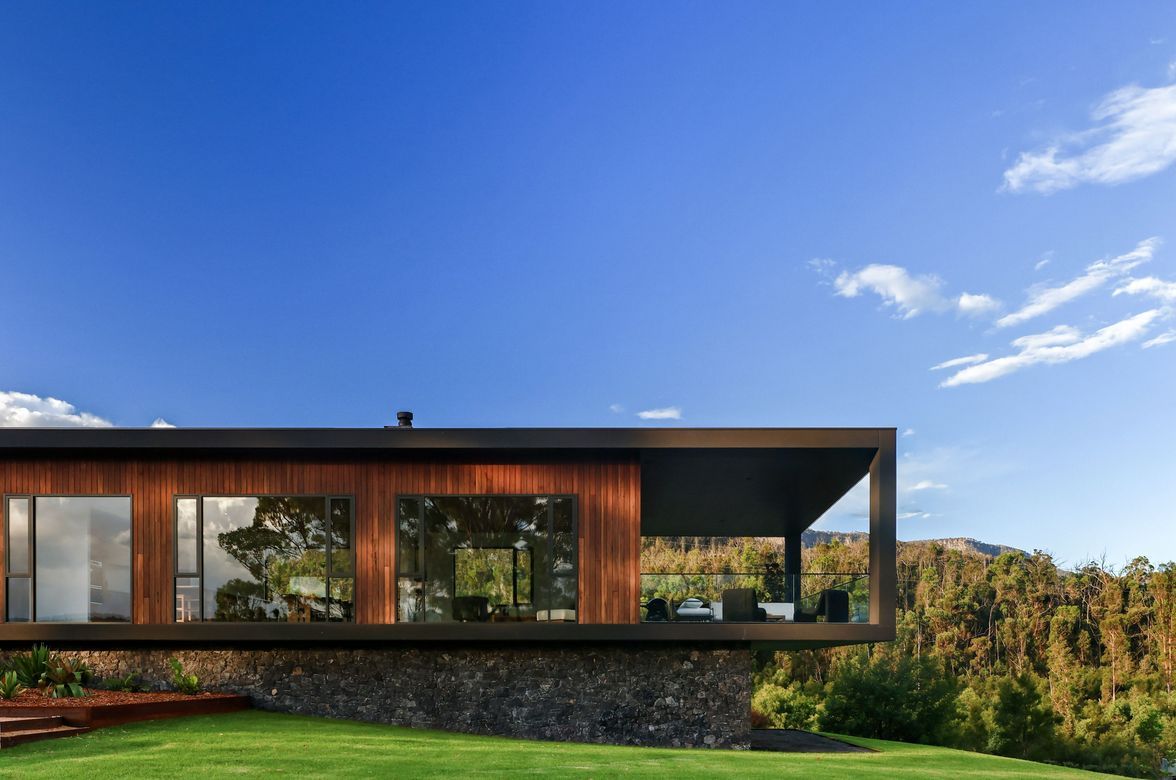

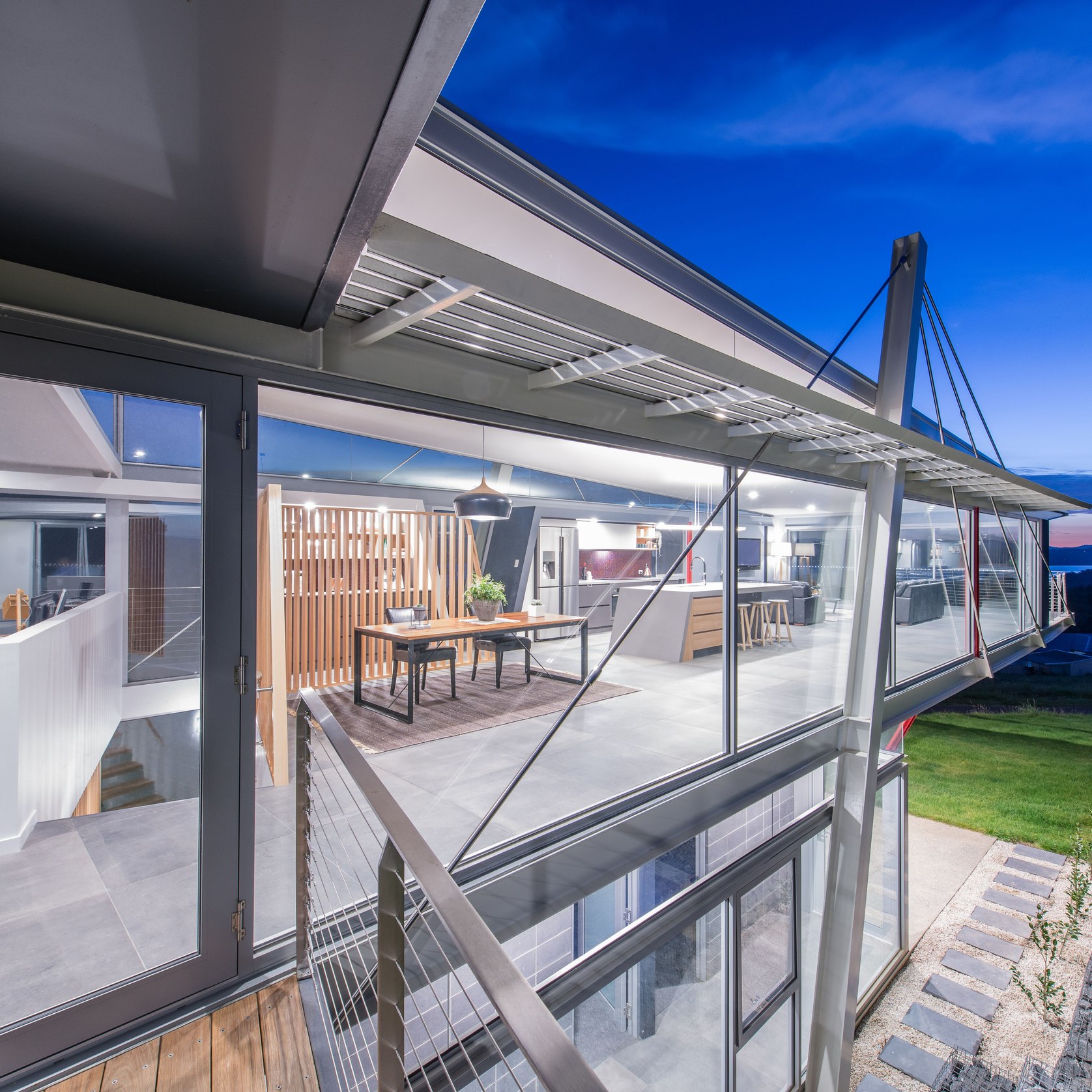

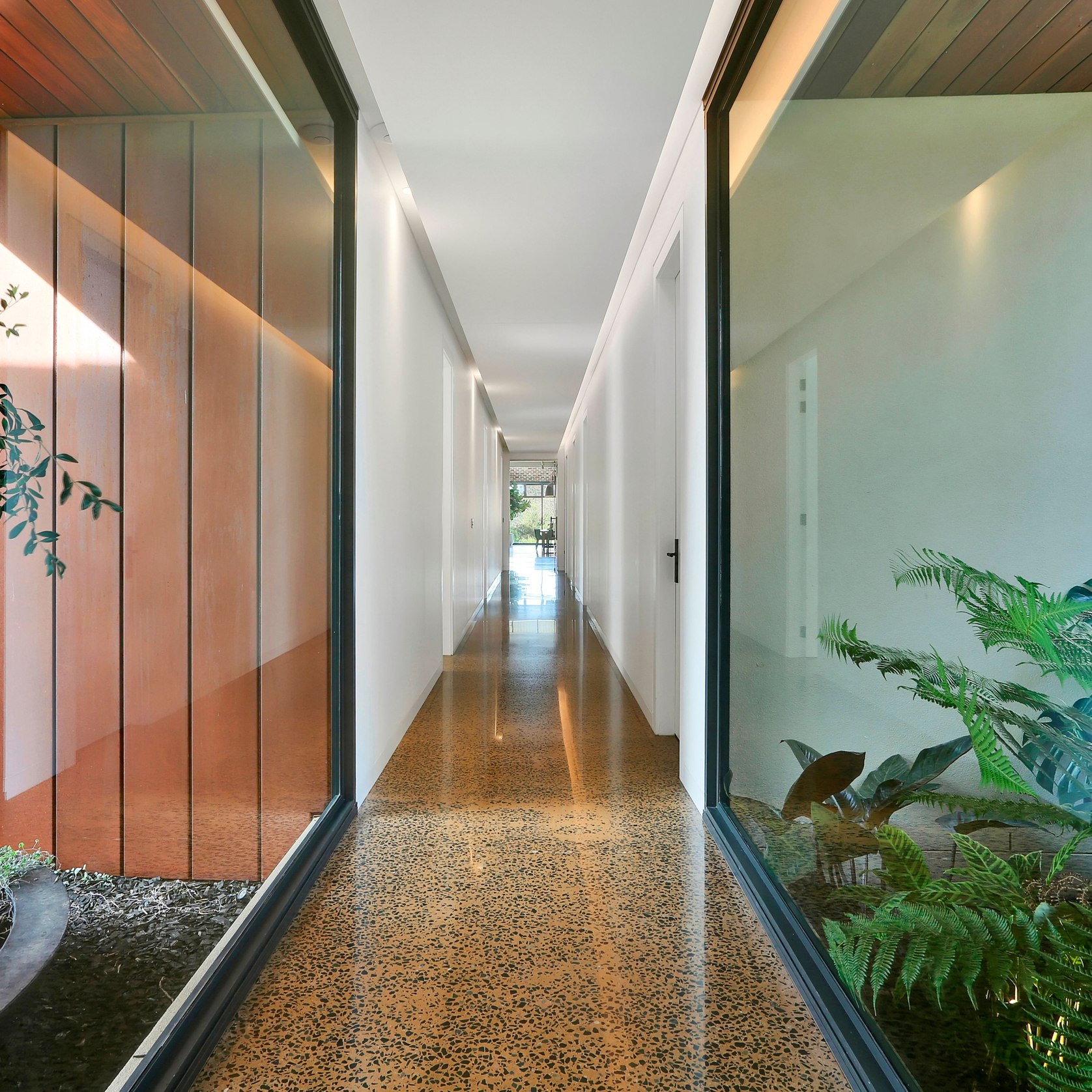

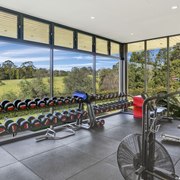

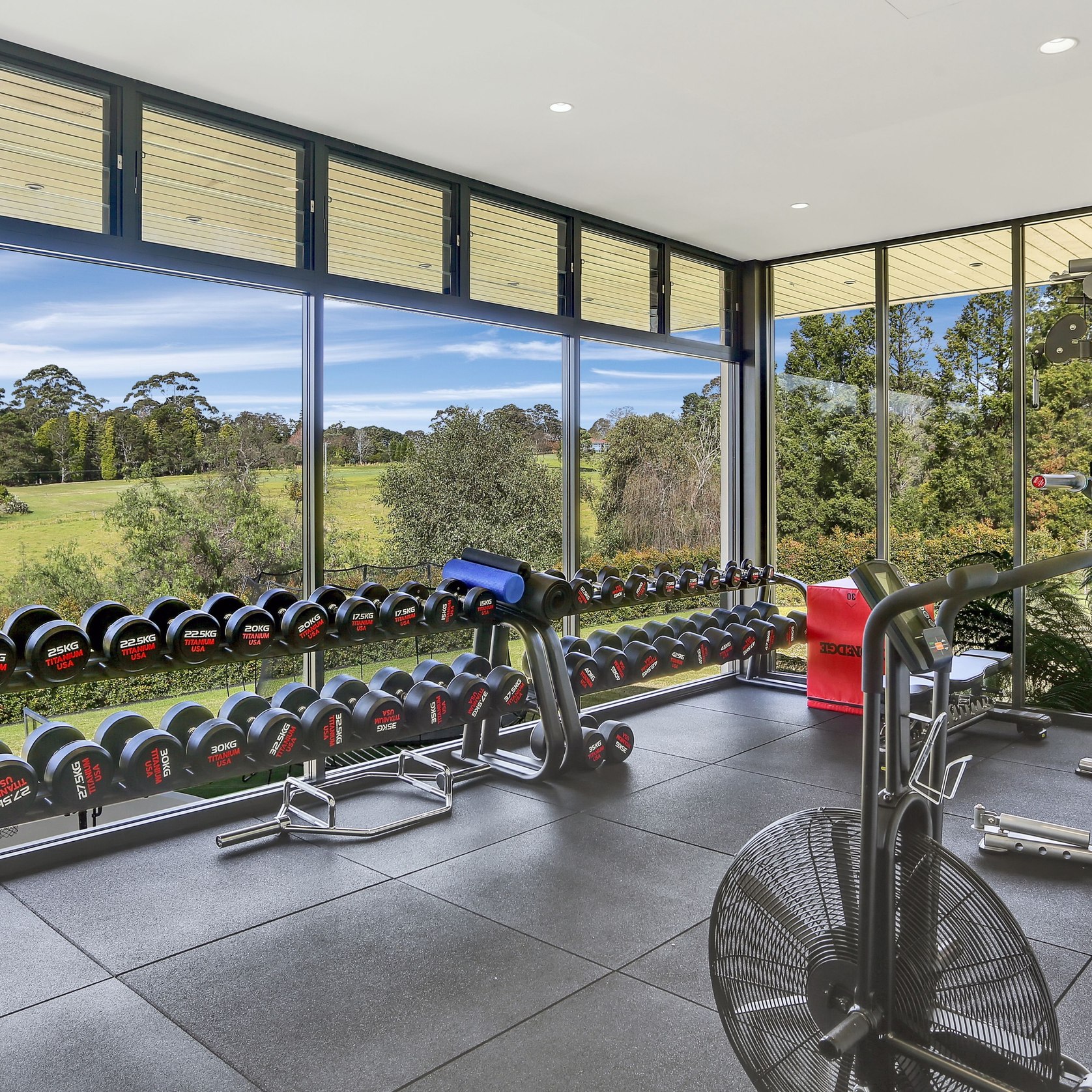

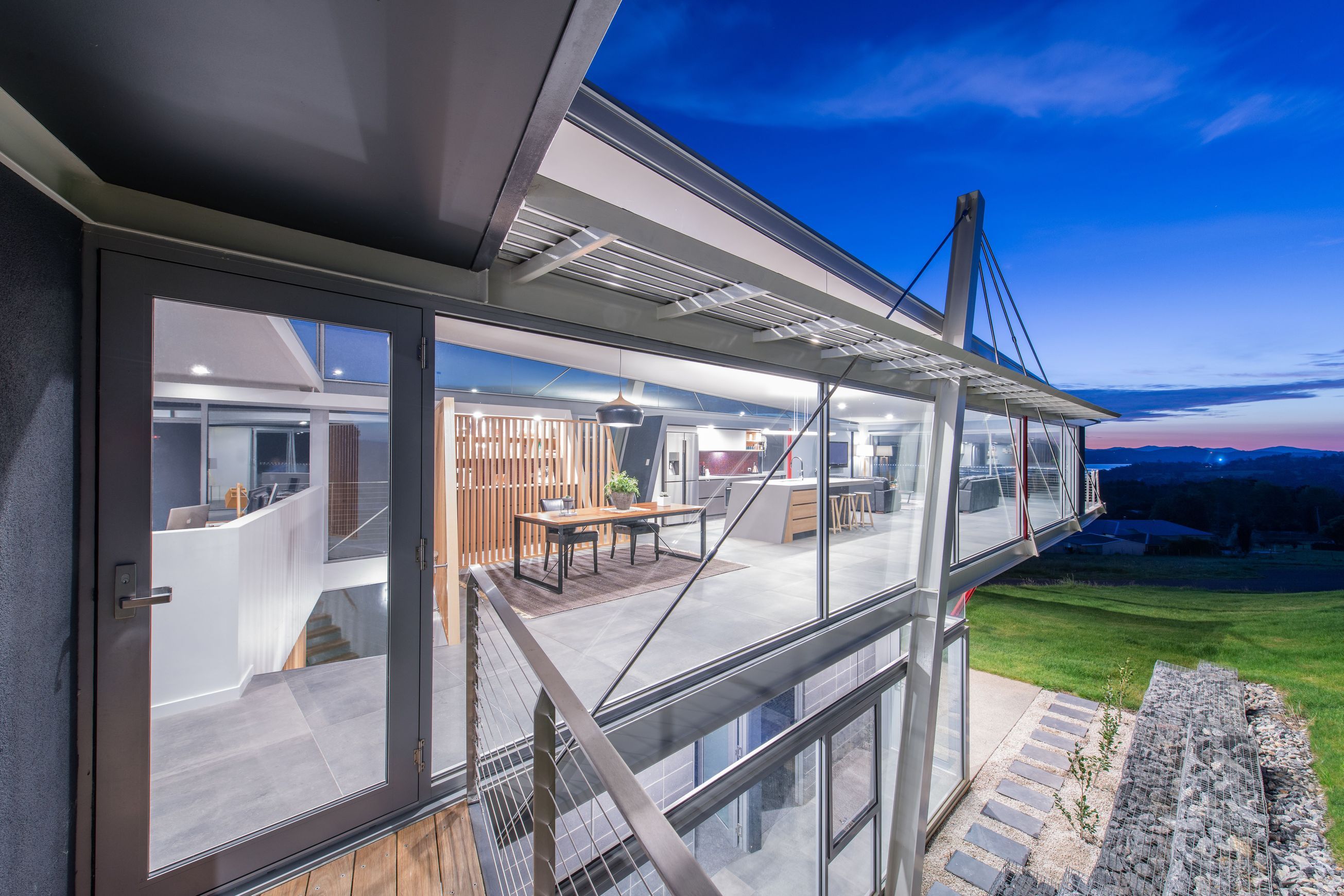

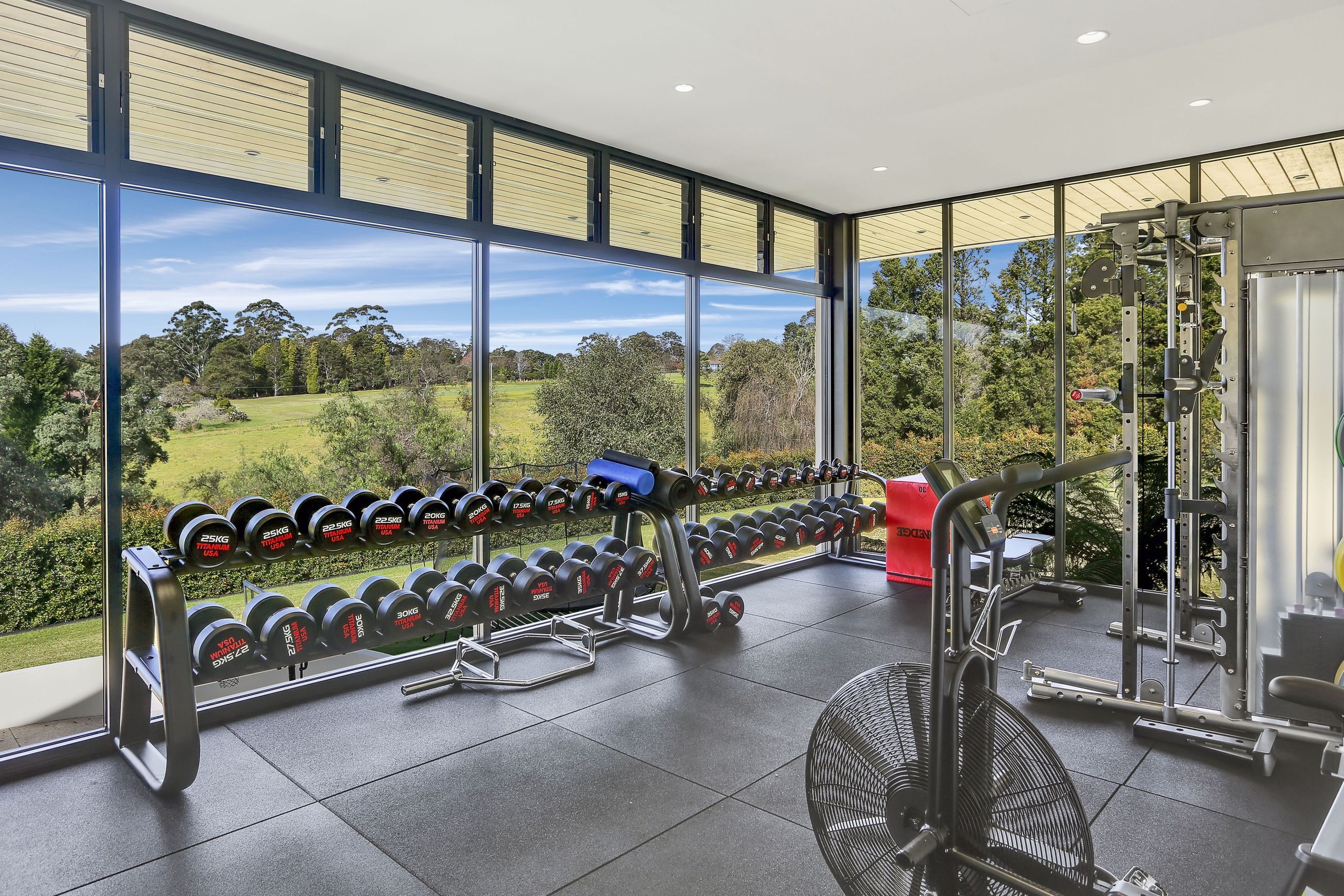

Projects featuring
