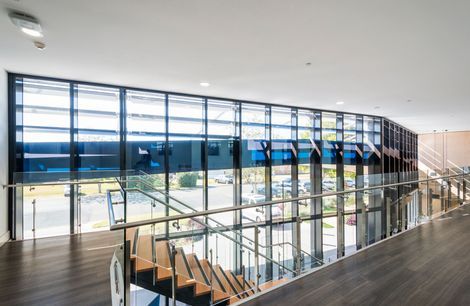

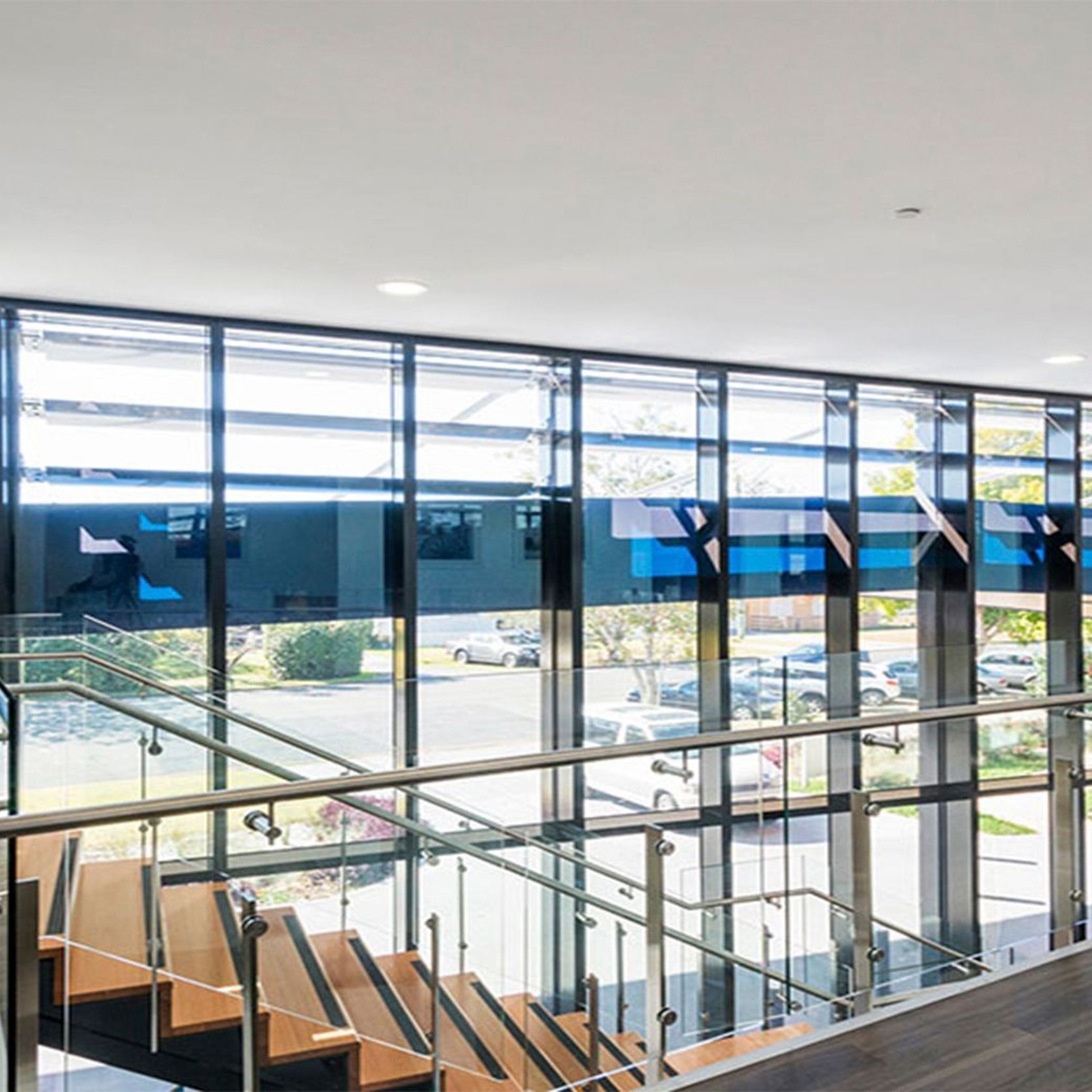

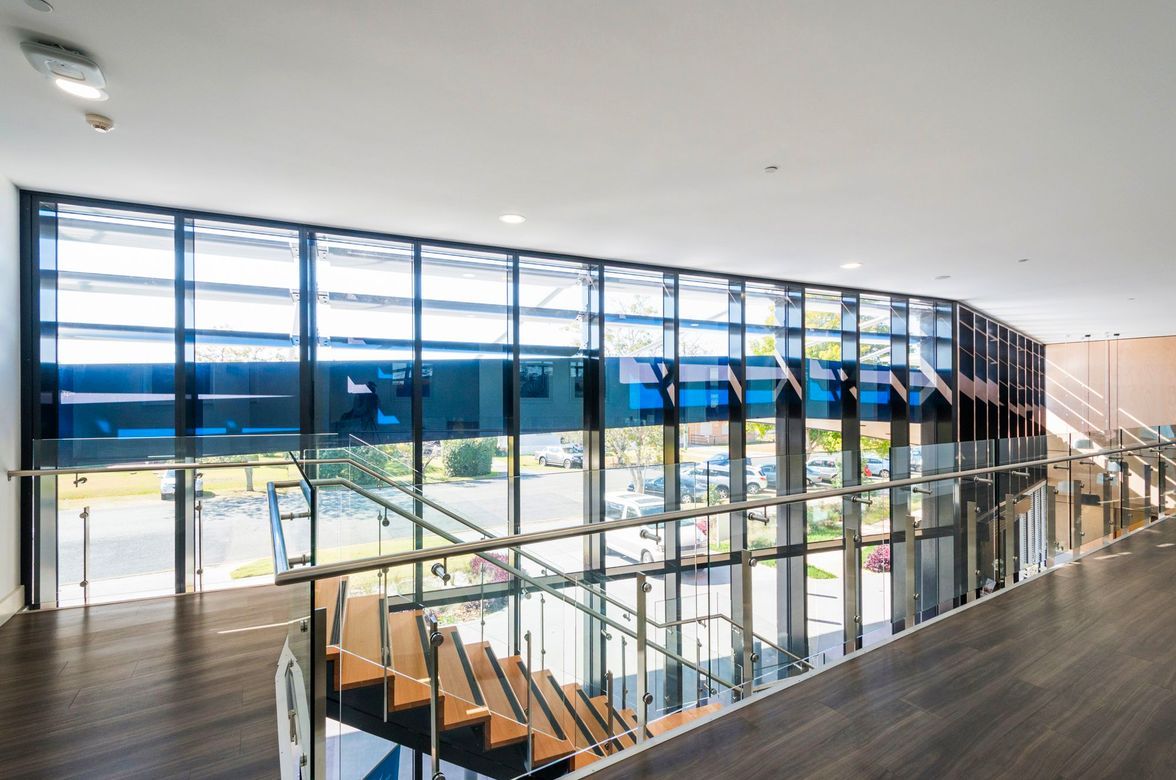

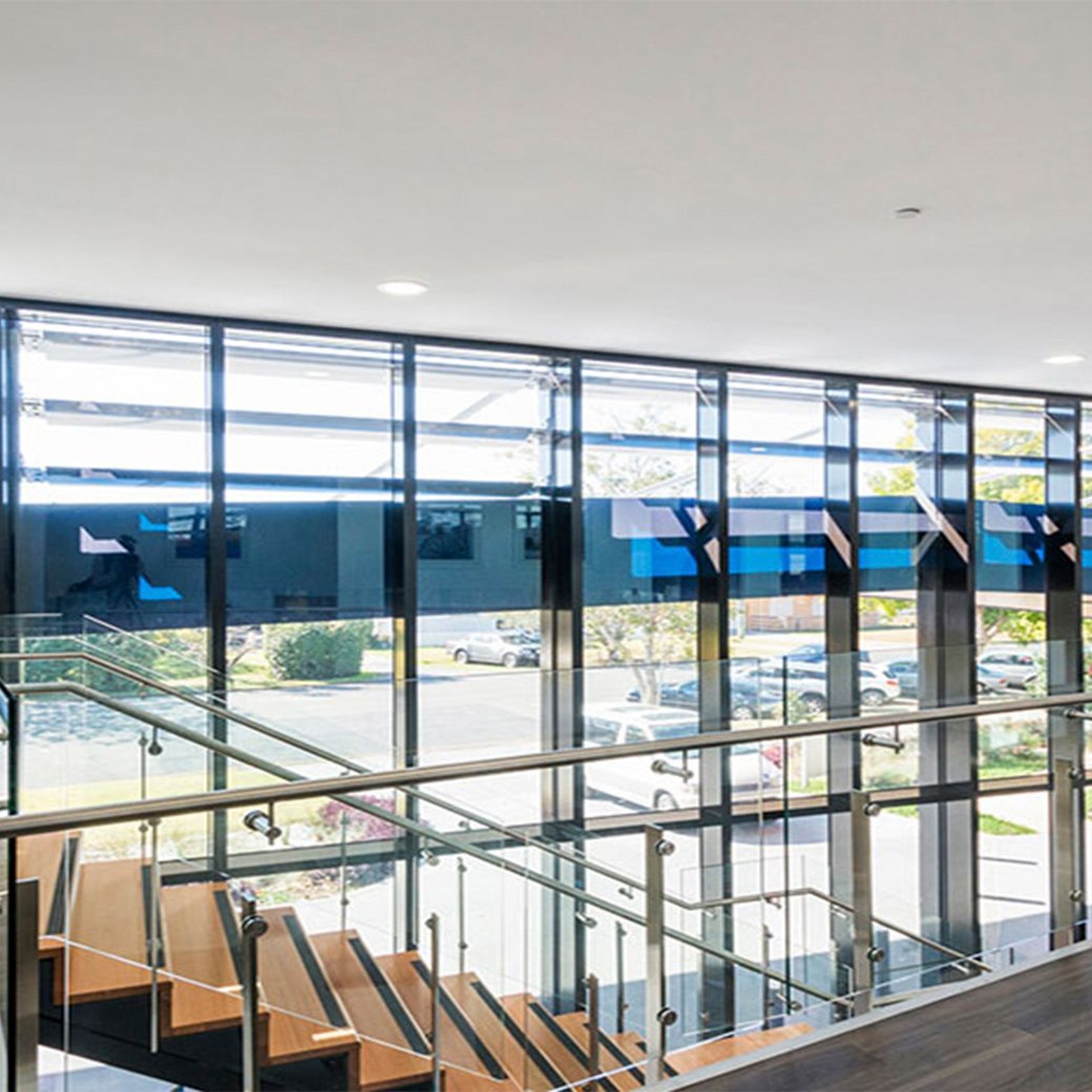

Elevate | Series 936 | Double Glazed 225mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 392.4K profile views
- 36 saves
Elevate™ Double glazed FrontGLAZE™ shopfront framing system with 36mm wide glazing pocket is designed to accept up to 30mm thick Insulating Glass Units (IGU’s) with the required 12mm bite and assist fabricators in reducing assembly and glazing labour times.
Product Details
- Product
- Elevate | Series 936 | Double Glazed 225mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Product specified by
Elevate™ Double glazed FrontGLAZE™ shopfront framing system with 36mm wide glazing pocket is designed to accept up to 30mm thick Insulating Glass Units (IGU’s) with the required 12mm bite and assist fabricators in reducing assembly and glazing labour times.
- Specs
- This system can be used in cyclone areas and in other areas where tall units without central mullion support are required
- High water resistance can be achieved using the heavy duty interlocking mullion. Has been successfully tested at 1200Pa water resistance with standard external bead and interlocking mullion.

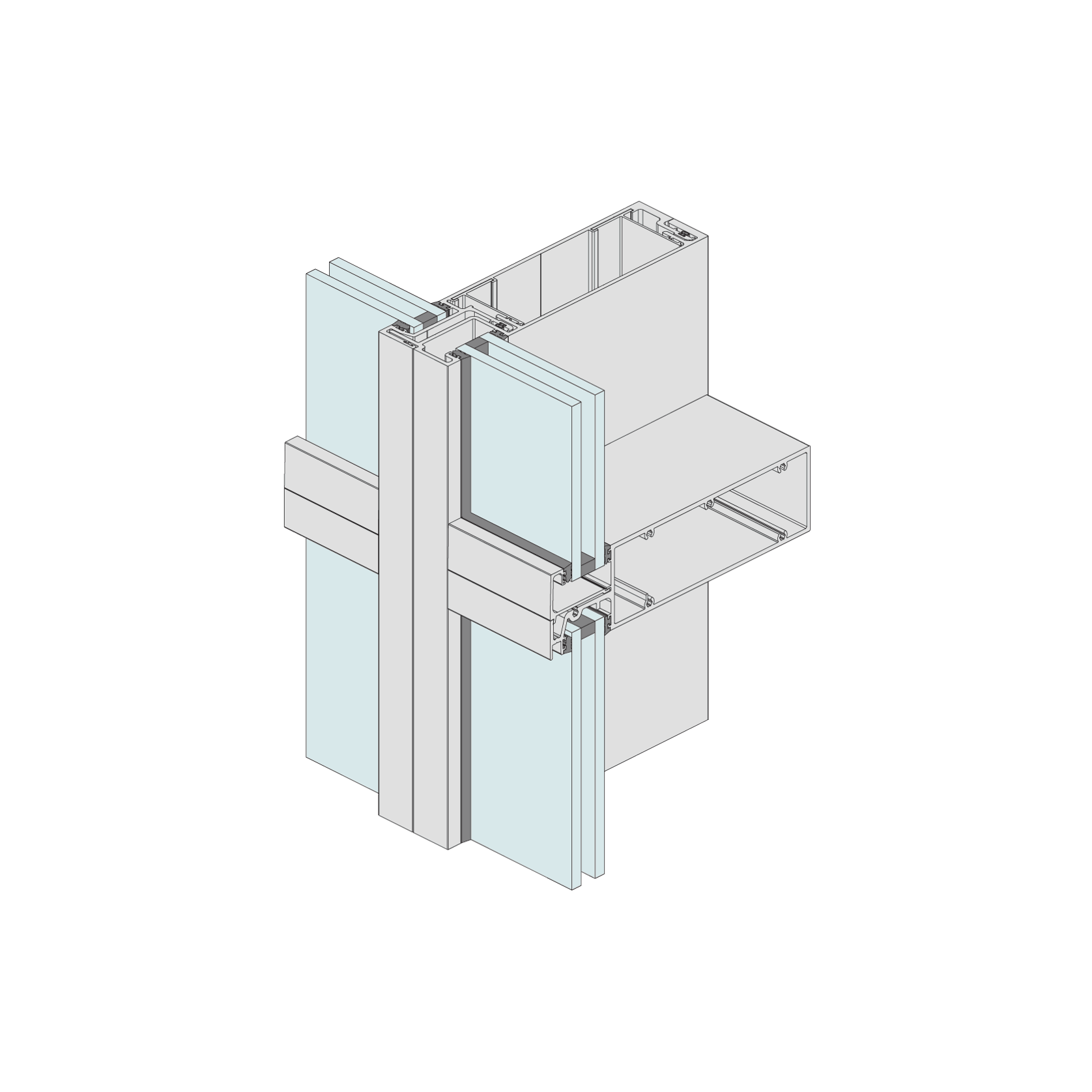

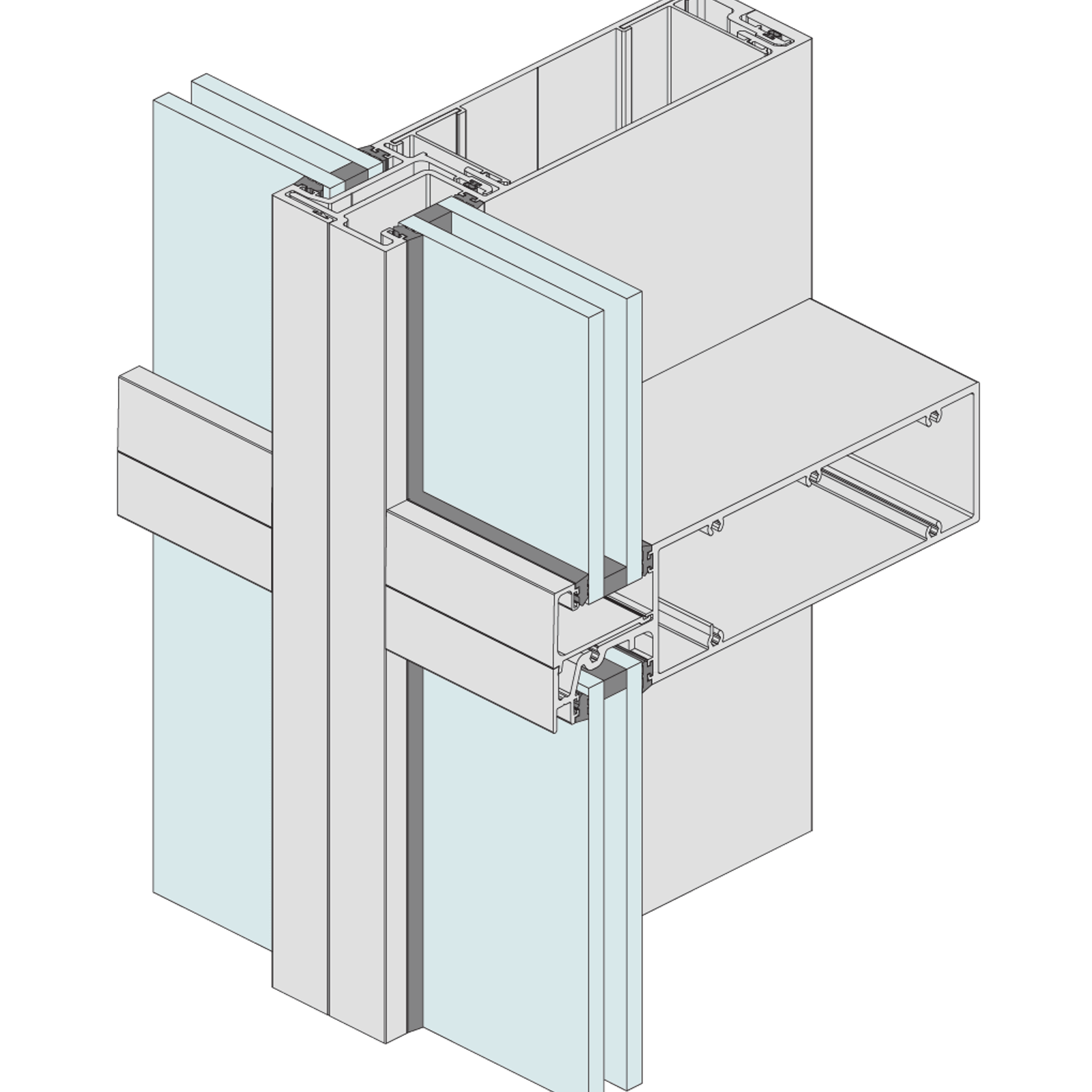

- The 225mm x 60mm framing system is designed for high wind load areas with an extra strong interlocking mullion. This interlocking mullion has retention lugs for tall mullions without transoms and framing in high wind load areas.

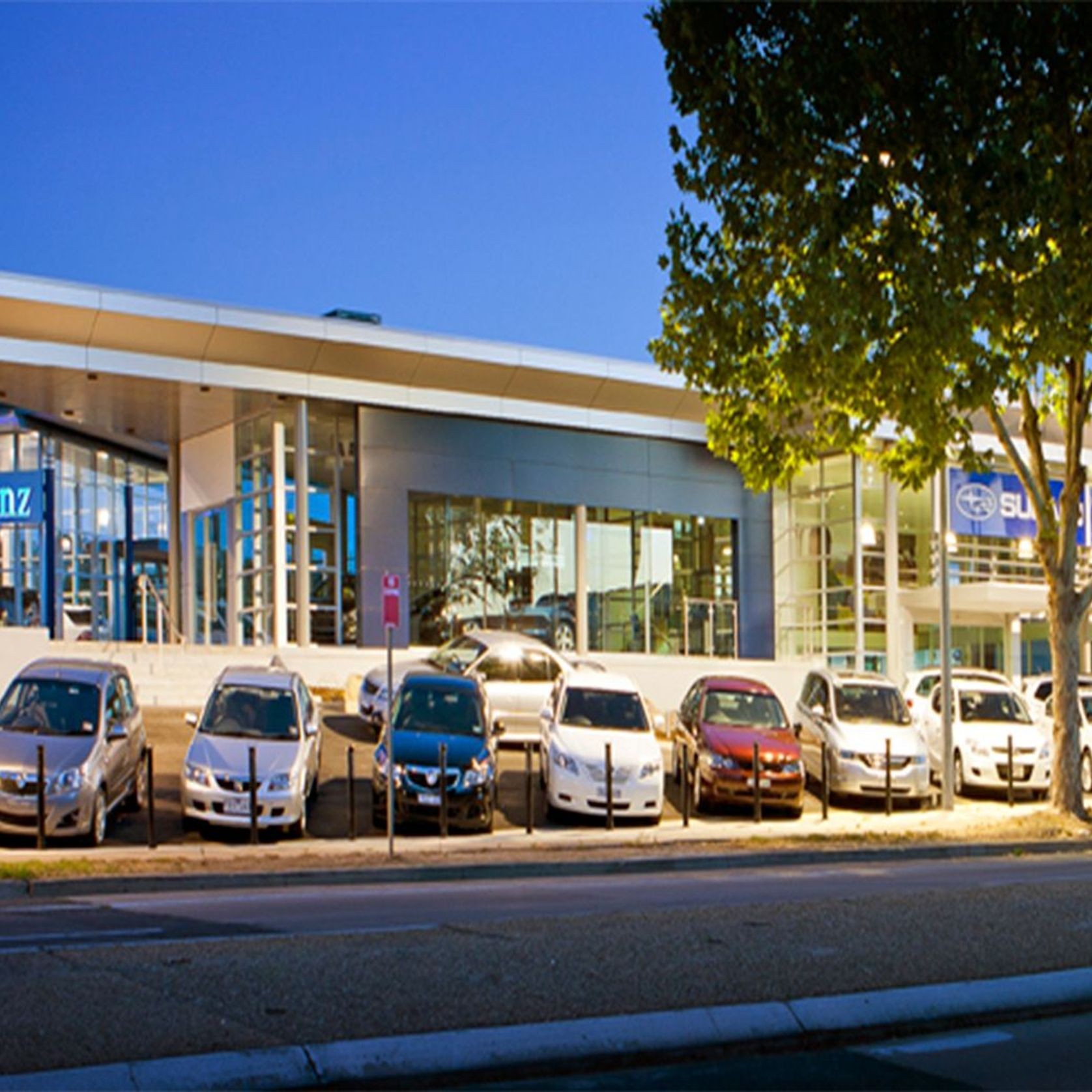

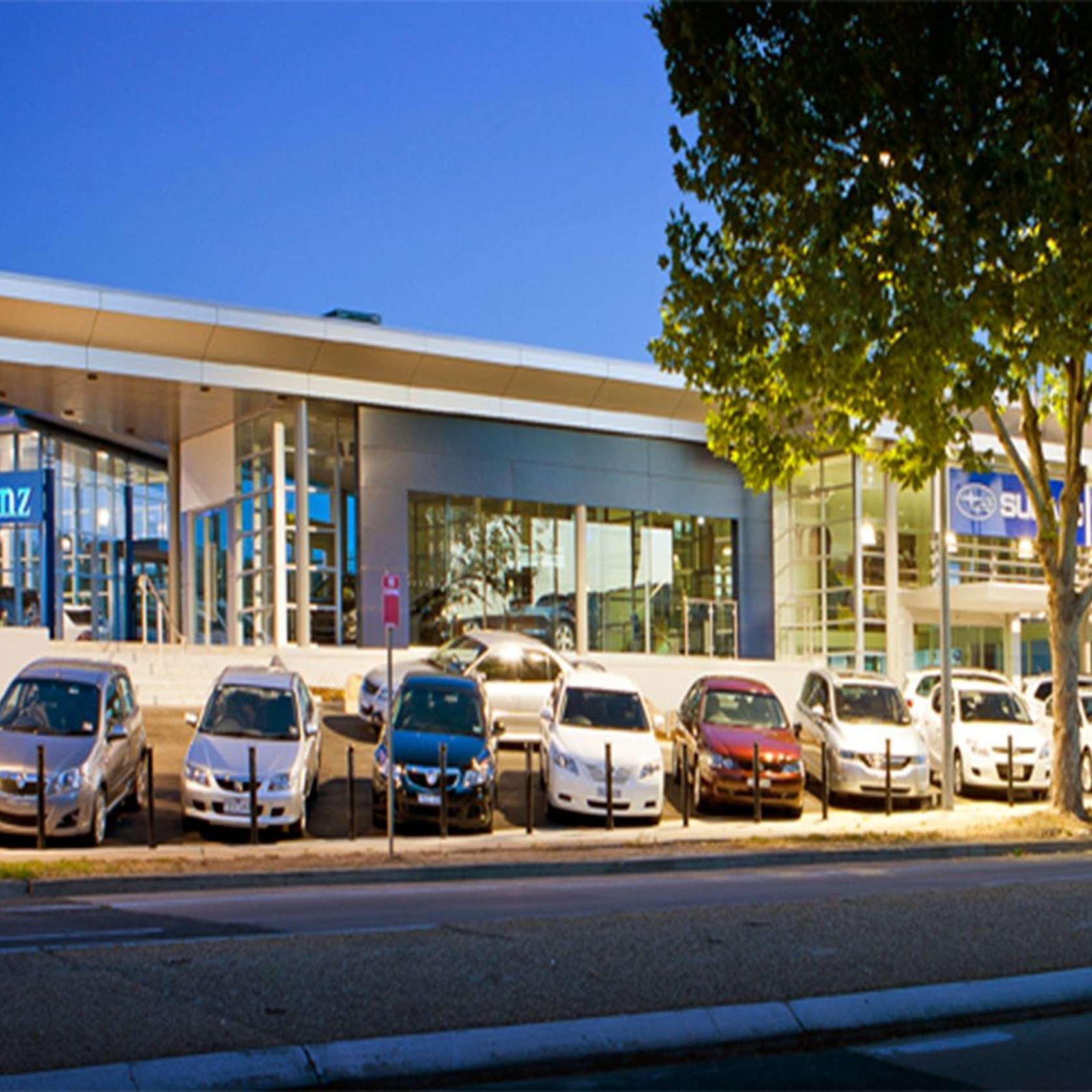

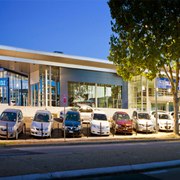

- The product is ideal for car showrooms
- Sub-head and sub-jamb have pressure fit external cover bead, this makes frame installation significantly easier.
- Extra overlap on sub-head to cater for roof movement under wind load.
- Mullions supported with heavy duty angle brackets.
- Heavy duty transom designed to carry heavy pieces of glass.
- Sill locked into sub-sill with custom retention brackets.
- Glazing pocket reducers allow thinner glass (as low as 6mm thick) to be installed.
- Glazing pocket will accept co-extruded captive glazing wedges.
- Farming will accept pivot swing doors using 150 mm wide COC closer transom.
- Maximum Panel Height *Various
- Maximum Panel Width *Various
- Maximum Glass Thickness ≤ 30mm
- SHGC Range 0.34 - 0.62
- Uw Range 4.8 - 6.8
