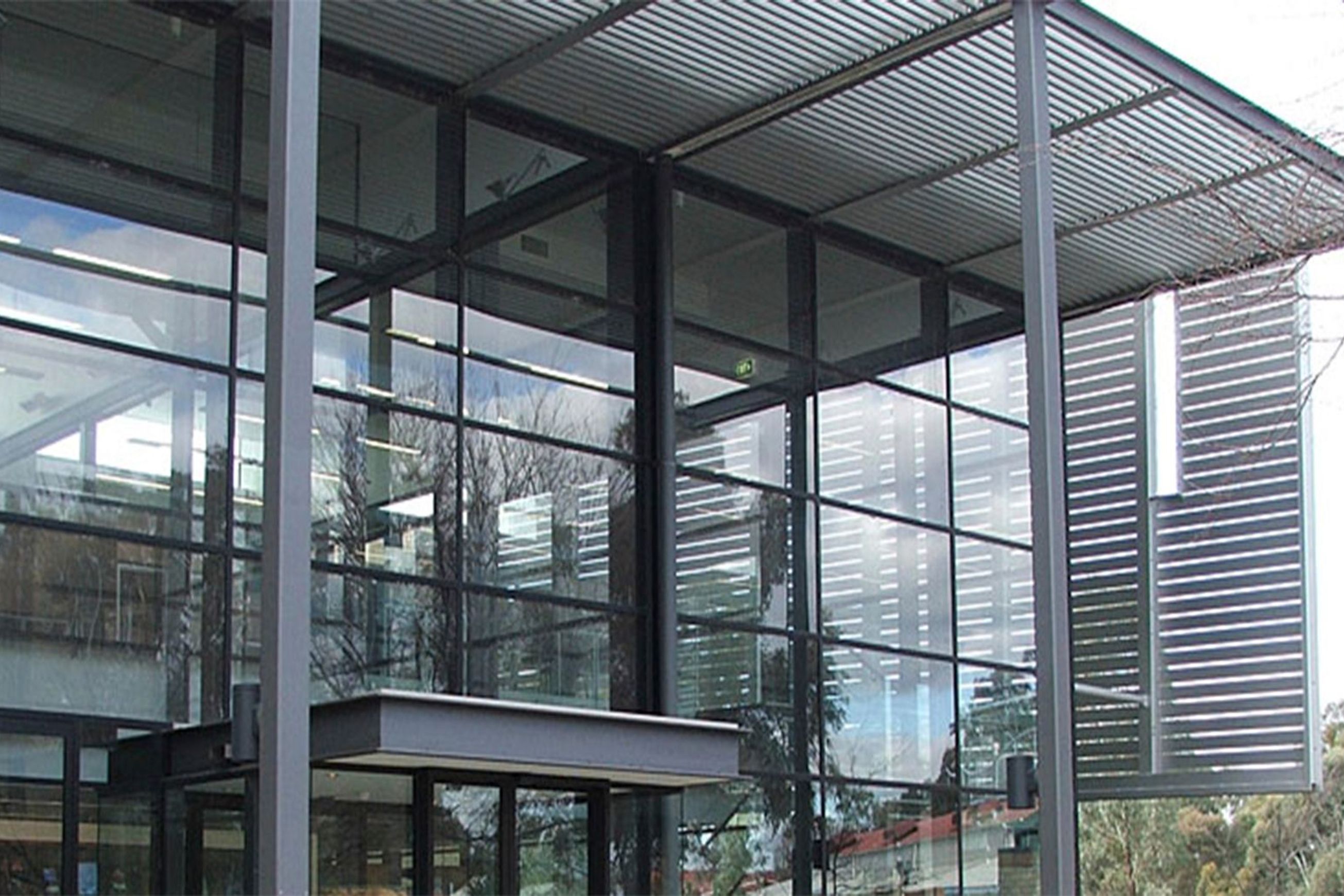

Elevate | Series 620 | Single Glazed 150mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 392.6K profile views
- 36 saves

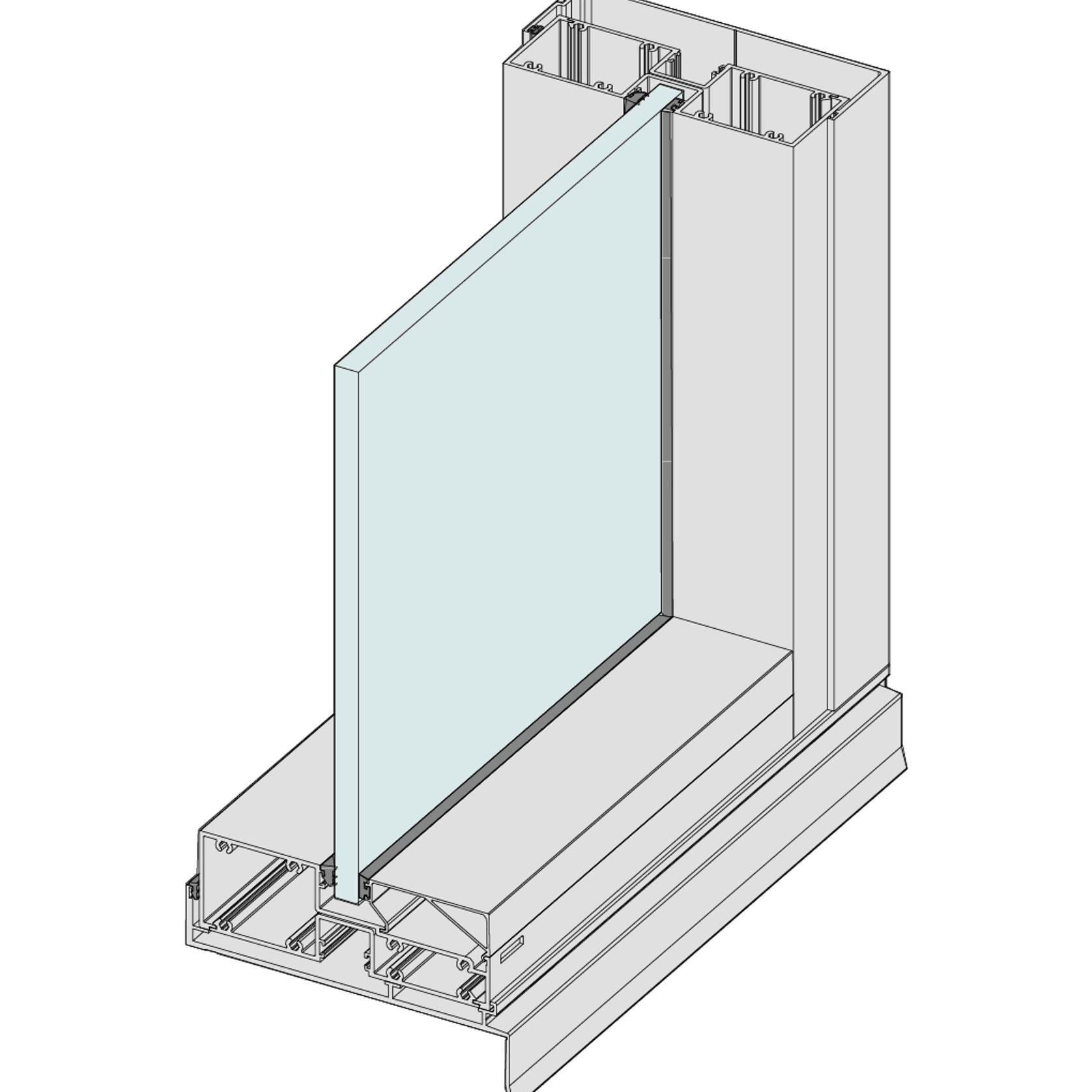

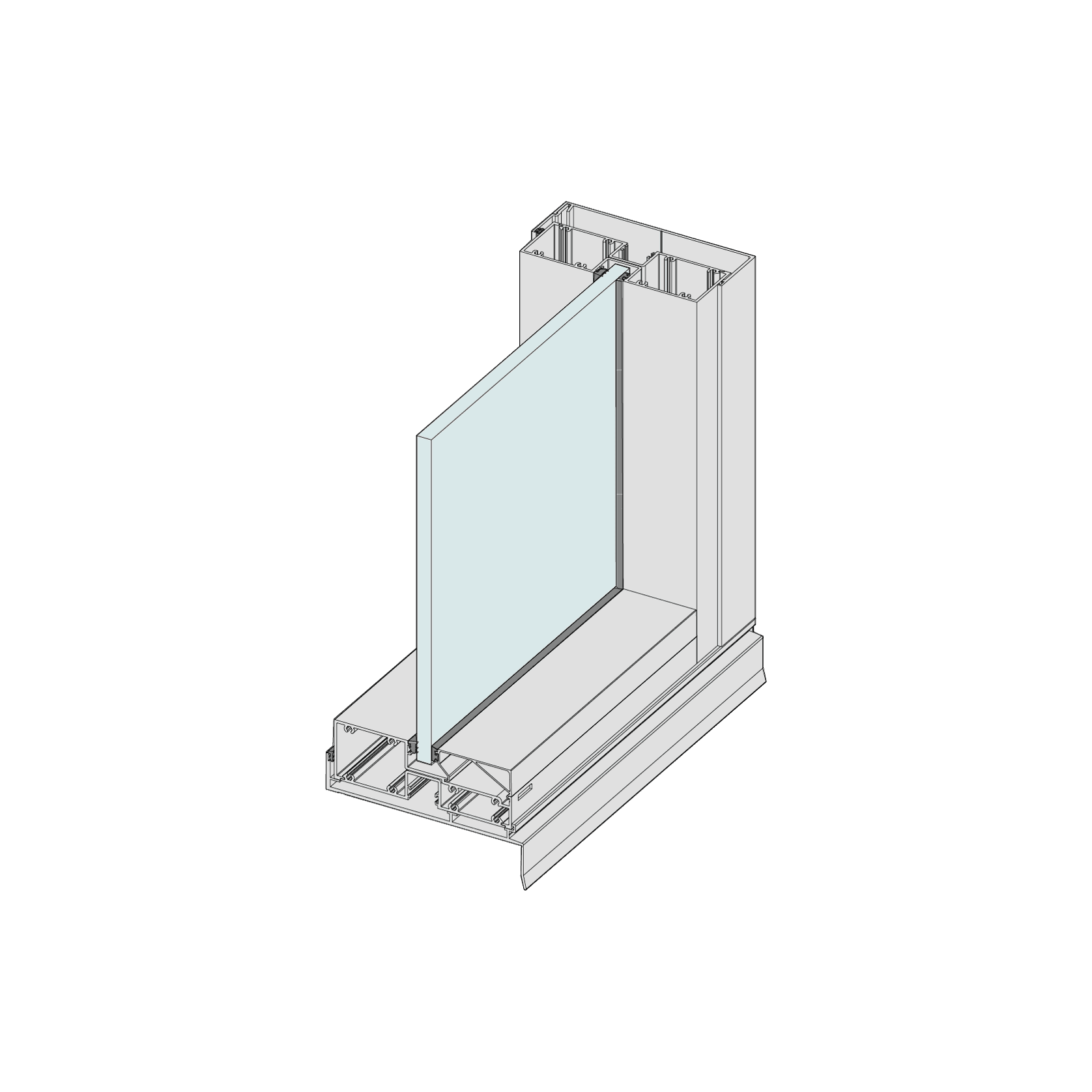

Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
Product Details
- Product
- Elevate | Series 620 | Single Glazed 150mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Kister ArchitectsArchitects
Create ArchitectureArchitects
Hindley & CoArchitects
Shane Marsh ArchitectArchitects
Brcar Morony ArchitectureArchitects
BANHAM ArchitectsArchitects
Studio SnellArchitects
Chan ArchitectureArchitects
Freckle ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Taylor KnightsArchitects
AO Design StudioArchitects
Woods BagotArchitects
J Mammone ArchitectureArchitects
RobertsonCollectifArchitects
Robert Harwood ArchitectsArchitects
ArdelArchitects
DX ArchitectsArchitects
Design by JonesInterior Designers
Gold Leaf ConstructionsBuilders
Design by ADBuilding Designers
Nadine K DesignBuilding Designers
Centor®Manufacturers and Suppliers
Reitsma & AssociatesBuilding Designers
Distinct InnovationsDesign & Build
Cunningham Custom HomesDesign & Build
APC BuildBuilders
Escea Fireplace CompanyManufacturers and Suppliers
Glow DesignBuilding Designers
Alberse HomesBuilders
Seidler GroupDesign & Build
Studio UrboBuilding Designers
Millboard DeckingManufacturers and Suppliers
Walters MacriPhotographers
Venn ConstructionsBuilders
Alex Urena Design StudioBuilding Designers
KarmatectureBuilding Designers
Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
- Specs
- Compatible with a large range of other Elevate™ framing systems, including sliding doors.
- Snap together and interlocking expansion mullions.
- Matching 50mm thick hinged, pivot or sliding door; each designed to accept 24mm thick double glazing and a large variety of industry standard hardware.
- Two fully beaded midrail sizes to choose from (125mm and 200mm deep).
- Concealed overhead transom also designed to accept 24mm IGUs.
- We can insert awning sashes into the framing - if required. These sashes will also accept 24mm IGUs
- Maximum Panel Height *Various
- Maximum Panel Width *Various
- Maximum Glass Thickness ≤ 15.50mm
- SHGC Range 0.23 - 0.72
- Uw Range 4.4 - 6.3
