Elevate | Series 624 | Double Glazed 150mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 398.8K profile views
- 36 saves

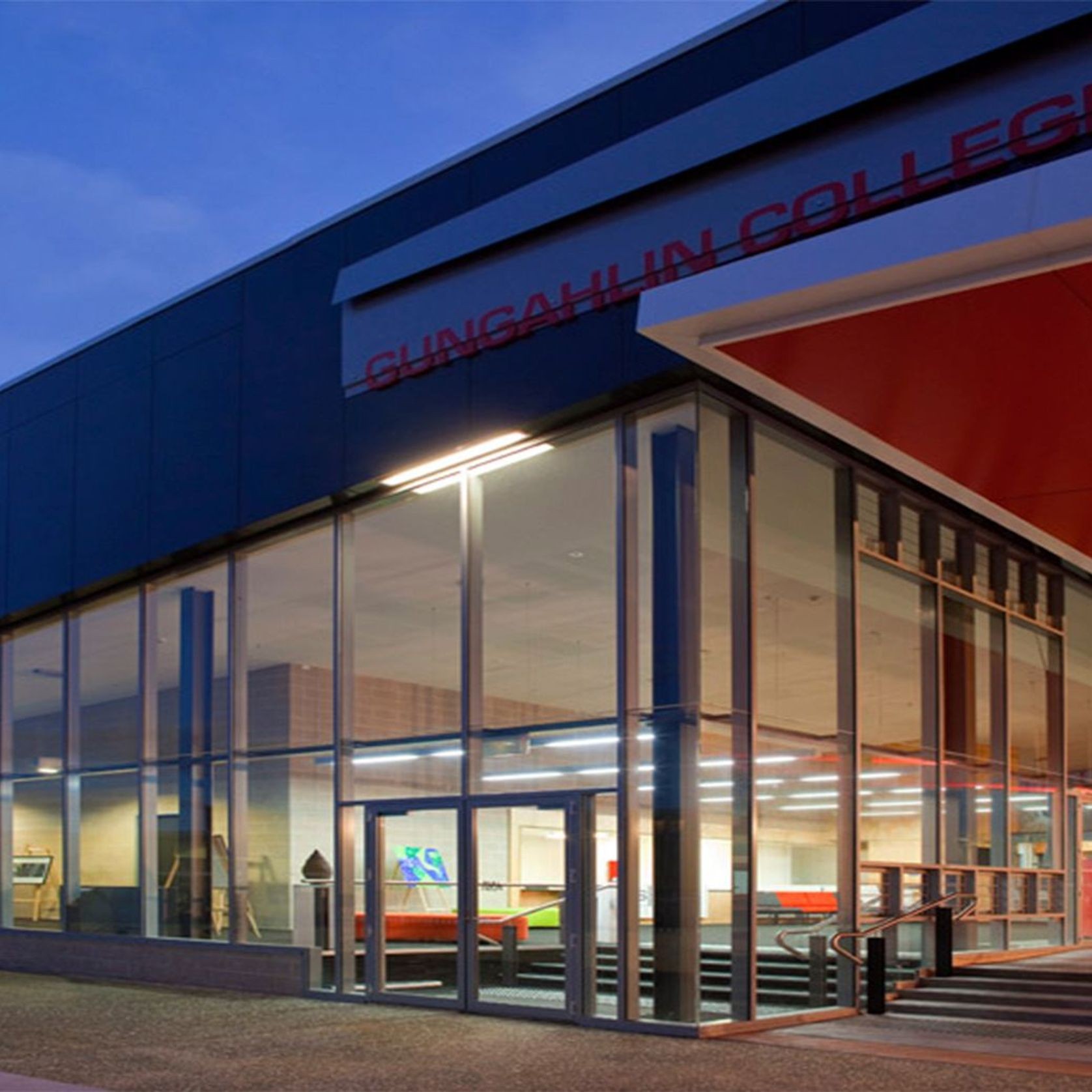

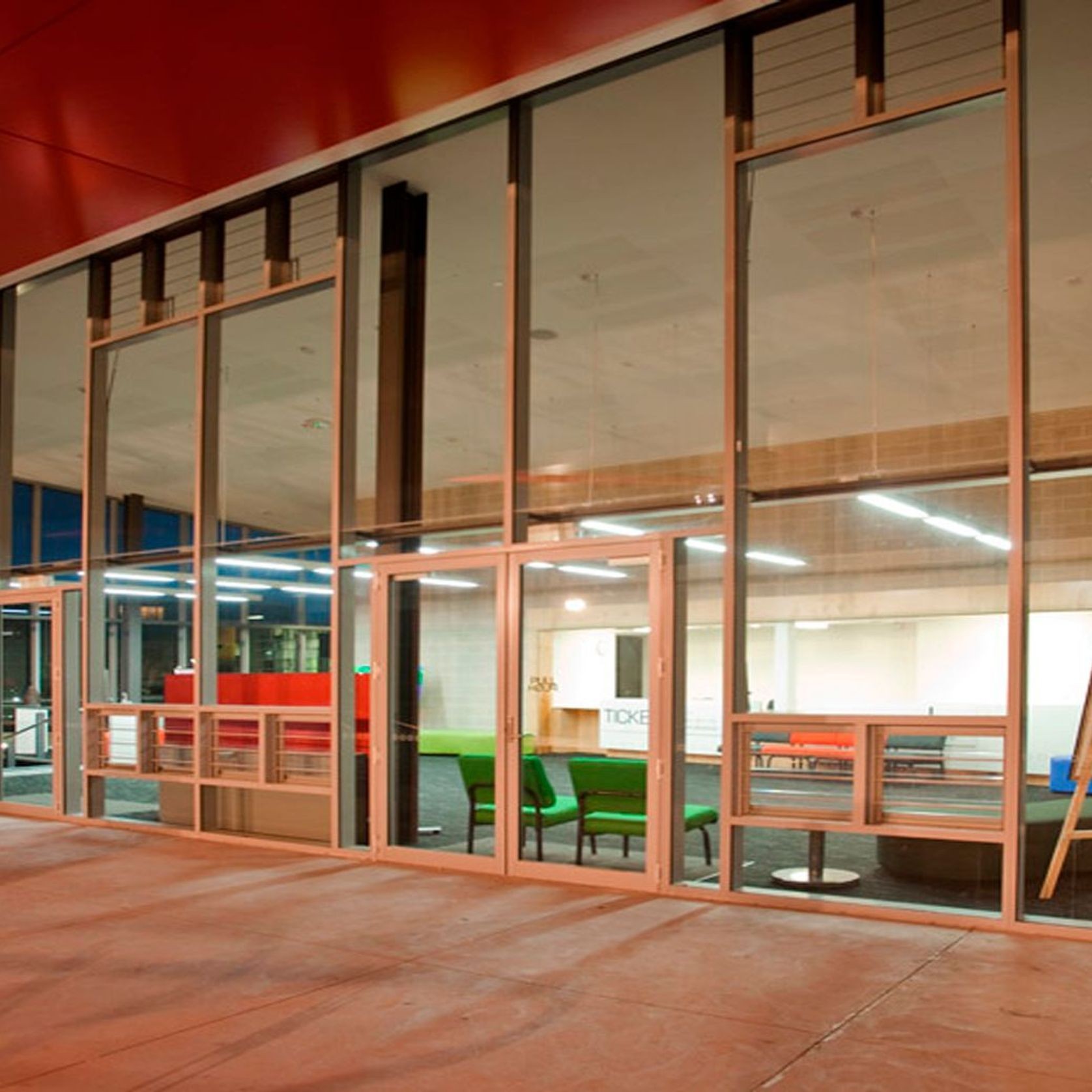

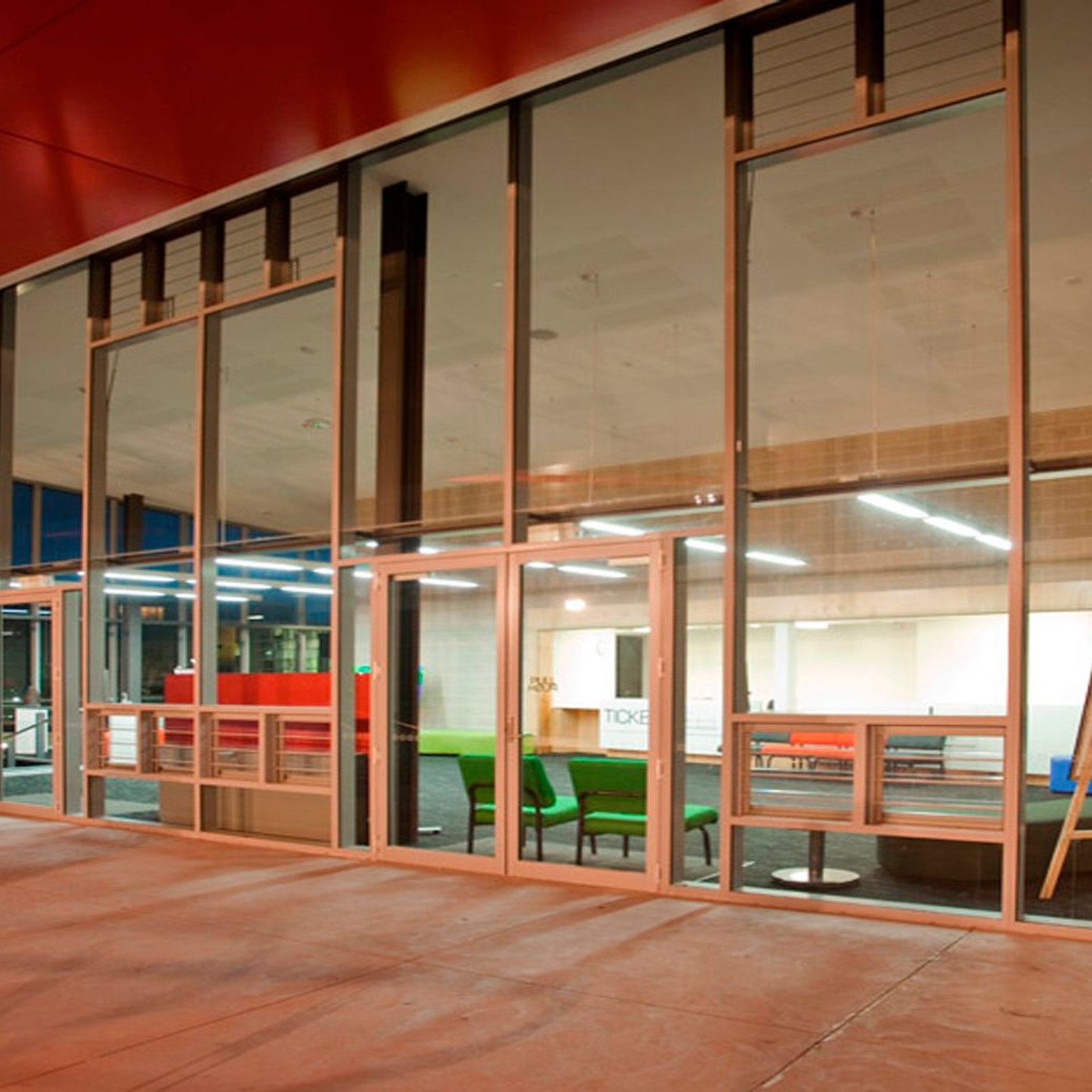

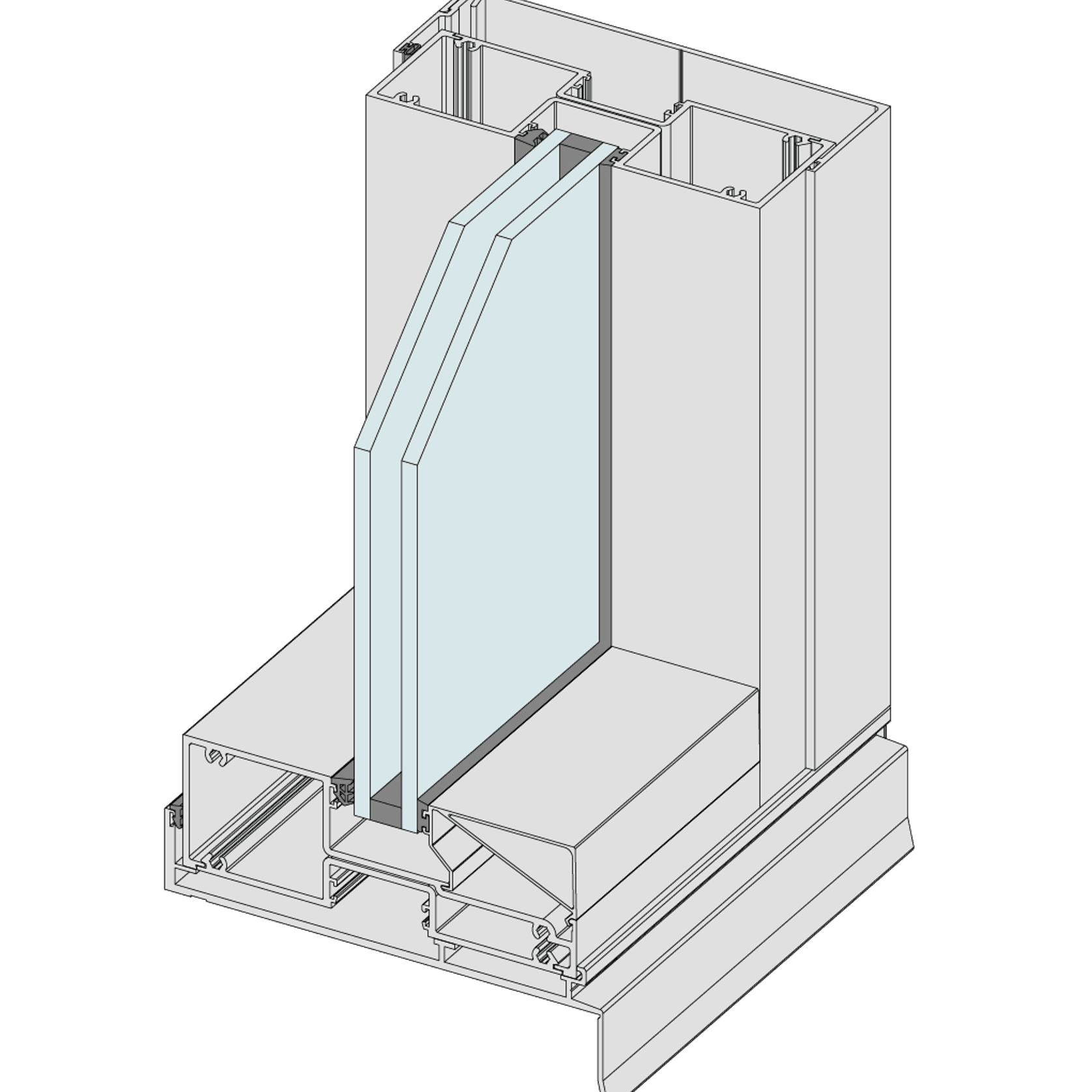

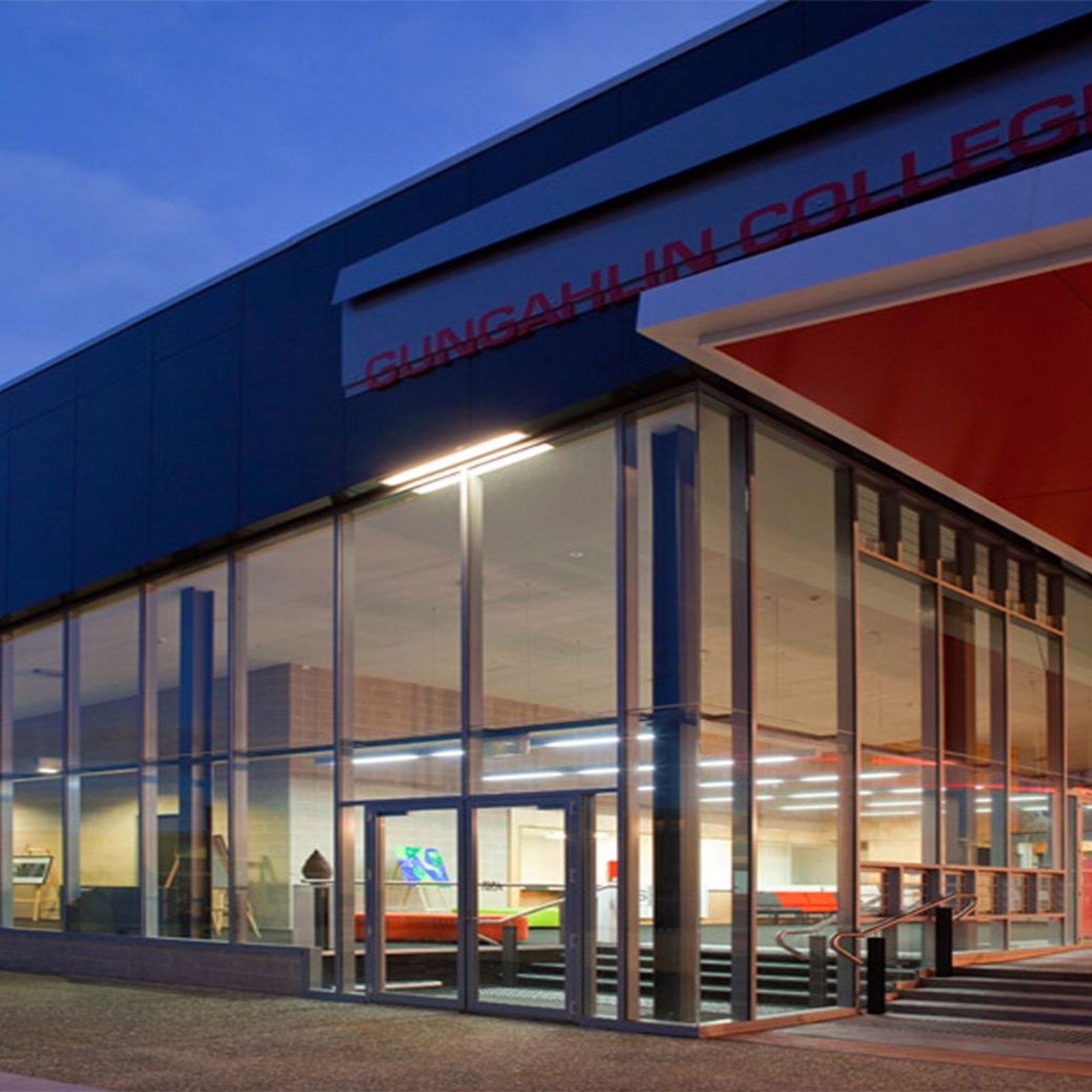

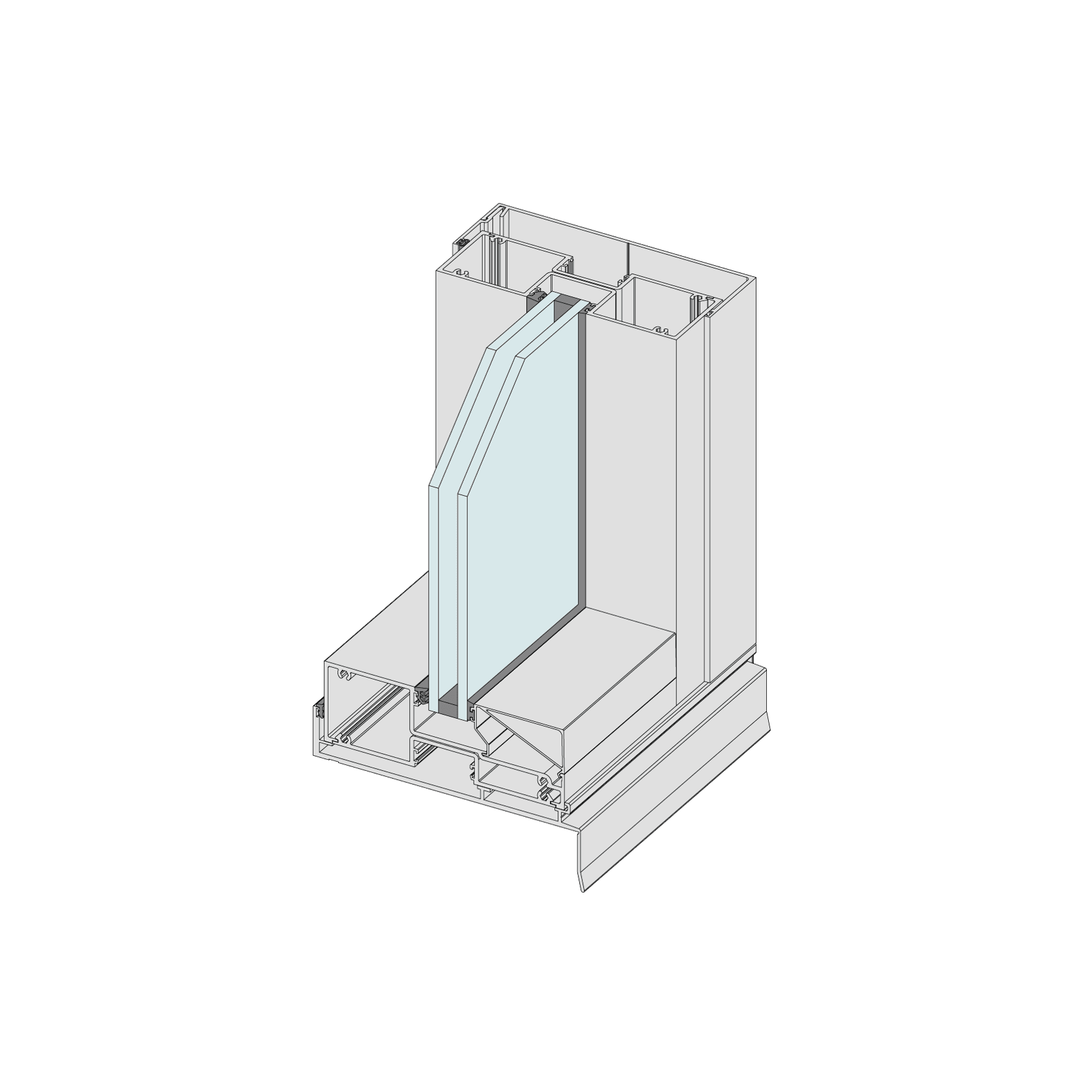

Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
Product Details
- Product
- Elevate | Series 624 | Double Glazed 150mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
