Elevate | Series 426 | Double Glazed Framing
by Architectural Window Systems
City of Liverpool, Australia
- 392.0K profile views
- 36 saves
Double glazed FrontGLAZE™ framing system designed specifically to accept 24mm Insulating Glass Units (IGUs) with the required 12mm glass bite.
Product Details
- Product
- Elevate | Series 426 | Double Glazed Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Studio SnellArchitects
Kister ArchitectsArchitects
Woods BagotArchitects
Shane Marsh ArchitectArchitects
Freckle ArchitectureArchitects
J Mammone ArchitectureArchitects
Robert Harwood ArchitectsArchitects
Brcar Morony ArchitectureArchitects
Chan ArchitectureArchitects
AO Design StudioArchitects
RobertsonCollectifArchitects
DX ArchitectsArchitects
BANHAM ArchitectsArchitects
Hindley & CoArchitects
ArdelArchitects
Habitat Studio ArchitectsArchitects
Create ArchitectureArchitects
Taylor KnightsArchitects
Design by ADBuilding Designers
Reitsma & AssociatesBuilding Designers
Studio UrboBuilding Designers
Escea Fireplace CompanyManufacturers and Suppliers
KarmatectureBuilding Designers
Walters MacriPhotographers
Millboard DeckingManufacturers and Suppliers
APC BuildBuilders
Alex Urena Design StudioBuilding Designers
Distinct InnovationsDesign & Build
Venn ConstructionsBuilders
Seidler GroupDesign & Build
Design by JonesInterior Designers
Glow DesignBuilding Designers
Alberse HomesBuilders
Cunningham Custom HomesDesign & Build
Centor®Manufacturers and Suppliers
Nadine K DesignBuilding Designers
Gold Leaf ConstructionsBuilders

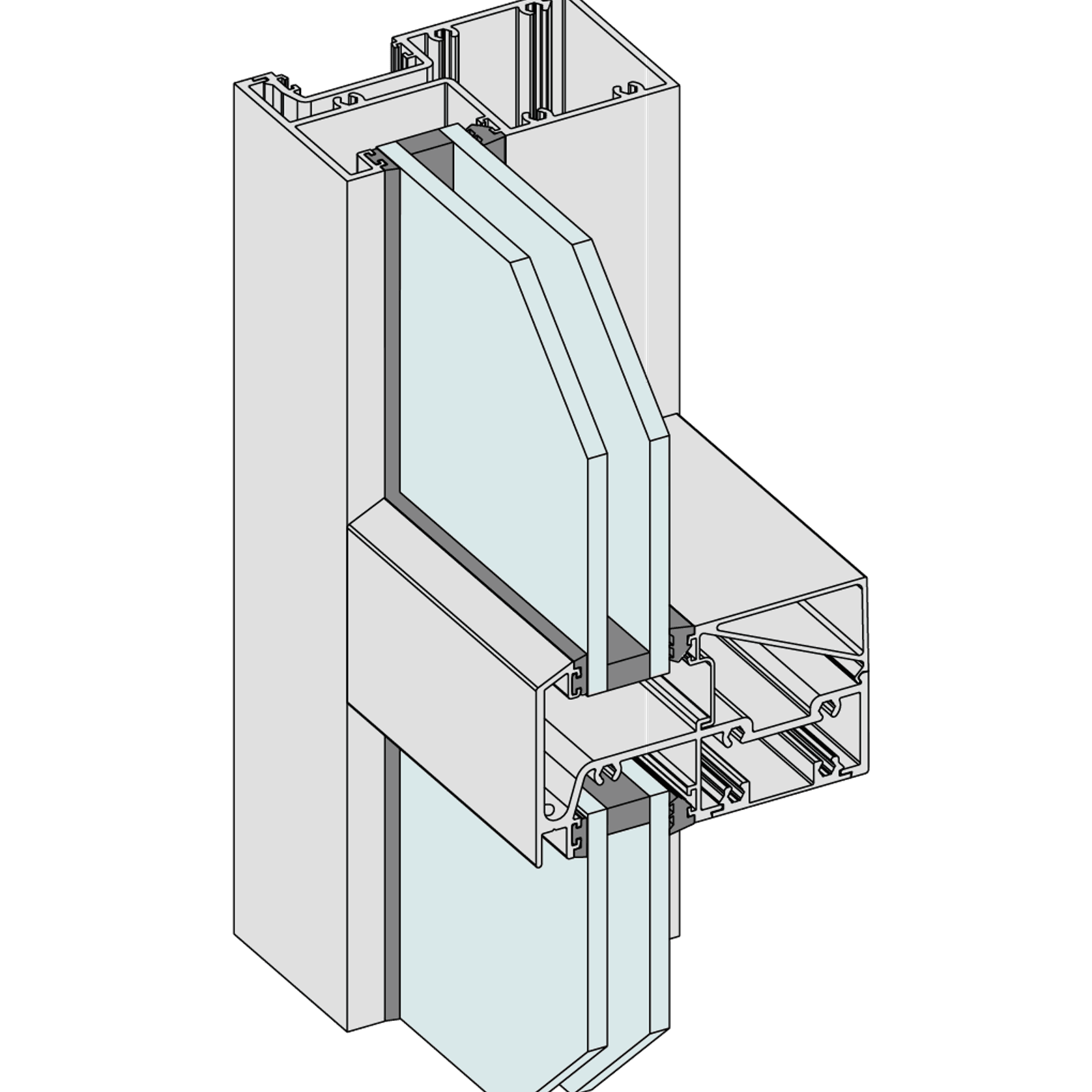

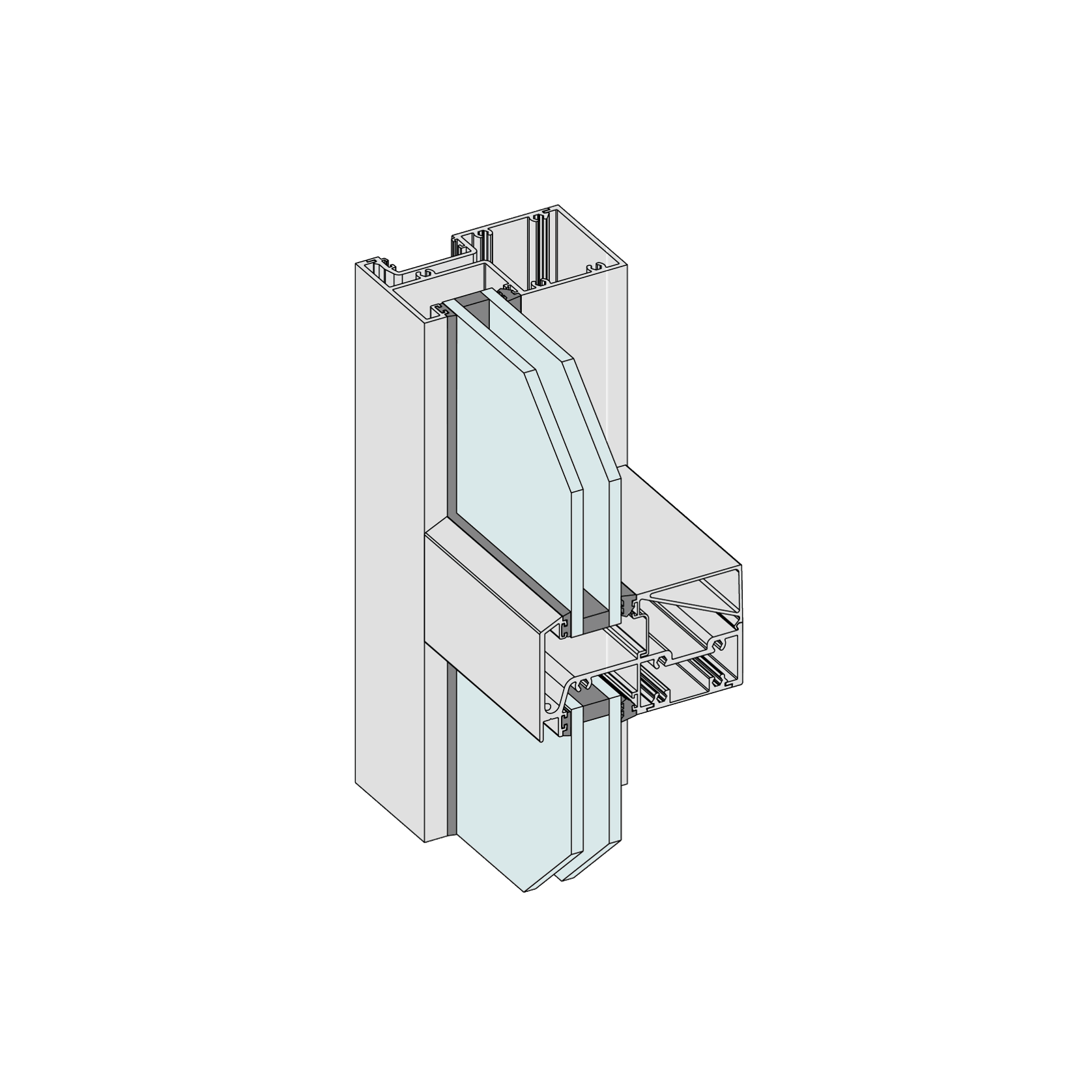

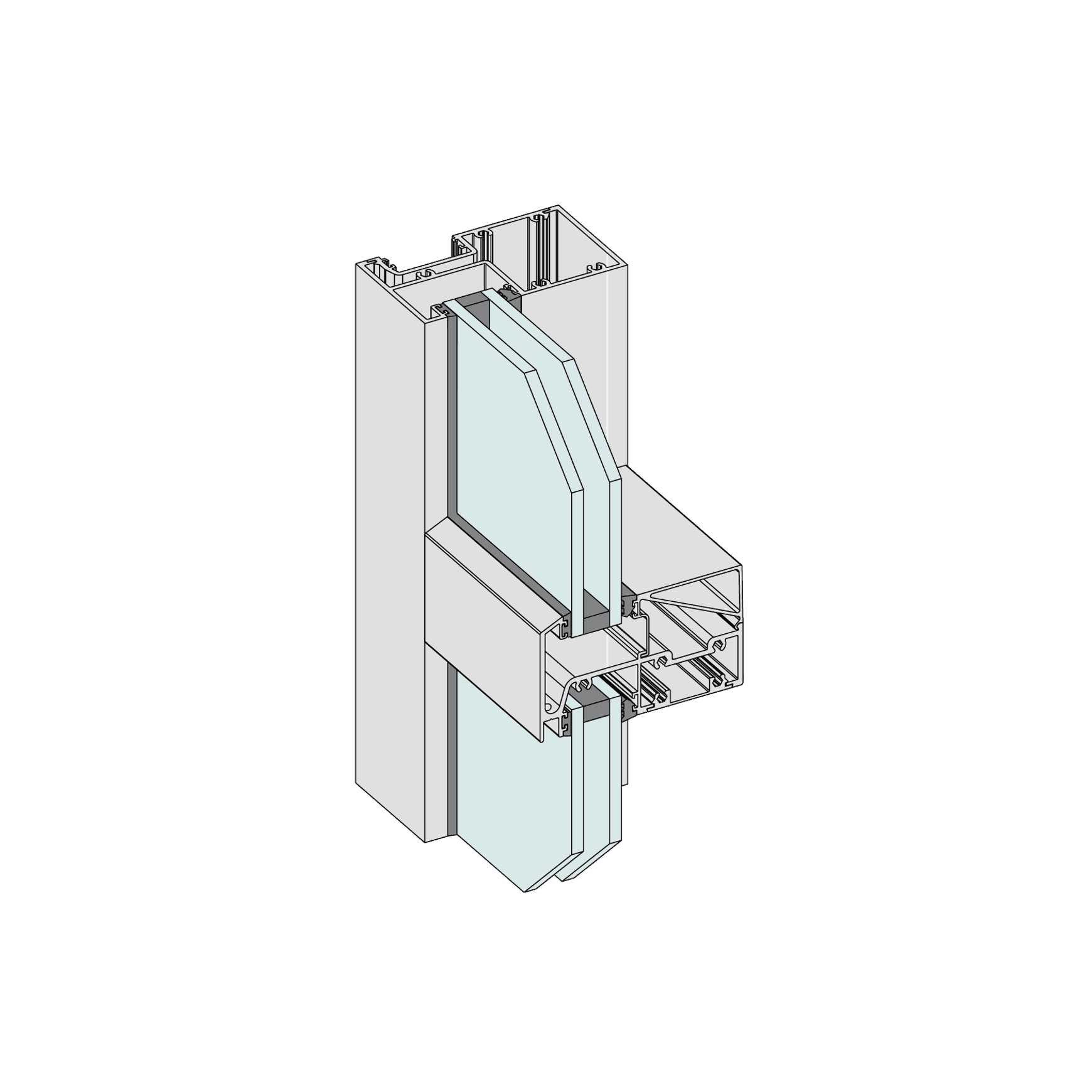

Double glazed FrontGLAZE™ framing system designed specifically to accept 24mm Insulating Glass Units (IGUs) with the required 12mm glass bite.
- Specs
- High water resistance can be achieved using the appropriate mullion and transom combinations. Has been successfully tested at 600Pa water resistance.
- The 102 x 60mm framing system has a variety of transom and mullion alternatives. This system will also accept many of the Series 400 CentreGLAZE™ frame accessories including doors, sub-frames and thresholds.
- Glazing pocket will accept co-extruded captive glazing wedges.
- Two mullion designs allow frames to be constructed with snap together mullion and expansion mullion with central weather leg for improved waterproofing.
- Alternative structurally glazed mullion.
- Optional midrail will also accept 24mm IGUs.
- Transoms have built-in drip groove to encourage water to leave the face of the framing.
- Sills and transoms are splayed at 25º to reduce the chance of dust and pollution build-up.
- Maximum Panel Height*Various
- Maximum Panel Width*Various
- Maximum Glass Thickness≤ 28mm
- SHGC Range0.18 - 0.66
- Uw Range2.7 - 3.6
