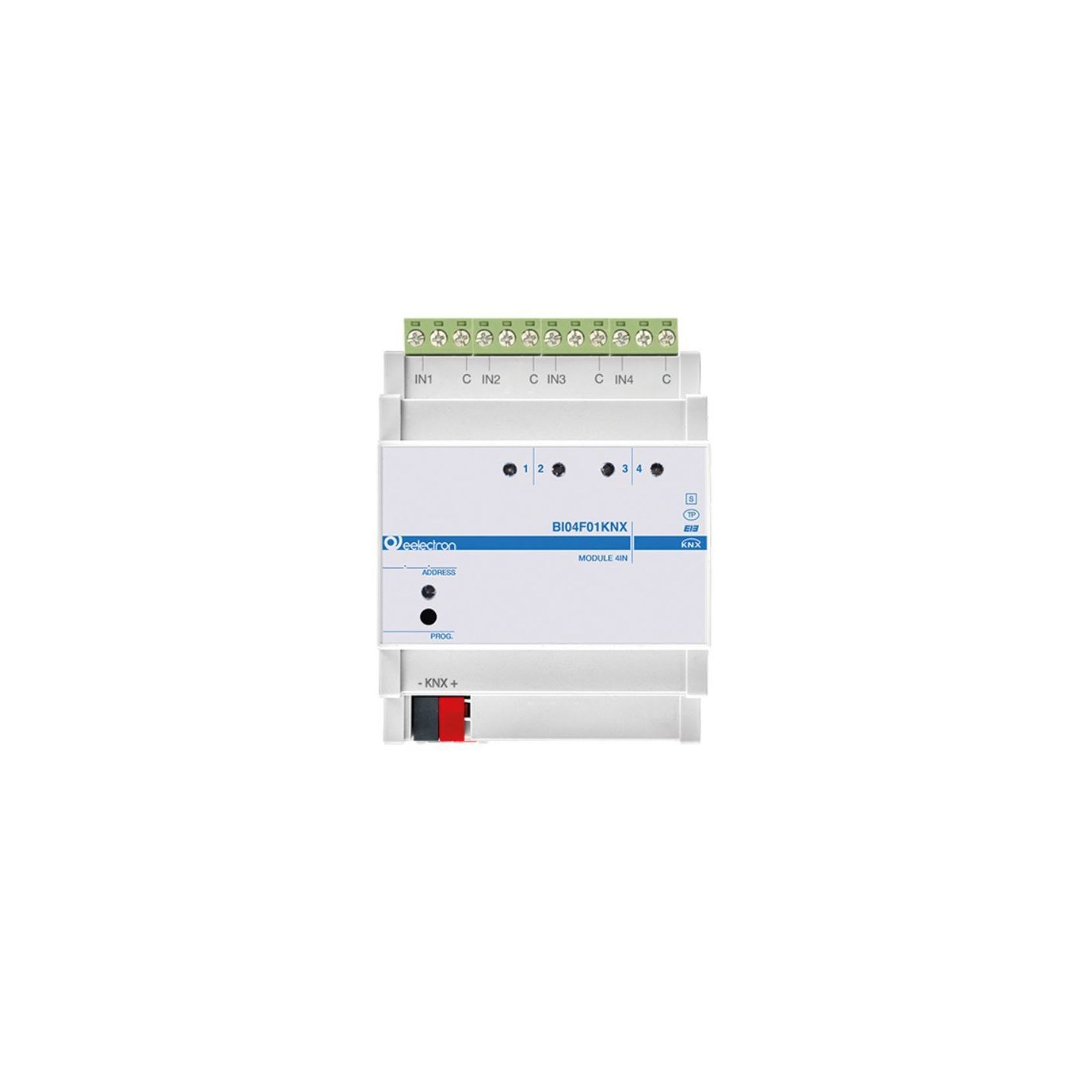

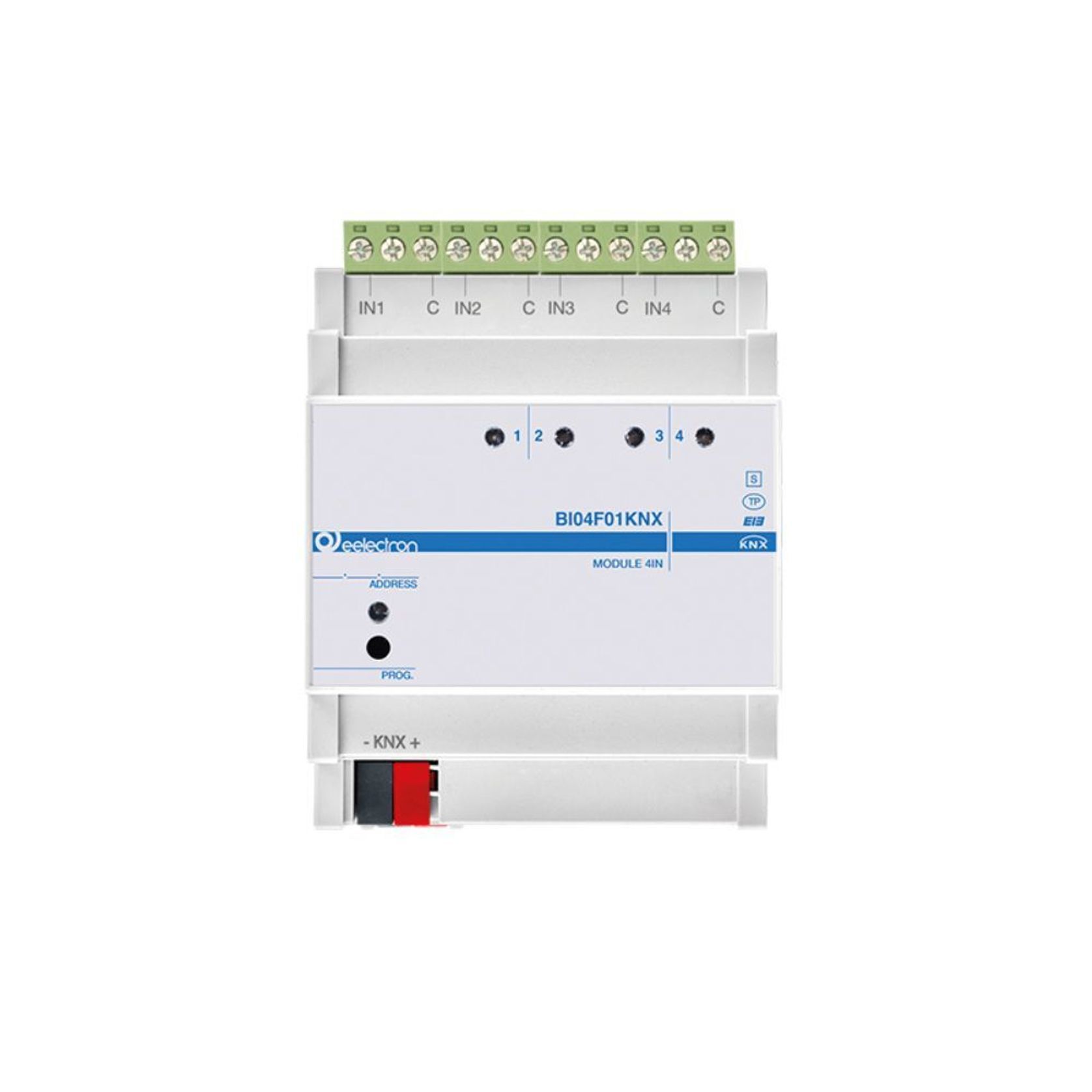

KNX Universal DIN Module 4 Digital Inputs
The Eelectron KNX Universal DIN Module 4 Digital Inputs (BI04F01KNX) is a DIN rail-mounted device that can connect to a wide range of dry contact inputs and improve smart home and building automation systems. Equipped with 4 configurable digital inputs, this module offers extensive control and monitoring capabilities for modern intelligent buildings.
- CategoryHome Automation
- Country of originItaly
- Type of useCommercial and Residential
- InstallationProfessional installation required
- 4 Configurable Digital Inputs: Provides 4 inputs for interfacing with dry contacts such as sensors and switch buttons, allowing for flexible control options.
- Versatile Input Functions: Inputs can be configured for sending on/off commands, dimming, roller shutters, scene recall, and sequences to the bus.
- Pulse Counter Function: Available for counting switch actions on inputs configured for short distances, enhancing functionality.
- LED Status Indicators: Front panel LEDs display the status of each input, providing easy monitoring and diagnostics.
- Analogue Input Configuration: Inputs can be configured as analogue for connecting NTC temperature probes (eelectron codes TS01A01ACC or TS01B01ACC) to send temperature measurements on the bus or manage a complete thermostat module.
- Smart Sensor Compatibility: Two inputs can be configured assmart sensor for connecting plug-in sensors (SM03E01ACC with temperature and CO2 sensors, and SM03E02ACC with temperature and VOC sensors for indoor air quality and CO2 equivalent measurement).
- Advanced Logic Blocks: This includes 10 logic blocks to implement simple expressions with logical or threshold operators or complex expressions with algebraic and conditional operators.
- Proportional Control Algorithms: Supports predefined algorithms for proportional control of temperature, humidity, or dew point calculation.
- Reliable Performance: Built with high-quality materials and superior craftsmanship, ensuring durability and long-lasting performance.
- Made in Italy: This product reflects the excellence of Italian design and production, ensuring top-tier quality and reliability.
- Residential Homes: Enhance home automation with precise control and monitoring of lights, shutters, and various loads.
- Commercial Buildings: Provide advanced automation and energy management for offices, shopping centres, and other commercial spaces.
- Hotels: Optimise guest experience and operational efficiency with reliable control of various building functions.
- Building Automation: Integrate seamlessly with KNX systems for comprehensive automation and energy management across diverse building applications.
