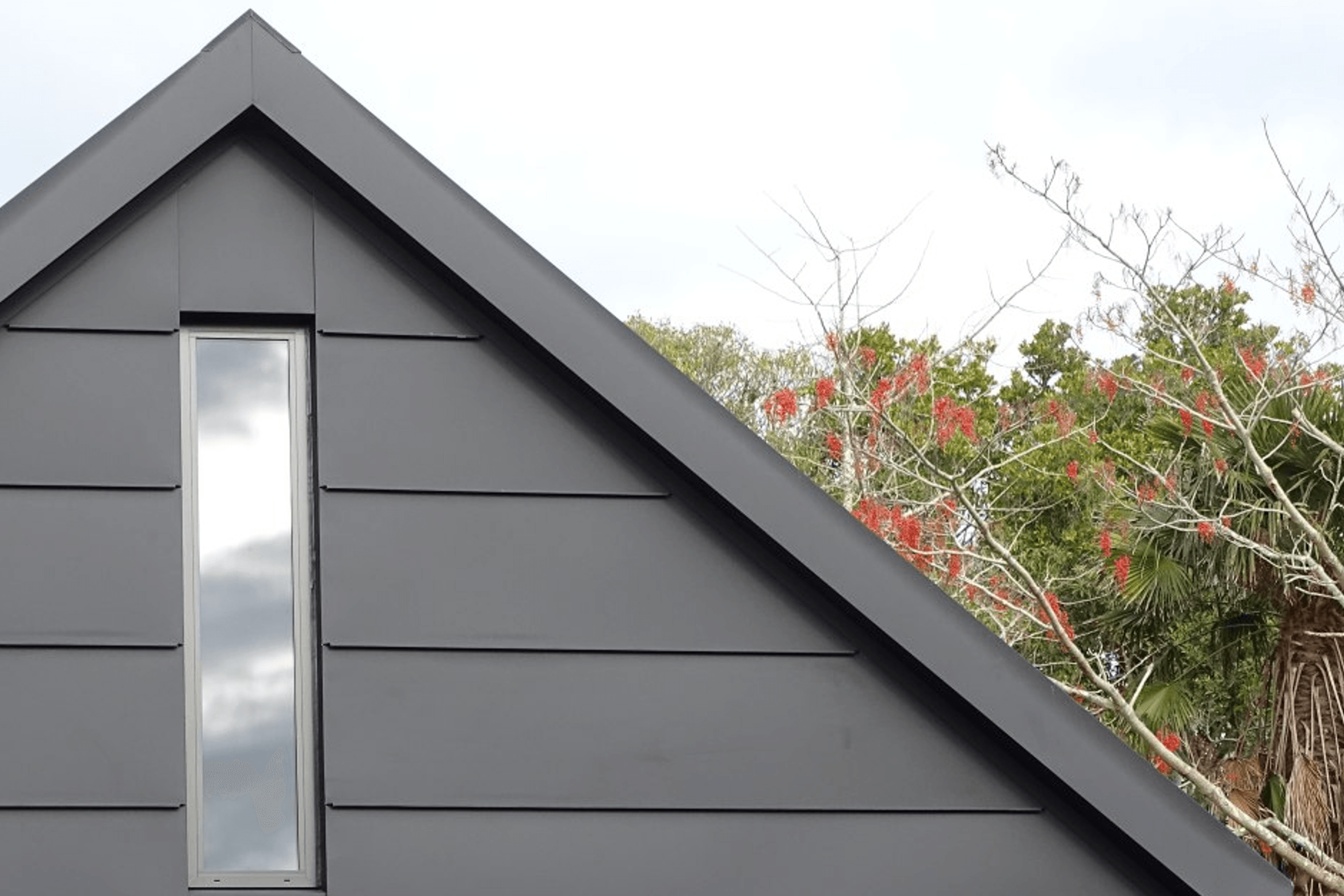

Smart Tray Flat Lock Cladding

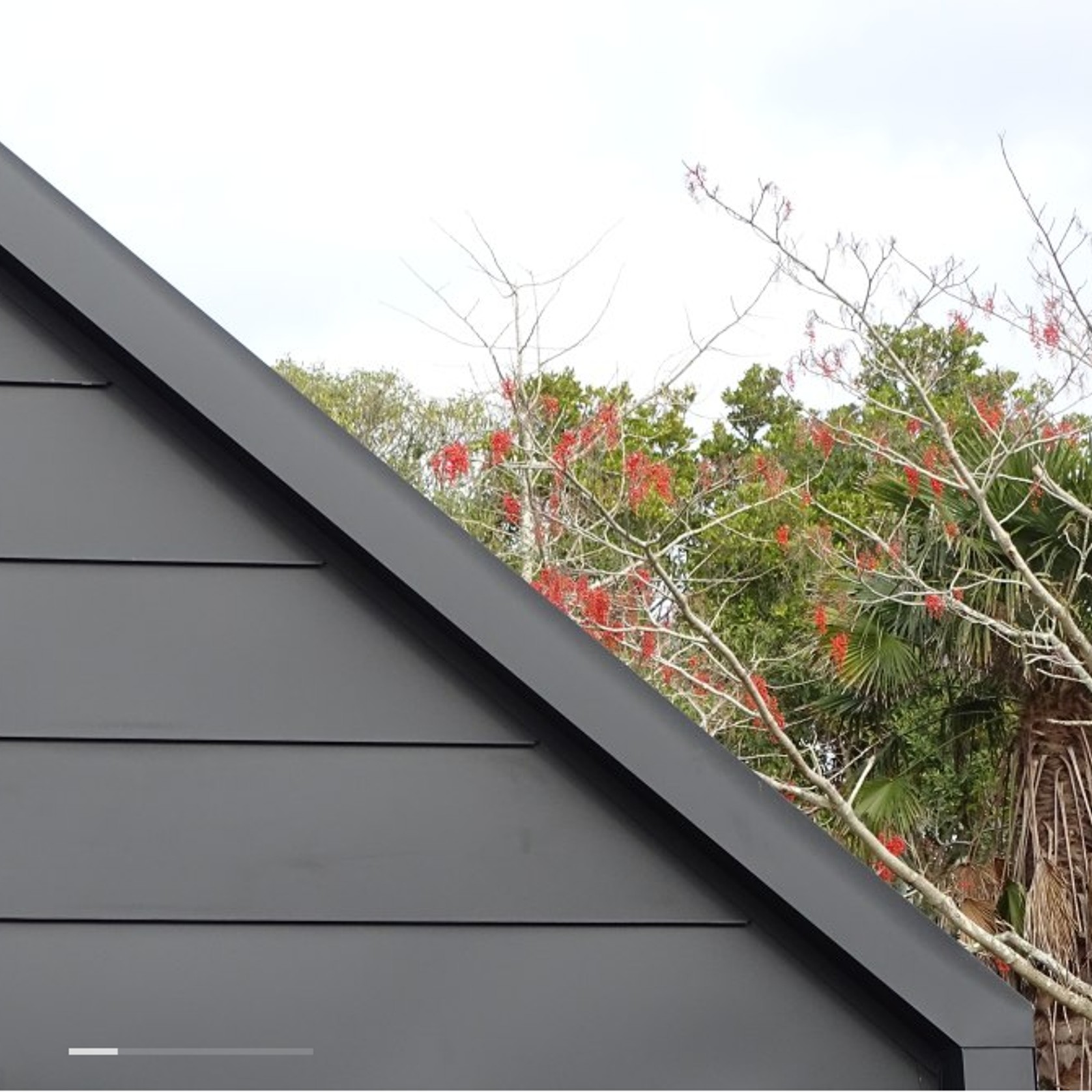

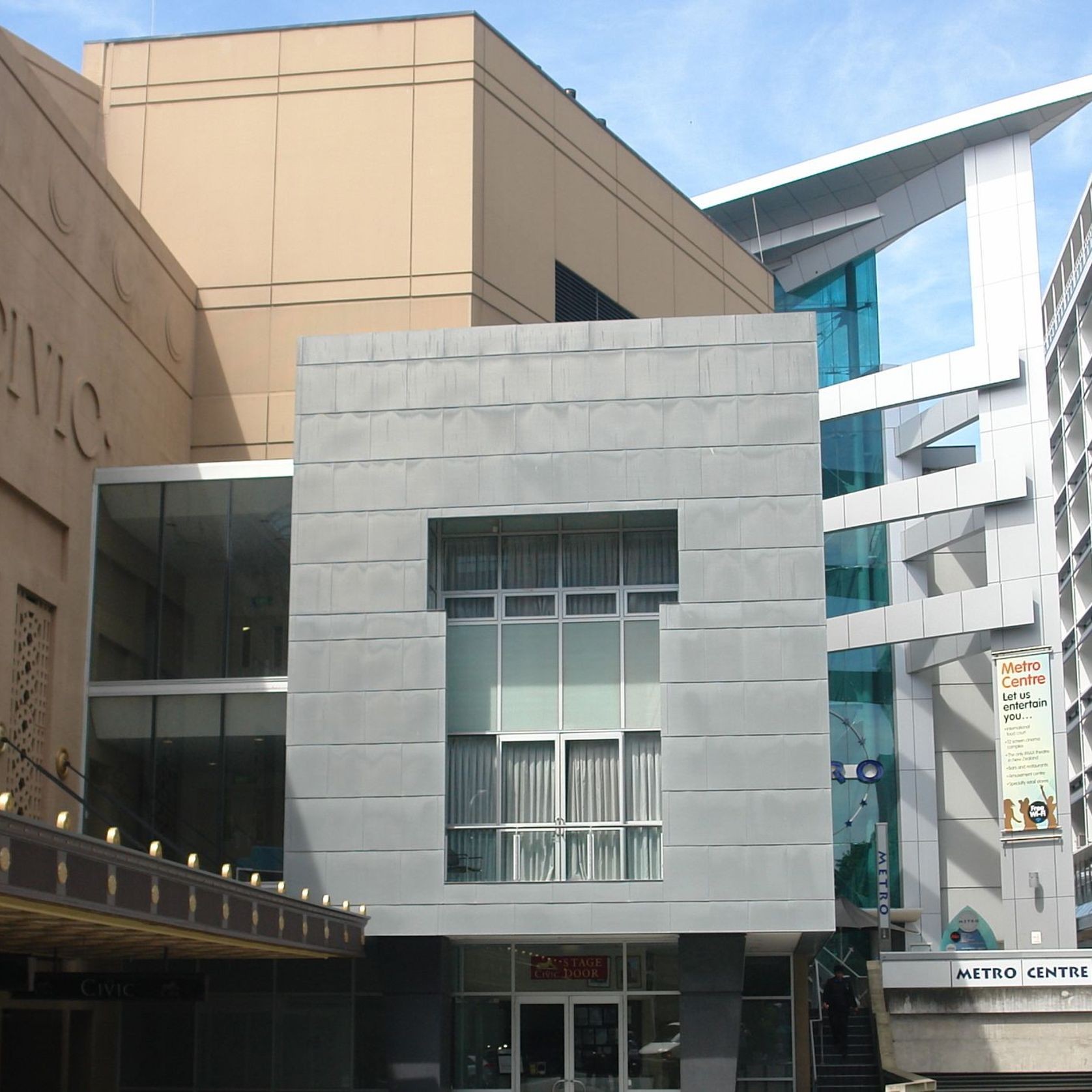

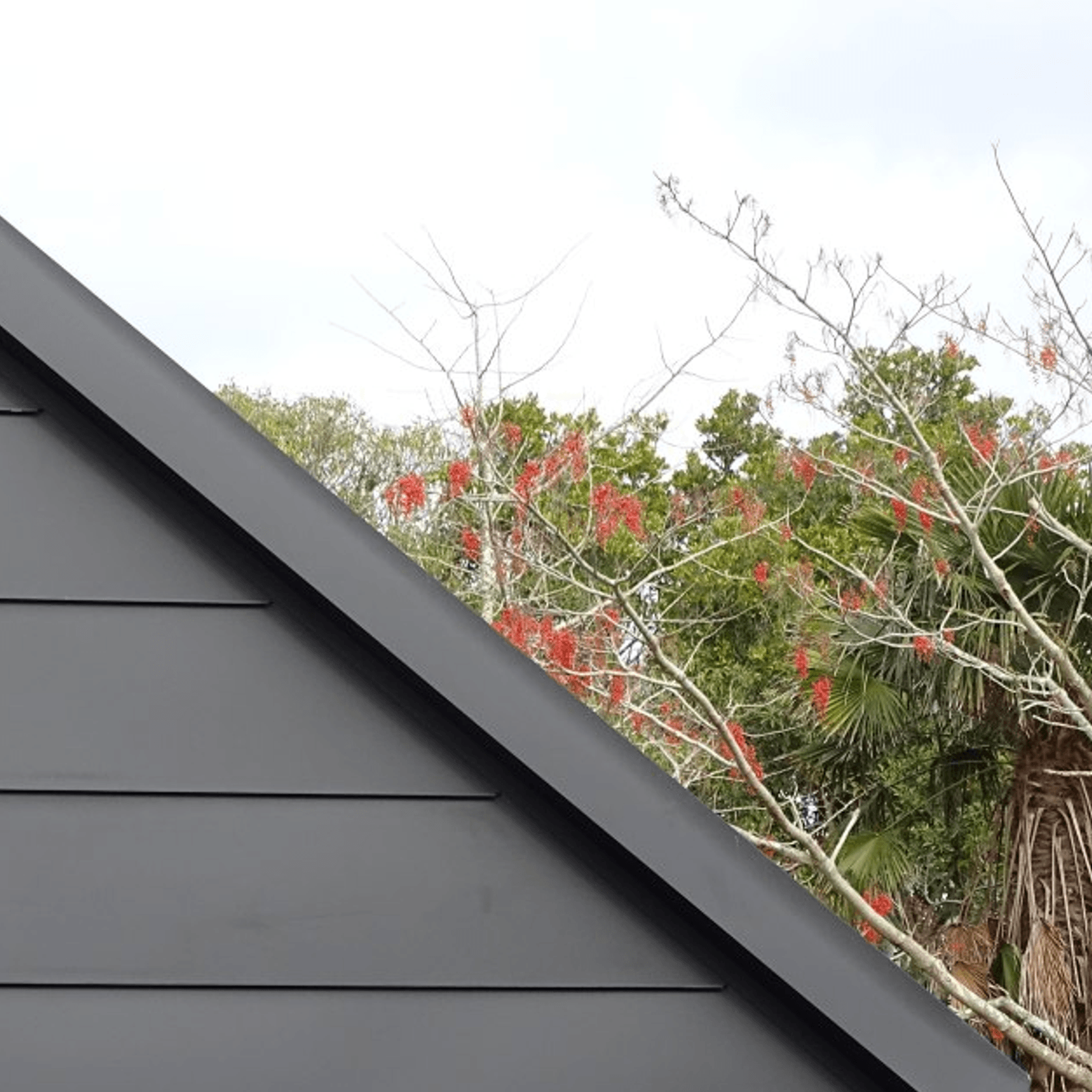

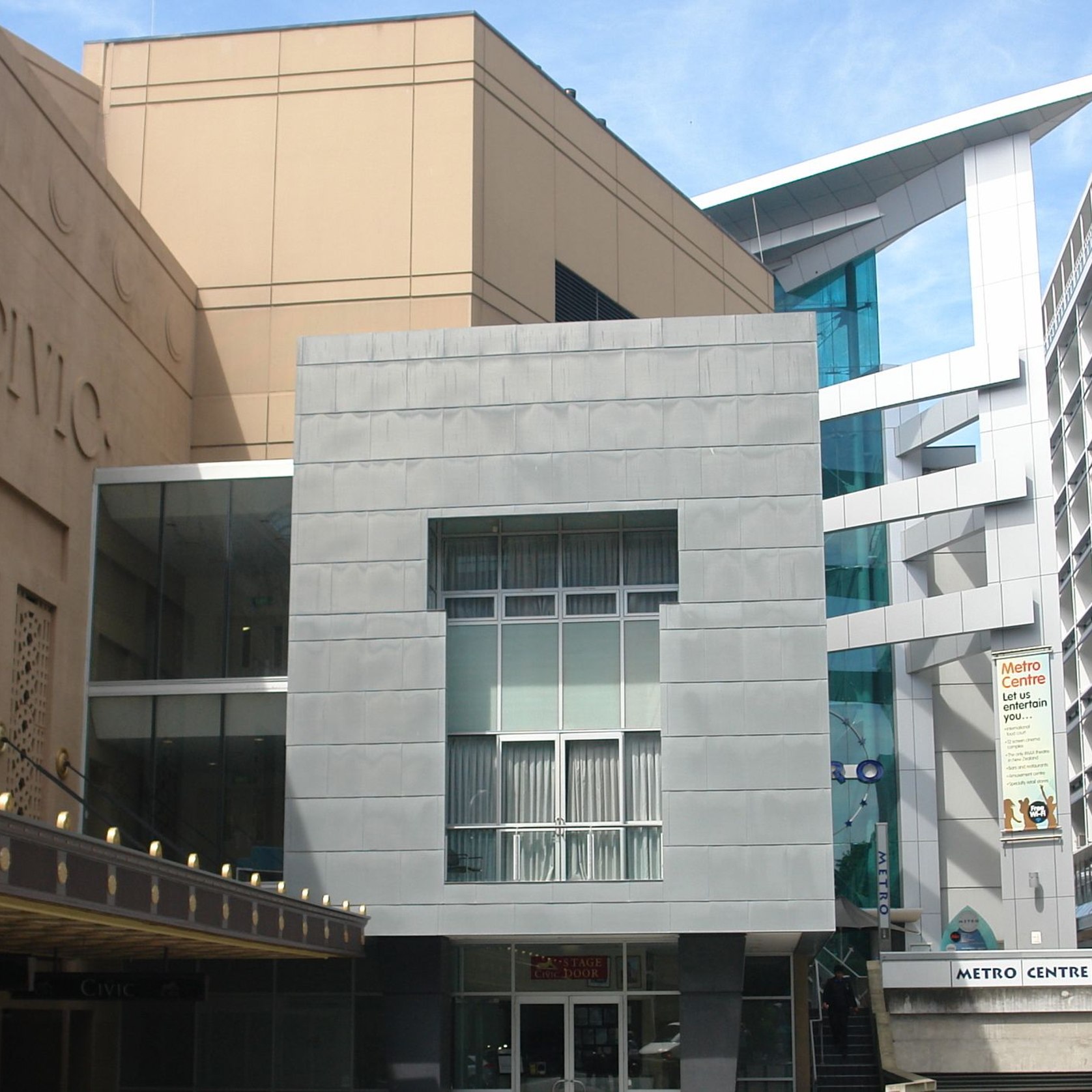

Smart Tray Flat Lock Cladding gallery detail image

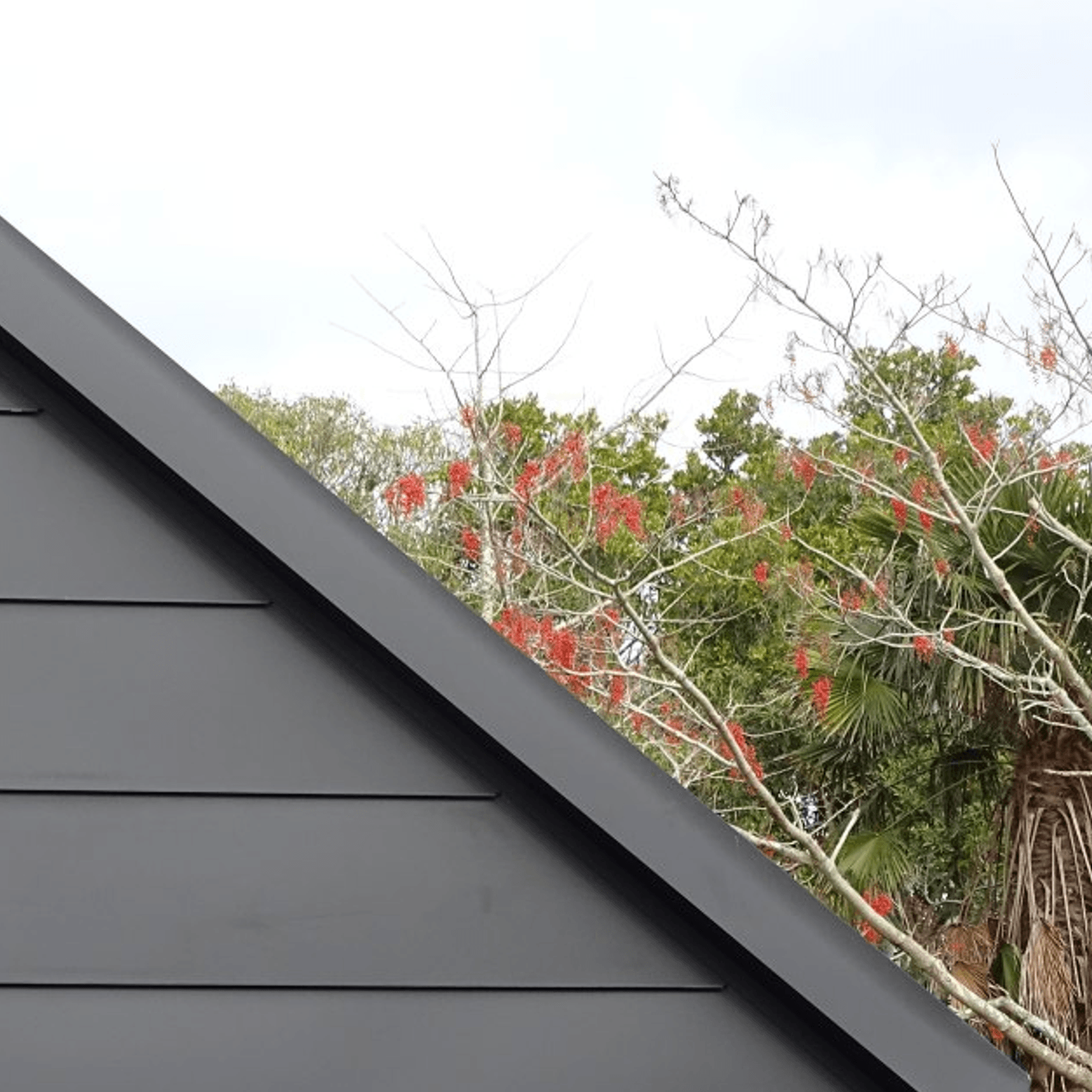

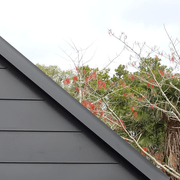

Smart Tray Flat Lock Cladding gallery detail image
Smart Tray Flat Lock Cladding gallery detail image

Flat Lock panels offer an elegant cladding solution for mid to large format facades with the panels providing an enhanced longitudinal flat seam. The system uses an interlocking fold on all four sides and can be installed either horizontally or vertically. The pre-formed panels are installed with concealed clips.

The system involves laying the panels on a compatible ply substrate that is fixed to the supporting structure (masonry or metal). To ensure the best possible quality and size in relation to the façade, the panels can be manufactured to the individual shape and size requirements.

This system requires pre-design and planning and you are encouraged to consult with the team at Architectural Metalformers to receive design advice.

Details

Category
Metal Cladding
Range
Smart Tray

General

Type of use
Commercial and Residential
Installation
Professional installation required
Assembly
Professional assembly required

Features

The system uses an interlocking fold on all four sides and can be installed either horizontally or vertically. The pre-formed panels are installed with concealed clips.

Downloads

Architectural Metalformers

Other products in this range

Smart Tray Standing Seam RoofingArchitectural Metalformers

Smart Tray Lock Seam RoofingArchitectural Metalformers

Smart Tray Flat Lock RoofingArchitectural Metalformers

Smart Tray Snap-Lock RoofingArchitectural Metalformers

Smart Tray Standing Seam Batten Cap RoofingArchitectural Metalformers

Smart Tray Custom Metal RoofingArchitectural Metalformers

Smart Tray Lock Seam CladdingArchitectural Metalformers

Smart Tray Barcode CladdingArchitectural Metalformers

Smart Tray Batten Cap CladdingArchitectural Metalformers

Smart Tray Snap-Lock CladdingArchitectural Metalformers

Projects featuring Smart Tray Flat Lock Cladding

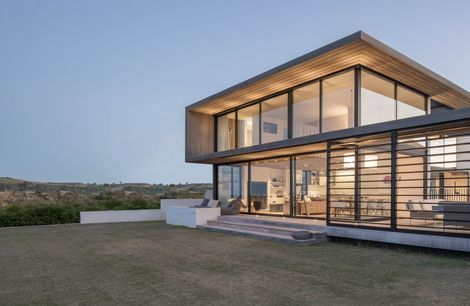

Woodhill FarmGNR Studio

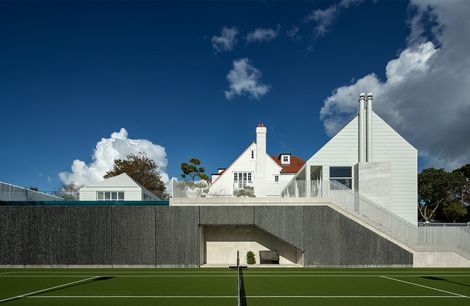

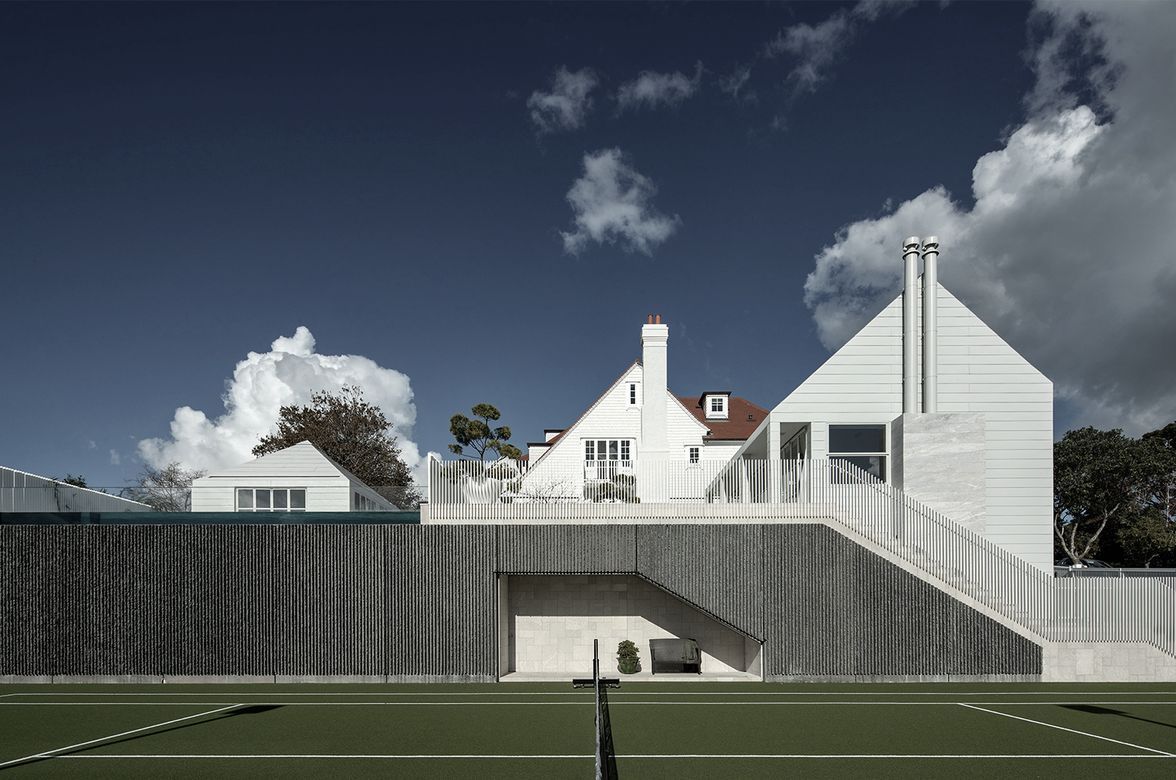

Recrafted Art HouseCrosson Architects

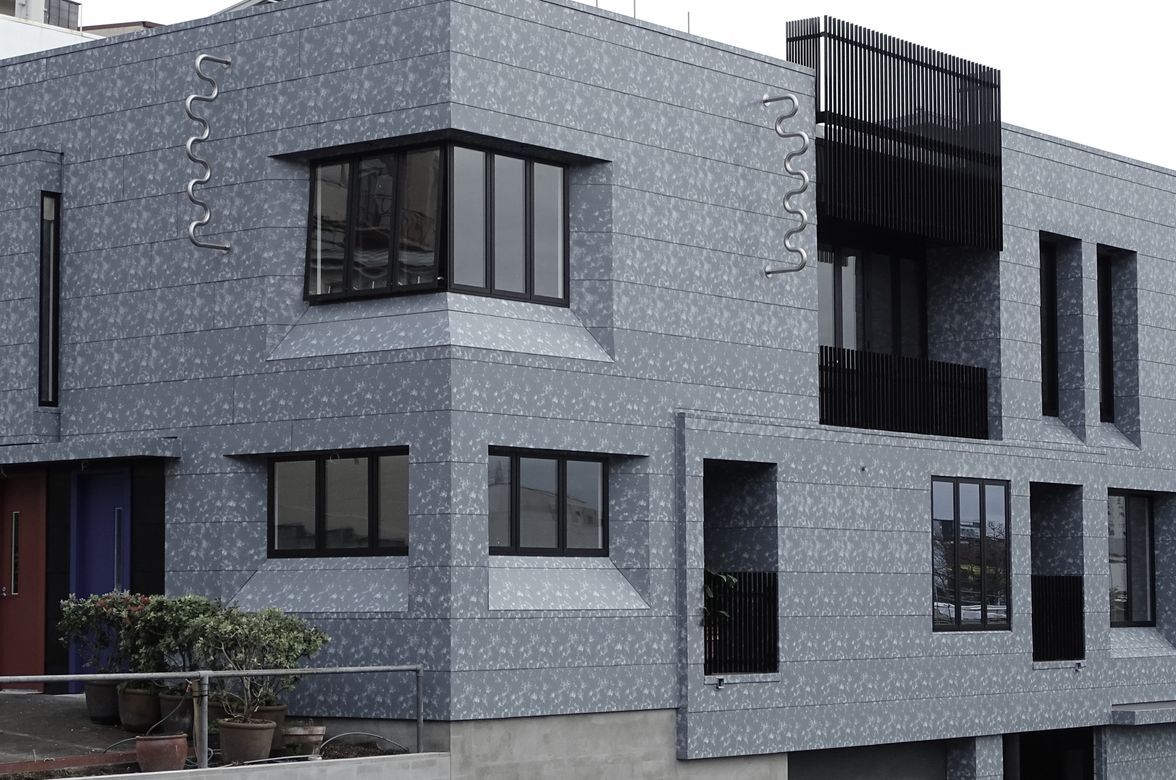

Mt Eden ApartmentsAmbro Metals
