Omega Retractable Pergola
- 182.8K profile views
- 35 saves
Increase your living space at the touch of a button.

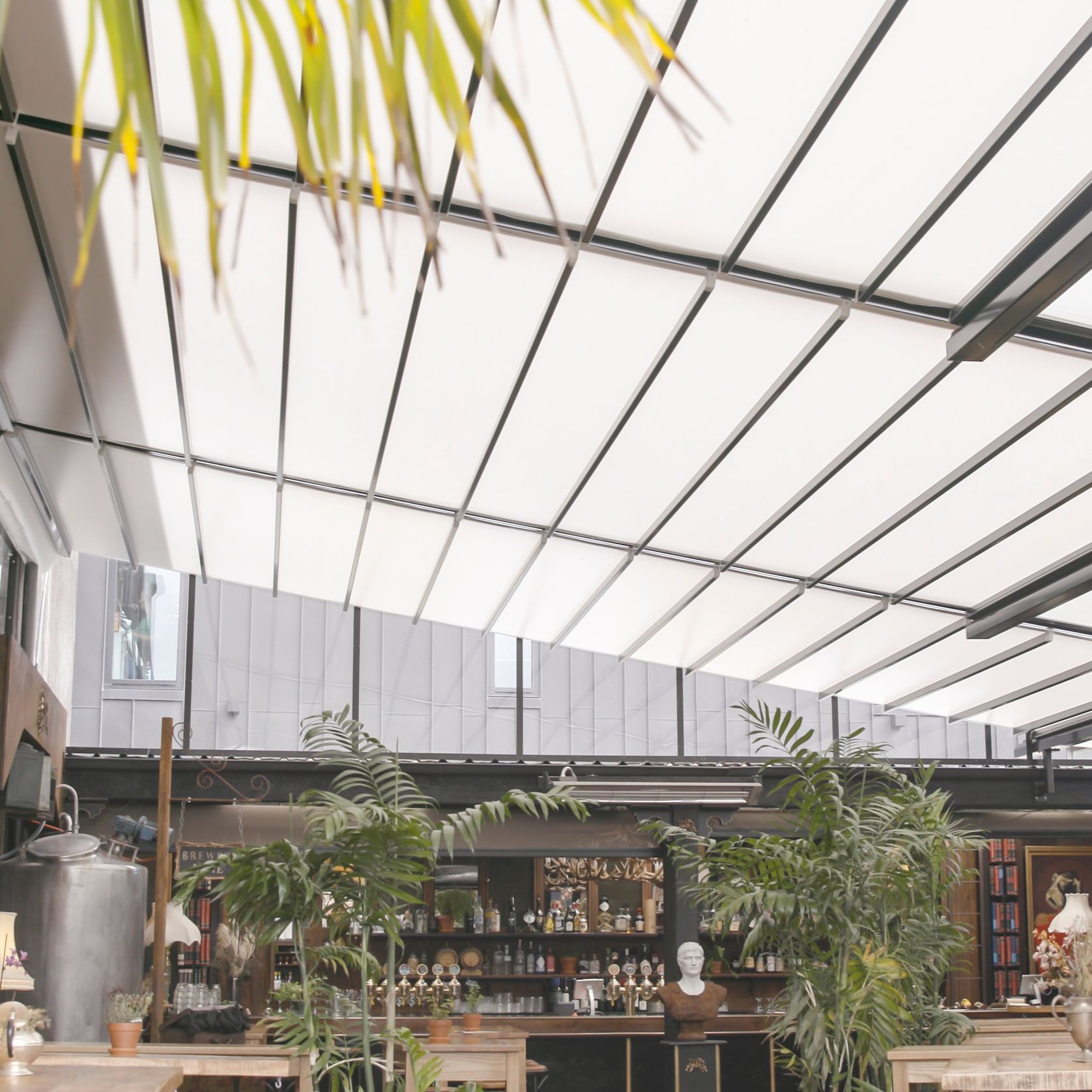

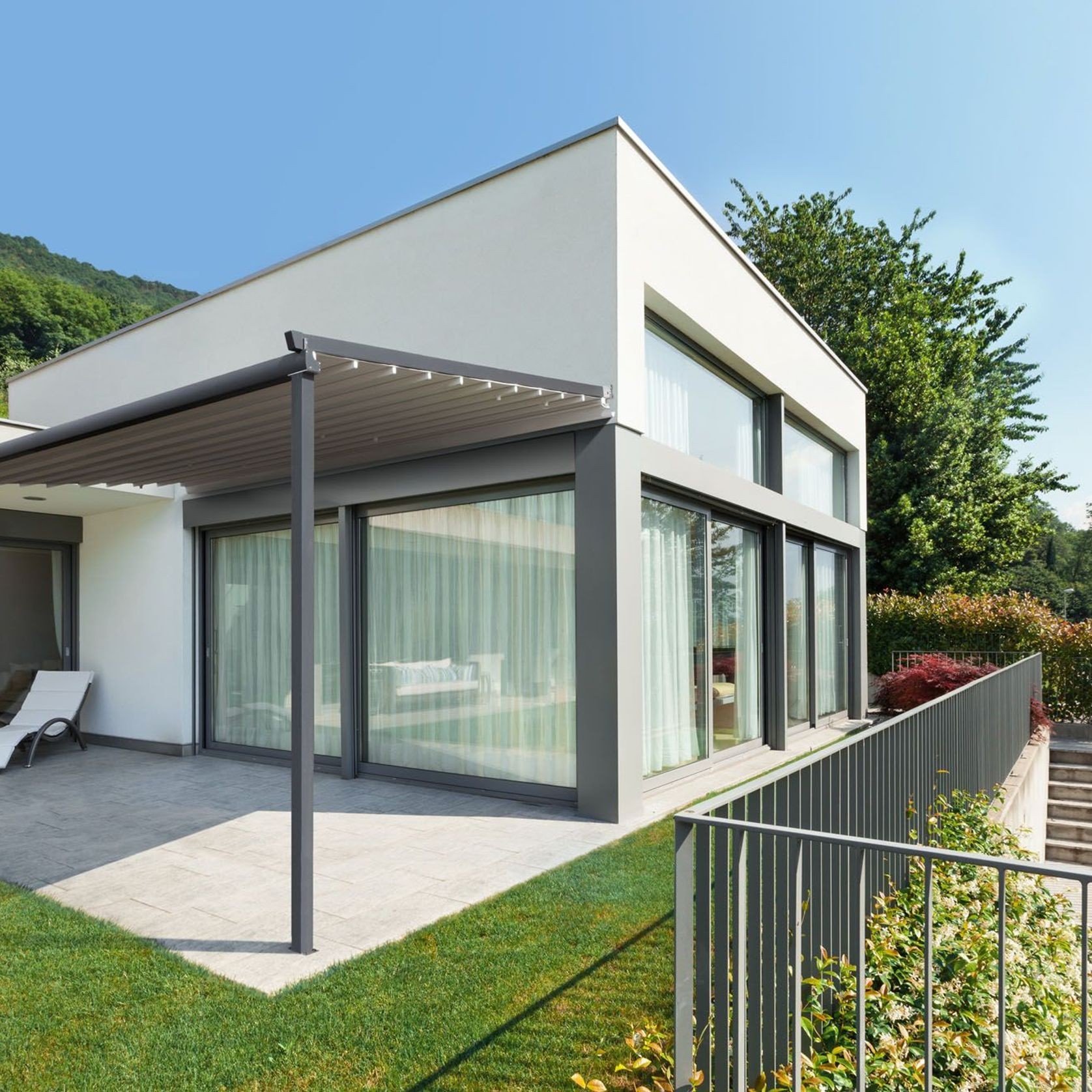

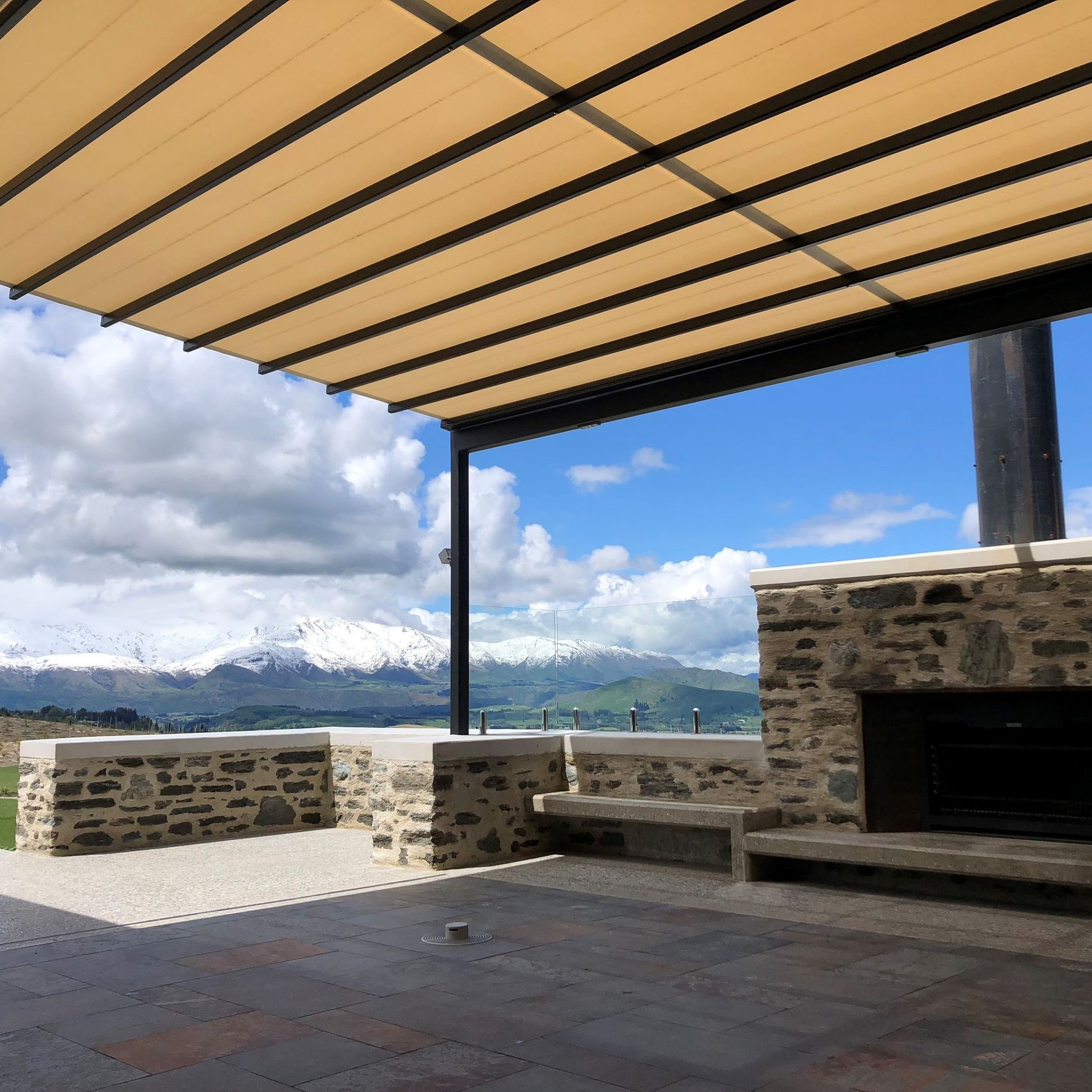

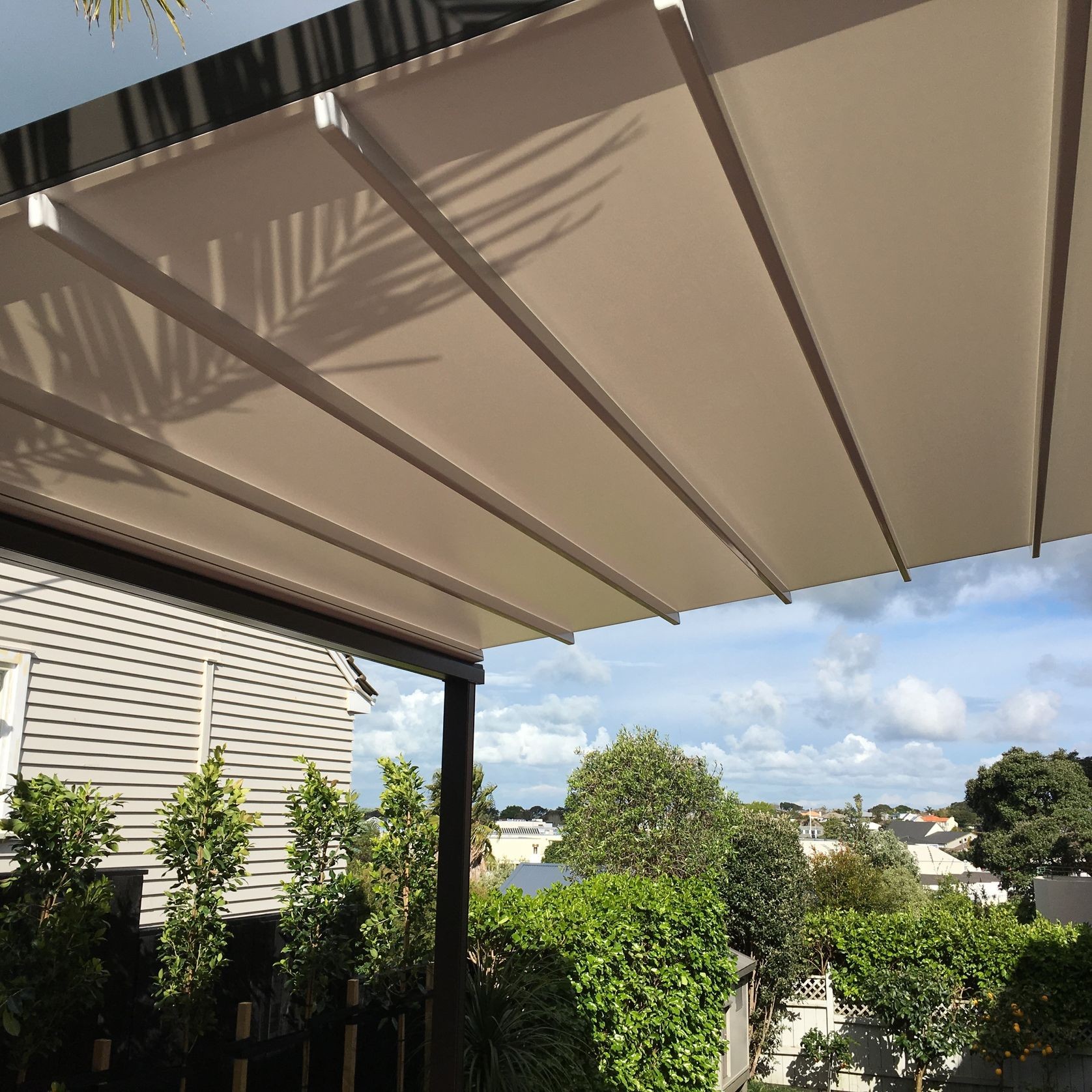

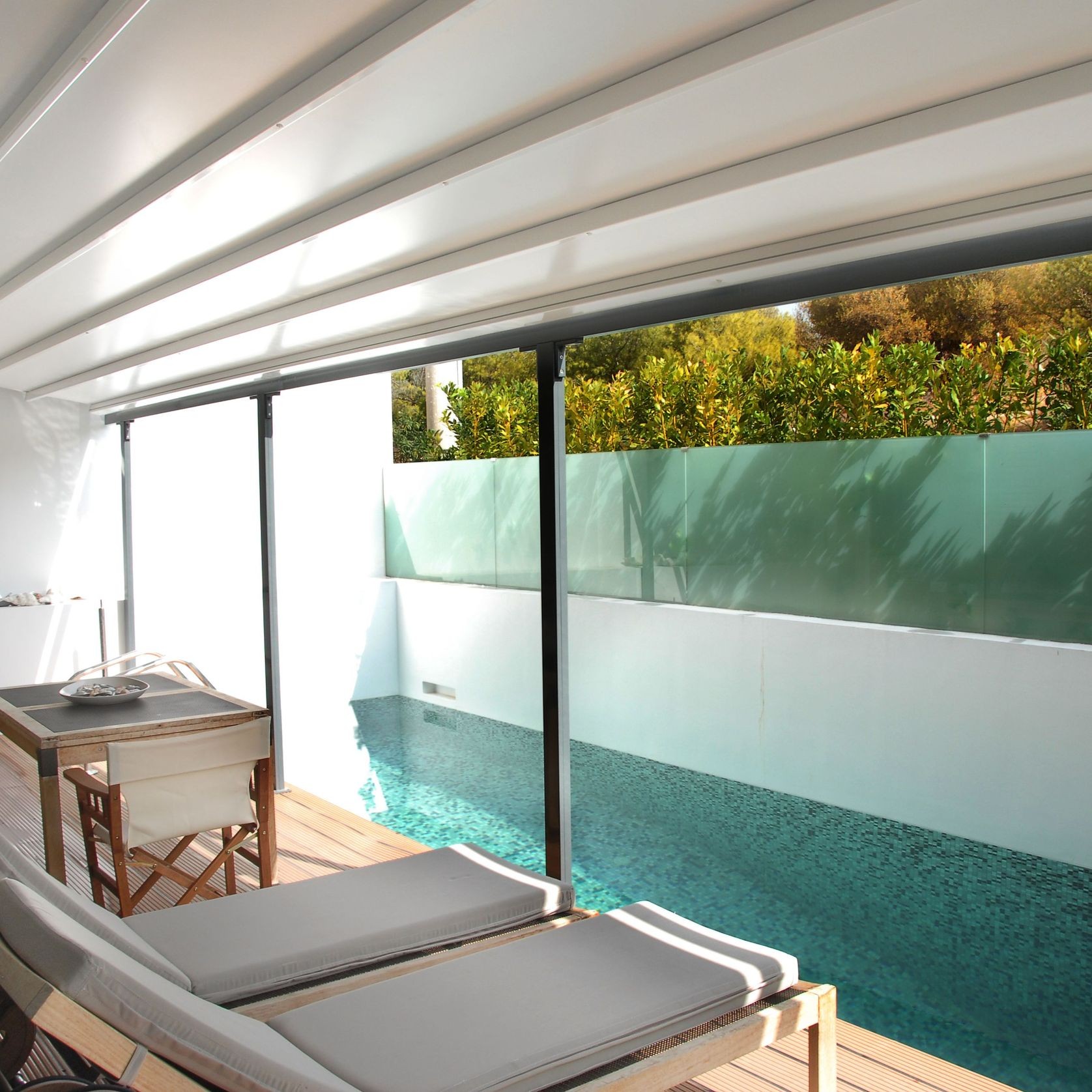

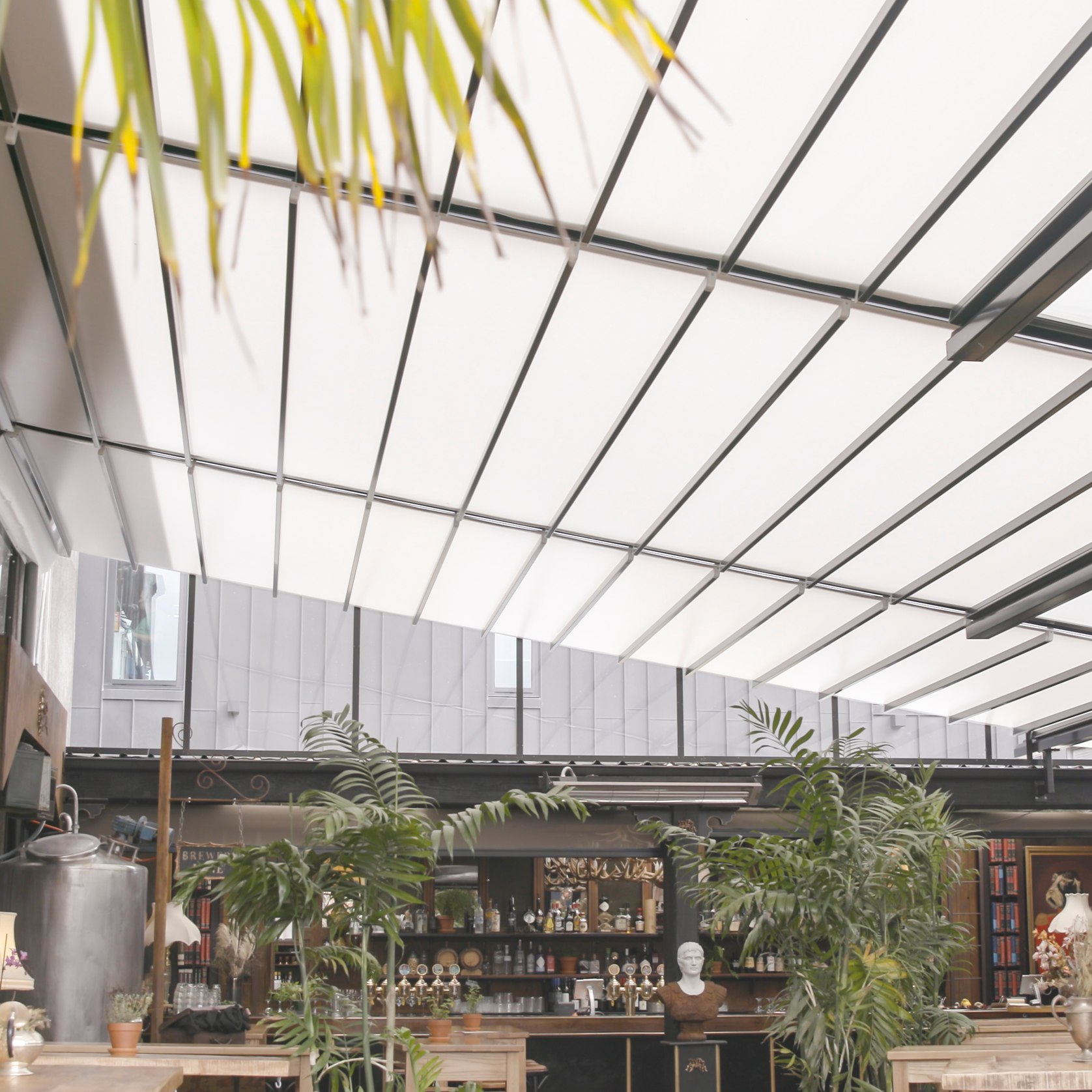

Retractable pergola systems are a clever way to create an outdoor room and increase your living space. The Omega Pergola is an architectural awning and our most permanent shade solution.
Engineered with state-of-the-art European technology and elegant design features, the Omega Pergola system is designed for seamless indoor-outdoor flow and has undergone rigorous testing to ensure it withstands the harshest weather conditions.

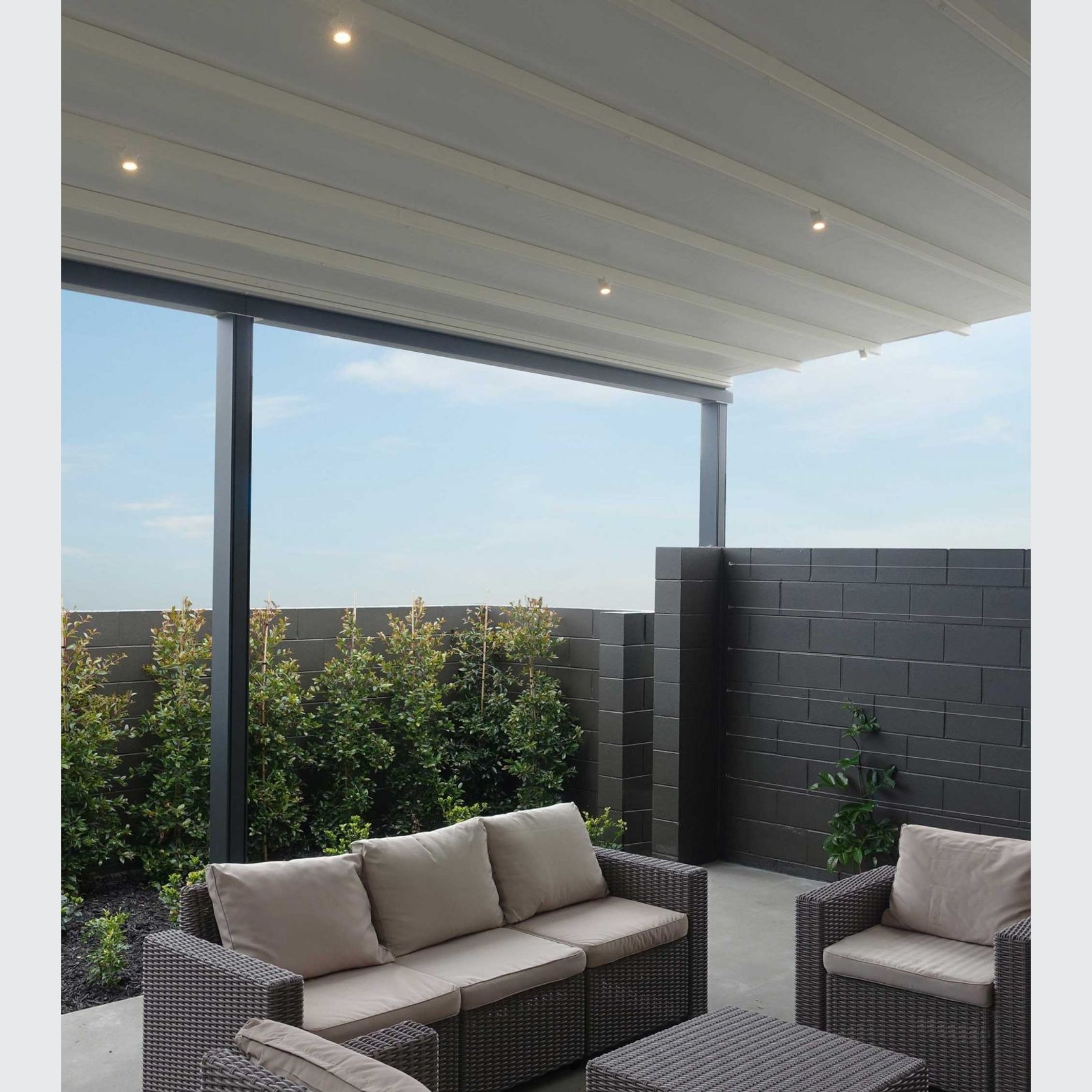

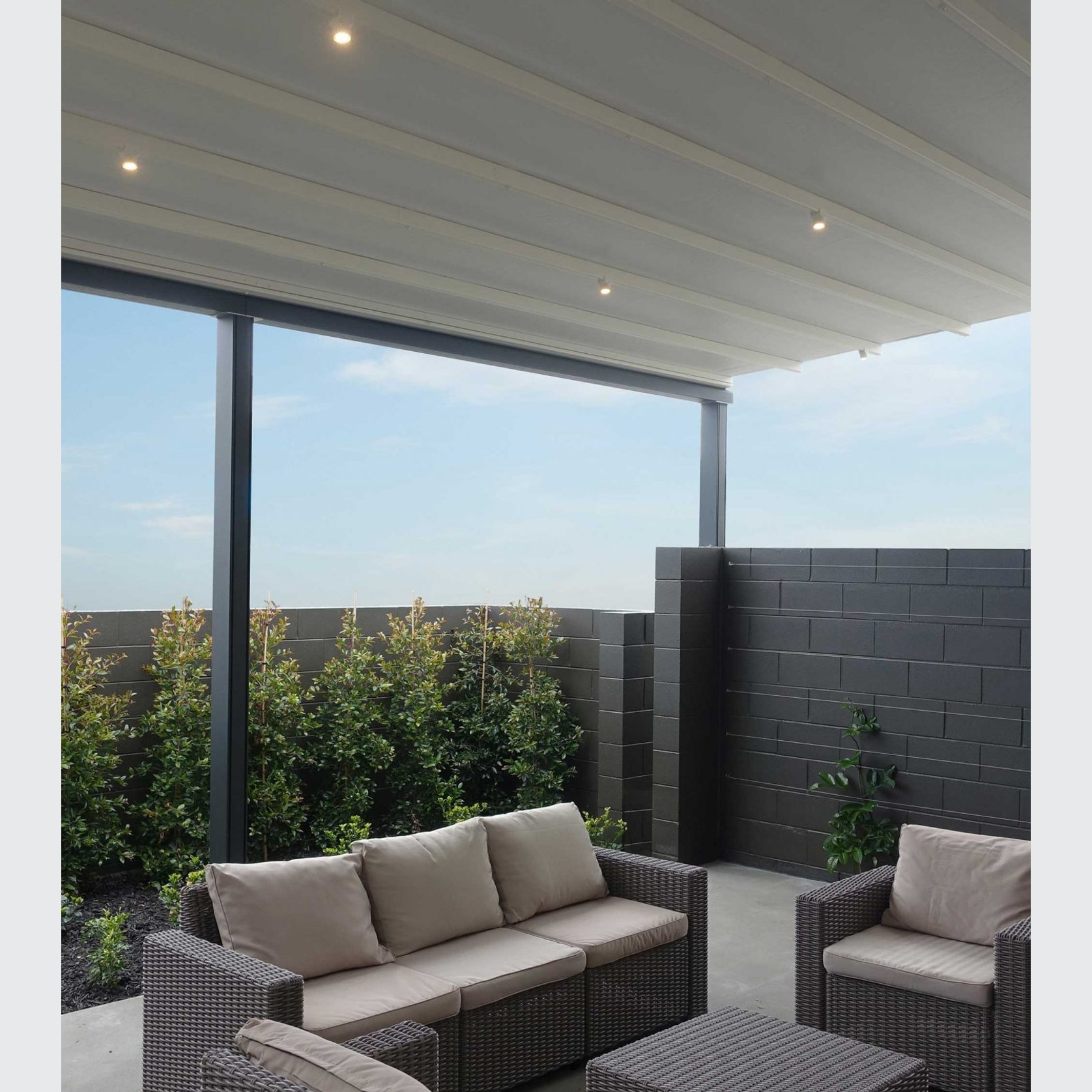

Omega Pergola gives you the option to fully enclose a room outdoors without an expensive renovation. Its permanence means that LED lighting, infrared heaters and outdoor blinds can easily be incorporated into the pergola too.
Product Details
- Product
- Omega Retractable Pergola
- Category
- Pergolas
- Sold by
- Shade Elements
- Range
- Retractable Roof
Product specified by
Increase your living space at the touch of a button.
Retractable pergola systems are a clever way to create an outdoor room and increase your living space. The Omega Pergola is an architectural awning and our most permanent shade solution.
Engineered with state-of-the-art European technology and elegant design features, the Omega Pergola system is designed for seamless indoor-outdoor flow and has undergone rigorous testing to ensure it withstands the harshest weather conditions.
Omega Pergola gives you the option to fully enclose a room outdoors without an expensive renovation. Its permanence means that LED lighting, infrared heaters and outdoor blinds can easily be incorporated into the pergola too.
- Specs
Click here to view the full fabric collection
MAX PROJECTION
- 10.0 m supported (OMEGA 100)
- 6.0 m (OMEGA 120)
- 10.0 m (OMEGA 160)
MINIMUM WIDTH
- 2.5 m
MAX WIDTH (SINGLE SKIN)
- 15.0 m
MAX WIDTH (SINGLE BAY)
- 4.5 m

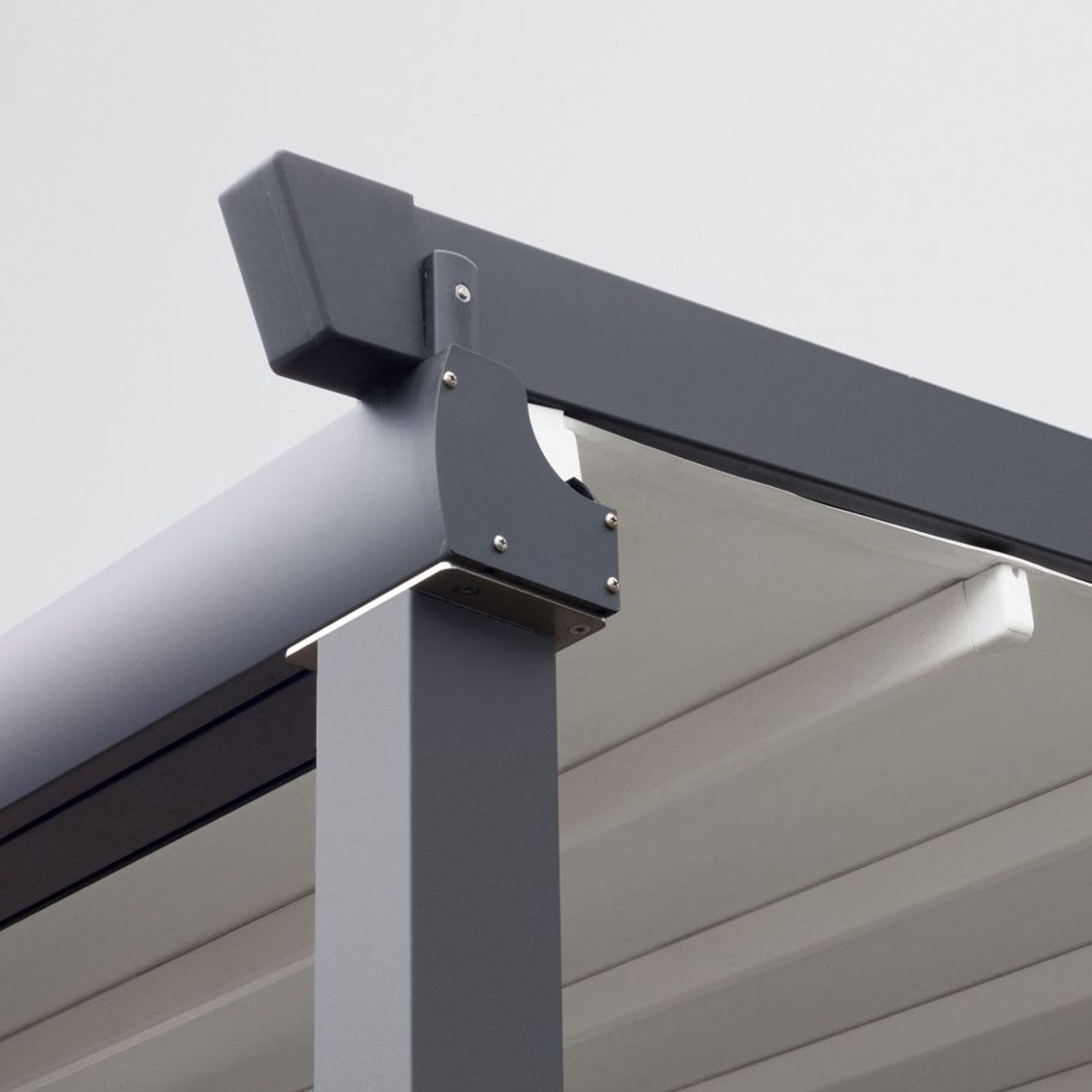

RAFTER DIMENSION
- 100 x 50 mm (OMEGA 100)
- 120 x 60 mm (OMEGA 120)
- 160 x 80 mm (OMEGA 160)
POST DIMENSION
- 100 x 130 mm (OMEGA 120)
- 100 x 130 mm (OMEGA 160)
MOTOR TORQUE
- 40 – 85 nm / 17 rpm
RECOMMENDED PITCH
- 9°
WIND RESISTANCE
- Beaufort Scale – up to 10
OPERATION
- Automated
OPTIONAL EXTRAS

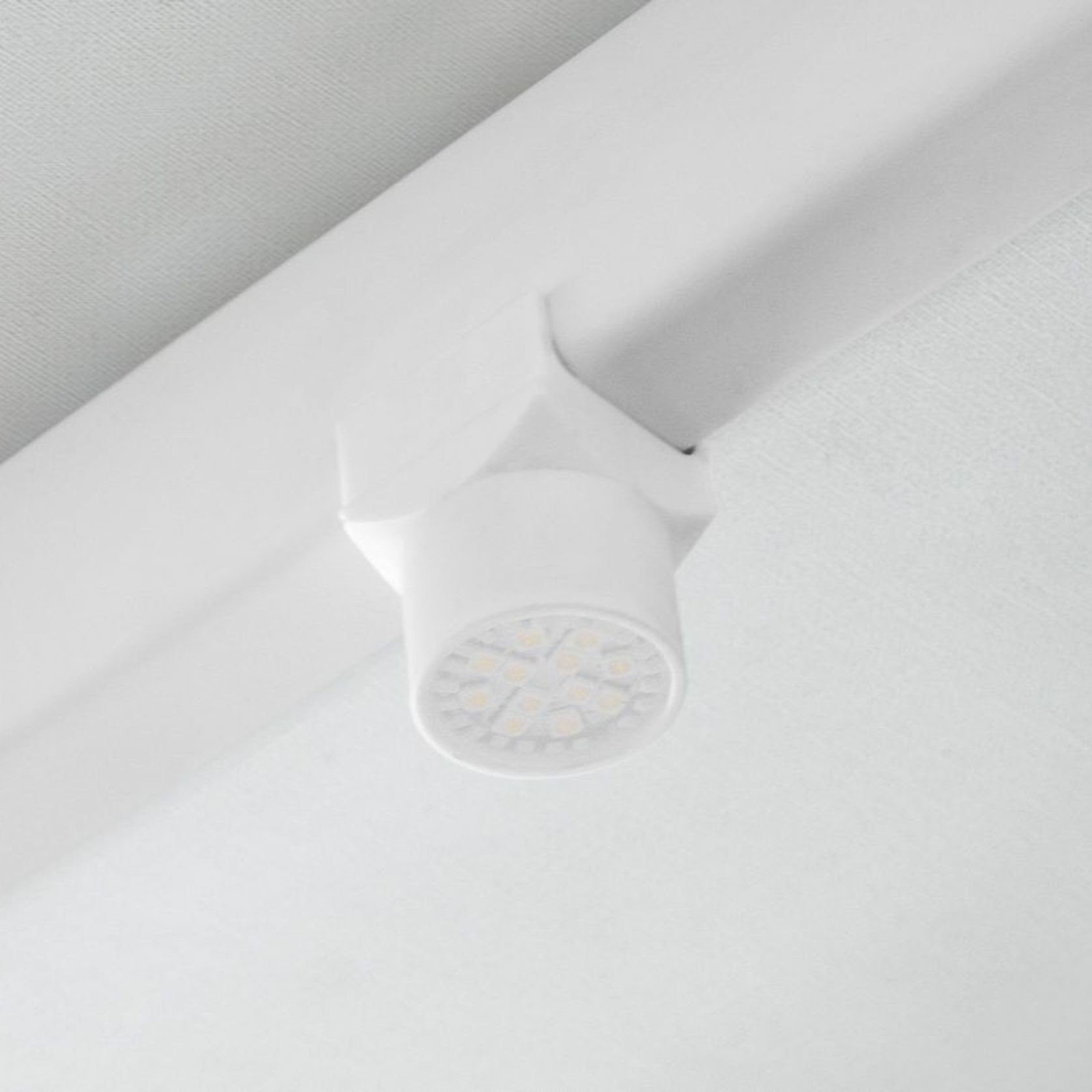

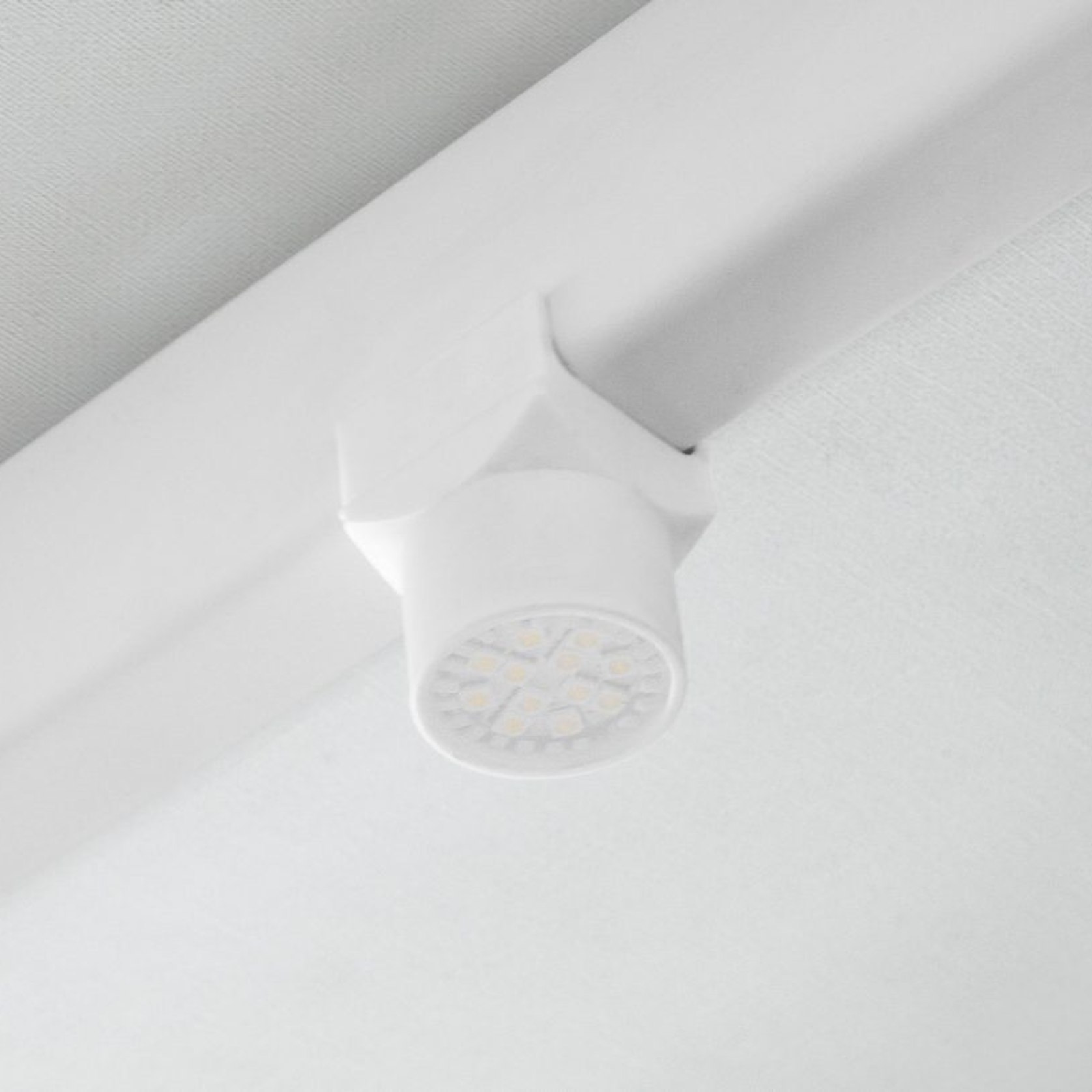

- LED lighting
- Wind / Sun / Rain sensors
- Outdoor blinds
FRAME COLOUR
- Customised to Dulux powder-coat range
Downloads
Downloads (5)5 Direct downloads • 11 Available on request
Frequently asked questions about
Omega Retractable Pergola
The Omega Retractable Pergola is supplied by Shade Elements. It is also on their website, and you can browse every product Shade Elements lists on ArchiPro.
Shade Elements does not publish a price for the Omega Retractable Pergola on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Retractable Roof range from Shade Elements, where you can see every product in the range together.

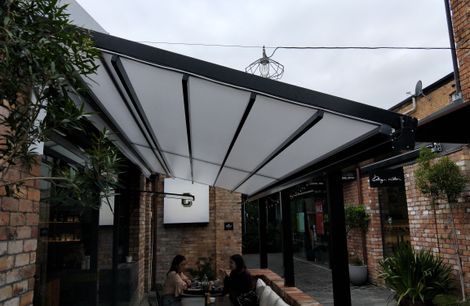

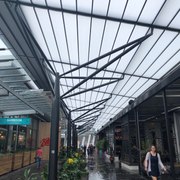

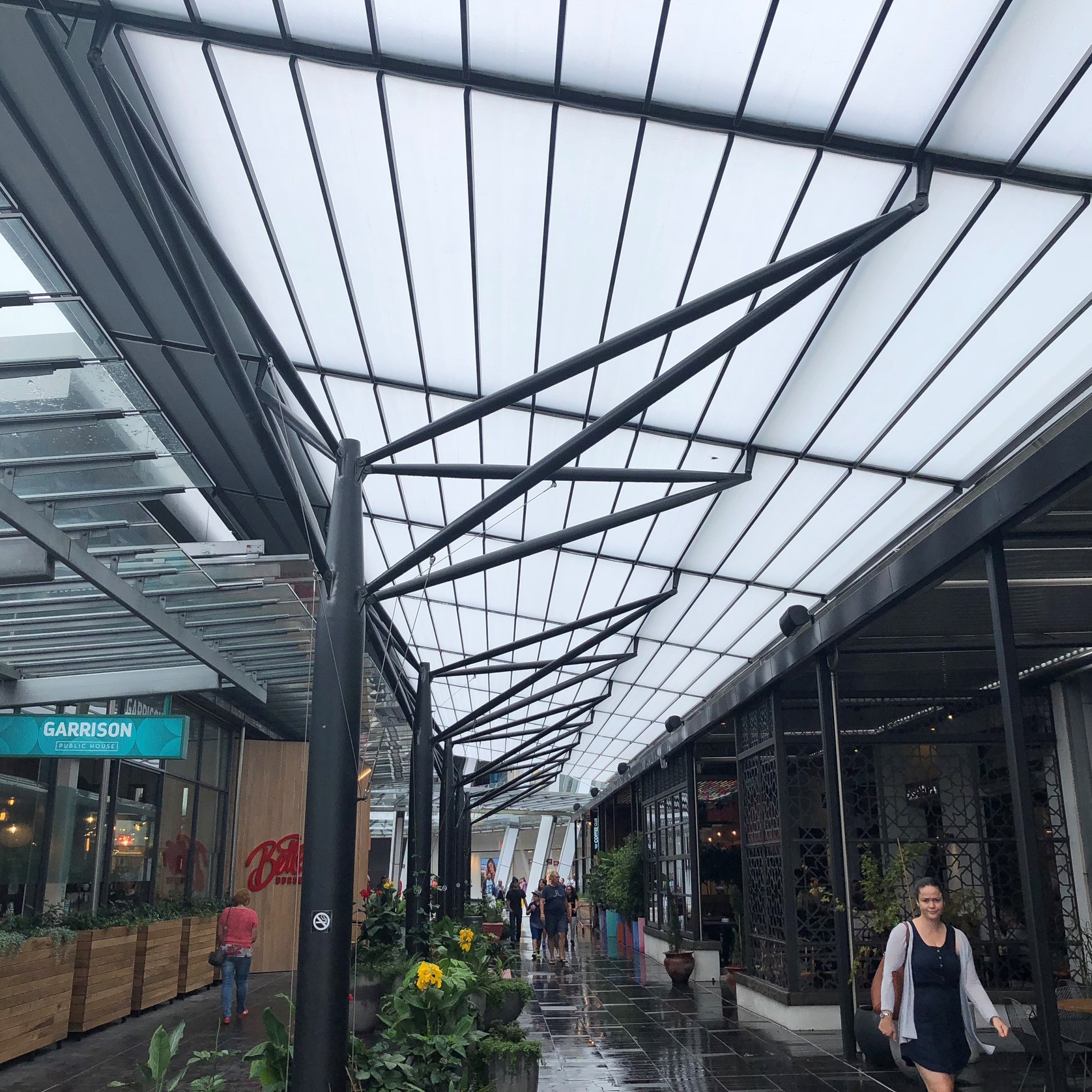

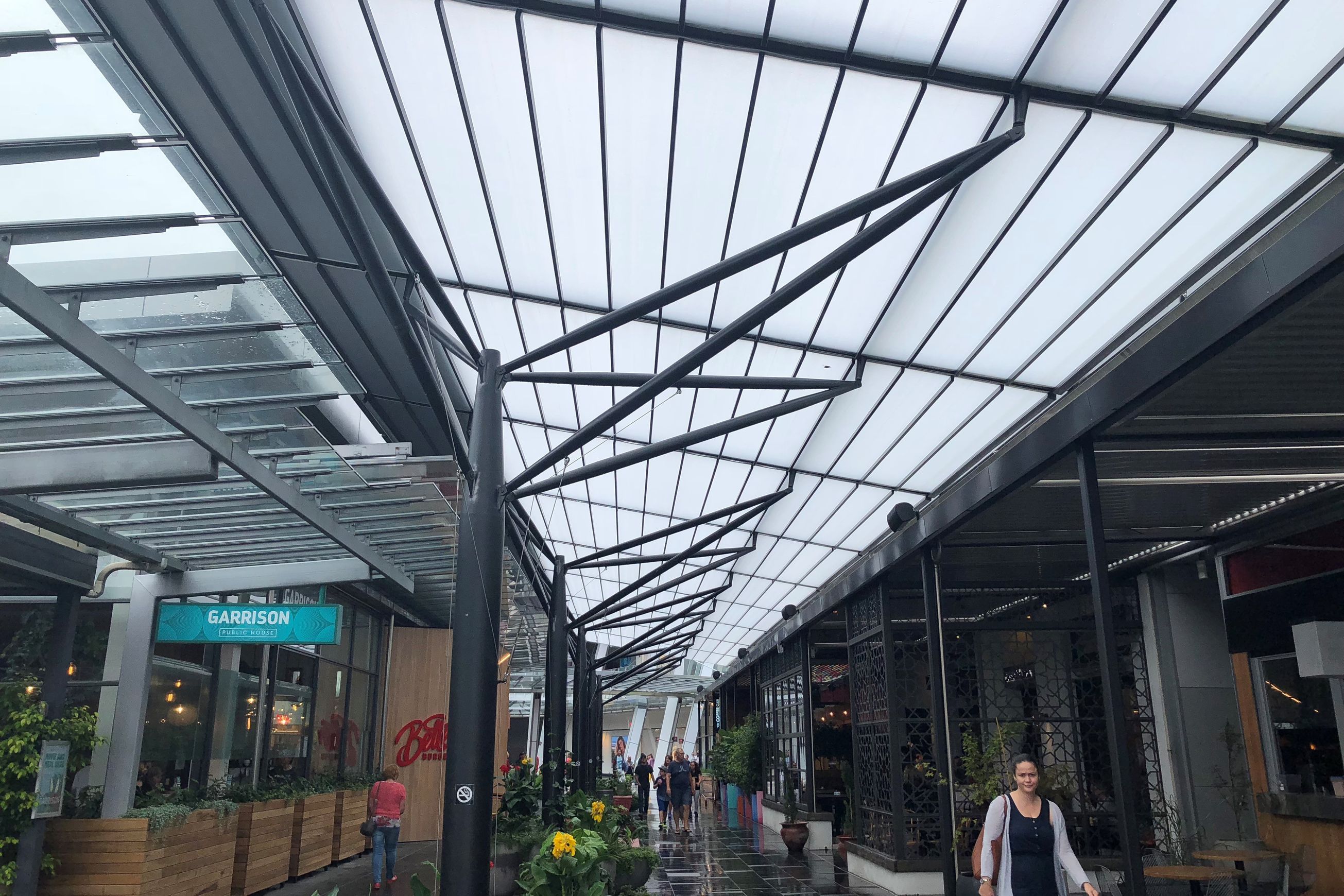

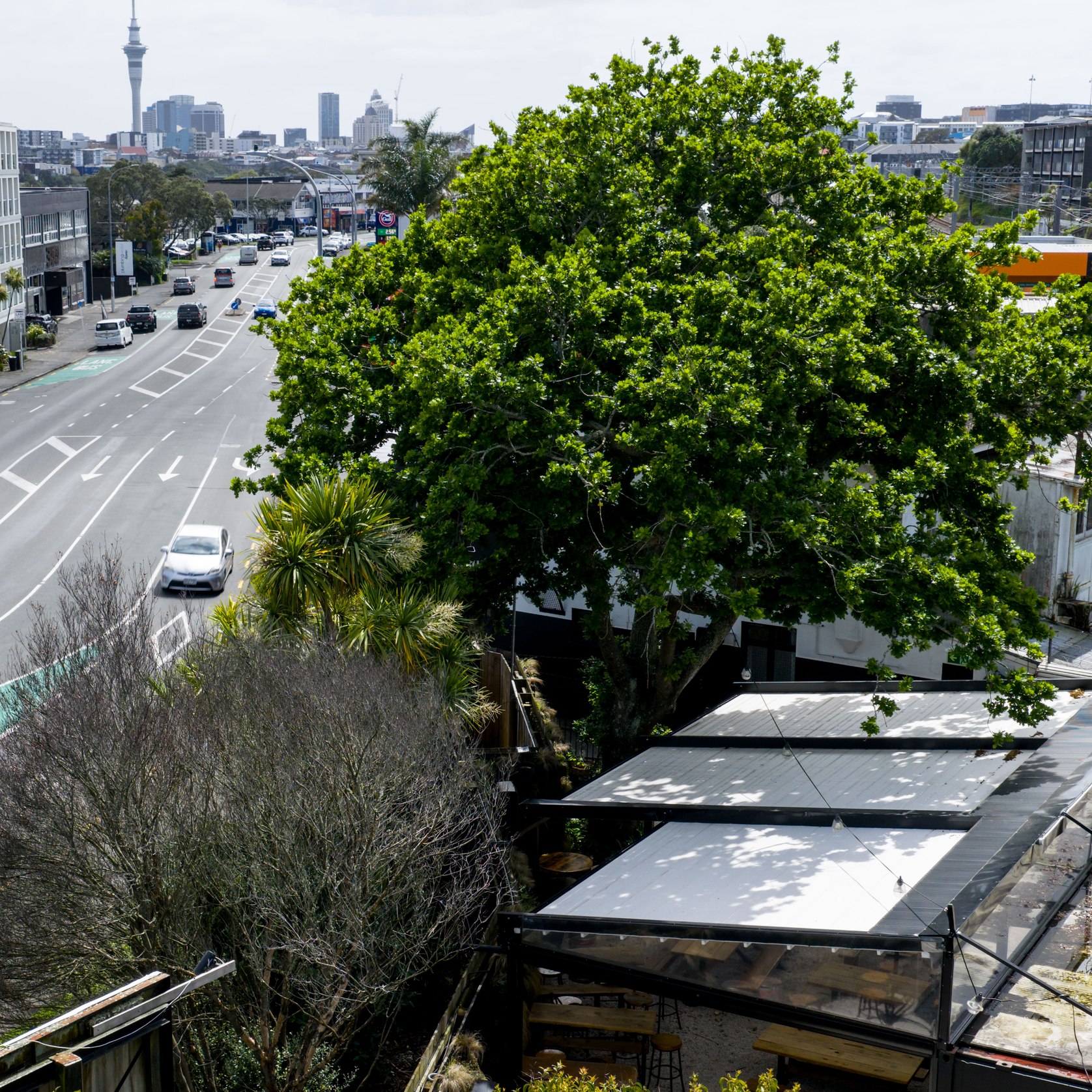

Yes. It has been specified in projects on ArchiPro, including The Candy Shop by Shade Elements and Sylvia Park by Buchan. See how it was used in a finished space.
