QikFIT Power, Data/AV, USB Charging Modules

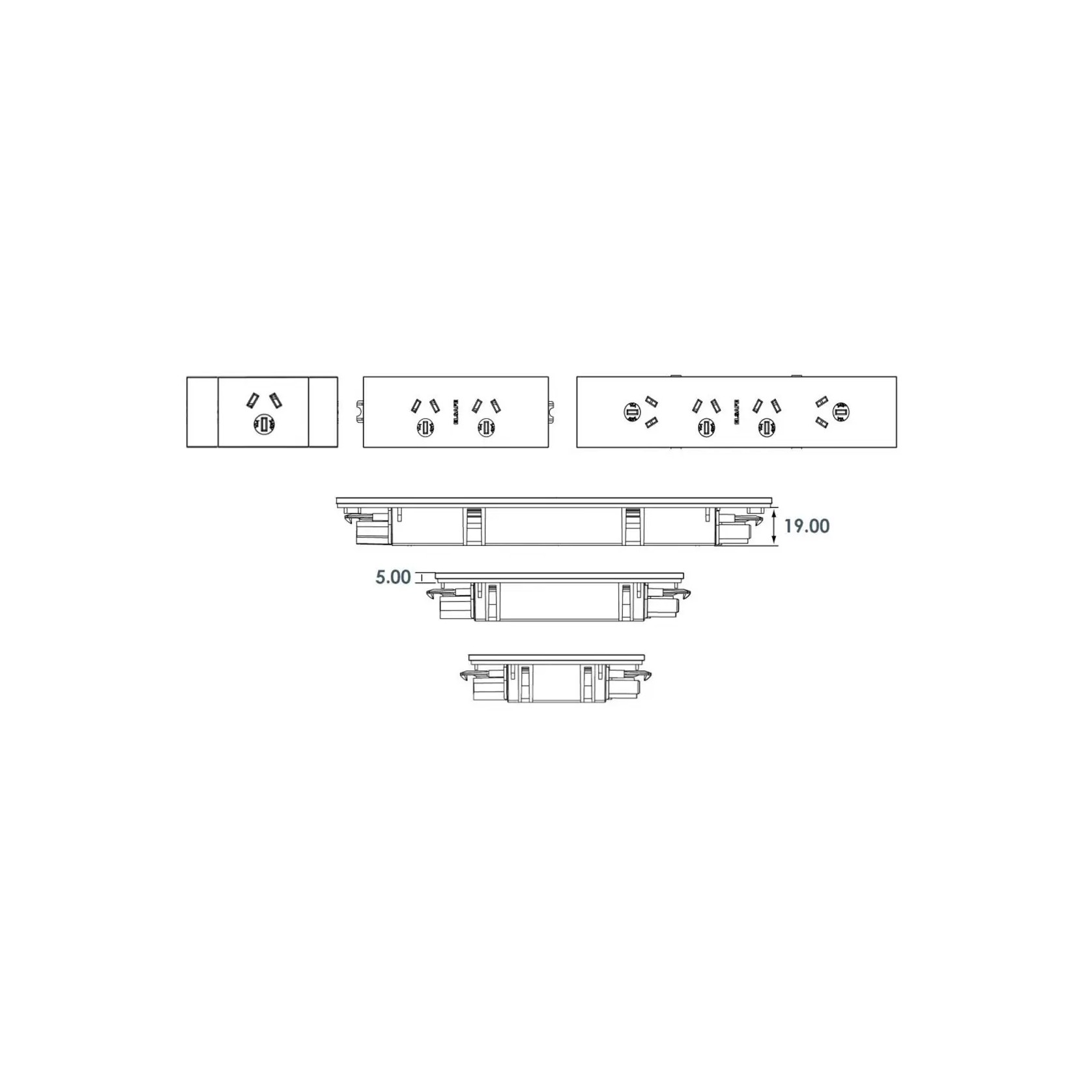

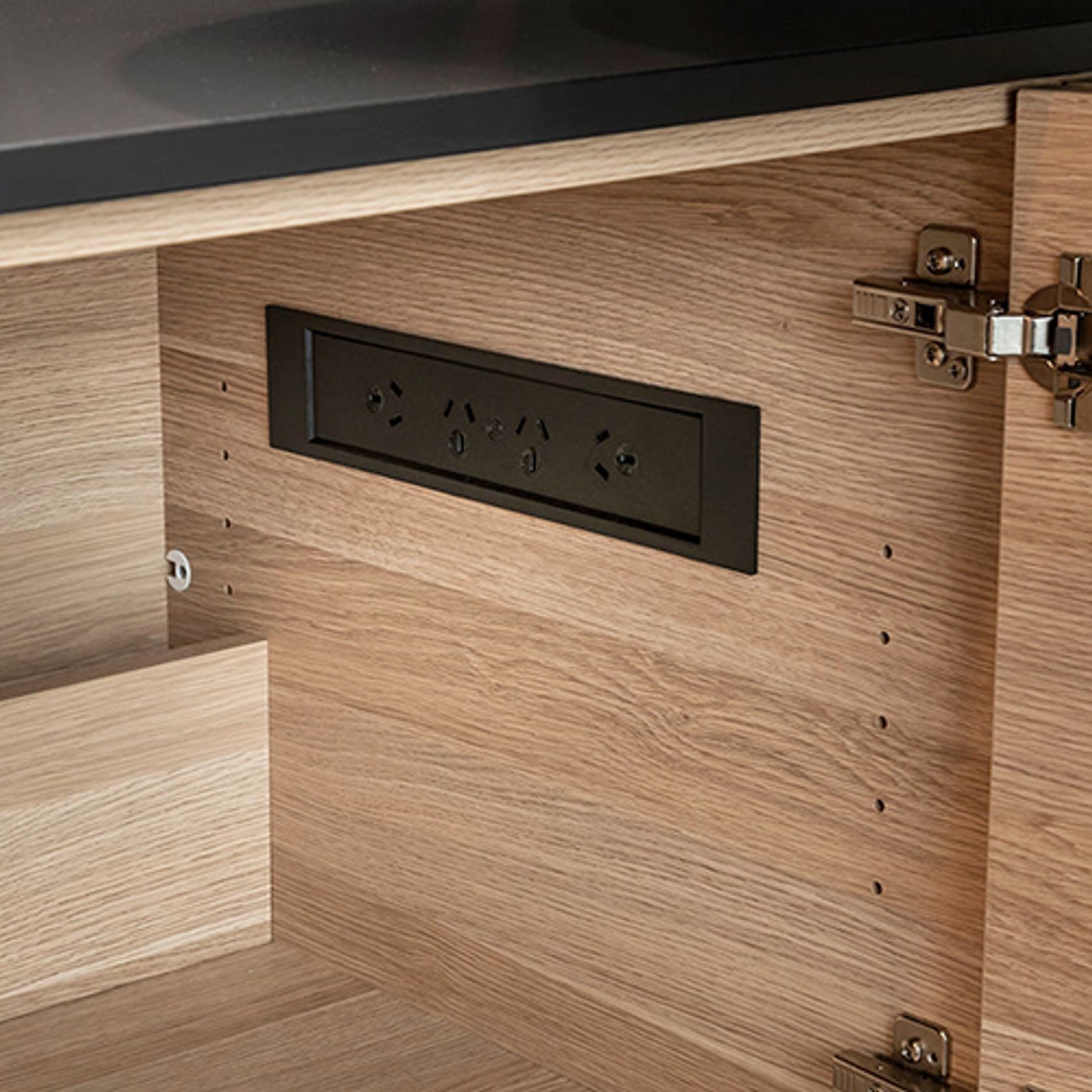

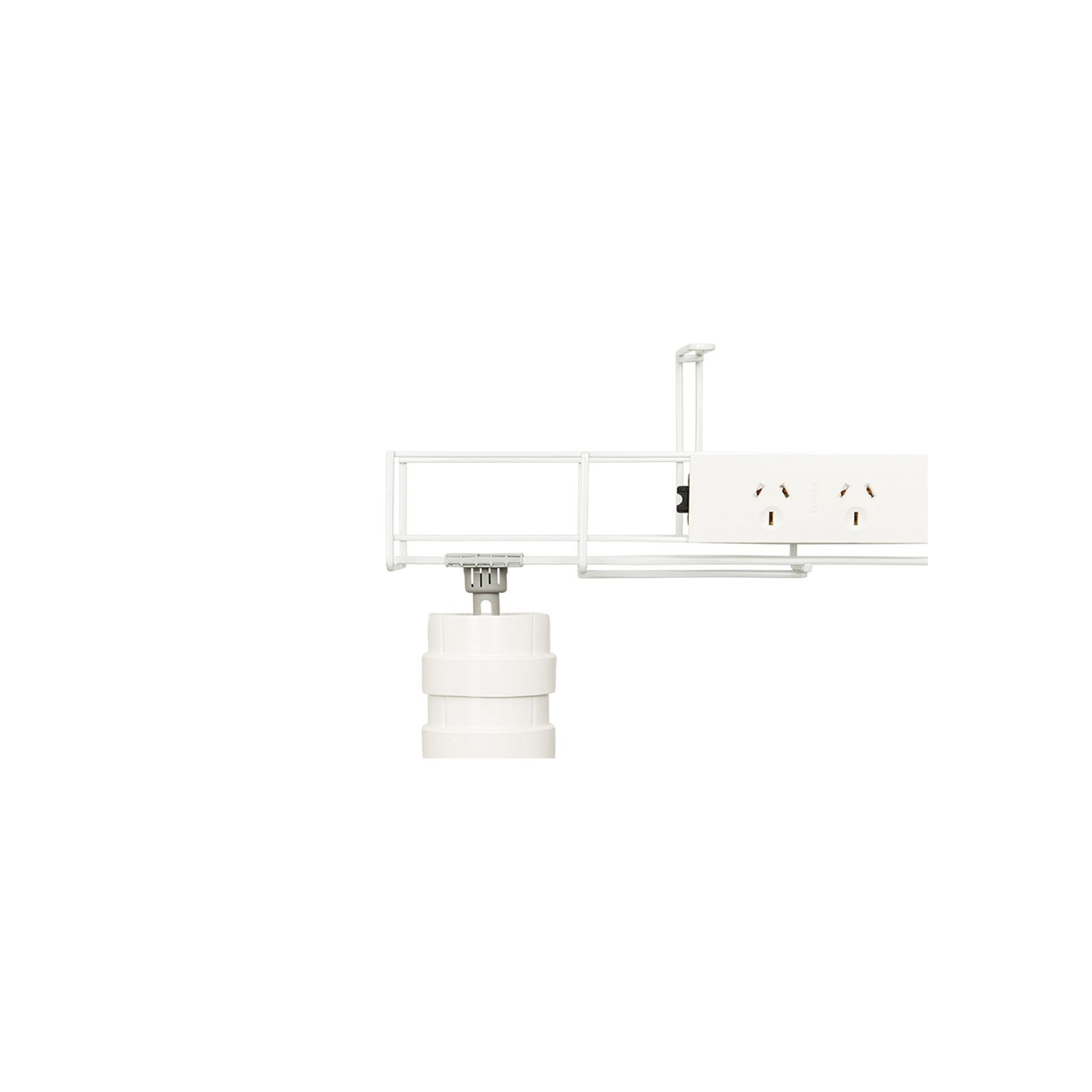

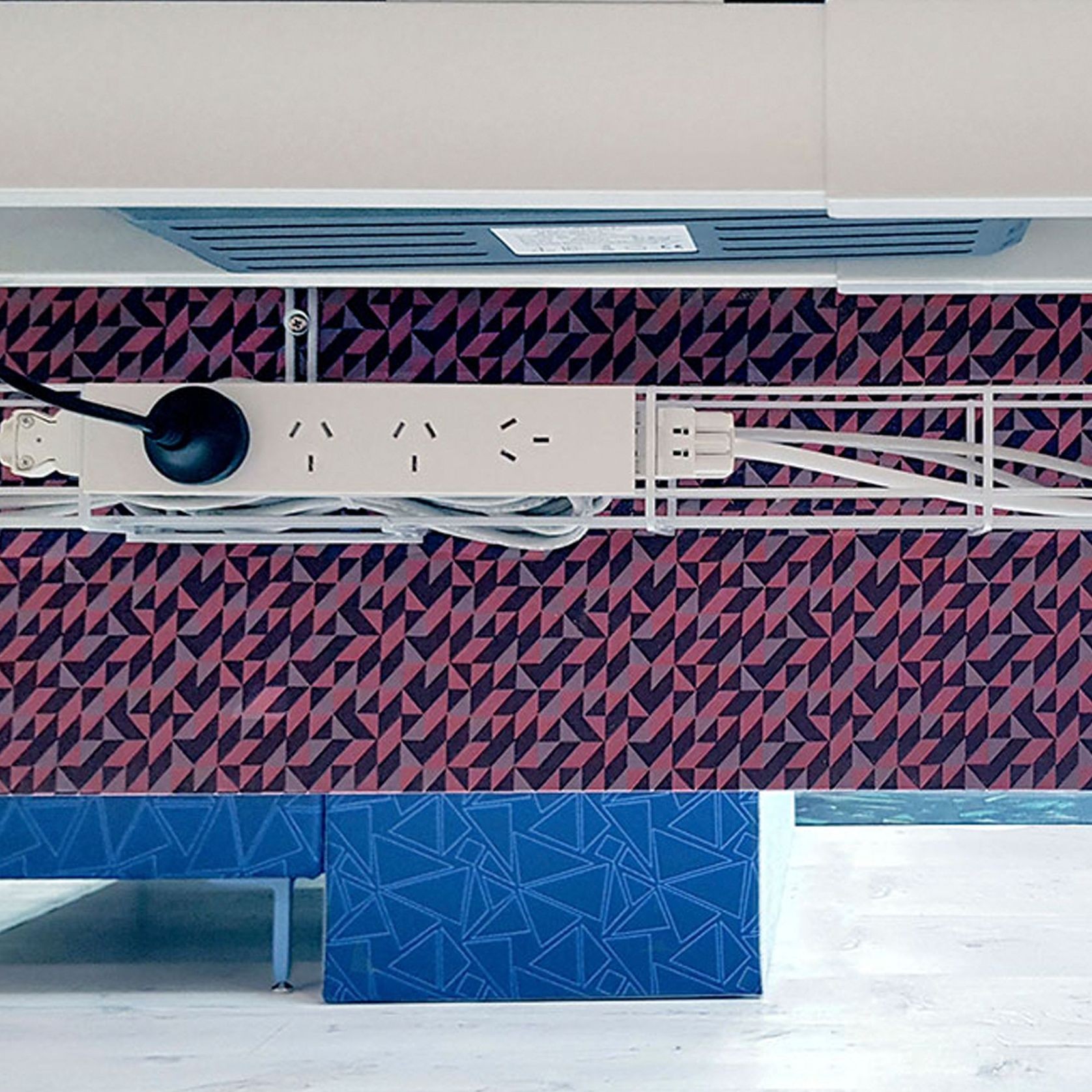

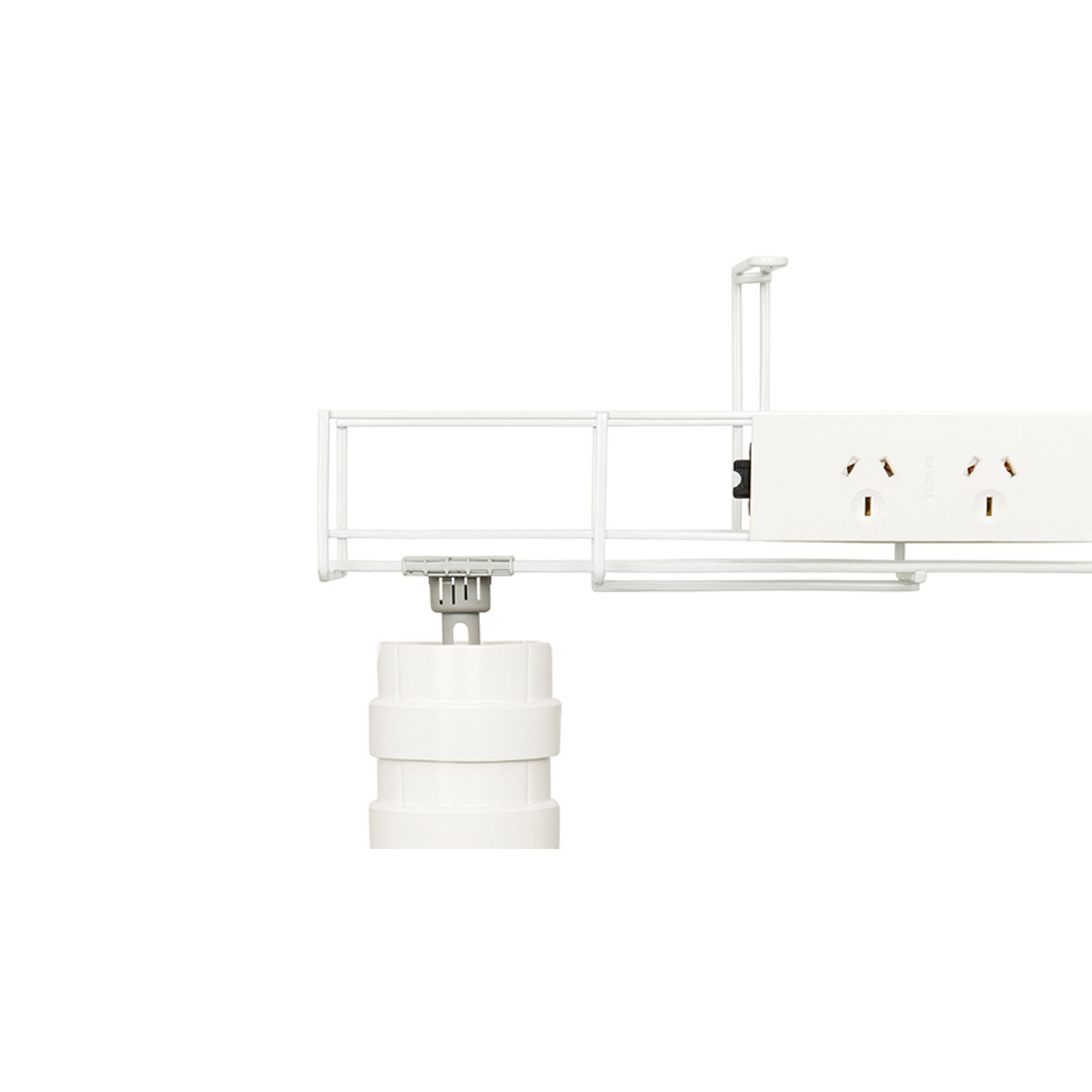

The QikFIT modular power, data and AV series has been designed to fit OE Elsafe floor boxes, table boxes, power rails, and industry-standard cutouts. QikFIT power, data and AV modules will also simply click into the OE PRODIGY cable basket for fast installation. QikFIT can also be fitted directly into screens up to 3mm thick or when using a Thick Panel Frame can be installed into panels from 3mm to 14mm thick.
- Soft wired or Hard wired.
- Compatible with OE Elsafe power rails, in-desk boxes, floor boxes & cable management systems.

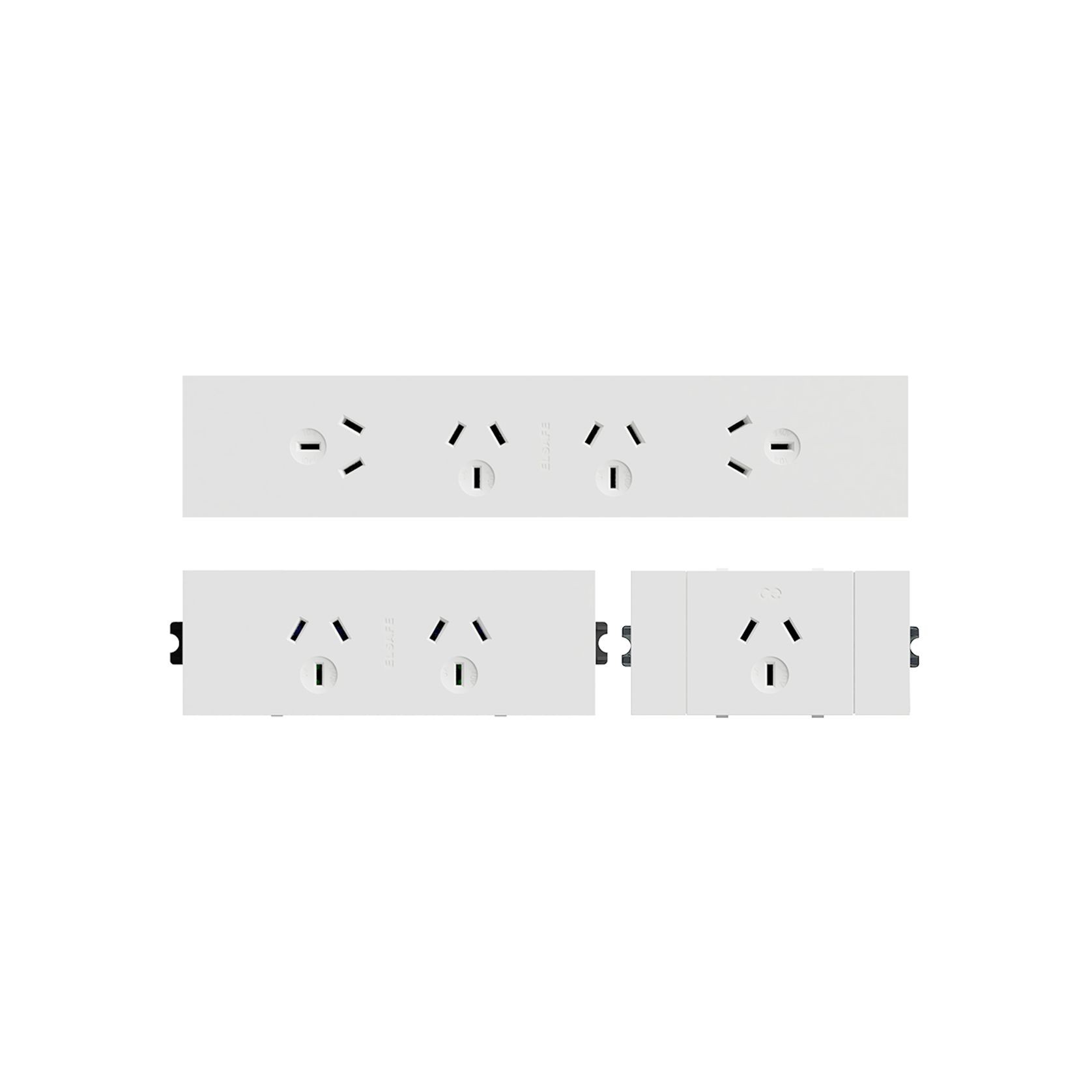

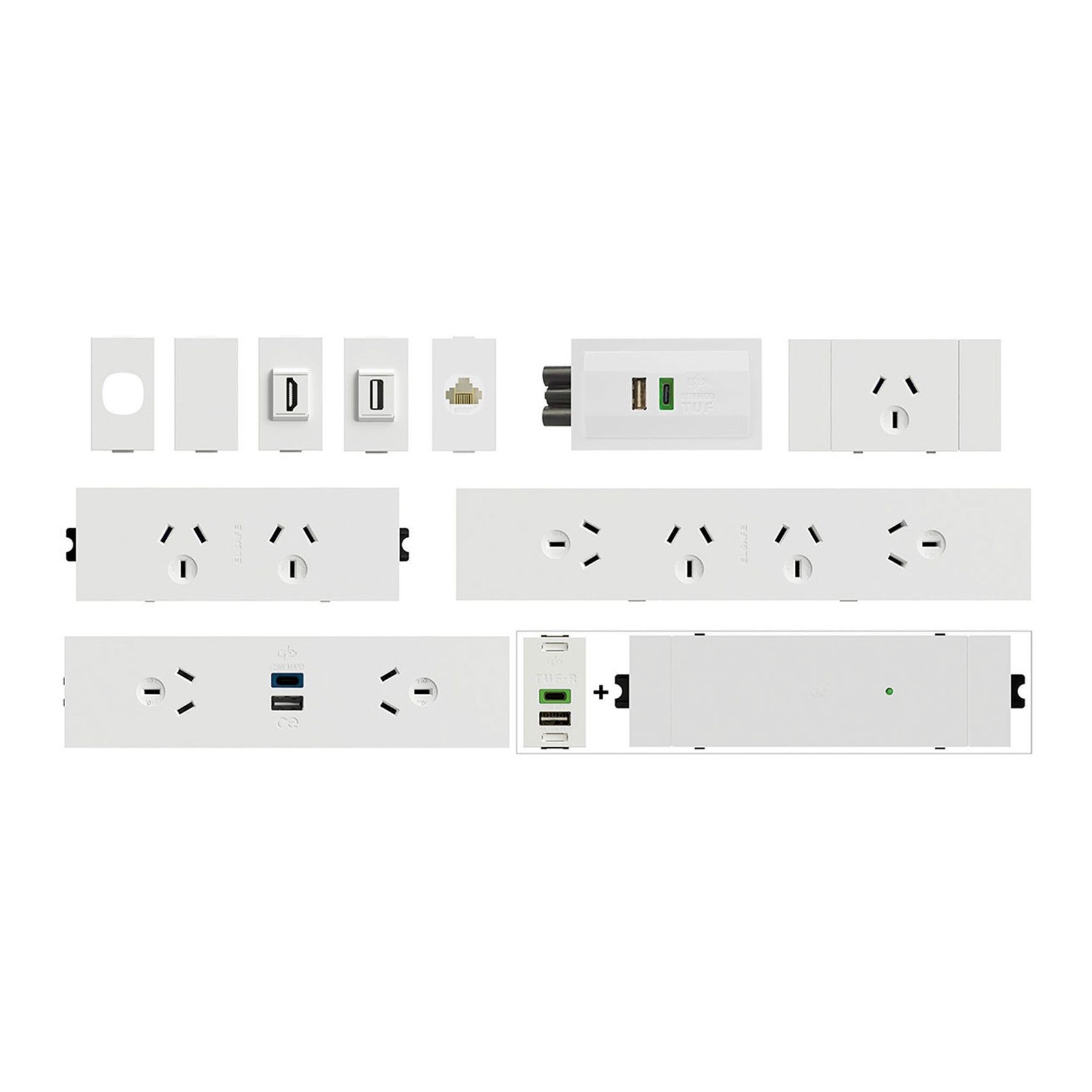

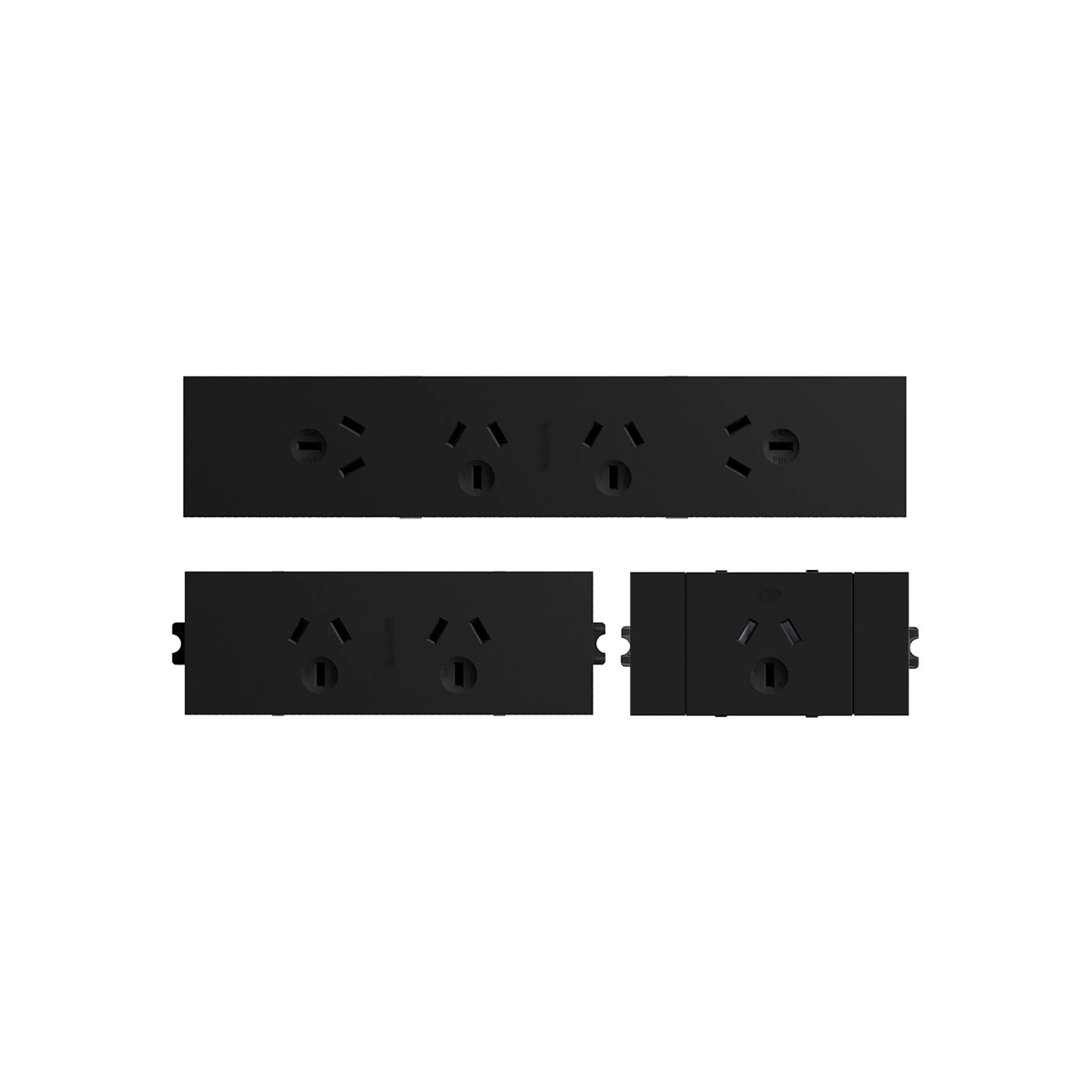

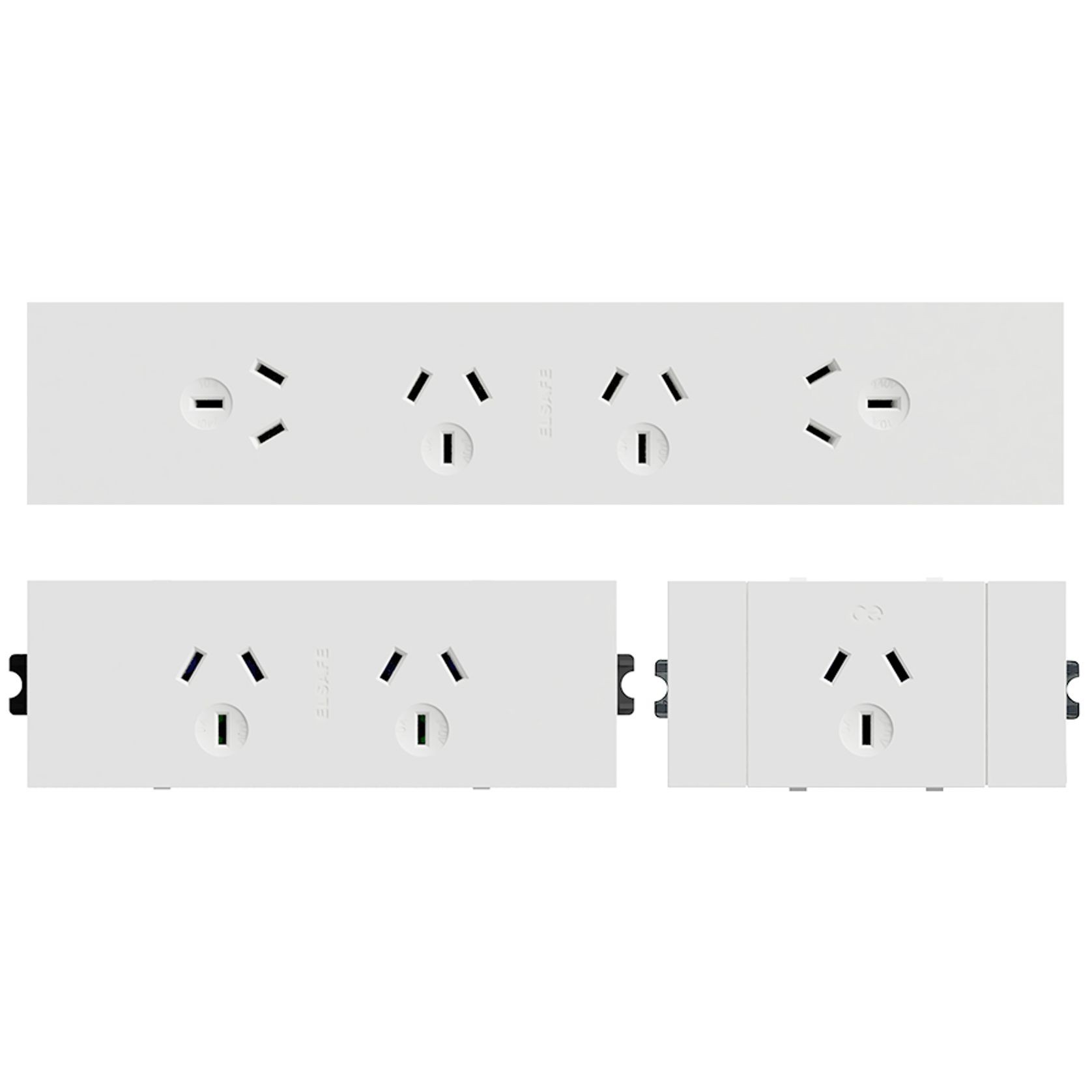

QikFIT interchangeable modules include a single
- 1 GPO
- 2 GPO
- 4GPO,
- 2GPOTUF,
- Data and AV cutouts and couplers,

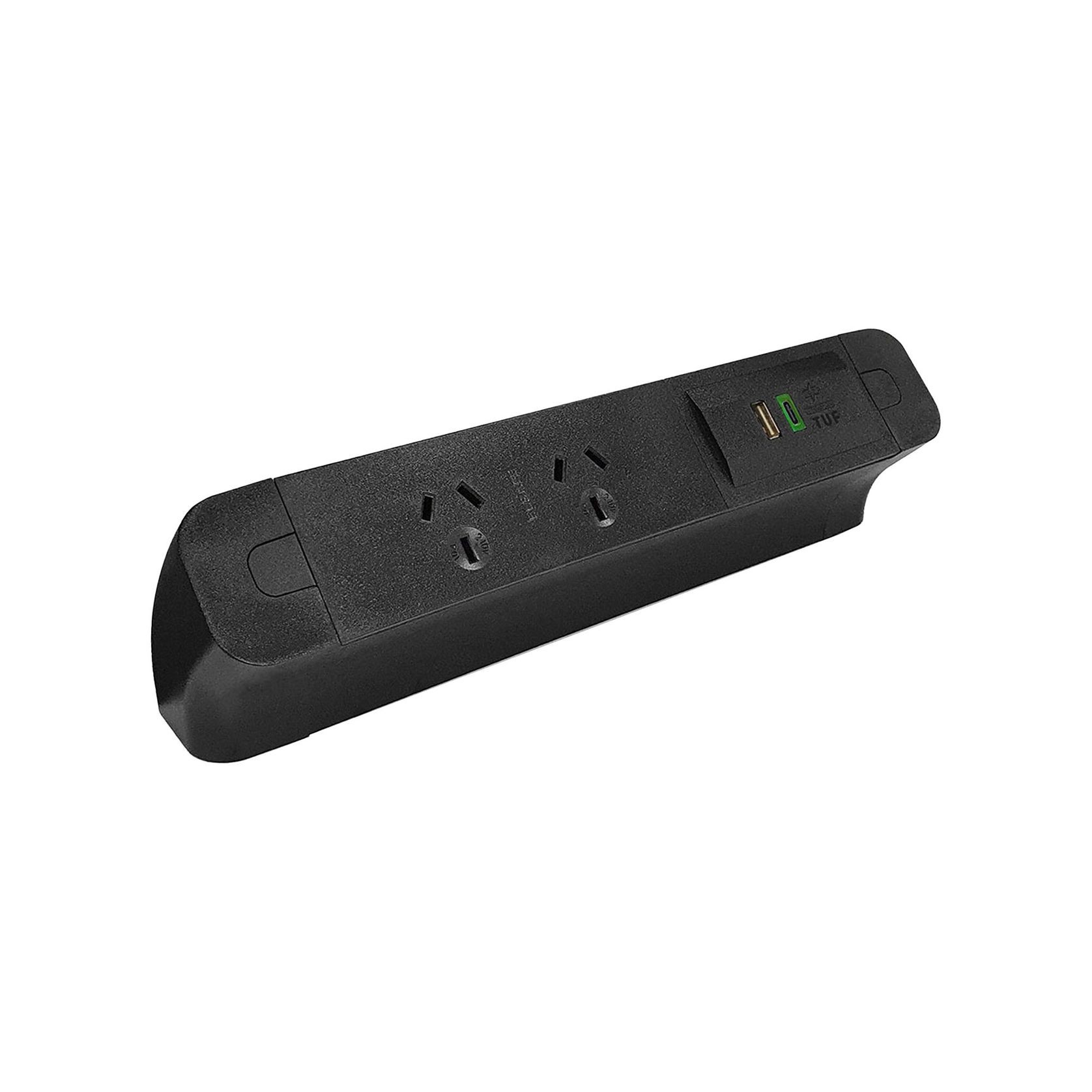

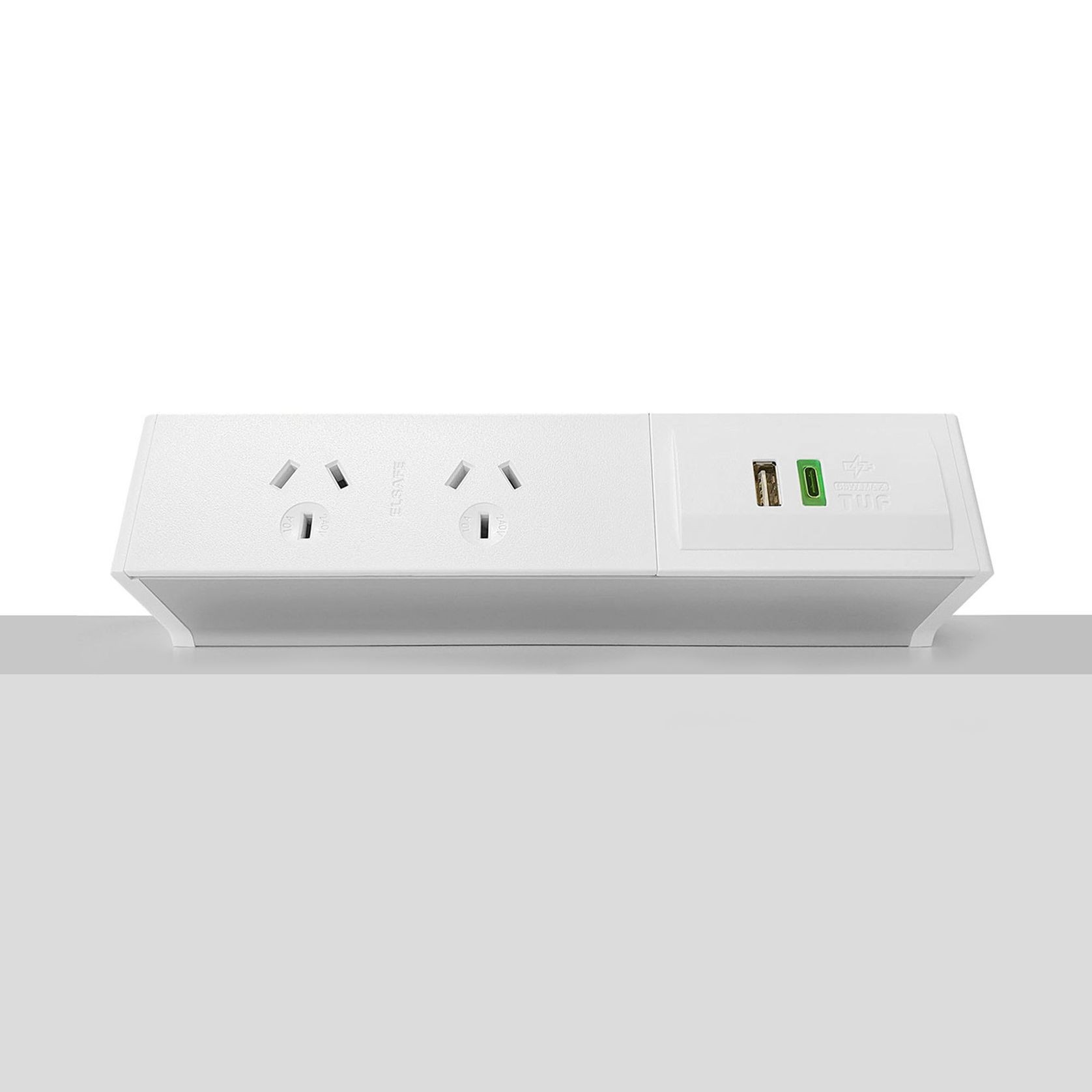

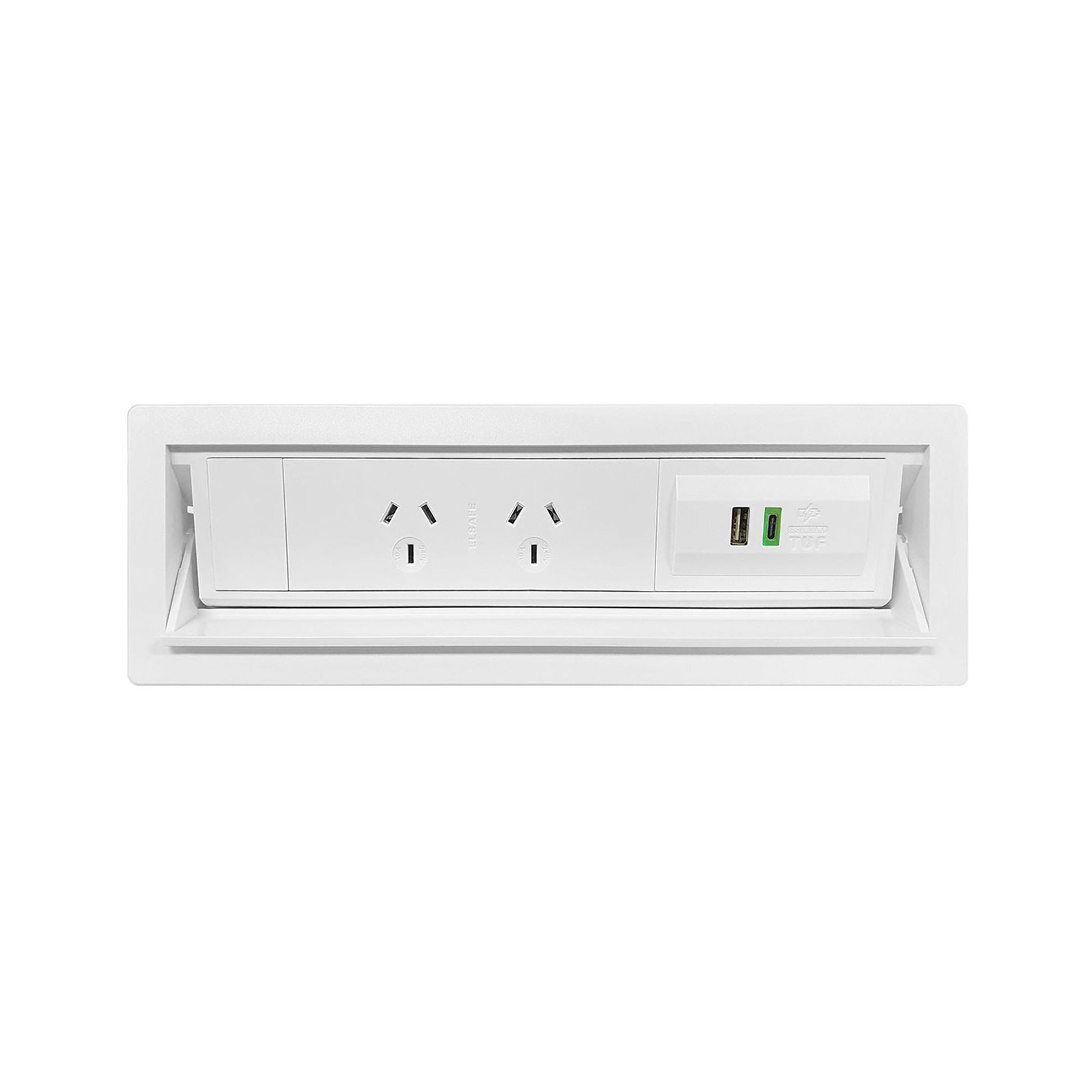

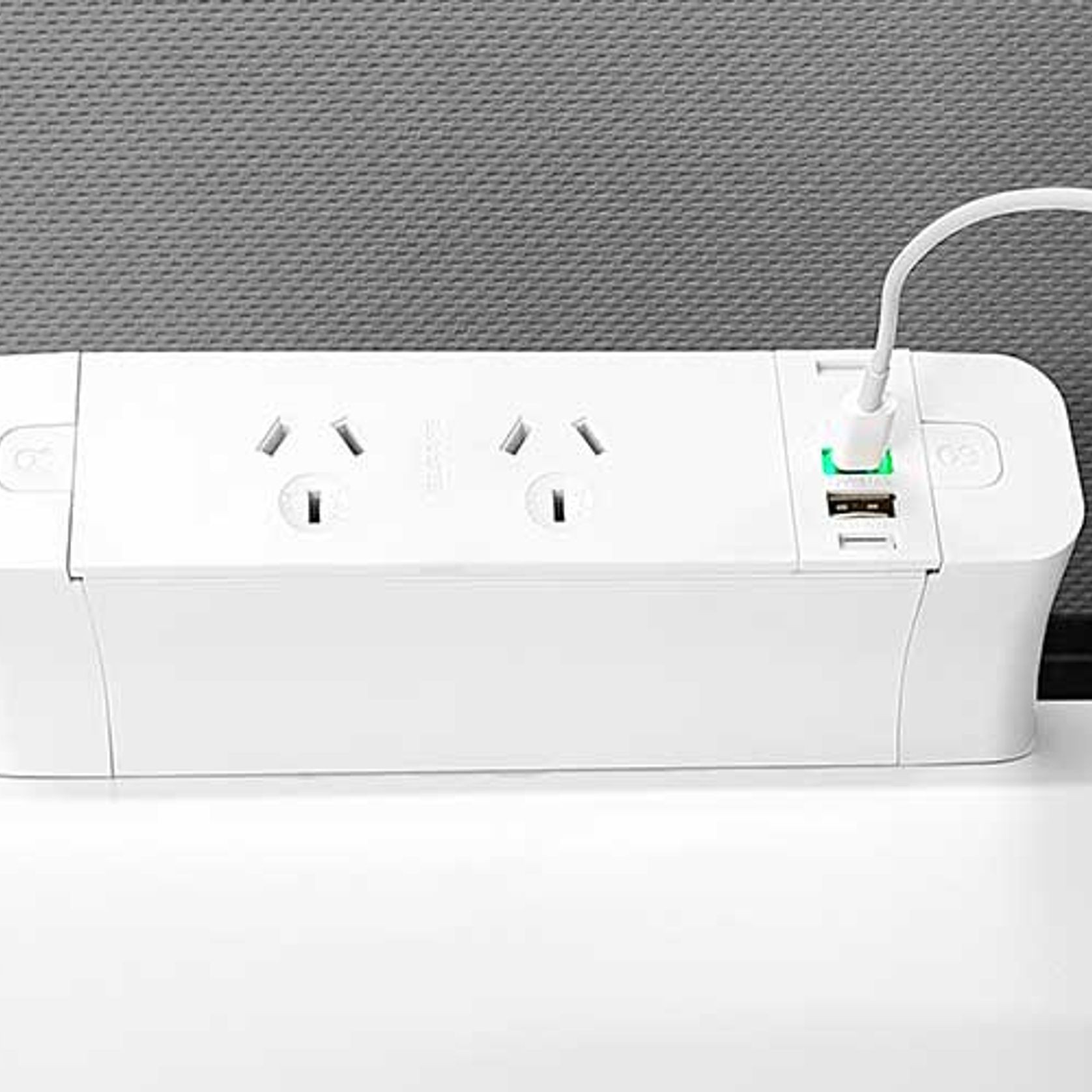

- TUF PD USB A+C mobile charging
- TUF or QikFIT TUF HP USB A+C laptop charging.

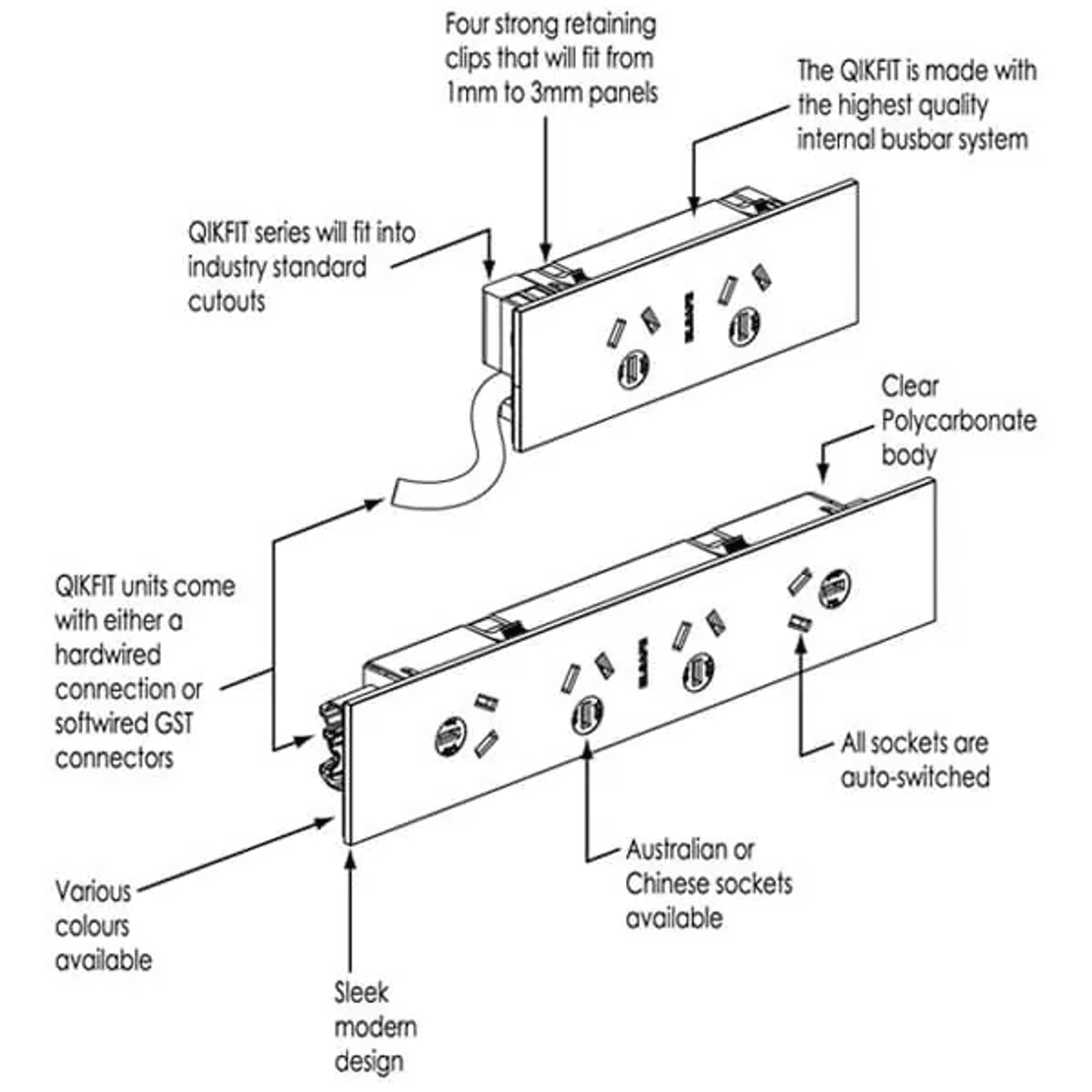

QikFIT sockets are auto-switched for a clean look and efficient operation. The multi-directional sockets on the 4 gang QikFIT allow for an array of chargers and plug packs to be used simultaneously.

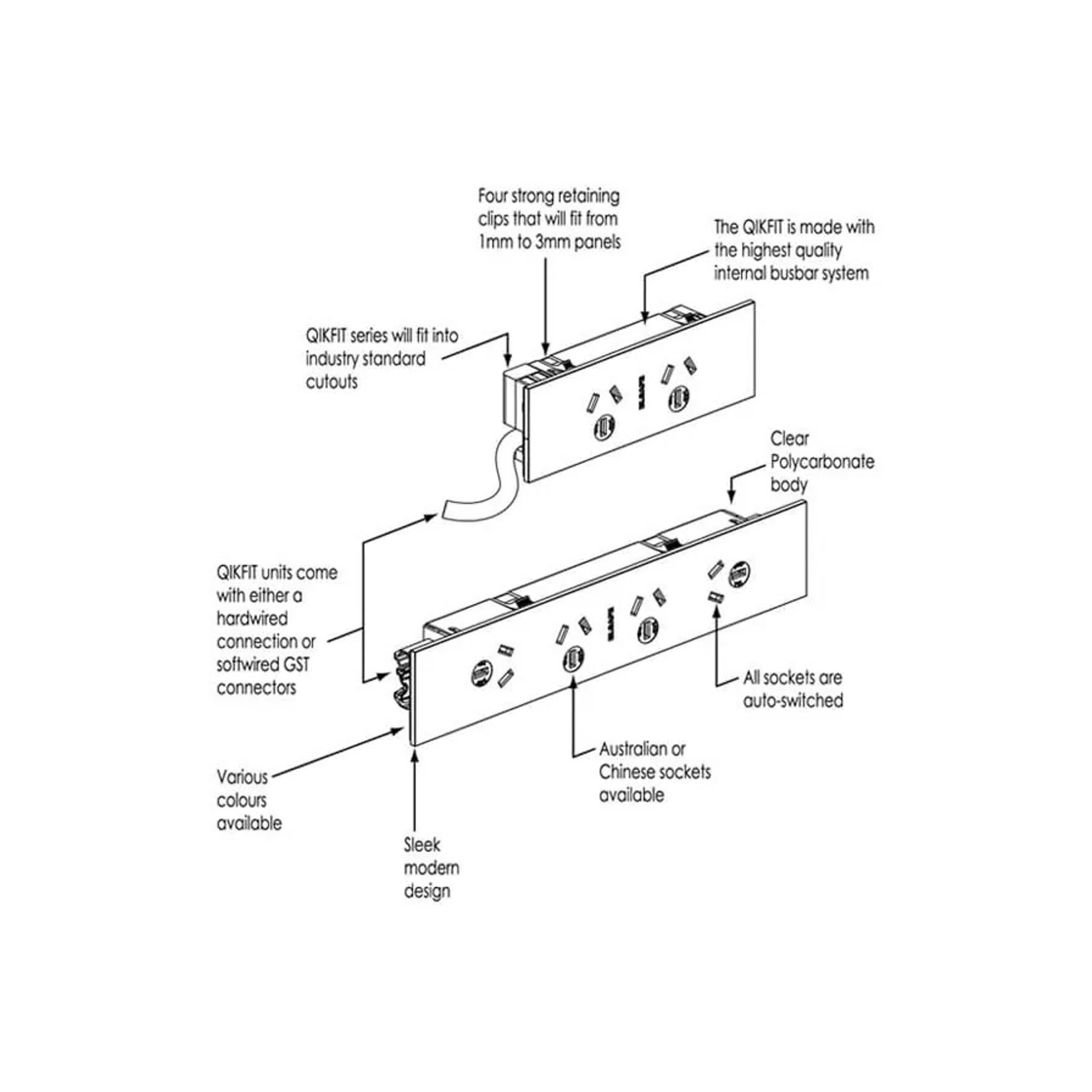

The QikFIT series comes with either soft-wired installation couplers, allowing for quick and easy change and CHURN or a hard-wired option that incorporates a cable with the OE Elsafe J-Coupler on the end.
Stylish slim and versatile, QikFIT modules will bring your workspace to life.
- CategoryOffice Accessories, Audio Accessories
- Warranty2 years
- Many of the OE Elsafe power rails, table boxes, floor and ceiling boxes have been designed to accommodate the QikFIT range of products allowing for the same complementary look to flow through the entire office environment (please also refer to the QikFIT TUF, and QikFIT Data / AV range of products).
- All of the sockets are rated at 10A 250V.
- 20A GST connectors suit Wieland GST cabling which is low profile and rewireable.
- Soft wired QikFIT comes with GST male and female connectors allowing for multiple QikFITs to be daisy-chained.
- Hardwired QikFIT is supplied with a sturdy 20A cable with an Elsafe J-Coupler, allowing for power to pass through the J-Coupler and feed the QikFIT.

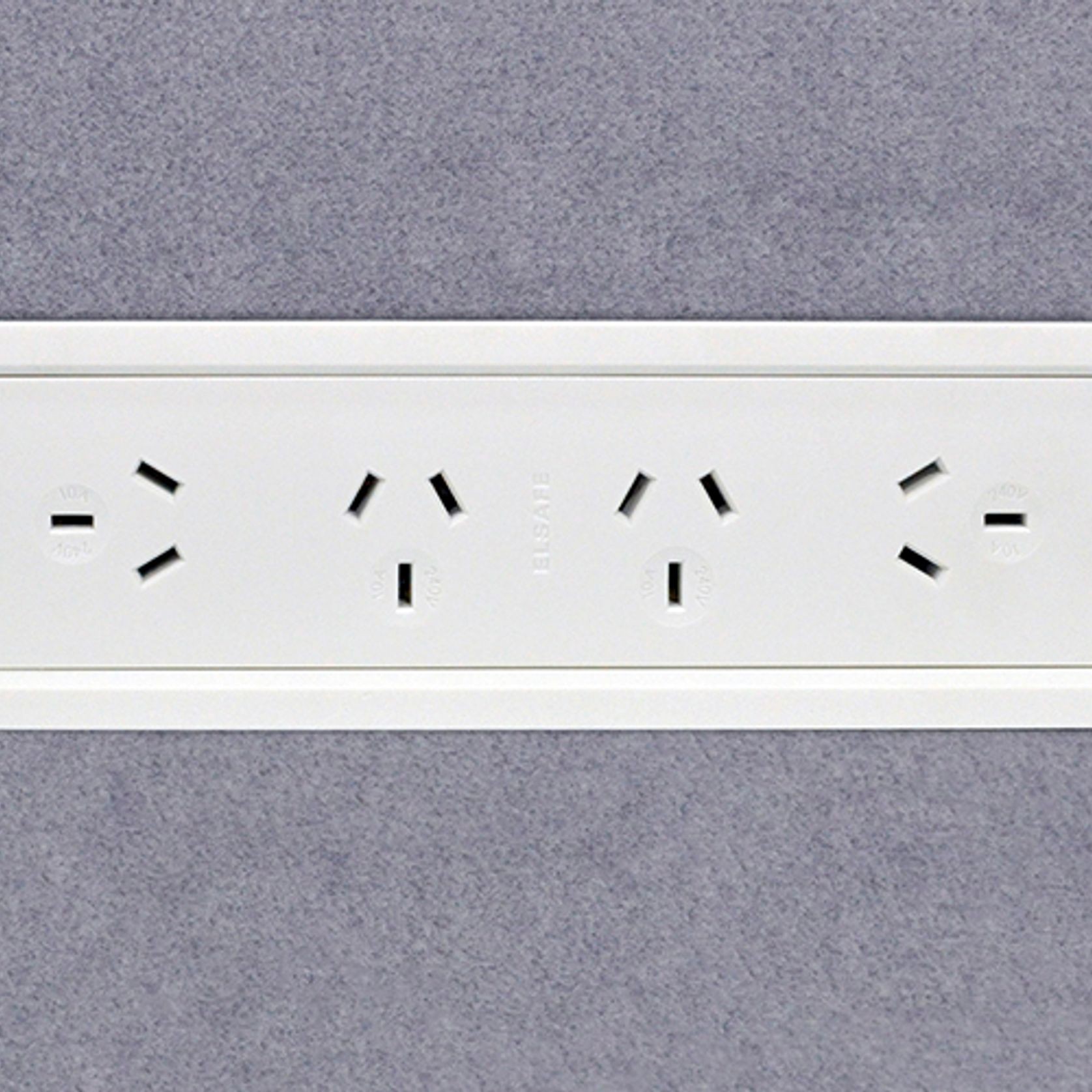

- The four gang QikFIT incorporates multi-directional sockets to allow for an array of chargers and plug packs.
- The QikFIT range will fit industry-standard cutouts.
- The QikFIT two gang can accommodate round the earth for U.P.S., dedicated power (with red faceplates).

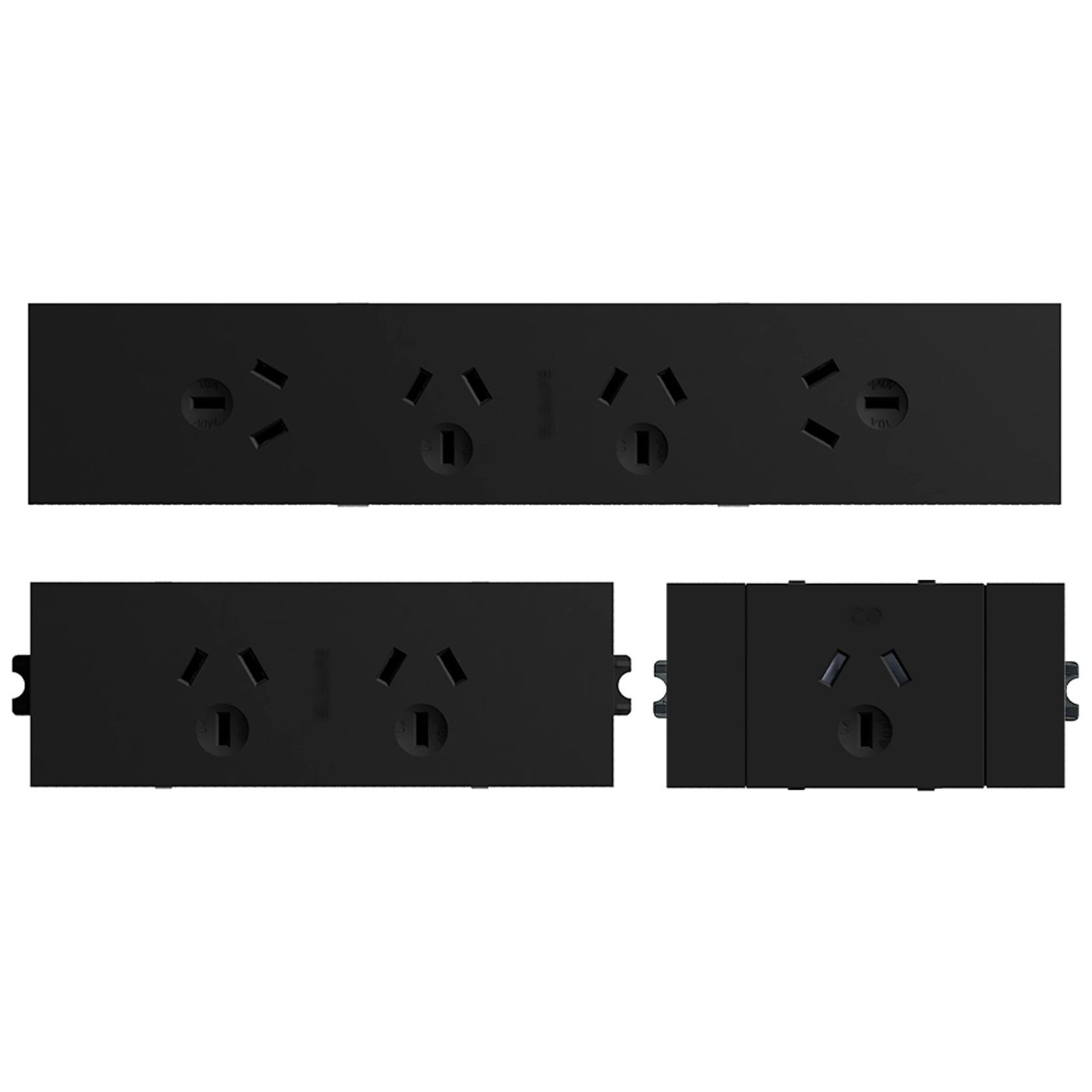

- The QikFIT can be ordered in four colours (black, white, grey and red) to suit your specific needs.
