TUF-R HP (72W) USB Charger

By OE Elsafe
Visit Website

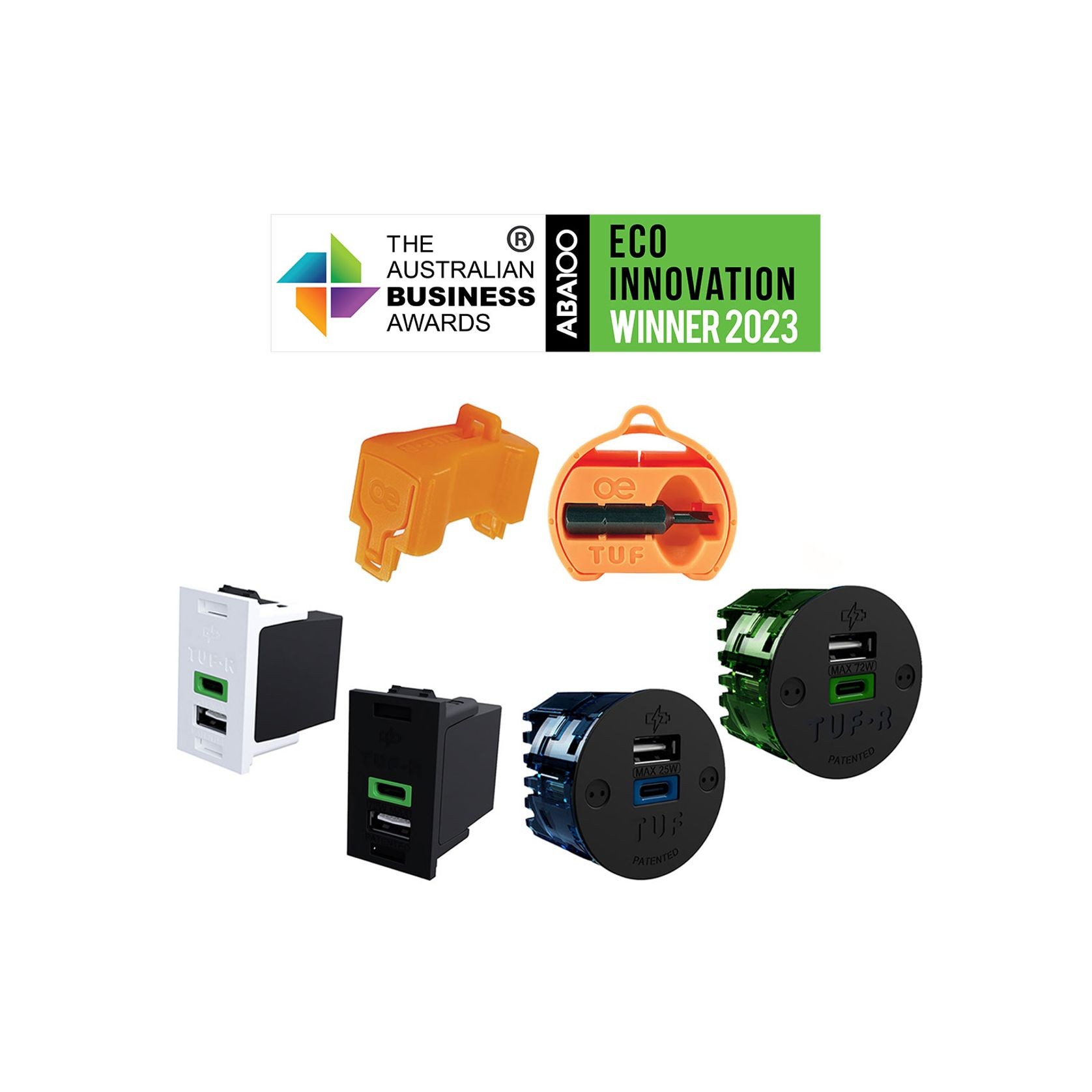

TUF-R and TUF-R HP provide high powered USB C charging for laptops, tablets and mobiles, with the added convenience of the world’s first reversible USB type-A port for first-time connection, every time.

  • Upgradeable / Replaceable
  • Reversible Type A USB Port

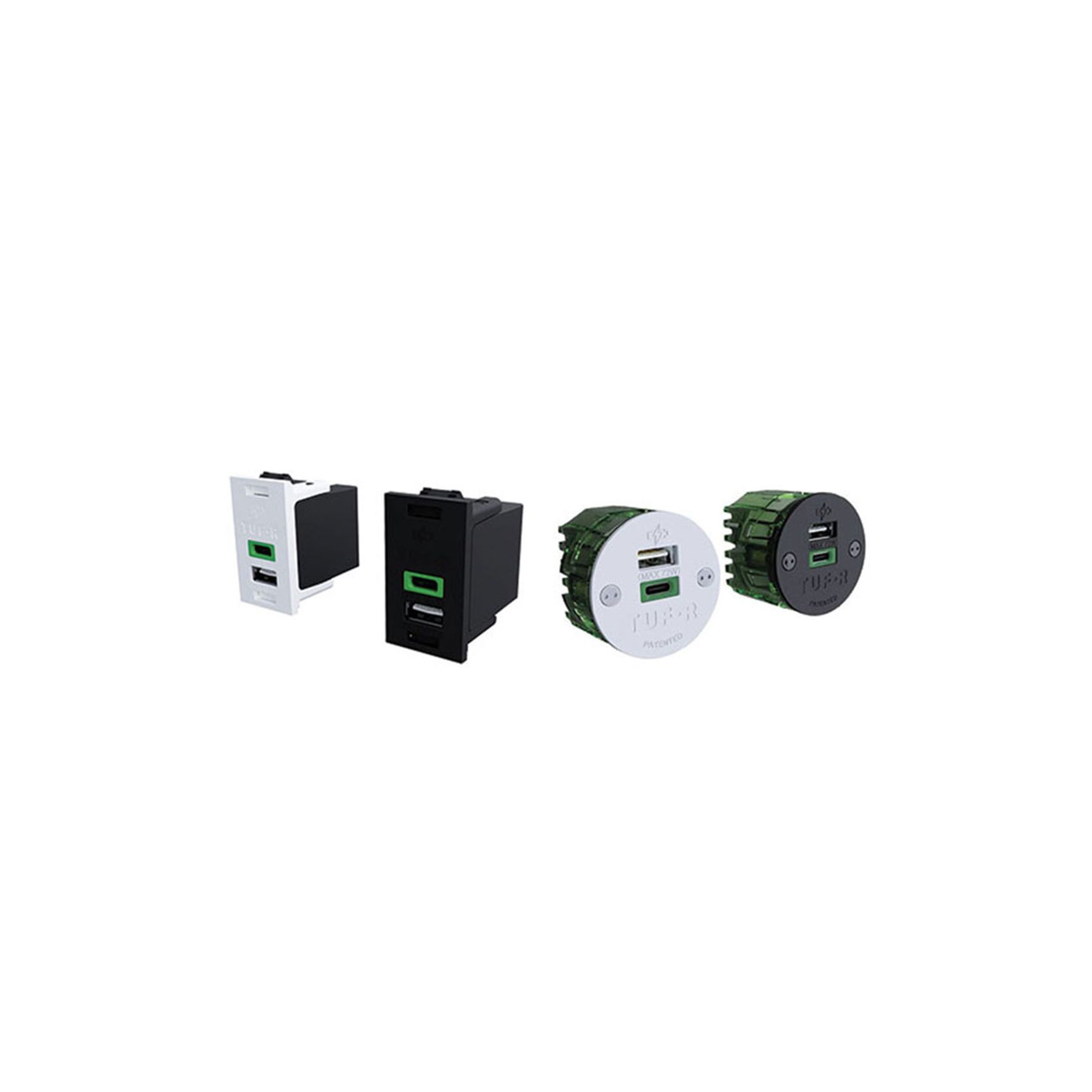

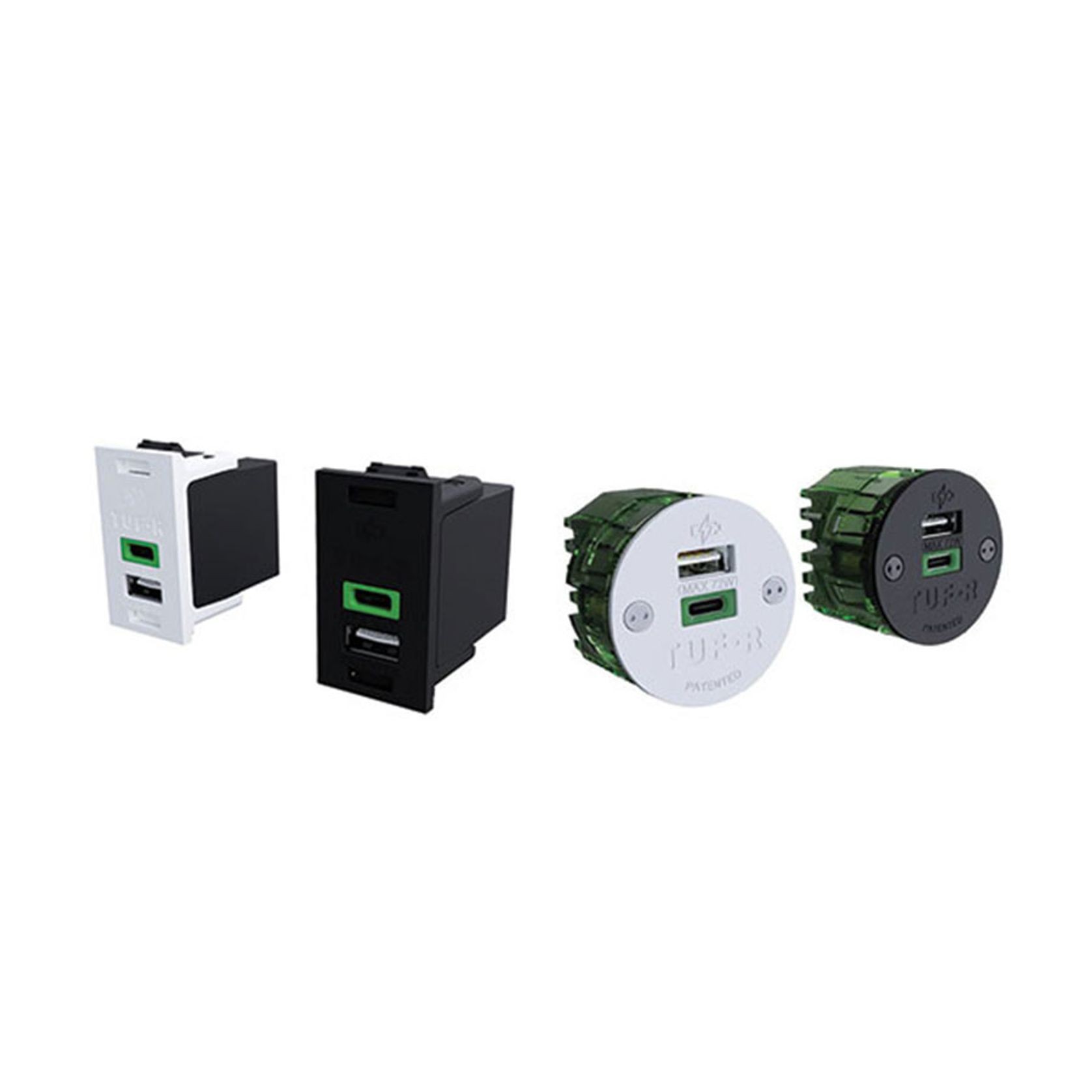

  • Modular to fit most OE Products

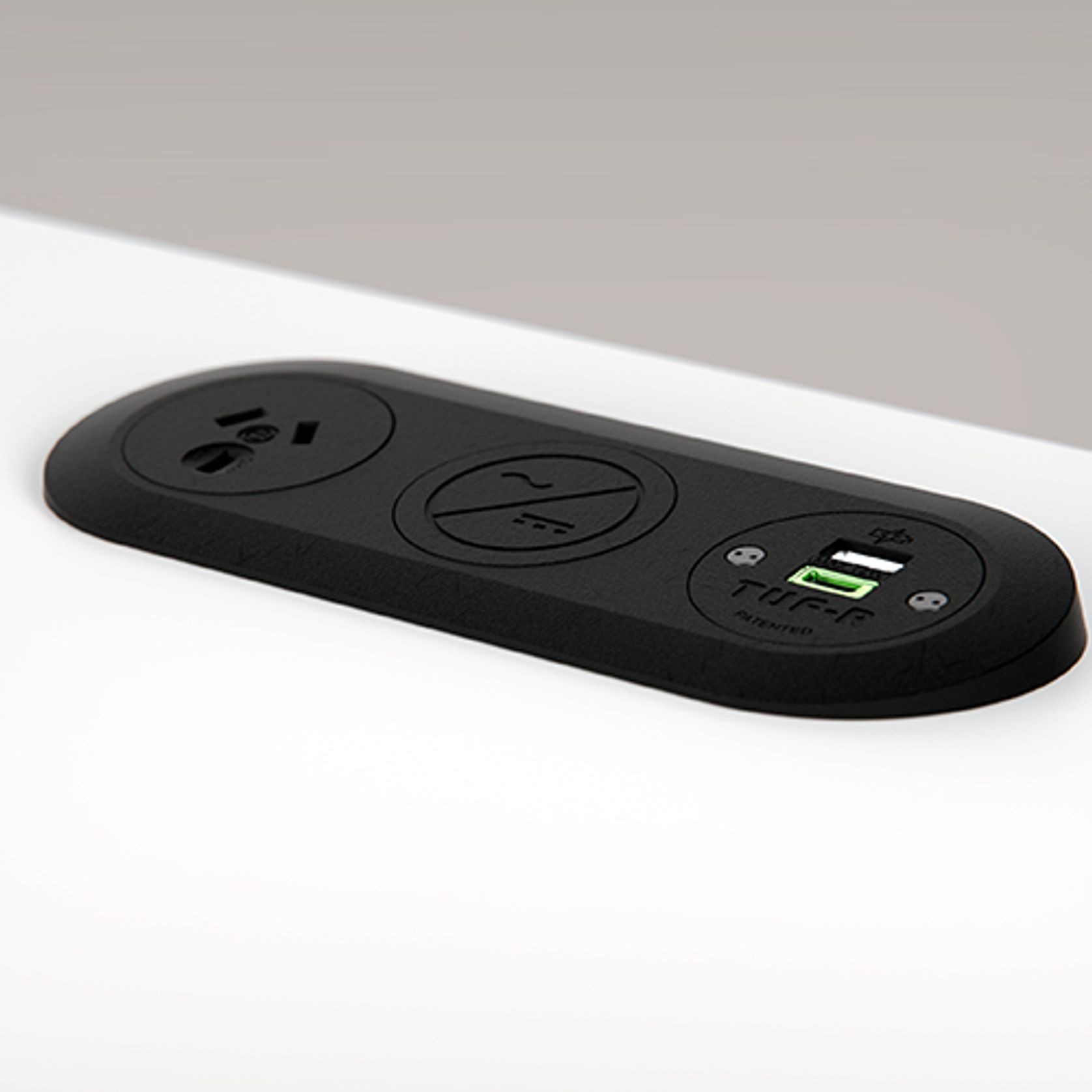

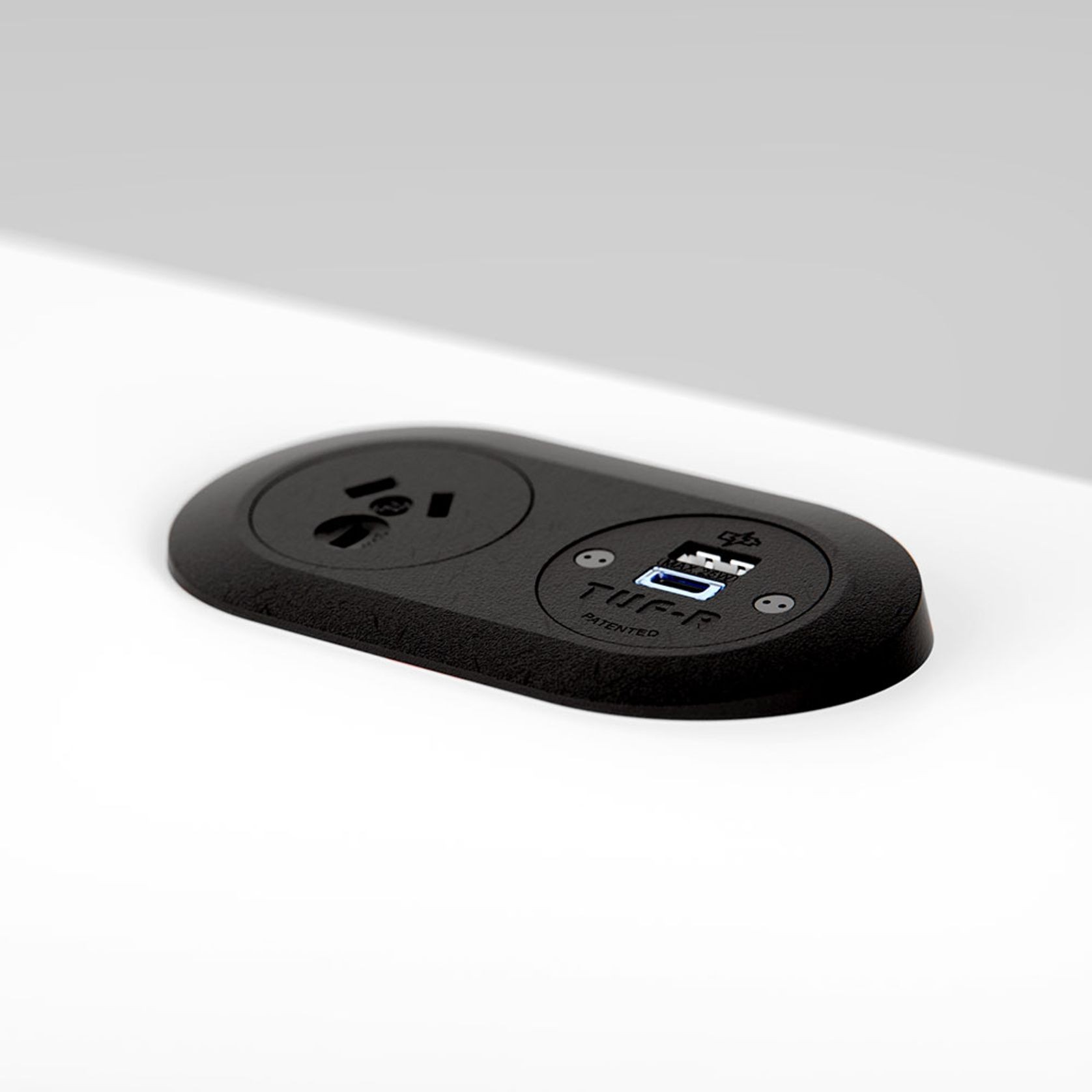

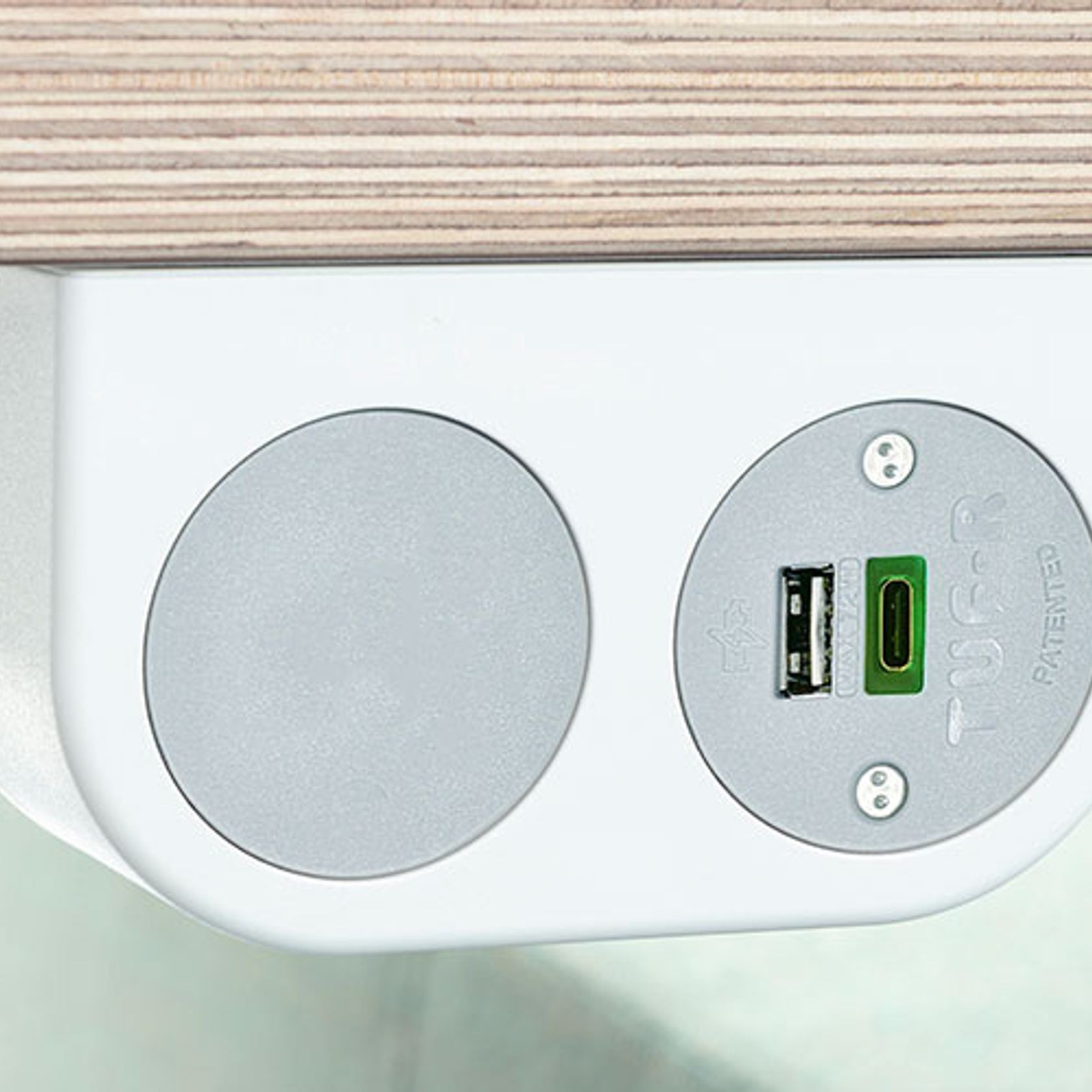

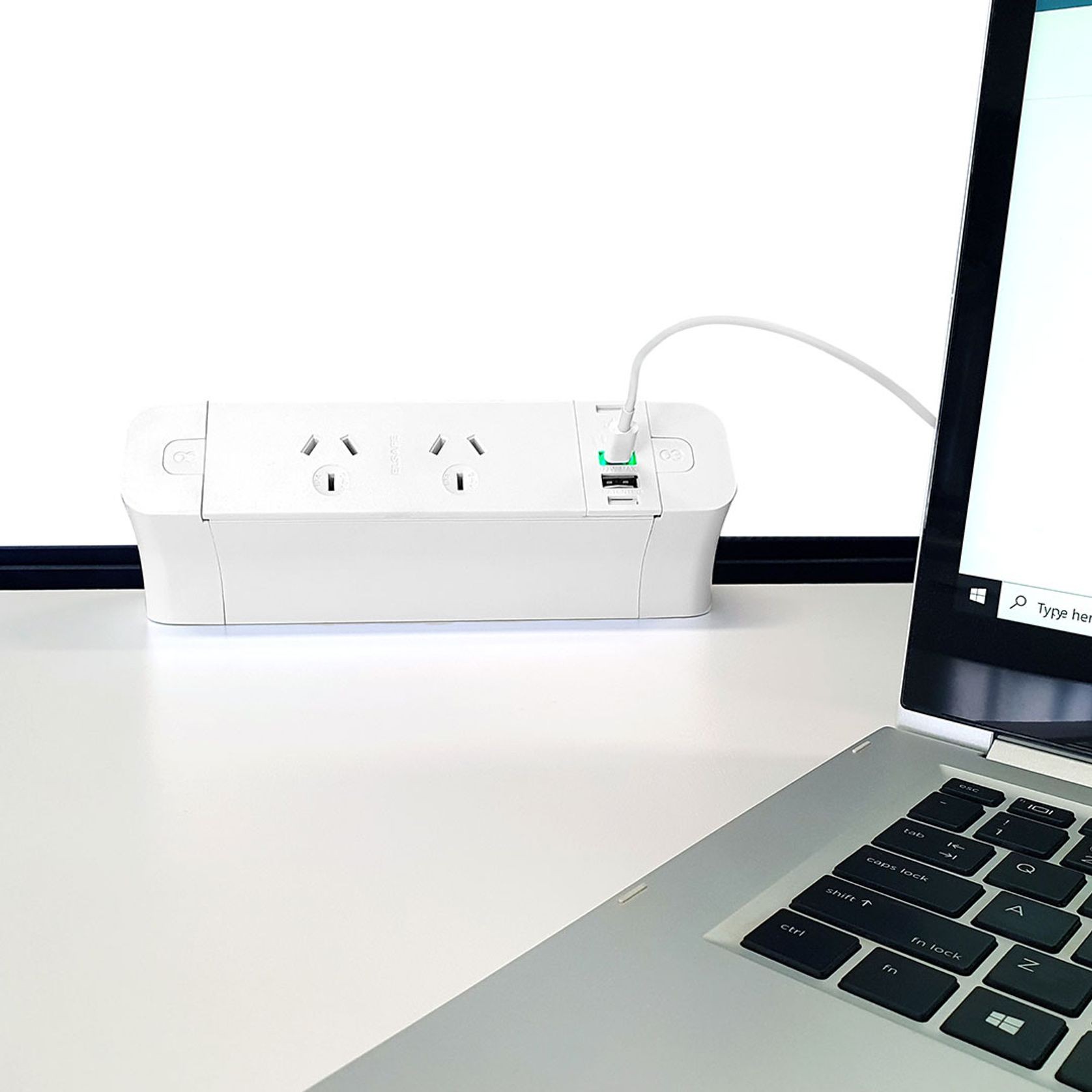

TUF-R HP (high power) (72W) is a revolutionary innovation that splits the power system, enabling compact USB laptop and mobile charging solutions above the surface with the power supply (QF30 PSU) discreetly hidden under the desk, inside cabinetry or fitted into the OE Prodigy cable basket.

Upgradeable / Replaceable

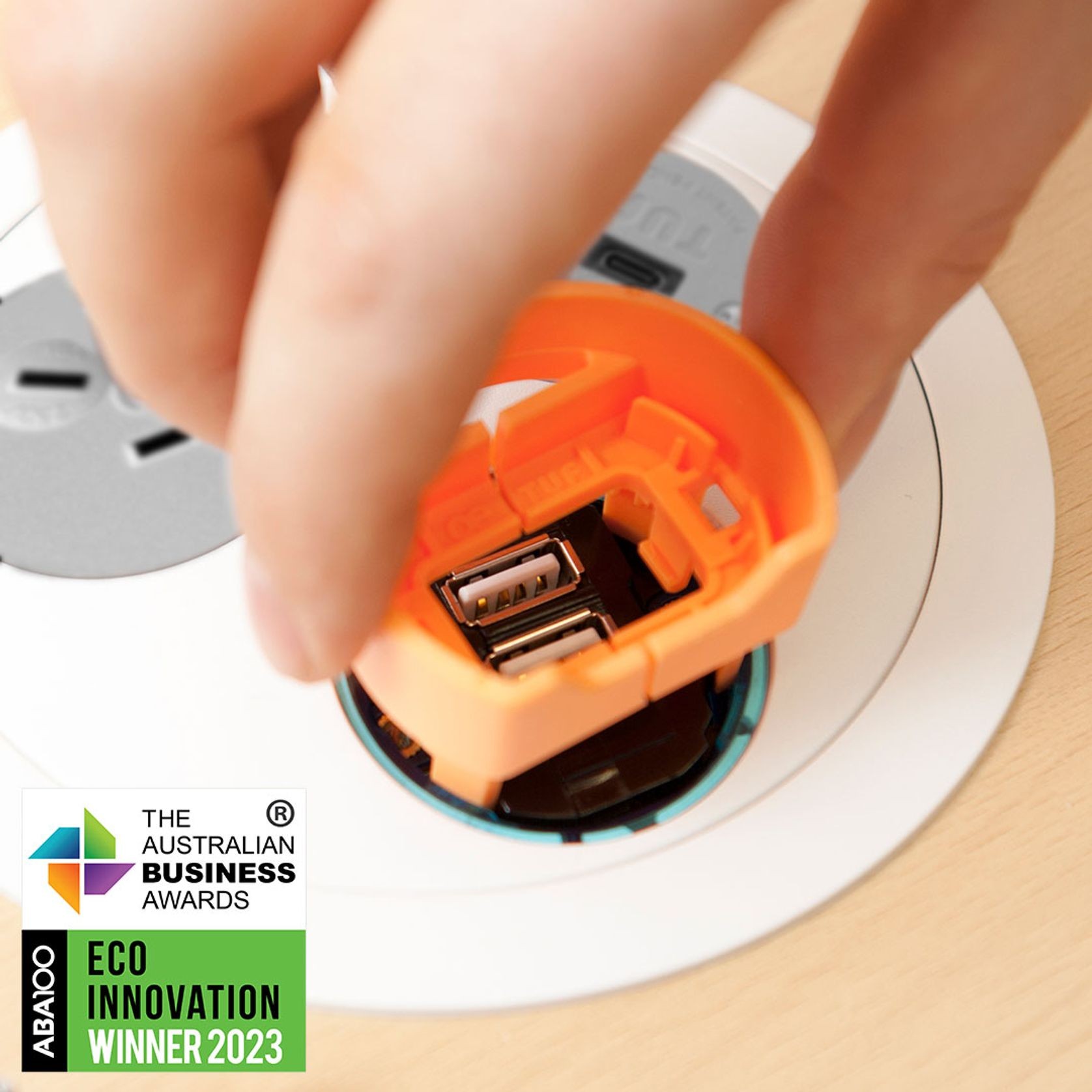

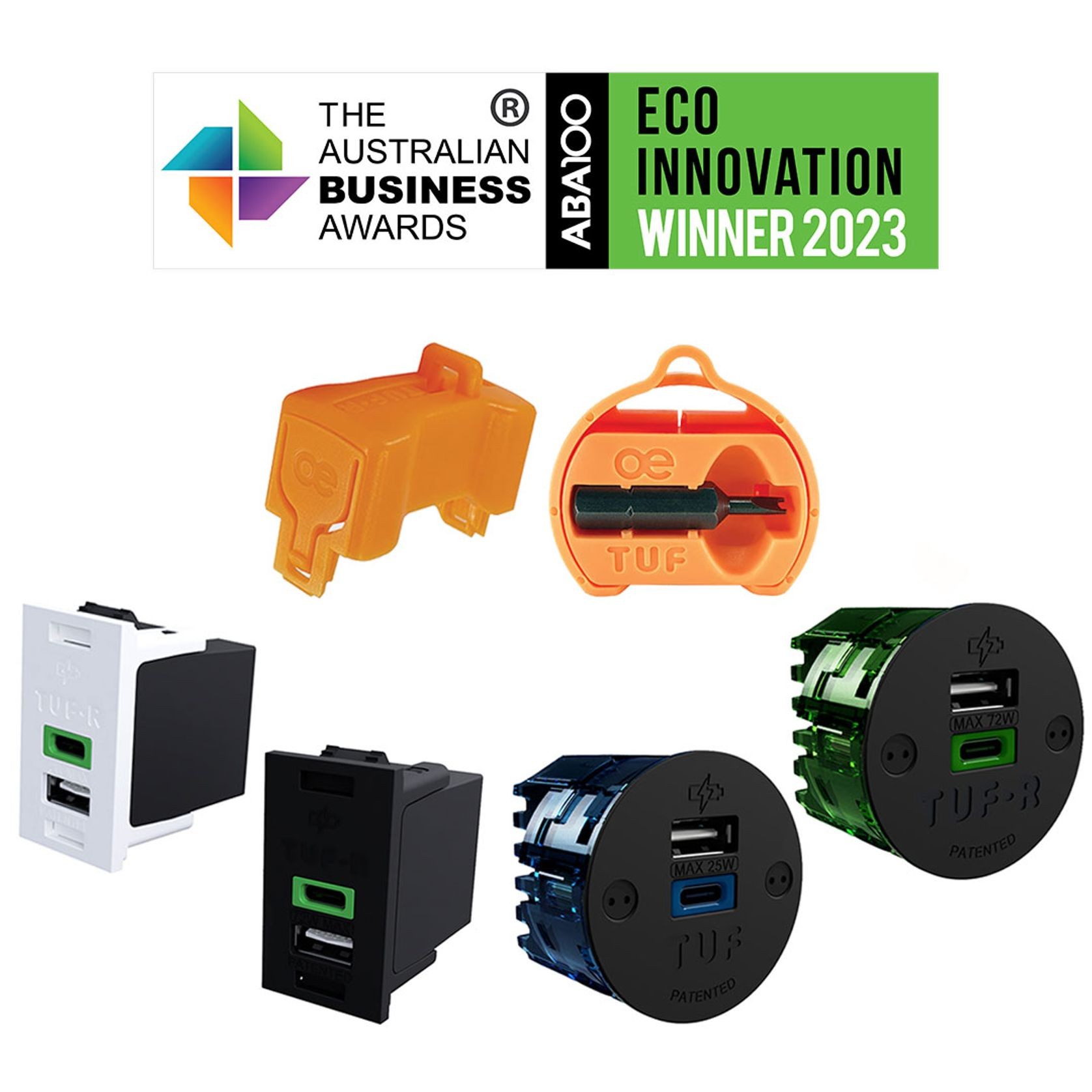

TUF-R is quick and simple to replace without the need to turn off the power or call an electrician. The unique and patented benefit of being replaceable makes TUF-R perfect for areas of high traffic, such as public spaces, education, and hospitality, where if damaged through misuse, TUF-R can quickly be replaced. Replacing or upgrading the TUF-R module and not the whole product saves time, resources, and reduces waste.

Reversible Type A USB Port – Accepts connector both ways

Unique to OE Elsafe is the reversible Type-A port which will ensure a quick single attempt connection every time. USB charging cord connectors can now be inserted both ways, cutting down on wear or damage from incorrect attempts, maximising the working life of the power module.

Details
  • Category
    Office Accessories
  • Warranty
    2 years
Specifications
  • Qikfit TUF-R HP is for Charging Only; No Data Transfer Available

USB Charging Outlets:

  • 1 x Type A Female
  • 1 x Type C Female

Input Connection:

  • 1 x GST08 Male

Output Voltages and Currents:

  • Type C: Max 60W
    20V/3A, 15V/3A, 9V/3A, 5V/3A (PD3.0)
    QC 2/3.0 5V/3A, 9V/2A, 12V/1.5A
  • Type A: Max 12W
    5V/2.4A IDR BC1.2
    Apple 12W Mode
    Samsung Fast Charge

Input Voltage:

  • 24 – 30V DC

Rated Total Output Power:

  • 65W Max

USB Connector Min. Insertions:

  • 10,000 for Type A
  • 10,000 for Type C

Over Current Protection:

  • Yes, Digital Control at 3.3A – Auto reset with LED Flash

Short Circuit Protection:

  • Yes, Digital Control at 3.3A – Auto reset

Over Temperature Protection:

  • Auto Power Reduction to PD 45W Mode
    20V/2.25A, 15V/3A, 9V/3A, 5V/3A

Rated Operating Temperature:

  • 0° to 25°C

Standards:

  • IEC 62368-1 : 2014 (Safety)
  • EN 62104 : 2000 (EMC)

Field Replaceable:

  • Yes, when in 42mm Canister and QF5 solutions
Features

TUF-R and TUF-R HP incorporate Power Delivery Technology, optimising charging speeds for both laptops and mobile phones.

TUF-R HP delivers a full 60W rated Type C Port charge while maintaining Intelligent Device Recognition (IDR) on the Type-A Port.

Reversible Type-A Port (unique to OE) ensures a quick single attempt connection every time. USB charging cord connectors can now be inserted both ways.

TUF-R additional features:

TUF by name and tough by nature; TUF-R is designed to withstand the elements of a commercial environment with commercial-grade connectors for over 10,000 insertions. This makes TUF-R ideally suited to high usage public areas, hotels, education and offices. TUF-R circuitry includes protection against both input and output current overload and has been independently tested to the latest International Safety and EMC standards.

Through innovative engineering, TUF-R HP boasts an exceptional efficiency of 91% ensuring you a full 72W of power for charging. This allows you to charge your devices faster, with far less power wastage through heat generation and complies with the latest international standards on the efficiency of power supplies.

Have you have ever considered designing your own power module, where ours may not suit? We can help you integrate one of our TUF modules into your own OEM solution.

TUF modules are fully certified to Australian Standards ensuring peace of mind when specified into any commercial environment.

Contact OE Elsafe to discuss your project.
