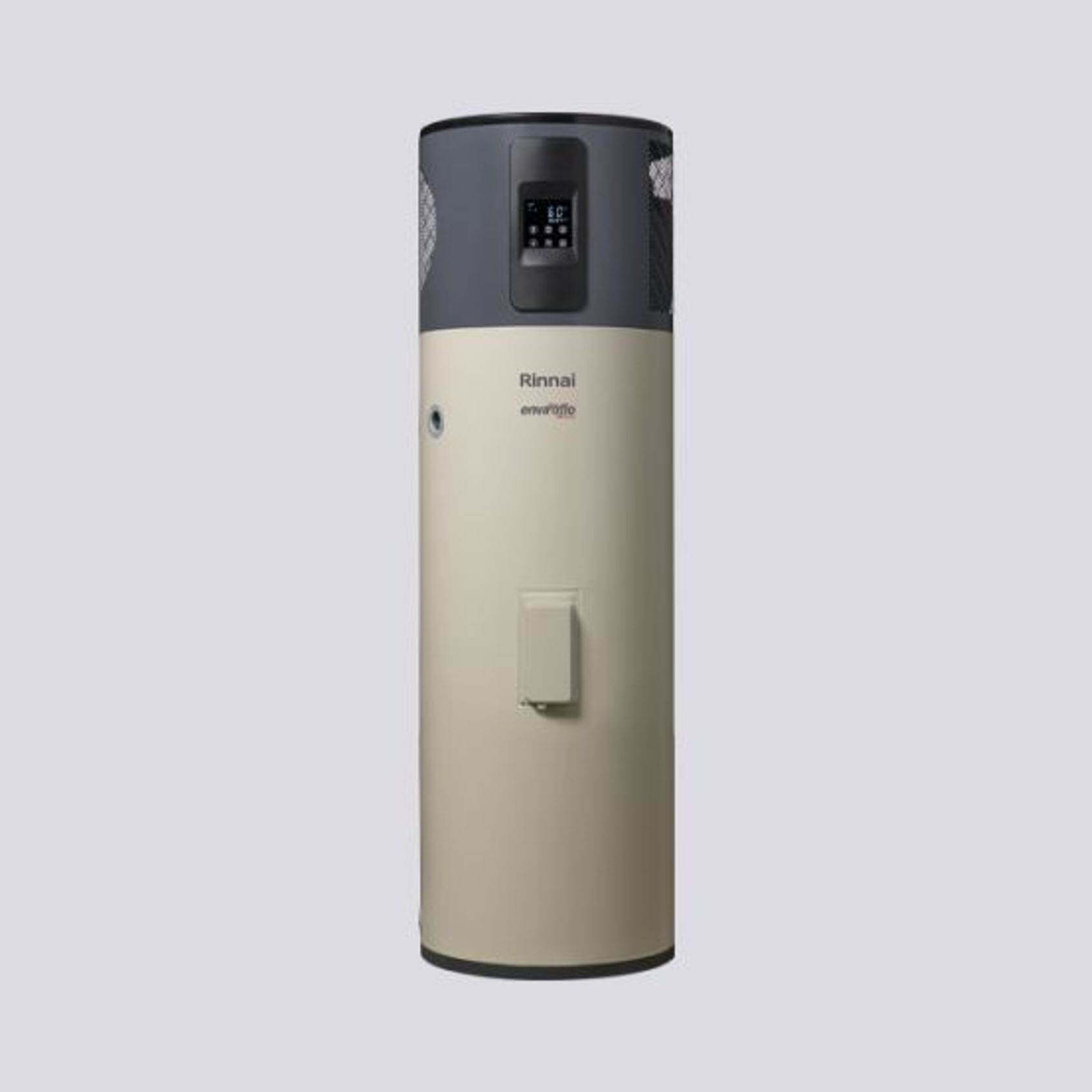

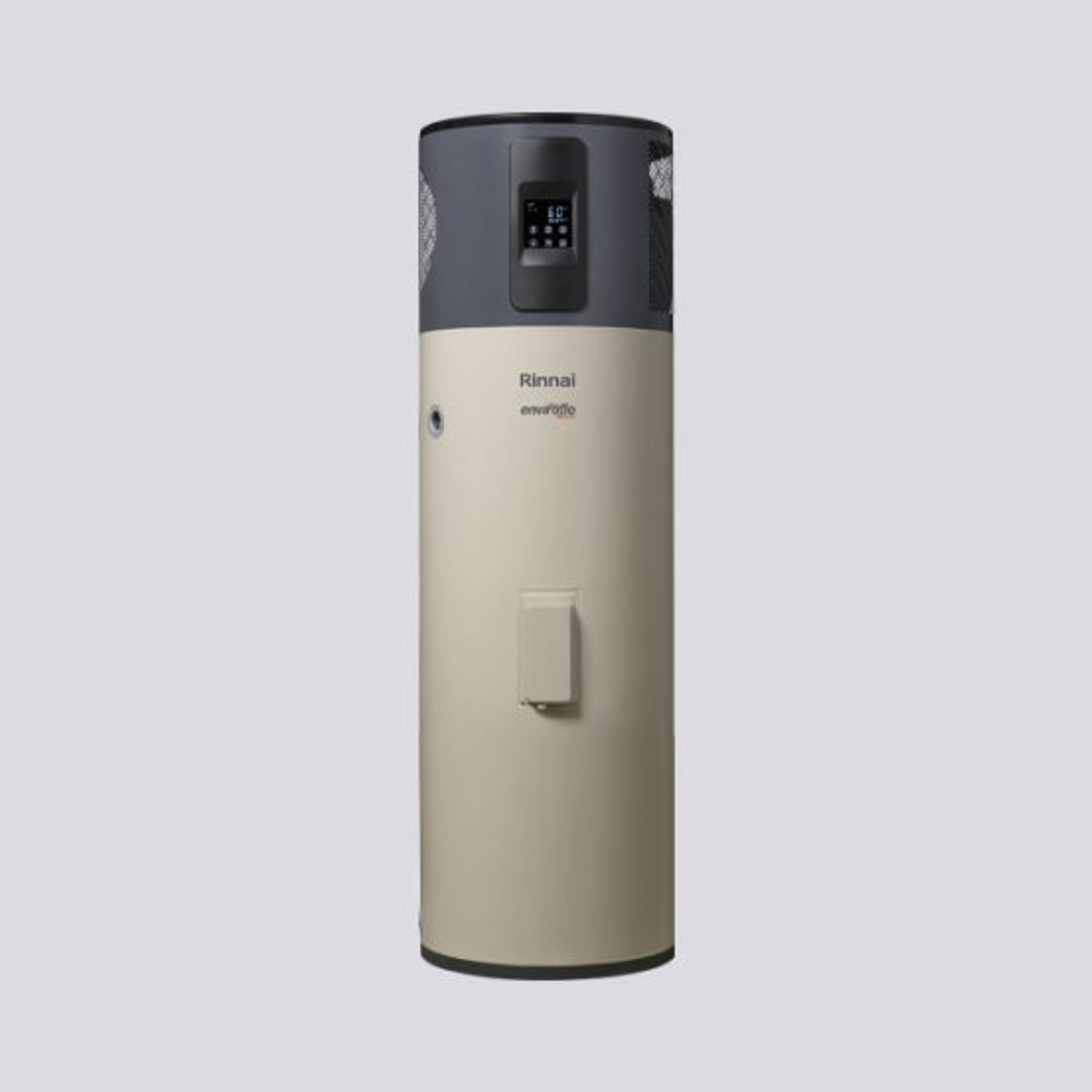

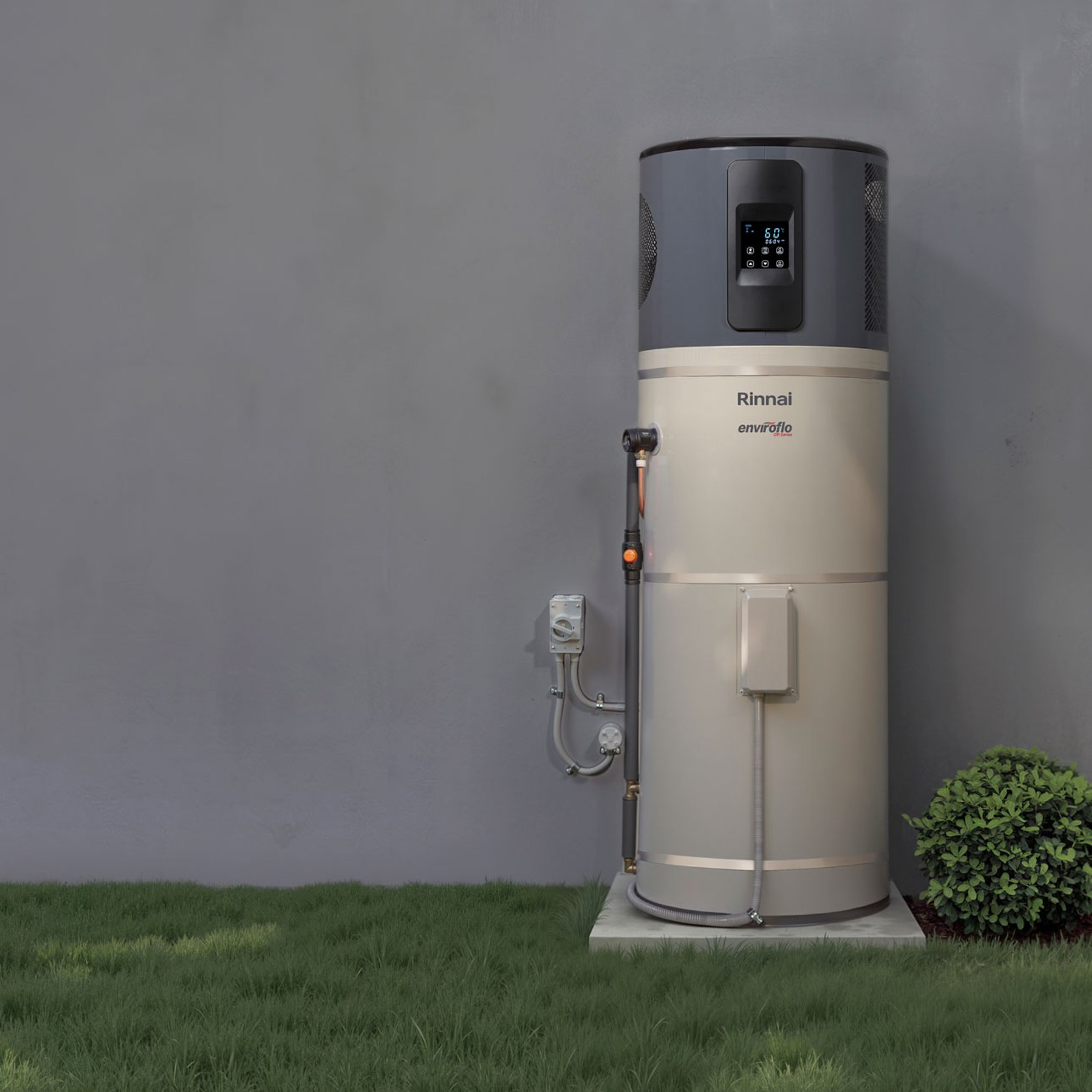

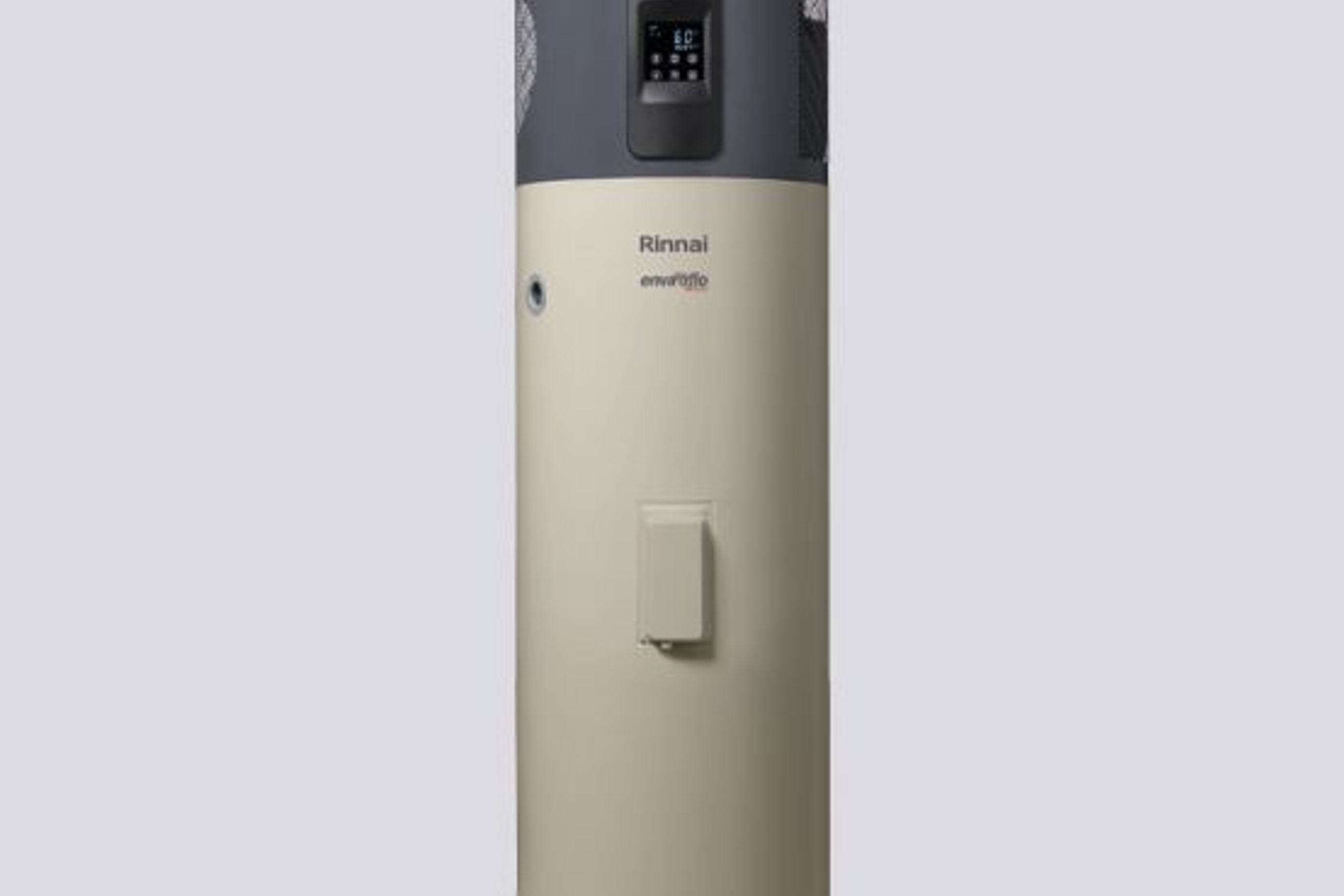

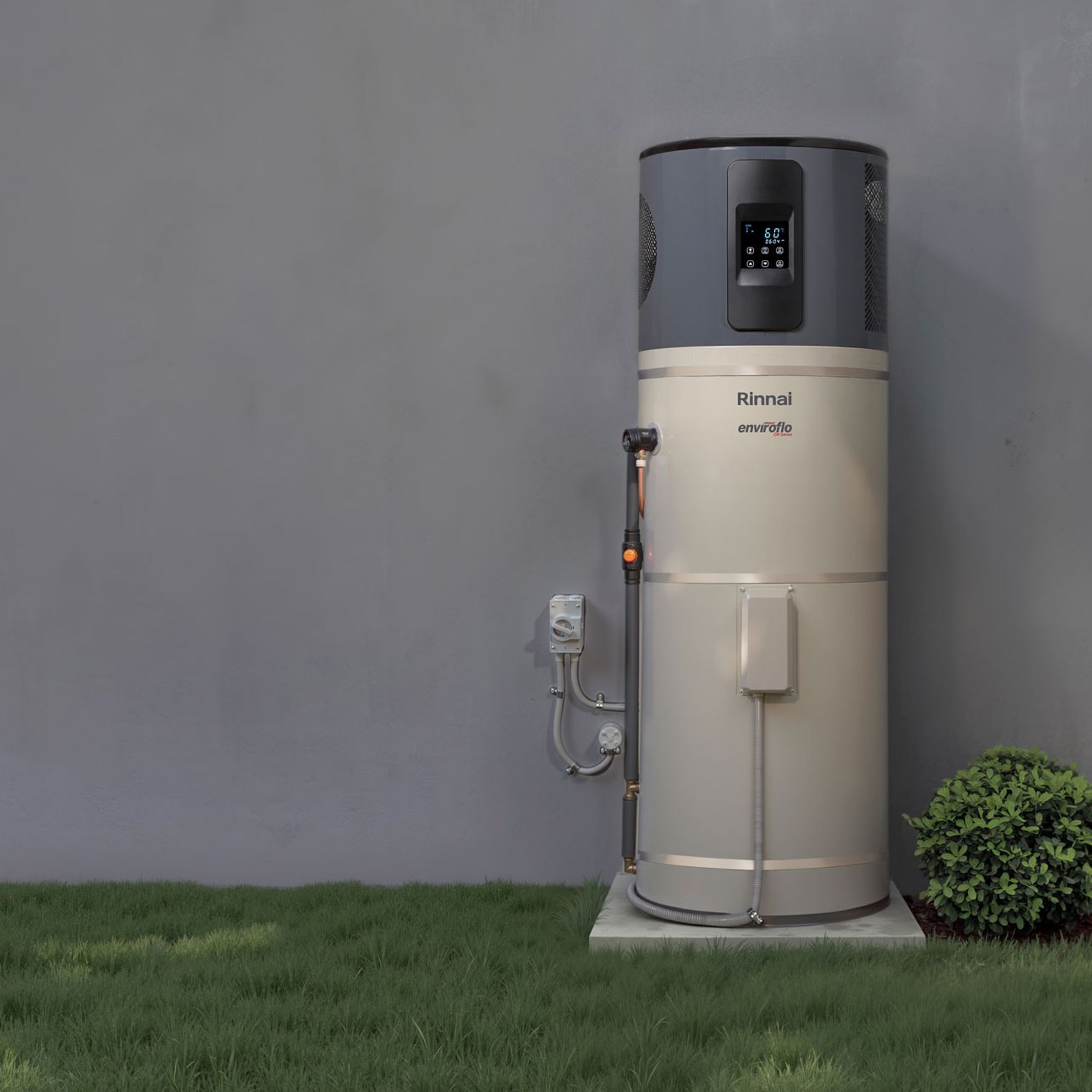

Rinnai Enviroflo™ GR Series Hot Water Heat Pumps

The Rinnai Enviroflo™ GR Series Electric Integrated Heat Pump hot water systems are your reliable choice for efficient hot water.

Specs

Storage Capacities / Order Codes

• 215L – EHPG215VM
• 265L – EHPG265VM
• 300L – EHPG300VM

COP (Coefficient of Performance)

• 215L: 4.0
• 265L & 300L: 4.1
• Performance estimated according to AS/NZS 5125:2014
• COP measured at: inlet water temp. 19°C, outlet water temp. 55°C, dry bulb temp. 19°C

Heat Pump Operation Limits

• -7 °C to 45 °C

Rated Heat Pump Output / Input

• 3.3 kW / 1.1 kW

Sound Level

• 46 dB(A)

Hot Water Recovery Rate

• Approx. 66 L/hr (19°C ambient, 36°C rise)

Cylinder Construction

• Vitreous enamel

Cylinder Element Rating

• 2.4 kW

Refrigerant Type

• 215L: R290 / 355 g
• 265–300L: R290 / 395 g

Modes of Operation

• Standard
• Eco
• Hybrid
• Electric
• Vacation

Dimensions and Weights

• EHPG215VM: Ø640 mm x 1875 mm | 109 kg / 324 kg
• EHPG265VM: Ø640 mm x 1933 mm | 120 kg / 400 kg
• EHPG300VM: Ø640 mm x 2055 mm | 124 kg / 424 kg

Water Supply and Connections

• Hot outlet / cold inlet: ¾” RP
• TPR: ½” RP
• Condensate: 19 mm tapered connection

Refrigeration Circuit Max. Pressure

• 3091 kPa

TPR Settings (Supplied)

• 1000 kPa / 10 kW

Rated Current

• 13.5 A (15 A plug fitted)

IP Rating

• IP24

Market Release

• March 2025
