SMARTCLIP – FLOOR HEATING FIXING SYSTEM
WARMNZ is the first company in NZ to use this Denmark designed system for both residential and commercial underfloor heating installations.
We always see bad working postures, which ruin the fingers and overstretch the knees and back. Physical overloads that in many cases end up becoming chronic disease. This system was developed with work environment and ergonomics being the focal point.
Fast, easy, inexpensive solution for installing underfloor heating pipe to mesh or polystyrene.
Product Benefits
- Nearly 80% faster than traditional ways to mount tubes
- Only 1 employee is needed for mounting
- No risk of corrosion (plastic on plastic)
- The clips lift the tube from the iron and provides better concreting
- The clips can be kicked off and be replaced / used again
- More straight and accurate positioning of the tube on the mesh
- No electrical power needed
- No more bending over to secure tubes to mesh
- 80% faster - 100% smarter
Product Details
- Product
- Smartclip Wire Mesh
- Category
- Central Heating & Cooling
- Sold by
- Warm NZ Heating Solutions
- Range
- Underfloor Heating
Warm NZ Heating Solutions is specified by
Charissa Snijders ArchitectArchitects
I Am DeveloperArchitects
Christian Anderson ArchitectsArchitects
Stephen Jones ArchitectsArchitects
Stephan Meijer ArchitectureArchitects
Brendon Gordon ArchitectsArchitects
Hamish Shaw ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
Hulena ArchitectsArchitects
Chaplin Crooks ArchitectsArchitects
Net ZeroManufacturers and Suppliers
Precision ConstructionBuilders
F. L. BoneManufacturers and Suppliers
FortéManufacturers and Suppliers
PlumbcraftPlumbers & Gas Fitters
Alabaster WorkshopManufacturers and Suppliers
Nicola Manning DesignInterior Designers
Christopher Hay ConstructionBuilders
Our ProjectsBuilders
Home ProjectsBuilders
M C Fearnley DesignArchitectural Designers
Wilson ConstructionConstruction
No Shock ElectricalElectricians
QUATTRO UNOKitchen & Bathroom Designers
Emandee HomesBuilders
Harrison LaneBuilders
Stehr Brothers ConstructionBuilders
Dash BuildBuilders
WaterwareManufacturers and Suppliers
Beck BuildingBuilders
SMARTCLIP – FLOOR HEATING FIXING SYSTEM
WARMNZ is the first company in NZ to use this Denmark designed system for both residential and commercial underfloor heating installations.
We always see bad working postures, which ruin the fingers and overstretch the knees and back. Physical overloads that in many cases end up becoming chronic disease. This system was developed with work environment and ergonomics being the focal point.
Fast, easy, inexpensive solution for installing underfloor heating pipe to mesh or polystyrene.
Product Benefits
- Nearly 80% faster than traditional ways to mount tubes
- Only 1 employee is needed for mounting
- No risk of corrosion (plastic on plastic)
- The clips lift the tube from the iron and provides better concreting
- The clips can be kicked off and be replaced / used again
- More straight and accurate positioning of the tube on the mesh
- No electrical power needed
- No more bending over to secure tubes to mesh
- 80% faster - 100% smarter
- Specs / Details

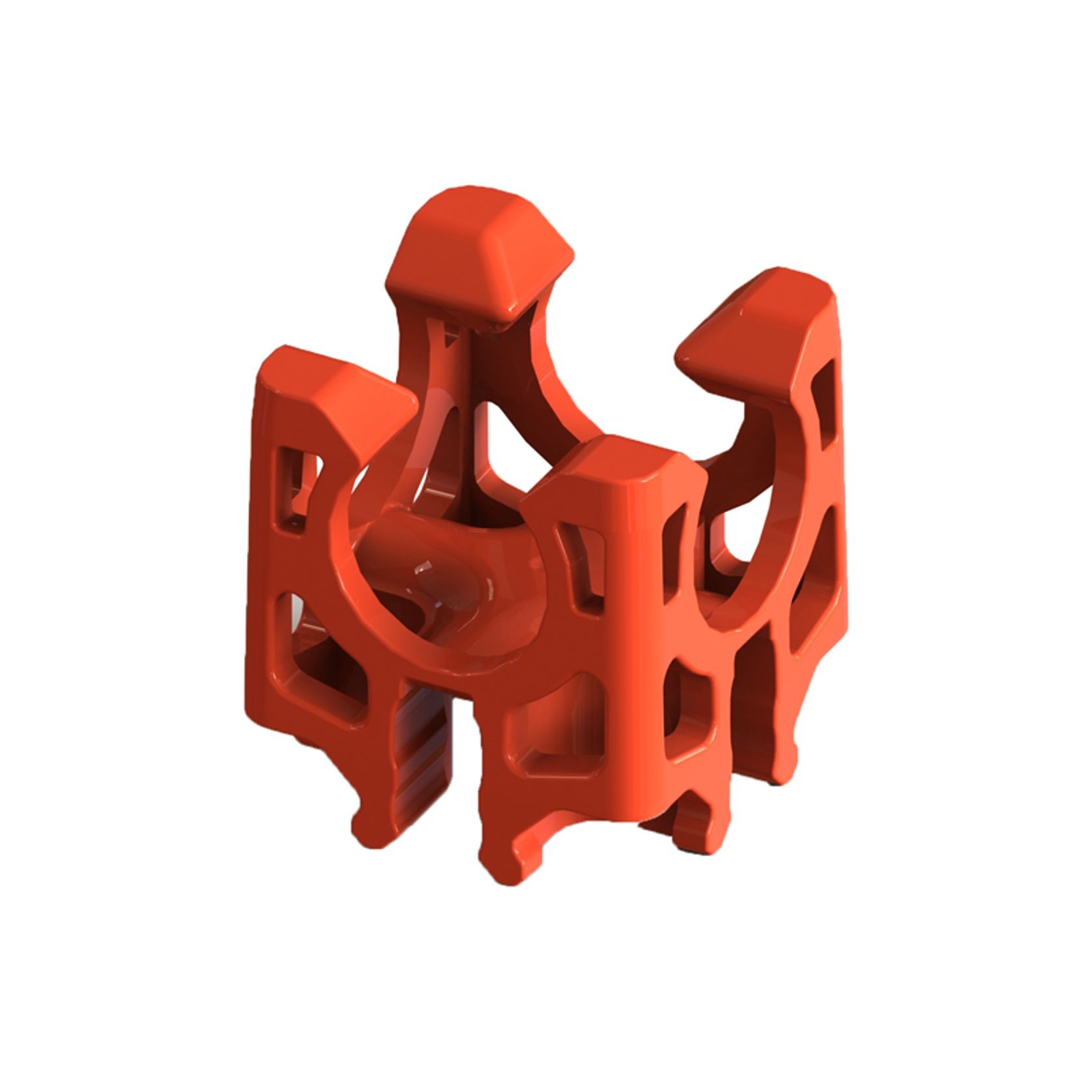

Smartclip to suit Ø16mm pipeFits 5.6 - 6.6mm wire meshThis clip will suit '663' or 'SE62' or ' D188' wire meshQuantity of clips per box – 1408
To calculate approximate number of clips required:Sq meter of house *5 = Number of meters of pipe / 0.4 = number of clipsIe 200m² House = 1,000mtr of pipe = 2,500 clips
Downloads
Downloads (2)2 Direct downloads • 11 Available on request
Frequently asked questions about
Smartclip Wire Mesh
The Smartclip Wire Mesh is supplied by Warm NZ Heating Solutions. It is also on their website, and you can browse every product Warm NZ Heating Solutions lists on ArchiPro.
Warm NZ Heating Solutions does not publish a price for the Smartclip Wire Mesh on ArchiPro. for pricing, or visit their website.
It is listed under Central Heating & Cooling on ArchiPro, where you can compare it with central heating & cooling from other suppliers.
Yes. It is part of the Underfloor Heating range from Warm NZ Heating Solutions, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The Warm NZ Heating Solutions profile on ArchiPro has the rest of their products.
