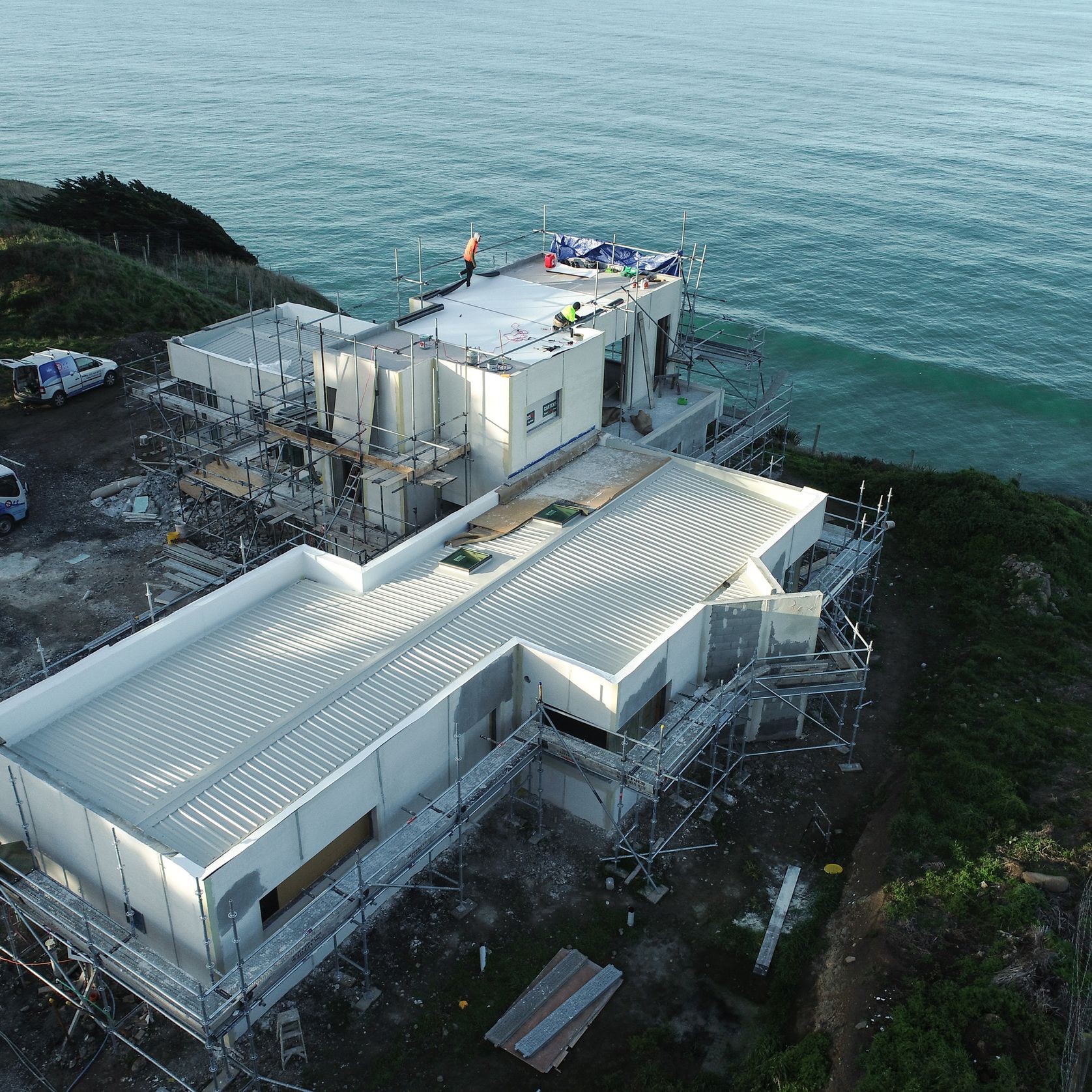

Viking WarmSpan is a warm roof that includes a proprietary steel tray substrate, to make up a complete roof system. WarmSpan consists of a wide-span trapezoidal profile steel tray roof deck that can also form the vapour barrier using a clever sealing and flashing system. (Alternatively, a full self-adhered vapour barrier can be installed on top of the tray). Kingspan’s TR27 Polyisocyanurate (PIR) rigid insulation panels are adhered on top using a proprietary polyurethane adhesive with impressive wind uplift resistance, and the insulation surface is then waterproofed with either of Viking Roofspec’s CodeMark-certified sheet membranes.
Unlike Viking’s general WarmRoof system that is installed on a building’s existing concrete, ply or steel substrate already in-situ (new or old), a Viking WarmSpan system is a prescriptive formula that has been specifically engineered and tested to comfortably exceed New Zealand’s Building Code’s minimum standards. The WarmSpan system has a spanning ability between purlins of up to 3.0m (versus the 400mm centred joists required under a heavy 17mm plywood substrate for a traditional membrane roof). This reduces a building’s overall structural cost without compromising the integrity of the building and delivers increased performance and greater durability.
Components of a Viking WarmSpan system:
- Viking WarmSpan proprietary steel-tray substrate
- Viking vapour barrier (two options)
- Kingspan Polyiso insulation panel (including tapered)
- Any of Viking’s Codemark-certified sheet membrane systems

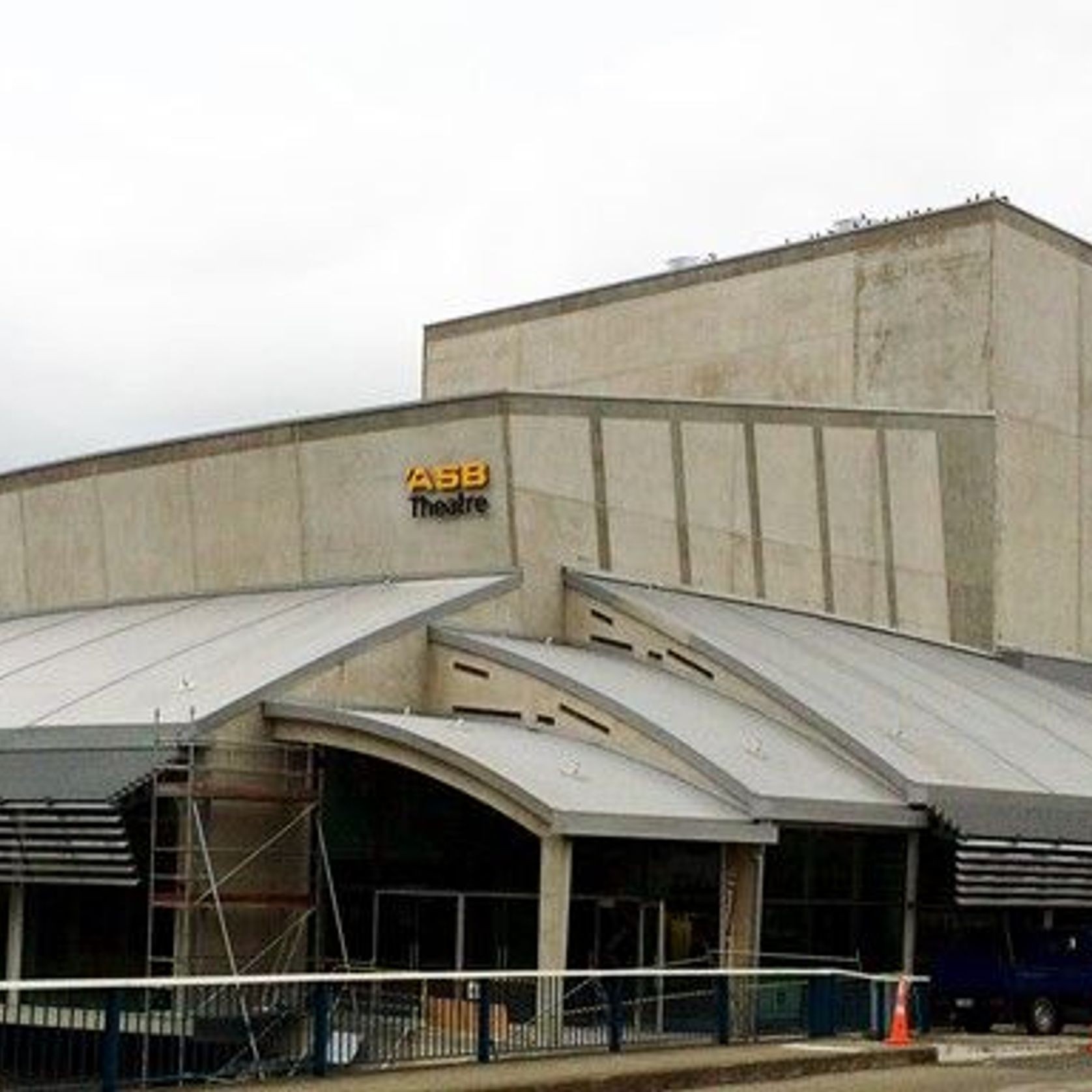

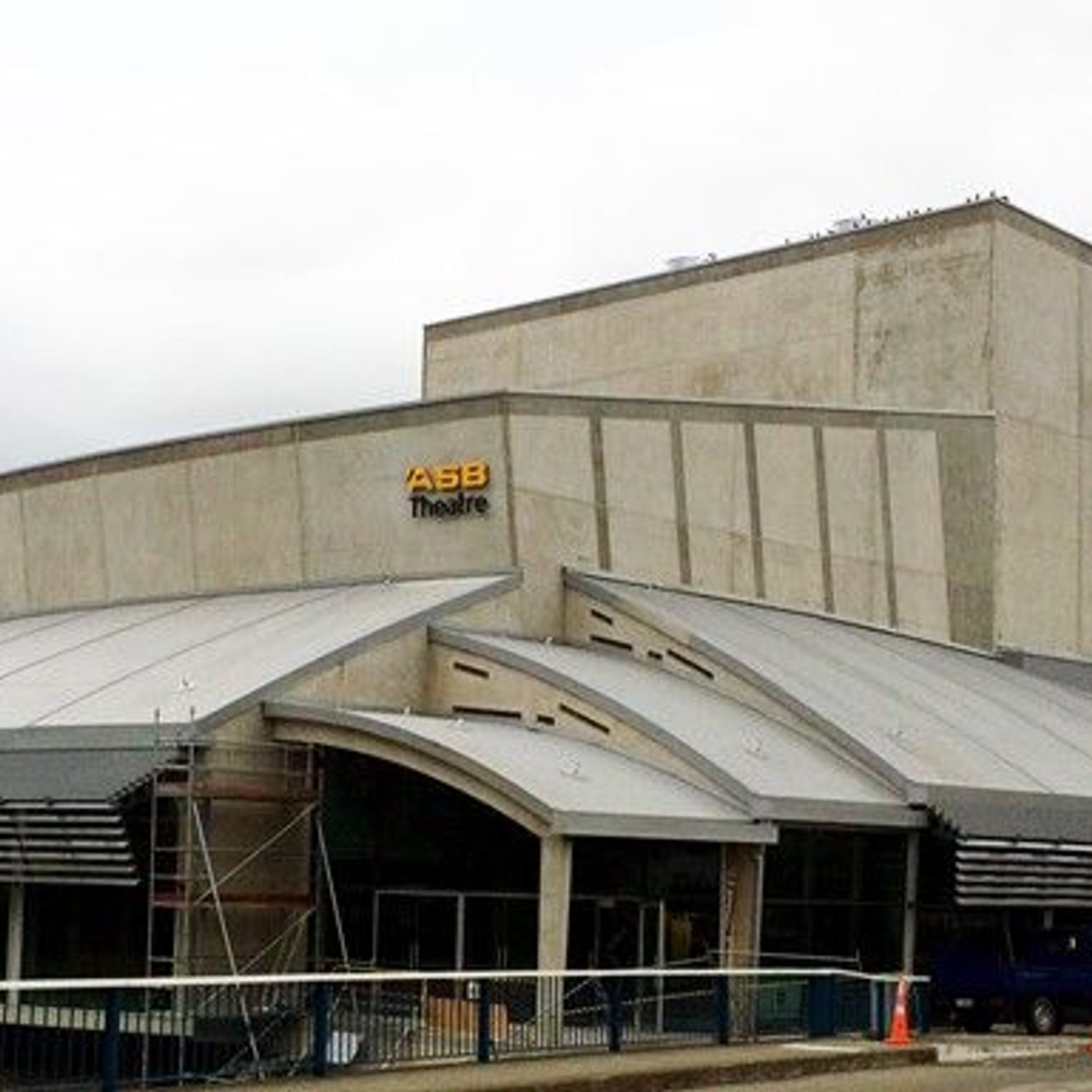

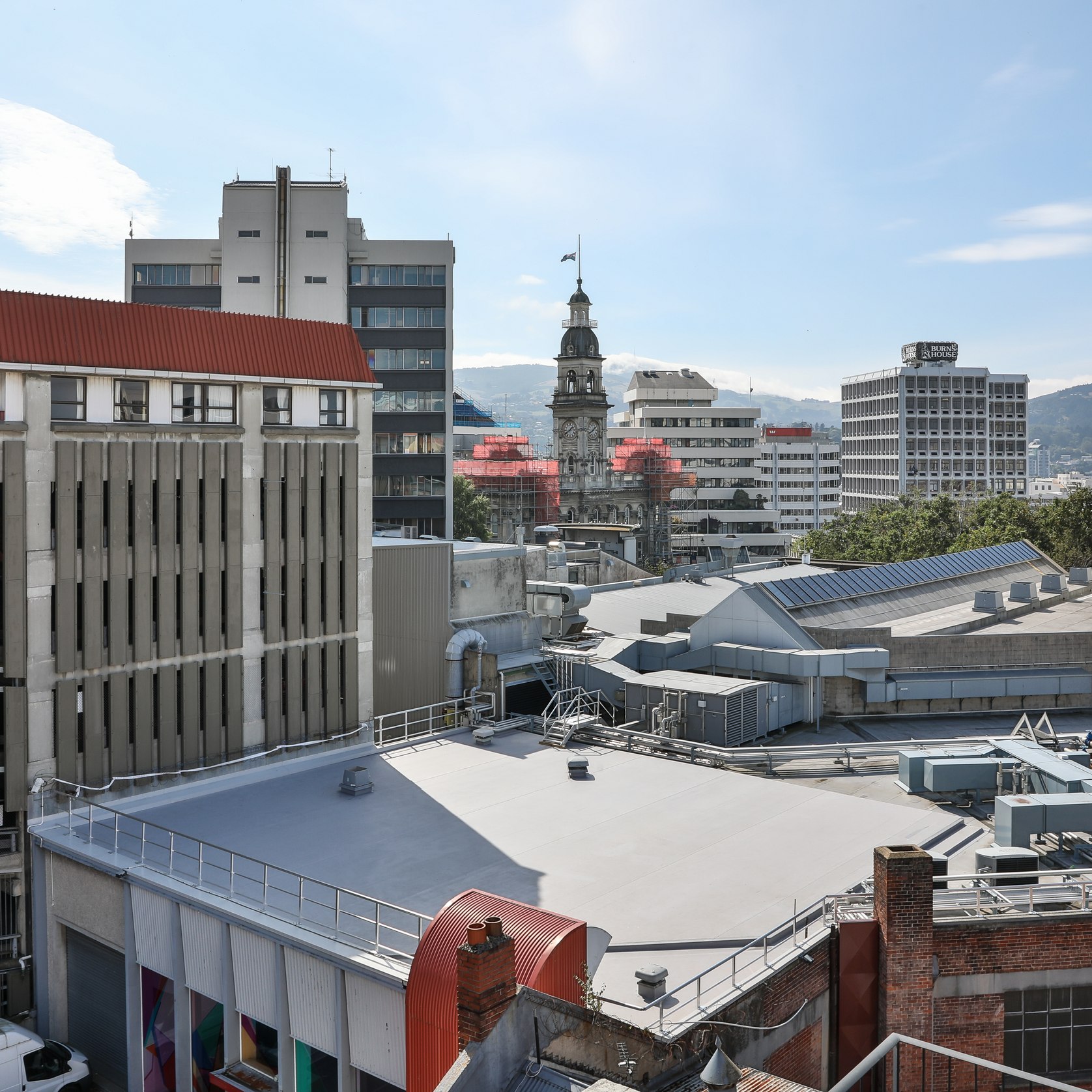

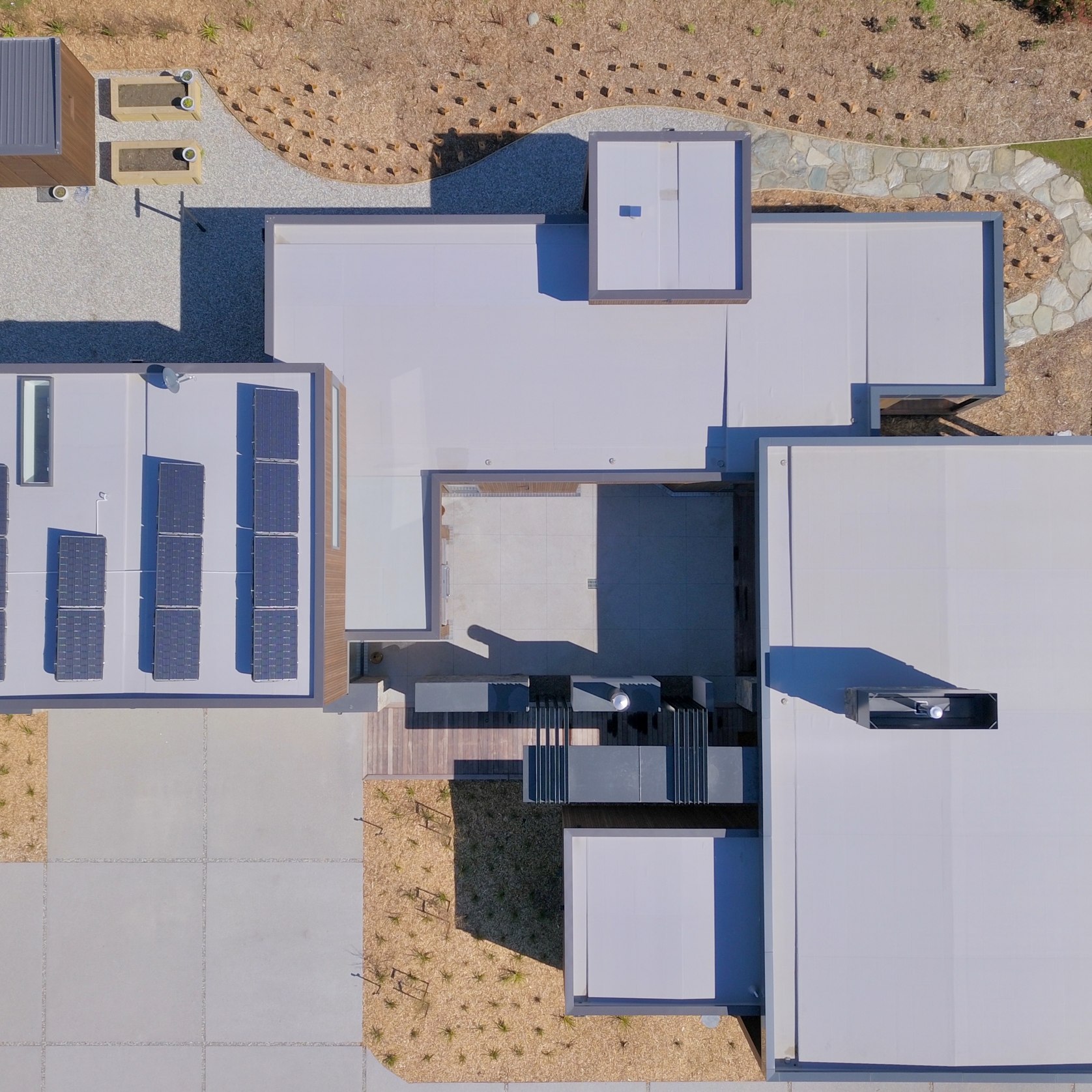

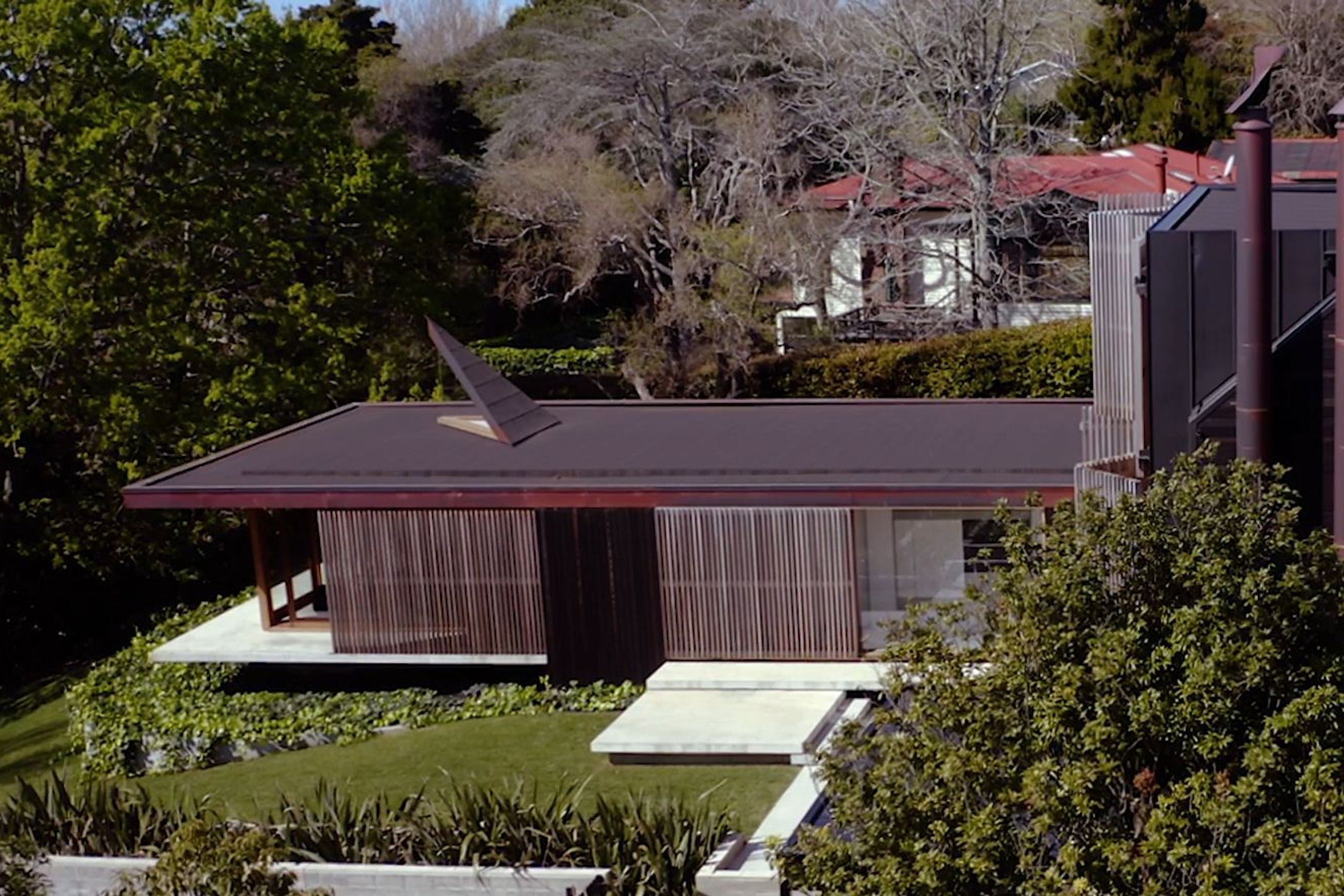

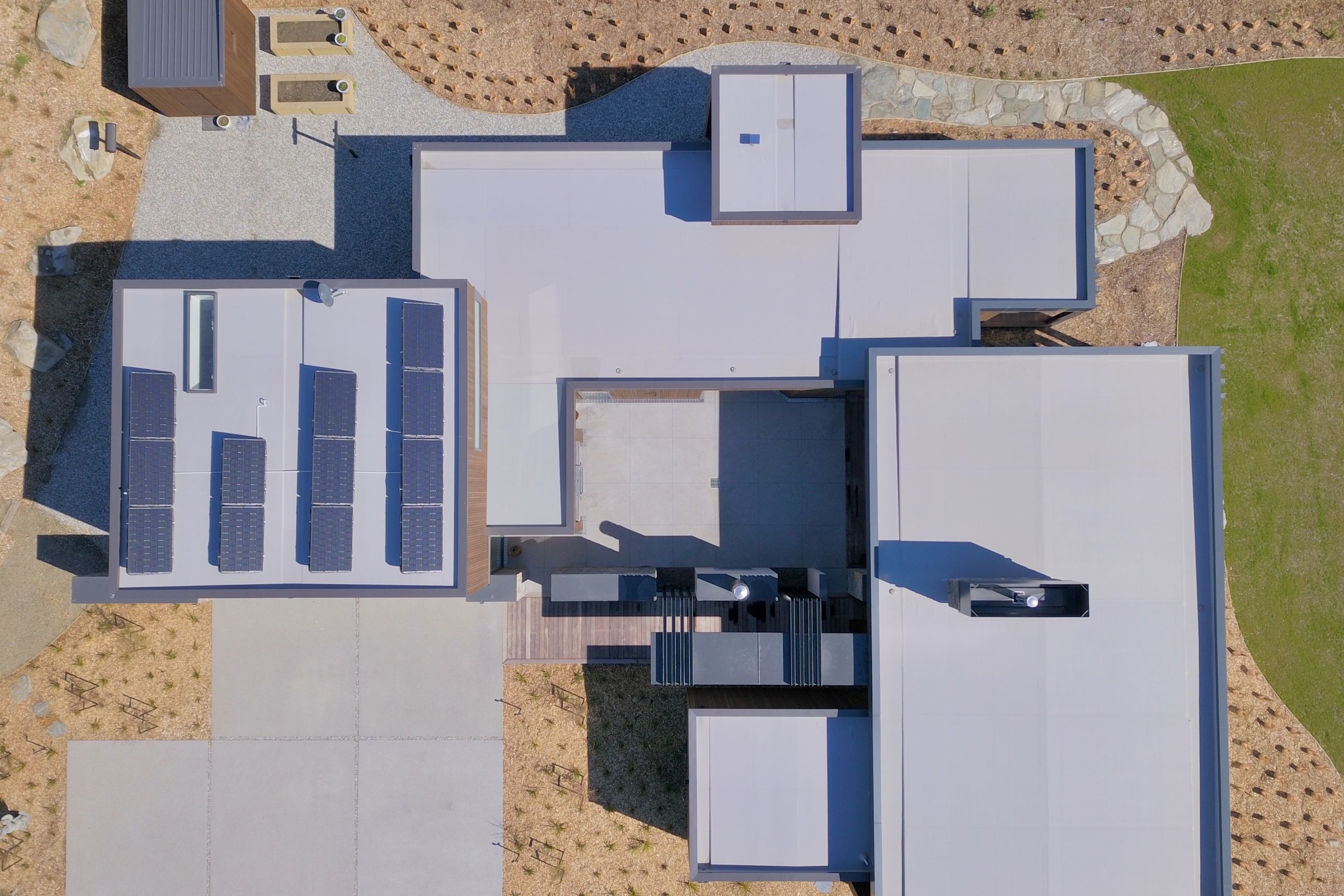

Projects include: Hilton Hotel, Neo Apartments, ASB Civic Centre, Dunedin Art Gallery, Ryman Retirement Villages and Richmond Primary School - to name a few.
For a list of Viking WarmSpan accessories click here.
For all Viking WarmSpan specification documents, CAD details, product technical statements, CodeMark and BRANZ certificates click here.
Product Details
- Product
- Viking WarmSpan Tray System
- Category
- Warm Roofs
- Sold by
- Viking Roofspec
- Range
- Membrane Roofing
Product specified by
Viking WarmSpan is a warm roof that includes a proprietary steel tray substrate, to make up a complete roof system.
WarmSpan consists of a wide-span trapezoidal profile steel tray roof deck that can also form the vapour barrier using a clever sealing and flashing system. (Alternatively, a full self-adhered vapour barrier can be installed on top of the tray). Kingspan’s TR27 Polyisocyanurate (PIR) rigid insulation panels are adhered on top using a proprietary polyurethane adhesive with impressive wind uplift resistance, and the insulation surface is then waterproofed with either of Viking Roofspec’s CodeMark-certified sheet membranes.
Unlike Viking’s general WarmRoof system that is installed on a building’s existing concrete, ply or steel substrate already in-situ (new or old), a Viking WarmSpan system is a prescriptive formula that has been specifically engineered and tested to comfortably exceed New Zealand’s Building Code’s minimum standards. The WarmSpan system has a spanning ability between purlins of up to 3.0m (versus the 400mm centred joists required under a heavy 17mm plywood substrate for a traditional membrane roof). This reduces a building’s overall structural cost without compromising the integrity of the building and delivers increased performance and greater durability.
Components of a Viking WarmSpan system:
- Viking WarmSpan proprietary steel-tray substrate
- Viking vapour barrier (two options)
- Kingspan Polyiso insulation panel (including tapered)
- Any of Viking’s Codemark-certified sheet membrane systems
Projects include: Hilton Hotel, Neo Apartments, ASB Civic Centre, Dunedin Art Gallery, Ryman Retirement Villages and Richmond Primary School - to name a few.
For a list of Viking WarmSpan accessories click here.
For all Viking WarmSpan specification documents, CAD details, product technical statements, CodeMark and BRANZ certificates click here.
- Specs / Details
Product Features
- The industry’s only NZ Engineer-accredited warm roof system
- Avoids unnecessary components = simplicity and thermal efficiency
- Cost-effective
- Spanning ability
- Less weight than a traditional membrane roof
- No fasteners required means no thermal bridging
- Highest possible fire rating – Group 1S
- Integrated vapour barrier (one less layer than other systems)
- Strong wind uplift resistance
- Polyiso board supplied by the world leading rigid insulation manufacturer
- Specialised two-part foam adhesive to secure panels to steel tray (avoids mechanical fasteners and thermal bridging)
- Compatible with any Viking membrane roofing product; including torch-on membrane
- Tapered option = promotes watershed
- Highest R-Value per thickness = maximum ROI
- Installed only by Viking Licensed Applicators
- 20-year product warranty
- Full System Warranty Option: 20-years
- BRANZ appraised
