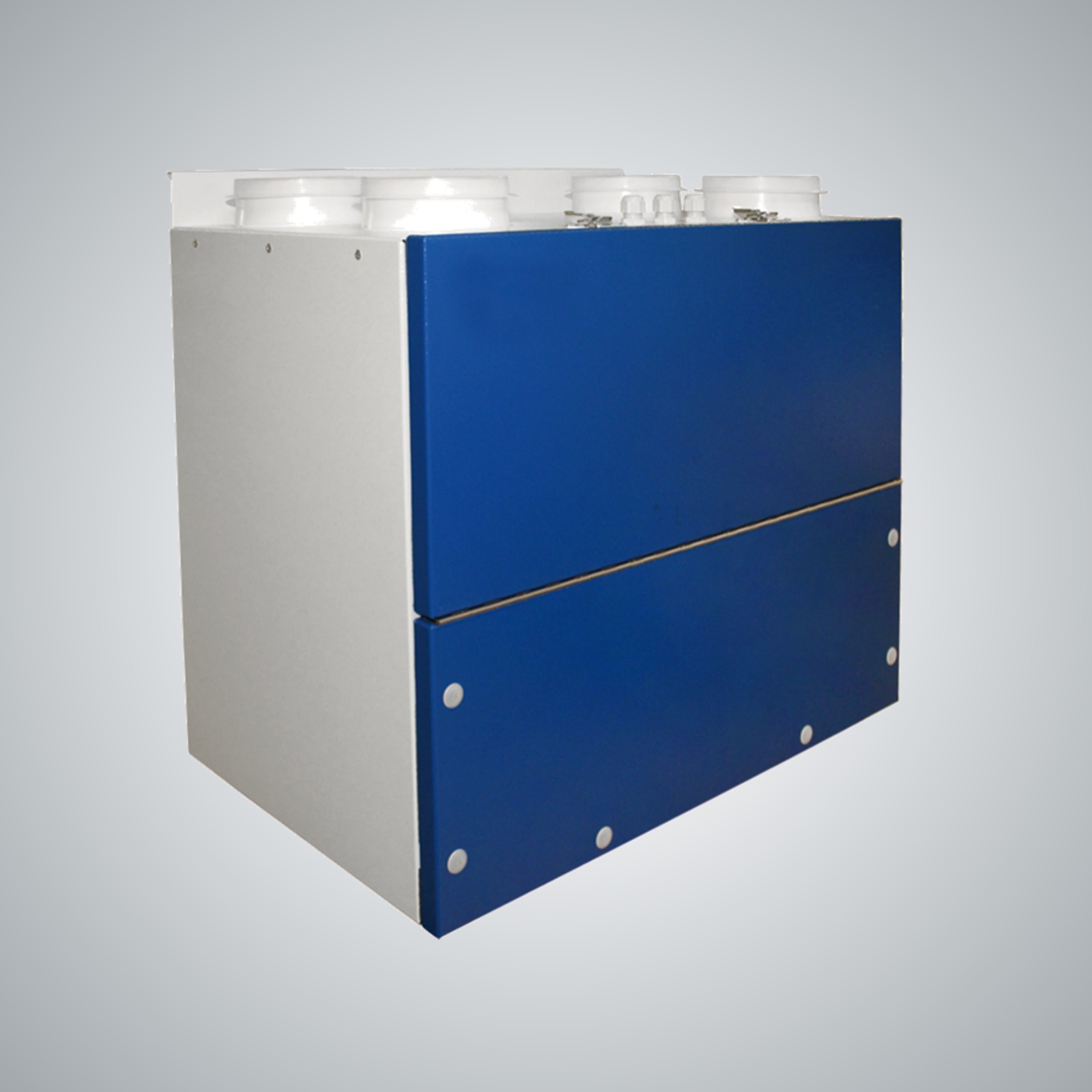

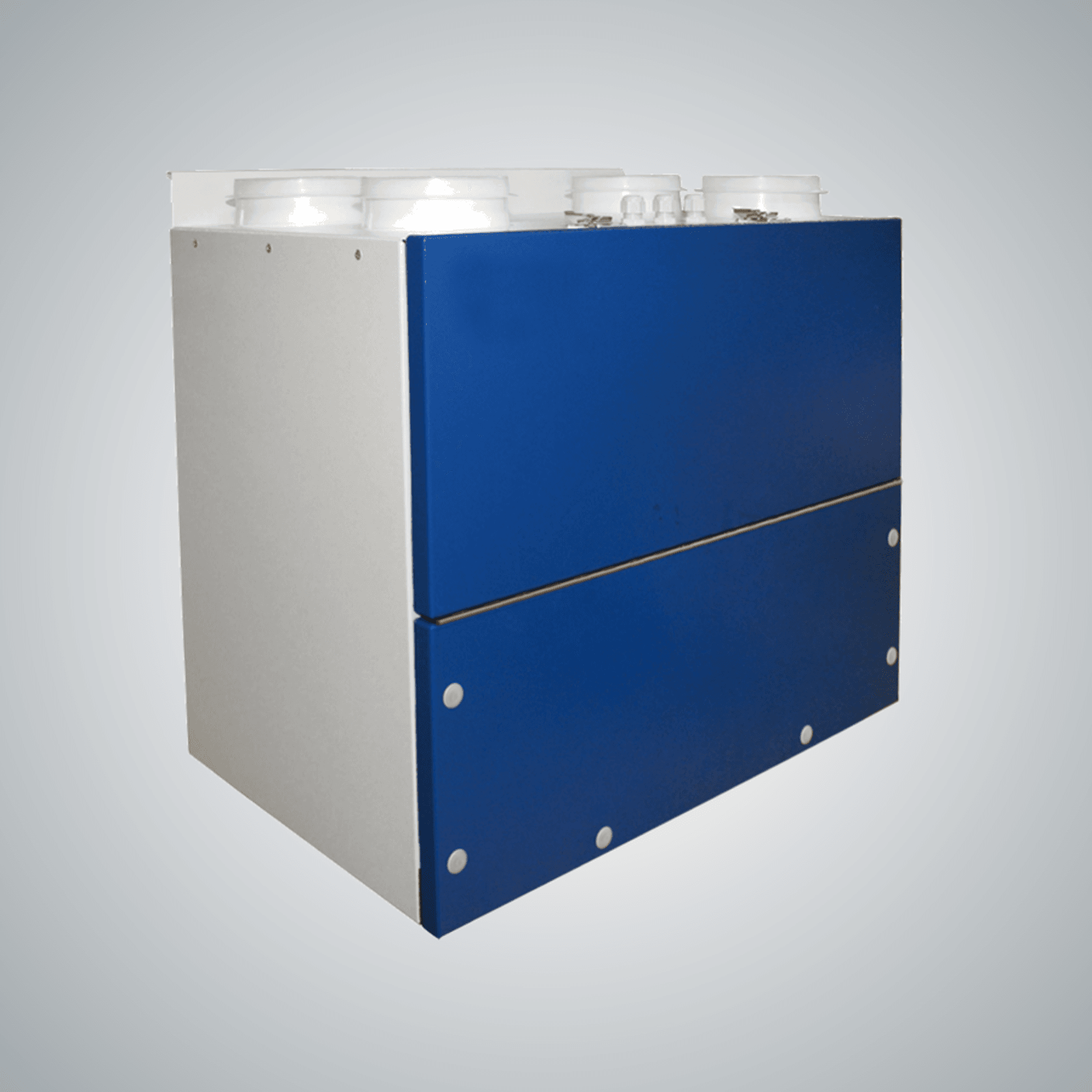

Elicent REC 320 TC – Compact MVHR Unit

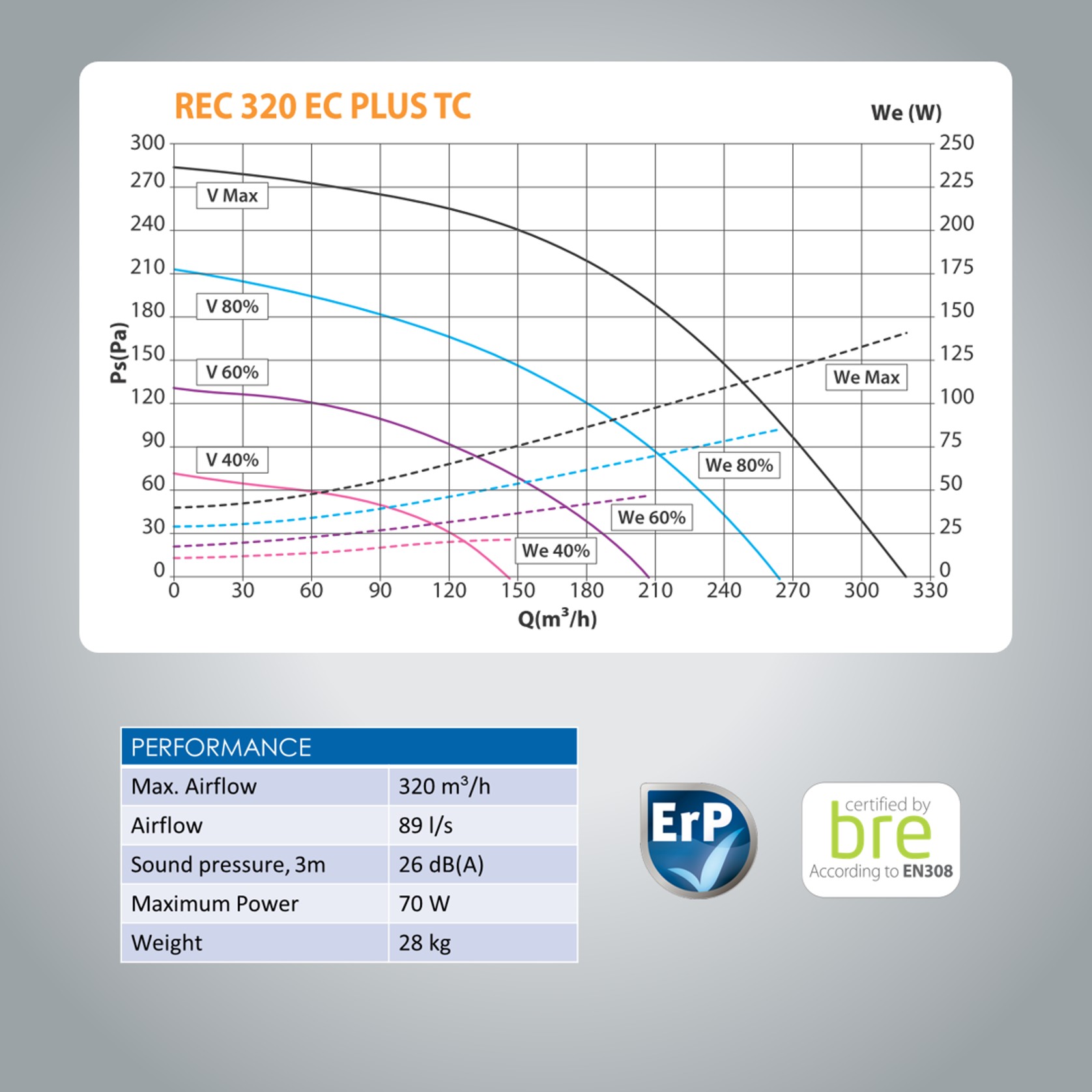

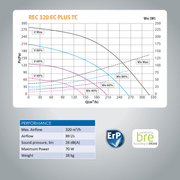

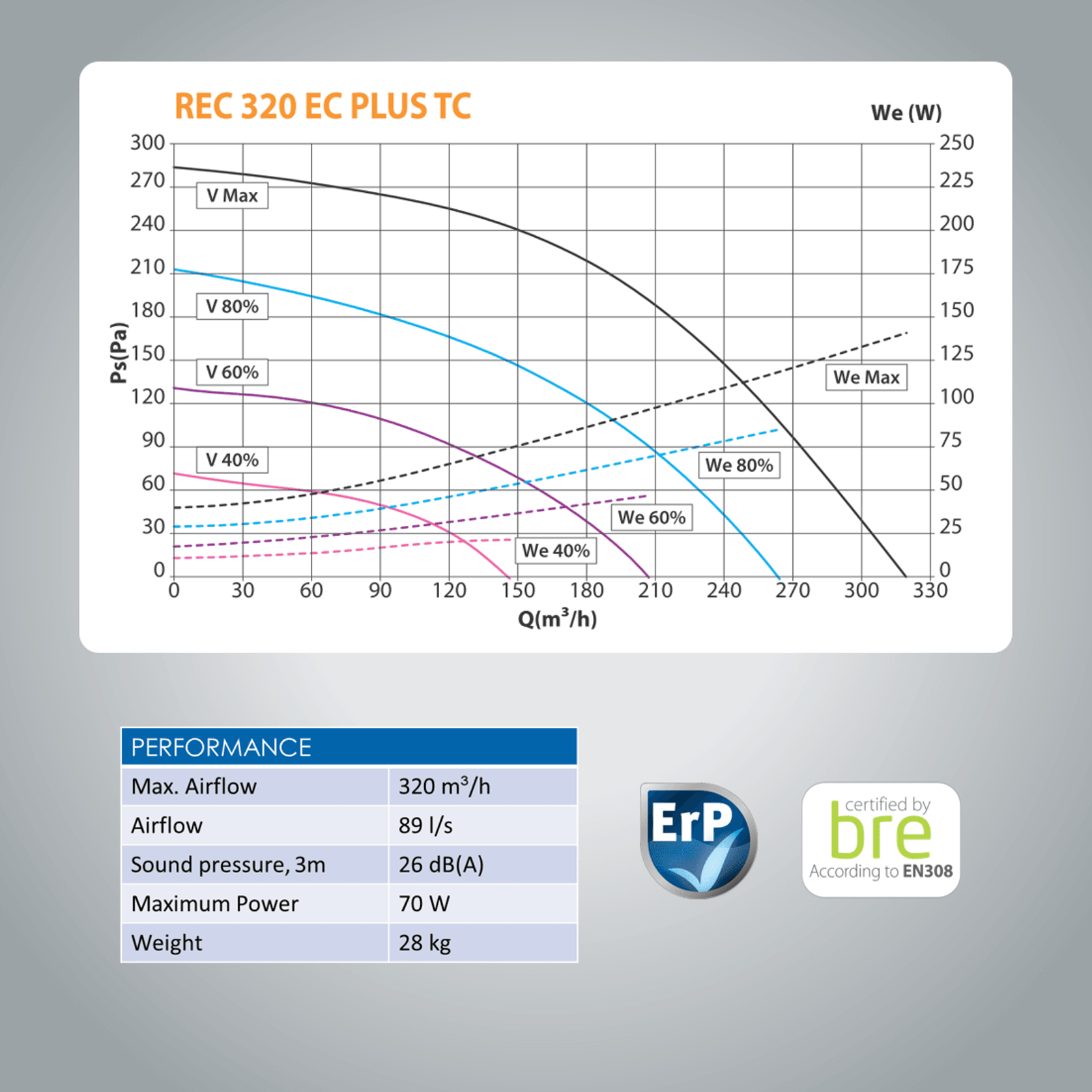

Performance

· Airflow: 320 m³/h (max.)

· Pressure: 280 Pa (max.)

· Example: Duty point: 210m³/h @ 180Pa

House: 120m² with 2.6m ceiling

ð approx. 0.67 air changes per hour

Typical Application

· Apartments, Townhouses, Small Houses

· When only restricted space for unit is available

· Includes dedicated bathroom, kitchen and laundry extraction

Highlights

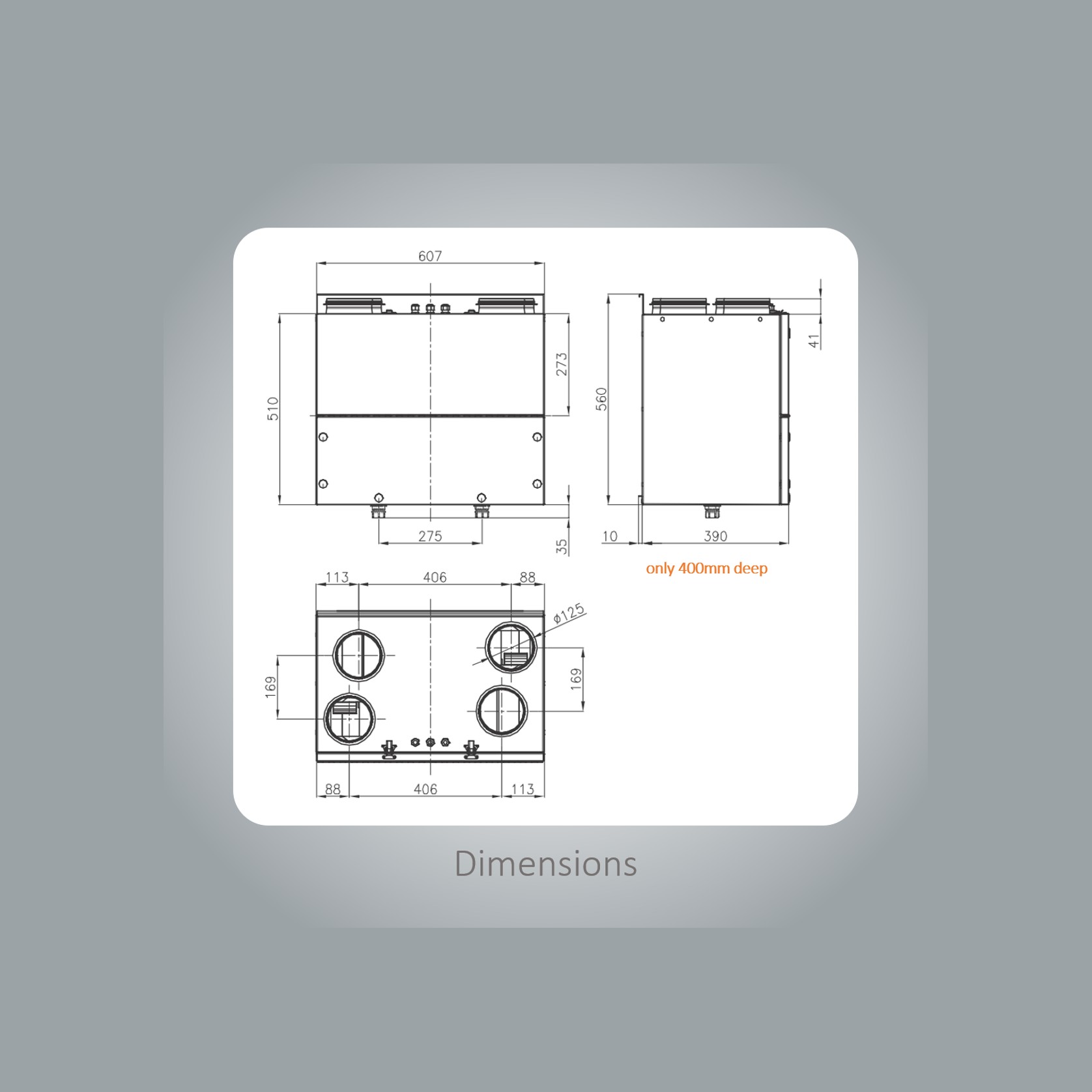

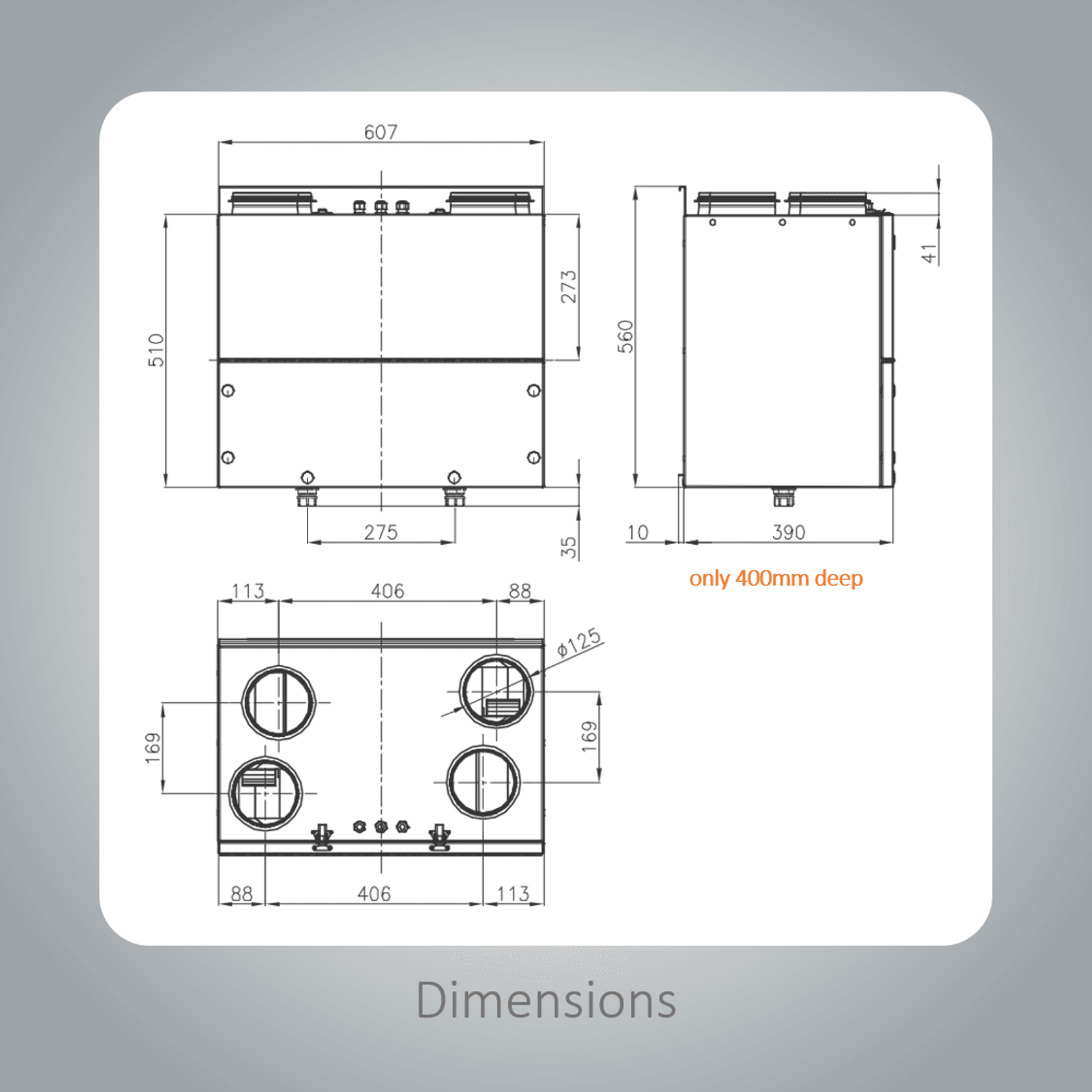

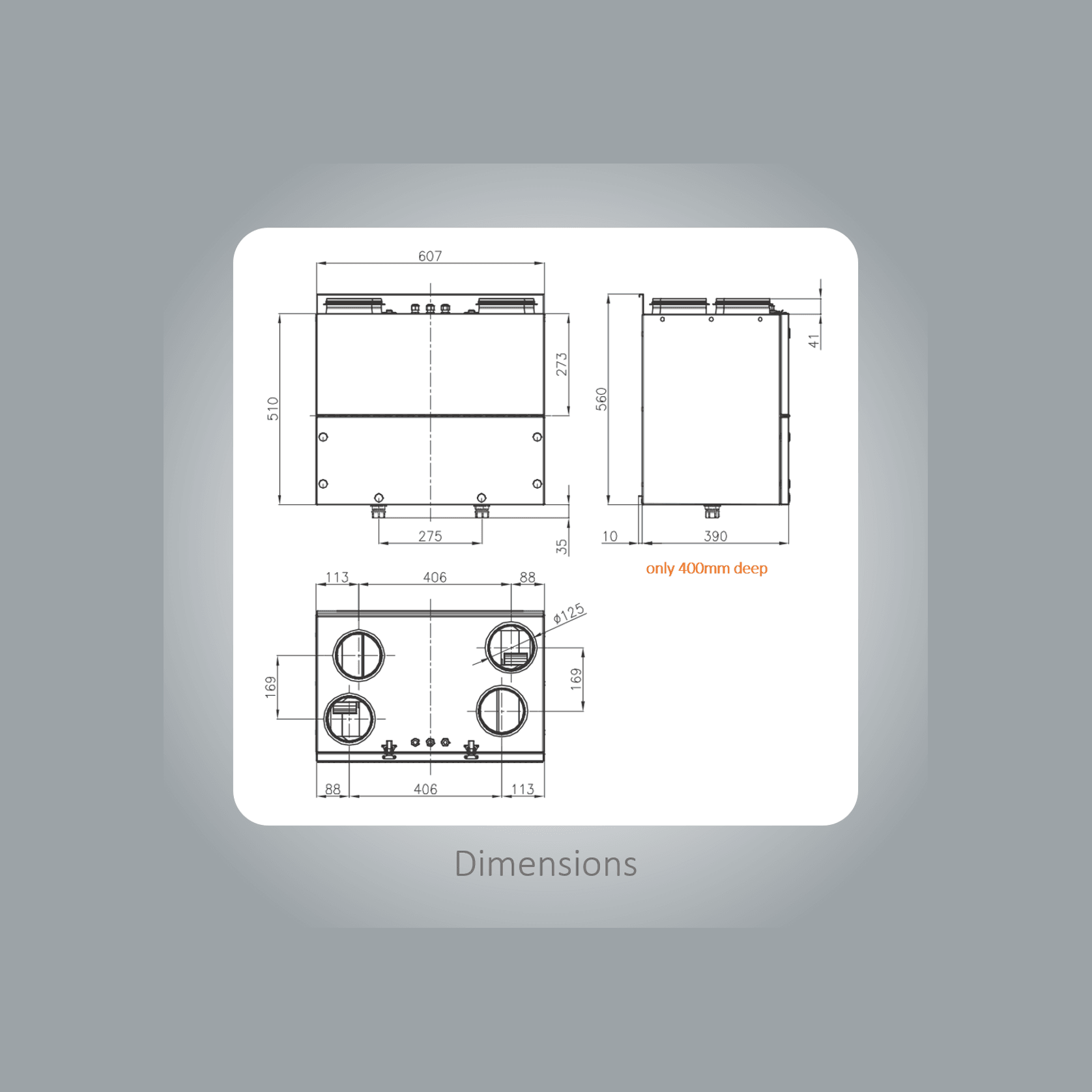

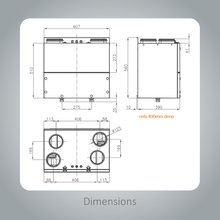

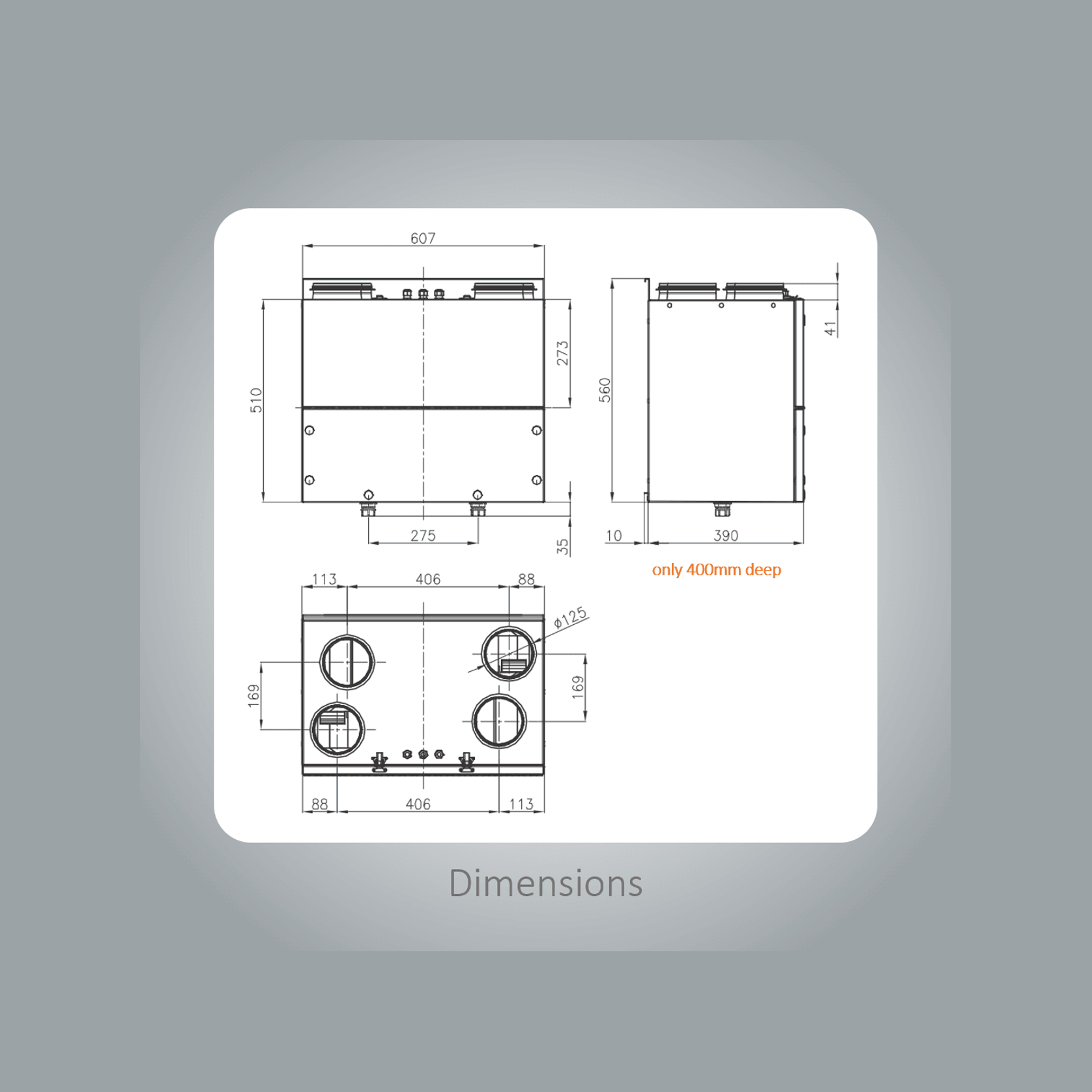

· Compact design – only 40cm deep

· Silent operation (26dB(A), 3m)

· Wall mounted, top connection

· Fresh Air for up to 6 rooms

· Dedicated Bathroom and Kitchen Extraction

· Summer-Bypass (Free Cooling Mode)

· Variable Speed (EC) Fans

· 2-year warranty

Typically required for installation

· Tools and consumables (e.g. duct tape and screws)

· Mounting to hang unit earthquake safe (e.g. steel rods)*

· Indoor Duct System (Recommended: BlauFast 75)

· Ducting to outside (Recommended: EPP 150mm)

· Outdoor grill/ Trade seal*

*Check with local council for acceptability
