Dorma BTS80 EN-4 Door Closer Floor Spring Adjustable Hold Open 80110000

Wetherill Park, Australia

993.3K profile views
51 saves

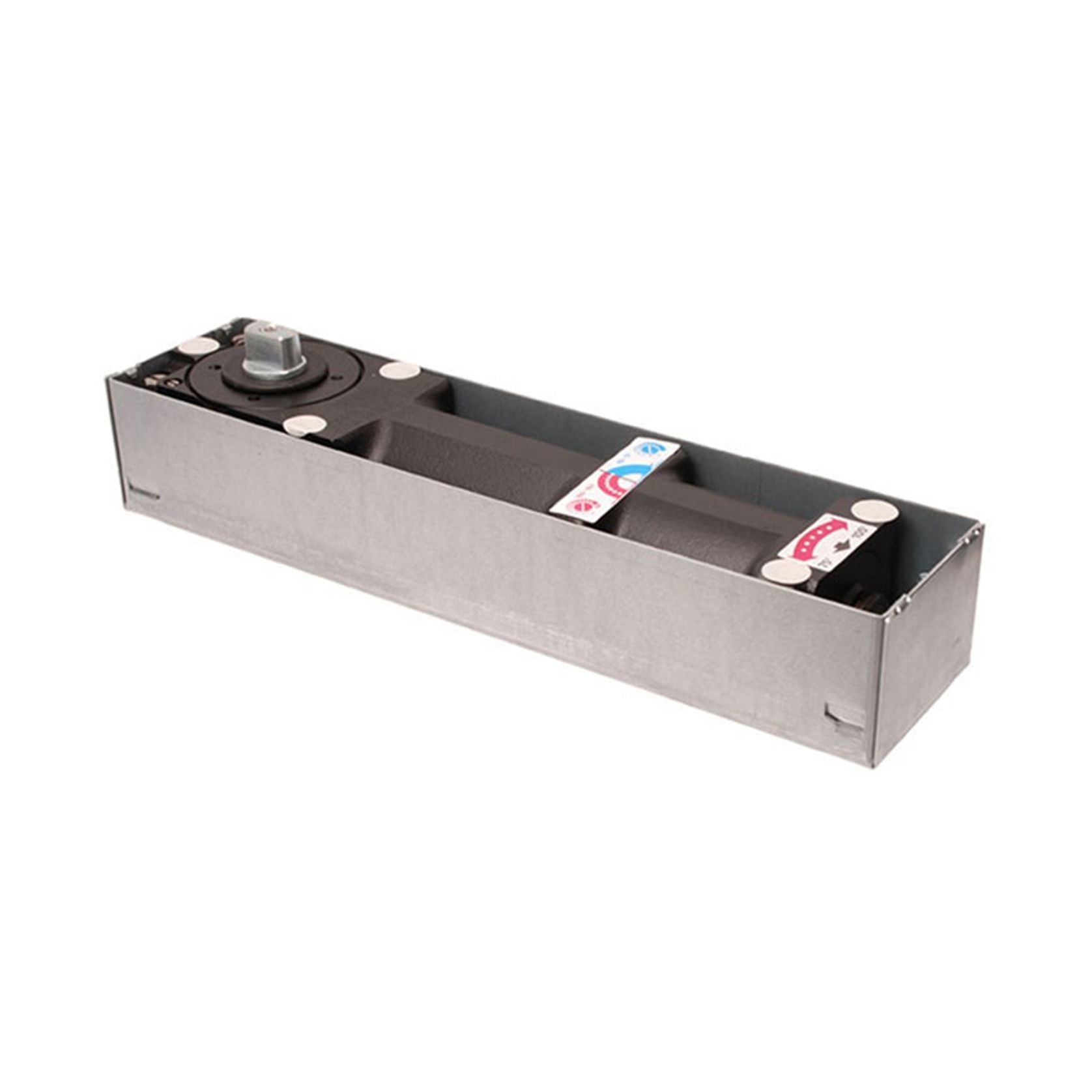

Dorma BTS80 EN-4 Door Closer Floor Spring
80110000

Floor Spring are mostly used in glass doors (e.g. inner doors of business parks, shopping malls, and hospital buildings).

Floor Spring Function - A mechanical door closing device that can effectively resist when the door with heavy traffic is opened too quickly or with too much force.

Universal non-handed floor spring for single and double action door
Used on both fire and smoke check doors and with its concealed application is ideal for situations, where aesthetic quality is not comprised by safety assurance.
Designed to meet the requirements for all door types and can satisfy every application required, due to its versatility.
Once installed below floor level, the mechanism is almost completely concealed from view.

Tags

universal glass doors commercial fire doors easy to install

Product Details

Product: Dorma BTS80 EN-4 Door Closer Floor Spring Adjustable Hold Open 80110000
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(34) Professionals

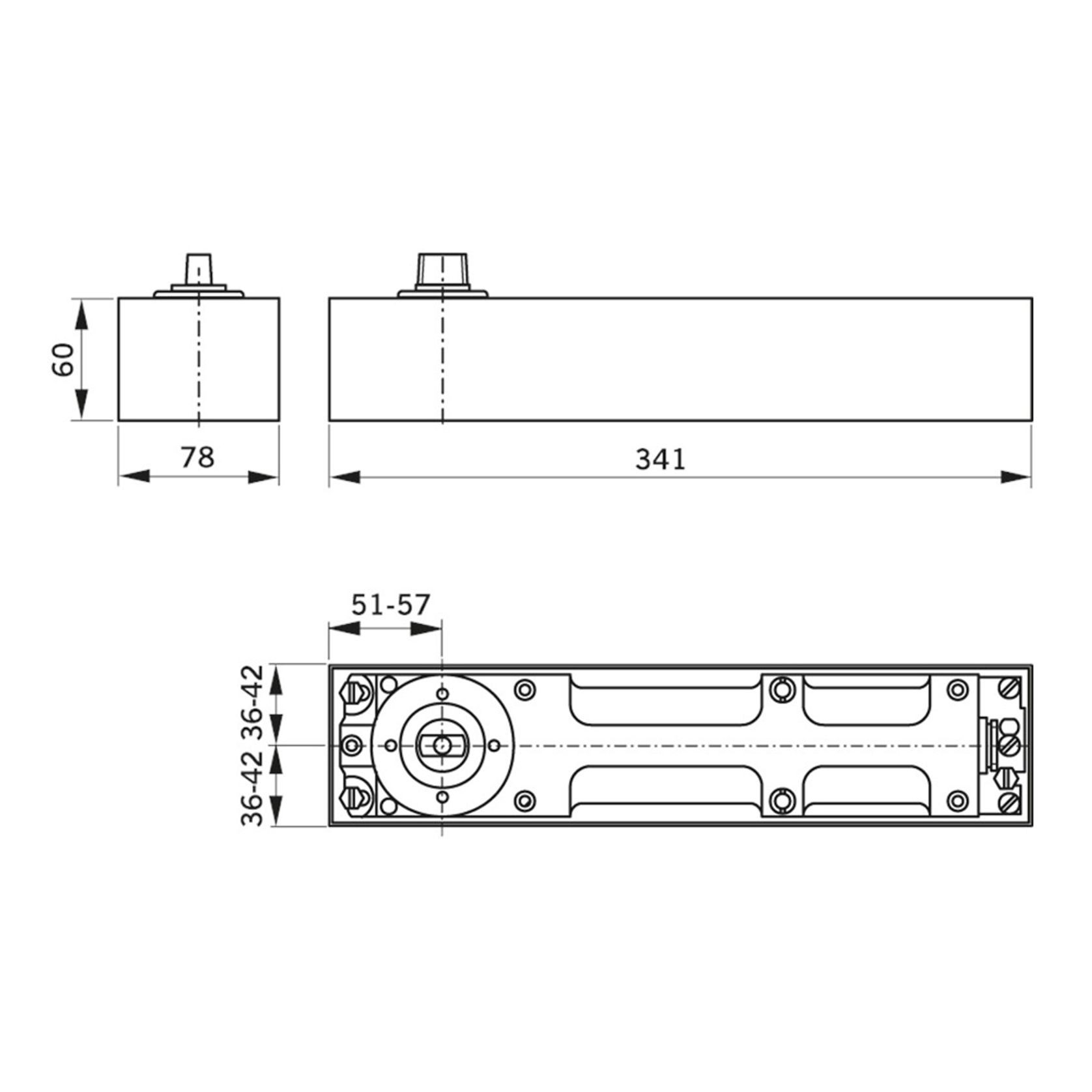

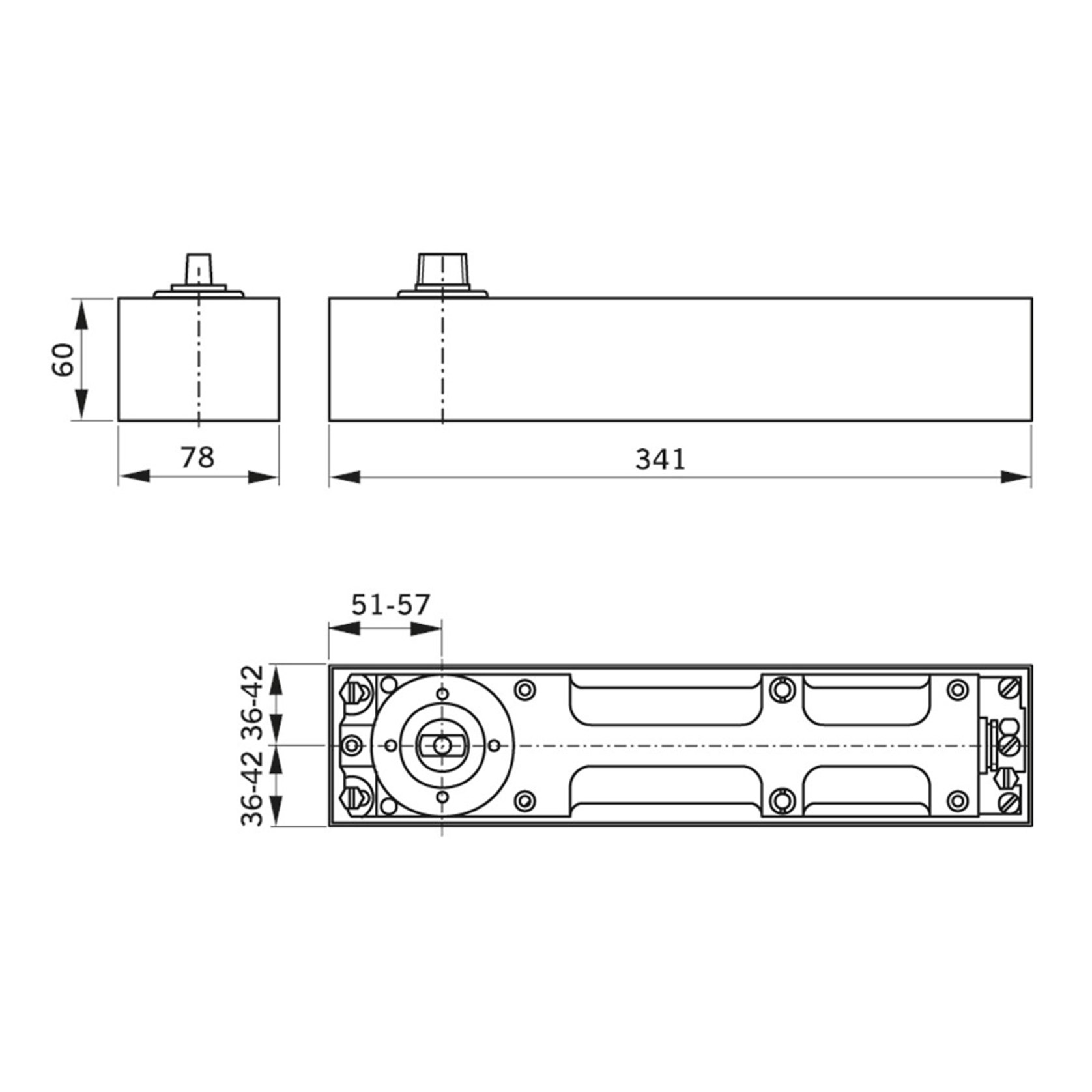

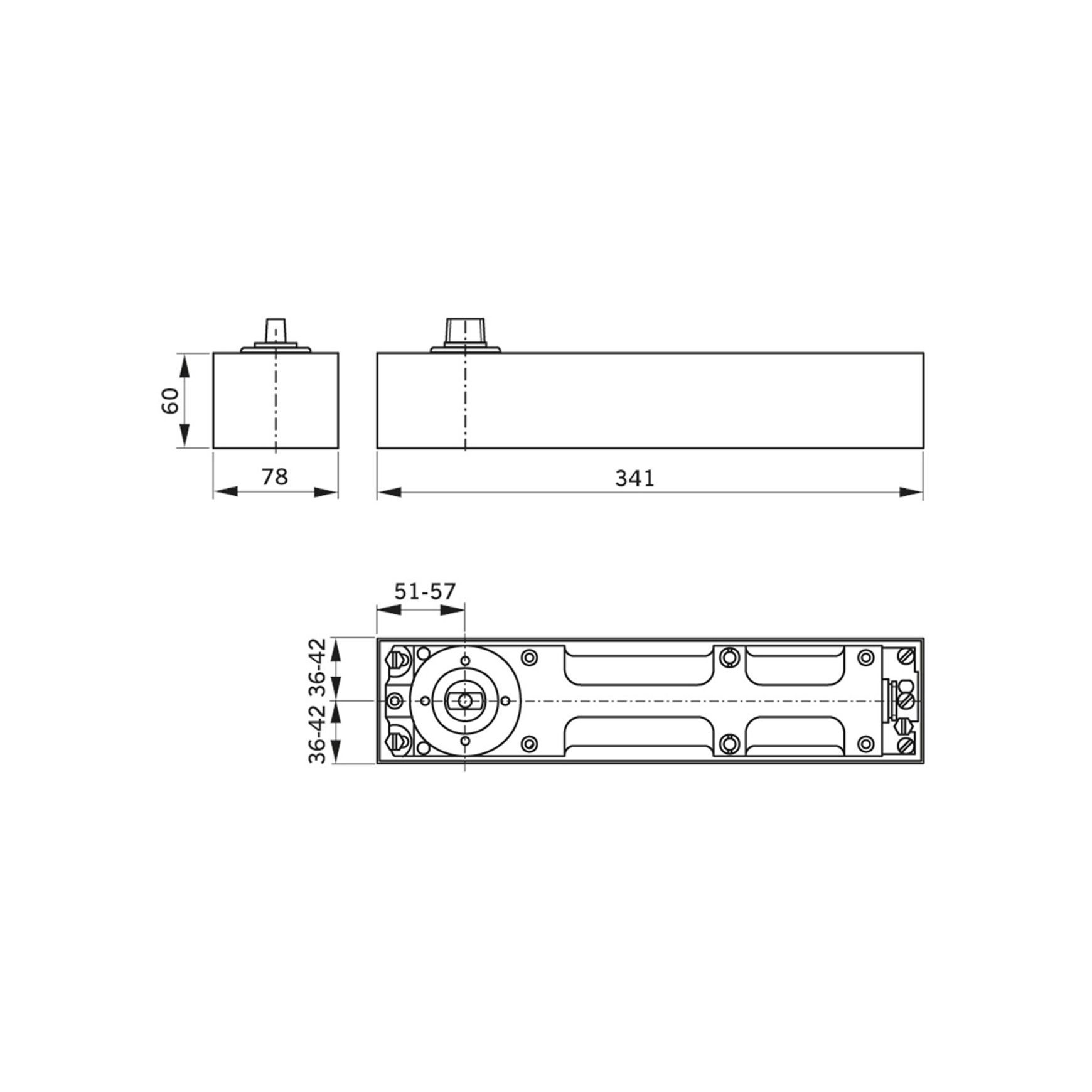

Dorma BTS80 EN-4 Door Closer Floor Spring Adjustable Hold Open 80110000 dimensions

Visit site

Floor Spring Function - A mechanical door closing device that can effectively resist when the door with heavy traffic is opened too quickly or with too much force. Universal non-handed floor spring for single and double action door Used on both fire and smoke check doors and with its concealed application is ideal for situations, where aesthetic quality is not comprised by safety assurance. Designed to meet the requirements for all door types and can satisfy every application required, due to its versatility. Once installed below floor level, the mechanism is almost completely concealed from view.

Dorma BTS80 EN-4 Door Closer Floor Spring 80110000 Floor Spring are mostly used in glass doors (e.g. inner doors of business parks, shopping malls, and hospital buildings).

Floor Spring Function - A mechanical door closing device that can effectively resist when the door with heavy traffic is opened too quickly or with too much force.

Universal non-handed floor spring for single and double action door
Used on both fire and smoke check doors and with its concealed application is ideal for situations, where aesthetic quality is not comprised by safety assurance.
Designed to meet the requirements for all door types and can satisfy every application required, due to its versatility.
Once installed below floor level, the mechanism is almost completely concealed from view.

Specs

Features:

With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck
Allows for temperature-independent hold-open between 75 degrees and 175 degrees (removable)
Hold-open start point and delayed action is easily adjustable by valve
Concealed assembly
Can be used on fire and smoke check doors
Easy to install

Specifications:

Length: 341mm
Width: 78mm
Height: 60mm
Weight: 7.1kg
Spring strength: EN4
Standard and External Doors: Up to 1100mm
Max. Leaf Weight: 300kg
Hold Open: Adjustable

Protection:

Successfully third party tested to BS EN1154
CERTIFIRE Approved CF127
