Dorma BTS84 Floor Spring
81125002

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of Business parks, Malls, Hospital buildings.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door.

Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
With the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer.

Tags

easy to install high efficiency easy open interior doors commercial

Product Details

Product: Dorma BTS84 EN2 Floor Spring Non Hold Open for Single & Double Action Doors 81125002
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(34) Professionals

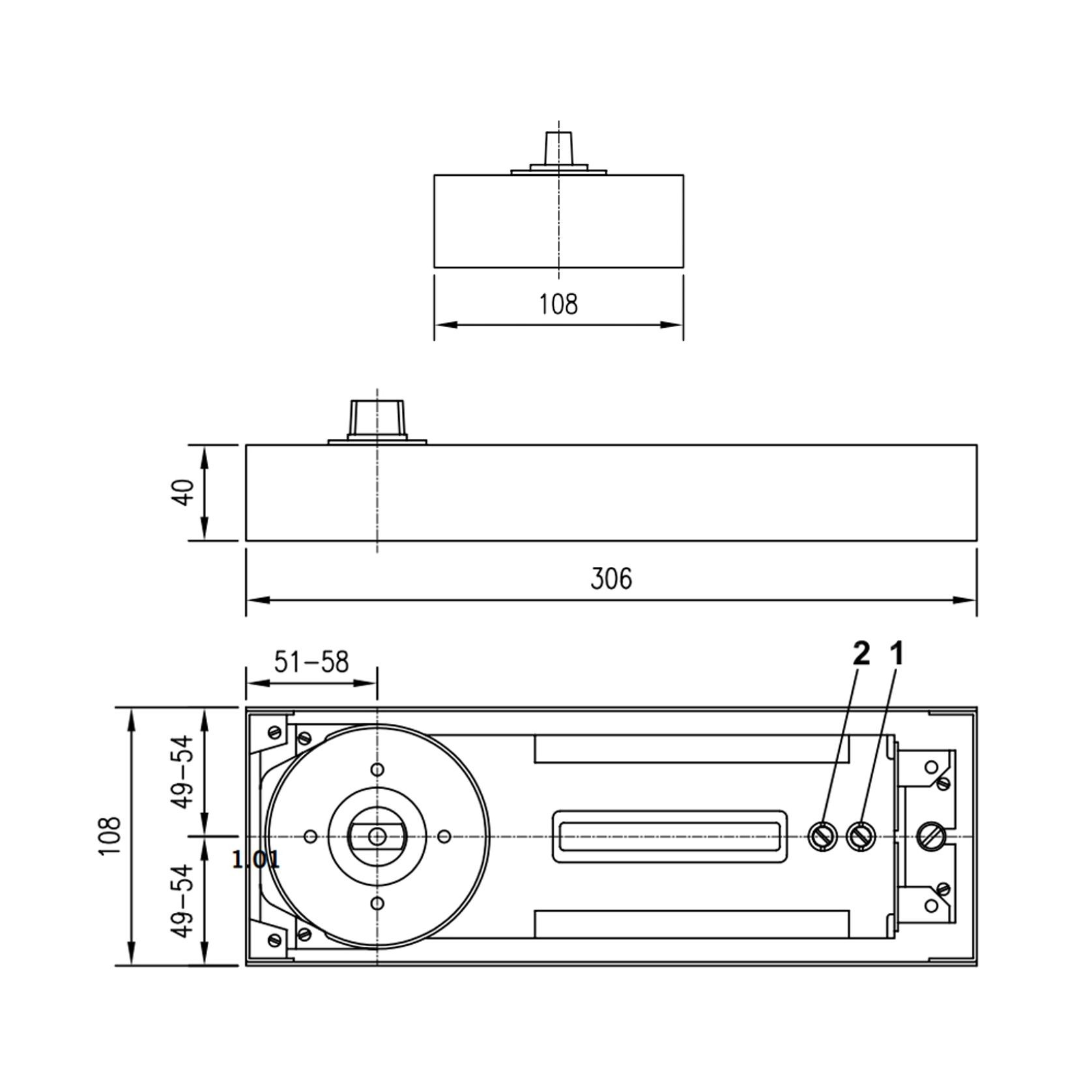

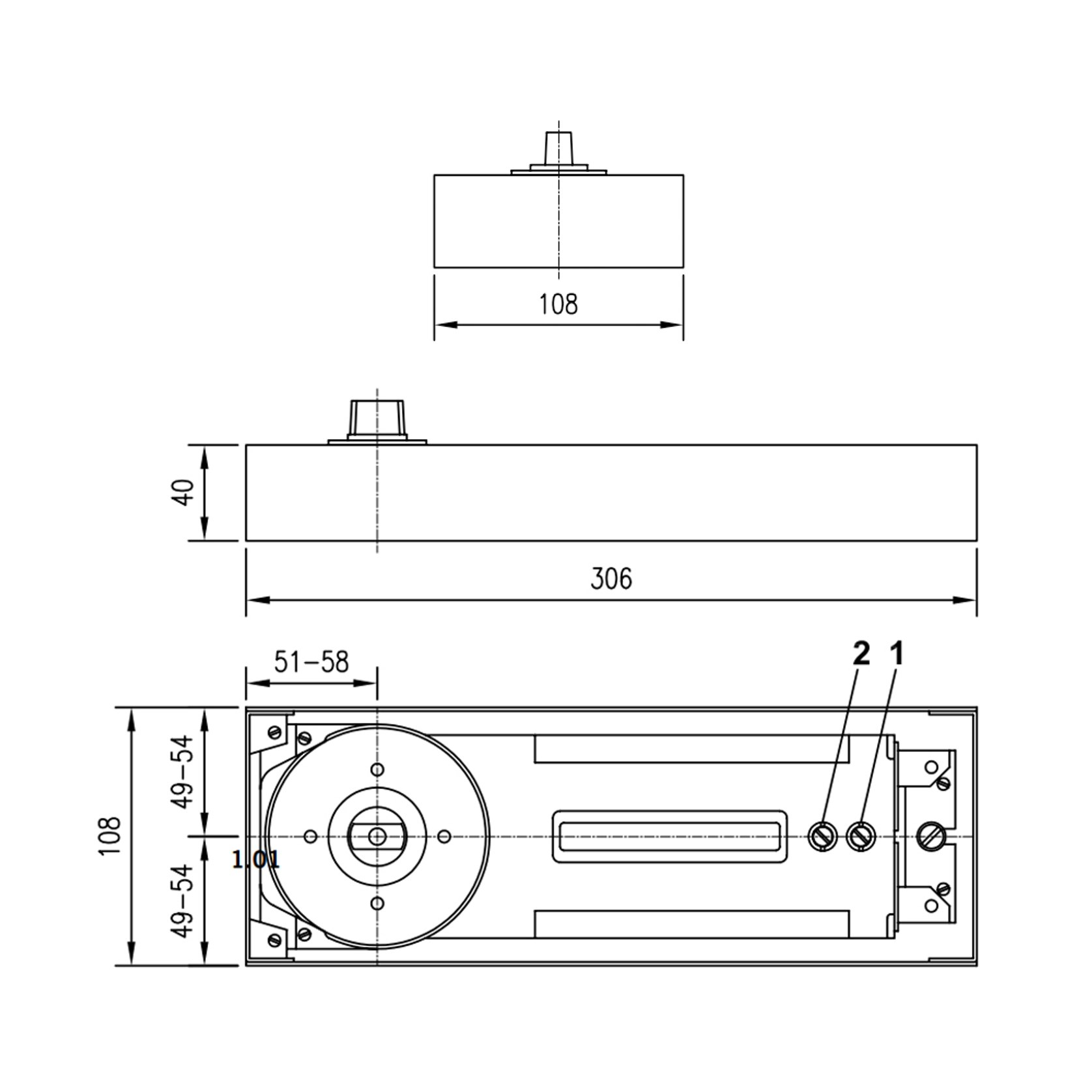

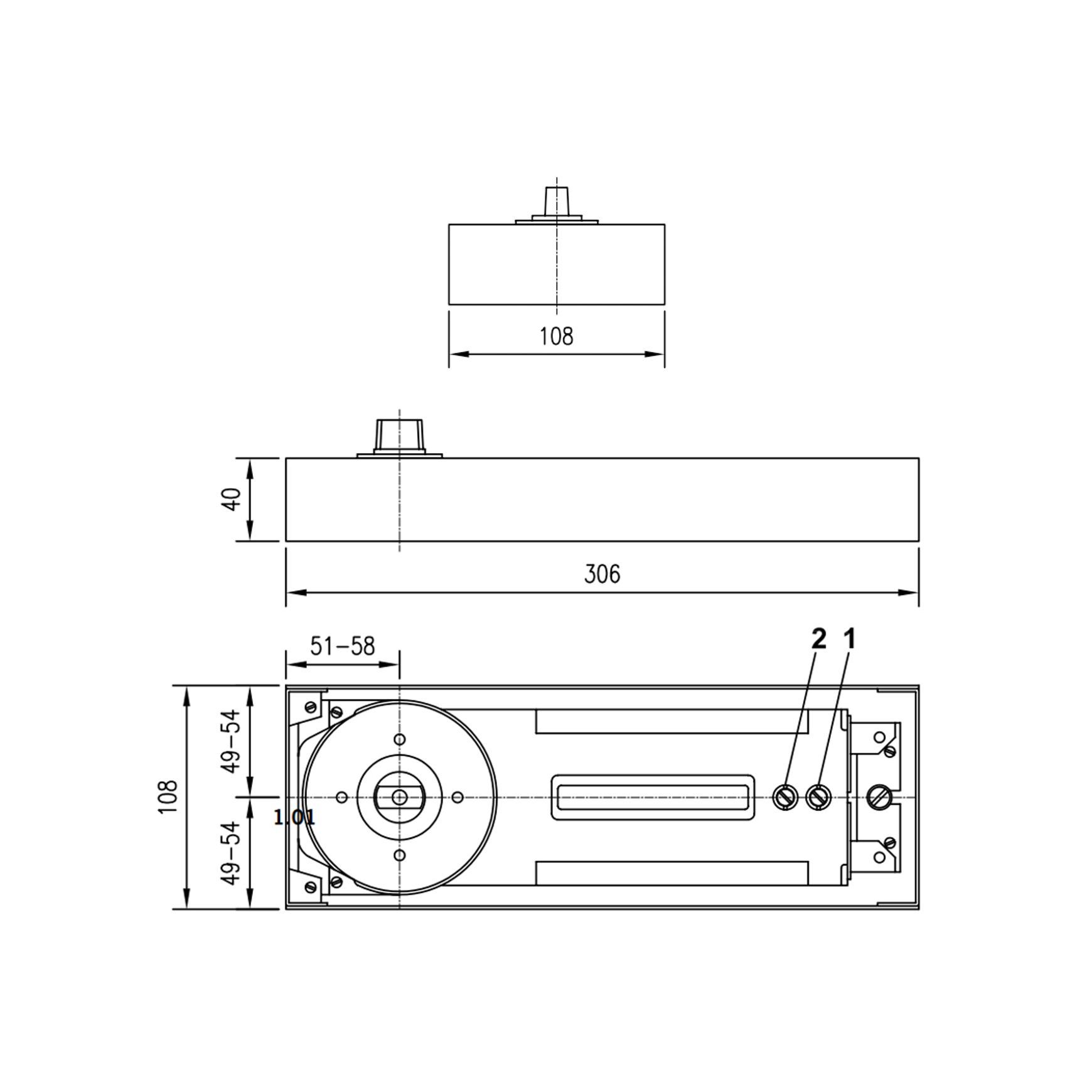

Dorma BTS84 EN2 Floor Spring Non Hold Open for Single & Double Action Doors 81125002 dimensions

Visit site

Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of Business parks, Malls, Hospital buildings. Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door. Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries. With the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer.

Dorma BTS84 Floor Spring 81125002 Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting.

Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of Business parks, Malls, Hospital buildings.

Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
With the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door manufacturer.

Specs

Features:

Easy installation thanks to shallow design
Easy to adapt to individual requirements with dual valve control 130 degrees to 0 degrees and 130 degrees to 20 degrees
Interchangeable spindle inserts available to suit site conditions
Concealed unit for invisible installation
Thermoconstant smooth operation
High mechanical efficiency for easy door opening
Optional single point hold-open

Specifications:

Spring Strength: EN2
Max. Door Width: 850mm
Operating Voltage: 24V DC
Closer Option: Non Hold-Open

Certification:

CE marked
Successful independently tested to BS EN 1154
