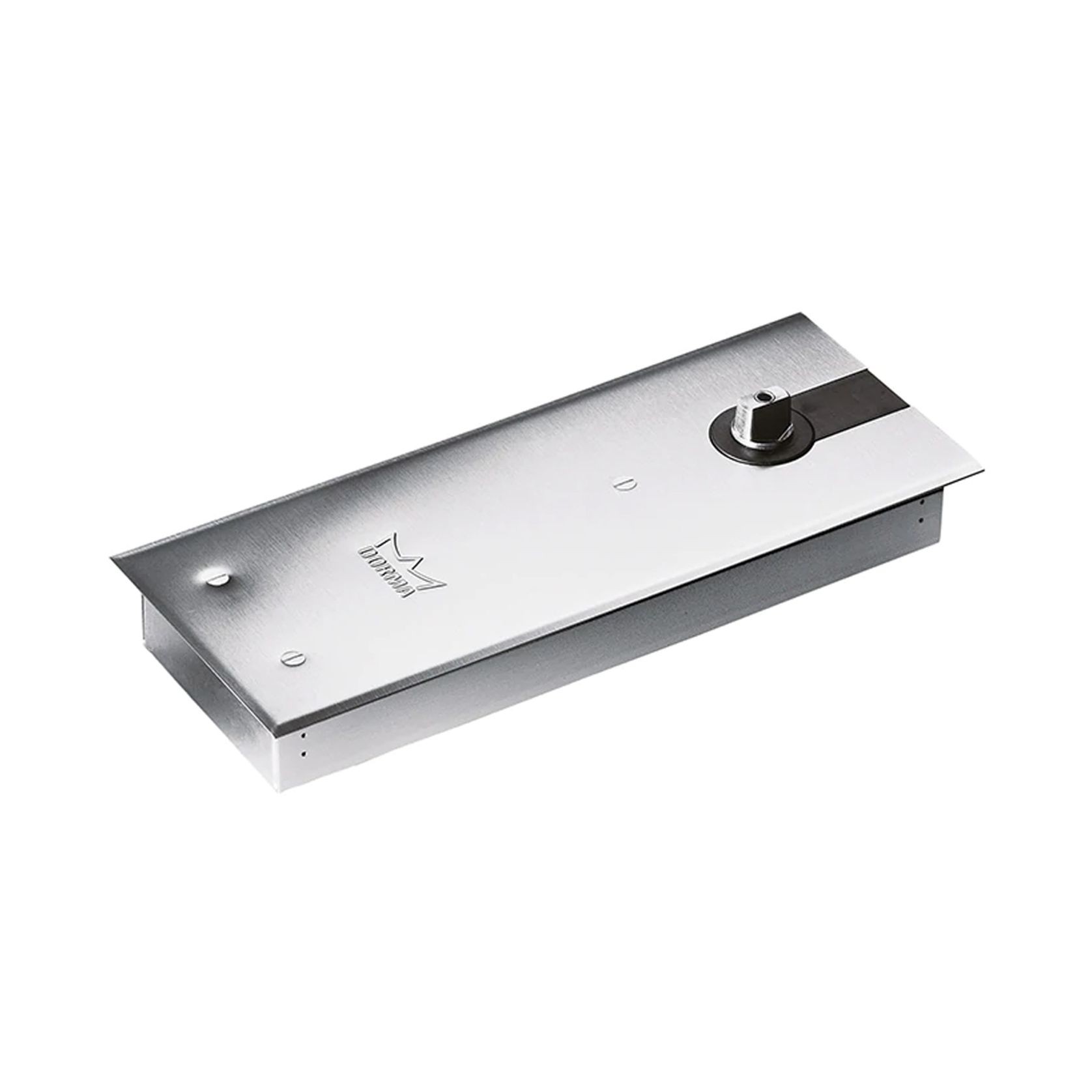

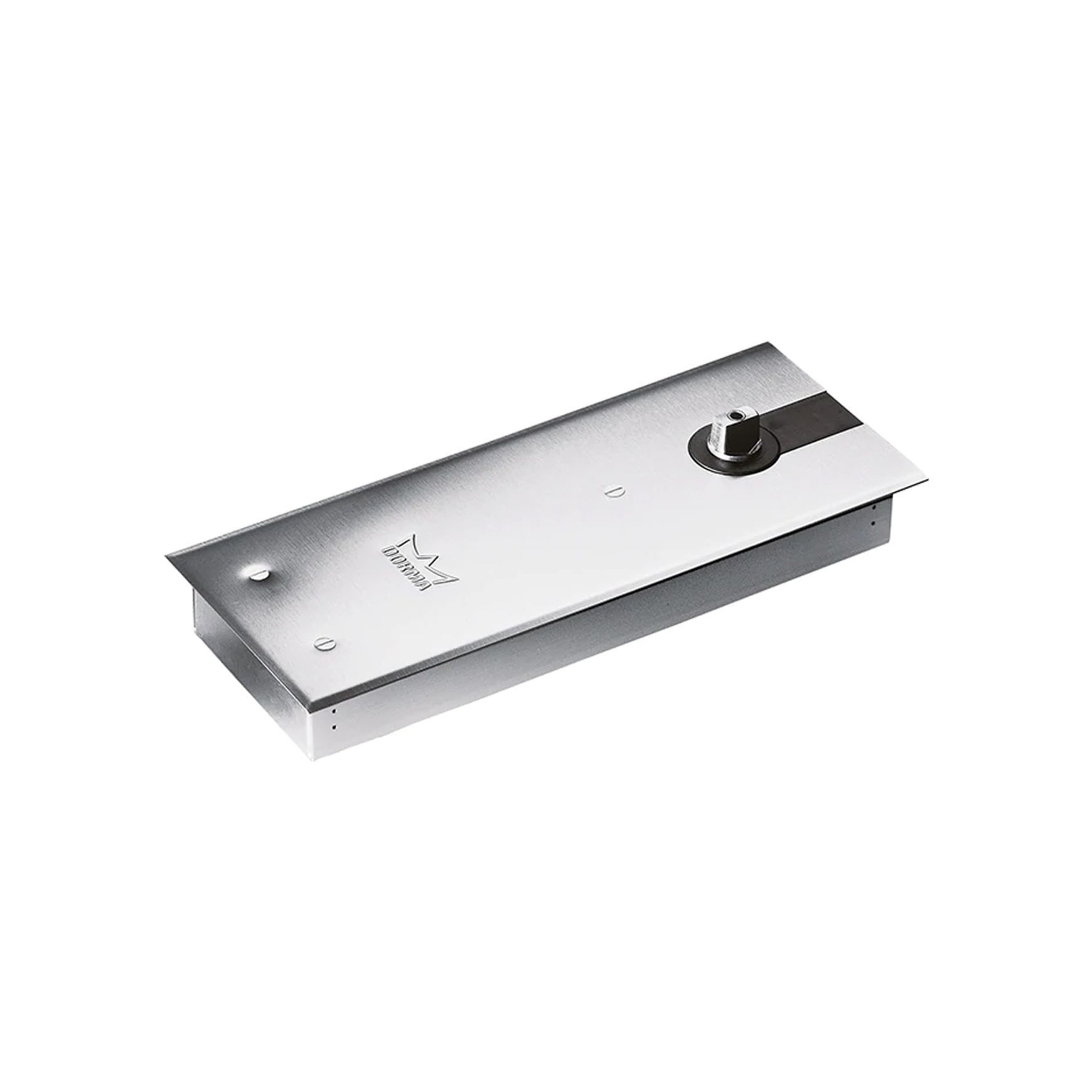

Dorma BTS84 EN4 Floor Spring Body with Hold Open 90 Degrees 81200002
Wetherill Park, Australia
- 998.7K profile views
- 53 saves
Dorma BTS84 Floor Spring
81200002
Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of a Business parks, Malls, and Hospital buildings.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door.
- Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
- Has many of the features of the other Dorma BTS closers with the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door, manufacturer.
Product Details
- Product
- Dorma BTS84 EN4 Floor Spring Body with Hold Open 90 Degrees 81200002
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dorma
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma BTS84 Floor Spring 81200002 Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting.
Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of a Business parks, Malls, and Hospital buildings.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door.
- Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
- Has many of the features of the other Dorma BTS closers with the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door, manufacturer.
- Specs
Features:
- Special shallow design
- Interchangeable spindles
- Easy installation

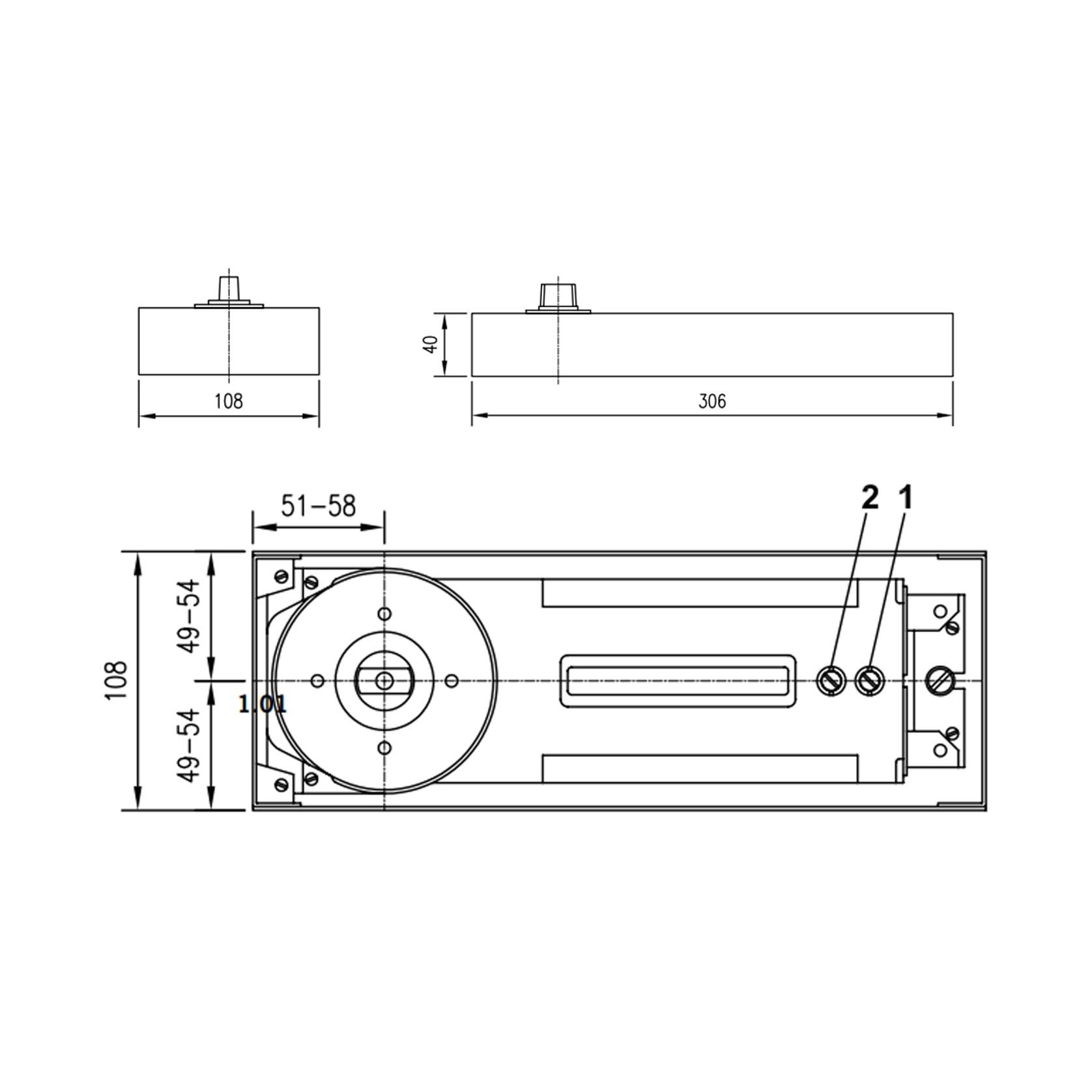

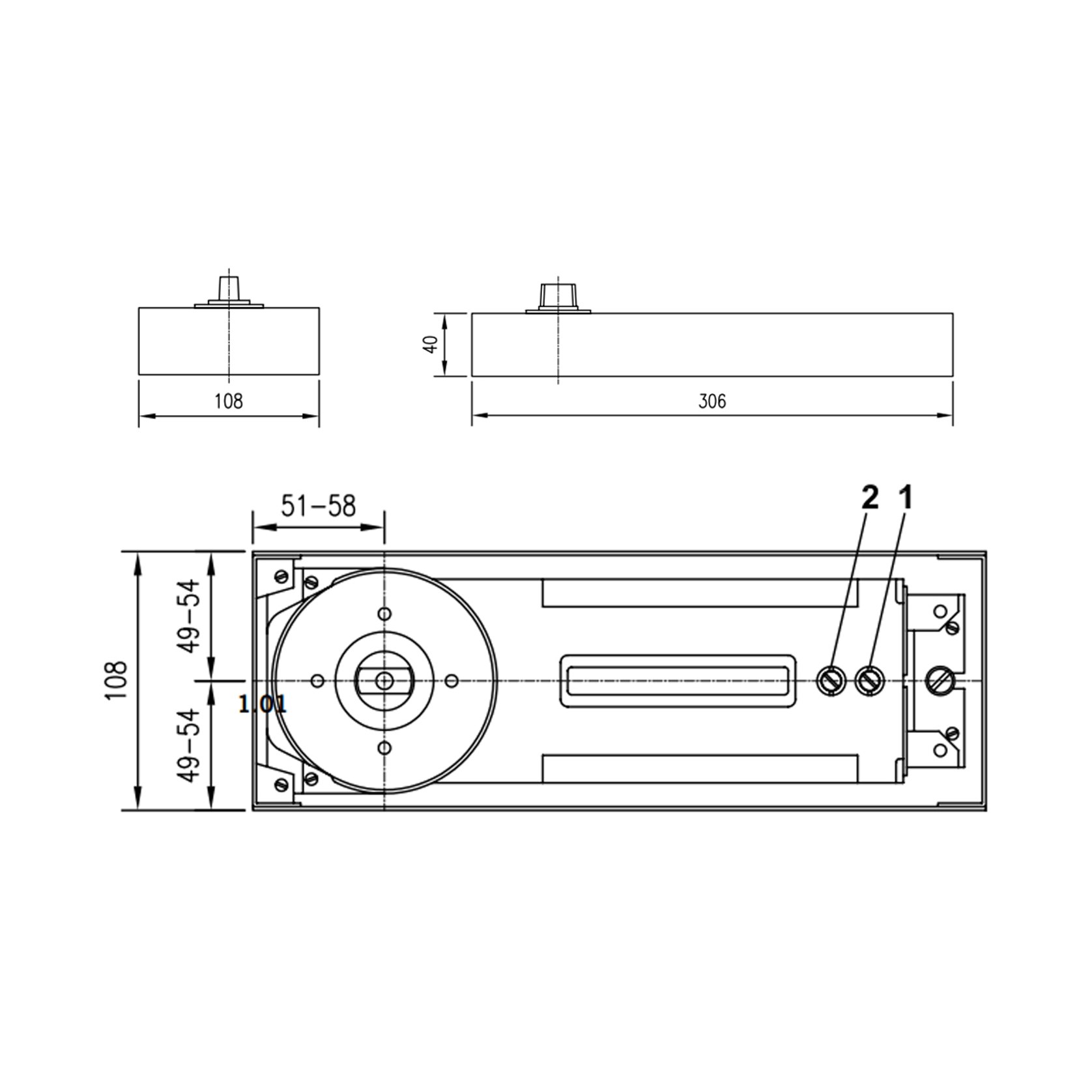

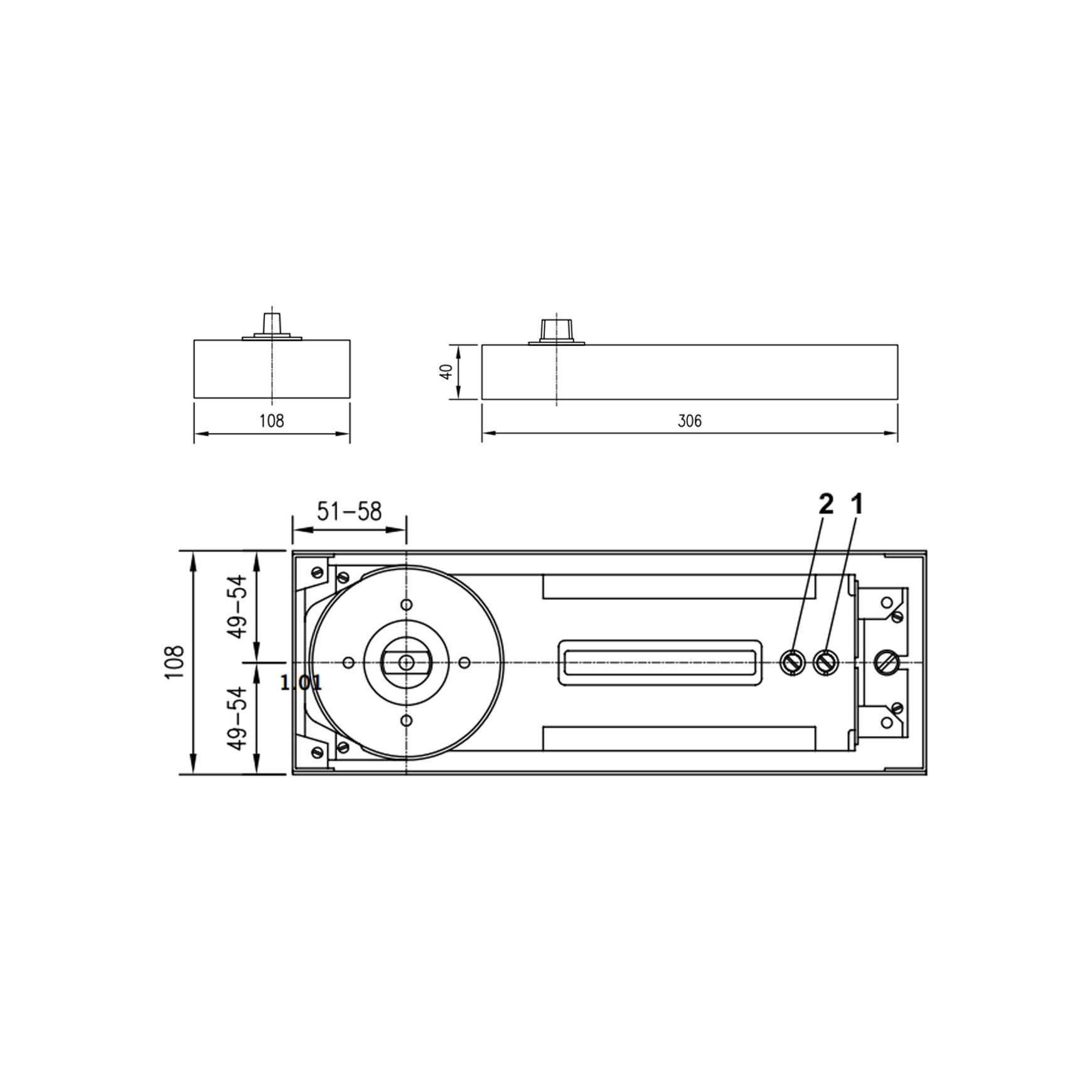

Specifications:
- Length: 306mm
- Width: 108mm
- Height: 40mm
- Spring Strength: EN4
- Max. Door Width: 1100mm
- Operating Voltage: 24V DC
- Closer Option: Hold-Open 90 Degrees
- Adjustable sweep speed: 130 degrees to 20 degrees
- Adjustable second sweep speed: 130 degrees to 0 degrees
Protection:
- Certified manufactur to ISO 9001.
- Certification CE marked.
- Successful independently tested to BS EN 1154.
