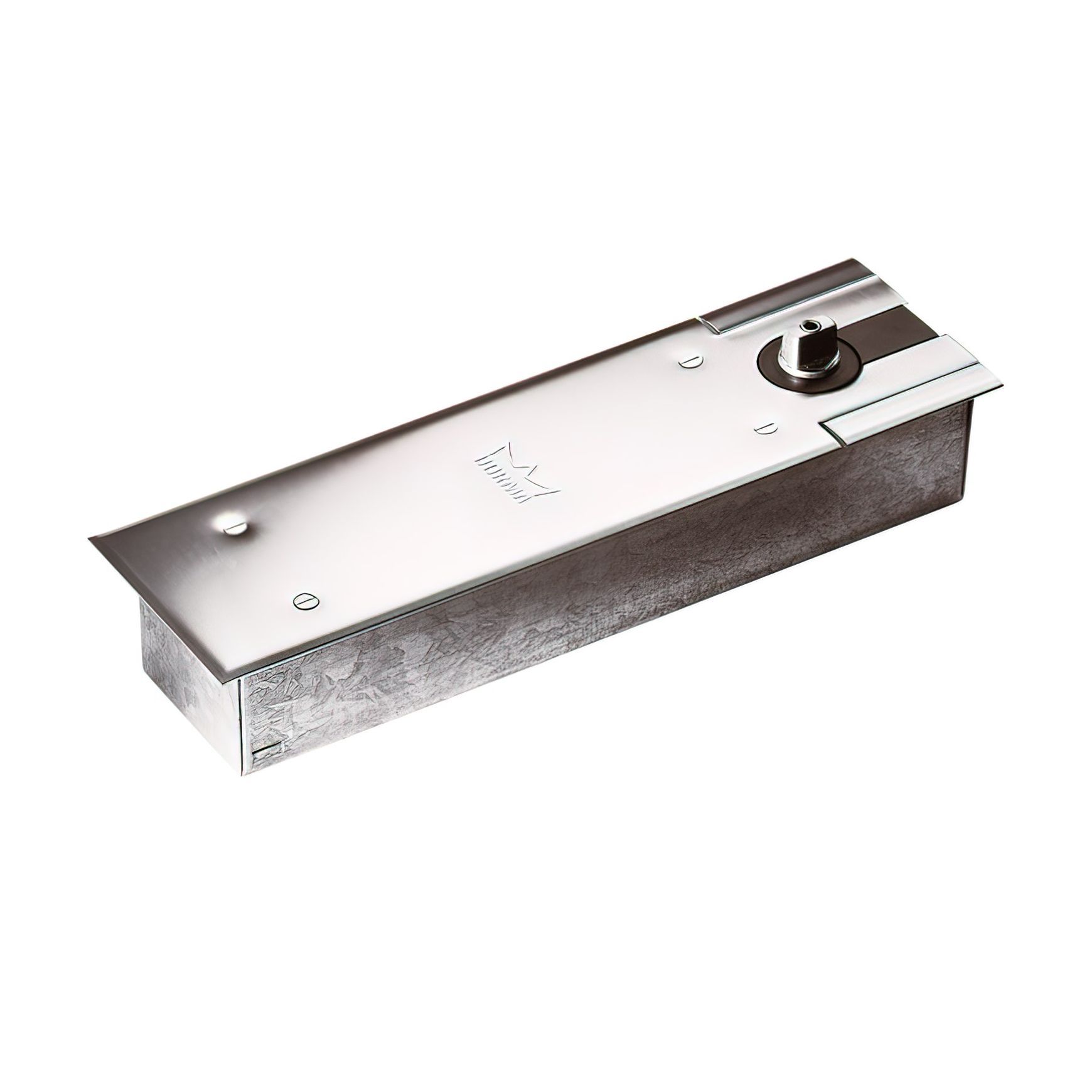

Dorma BTS806T EN6 Floor Spring Body Combi Pack Timber
Wetherill Park, Australia
- 998.7K profile views
- 53 saves
Dorma EN-6 Door Closer Floor Spring Body Combi Pack For Timber Door BTS806T Includes: 1 x Dorma Door Closer Floor Spring EN6 (80130000) 1 x Dorma Top Centres 8062 (8062) 1 x Door Strap 7421 (46010001) 1 x Dorma Cover Plate 7410 (46700000) 1 x Dorma Top cover plate 8064 (46020044) 1 x Dorma Sealing Compound 2300 (45090086) Dorma BTS80 EN-6 Door Closer Floor Spring Adjustable Hold Open 80130000 Features: With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck Allows for temperature-independent hold-open between 75 degrees and 175 degrees(removable) Hold-open start point and delayed action is easily adjustable by valve Concealed assembly Can be used on fire and smoke check doors Easy to install
Product Details
- Product
- Dorma BTS806T EN6 Floor Spring Body Combi Pack Timber
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
Product Variants
- Colours
- Size
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma EN-6 Door Closer Floor Spring Body Combi Pack For Timber Door BTS806T Includes: 1 x Dorma Door Closer Floor Spring EN6 (80130000) 1 x Dorma Top Centres 8062 (8062) 1 x Door Strap 7421 (46010001) 1 x Dorma Cover Plate 7410 (46700000) 1 x Dorma Top cover plate 8064 (46020044) 1 x Dorma Sealing Compound 2300 (45090086) Dorma BTS80 EN-6 Door Closer Floor Spring Adjustable Hold Open 80130000 Features: With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck Allows for temperature-independent hold-open between 75 degrees and 175 degrees(removable) Hold-open start point and delayed action is easily adjustable by valve Concealed assembly Can be used on fire and smoke check doors Easy to install
- Specs

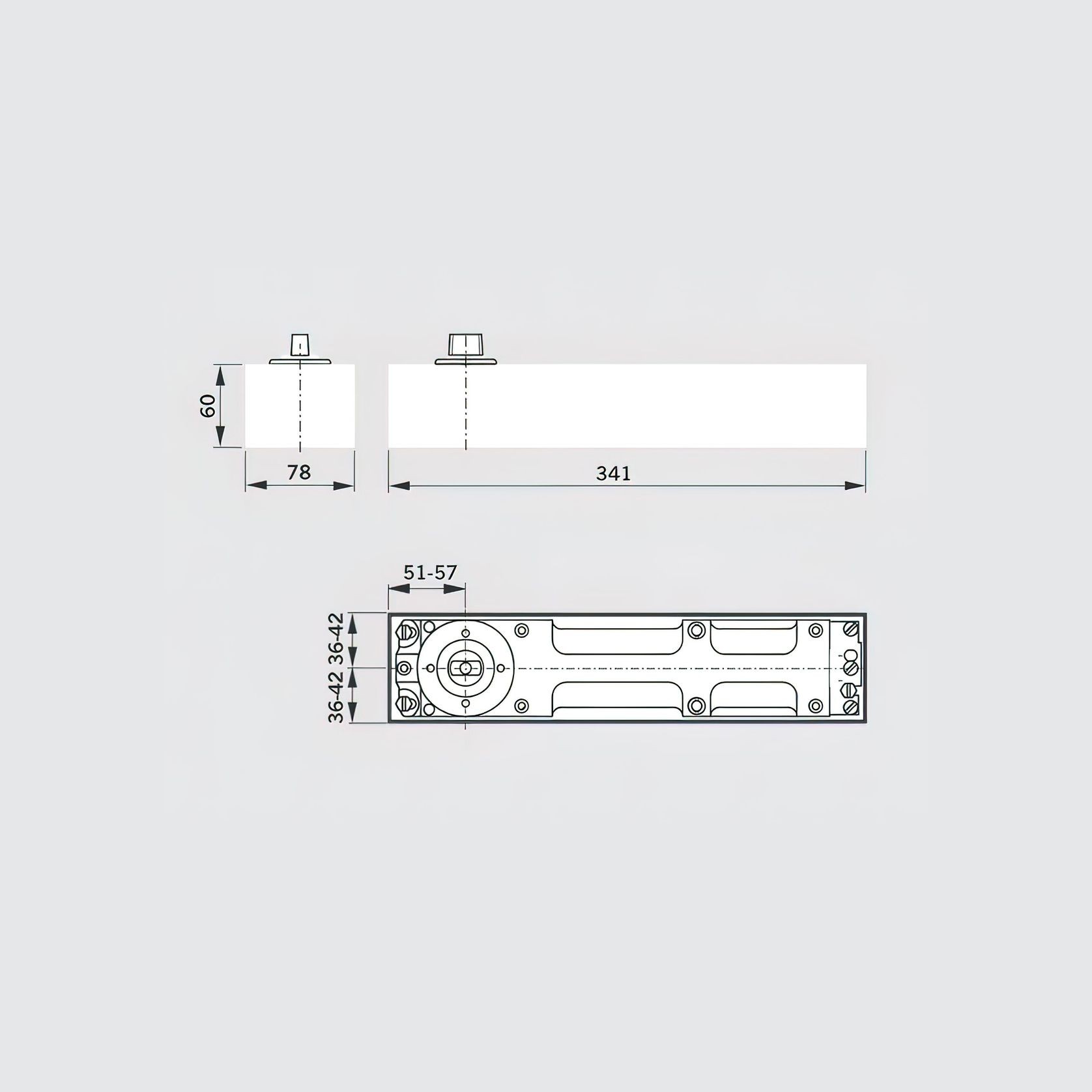

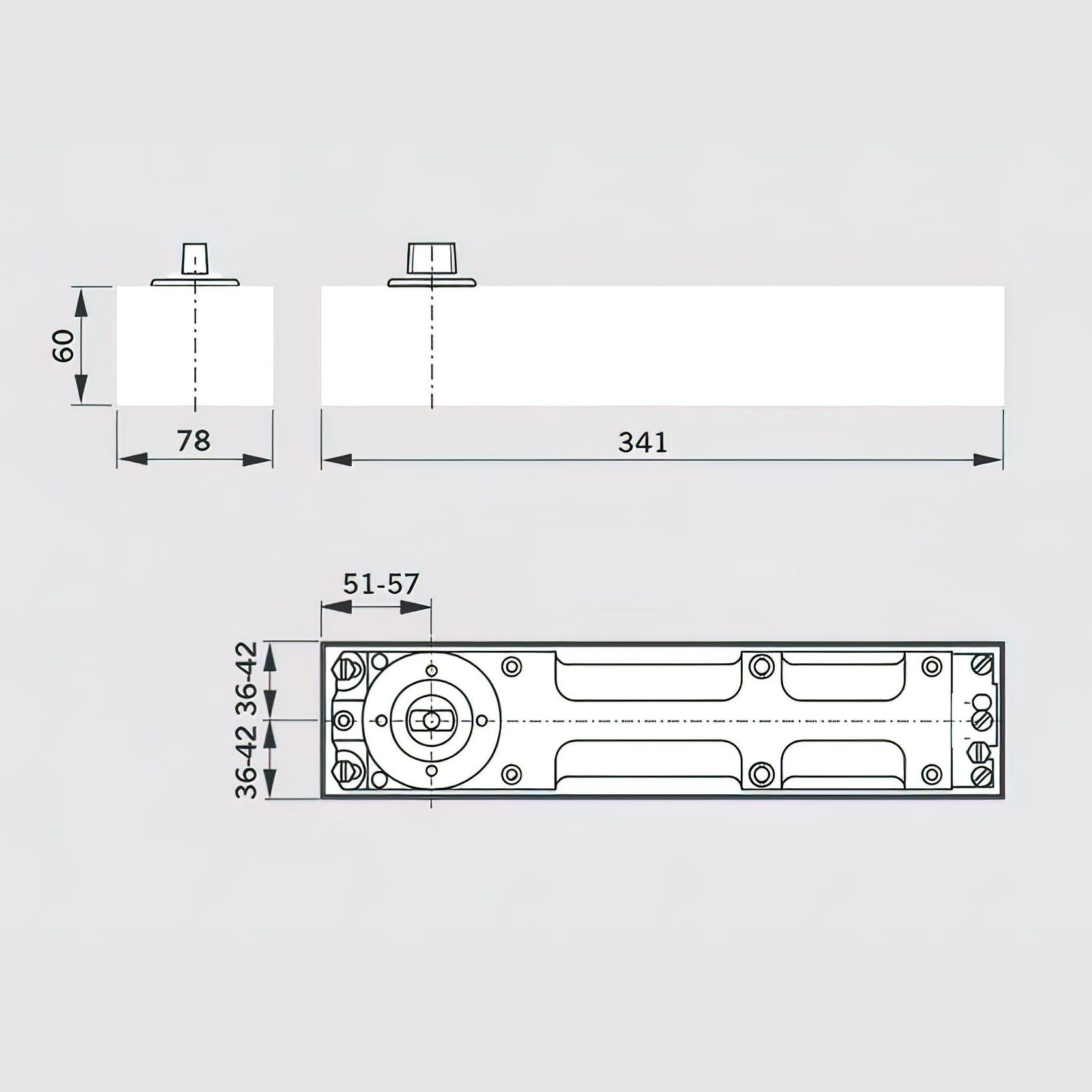

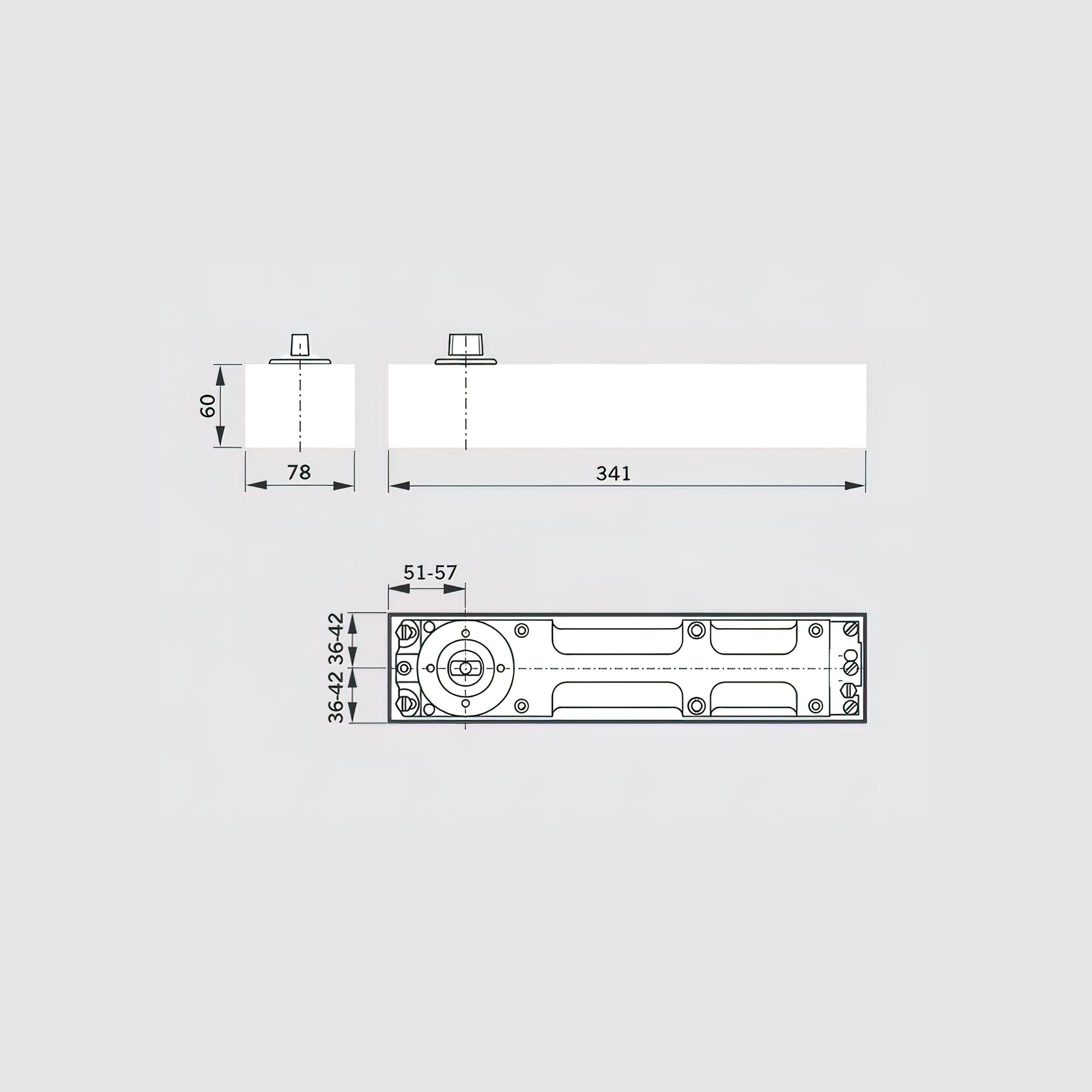

SPECIFICATIONS: Length: 358mm Width: 105mm Thickness: 1.5mm Finish: Satin Stainless Steel
- Features
- For single & double action doors
- Suitable for doors up to 300 kg
- Suits 1100-1400mm wide doors
- Hold open or non-hold open settings
- Large range of optional pivot accessories
- Concealed assembly

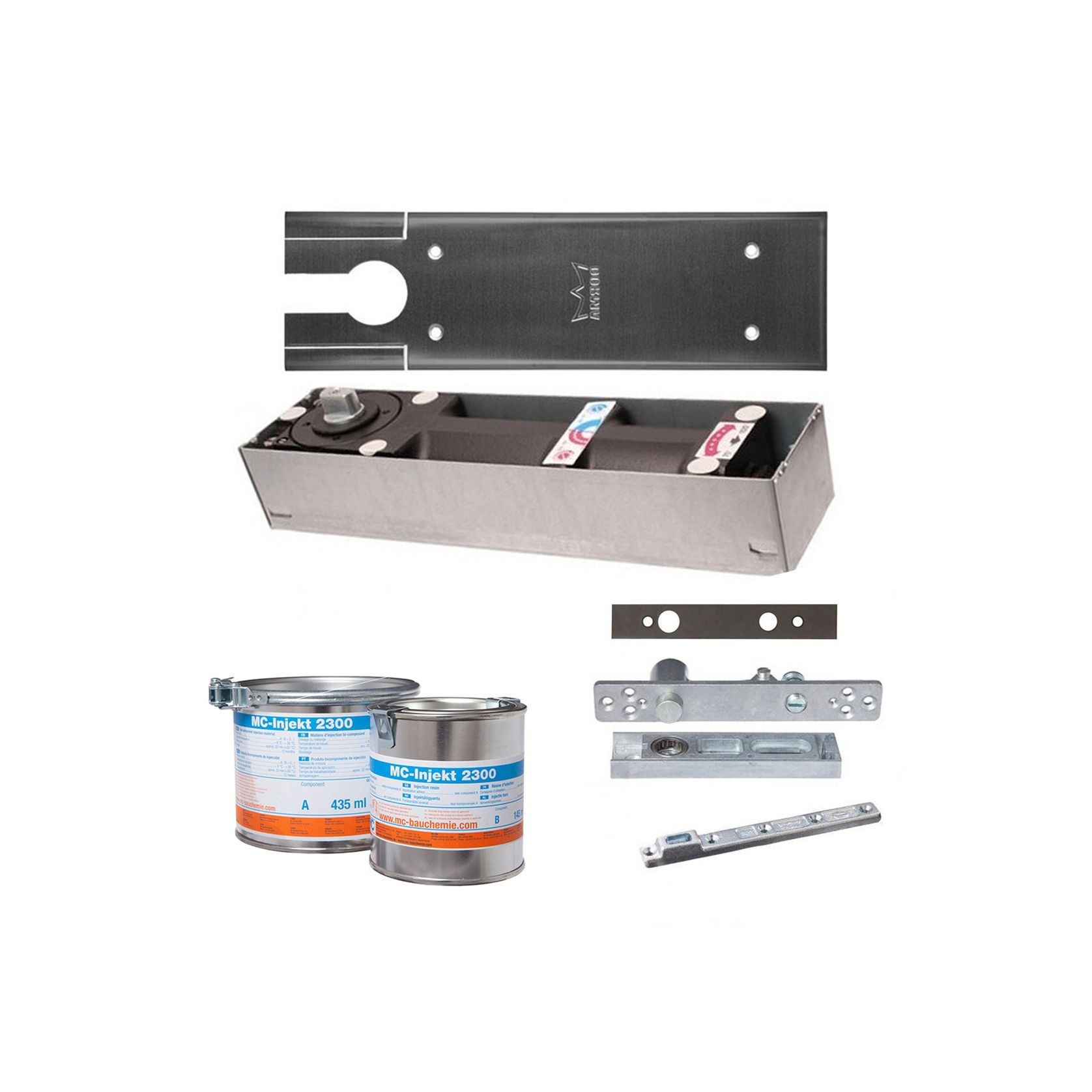

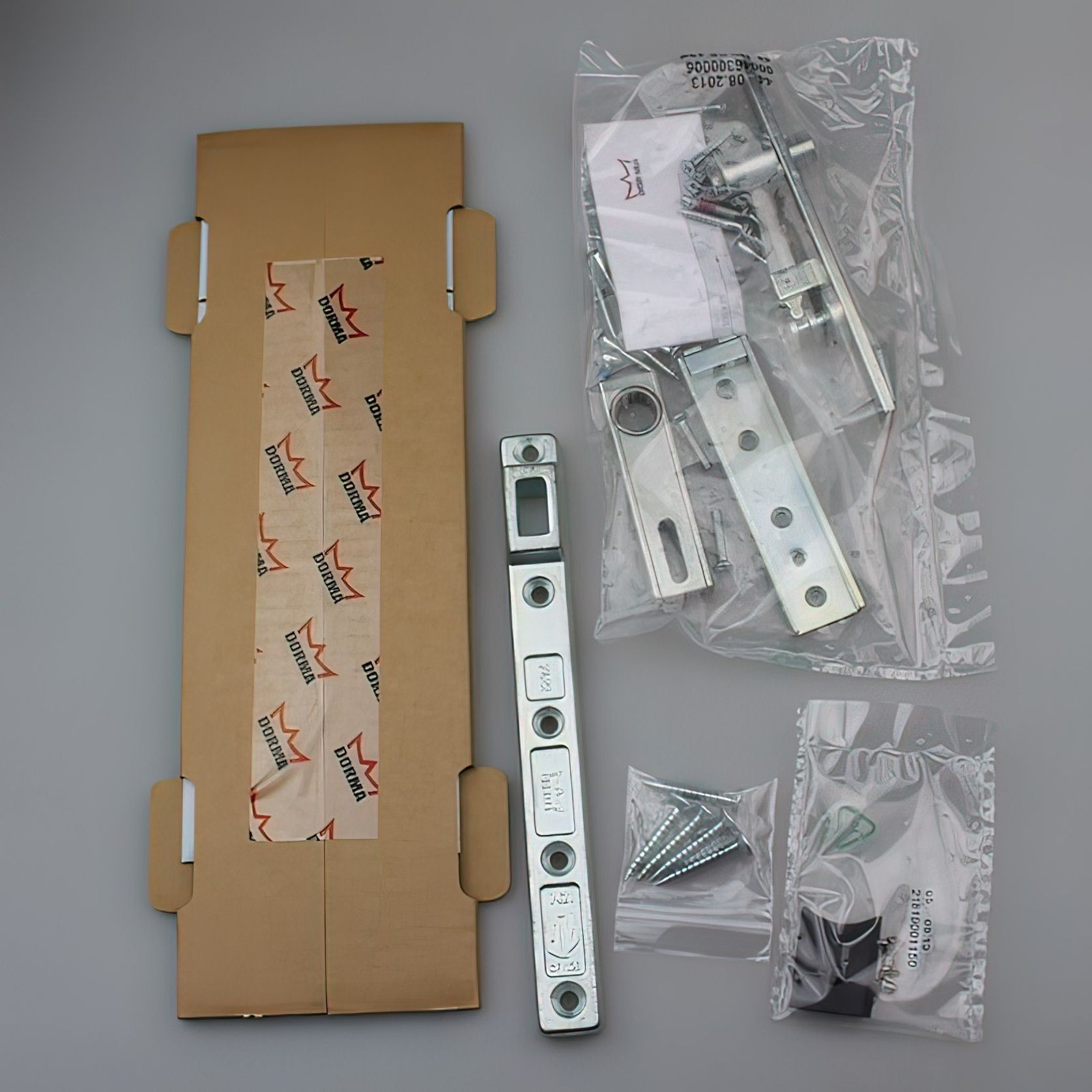

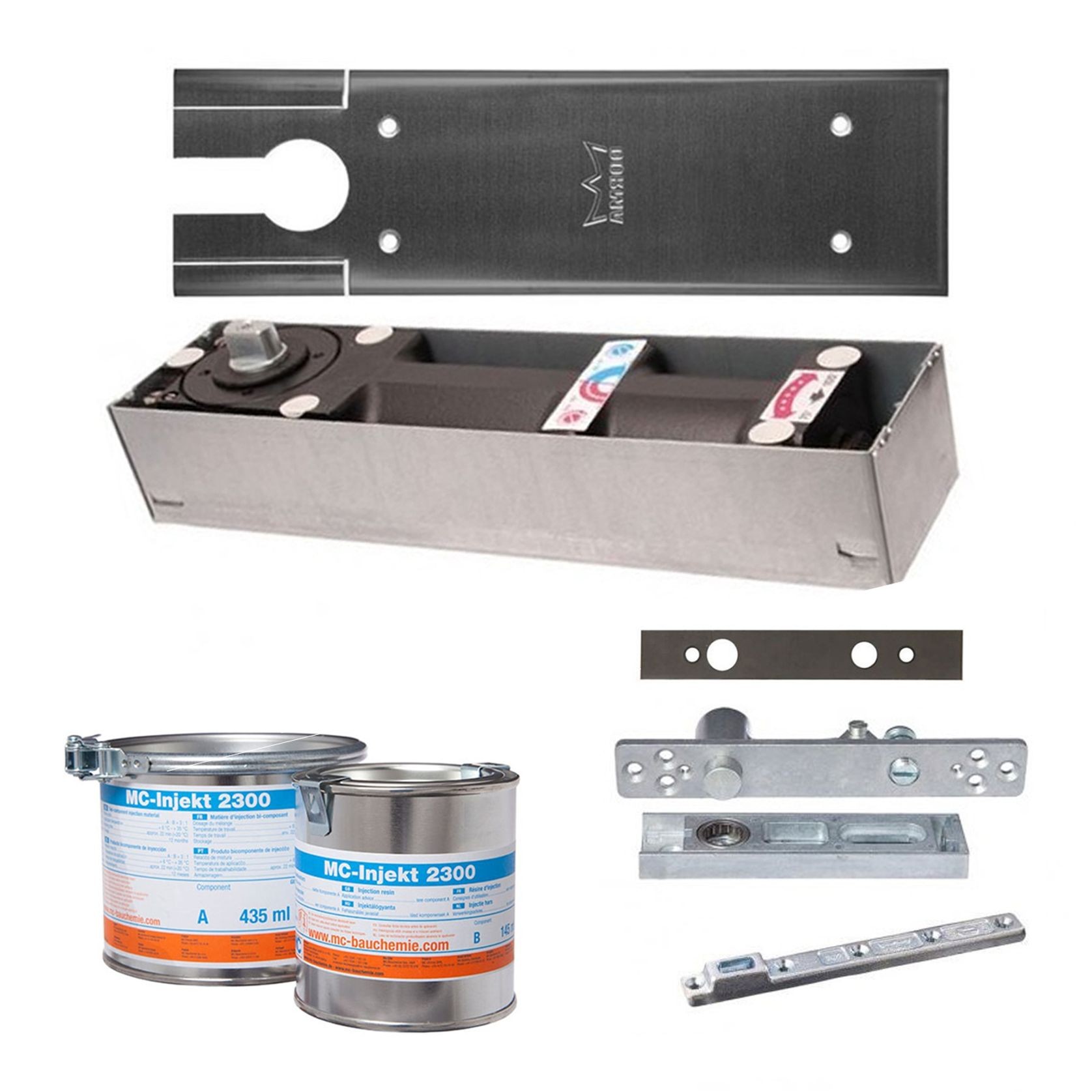

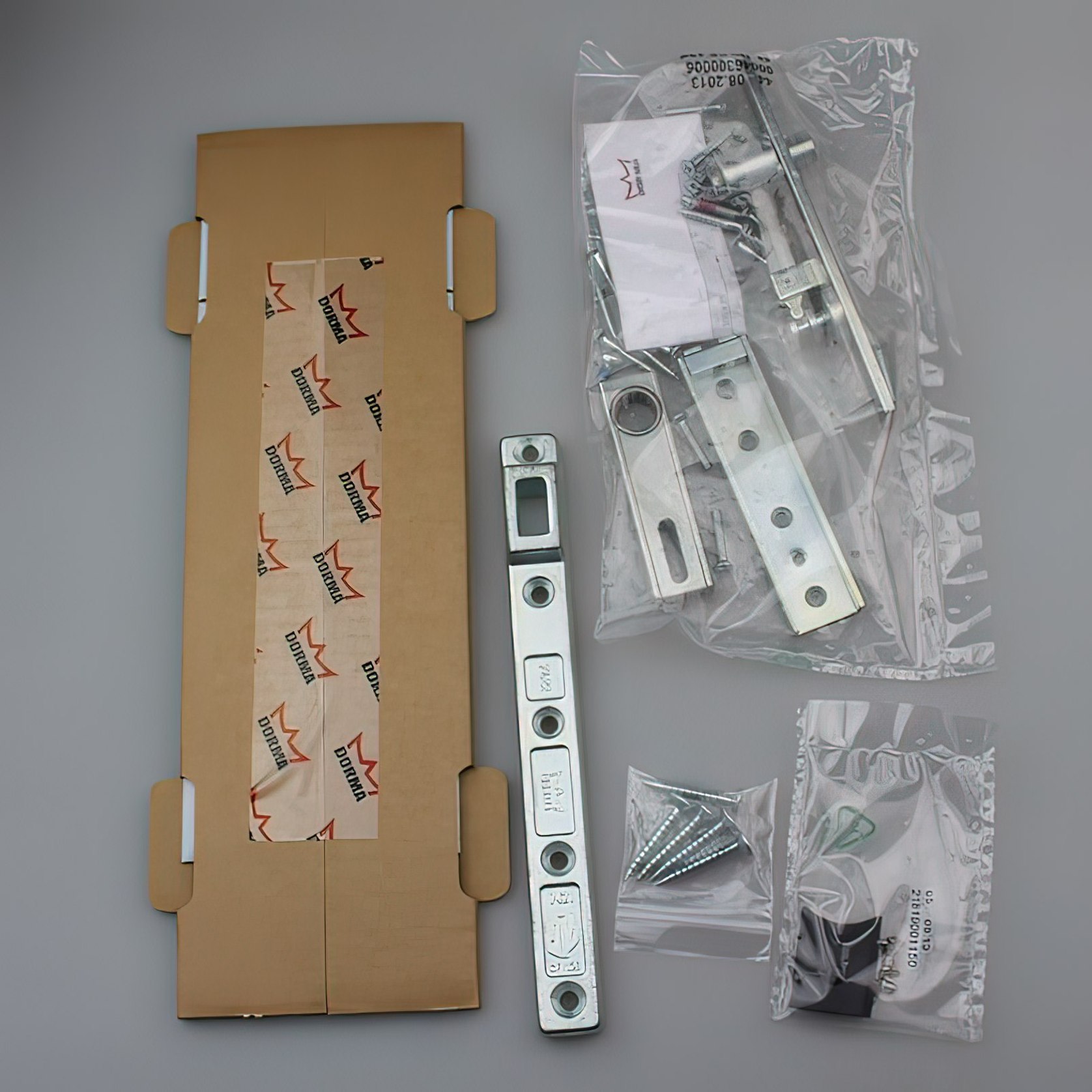

Includes:
- 1 x Floor Spring EN6 (DORM80130000)
- 1 x Dorma Top Centres 8062 (DORM8062)
- 1 x Door Strap 7421 (DORM46010001)
- 1 x Dorma Cover Plate 7410 (DORM46700000)
- 1 x Dorma Top cover plate 8064 (DORM46020044)
- 1 x Dorma Sealing Compound 2300 (DORM45090086)
