Dorma Floor Spring NonHold Open DBL Action Kit BTS75VT

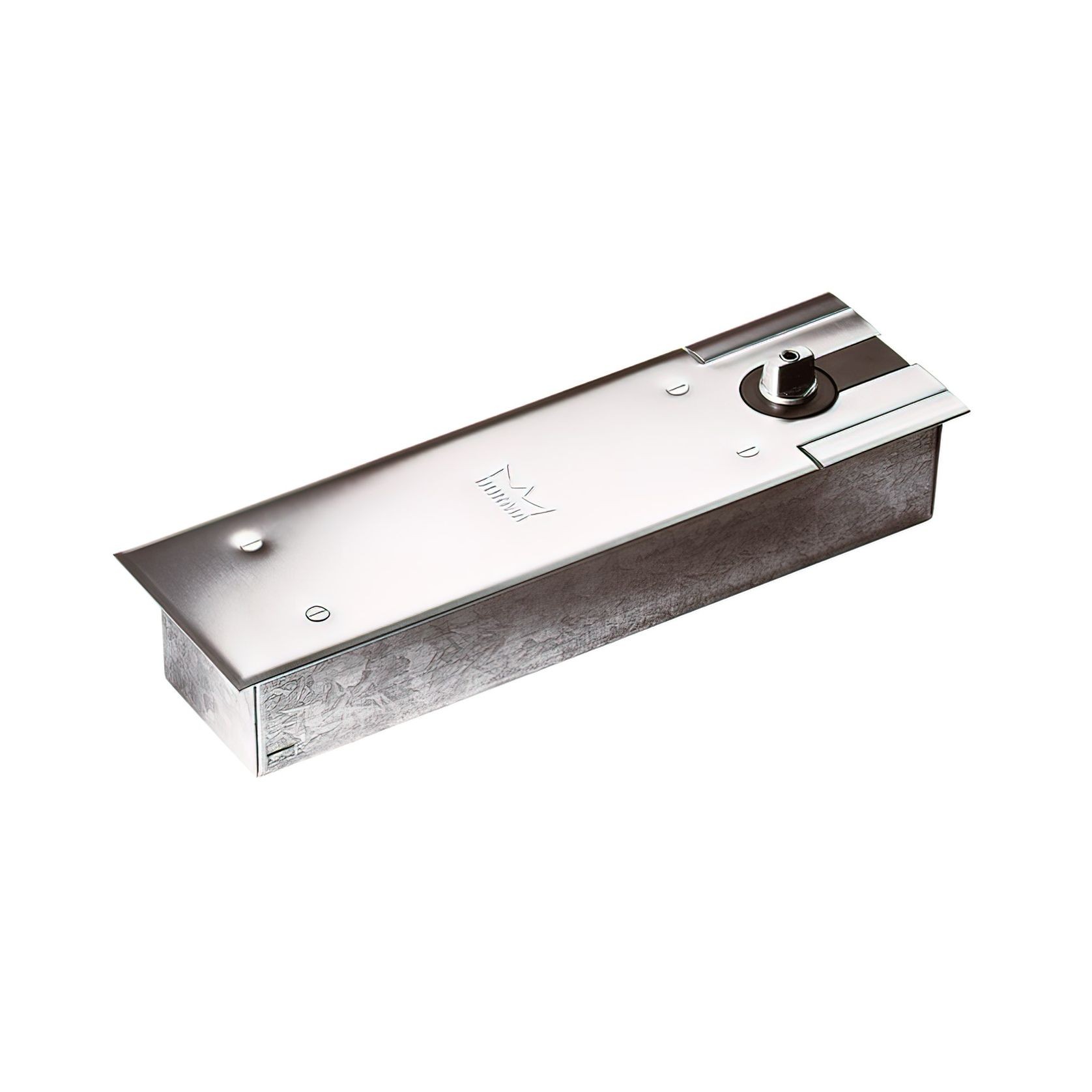

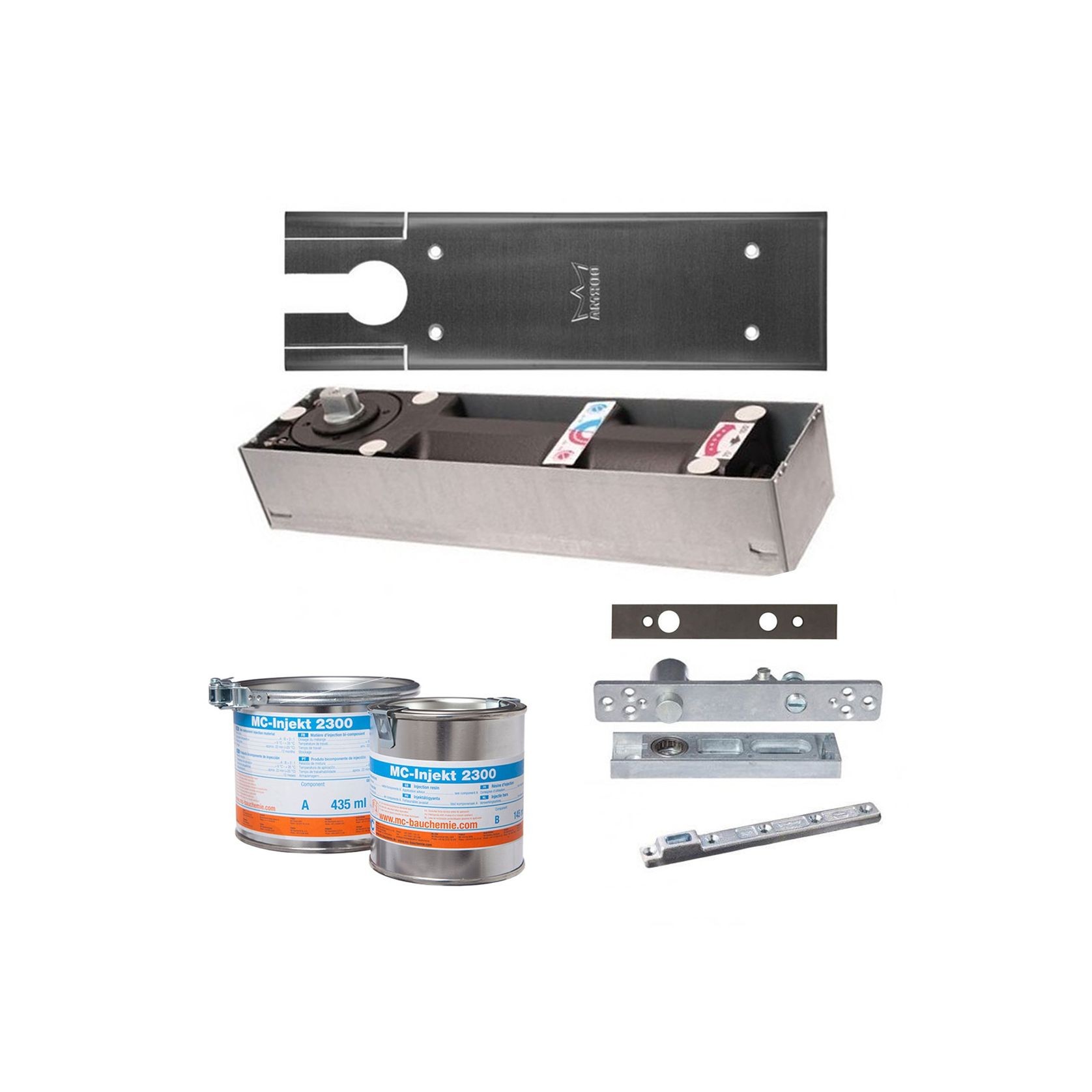

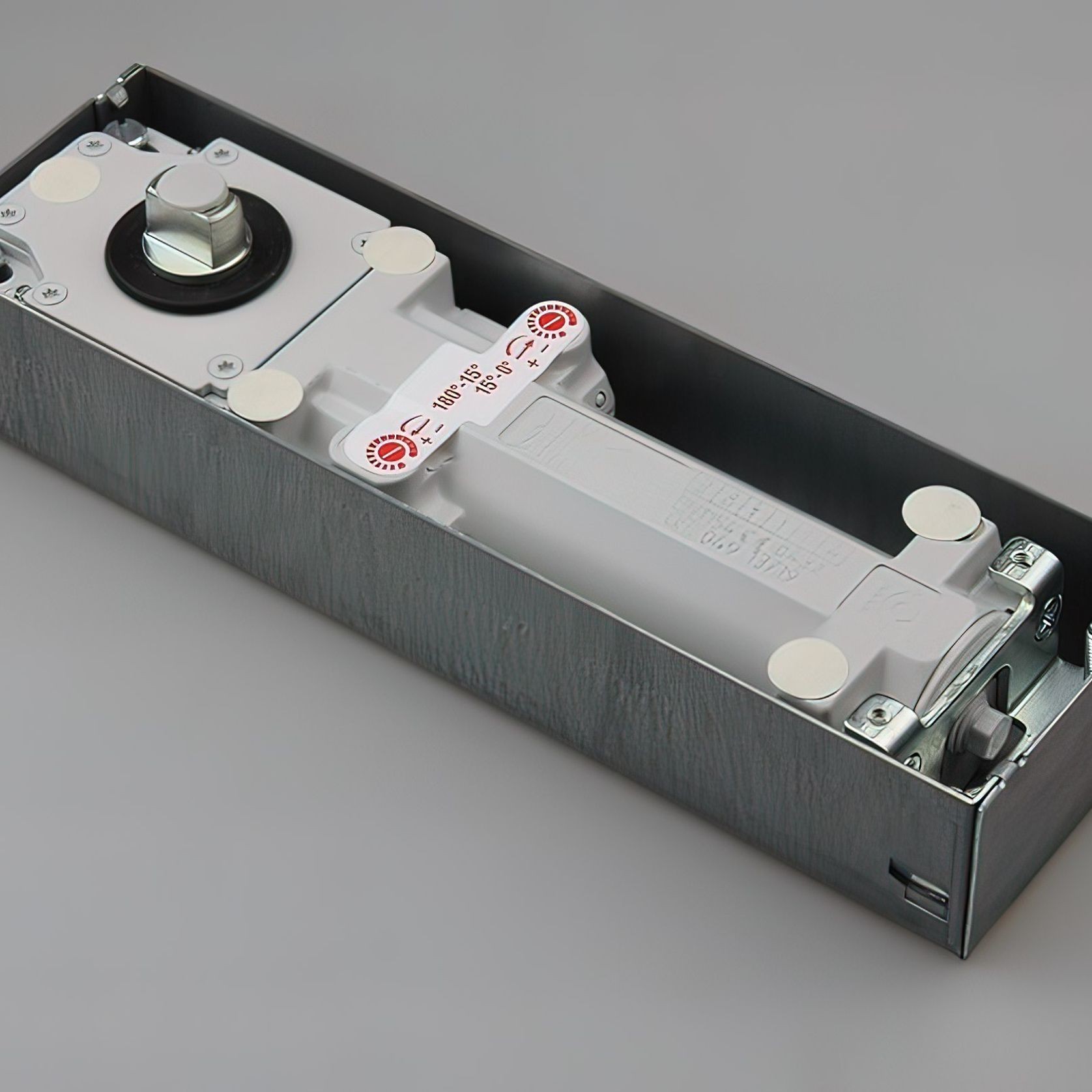

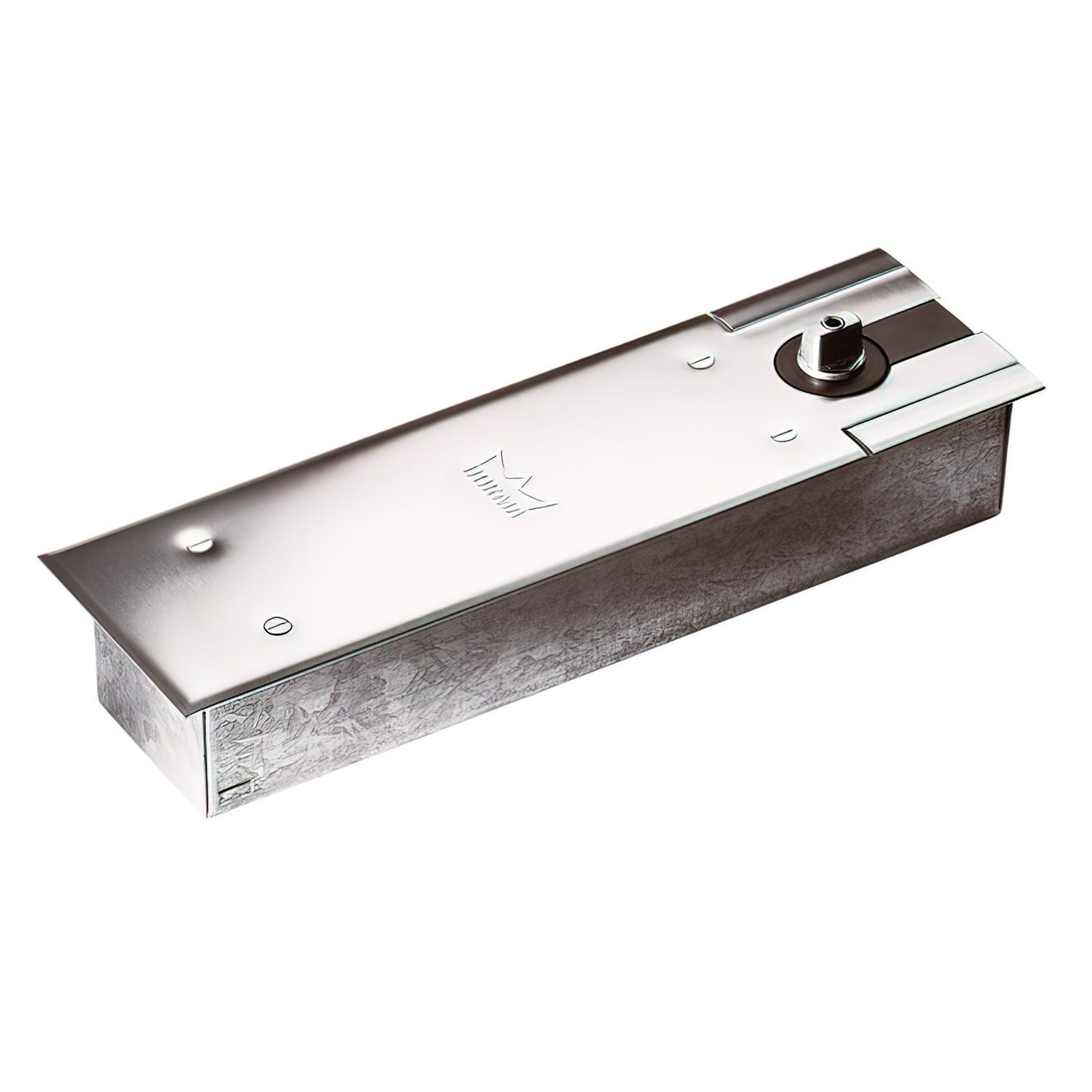

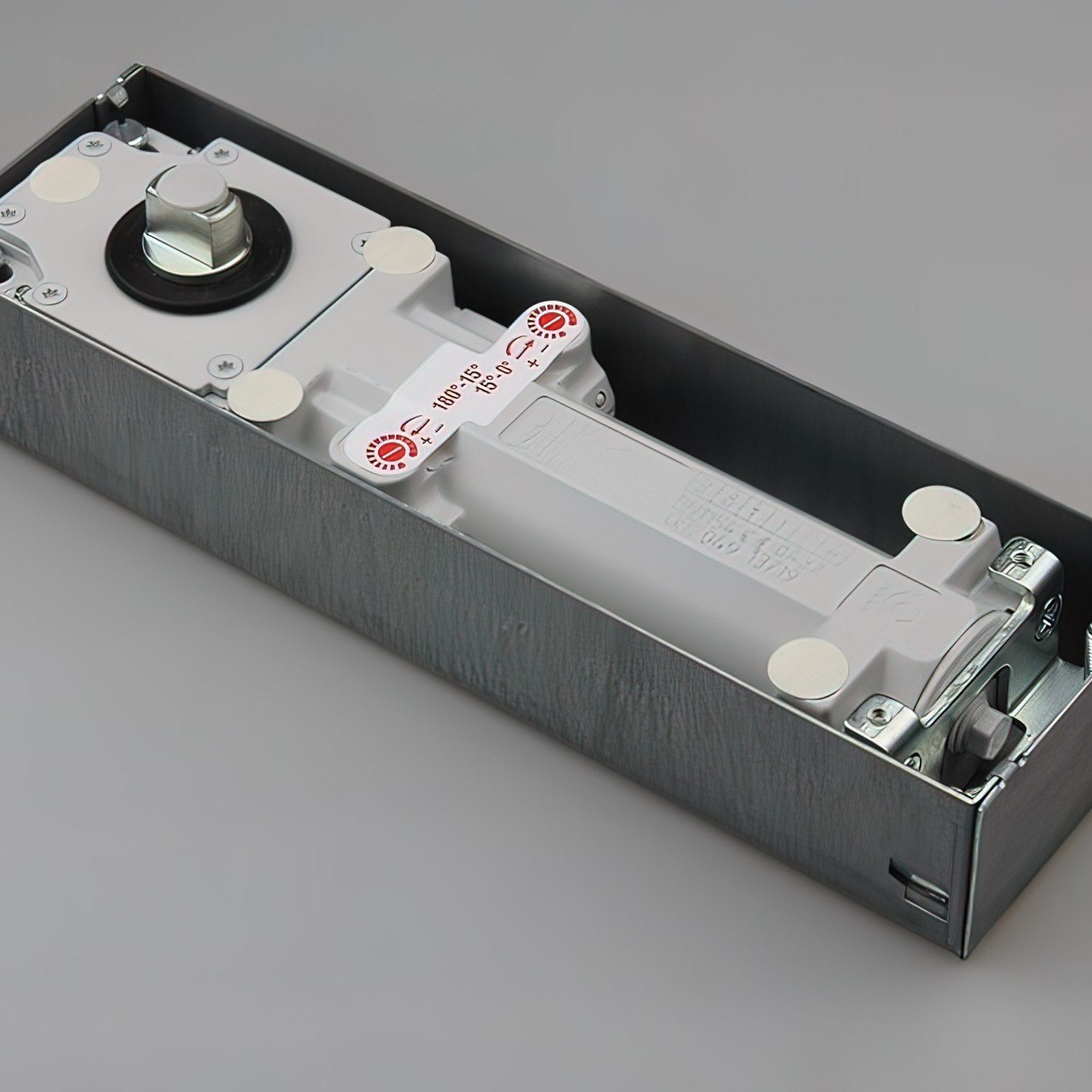

Dorma Universal Floor Spring w/ Timber Door Double Action Accessory Pack Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building. Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door. Includes: 1 x Dorma BTS75V EN1-4 Floor Spring Non Hold Open With Back Check (61701000) 1 x Dorma 8064 Cover Plate Satin Stainless Steel (46020044) 1 x Dorma 7510V Universal Cover Plate Satin Stainless Steel BTS75 (46700059) 1 7421 Bottom Strap for Double Action Doors (46010001) 1 x Dorma 8062 Top Center for Double Action Doors (46300003) 1 Sealing Compound 2300 (45090086) Dorma BTS75V EN1-4 Floor Spring Non Hold Open With Back Check Features: Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.
- CategoryDoor Closers
- RangeDormakaba
- BrandDormakaba

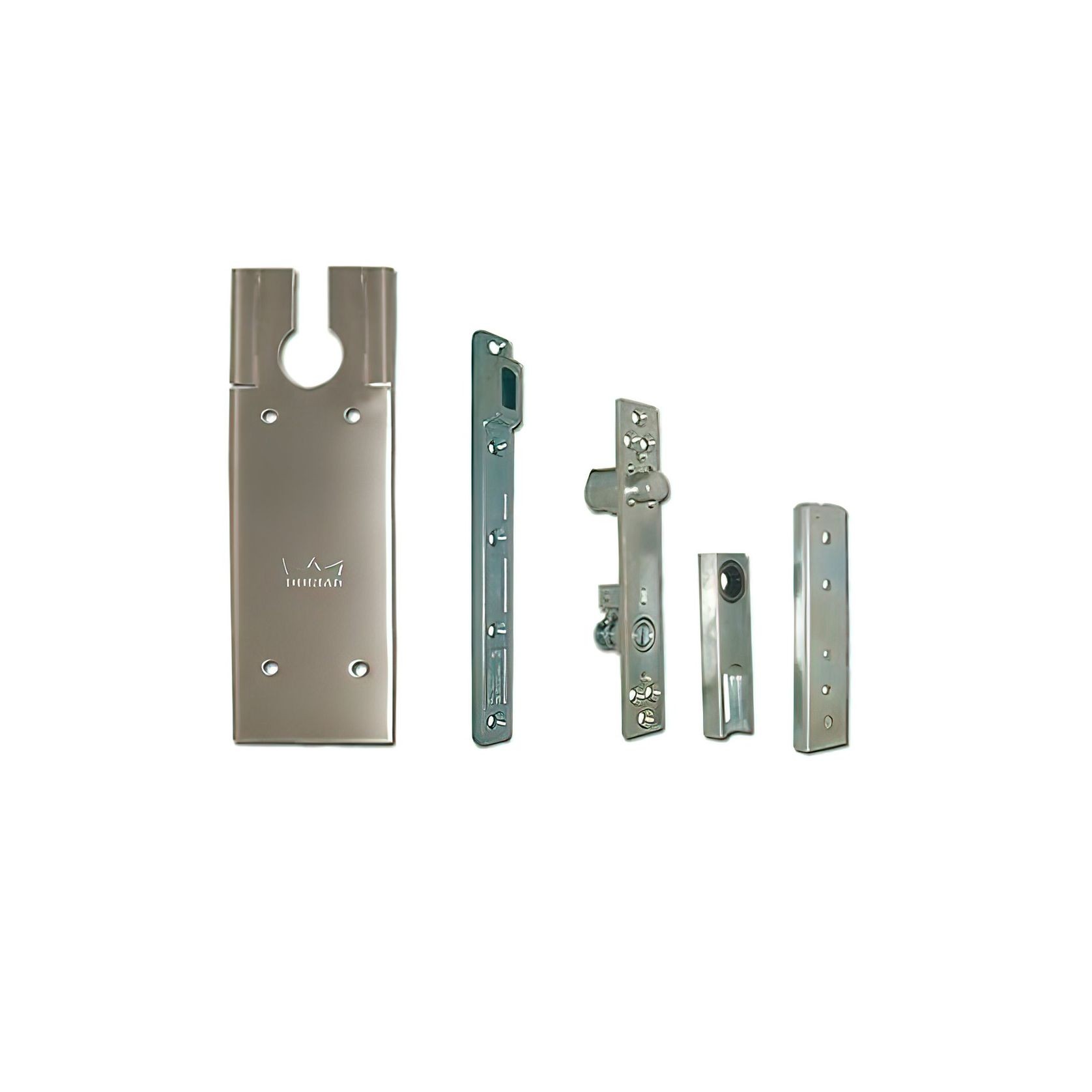

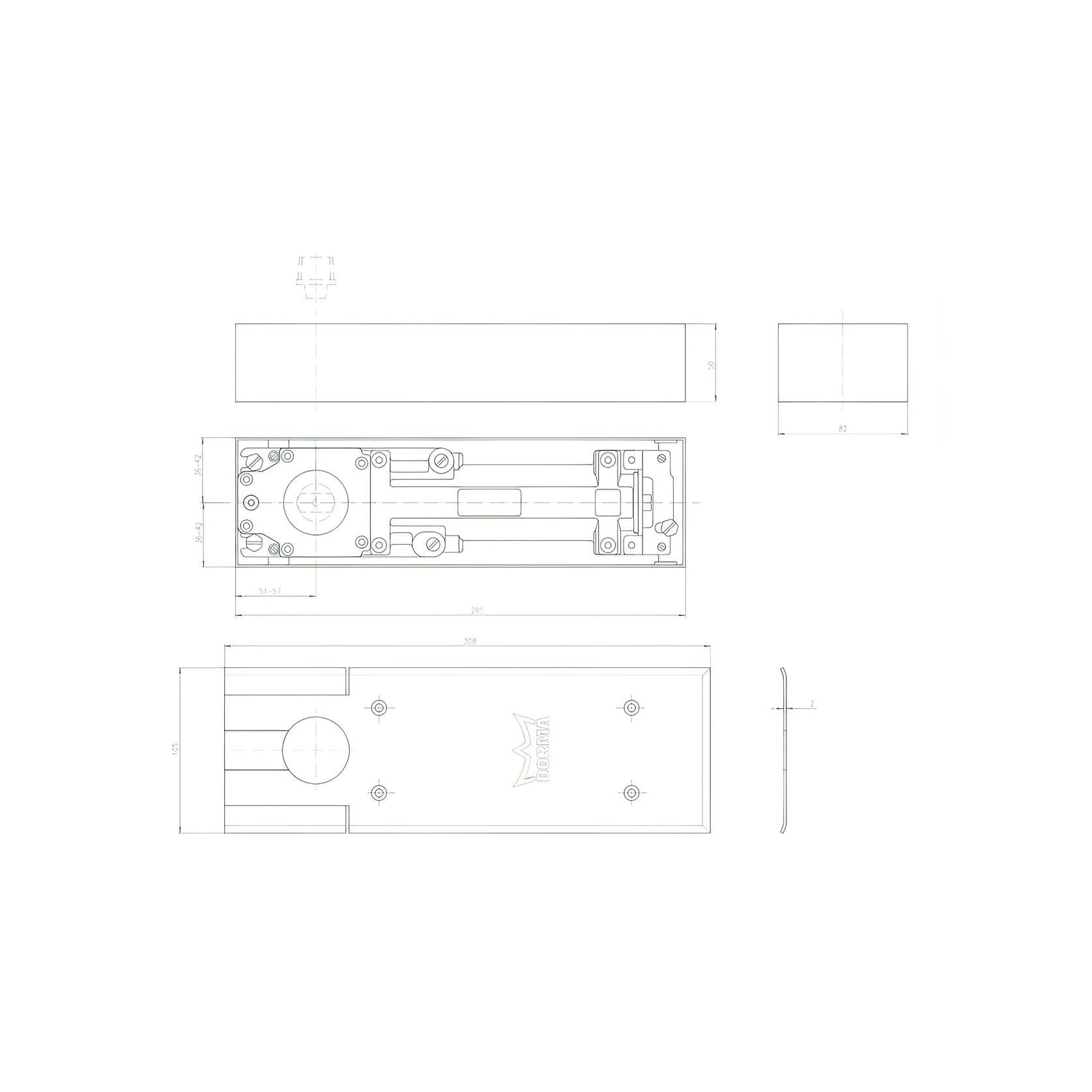

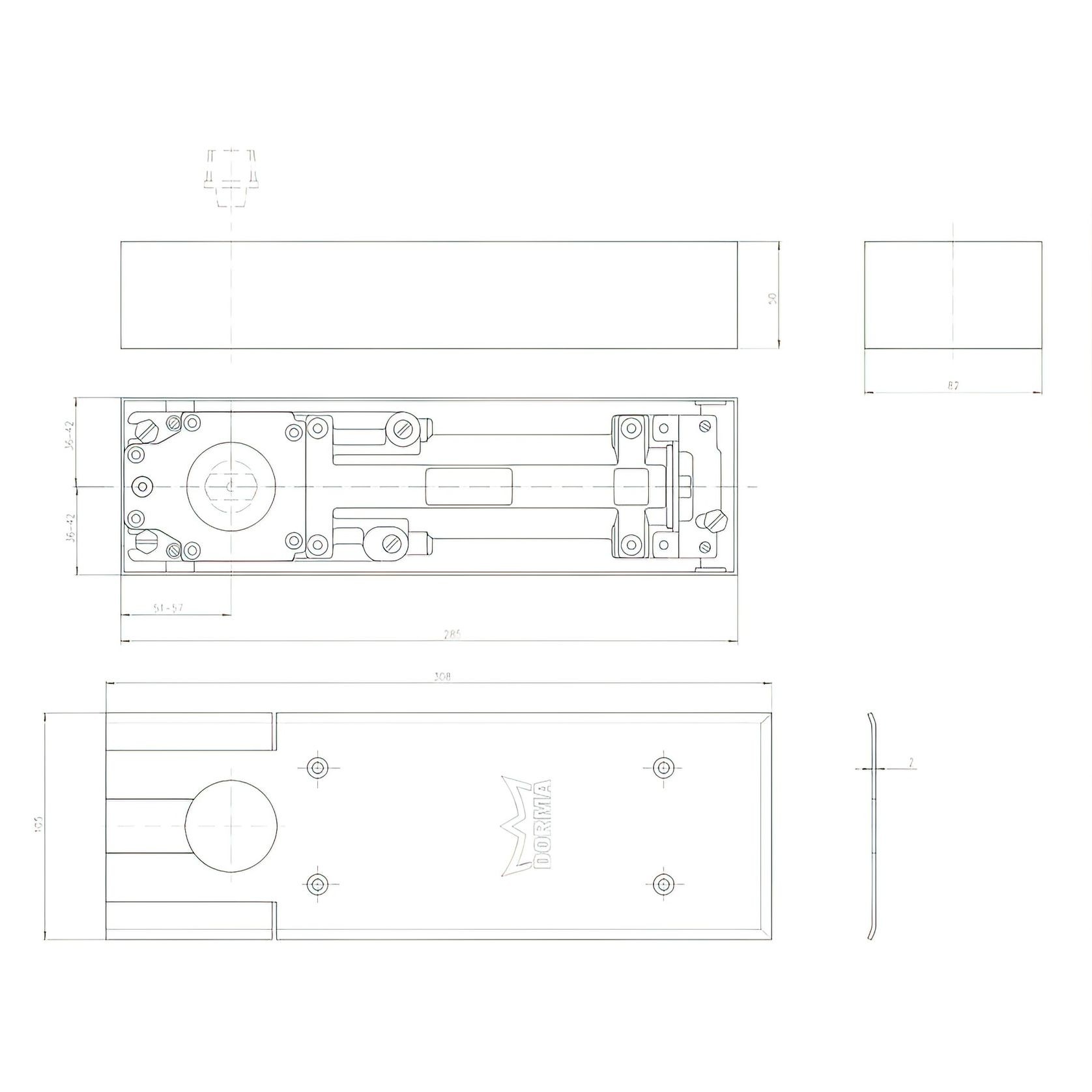

SPECIFICATIONS: Length: 308mm Width: 105mm Thickness: 1.5mm Finish: Satin Stainless Steel Dorma 7421 Bottom Strap for Double Action Doors 46010001 Features: Suitable for BTS floor springs for double action doors Drop forged steel, zinc-plated for door weights up to 300 kg. Dorma 8062 Top Center for Double Action Doors 46300003 Features: Suitable for double action steel, aluminum and timber doors Made of die-cast aluminum It comprises of a frame portion with adjustable pin for deep profiles up to a max. 20mm, and a door portion with needle bearing Suits BTS 75V Dorma Sealing Compound 2300 45090086 Features: Recommended for floor springs exposed to wet conditions For filling the cavities between the floor spring body and the cement box to prevent moisture penetration (mandatory according to e.g. VOB regulations for wet rooms). Notes-icon: The contents of the two tins (the basic fluid and the accelerator) are sufficient for one floor spring. Warning-icon: Use compound immediately after mixing. Hardening process takes place after 20 minutes. After 24 hours the sealing compound is fully hardened.
- For single- & double-action doors
- Adjustable spring strength
- Universal application range
- Concealed installation
- Non hold open
- Door weights to 120kg

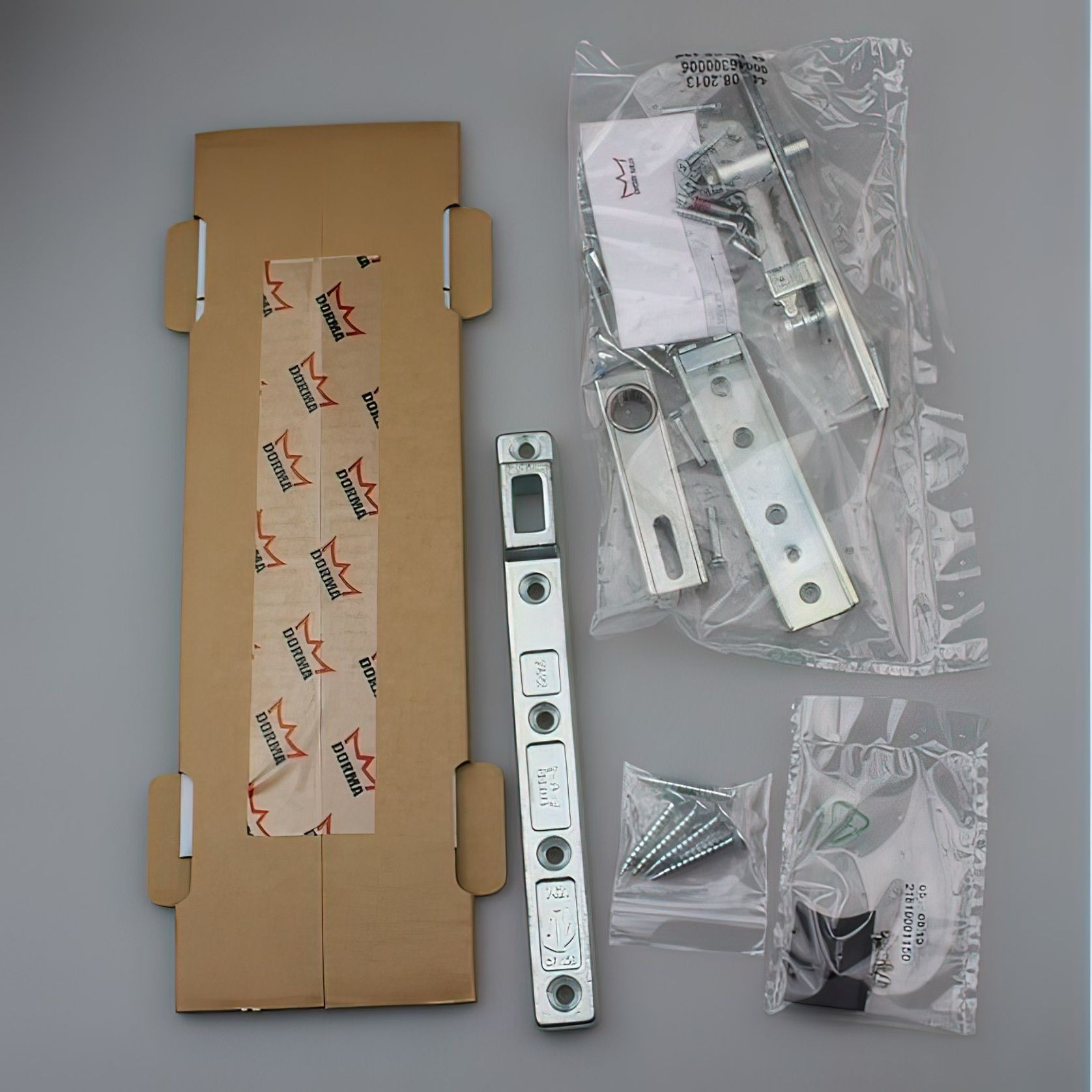

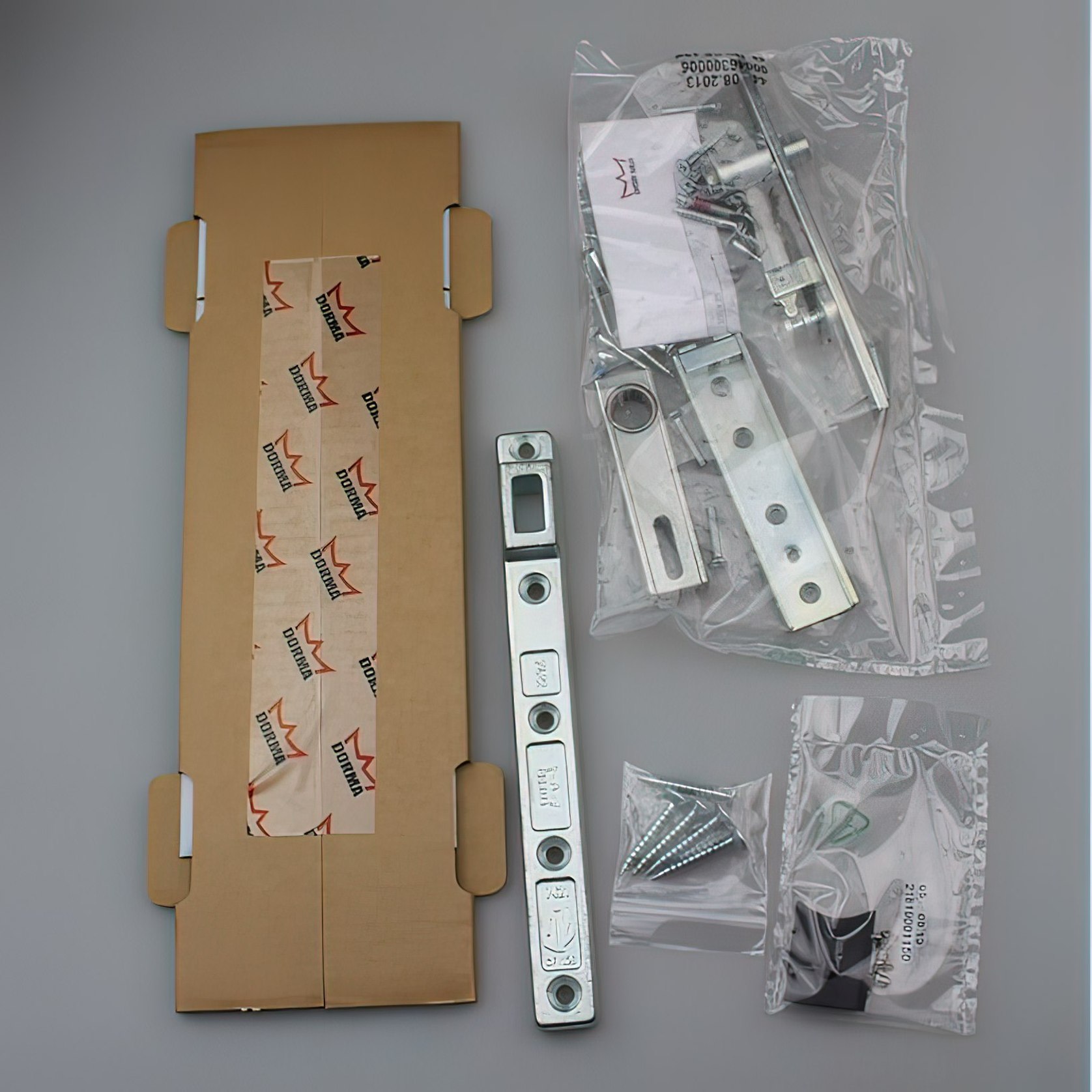

Includes:
- 1x Floor spring closer (BTS 75V)
- 1x Double action accessory pack w/ cover plate (10007501)
- 1x Top cover plate (8064)
