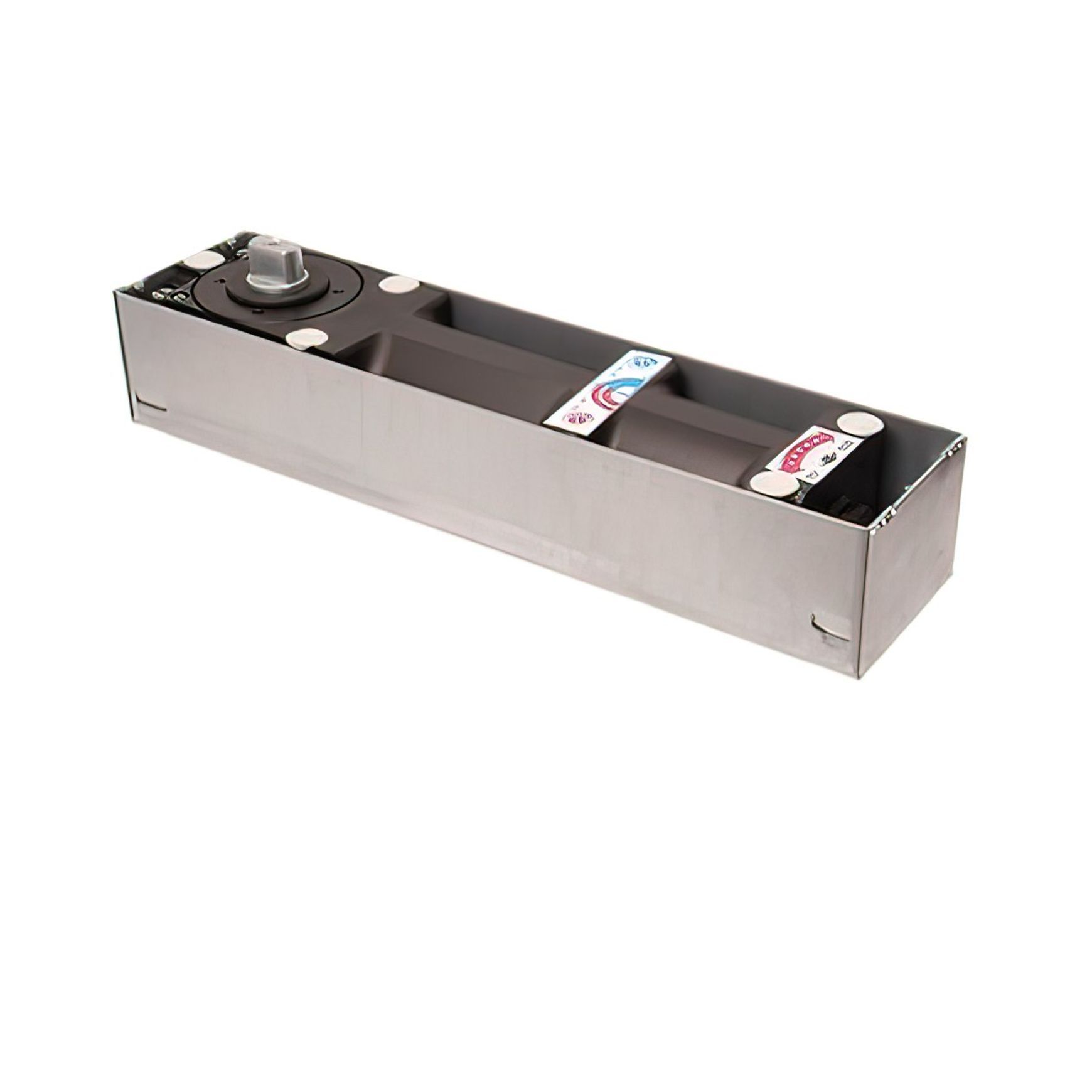

Dormakaba EN3 Floor Spring Body Combi Pack Timb BTS803T

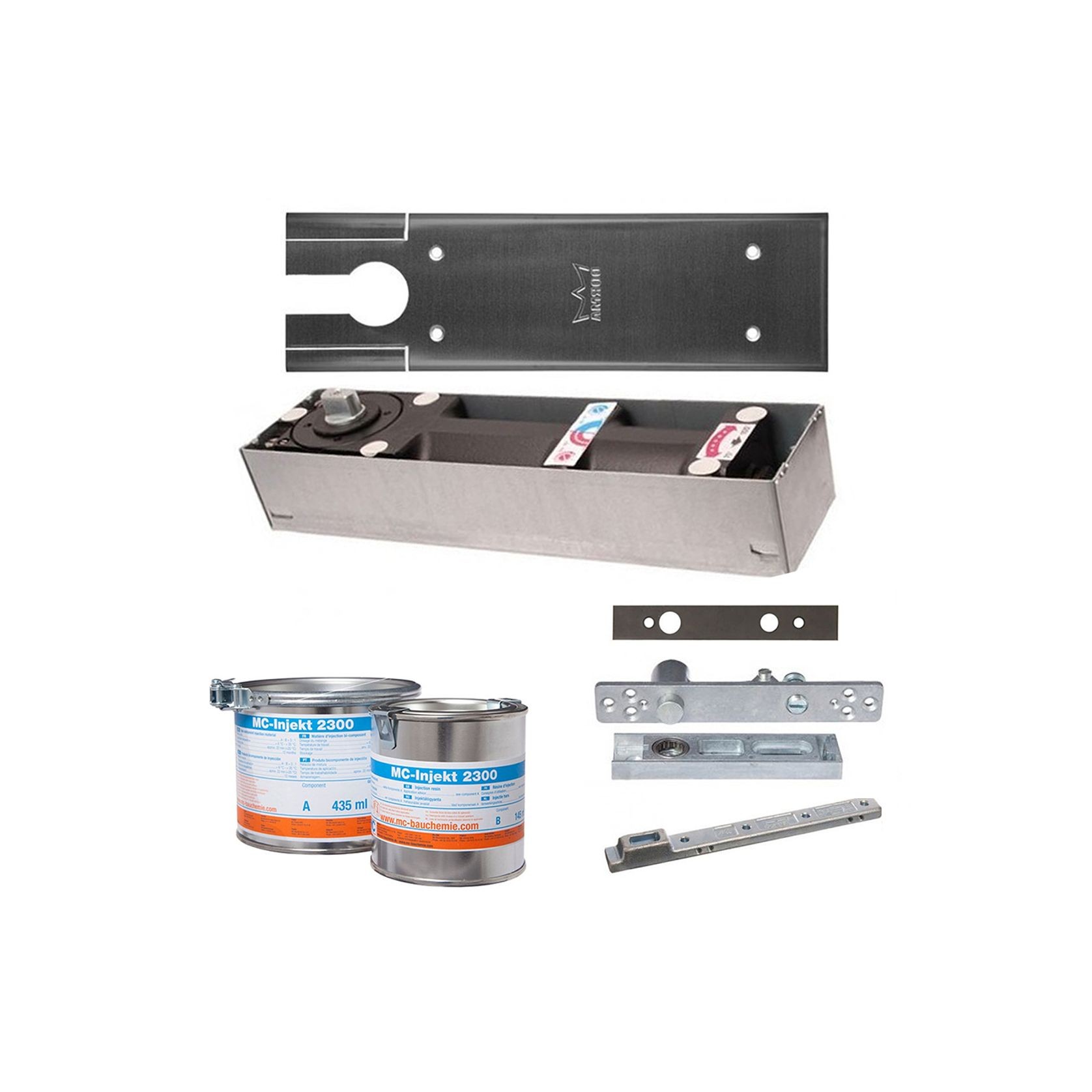

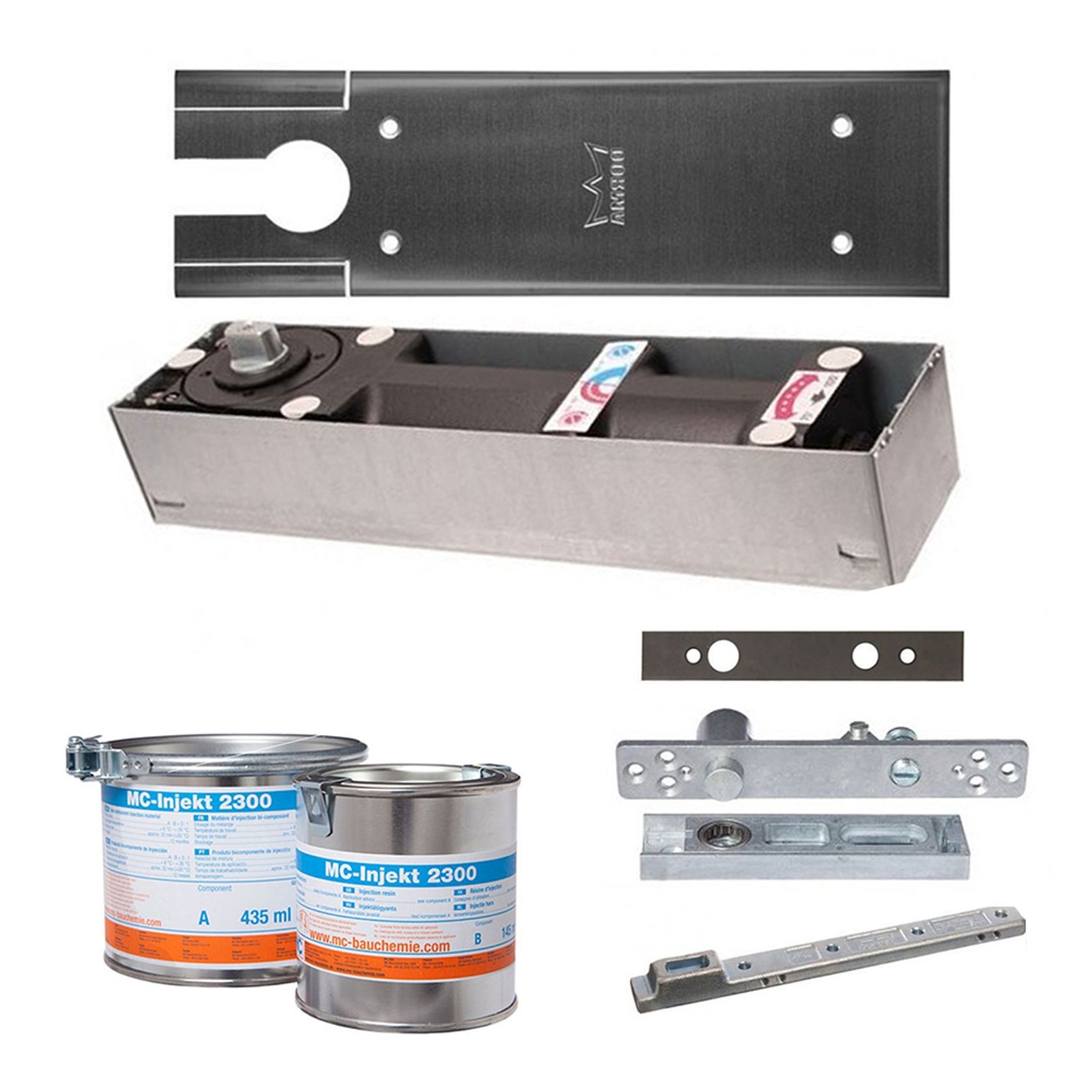

Dorma Kaba EN3 Floor Spring Body Combi Pack For Timber Door BTS803T Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building. Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door. Includes: 1 x Dorma EN-3 Floor Spring BodyBTS80EN3 (80120000) 1 x Dorma Cover Plate 7410 (46020044) 1 x Dorma Top Centres 8062 (8062) 1 x Dorma Door Strap 7421(46010001) 1 x Dorma Cover Plate 8064 (46700000) 1 x Dorma Sealing Compound 2300 (45090086) Dorma BTS80 EN3 Floor Spring Body 80120000 Features: The Dorma BTS80 EN3 floor spring body includes cement box and standard spindle It is a universal non-handed floor spring for single and double action doors With adjustable closing speed and closing action from approx. 175°, with hydraulically controlled closing cycle and mechanical backcheck Integral pressure compensation feature allows for temperature-independent hold-open between 75° and 175° (removable) Hold-open start point and delayed action is easily adjustable by valve Suitable for installation on doors up to 950mm (W) with a max. 300kg leaf weight
