Dorma RTS85 EN4 Transom Closer with Hold-Open
85322101
Transom Closer allows a single or double action aluminium door or doors to be closed with precision.
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
- For single and double action doors RH (ISO 5) and LH (ISO 6)
- Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
- Certified to ISO 9001.
Dorma RTS85 Transom Closer Floor Pivot
65410300
Transom Closer Floor Pivot used on aluminium doors, the floor portion of pivot is fitted directly to floor.
Features:
- Used in conjunction with the Dormakaba RTS85 transom closer
- For bottom rails with channel depth of 18-50mm (floor portion may be shortened to suit bottom rail)
Dorma Transom Closer Arm w/ Bracket
85210005
Features:
- A standard side load top arm for use with Dorma concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
- For top rails with min. 15mm channel depth and 38mm width.
Product Details
- Product
- Dorma RTS85 EN4 Transom Closer Set Hold Open 90 Degrees
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Country of origin
- Australia
- Type of use
- Commercial
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Product Variants
- Colours
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma RTS85 EN4 Transom Closer with Hold-Open85322101 Transom Closer allows a single or double action aluminium door or doors to be closed with precision.
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
- For single and double action doors RH (ISO 5) and LH (ISO 6)
- Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
- Certified to ISO 9001.
Dorma RTS85 Transom Closer Floor Pivot
65410300
Transom Closer Floor Pivot used on aluminium doors, the floor portion of pivot is fitted directly to floor.
Features:
- Used in conjunction with the Dormakaba RTS85 transom closer
- For bottom rails with channel depth of 18-50mm (floor portion may be shortened to suit bottom rail)
Dorma Transom Closer Arm w/ Bracket
85210005
Features:
- A standard side load top arm for use with Dorma concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
- For top rails with min. 15mm channel depth and 38mm width.
- Specs
Dorma RTS85 EN4 Transom Closer with Hold-Open
85322101Specifications:
- Closing Force: EN4
- Internal doors up to and external doors: up to 1100mm
- Closing speed variable by valve adjustment: Yes
- Final closing speed variable by valve adjustment: Yes
- Backcheck: Yes
- Hold Open: 90 Degrees
- Length: 323mm
- Width: 90mm
- Height: 38mm
- Weigth: 4.8kg
Protection:
- Certified manufactur to ISO 9001.
- Certification CE marked.
- Successful independently tested to BS EN 1154.
Dorma RTS85 Transom Closer Floor Pivot
65410300Specifications:
- Heigth: 57mm
- Application: Aluminium Doors
- Side-Load Installation: achieved by offering the door in the closed position, onto the floor pivot. The closer arm, fitted in the upper door rail, is connected to the spindle and secured with a clamping piece.

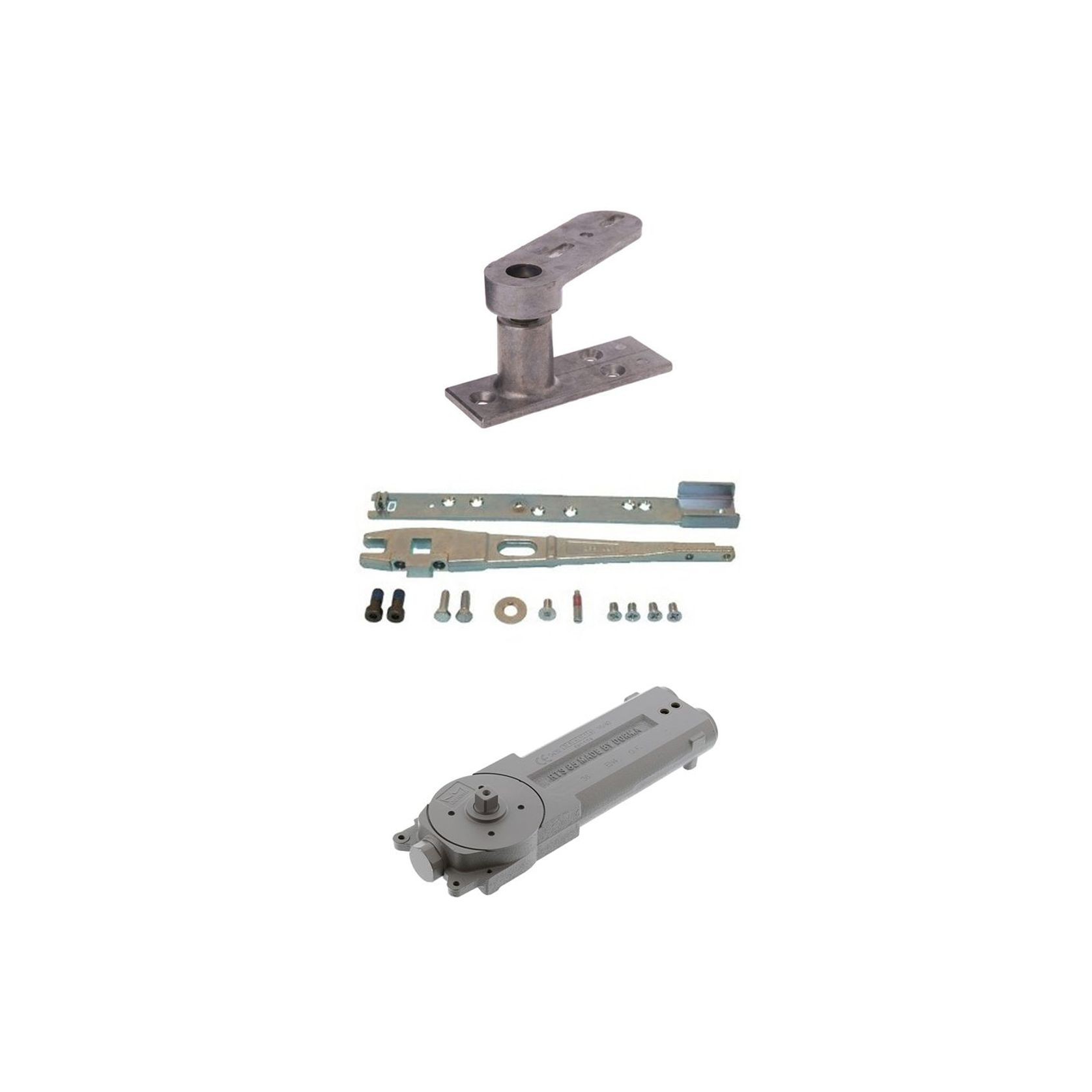

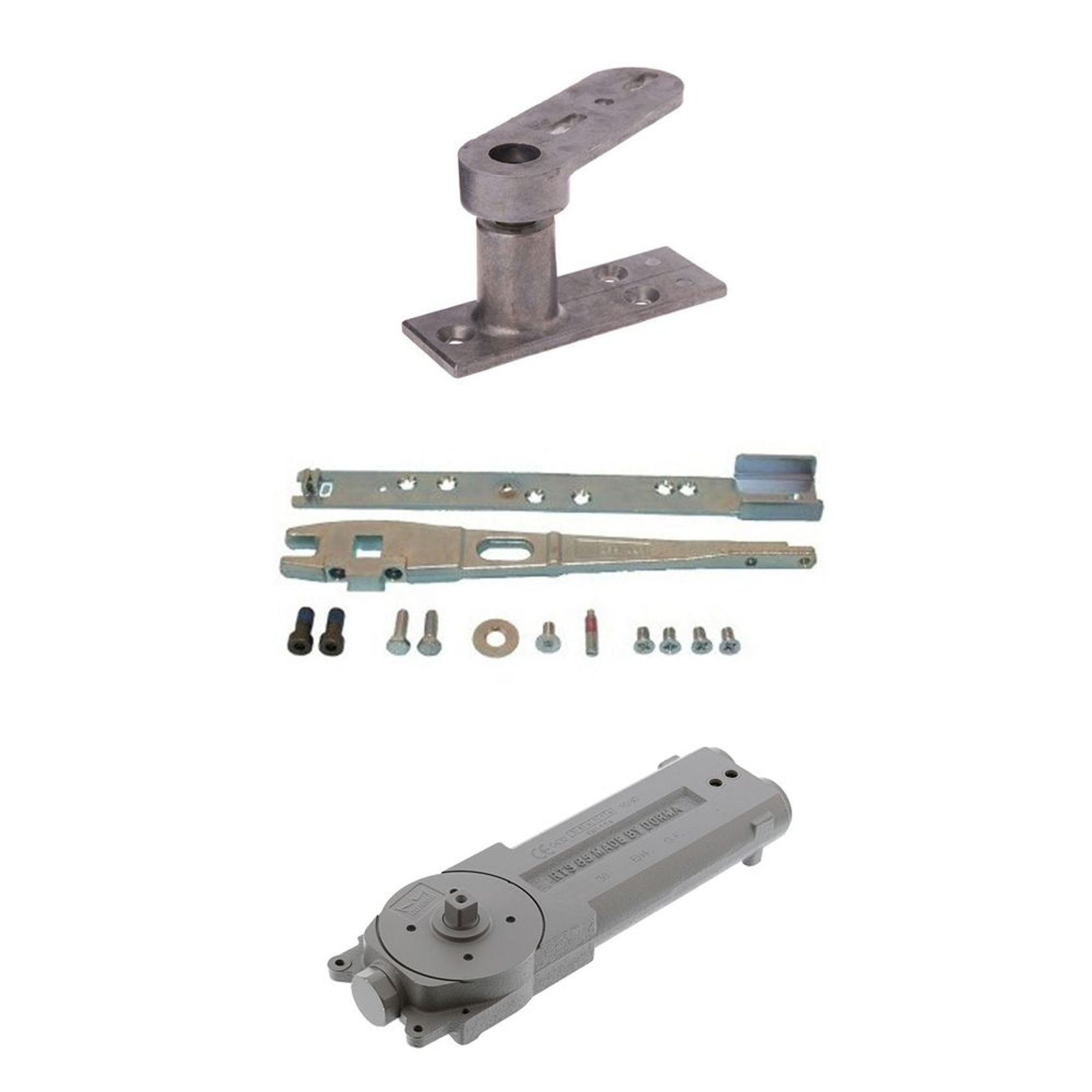

- What's in the box
Includes:
- 1 x RTS85 Size 4 Hold Open Transom Closer Body
- 1 x 8530 Side Load Arm
- 1 x 8551 Bottom Pivot
