Dorma RTS85 EN4 Transom Concealed Closer Hold-Open for Action Doors 85322101
Wetherill Park, Australia
- 998.7K profile views
- 53 saves

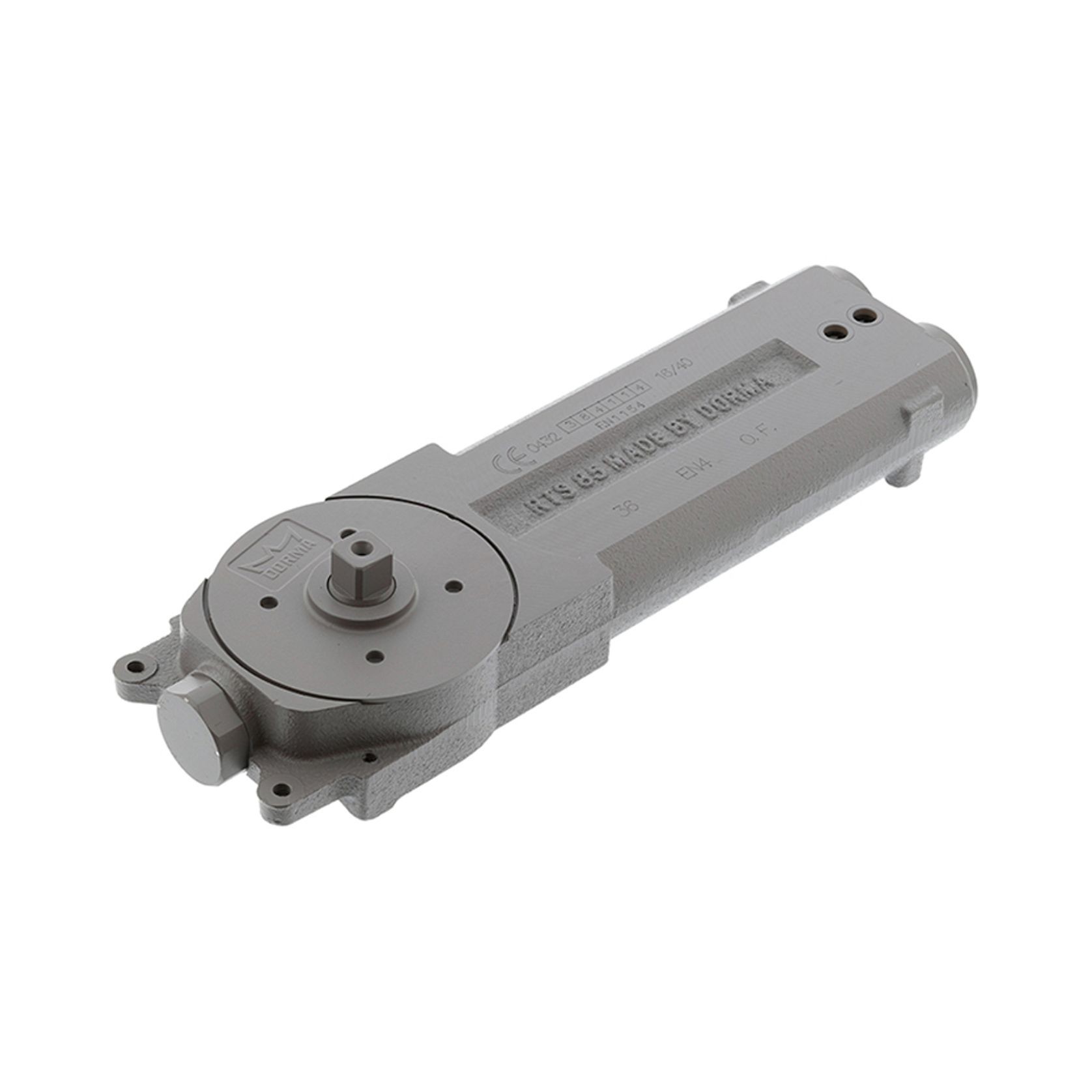

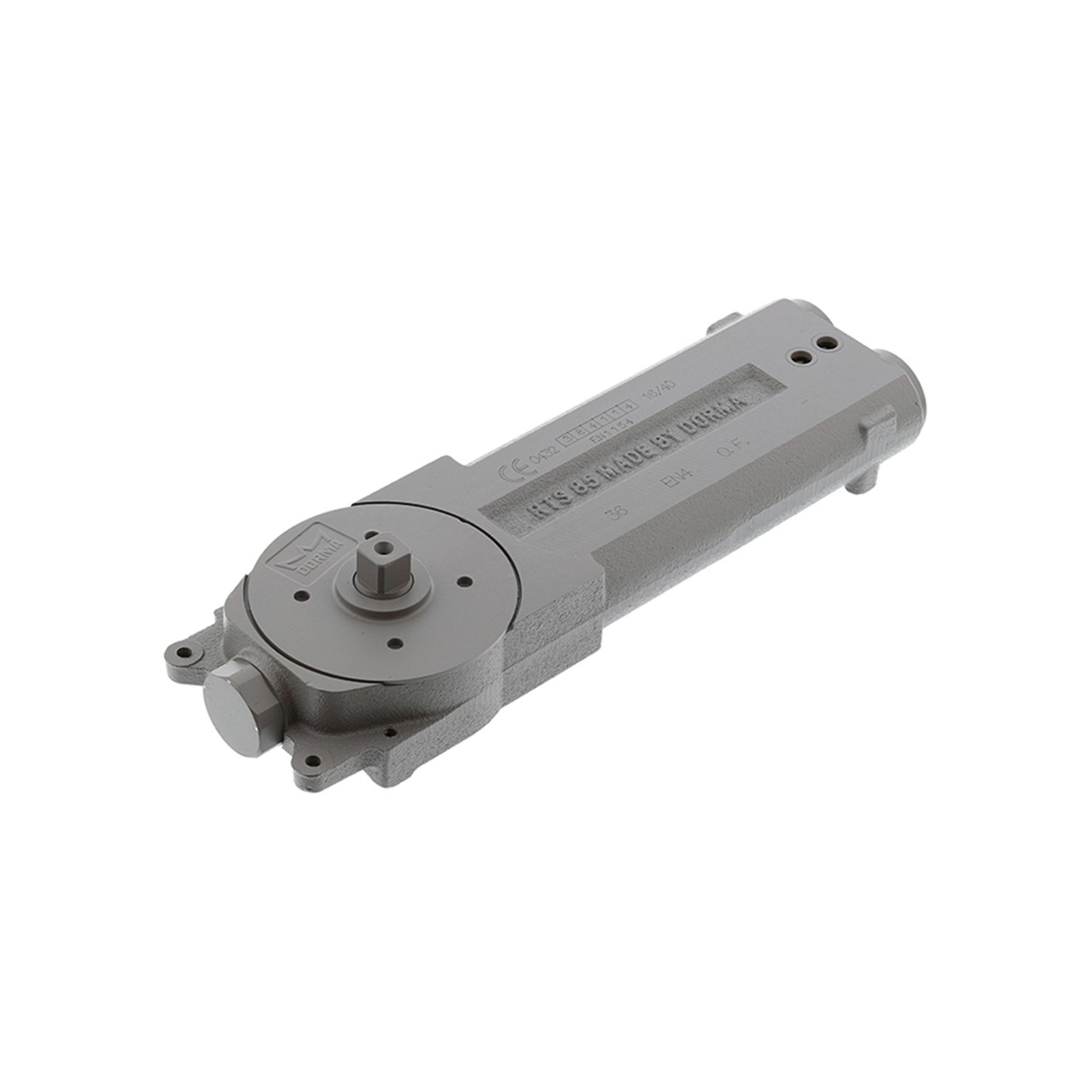

Dorma RTS85 EN4 Transom Closer
85322101
Transom Closer allows a single or double action aluminium door or doors to be closed with precision.
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
- For single and double action doors RH (ISO 5) and LH (ISO 6)
- Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
- Certified to ISO 9001.
Product Details
- Product
- Dorma RTS85 EN4 Transom Concealed Closer Hold-Open for Action Doors 85322101
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dorma
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma RTS85 EN4 Transom Closer 85322101 Transom Closer allows a single or double action aluminium door or doors to be closed with precision.
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
- For single and double action doors RH (ISO 5) and LH (ISO 6)
- Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
- Certified to ISO 9001.
- Specs
Features:
- For single and double action doors
- Backcheck function as standard
- Wide range of accessories for almost every configuration
- Concealed in the door frame
Specifications:
- Closing Force: EN4
- Internal doors up to and external doors: up to 1100mm
- Closing speed variable by valve adjustment: Yes
- Final closing speed variable by valve adjustment: Yes
- Backcheck: Yes
- Hold Open: 90 Degrees

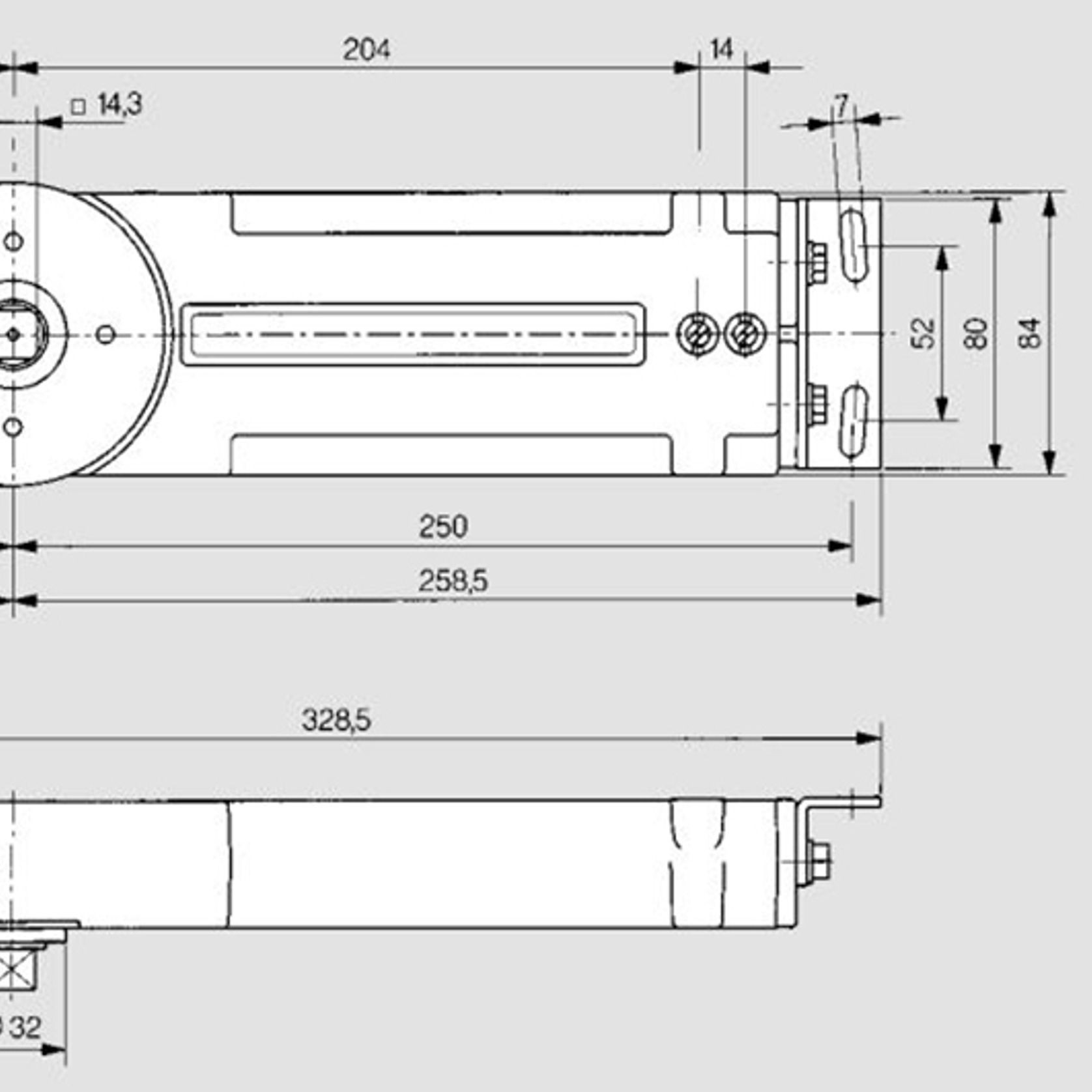

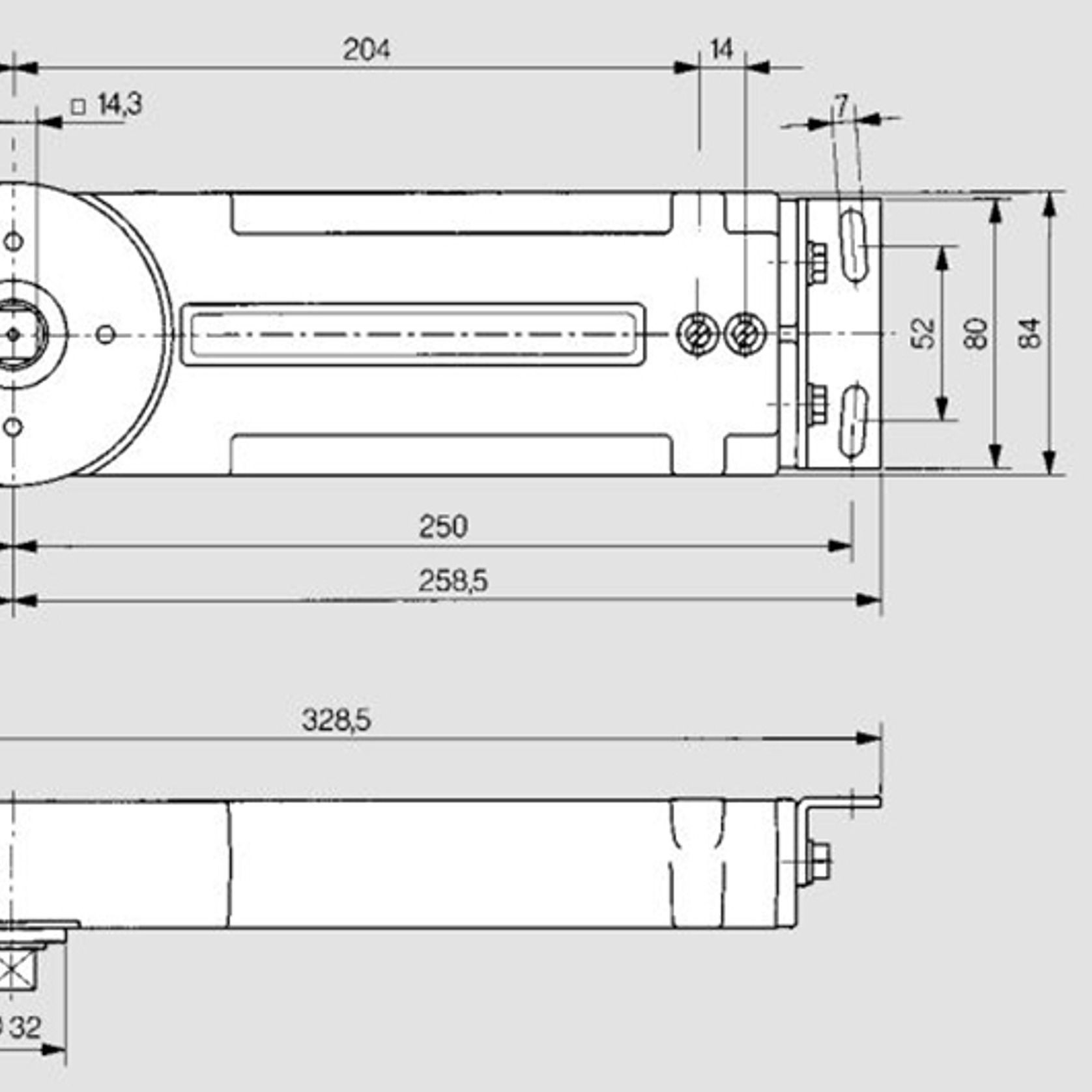

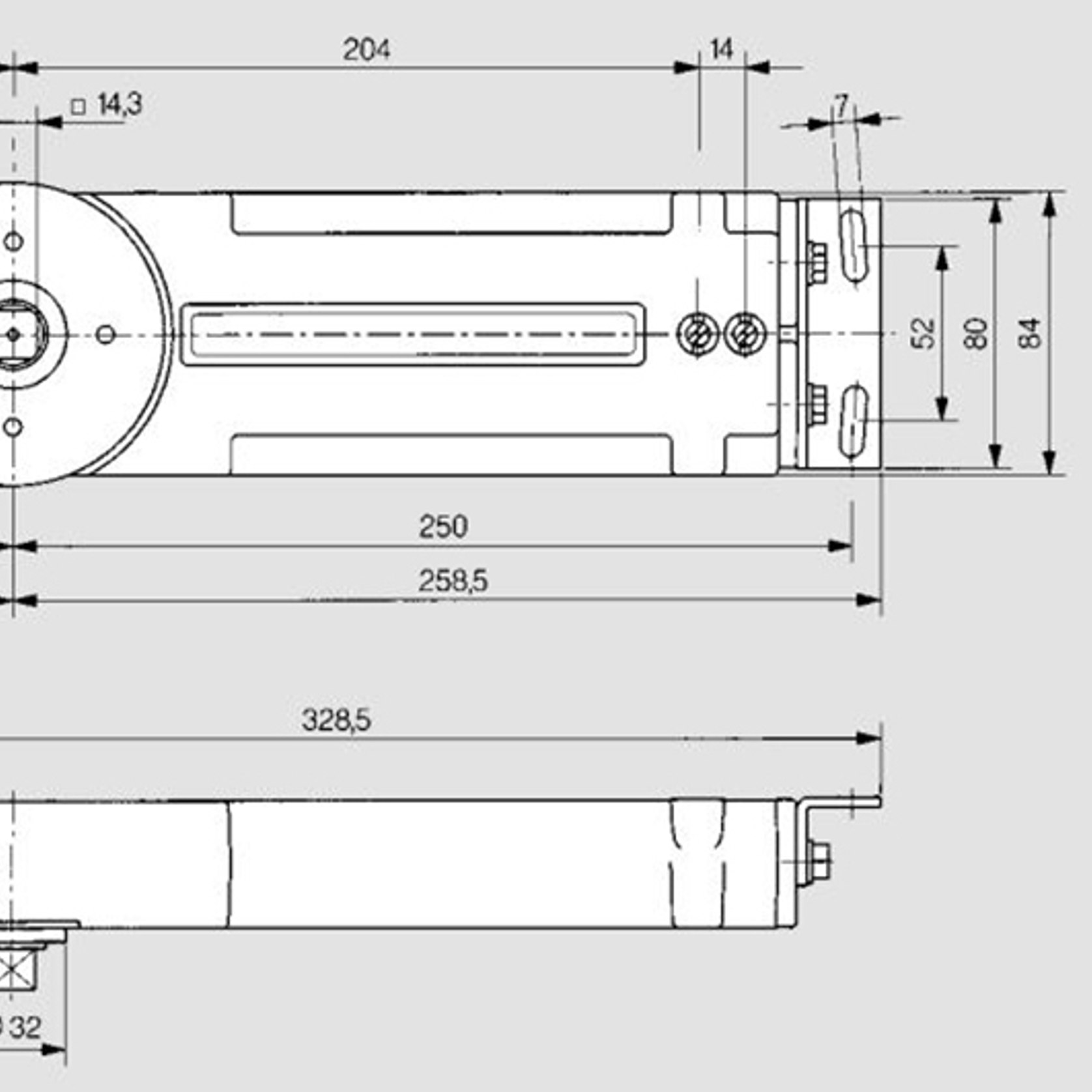

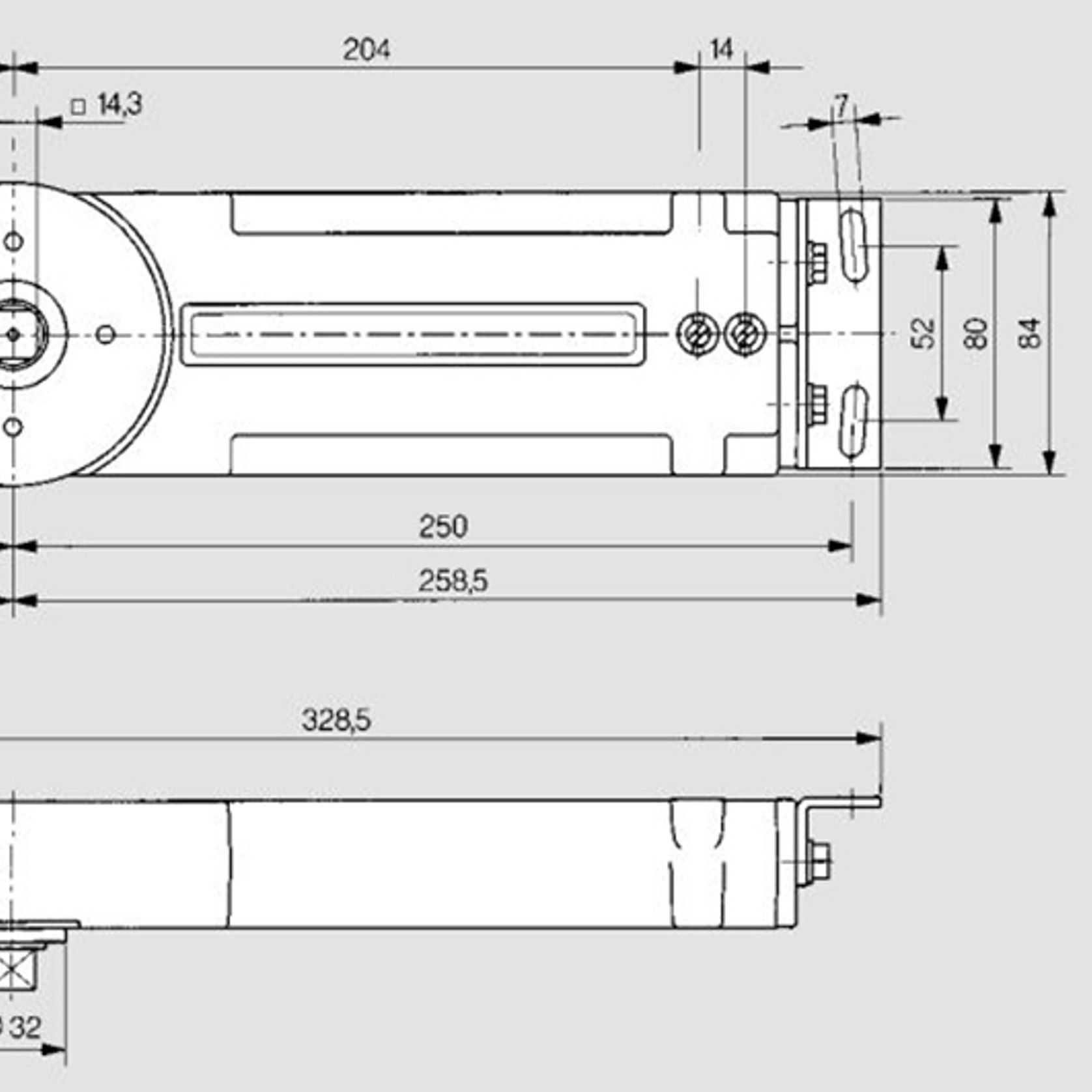

- Length: 323mm
- Width: 90mm
- Height: 38mm
- Weight: 4.8kg
Protection:
- Certified manufacture to ISO 9001.
- Certification CE marked.
- Successful independently tested to BS EN 1154.
