Dorma RTS85A EN4 Transom Closer Set
RTS854A
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
Features:
- The Dorma RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
- Complete with the choice of three spring strength sizes, hold open and non hold open variants, back check function and our wide range of accessories makes the RTS 85 the perfect choice for shop fronts, office partitions and frameless glass door applications.
- For single and double action doors
- Backcheck function as standard
- Wide range of accessories for almost every configuration
- Concealed in the door frame
Product Details
- Product
- Dorma RTS85A EN4 Transom Closer Set Non Hold Open
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Country of origin
- Australia
- Type of use
- Commercial
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Product Variants
- Closing Force
- Back Check
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma RTS85A EN4 Transom Closer SetRTS854ATransom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
Features:
- The Dorma RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
- Complete with the choice of three spring strength sizes, hold open and non hold open variants, back check function and our wide range of accessories makes the RTS 85 the perfect choice for shop fronts, office partitions and frameless glass door applications.
- For single and double action doors
- Backcheck function as standard
- Wide range of accessories for almost every configuration
- Concealed in the door frame
- Specs
Specifications:
- Closing Force: EN4
- Internal doors up to and external doors: up to 1100mm
- Closing speed variable by valve adjustment: Yes
- Final closing speed variable by valve adjustment: Yes
- Backcheck: Yes

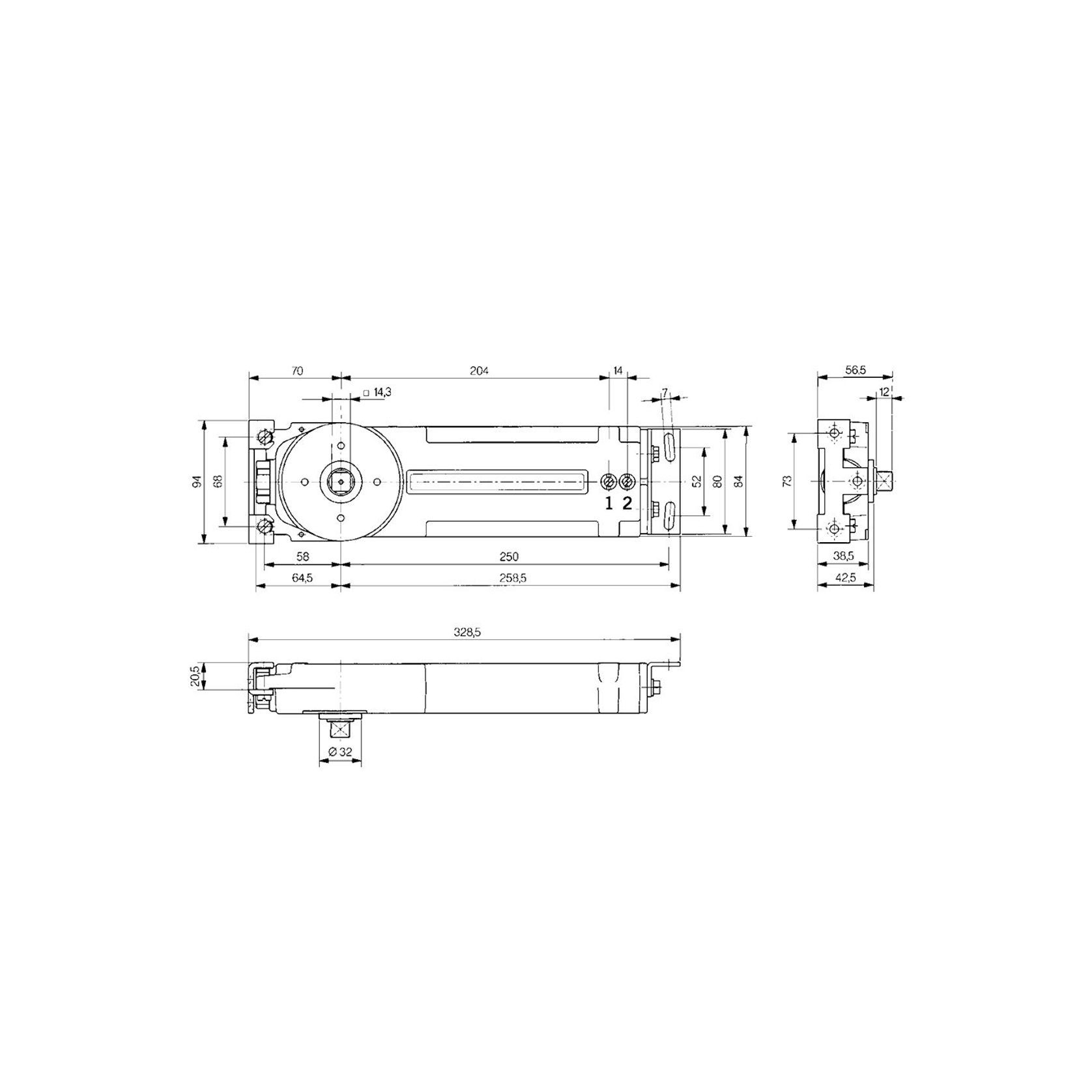

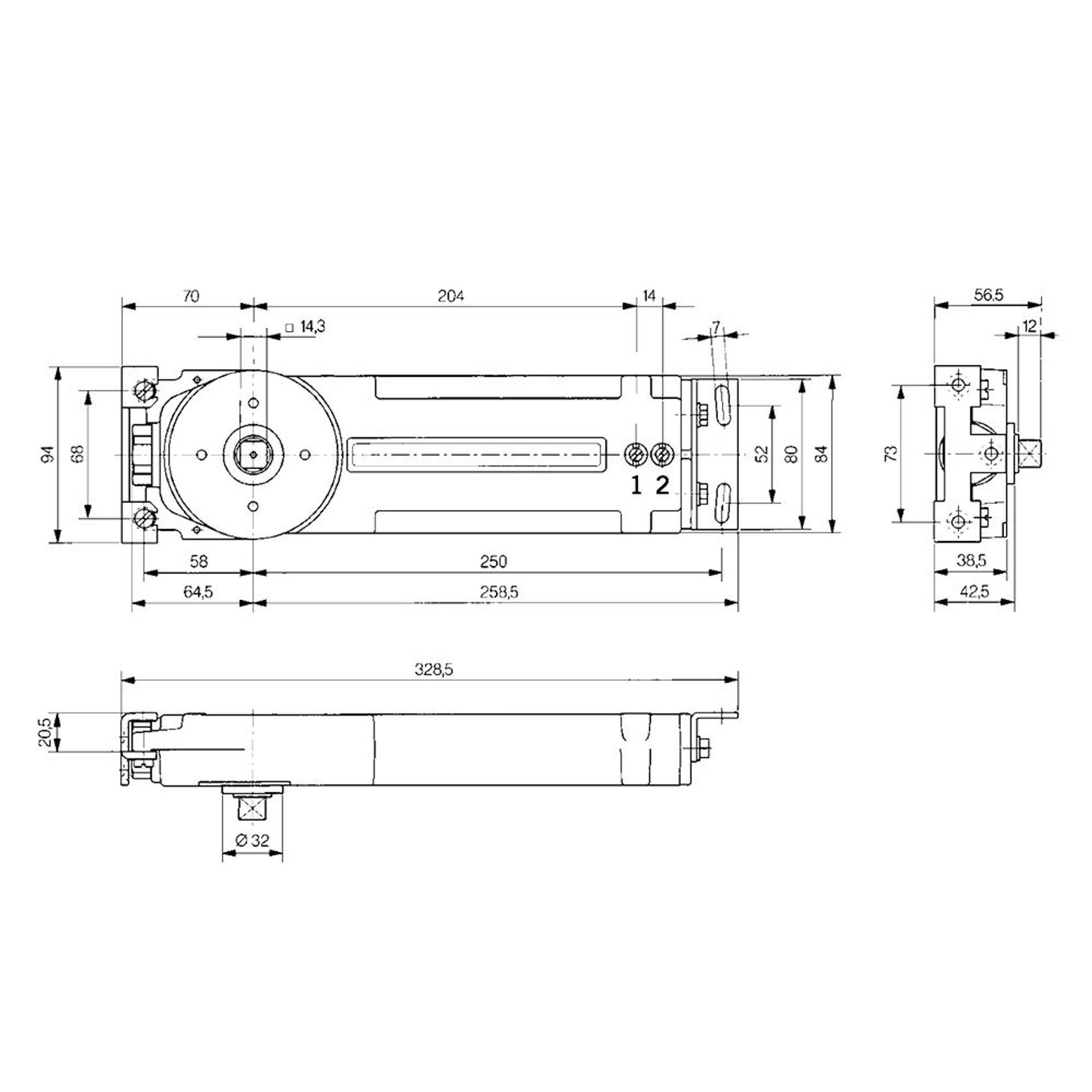

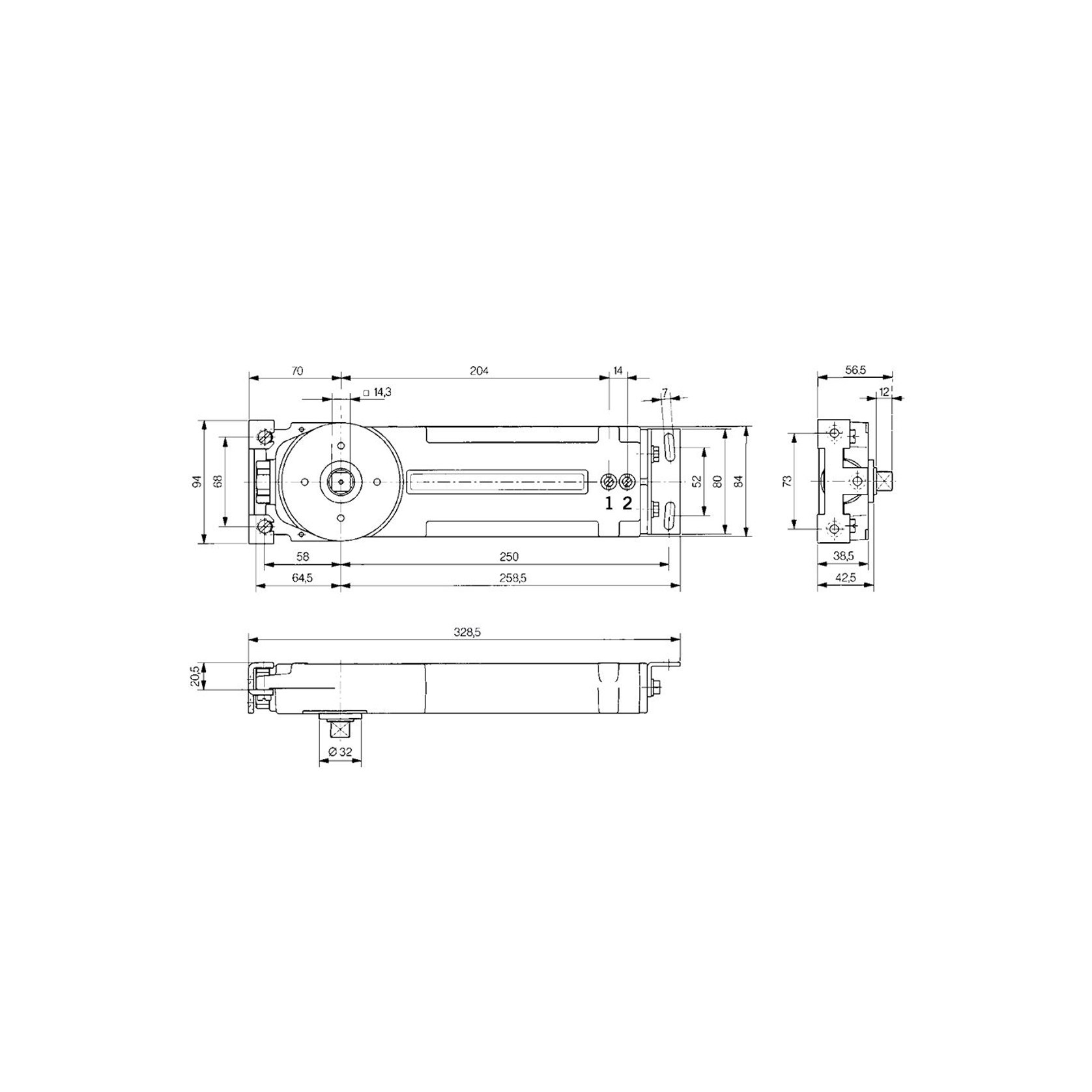

- Length: 323mm
- Width: 90mm
- Height: 38mm
- Weigth: 4.8kg
Protection:
- Certified manufactur to ISO 9001.
- Certification CE marked.
- Successful independently tested to BS EN 1154.
- Scope of use
Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

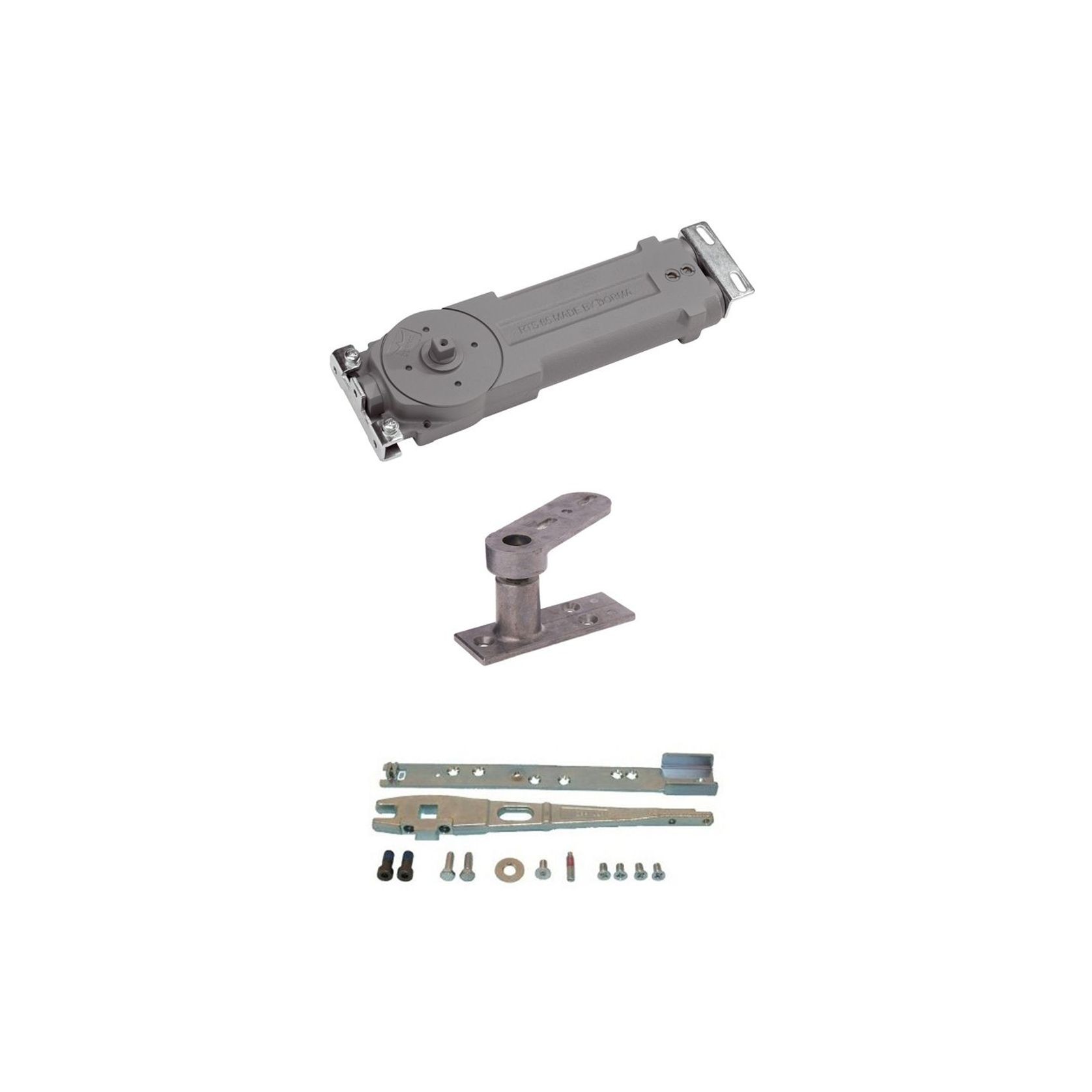

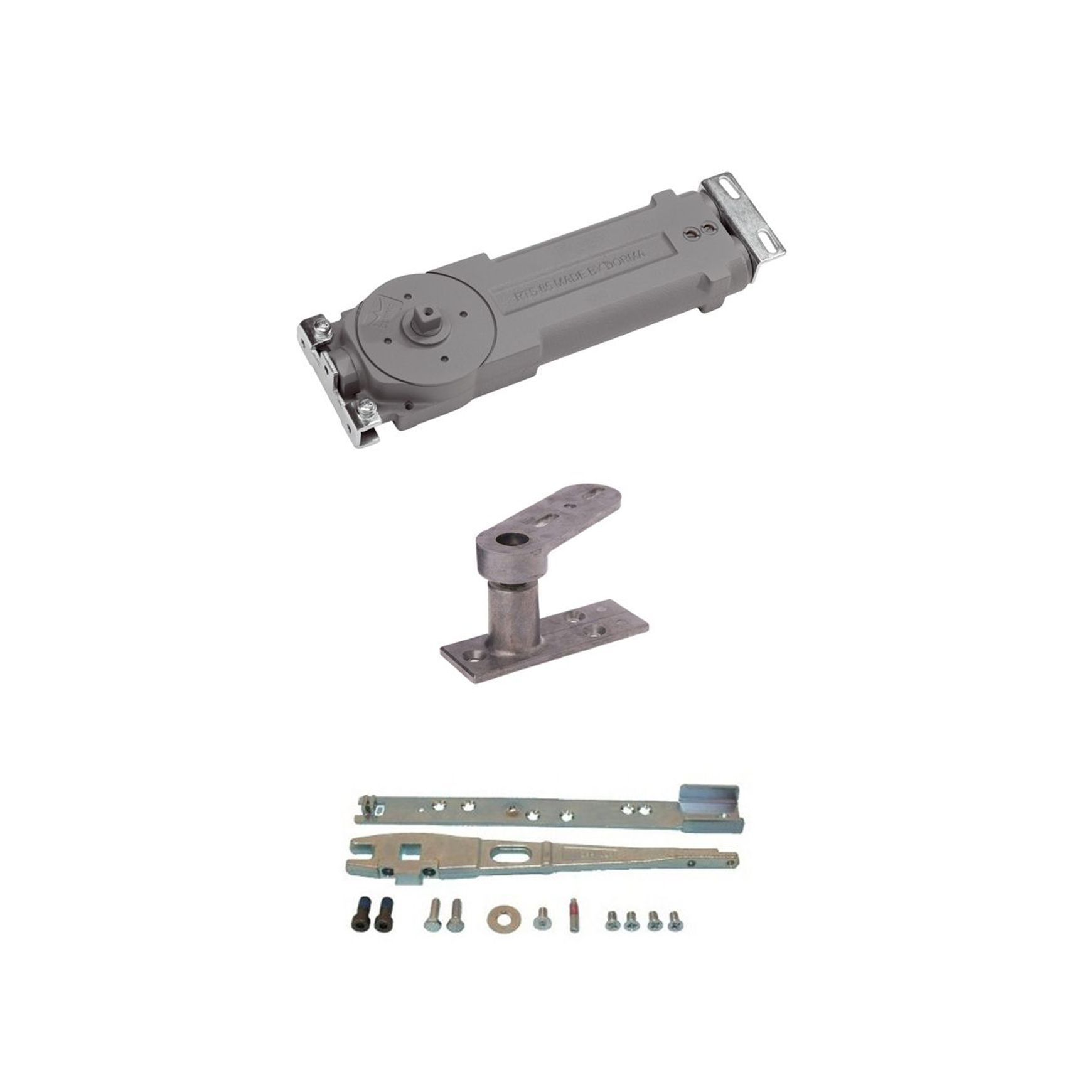

- What's in the box
Includes:
- 1 x RTS85 EN4 Non-Hold Open Transom Closer Body
- 1 x 8530 Side Load Arm
- 1 x 8551 Bottom Pivot
