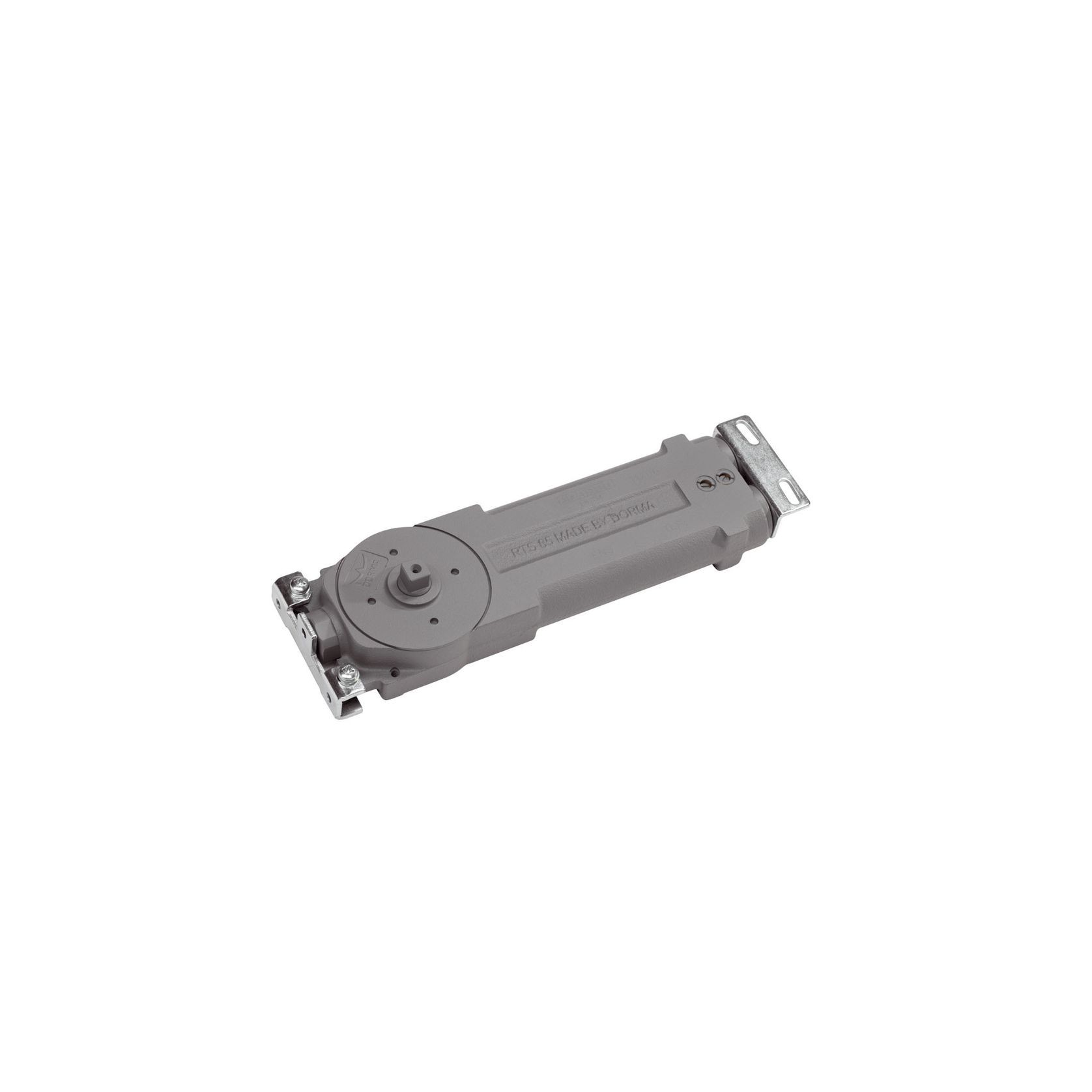

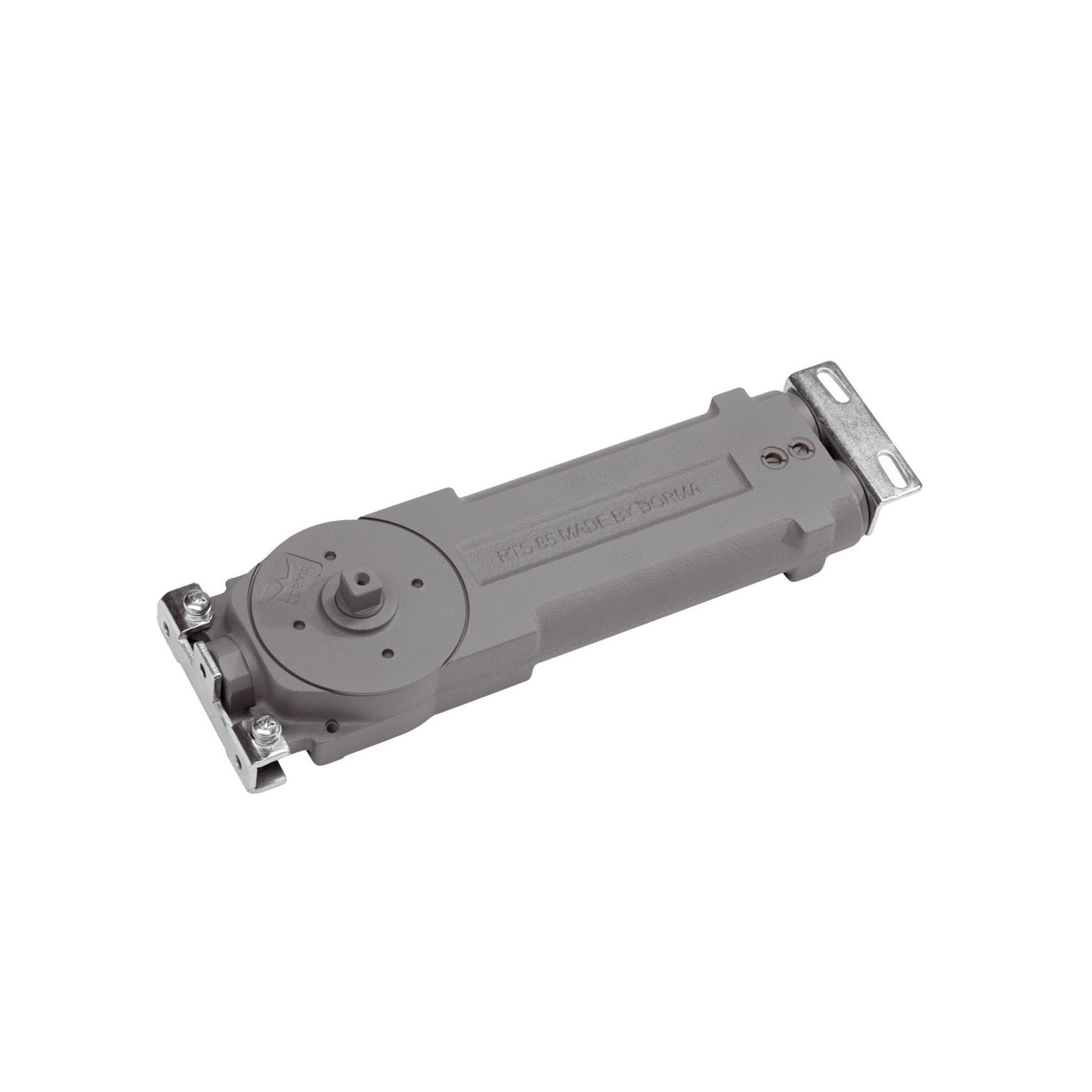

Dorma RTS85T EN3 Transom Closer Hold Open Combi Pack

Dorma RTS85 EN4 Transom Closer
85322101

Specifications:

• Closing Force: EN3
• Internal doors up to and external doors: up to 1100mm
• Closing speed variable by valve adjustment: Yes
• Final closing speed variable by valve adjustment: Yes
• Backcheck: Yes
• Hold Open: 90 Degrees
• Length: 323mm
• Width: 90mm
• Height: 38mm
• Weigth: 4.8kg

Dorma RTS85W Transom Coverplate Satin Stainless Steel
10000051A

Specifications:

• Satin Stainless Steel Cover plate
• Suits Dorma TS85 transom closers
• To suit steel and wooden door frames

Dorma 8550 Transom Closer Pivot Timber
65310300

Specifications:

• Suits Bottom Rails with Channel:Depth: 18-20mm
  Height: 27mm


Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

The DORMA RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. A complete line of accessories is available to accommodate virtually any door and frame configuration. Certified to ISO 9001.

Dorma RTS85 EN4 Transom Closer
85322101

Features:

• For single and double action doors
• Backcheck function as standard
• Wide range of accessories for almost every configuration
• Concealed in the door frame

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

• The Dorma RTS85 floor pivot suits side-load installation
• Used on timber doors, floor portion is fitted directly to the floor

Dorma Transom Closer Arm w/ Bracket
85210005

Features:

• A standard side load top arm for use with Dorma concealed transom door closers.
• The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.

Includes:

• 1 x Dorma 85W Cover plate to suit steel and wooden door frames - Satin stainless steel (10000051A)
• 1 x Dorma Transom Door Closer Body RTS 85 EN3 HO (85322101)
• 1 x Dorma Bottom Pivot 8550 (85210005)
• 1 x Dorma Closer Arm (65310300)
