Dorma TS72 Door Closer Hold Open 22252501

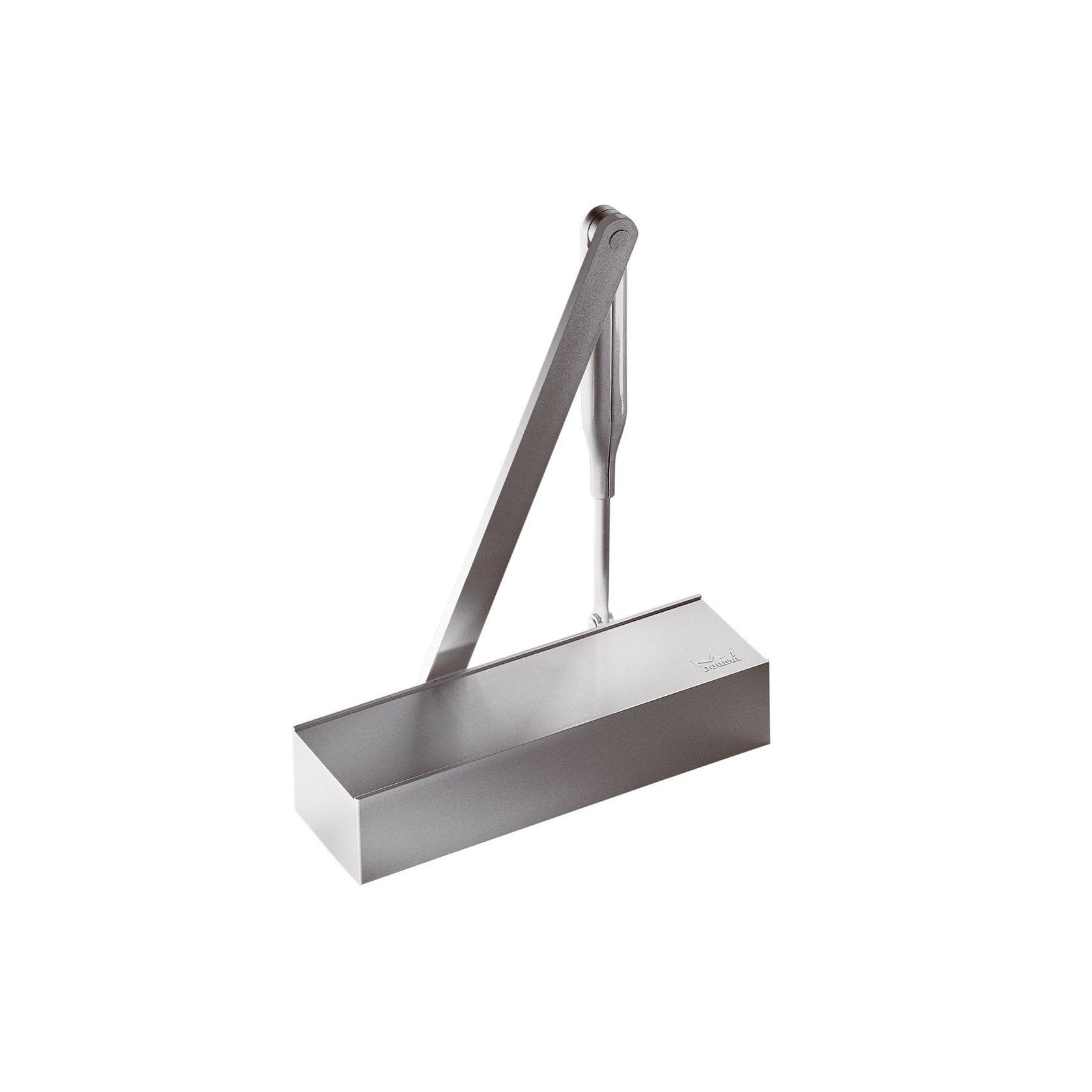

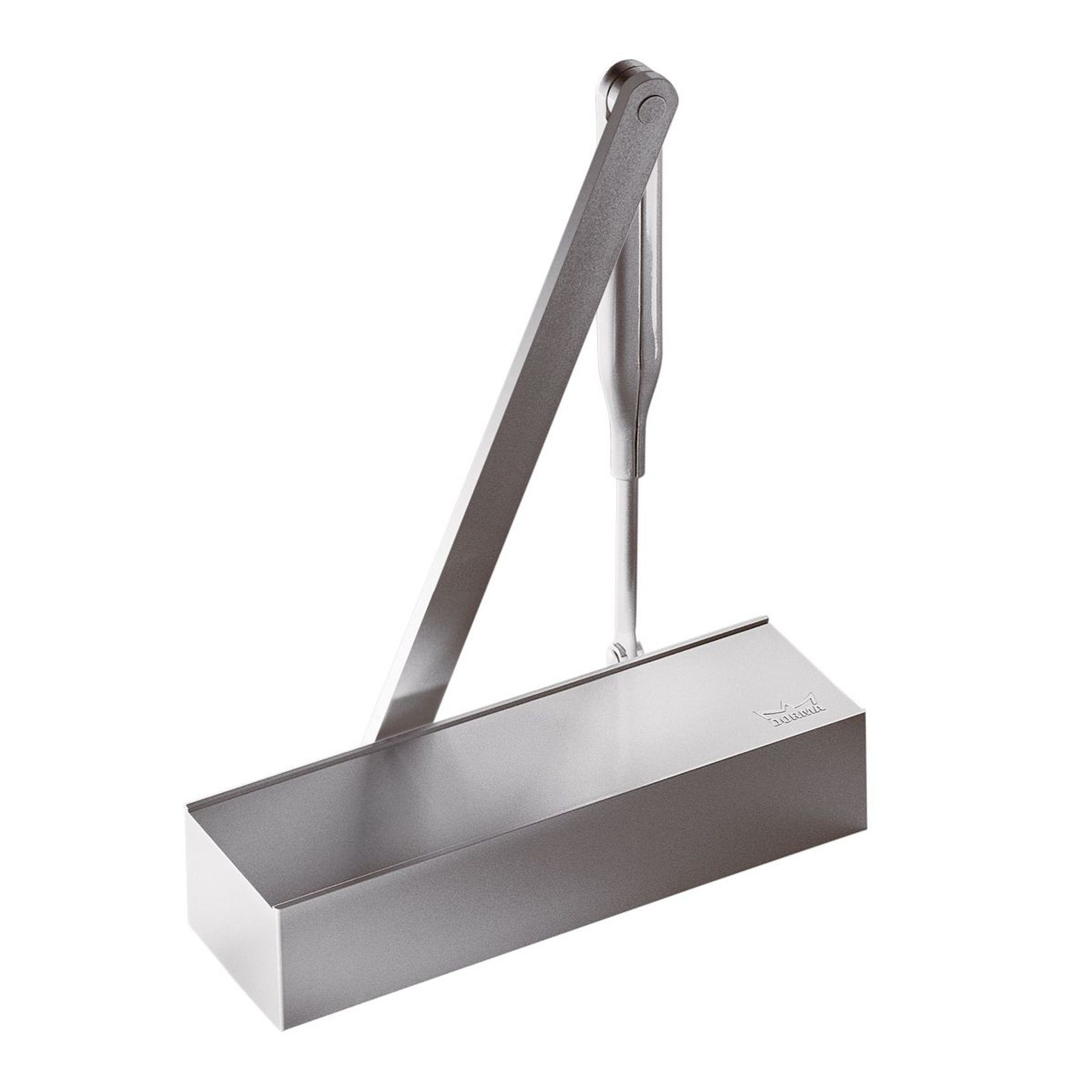

Dorma Door Closer TS 72 SE Rack-and-pinion door closer with scissor arm

The DORMA TS 72 is the ideal multi-purpose door closer for all standard door designs and constructions. Without a backplate, it is particularly easy

Dorma Door Closer TS 72 SE Rack-and-pinion door closer with scissor arm

The DORMA TS 72 is the ideal multi-purpose door closer for all standard door designs and constructions. Without a backplate, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an adjusting hex screw. Certified to ISO 9001.

The ideal solution for interior doors up to 1100mm

The DORMA TS 72 is the perfect choice for interior doors up to 1100mm in width. With its timeless Classicline design it can be installed right alongside the TS 83 and TS 73 door closers providing a uniform appearance for projects. The TS 72 door closer offers excellent quality and an optional range of accessories all at an affordable price.

Overview:

The DORMA TS72 standard closer is non-handed closer suitable for all common doors and does not require a mounting backplate. With backcheck, adjustable latching action and adjustable closing speed of 180° - 15° and 15° - 0° via 2 separate valves. Suitable for installation on doors up to 1100mm (W). With parallel arm fixing, the closing force is approximately 20 Nm for doors up to 950mm. Approved to AS1905 Part 1 fire resistant doors.

Features:

• One model for all standard doors
• Door widths up to 1100 mm
• For single- and double-leaf doors
• Outstanding value for money
• Compact construction in timeless design
• Includes hold open arm and quick to fix
• The spring strength can be individually adapted to the door size by means of an adjusting hex screw. Certified to ISO 9001

The ideal solution for interior doors up to 1100mm

• The DORMA TS 72 is the perfect choice for interior doors up to 1100mm in width. With its timeless Classicline design it can be installed right alongside the TS 83 and TS 73 door closers providing a uniform appearance for projects. The TS 72 door closer offers excellent quality and an optional range of accessories all at an affordable price.

Overview: The DORMA TS72 standard closer is non-handed closer suitable for all common doors and does not require a mounting backplate. With backcheck, adjustable latching action and adjustable closing speed of 180° - 15° and 15° - 0° via 2 separate valves. Suitable for installation on doors up to 1100mm (W). With parallel arm fixing, the closing force is approximately 20 Nm for doors up to 950mm. Approved to AS1905 Part 1 fire resistant doors.

Features:

• One model for all standard doors Door widths up to 1100 mm
• For single- and double-leaf doors
• Outstanding value for money
• Compact construction in timeless design
• Includes hold open arm
