Dorma TS73 EMF EN4-6 Electro Magnetic Hold Open Door Closers Body Only Silver

Wetherill Park, Australia

993.3K profile views
51 saves

Door closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming. A door closer function is a hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

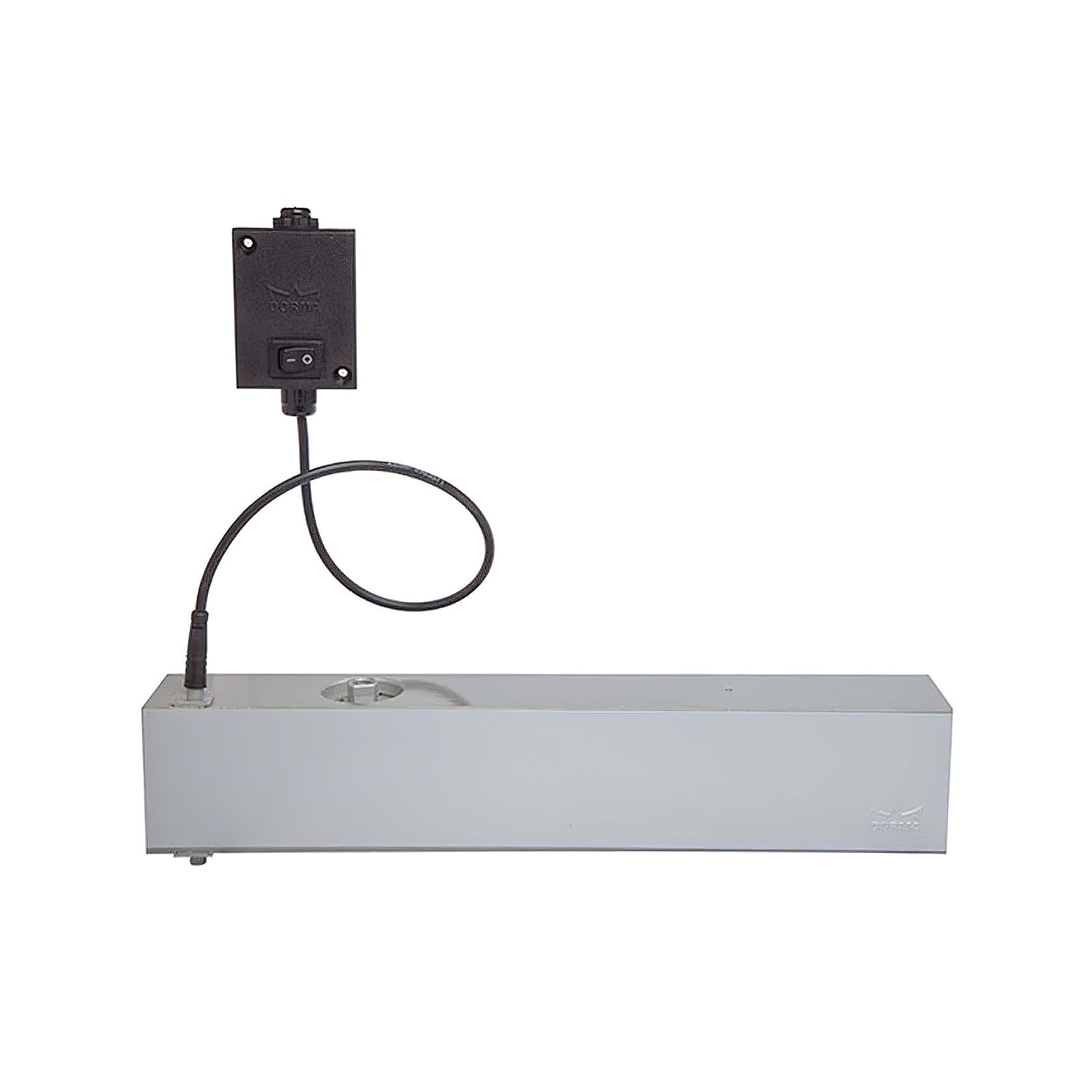

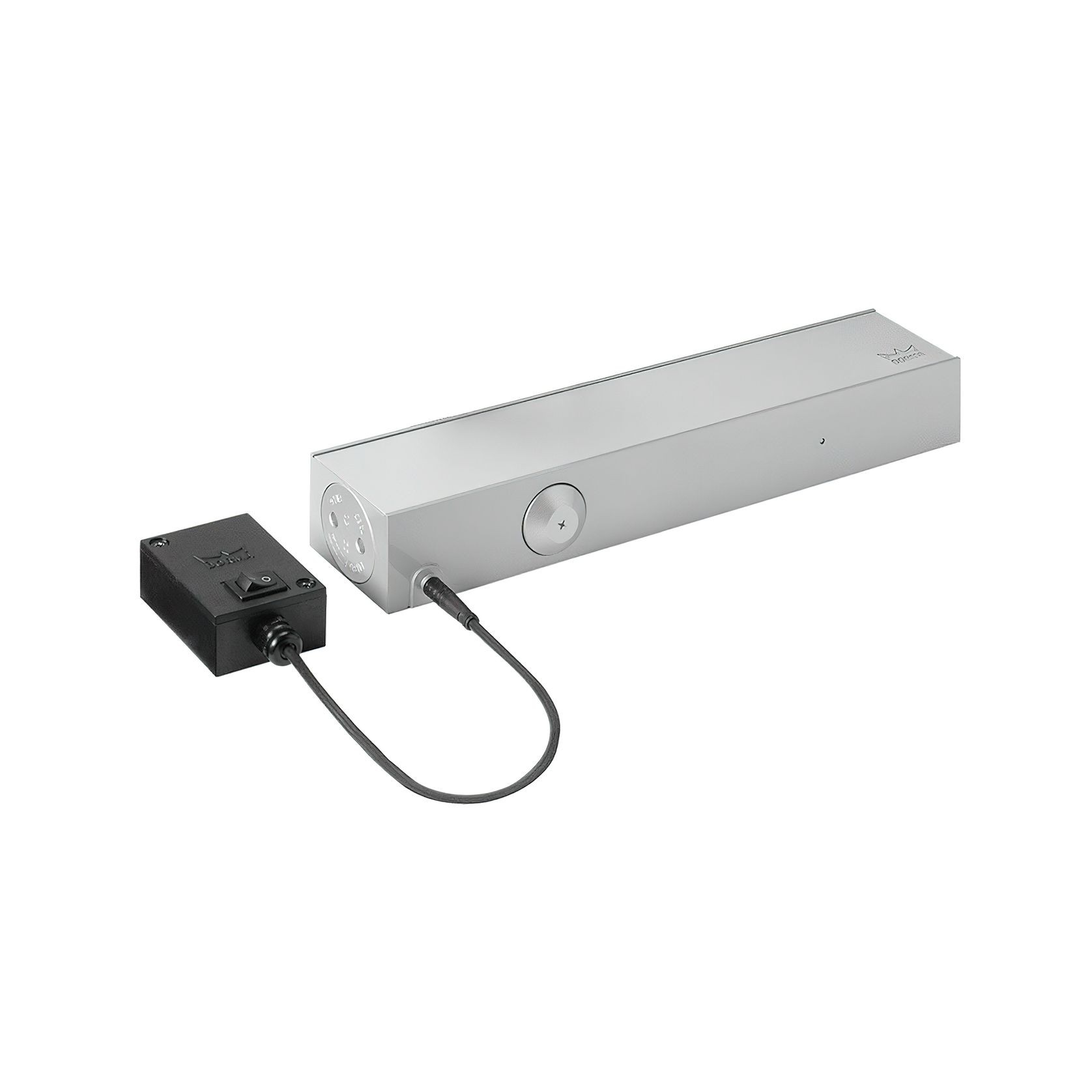

Combination of hydraulic door closer and electromagnetic hold-open unit. Hold-open of the door is performed under electromagnetic control. In the event of a fire, door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Tags

door closer hold open door door magnetic

Product Details

Product: Dorma TS73 EMF EN4-6 Electro Magnetic Hold Open Door Closers Body Only Silver
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(34) Professionals

Dorma TS73 EMF EN4-6 Electro Magnetic Hold Open Door Closers Body Only Silver

Visit site

A door closer function is a hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Combination of hydraulic door closer and electromagnetic hold-open unit. Hold-open of the door is performed under electromagnetic control. In the event of a fire, door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Door closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Specs

Spring Strenght:

Max Door Width:

1100mm
1250mm
1400mm

Operating Voltage: 24V DC

Type: Standard Fix

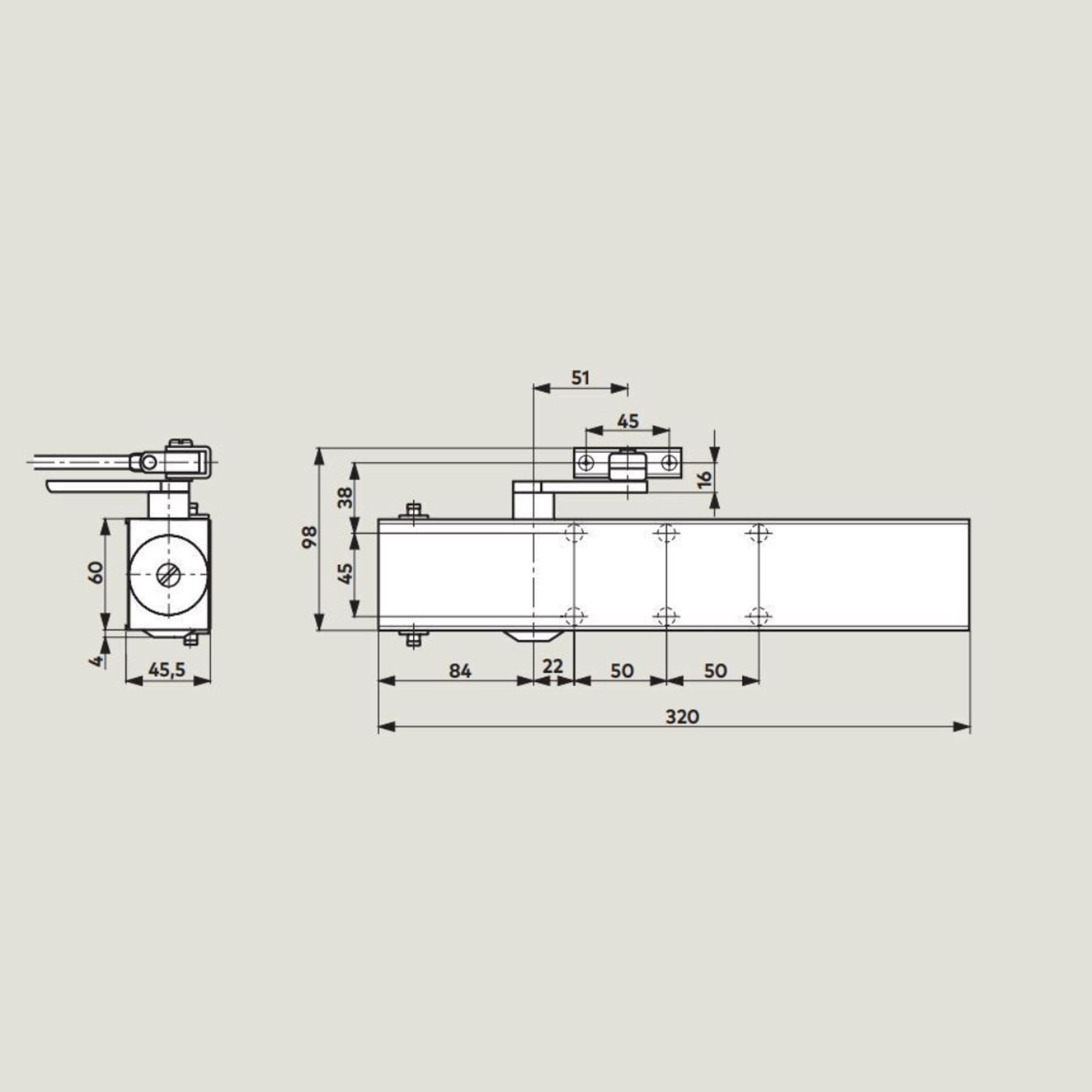

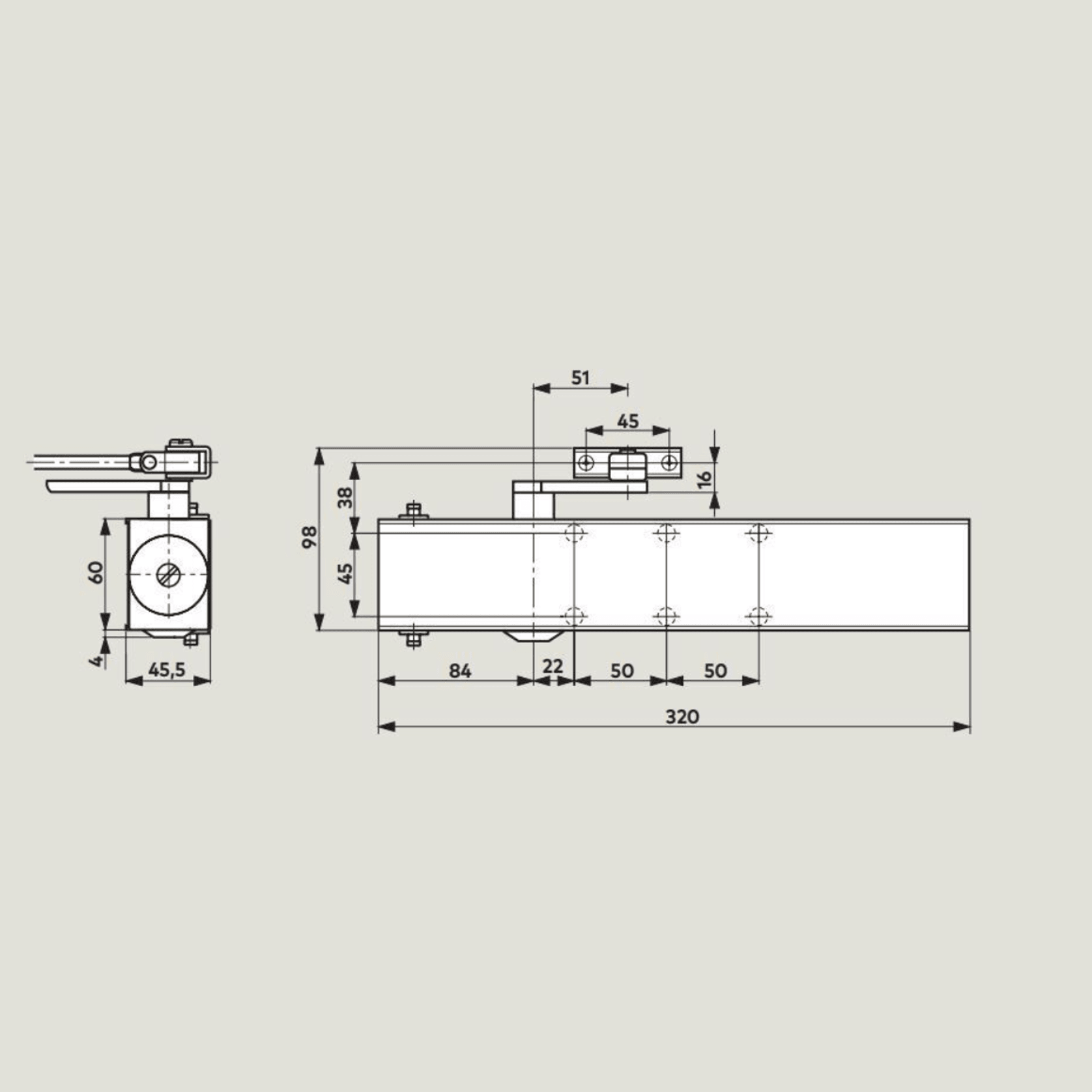

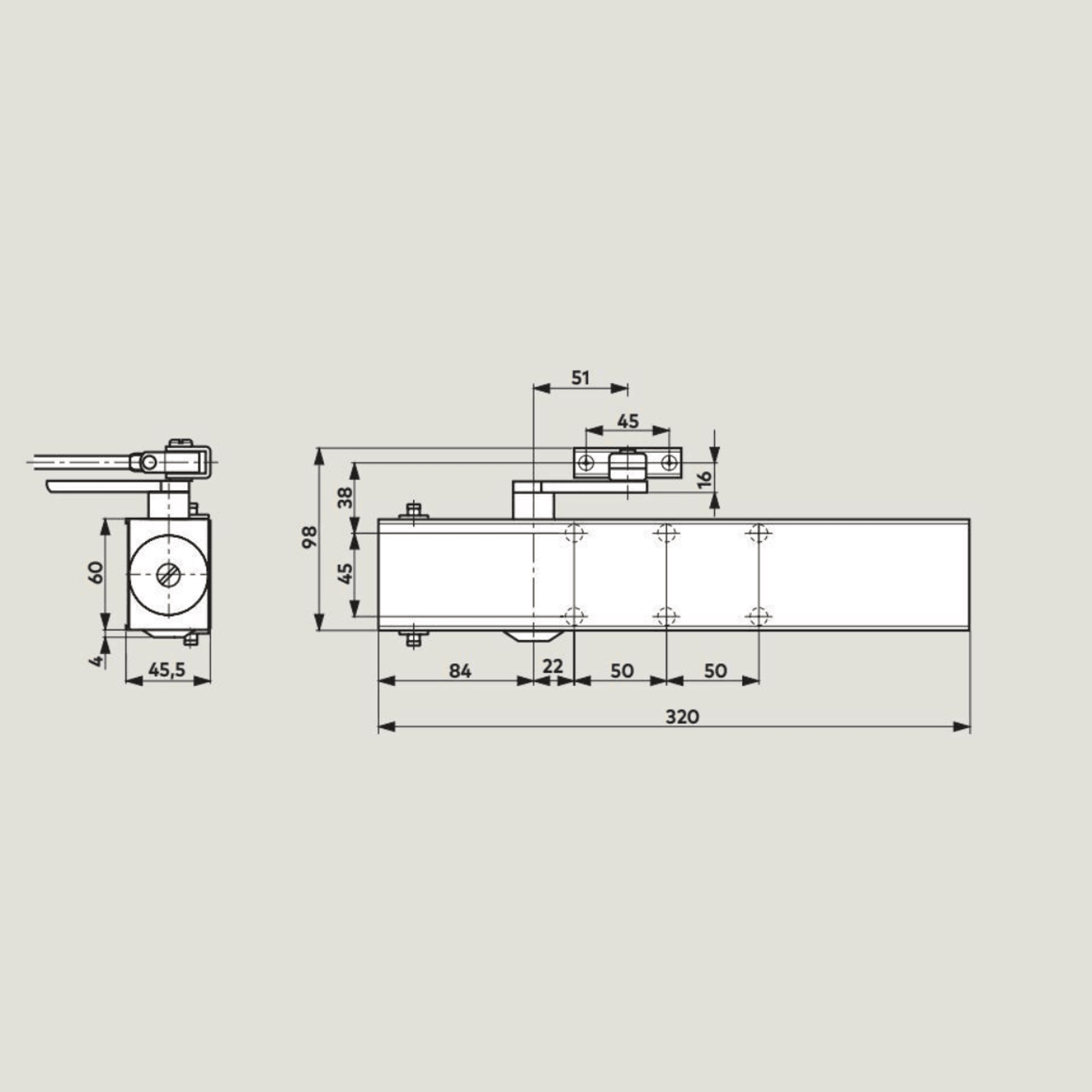

Length: 320mm

Width: 45.5mm

Height: 60mm

Finish: Silver

Features

Suitable for fire doors
Input voltage is 24VDC
Power input max is 2 volts
Closing speed adjustable by valve and latching speed is adjustable by arm.
Free selection of the hold open point (opening angles over 75Â°) is variable at any time without the need for adjustment of setting controls.
Body Only

Certification

CE Marked
CERTIFIRE approved for fire doors: ITT120 MM/IMM240
BSI approved BS EN1155

Downloads
