Dorma TS73 EN1-4 Door Closer Non Handed Fire Rated Black 37020419
Wetherill Park, Australia
- 998.7K profile views
- 53 saves

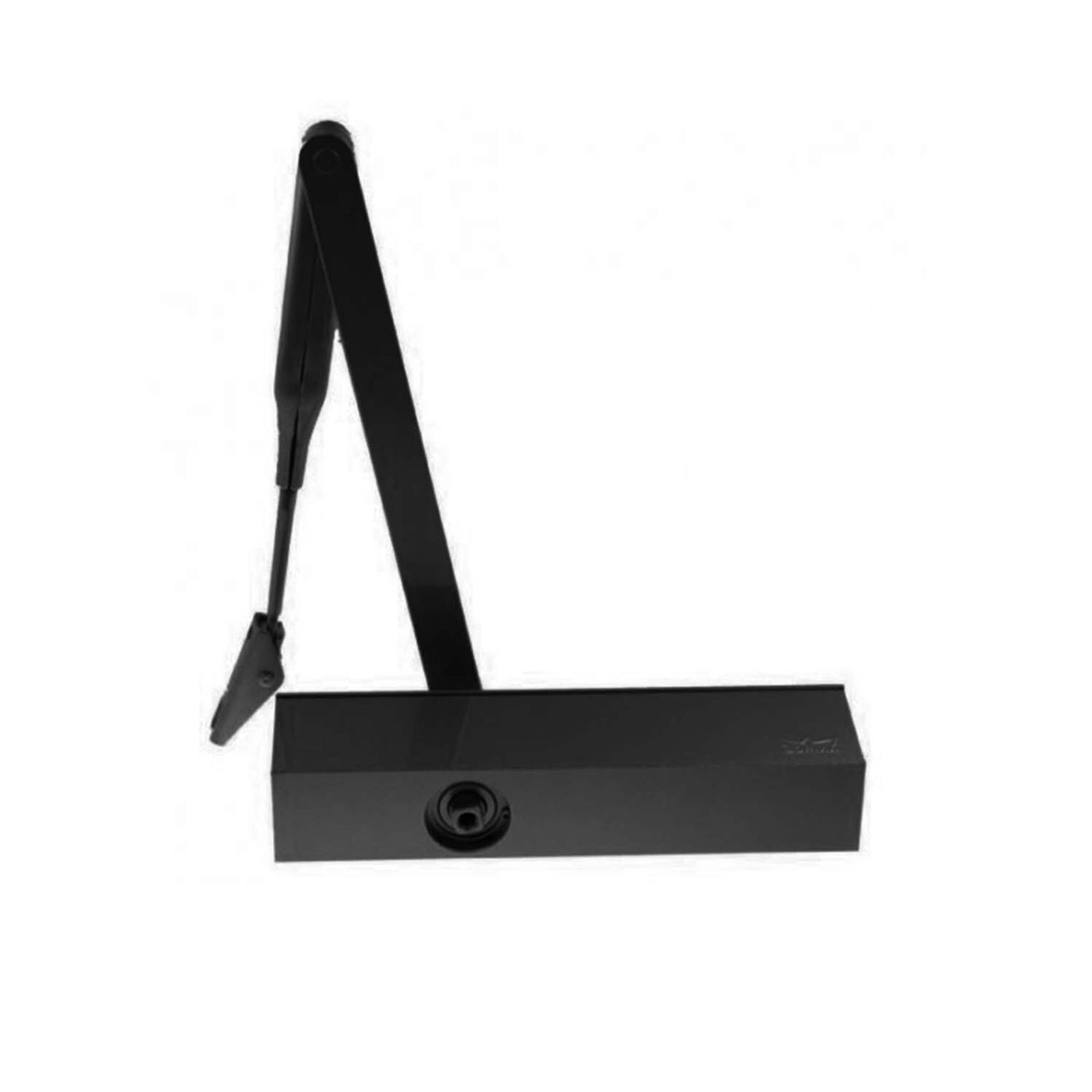

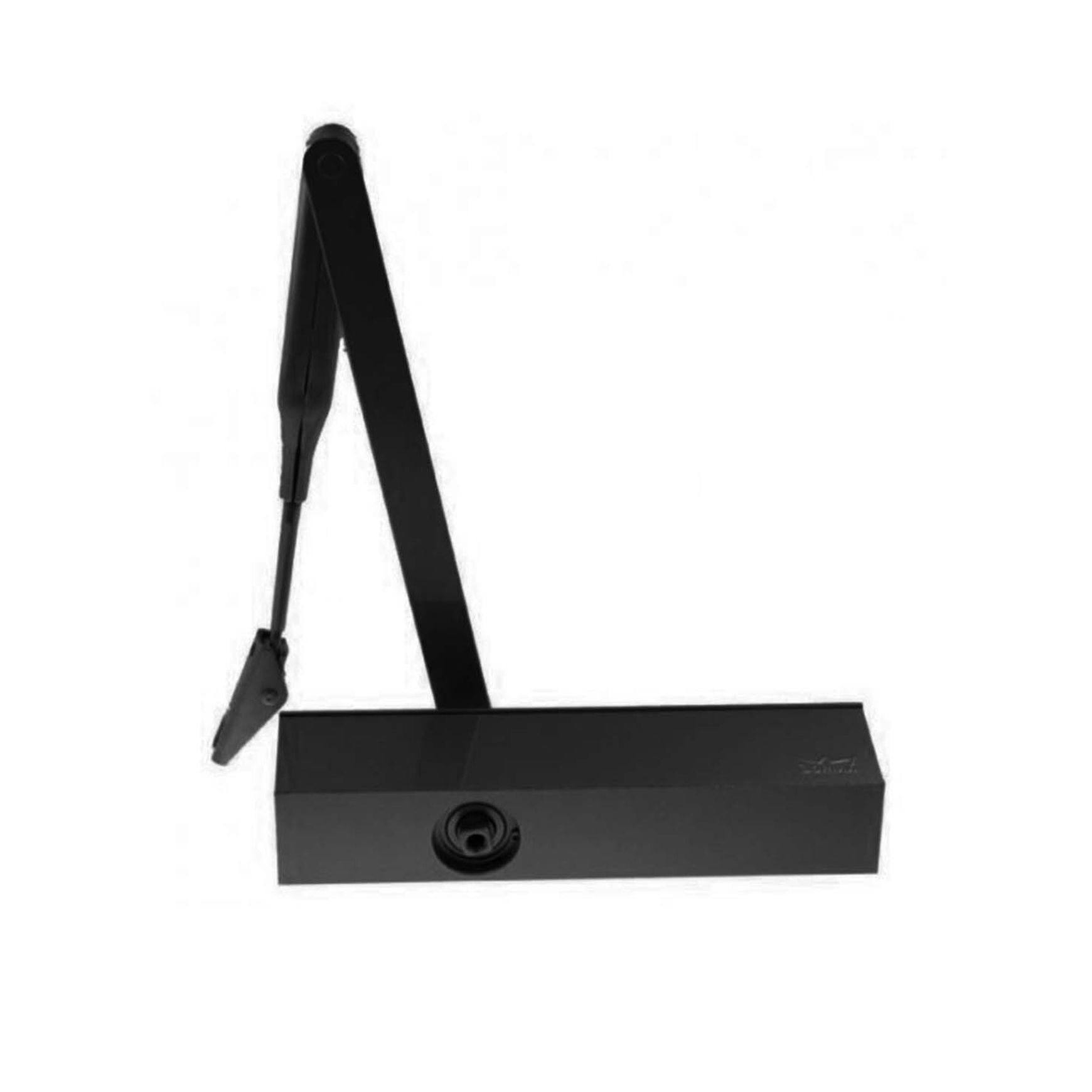

Dorma TS73 EN1-4 Door Closer
37020419
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Ideal for commercial applications
- Non-handed closer suited to internal doors including fire doors.
Product Details
- Product
- Dorma TS73 EN1-4 Door Closer Non Handed Fire Rated Black 37020419
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma TS73 EN1-4 Door Closer 37020419 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened.
Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Ideal for commercial applications
- Non-handed closer suited to internal doors including fire doors.
- Specs
Features:
- Overhead surface mounted door closer
- Power adjustable with a screw, closing speed (180 degrees - 15 degrees), and latching speed (15 degrees - 0 degrees) adjustable with separate valves with final adjustment by the standard arm.
- Adjustable latching action by valve
- Adjustable delay action
- Includes parallel arm bracket
- Parallel arm mounting doors up to 950mm
- Standard arm assembly

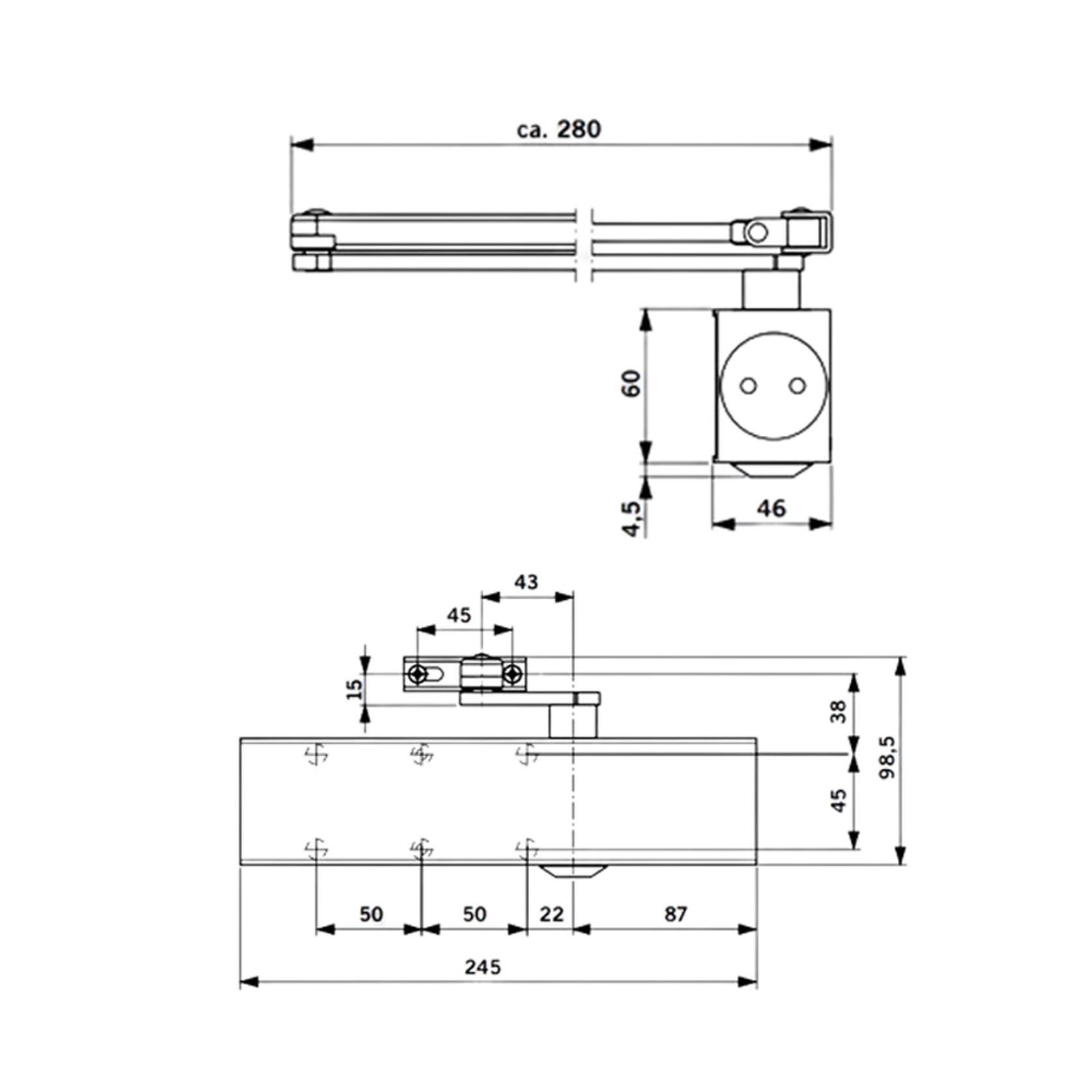

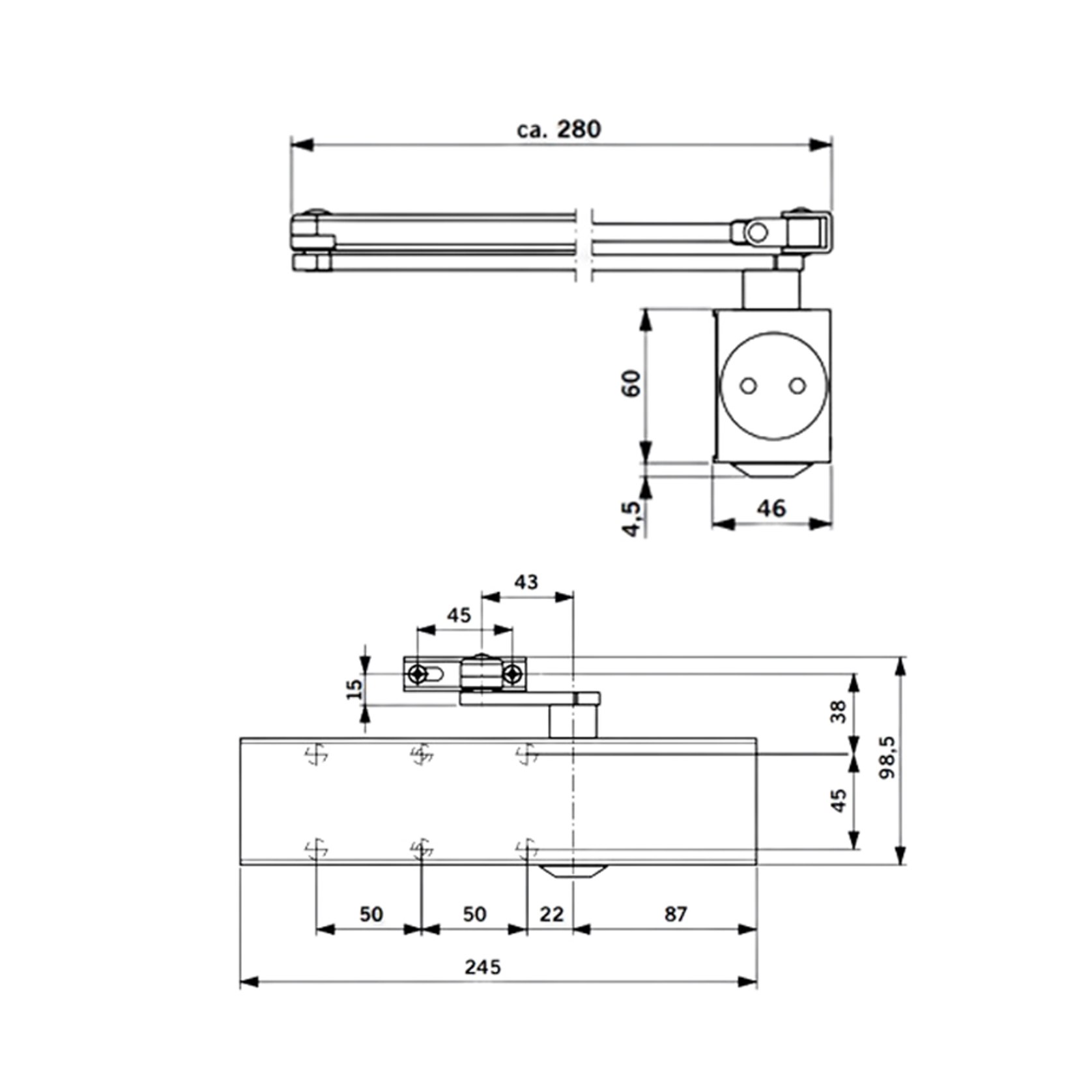

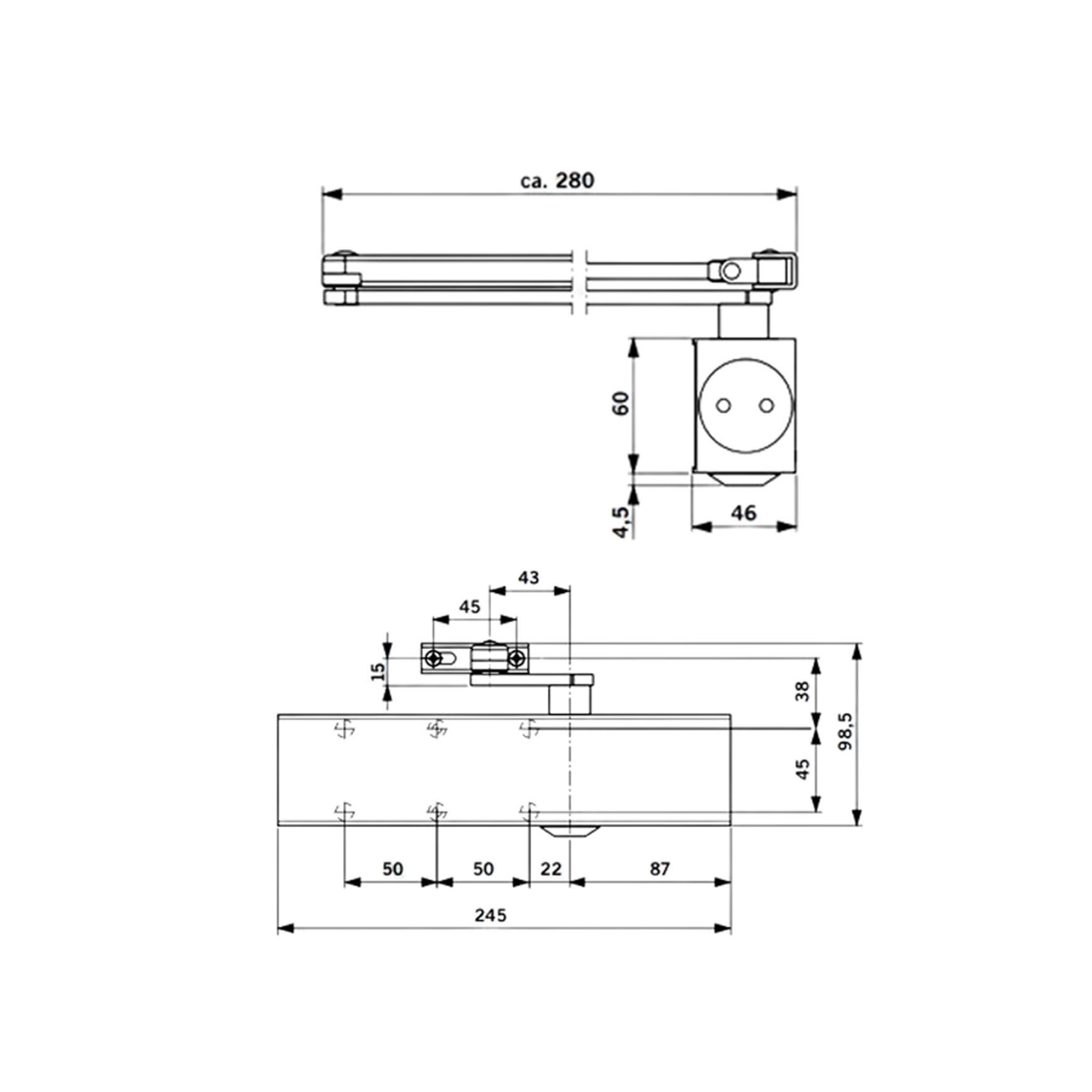

Specifications:
- Closing Force: EN1-4
- Backcheck: Self-regulating or adjustable by valve
- Standard Doors: Up to 1100mm
- Length: 245mm
- Width: 46mm
- Height: 60mm
- Weight: 1.7kg
- Finish: Black
Protection:
- Fire Rated: Approved to AS1905 Part 1 Fire Resistant Doors. Tested to EN1154
Downloads
