Dorma TS73EMF EN4 Door Closer Electro Magnetic Hold Open Body Only 53010101
Wetherill Park, Australia
- 998.7K profile views
- 53 saves

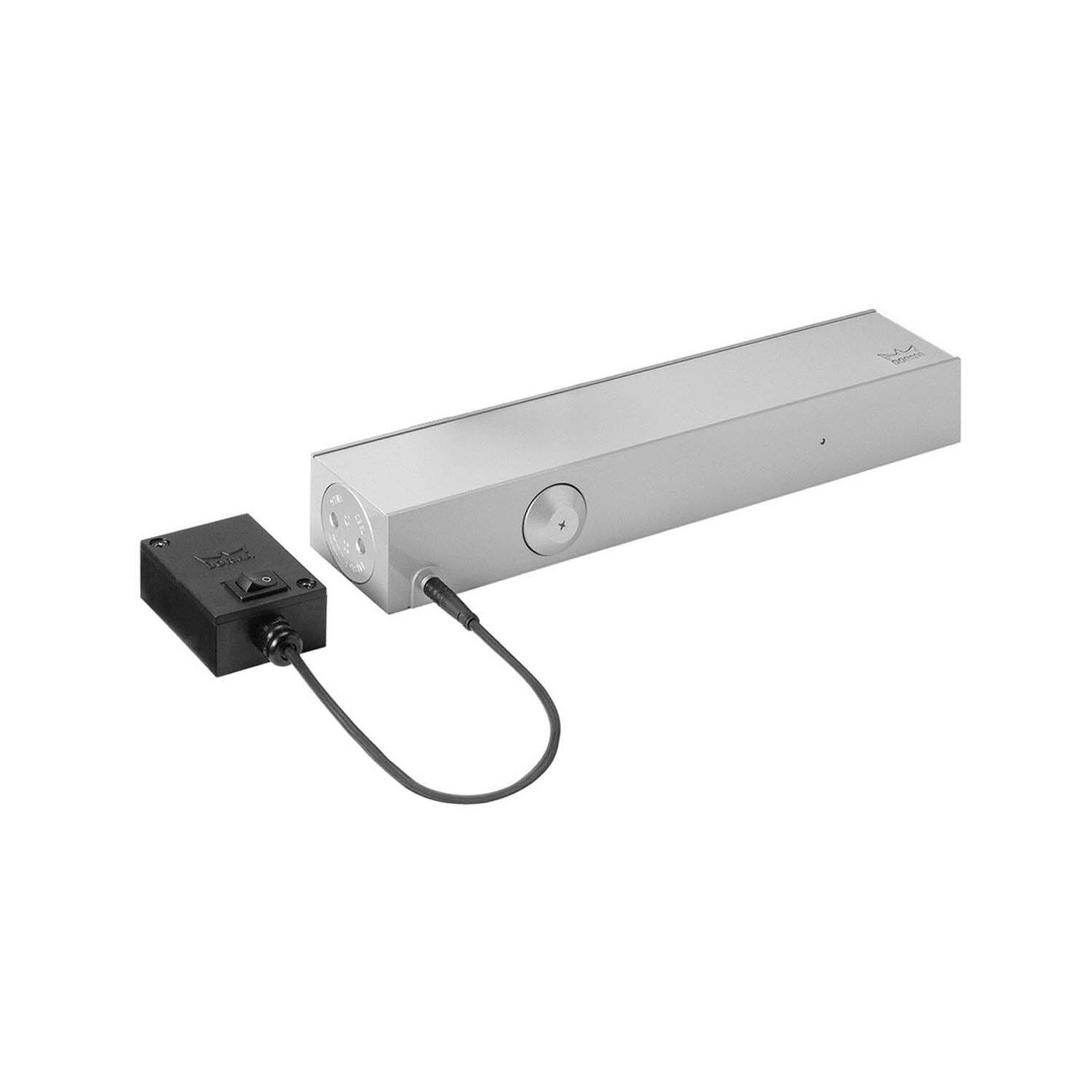

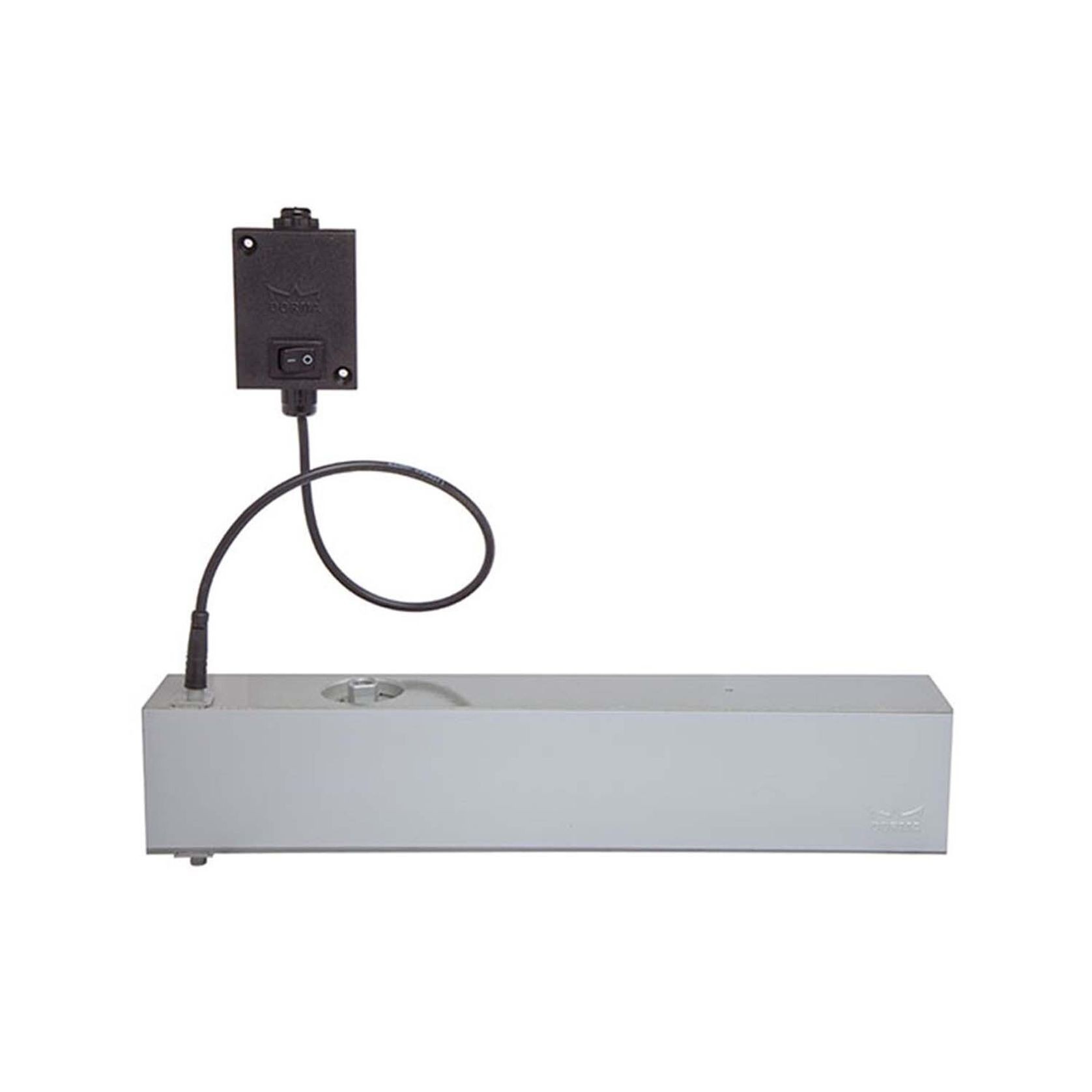

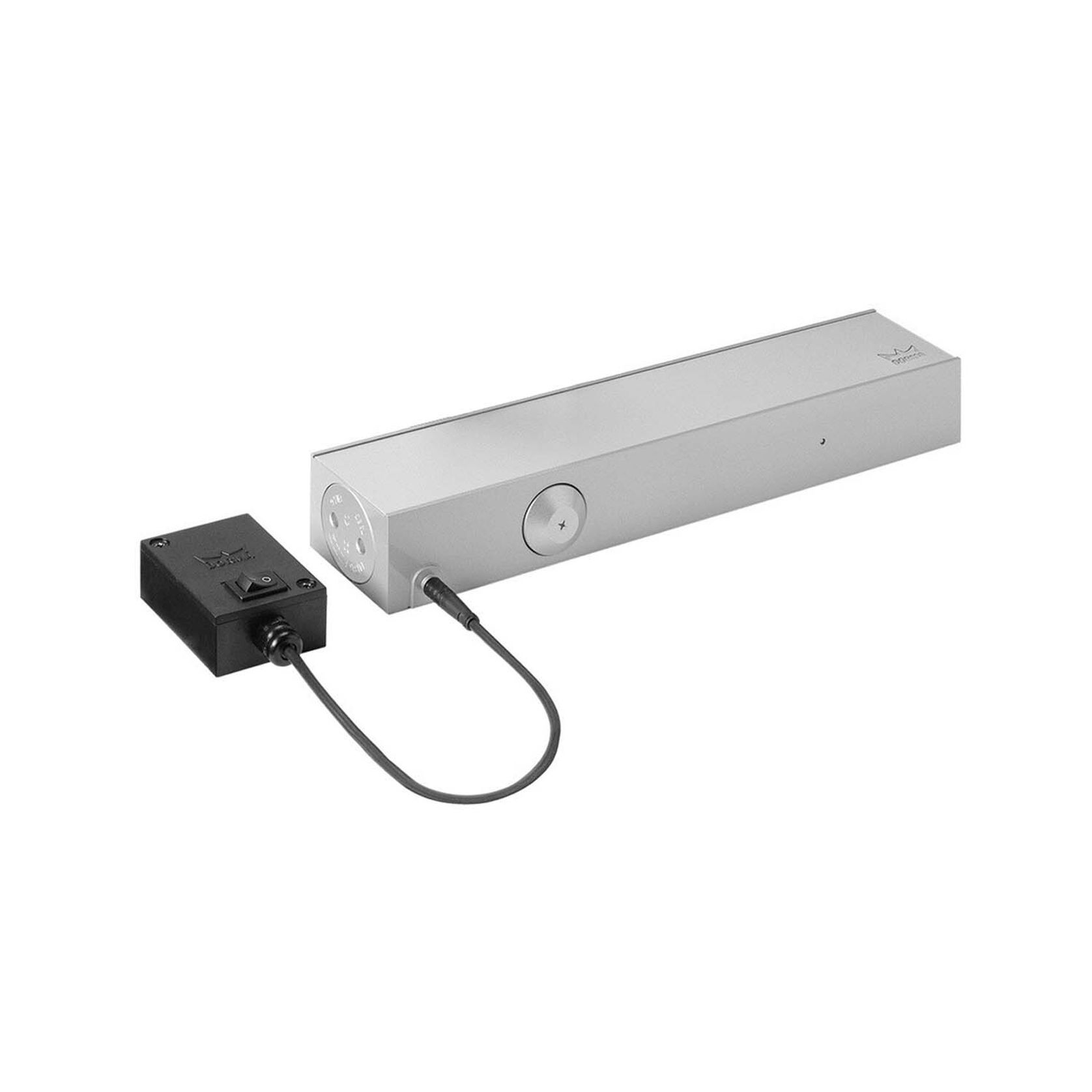

Dorma TS73EMF EN4 Door Closer
53010101
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Combination of hydraulic door closer and electromagnetic hold-open unit.
- Hold-open of the door is performed under electromagnetic control.
- In the event of a fire, the door is reliably closed by the integral hydraulic closer. A closing cycle is also initiated by manual door operation or automatically in the event of a power failure.
Product Details
- Product
- Dorma TS73EMF EN4 Door Closer Electro Magnetic Hold Open Body Only 53010101
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dorma
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma TS73EMF EN4 Door Closer 53010101 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Combination of hydraulic door closer and electromagnetic hold-open unit.
- Hold-open of the door is performed under electromagnetic control.
- In the event of a fire, the door is reliably closed by the integral hydraulic closer. A closing cycle is also initiated by manual door operation or automatically in the event of a power failure.
- Specs
Features:
- Suitable for fire doors
- Input voltage is 24VDC
- Power input max is 2 volts
- Closing speed adjustable by valve and latching speed is adjustable by arm.
- Free selection of the hold open point (opening angles over 75°) is variable at any time without the need for adjustment of setting controls.
- Body Only

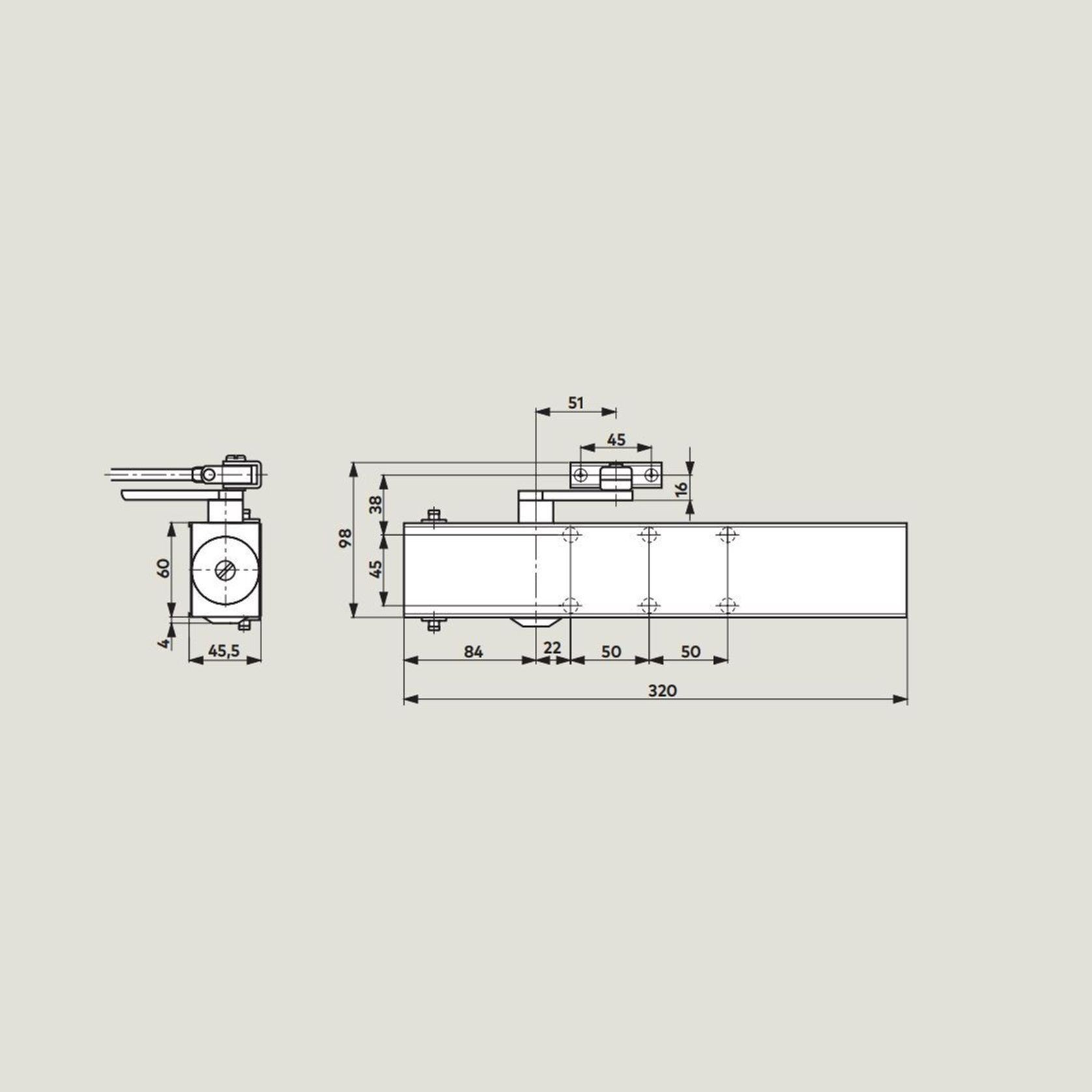

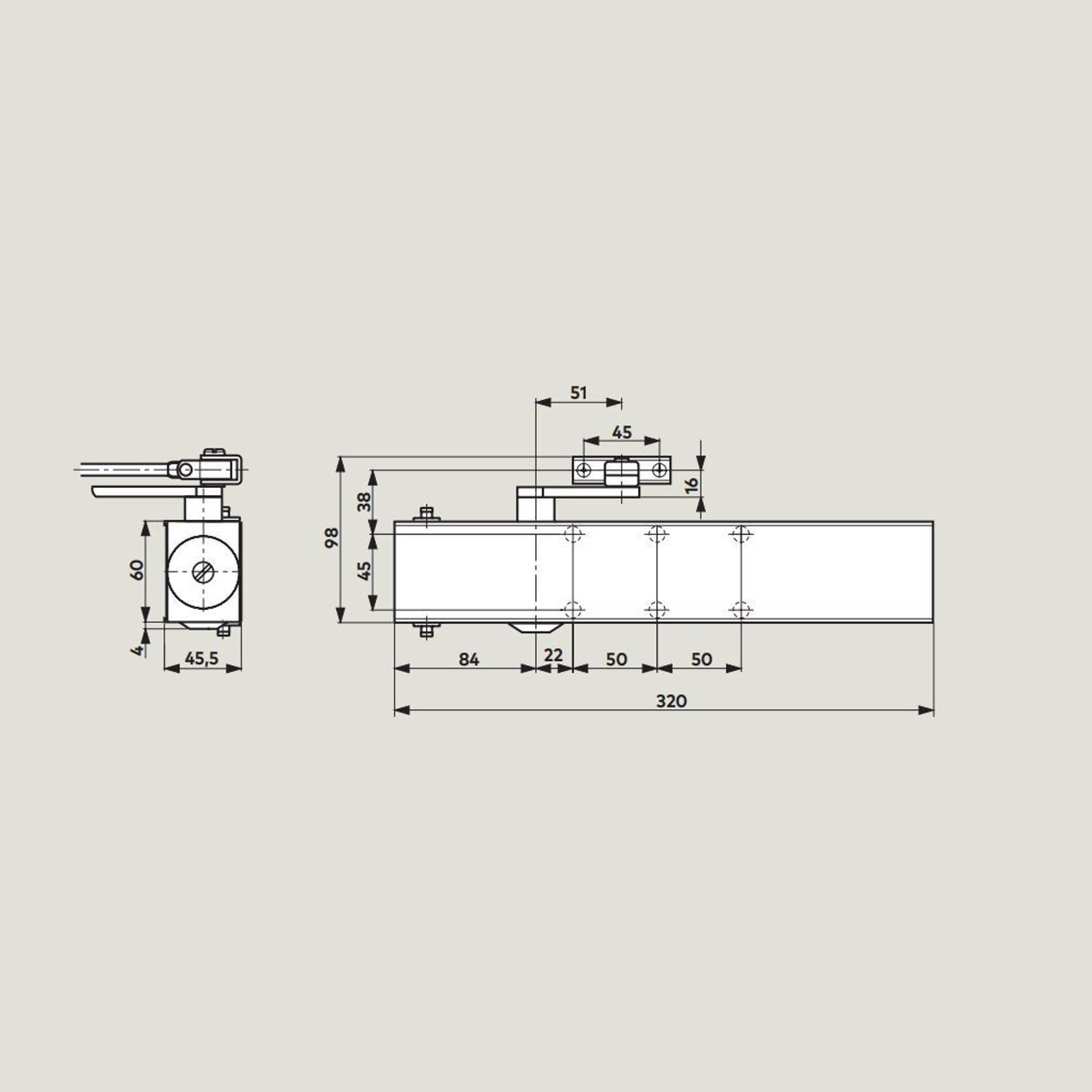

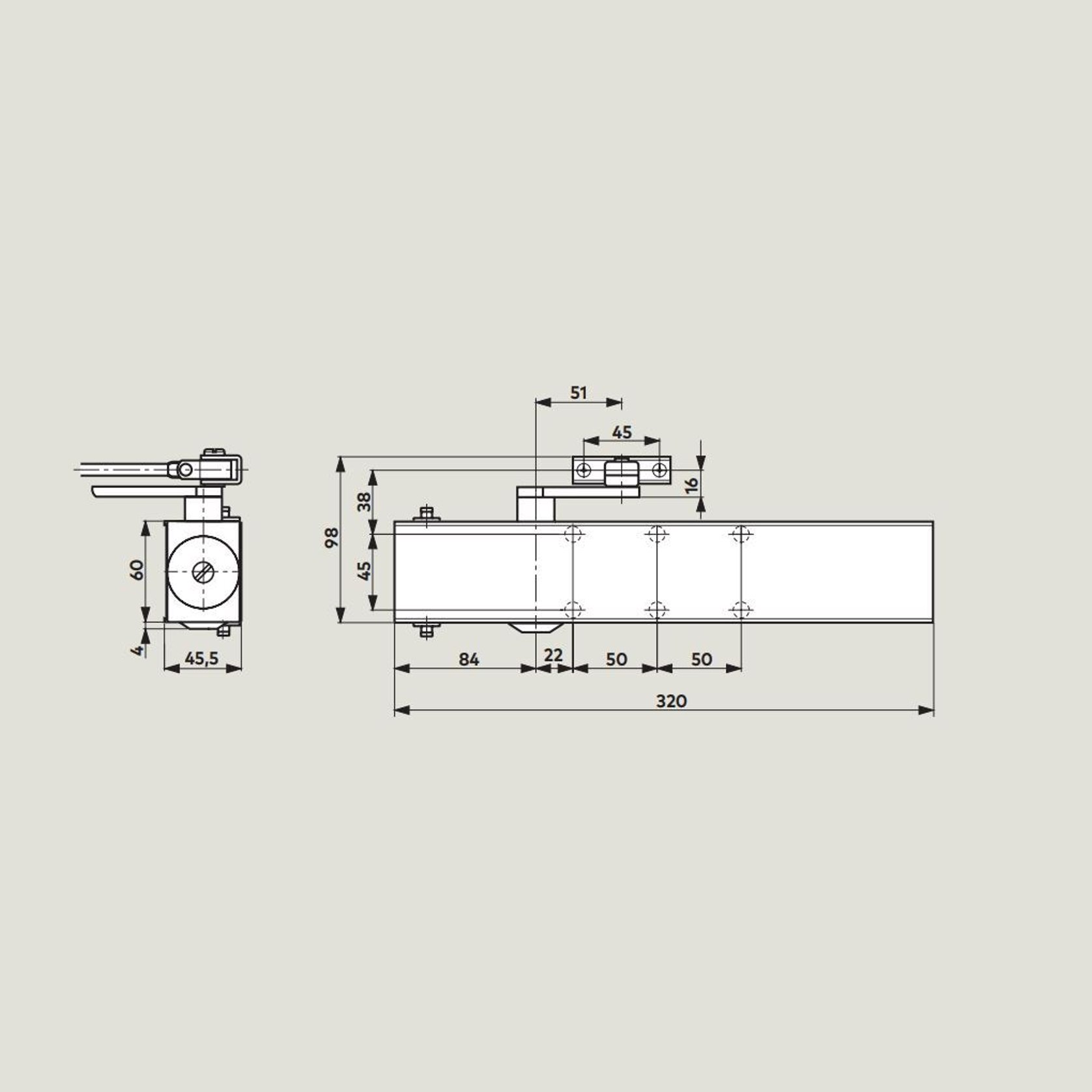

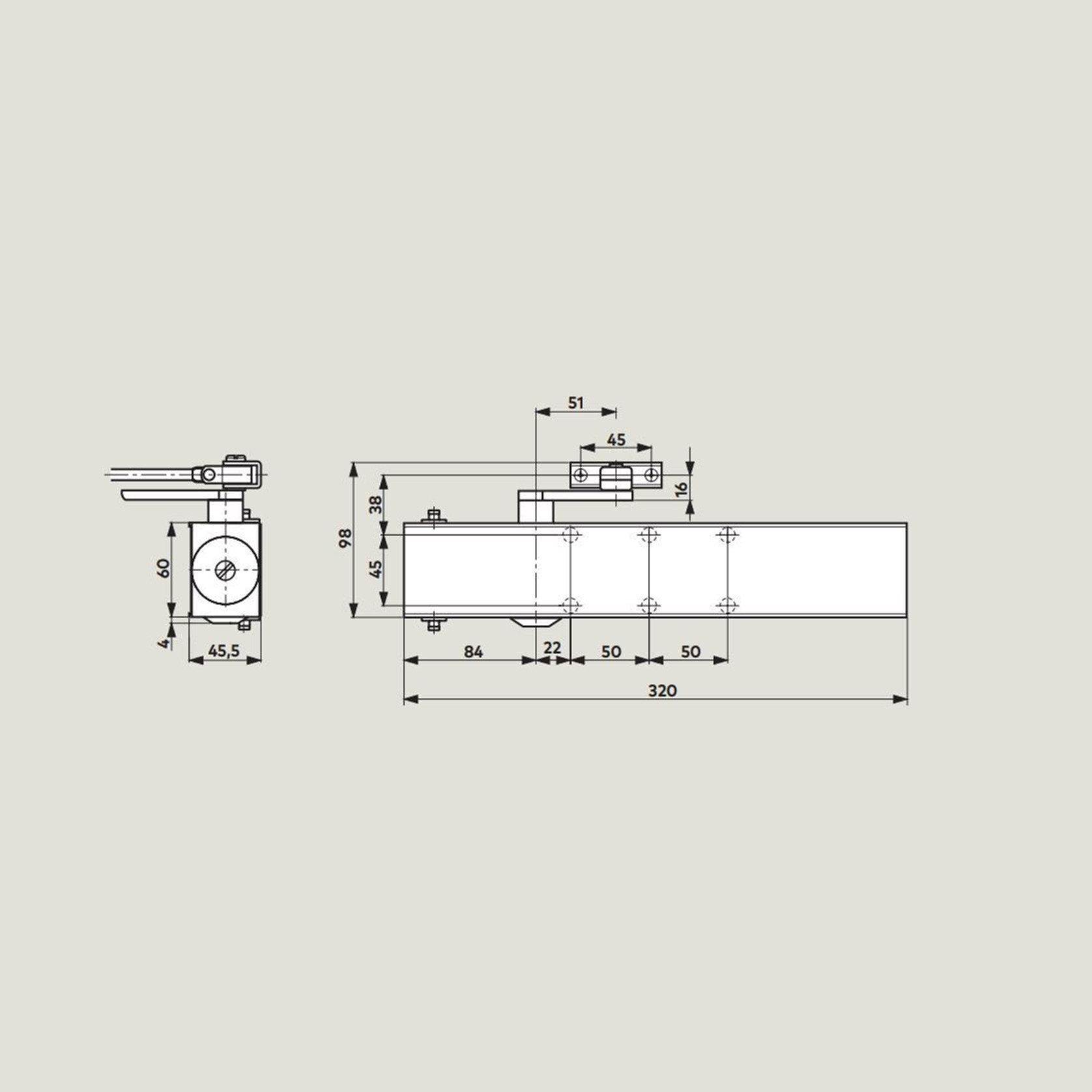

Specifications:
- Spring Strenght: EN4
- Max Door Width: 1100mm
- Operating Voltage: 24V DC
- Type: Standard Fix
- Length: 320mm
- Width: 45.5mm
- Height: 60mm
- Finish: Silver
Certification:
- CE Marked
- CERTIFIRE approved for fire doors: ITT120 MM/IMM240
- BSI approved BS EN1155
