Dorma TS83 EN3-6 Door Closer Fire Rated Gold 38020802

Wetherill Park, Australia

993.3K profile views
51 saves

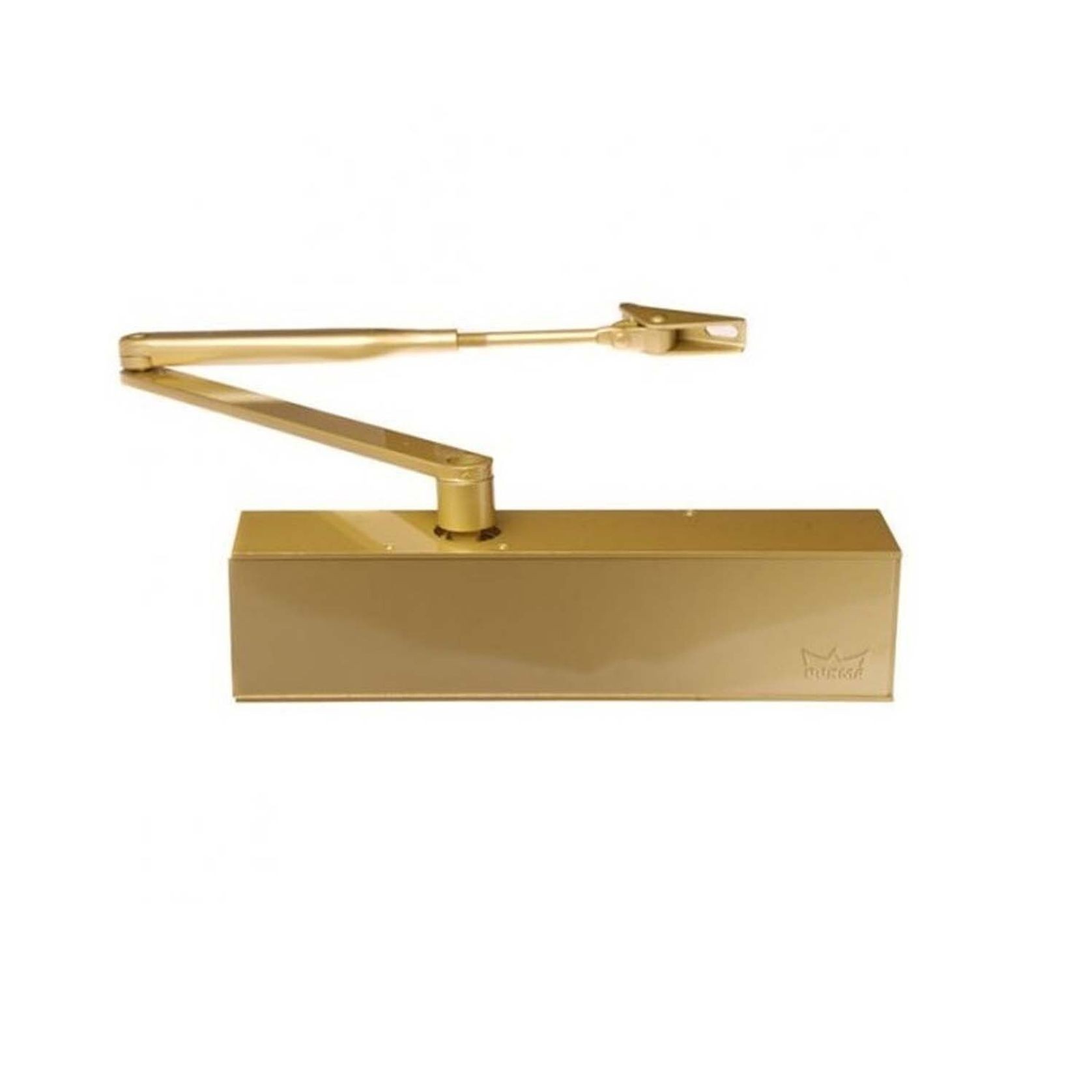

Dorma TS83 EN3-6 Door Closer
38020802

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Non-handed closer suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment
Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm
Backcheck is self-regulating or adjustable by valve and delayed action is also adjustable

Tags

overhead mount fire doors adjustable commercial interior doors

Product Details

Product: Dorma TS83 EN3-6 Door Closer Fire Rated Gold 38020802
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(34) Professionals

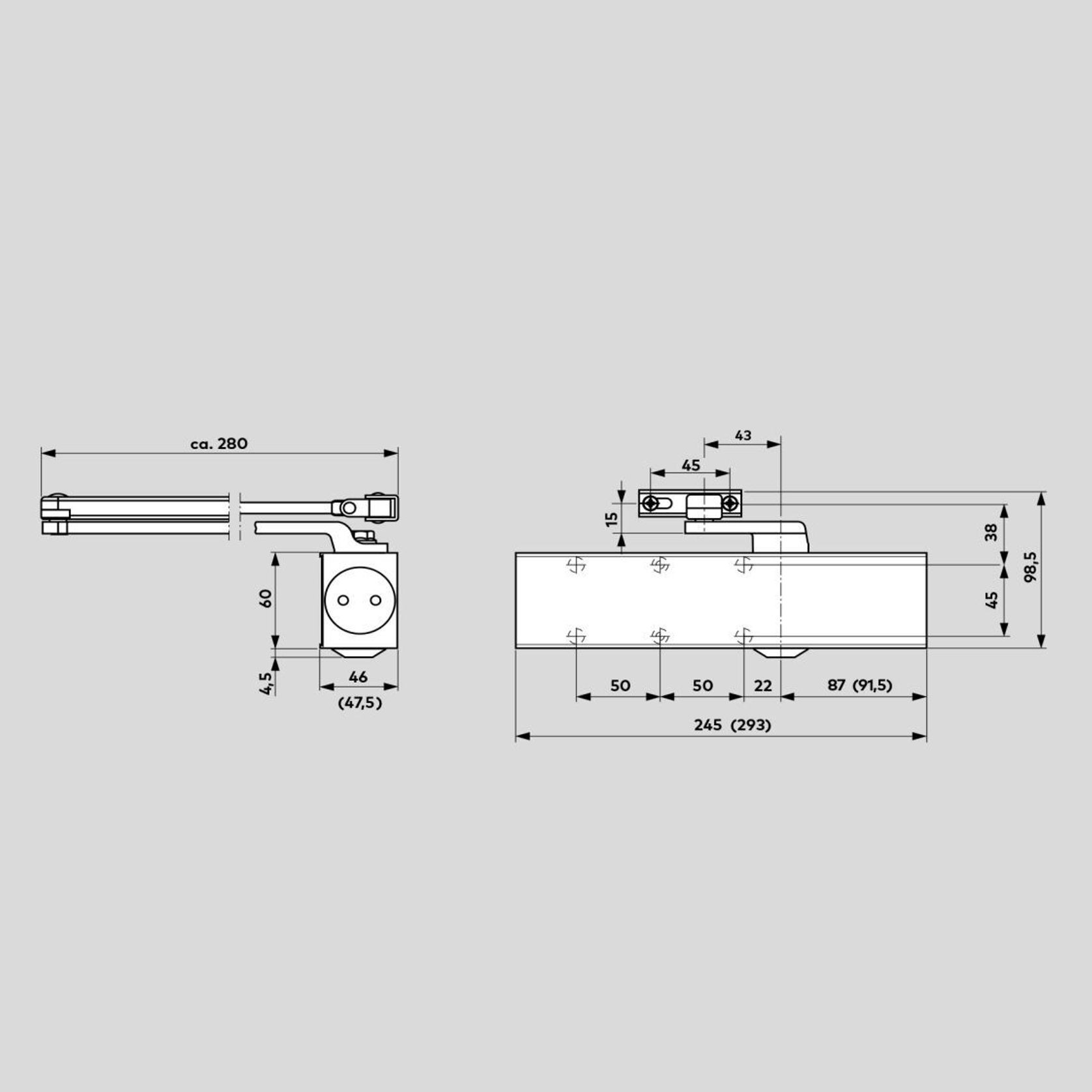

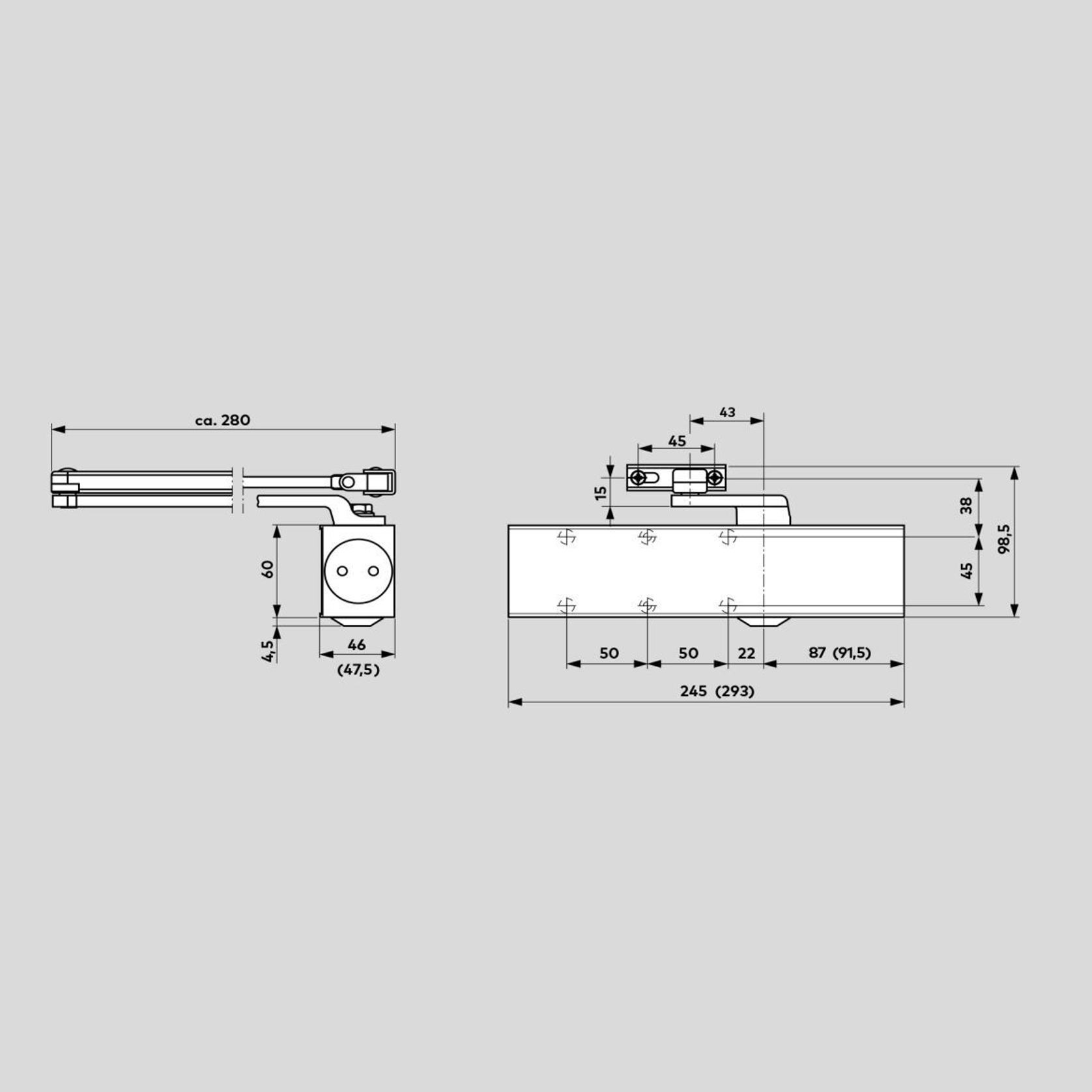

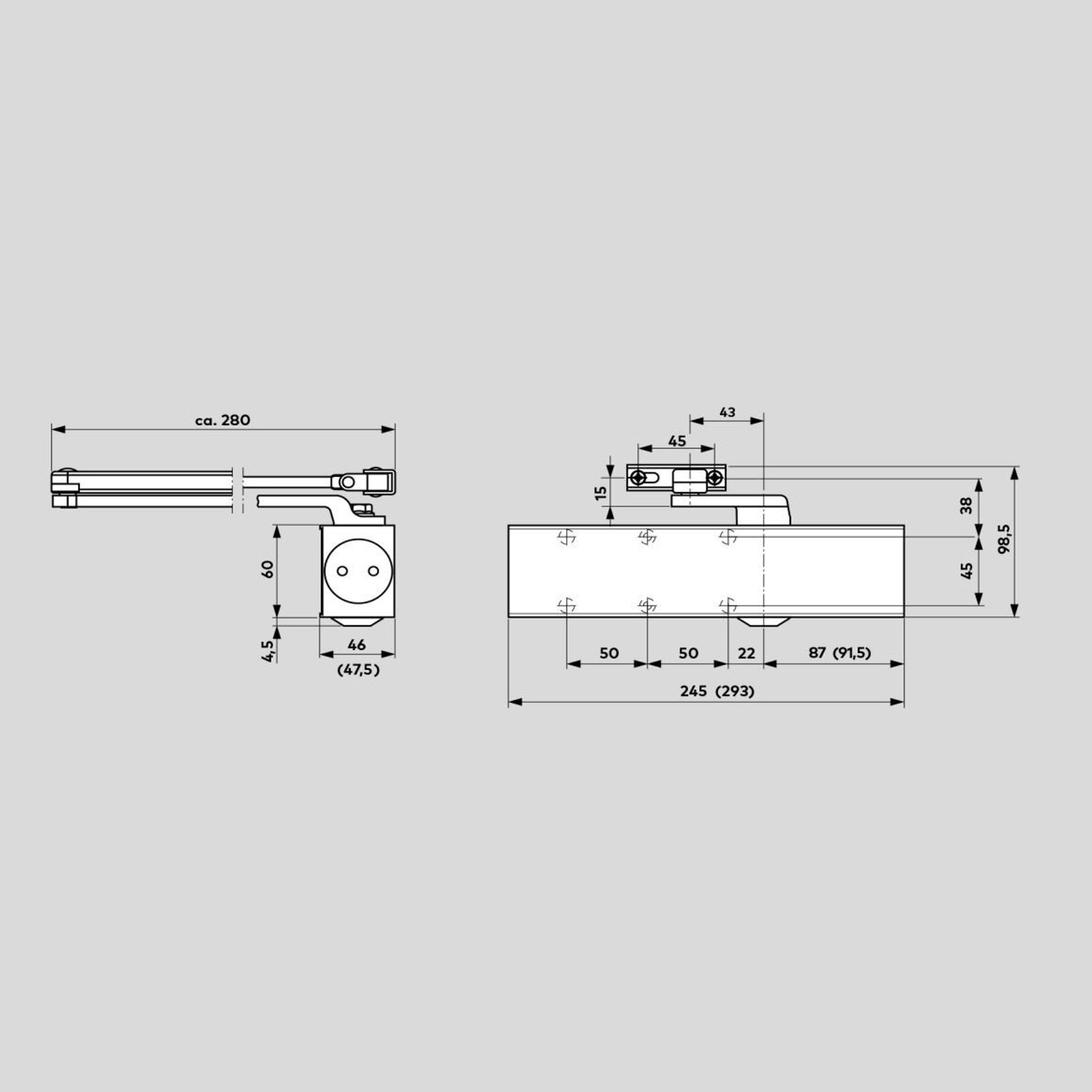

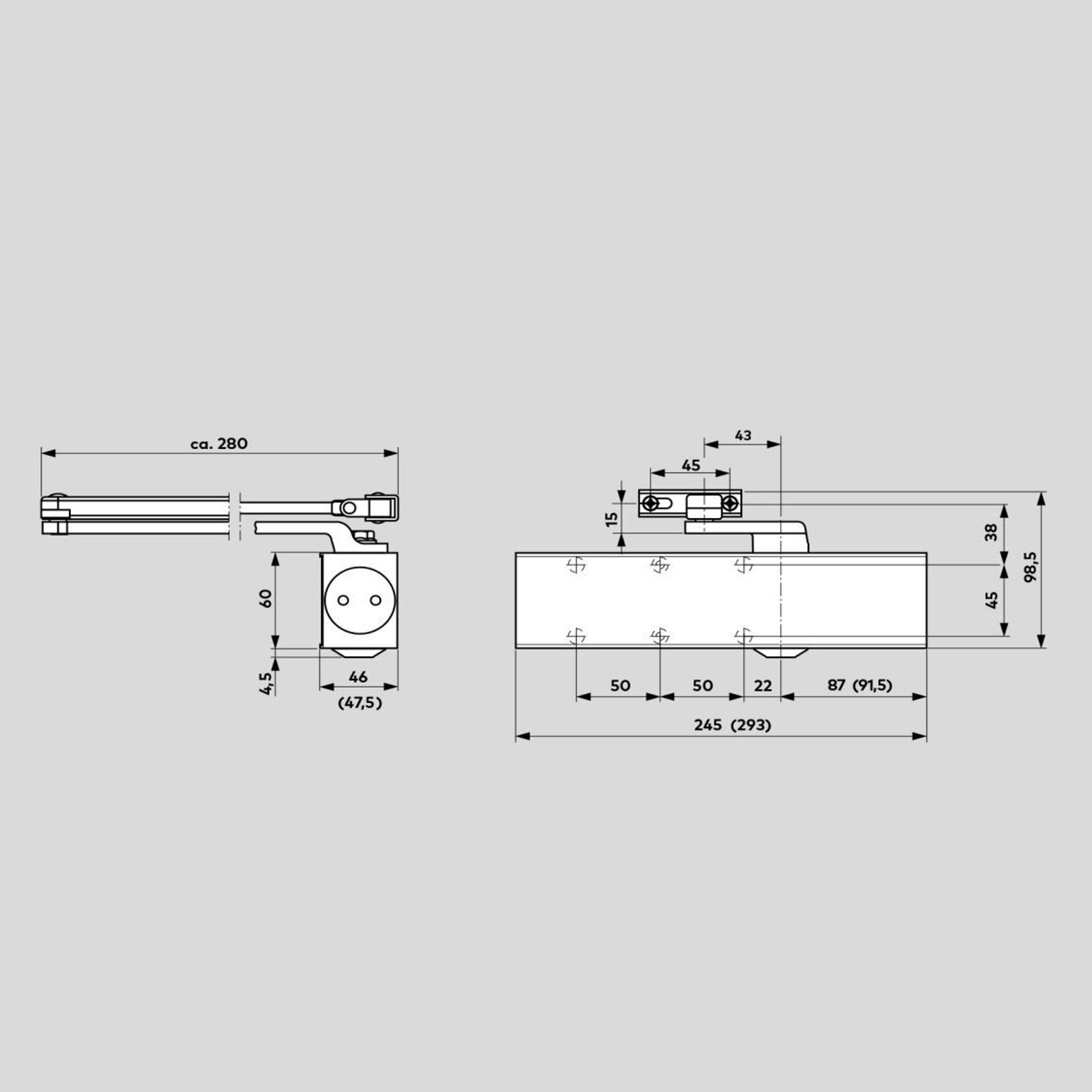

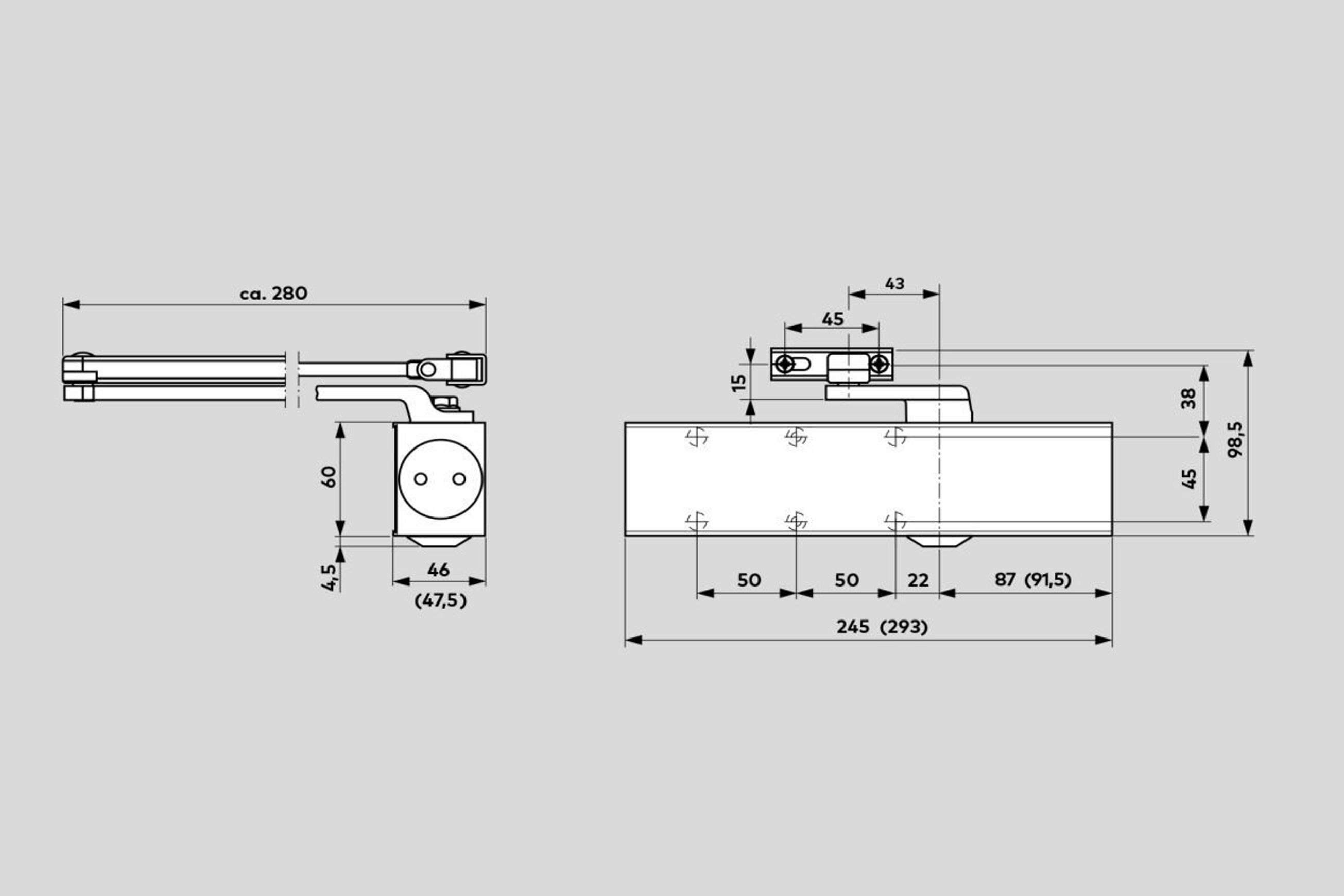

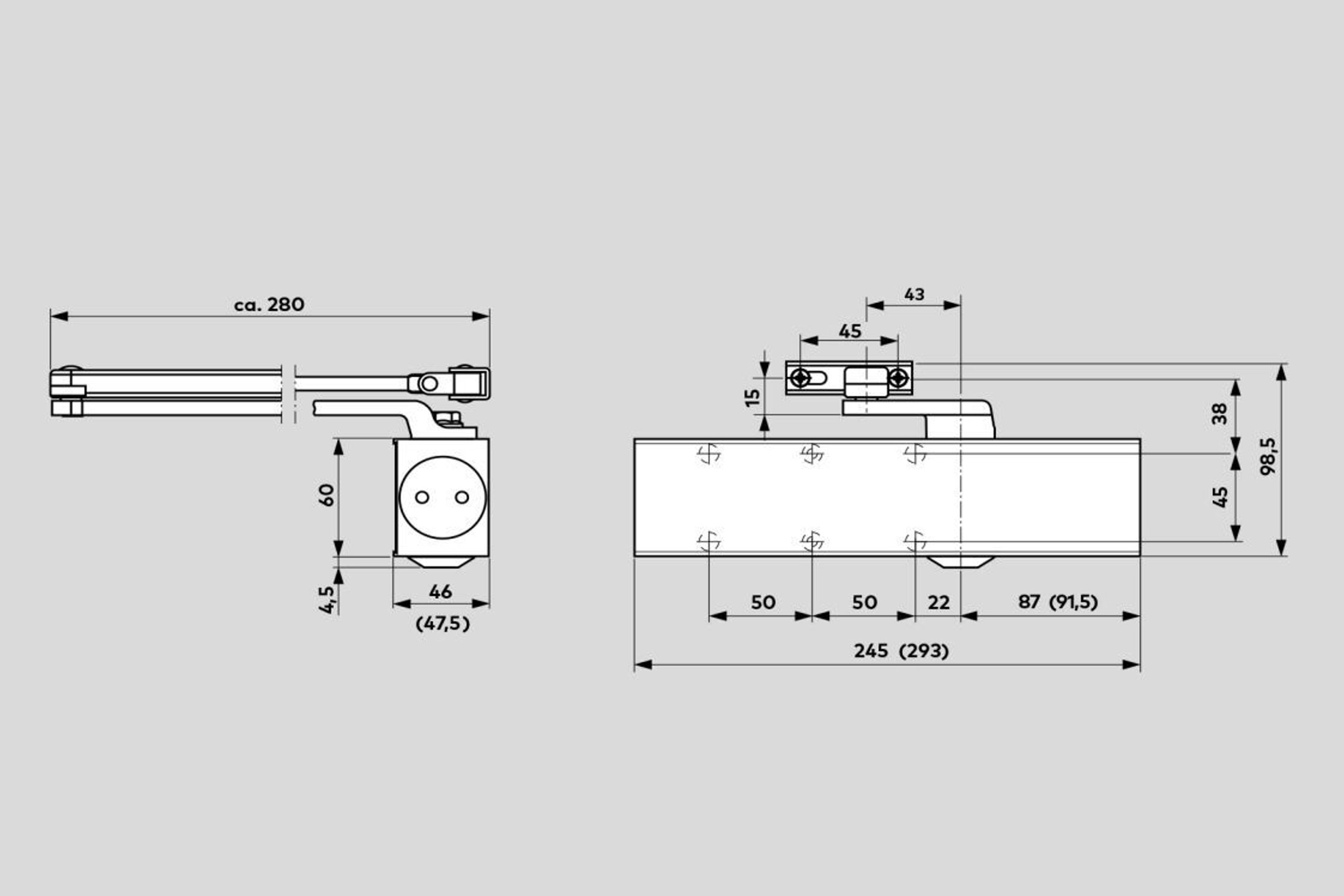

Dorma TS83 EN3-6 Door Closer Fire Rated Gold 38020802 dimensions

Visit site

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Non-handed closer suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm Backcheck is self-regulating or adjustable by valve and delayed action is also adjustable

Dorma TS83 EN3-6 Door Closer 38020802 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Non-handed closer suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment
Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm
Backcheck is self-regulating or adjustable by valve and delayed action is also adjustable

Specs

Features:

Suitable for fire doors
Suitable for standard doors installation up to 1400 mm
Regular door closer
Ideal for commercial applications
Overhead surface mounted door closer
Adjustable latching action by valve
Includes parallel arm bracket
Parallel arm mounting doors up to 950 mm
Flat-form arm assembly

Specifications:

Length: 245mm
Width: 46mm
Height: 60mm
Adjustable Closing Speed: Yes
Adjustable Latching Speed: Yes
Has Backcheck: Yes
Has Delay Action: Yes
Has Holdopen: No
Has Slide Arm: No
Parallel Arm Bracket Included: Yes
Spring Strength: EN3-6
Fire Rated: Yes
Finish: Gold

Fire Protection: CERTIFIRE approved for fire doors ITT;MM/IMM 240; Ref. CF 118
